slide1
False Discovery RateforFunctional NeuroimagingThomas NicholsDepartment of BiostatisticsUniversity of Michigan

With thanks to...

Christopher Genovese &

Nicole Lazar

Carnegie Mellon University

Keith Worlsey

McGill University

outline

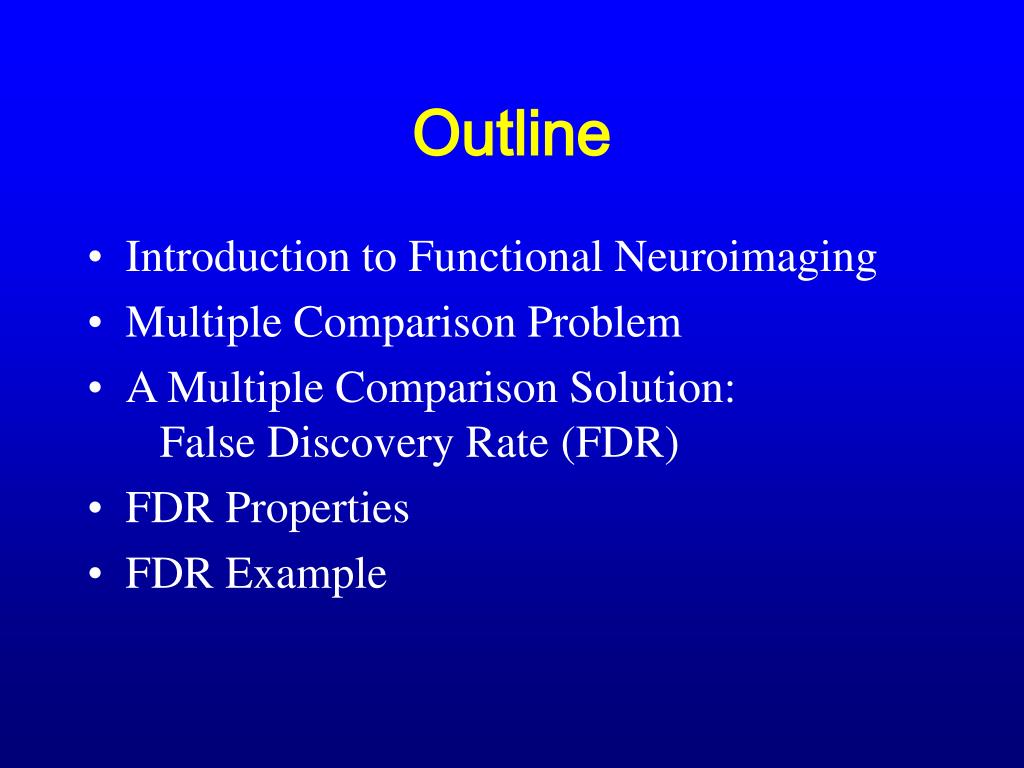

Outline
  • Introduction to Functional Neuroimaging
  • Multiple Comparison Problem
  • A Multiple Comparison Solution: False Discovery Rate (FDR)
  • FDR Properties
  • FDR Example
introduction functional neuroimaging

Tap fingers

Rest

Introduction:Functional Neuroimaging
  •  Neuronal Activity  Blood Flow
    • Many functional neuroimaging methods measurecorrelates of blood flow
  • Functional Magnetic Resonance Imaging (fMRI)
    • Based on intrinsic properties of tissue
    • Blood Oxygenation Level Dependent effect (BOLD)
    •  Blood flow  fMRI Signal
fmri multiple comparisons problem
fMRI Multiple Comparisons Problem

1,000

  • 4-Dimensional Data
    • 1,000 multivariate observations,each with 100,000 elements
    • 100,000 time series, each with 1,000 observations
  • Massively UnivariateApproach
    • 100,000 hypothesistests
  • Massive MCP!

. . .

3

2

1

solutions for multiple comparison problem
Solutions forMultiple Comparison Problem
  • A MCP Solution Must Control False Positives
    • How to measure multiple false positives?
  • Familywise Error Rate (FWER)
    • Chance of any false positives
    • Controlled by Bonferroni & Random Field Methods
  • False Discovery Rate (FDR)
    • Proportion of false positives among rejected tests
slide7

11.3%

11.3%

12.5%

10.8%

11.5%

10.0%

10.7%

11.2%

10.2%

9.5%

6.7%

10.5%

12.2%

8.7%

10.4%

14.9%

9.3%

16.2%

13.8%

14.0%

Control of Per Comparison Rate at 10%

Percentage of Null Pixels that are False Positives

Control of Familywise Error Rate at 10%

FWE

Occurrence of Familywise Error

Control of False Discovery Rate at 10%

Percentage of Activated Pixels that are False Positives

benjamini hochberg procedure

p(i) i/V q/c(V)

Benjamini & Hochberg Procedure
  • Select desired limit q on E(FDR)
  • Order p-values, p(1)p(2) ...  p(V)
  • Let r be largest i such that
  • Reject all hypotheses corresponding top(1), ... , p(r).

1

p(i)

p-value

i/V q/c(V)

0

0

1

i/V

JRSS-B (1995) 57:289-300

benjamini hochberg procedure9
Benjamini & Hochberg Procedure
  • c(V) = 1
    • Positive Regression Dependency on Subsets
      • Technical condition, special cases include
        • Independent data
        • Multivariate Normal with all positive correlations
      • Result by Benjamini & Yekutieli, Annals of Statistics, in press.
  • c(V) = i=1,...,V 1/i log(V)+0.5772
    • Arbitrary covariance structure
benjamini hochberg varying signal extent

Signal Intensity 3.0

Signal Extent 1.0

Noise Smoothness 3.0

Benjamini & Hochberg:Varying Signal Extent

p = z =

1

benjamini hochberg varying signal extent11

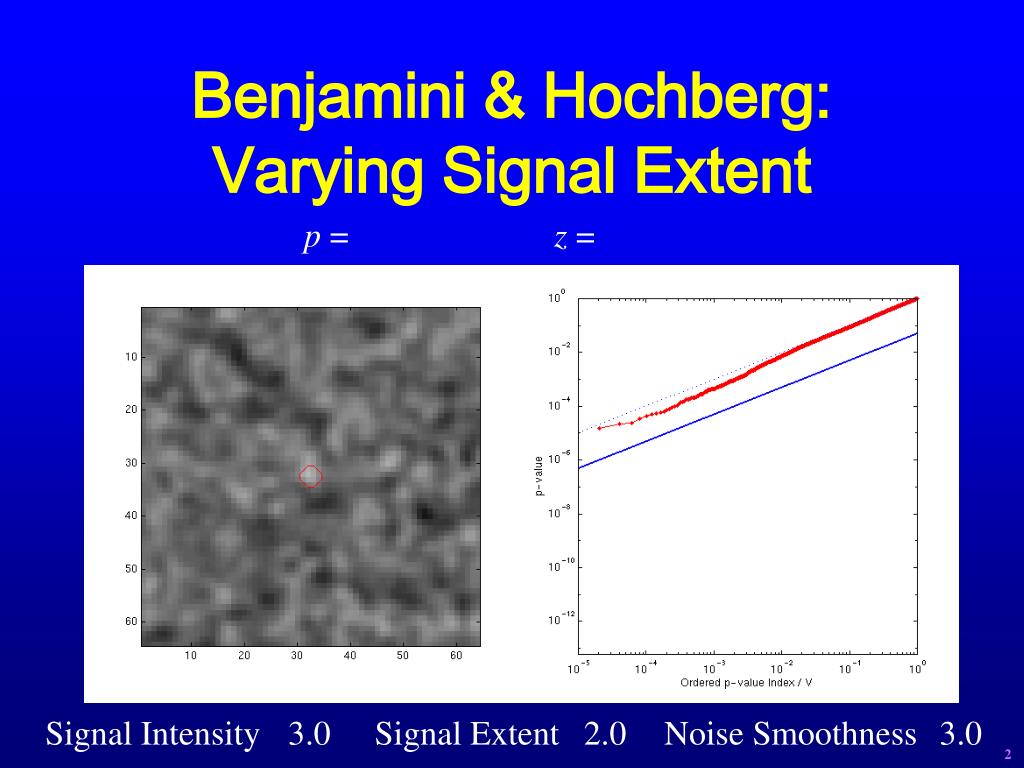

Signal Intensity 3.0

Signal Extent 2.0

Noise Smoothness 3.0

Benjamini & Hochberg:Varying Signal Extent

p = z =

2

benjamini hochberg varying signal extent12

Signal Intensity 3.0

Signal Extent 3.0

Noise Smoothness 3.0

Benjamini & Hochberg:Varying Signal Extent

p = z =

3

benjamini hochberg varying signal extent13

Signal Intensity 3.0

Signal Extent 5.0

Noise Smoothness 3.0

Benjamini & Hochberg:Varying Signal Extent

p = 0.000252 z = 3.48

4

benjamini hochberg varying signal extent14

Signal Intensity 3.0

Signal Extent 9.5

Noise Smoothness 3.0

Benjamini & Hochberg:Varying Signal Extent

p = 0.001628 z = 2.94

5

benjamini hochberg varying signal extent15

Signal Intensity 3.0

Signal Extent 16.5

Noise Smoothness 3.0

Benjamini & Hochberg:Varying Signal Extent

p = 0.007157 z = 2.45

6

benjamini hochberg varying signal extent16

Signal Intensity 3.0

Signal Extent 25.0

Noise Smoothness 3.0

Benjamini & Hochberg:Varying Signal Extent

p = 0.019274 z = 2.07

7

benjamini hochberg properties

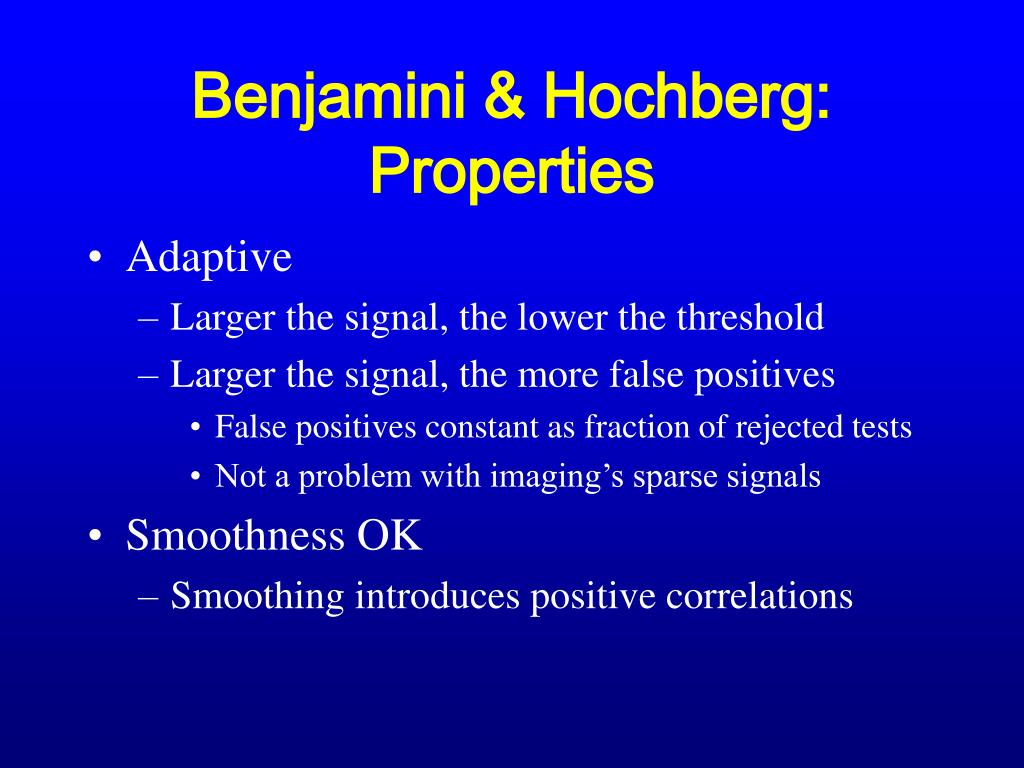

Benjamini & Hochberg: Properties
  • Adaptive
    • Larger the signal, the lower the threshold
    • Larger the signal, the more false positives
      • False positives constant as fraction of rejected tests
      • Not a problem with imaging’s sparse signals
  • Smoothness OK
    • Smoothing introduces positive correlations
fdr example
FDR: Example
  • Verbal fluency data
  • 14 42-second blocks
      • ABABAB...
      • A: Two syllable words presented aurally
      • B: Silence
  • Imaging parameters
    • 2Tesla scanner, TR = 7 sec
    • 84 64x64x64 images of 3 x 3 x 3 mm voxels
fdr example plot of fdr inequality

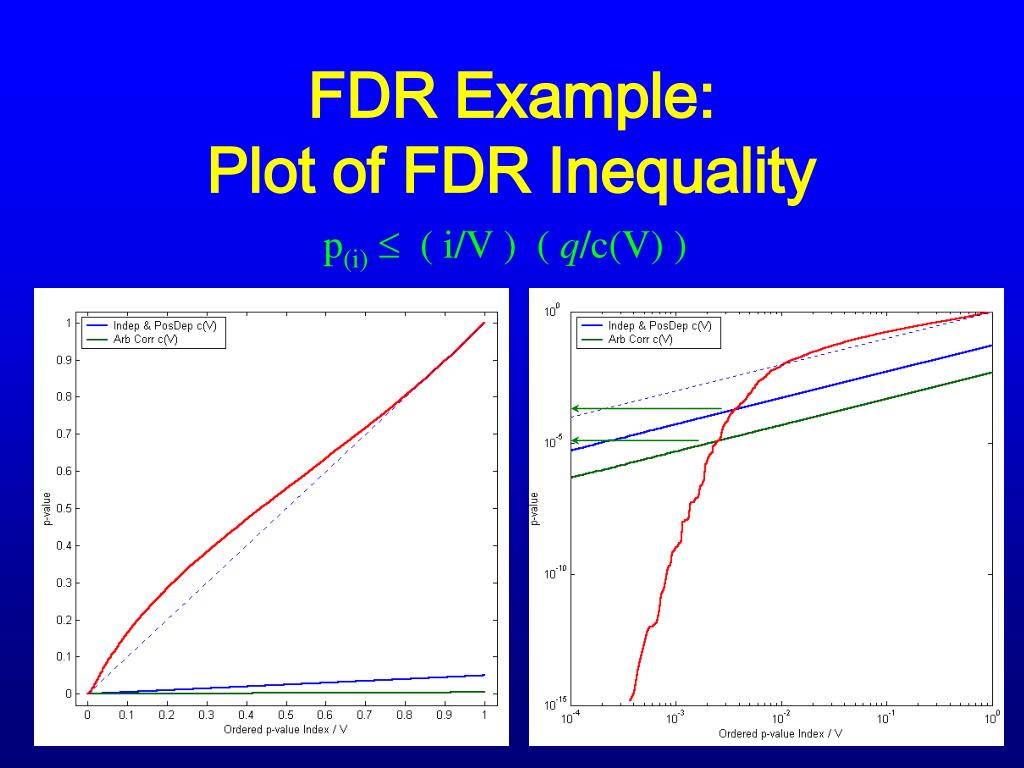

FDR Example:Plot of FDR Inequality

p(i) ( i/V ) ( q/c(V) )

fdr example20
FDR: Example

FDR  0.05Indep/PRDSt0 = 3.8119

FDR  0.05Arbitrary Cov.t0 = 5.0747

FWER  0.05Bonferronit0 = 5.485

fdr software for spm
FDR Software for SPM

http://www.sph.umich.edu/~nichols/FDR

fdr conclusions

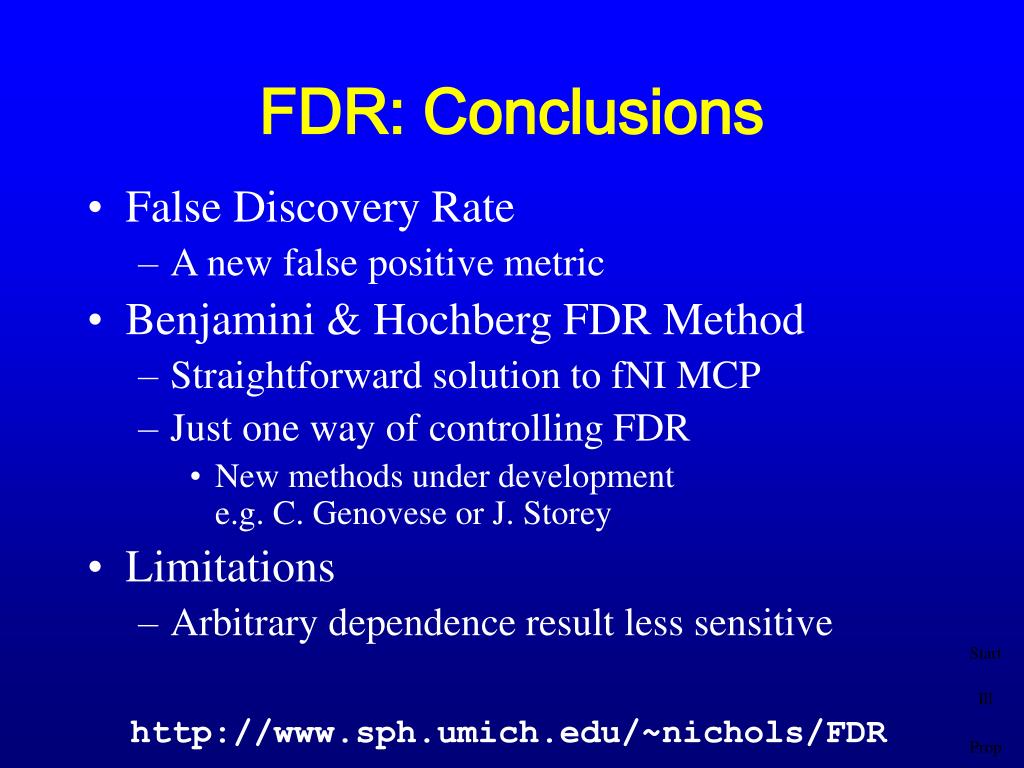

FDR: Conclusions
  • False Discovery Rate
    • A new false positive metric
  • Benjamini & Hochberg FDR Method
    • Straightforward solution to fNI MCP
    • Just one way of controlling FDR
      • New methods under developmente.g. C. Genovese or J. Storey
  • Limitations
    • Arbitrary dependence result less sensitive

Start

Ill

http://www.sph.umich.edu/~nichols/FDR

Prop

positive regression dependency
Positive Regression Dependency
  • Does fMRI data exhibit total positive correlation?
  • Example
    • 160 scan experiment
    • Spatialautocorrelationof residuals
    • Single voxelwith all others
  • Negative correlationexists!
