  1. TinySec: Security for TinyOS C. Karlof, N. Sastry, D. Wagner November 20, 2002

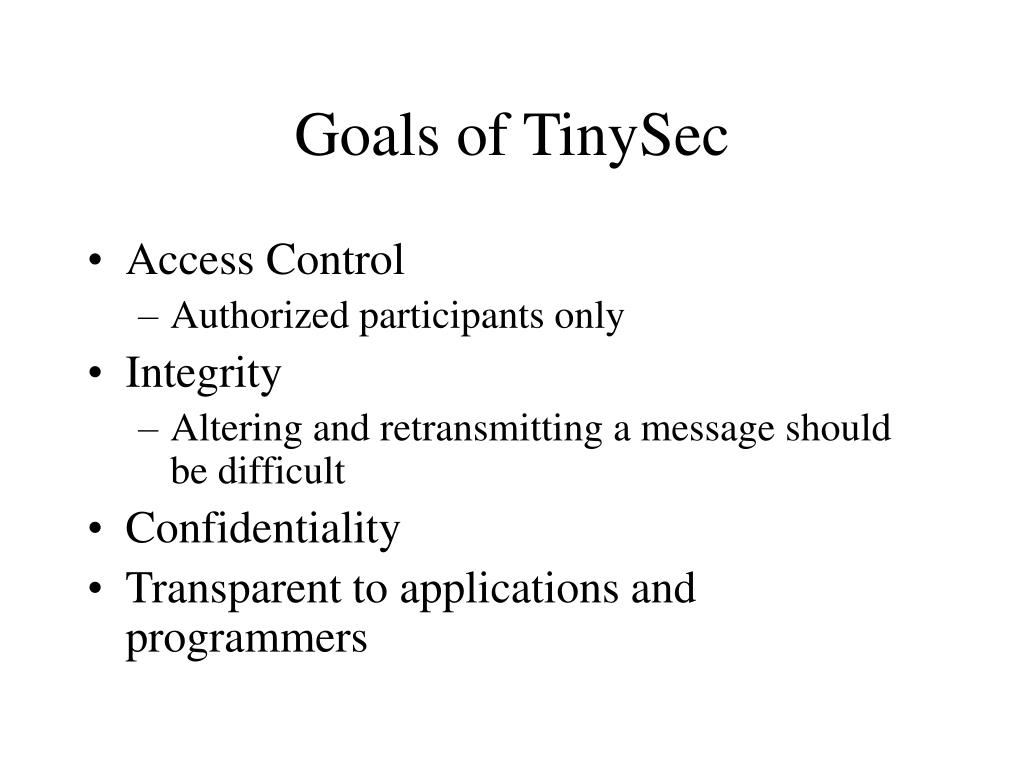

  2. Goals of TinySec • Access Control • Authorized participants only • Integrity • Altering and retransmitting a message should be difficult • Confidentiality • Transparent to applications and programmers

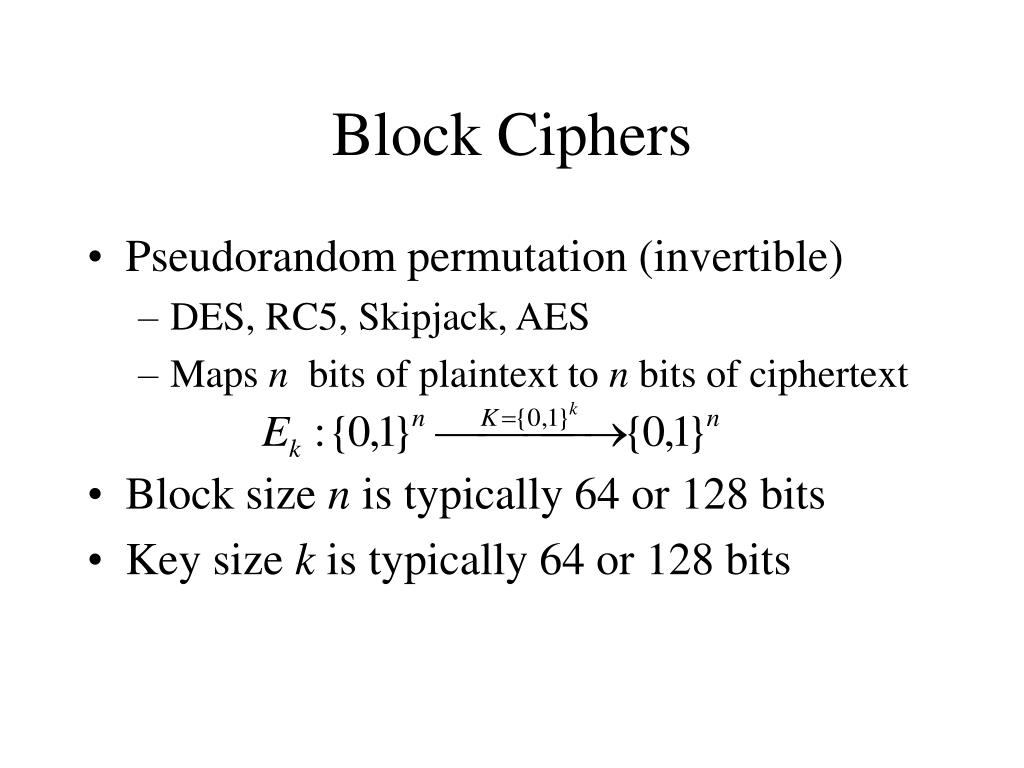

  3. Block Ciphers • Pseudorandom permutation (invertible) • DES, RC5, Skipjack, AES • Maps n bits of plaintext to n bits of ciphertext • Block size n is typically 64 or 128 bits • Key size k is typically 64 or 128 bits

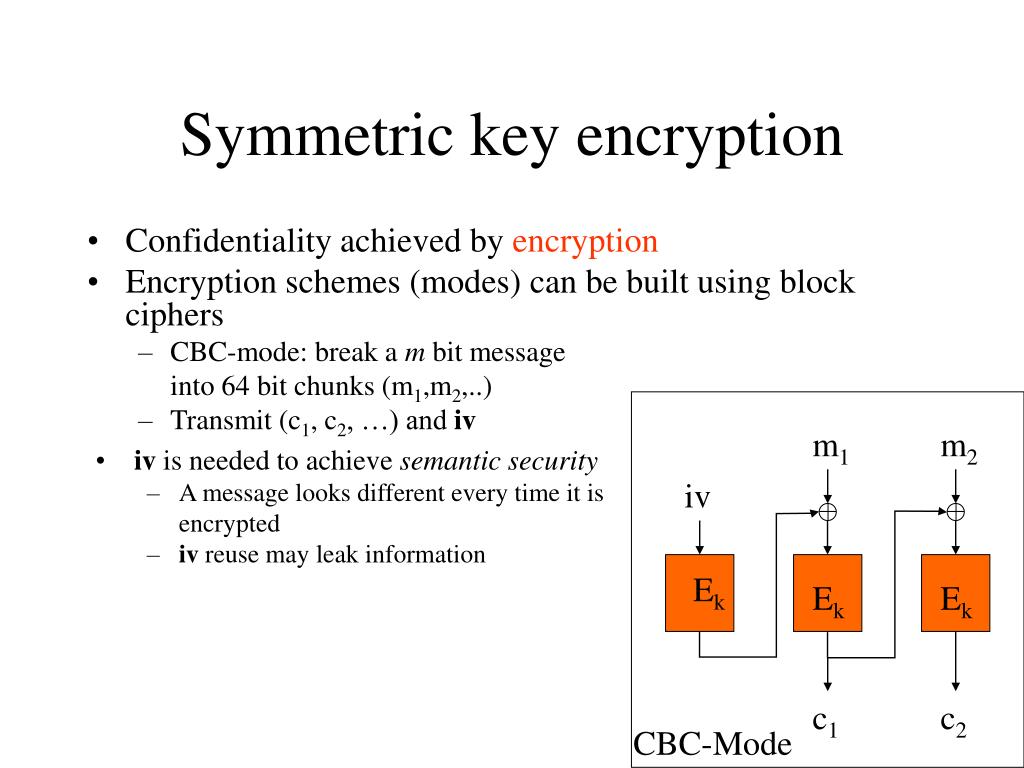

  4. m1 m2 iv Ek Ek Ek c1 c2 CBC-Mode Symmetric key encryption • Confidentiality achieved by encryption • Encryption schemes (modes) can be built using block ciphers • CBC-mode: break a m bit message into 64 bit chunks (m1,m2,..) • Transmit (c1, c2, …) and iv • iv is needed to achieve semantic security • A message looks different every time it is • encrypted • iv reuse may leak information

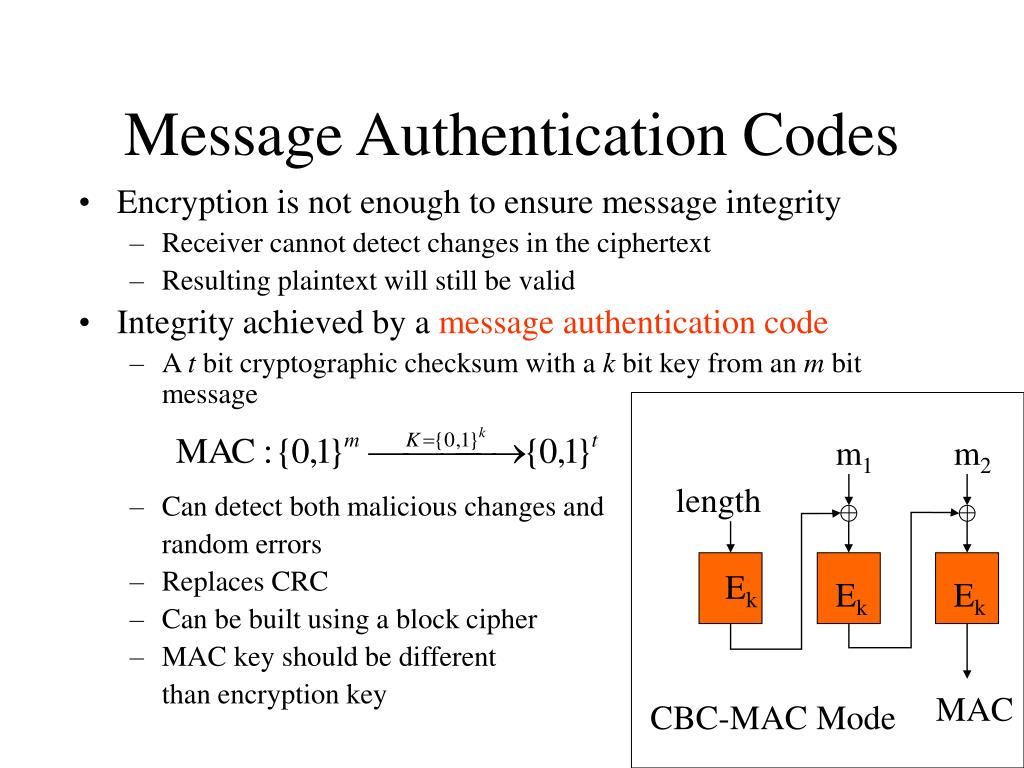

  5. Message Authentication Codes • Encryption is not enough to ensure message integrity • Receiver cannot detect changes in the ciphertext • Resulting plaintext will still be valid • Integrity achieved by a message authentication code • A t bit cryptographic checksum with a k bit key from an m bit message • Can detect both malicious changes and random errors • Replaces CRC • Can be built using a block cipher • MAC key should be different than encryption key m1 m2 length Ek Ek Ek MAC CBC-MAC Mode

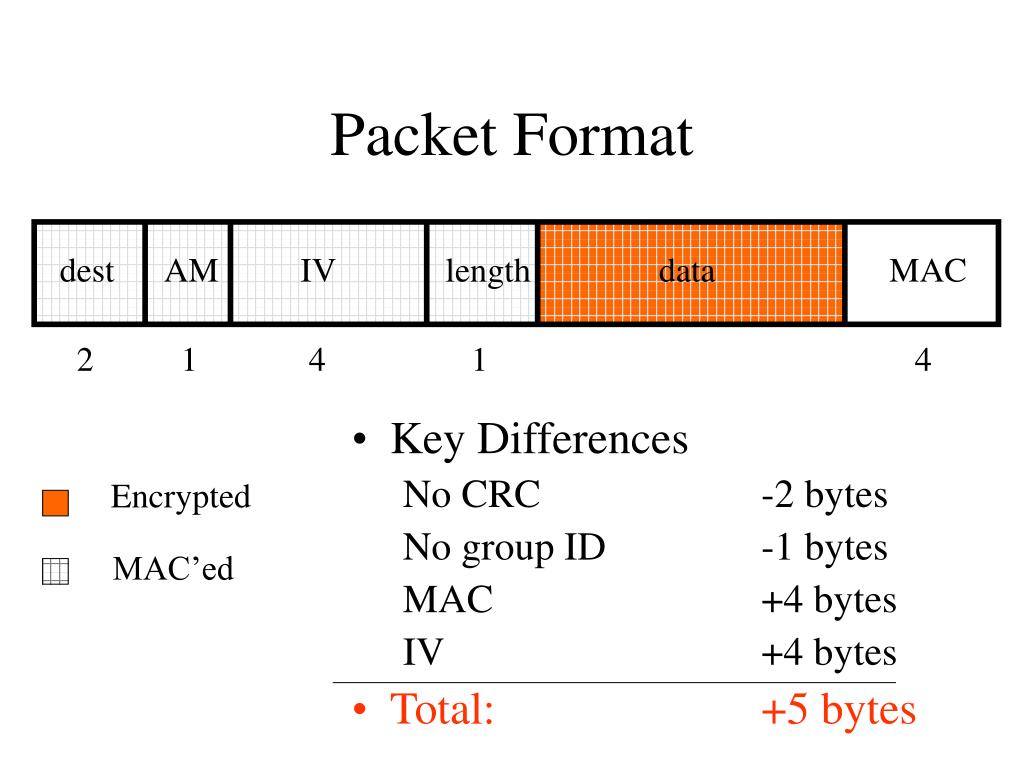

  6. dest AM IV length data MAC 2 1 4 1 4 Encrypted MAC’ed Packet Format • Key Differences No CRC -2 bytes No group ID -1 bytes MAC +4 bytes IV +4 bytes • Total: +5 bytes

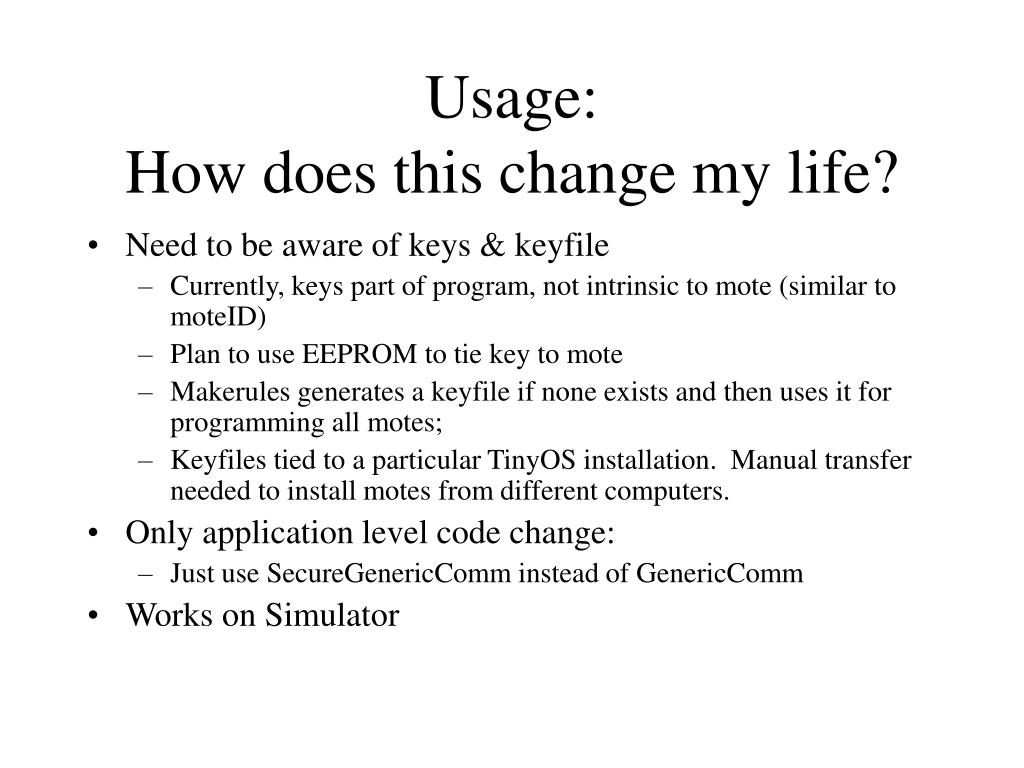

  7. Usage: How does this change my life? • Need to be aware of keys & keyfile • Currently, keys part of program, not intrinsic to mote (similar to moteID) • Plan to use EEPROM to tie key to mote • Makerules generates a keyfile if none exists and then uses it for programming all motes; • Keyfiles tied to a particular TinyOS installation. Manual transfer needed to install motes from different computers. • Only application level code change: • Just use SecureGenericComm instead of GenericComm • Works on Simulator

  8. Implications for reliable transport • CRC is replaced by MAC • CRC is lightweight, MAC computation is expensive (~1000 vs. ~10000 cycles for 24 byte packet) • MAC still detects errors, but computation must be completed in time for ACK transmission • For each 8 bytes received, a block cipher called is needed (~1750 cycles)  too expensive to run in SpiByteFifo event handler • Can’t run as a task: no real-time completion guarantees • Trick: Run synchronously in event handler with interrupts enabled • Like a preemptive priority scheduler that only TinySec can use (!!)

  9. Tradeoffs 1 • Early rejection • Still possible to reject based on dest or AM type • Question: Group ID provided weak access control; still needed? • Short packets are expensive • Min data size is 8 bytes (size of block cipher) • Restriction can be elminated with reduced security (run in stream cipher mode) • Question: Is this a good tradeoff? • Packet length not affected for more than 8 bytes of data

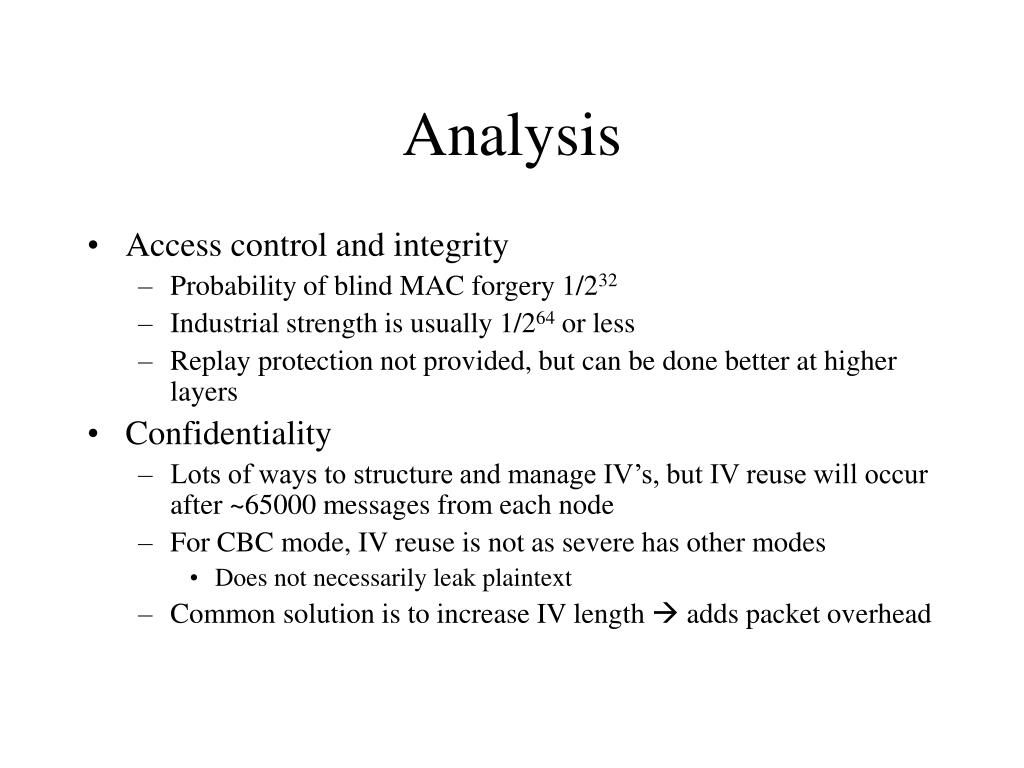

  10. Analysis • Access control and integrity • Probability of blind MAC forgery 1/232 • Industrial strength is usually 1/264 or less • Replay protection not provided, but can be done better at higher layers • Confidentiality • Lots of ways to structure and manage IV’s, but IV reuse will occur after ~65000 messages from each node • For CBC mode, IV reuse is not as severe has other modes • Does not necessarily leak plaintext • Common solution is to increase IV length  adds packet overhead

  11. Performance: RC5 Cipher

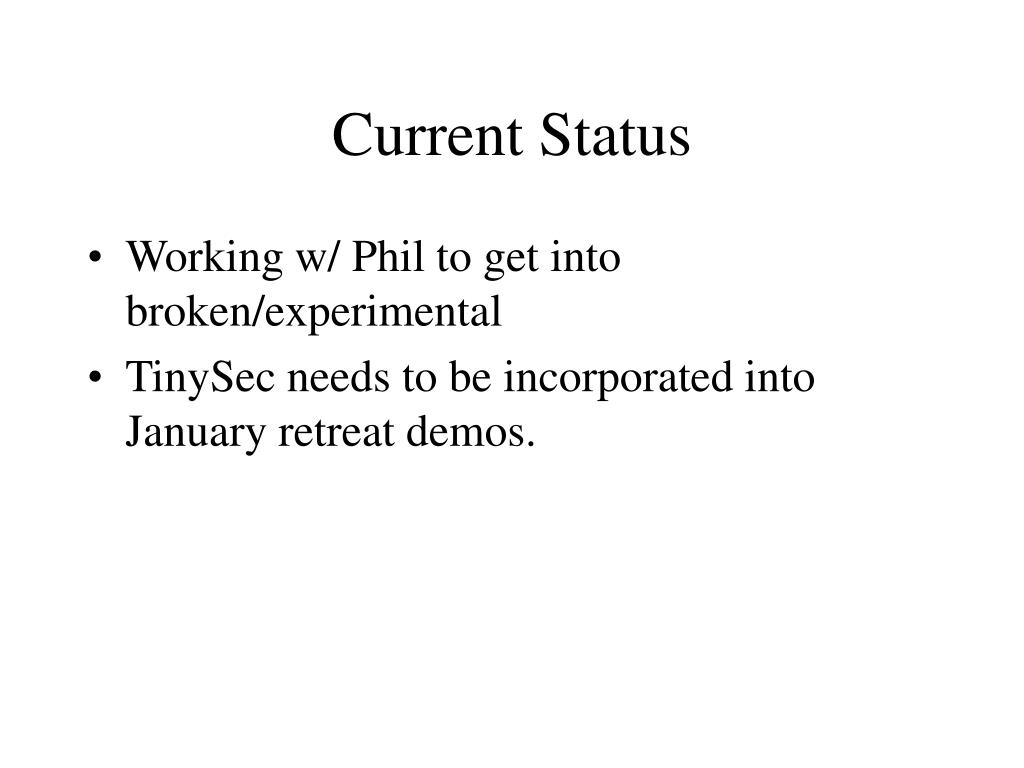

  12. Current Status • Working w/ Phil to get into broken/experimental • TinySec needs to be incorporated into January retreat demos.

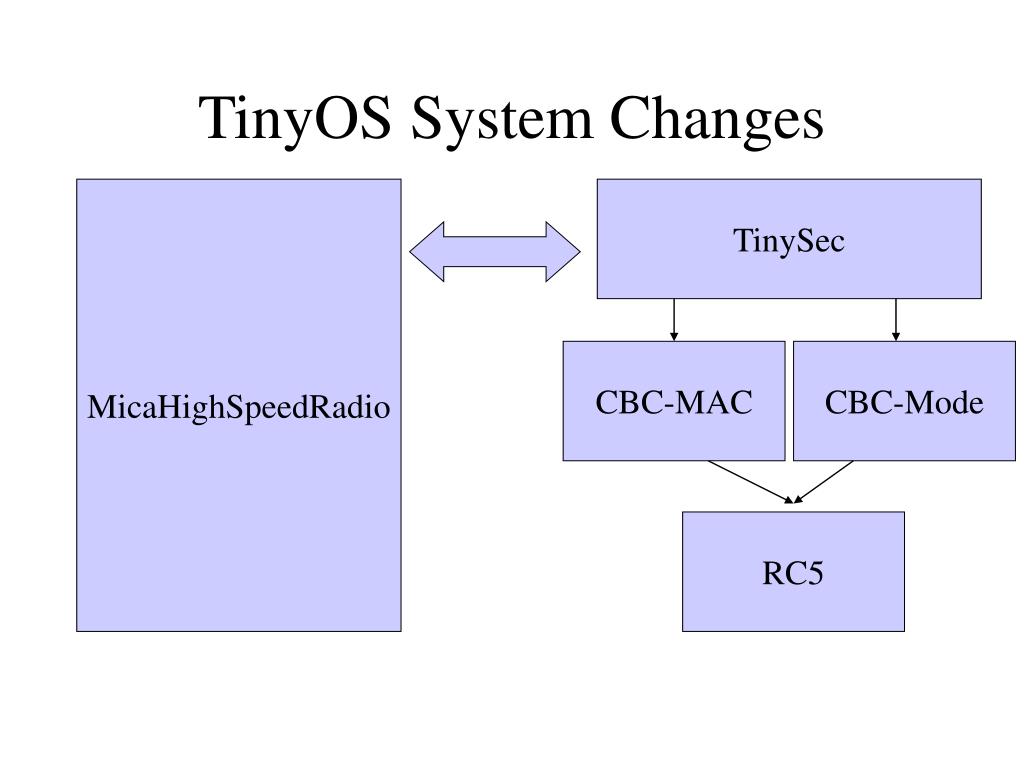

  13. TinyOS System Changes MicaHighSpeedRadio TinySec CBC-MAC CBC-Mode RC5

  14. src ID counter IV Tradeoffs 2: IV allocations • Most secure idea for IV: 2 2 • Counter must be persistent across reboot • Gives each sender ~65000 messages before IV is reused (worst case) • Question: src ID good for security (replay, IV)  useful for other things?
