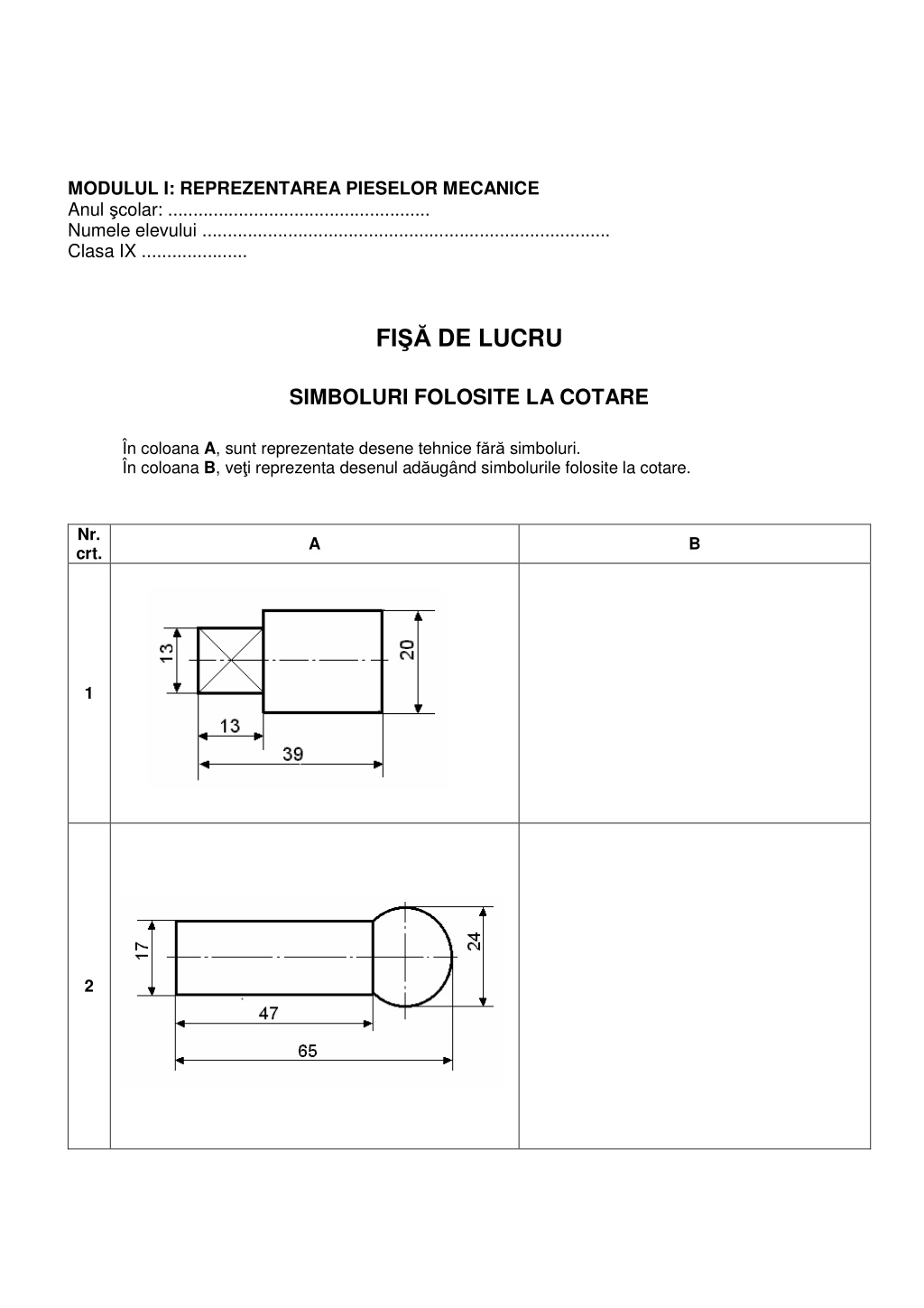

  1. MODULUL I: REPREZENTAREA PIESELOR MECANICE Anul şcolar: .................................................... Numele elevului ................................................................................. Clasa IX ..................... FIŞĂ DE LUCRU SIMBOLURI FOLOSITE LA COTARE În coloana A, sunt reprezentate desene tehnice fără simboluri. În coloana B, veţi reprezenta desenul adăugând simbolurile folosite la cotare. Nr. crt. A B 1 2

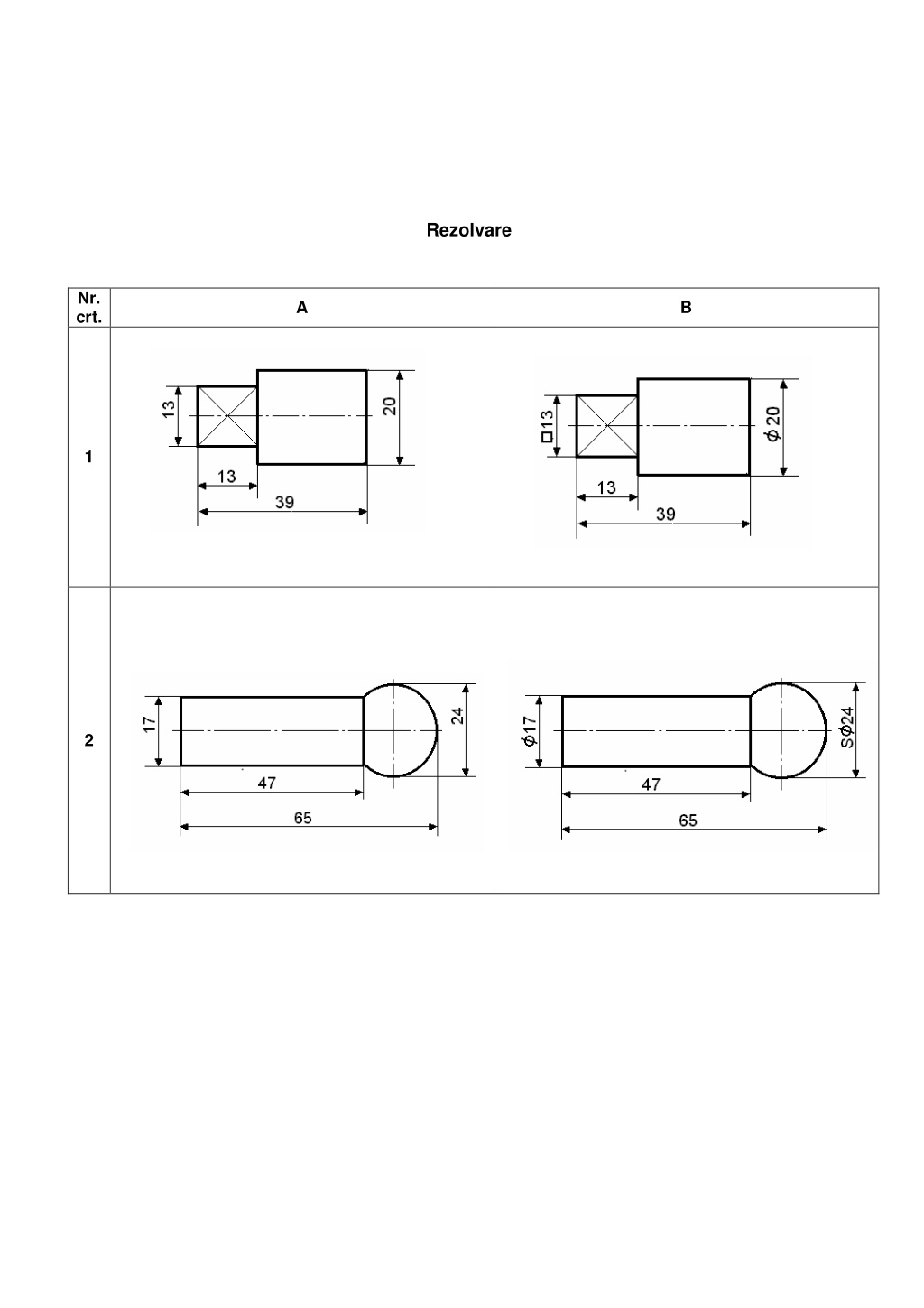

  2. Rezolvare Nr. crt. A B 1 2
