model driven rapid prototyping with umple

SCHOOL OF COMPUTING

QUEEN’S UNIVERSITY

Model-driven rapid prototyping with Umple

Andrew Forward, Omar Badreddin, Timothy C. Lethbridge, and Julian Solano

School of Electrical Engineering and Computer Science, University of Ottawa, K1N 6N5, Canada

SaadeldinMoustafa

saad@cs.queensu.ca

08/03/2013

outlines
Outlines
  • Introduction
  • Problem Definition
  • Umple Features
  • Model-Driven Software Development and its Challenges
  • Properties of Prototypes
  • Umple Modeling and Prototyping Approach
  • Class Diagram In Umple
  • Umple User-Interface Prototype Generator
  • State Machines in Umple
  • Mixins and Substitution
  • Umple’s Architecture
  • Conclusions
introduction

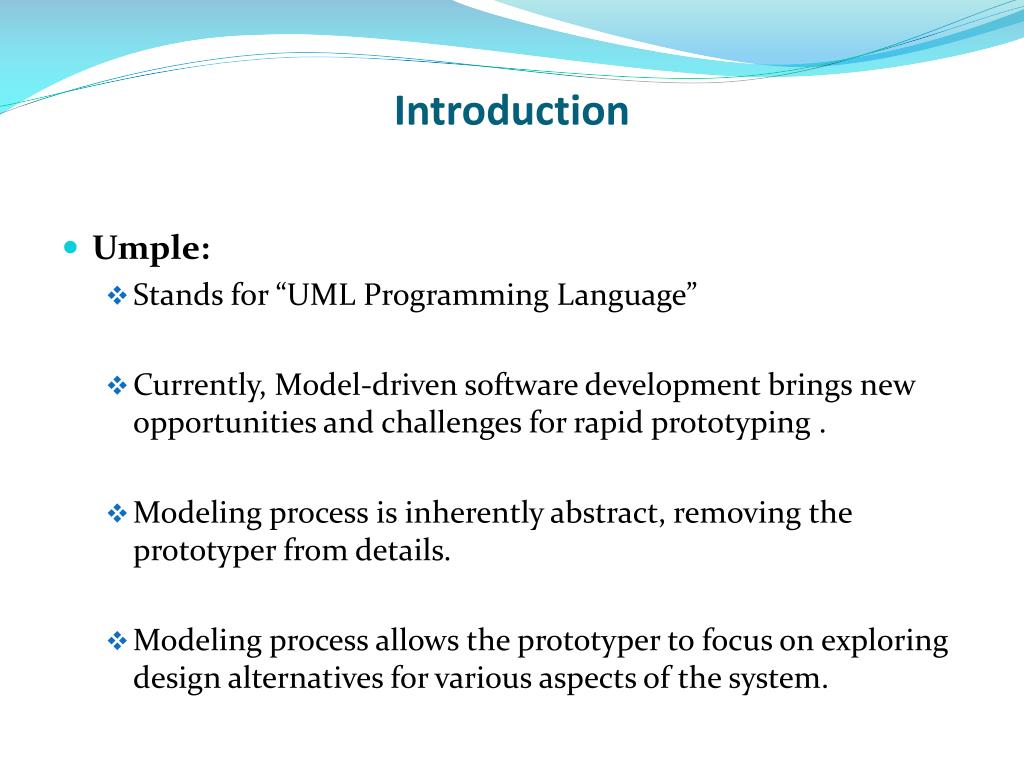

Introduction
  • Umple:
    • Stands for “UML Programming Language”
    • Currently, Model-driven software development brings new opportunities and challenges for rapid prototyping .
    • Modeling process is inherently abstract, removing the prototyper from details.
    • Modeling process allows the prototyper to focus on exploring design alternatives for various aspects of the system.
problem definition
Problem Definition
  • Most popular modeling languages and tools entirely omit the modeling and generating of user interfaces.
  • The benefit of user interface prototypes as a medium for interaction with the user and customer is lost.
model driven software development
Model-Driven Software Development
  • The philosophy of MDSD is that these models should be used to directly generate executable systems.
  • It should always be inherently possible to generate prototypes from a model.
mdsd challenges
MDSD Challenges
  • The most popular types of models are not intended for modeling the user interface.
  • Combining code generated from models with other necessary code is not easy.
  • There is a need to generate tangible artifacts and prototypes for business-domain stakeholders.
  • Software modellers often do not fully understand the consequences of their modeling decisions.
  • There are limitations in existing approaches to prototype generation from UML models.
umple features

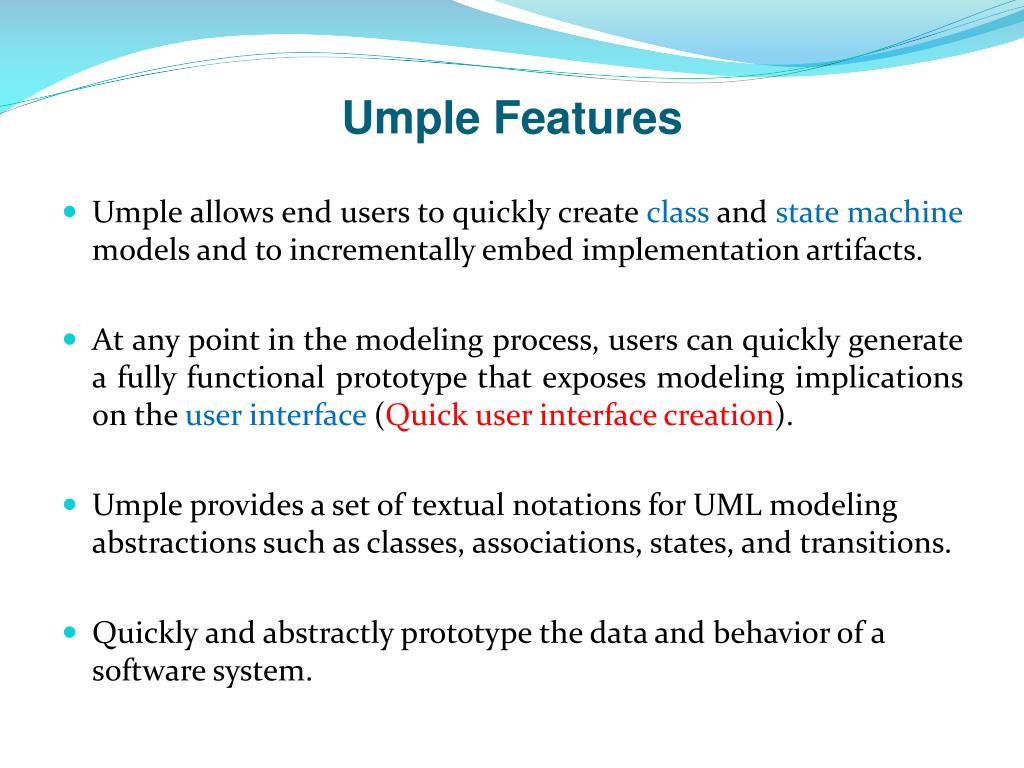

Umple Features
  • Umple allows end users to quickly create class and state machine models and to incrementally embed implementation artifacts.
  • At any point in the modeling process, users can quickly generate a fully functional prototype that exposes modeling implications on the user interface (Quick user interface creation).
  • Umple provides a set of textual notations for UML modeling abstractions such as classes, associations, states, and transitions.
  • Quickly and abstractly prototype the data and behavior of a software system.
umple features conti
Umple Features - conti
  • Umple can be embedded directly in several programming languages to reduce the amount of code required and speed up the programming process.
  • Umple provides a tool to allow editing of UML class diagrams in their graphical form.
  • Subsequent editing of the model can be performed textually or visually.
desirable properties of prototypes

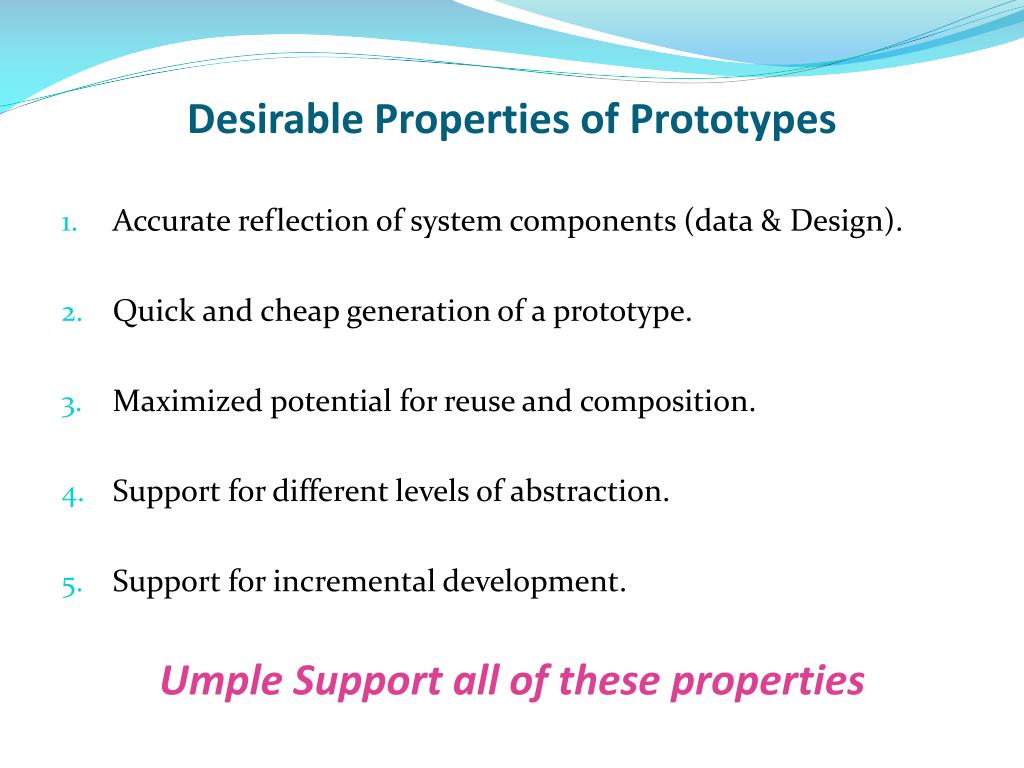

Desirable Properties of Prototypes
  • Accurate reflection of system components (data & Design).
  • Quick and cheap generation of a prototype.
  • Maximized potential for reuse and composition.
  • Support for different levels of abstraction.
  • Support for incremental development.

Umple Support all of these properties

umple modeling and prototyping approach

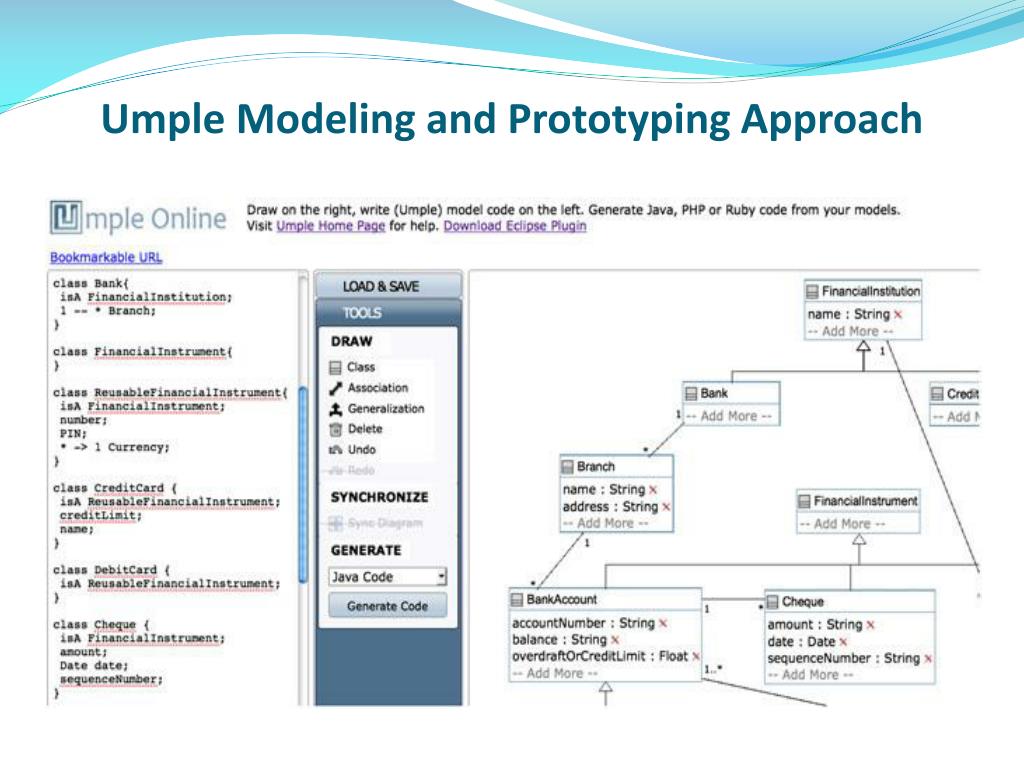

Umple Modeling and Prototyping Approach
  • Umple supports modeling either visually or textually.
  • Textual Editor Supports:
    • Syntax-Driven editing
    • Searching
    • Auto indentation
    • Mixins
  • Graphical Models Support:
    • Better communication & collaboration.
    • Relationships are clearer.
class diagram in umple

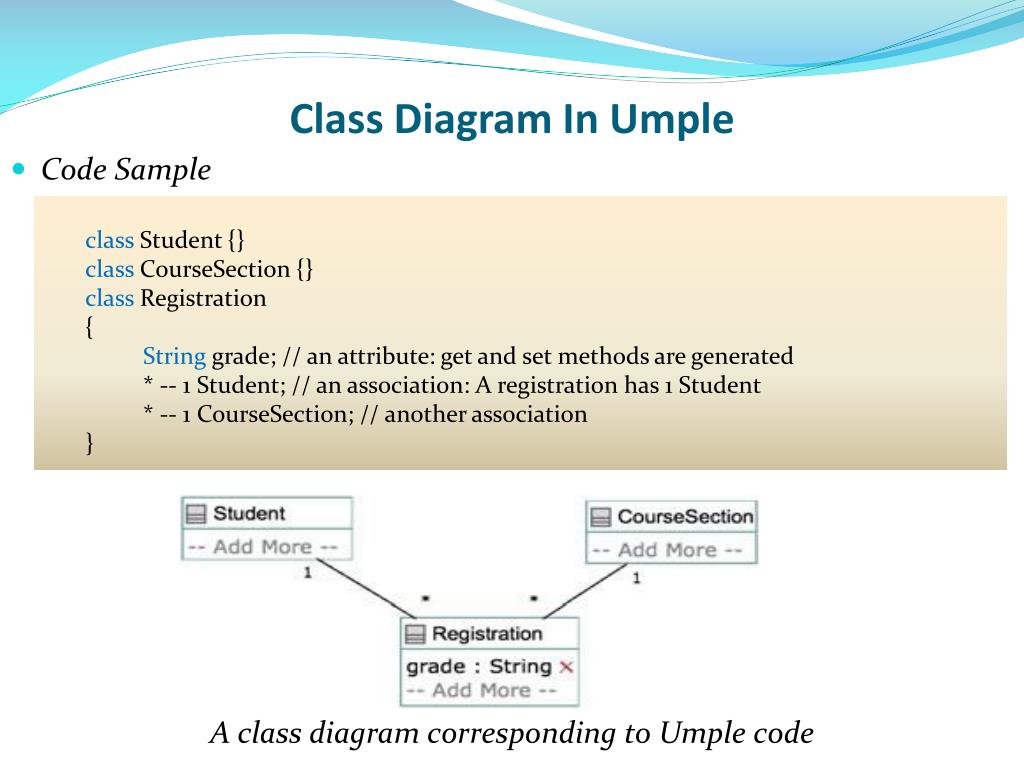

Class Diagram In Umple
  • Code Sample

class Student {}

classCourseSection {}

class Registration

{

String grade; // an attribute: get and set methods are generated

* -- 1 Student; // an association: A registration has 1 Student

* -- 1 CourseSection; // another association

}

A class diagram corresponding to Umple code

umple user interface prototype generator

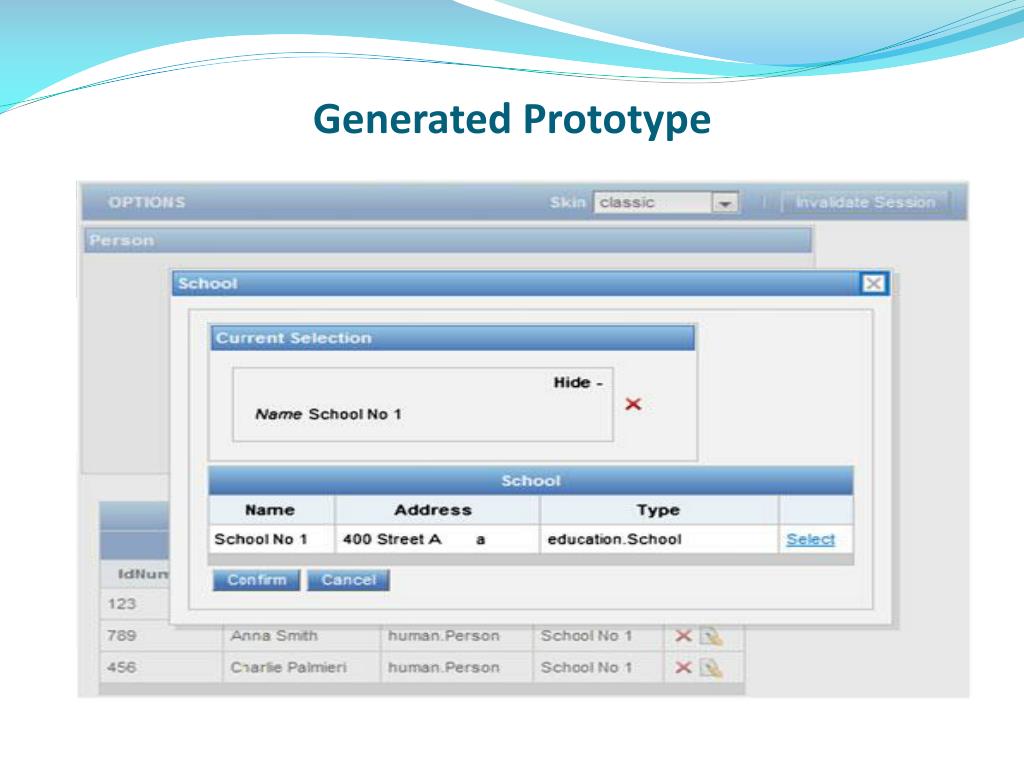

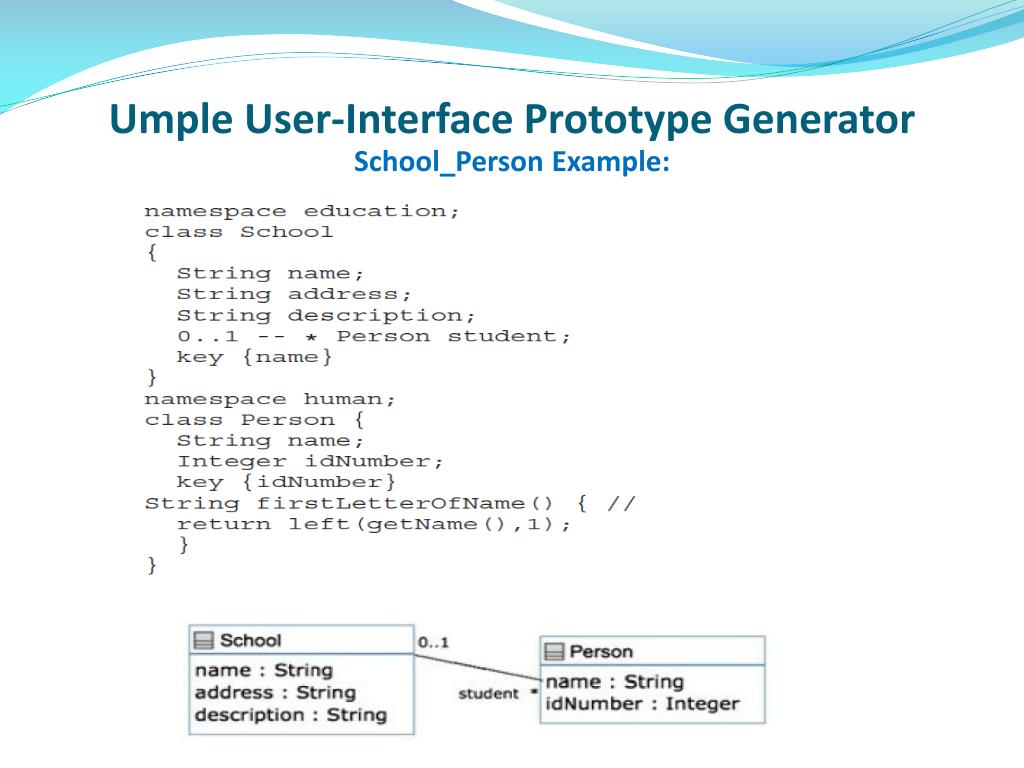

Umple User-Interface Prototype Generator
  • At any point in the modeling or development activities, the user can automatically generate a system prototype.
  • The system prototype has the following features:
    • It allows the user to create instances of classes (objects) and links of associations.
    • Semantic rules are respected at run time (Error message is displayed if violation of the multiplicity).
    • The user can view and update an object’s attributes.
    • The user can follow links.
    • The user can change predefined themes.
state machines in umple

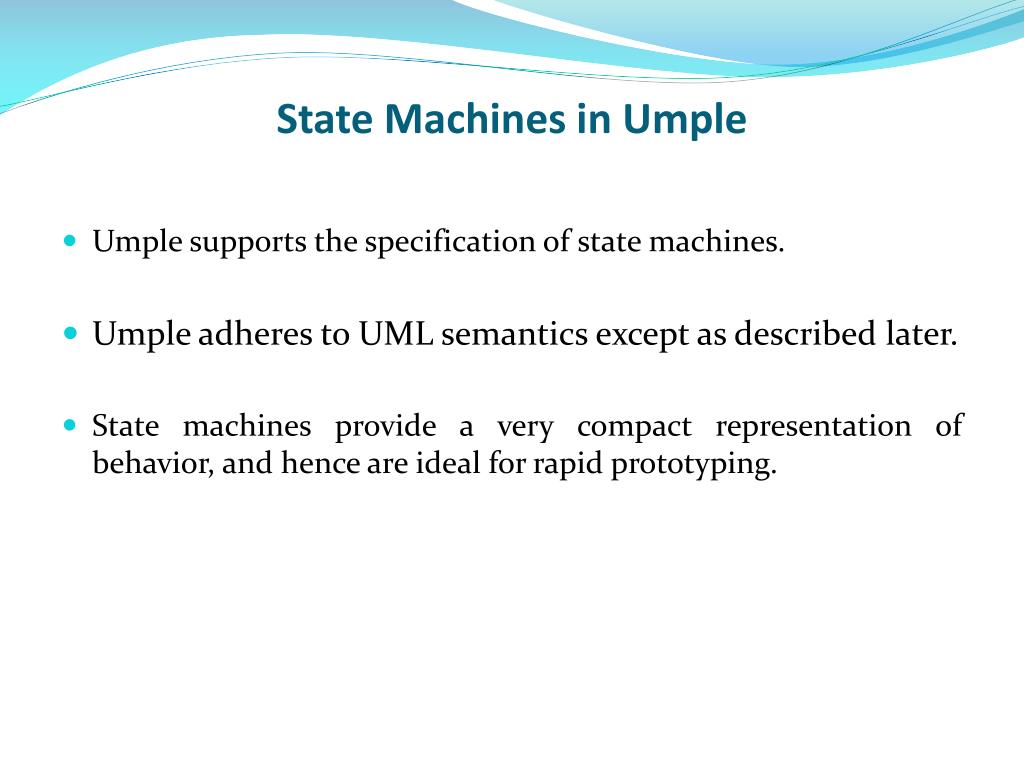

State Machines in Umple
  • Umple supports the specification of state machines.
  • Umple adheres to UML semantics except as described later.
  • State machines provide a very compact representation of behavior, and hence are ideal for rapid prototyping.
state machines in umple1

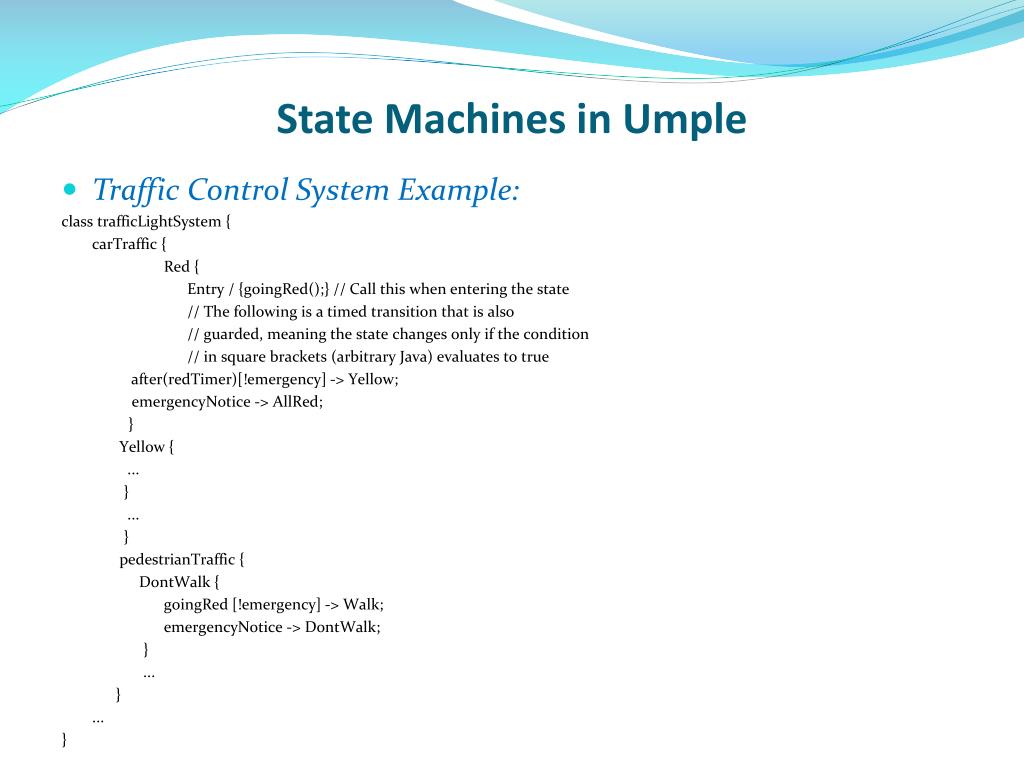

State Machines in Umple
  • Traffic Control System Example:

class trafficLightSystem {

carTraffic {

Red {

Entry / {goingRed();} // Call this when entering the state

// The following is a timed transition that is also

// guarded, meaning the state changes only if the condition

// in square brackets (arbitrary Java) evaluates to true

after(redTimer)[!emergency] -> Yellow;

emergencyNotice -> AllRed;

}

Yellow {

...

}

...

}

pedestrianTraffic {

DontWalk {

goingRed [!emergency] -> Walk;

emergencyNotice -> DontWalk;

}

...

}

...

}

mixins and substitution
Mixins and Substitution

Mixin allows independently-developed code to be injected into a set of classes

StatemachinecoreTrafficController {

Red {

After(redTimer) -> Green;

}

Green {

After(greenTimer) -> Yellow;

}

Yellow {

After(yellowTimer) -> Red;

}

}

Substitution

Mixin

mixin benefits
Mixin Benefits
  • Code Reuse
  • Easy to add and remove transitions
  • Quickly draft
  • Iterative refinement
umple s architecture

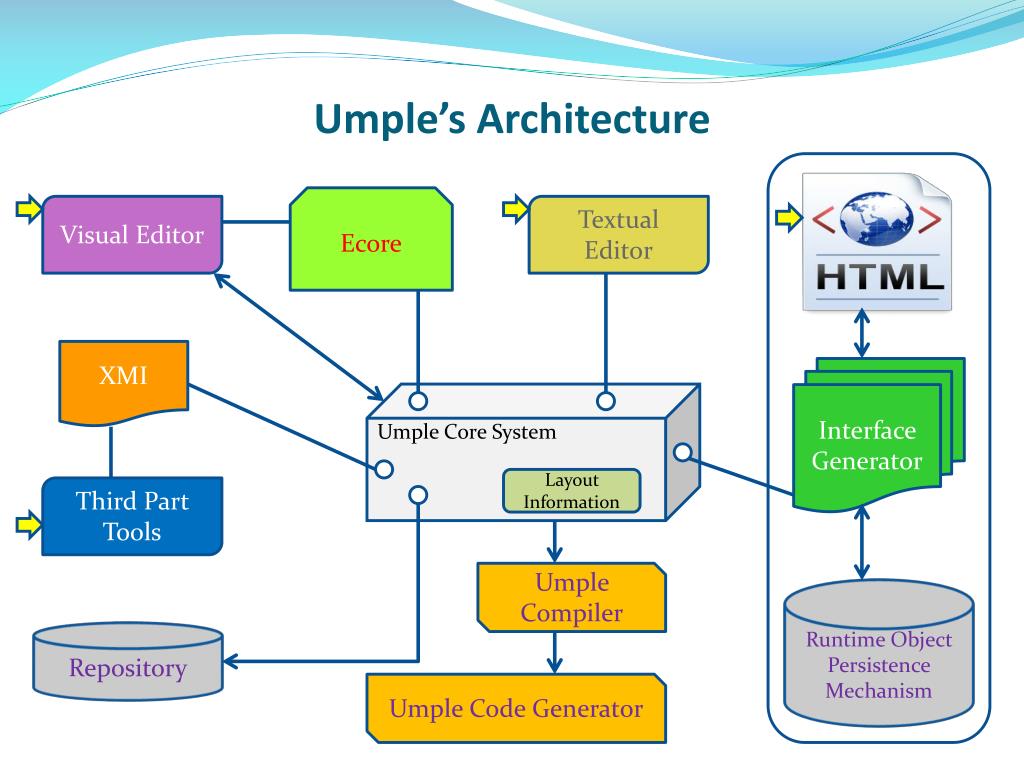

Umple’s Architecture

Ecore

Visual Editor

TextualEditor

XMI

Interface Generator

  • Umple Core System

Layout Information

Third Part Tools

Umple Compiler

Runtime Object Persistence Mechanism

Repository

Umple Code Generator

conclusions
Conclusions
  • Umple Provides:
    • Accurate reflection of system components and data.
    • Accurate reflection of current system design directions.
    • Quick and cheap generation of a prototype.
    • Maximized potential for reuse and composition.
    • Support for different levels of abstraction.
    • Support for incremental development.
