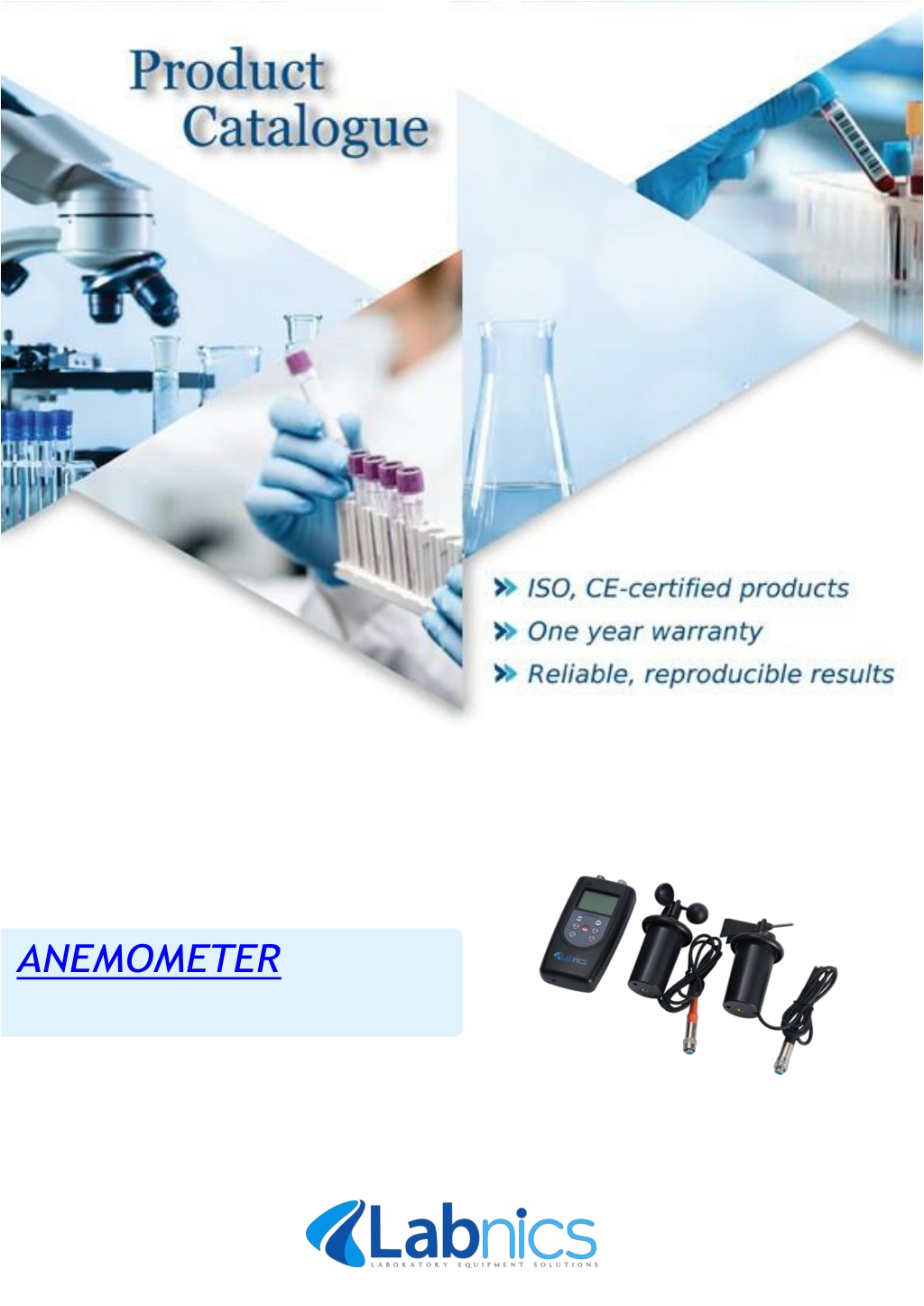

  1. ANEMOMETER

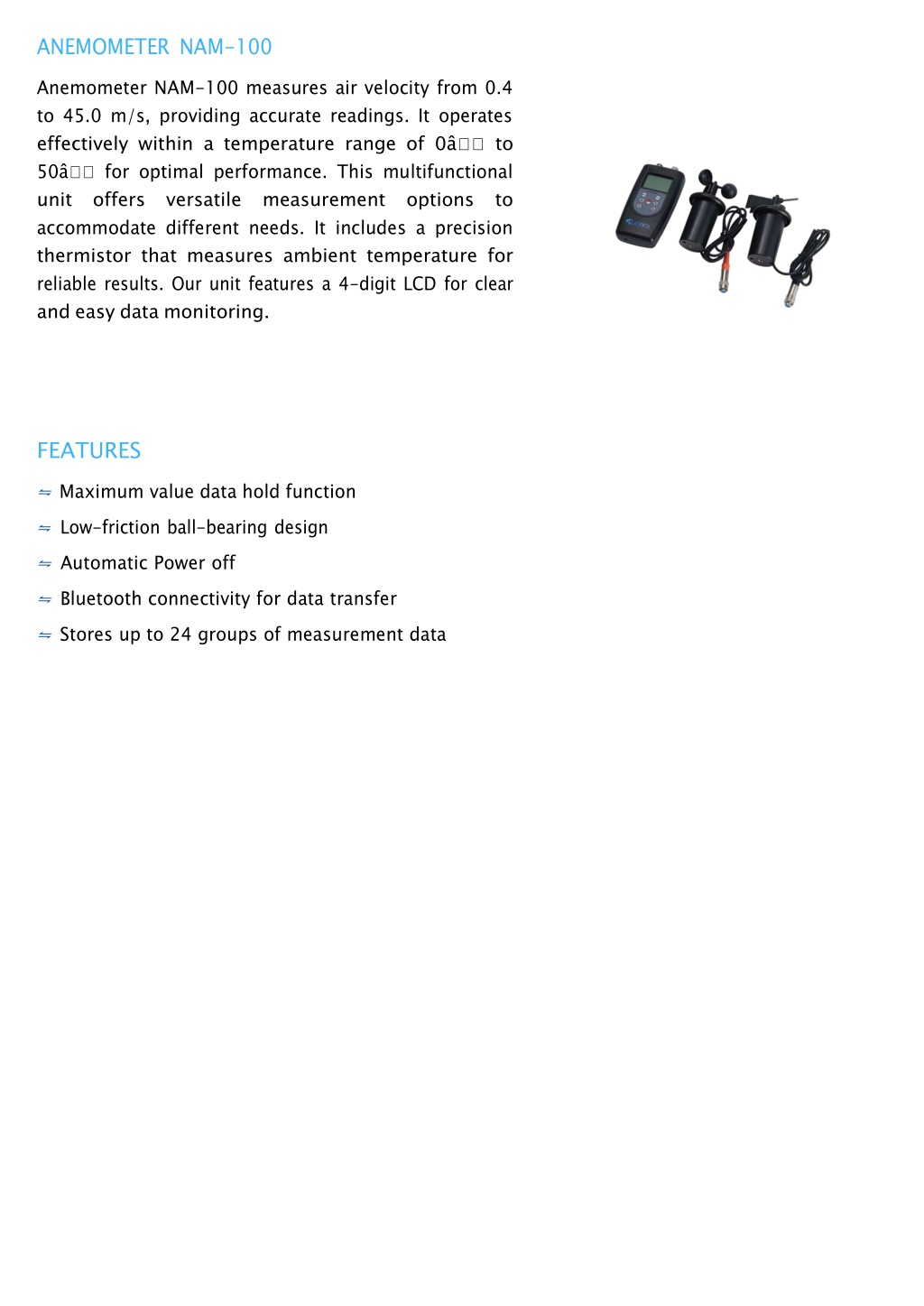

  2. ANEMOMETER NAM-100 Anemometer NAM-100 measures air velocity from 0.4 to 45.0 m/s, providing accurate readings. It operates effectively within a temperature range of 0℃ to 50℃ for optimal performance. This multifunctional unit offers versatile measurement options to accommodate different needs. It includes a precision thermistor that measures ambient temperature for reliable results. Our unit features a 4-digit LCD for clear and easy data monitoring. FEATURES ⇋ Maximum value data hold function ⇋ Low-friction ball-bearing design ⇋ Automatic Power off ⇋ Bluetooth connectivity for data transfer ⇋ Stores up to 24 groups of measurement data

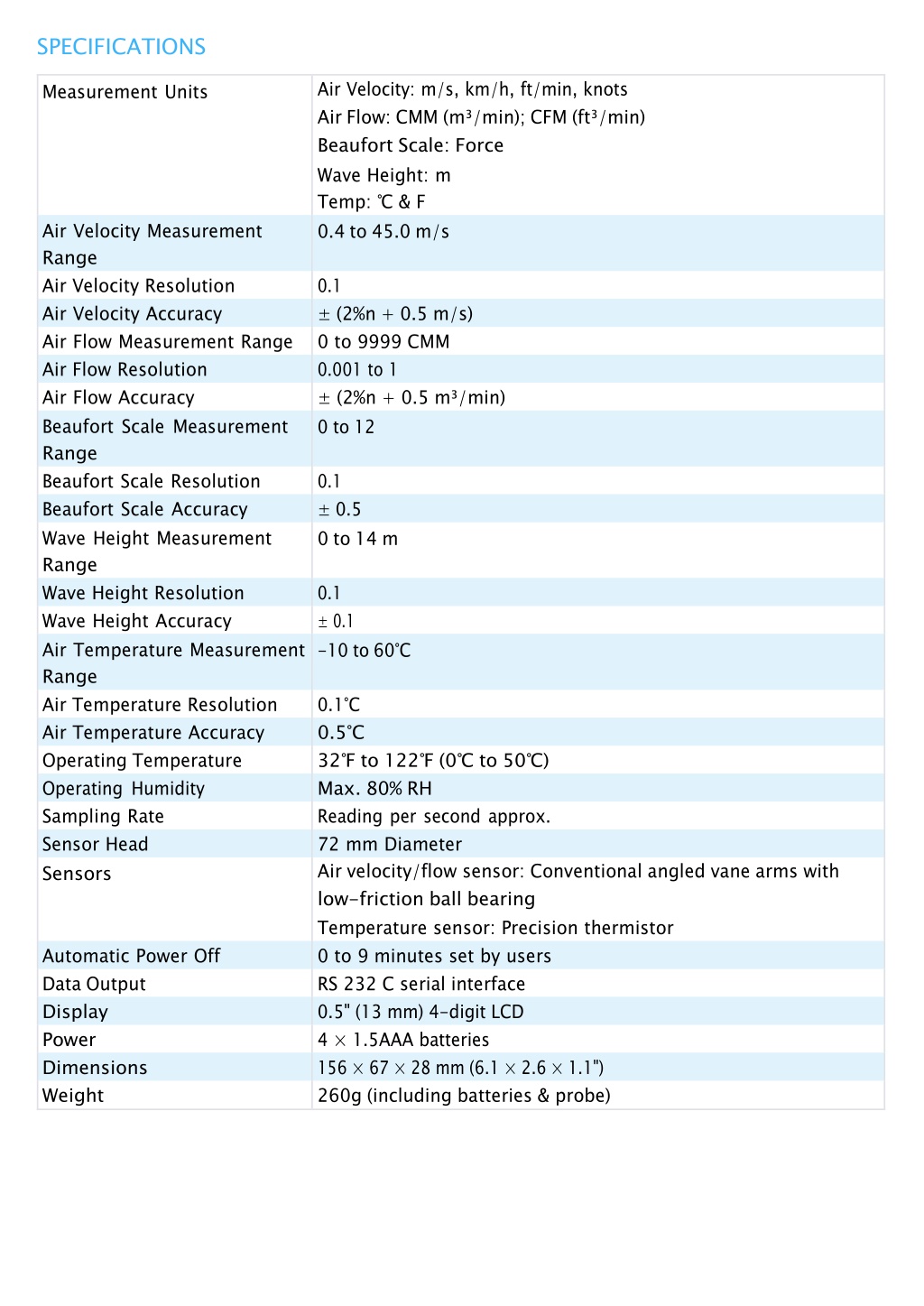

  3. SPECIFICATIONS Air Velocity: m/s, km/h, ft/min, knots Air Flow: CMM (m³/min); CFM (ft³/min) Beaufort Scale: Force Wave Height: m Temp: ℃ & F 0.4 to 45.0 m/s Measurement Units Air Velocity Measurement Range Air Velocity Resolution Air Velocity Accuracy Air Flow Measurement Range Air Flow Resolution Air Flow Accuracy Beaufort Scale Measurement Range Beaufort Scale Resolution Beaufort Scale Accuracy Wave Height Measurement Range Wave Height Resolution Wave Height Accuracy Air Temperature Measurement Range Air Temperature Resolution Air Temperature Accuracy Operating Temperature Operating Humidity Sampling Rate Sensor Head Sensors 0.1 ± (2%n + 0.5 m/s) 0 to 9999 CMM 0.001 to 1 ± (2%n + 0.5 m³/min) 0 to 12 0.1 ± 0.5 0 to 14 m 0.1 ± 0.1 -10 to 60°C 0.1°C 0.5°C 32℉ to 122℉(0℃ to 50℃) Max. 80% RH Reading per second approx. 72 mm Diameter Air velocity/flow sensor: Conventional angled vane arms with low-friction ball bearing Temperature sensor: Precision thermistor 0 to 9 minutes set by users RS 232 C serial interface 0.5" (13 mm) 4-digit LCD 4 × 1.5AAA batteries 156 × 67 × 28 mm (6.1 × 2.6 × 1.1") 260g (including batteries & probe) Automatic Power Off Data Output Display Power Dimensions Weight

  4. APPLICATIONS Anemometer is used to measure wind speed and direction, essential for weather forecasting and environmental studies. It helps optimize airflow in various applications, including meteorology and HVAC systems. STANDARD ACCESSORIES Operational Manual Carrying case Sensor probe OPTIONAL ACCESSORIES Cable +Software for RS232C

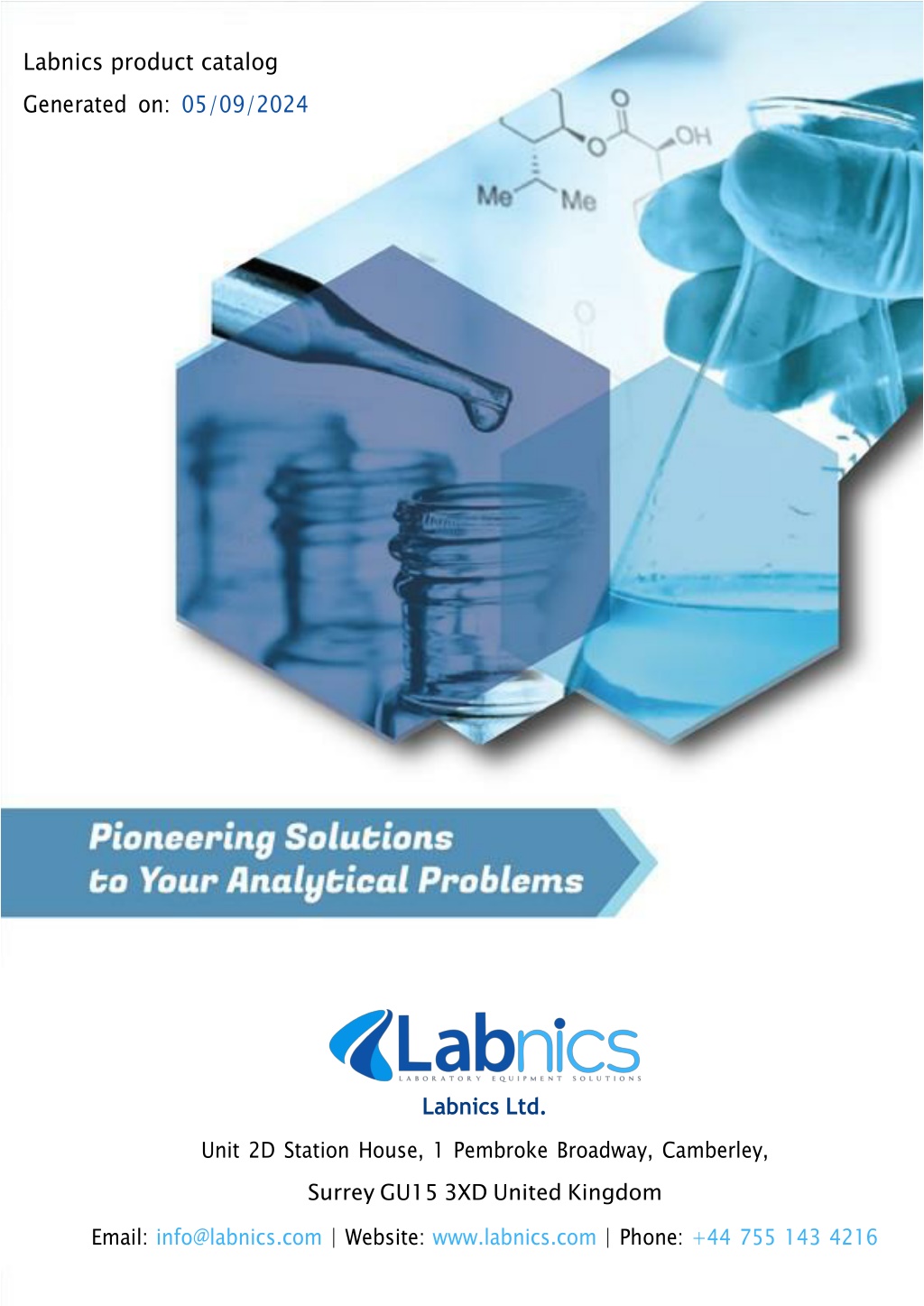

  5. Labnics product catalog Generated on: 05/09/2024 Labnics Ltd. Unit 2D Station House, 1 Pembroke Broadway, Camberley, Surrey GU15 3XD United Kingdom Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
