Air Flow Capture Hood ±0.5%

Labnics Air Flow Capture Hood measures essential physical parameters like humidity, temperature, and air flow pressure. The compressed air collector it uses has a measuring range of 100 to 3500 mu00b3/h, a response time of 2 to 8 seconds, and operates between 5u00b0C and 35u00b0C.<br>

bentleyfay
Download Presentation

Air Flow Capture Hood ±0.5%

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. AIR FLOW CAPTURE HOOD

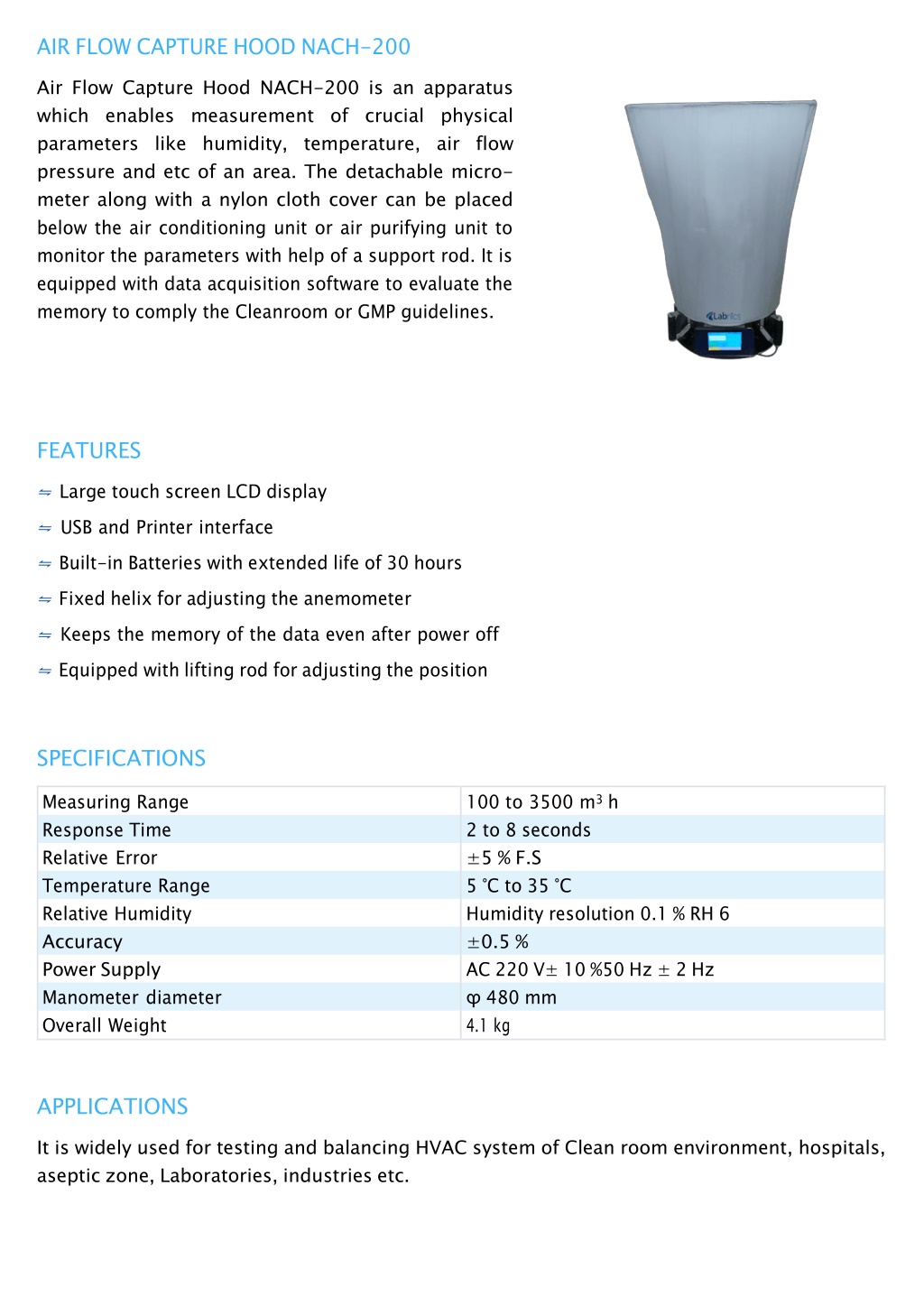

  2. AIR FLOW CAPTURE HOOD NACH-200 Air Flow Capture Hood NACH-200 is an apparatus which enables measurement of crucial physical parameters like humidity, temperature, air flow pressure and etc of an area. The detachable micro- meter along with a nylon cloth cover can be placed below the air conditioning unit or air purifying unit to monitor the parameters with help of a support rod. It is equipped with data acquisition software to evaluate the memory to comply the Cleanroom or GMP guidelines. FEATURES ⇋ Large touch screen LCD display ⇋ USB and Printer interface ⇋ Built-in Batteries with extended life of 30 hours ⇋ Fixed helix for adjusting the anemometer ⇋ Keeps the memory of the data even after power off ⇋ Equipped with lifting rod for adjusting the position SPECIFICATIONS Measuring Range Response Time Relative Error Temperature Range Relative Humidity Accuracy Power Supply Manometer diameter Overall Weight 100 to 3500 m3 h 2 to 8 seconds ±5 % F.S 5 °C to 35 °C Humidity resolution 0.1 % RH 6 ±0.5 % AC 220 V± 10 %50 Hz ± 2 Hz ϕ 480 mm 4.1 kg APPLICATIONS It is widely used for testing and balancing HVAC system of Clean room environment, hospitals, aseptic zone, Laboratories, industries etc.

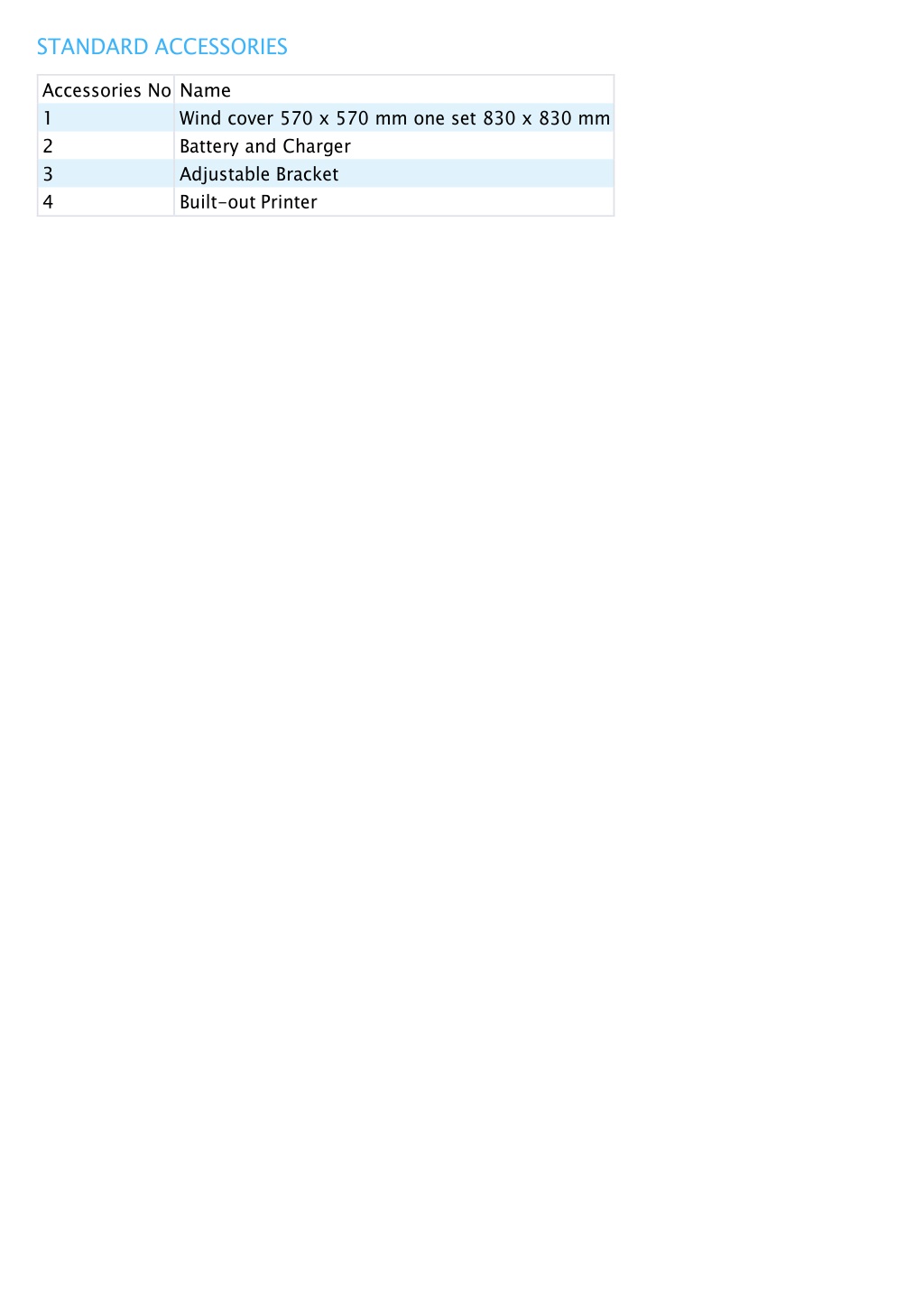

  3. STANDARD ACCESSORIES Accessories No Name 1 2 3 4 Wind cover 570 x 570 mm one set 830 x 830 mm Battery and Charger Adjustable Bracket Built-out Printer

  4. Labnics product catalog Generated on: 05/09/2024 Labnics Ltd. Unit 2D Station House, 1 Pembroke Broadway, Camberley, Surrey GU15 3XD United Kingdom Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
