Aerosol Generator 200×250×370mm.

Labnics Aerosol Generator is a portable, cold-type device featuring an output flow of 1 to 2.5 mu00b3/h and a productivity rate of 0.5 to 2 u00d7 10u00b9u00b3 P/h. It operates with an atomizing pressure ranging from 10 to 80 kPa, delivering a particle size distribution of 0.02 to 2 u00b5m.<br>

bentleyfay
Download Presentation

Aerosol Generator 200×250×370mm.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

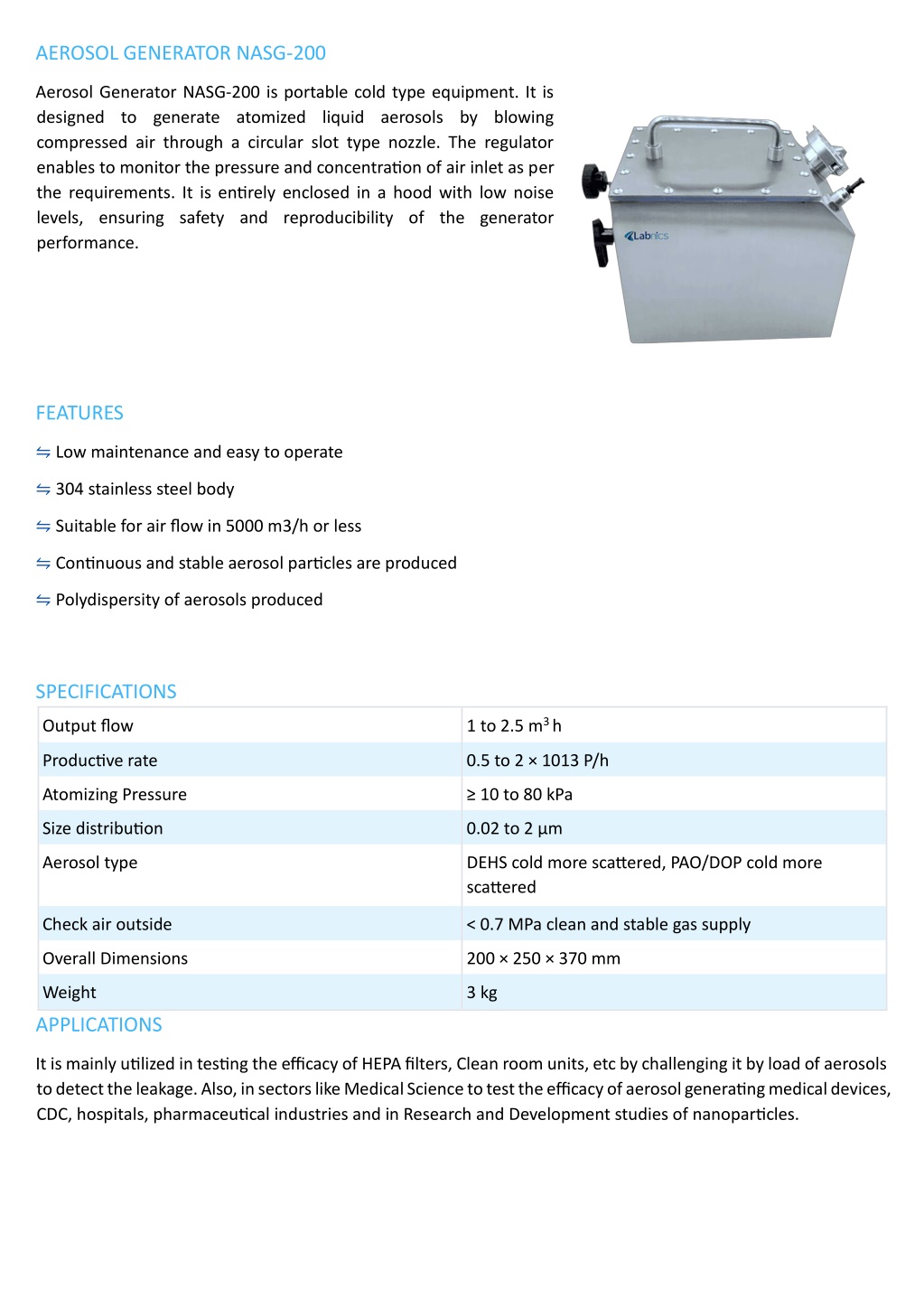

  1. AEROSOL GENERATOR NASG-200 Aerosol Generator NASG-200 is portable cold type equipment. It is designed to generate atomized liquid aerosols by blowing compressed air through a circular slot type nozzle. The regulator enables to monitor the pressure and concentration of air inlet as per the requirements. It is entirely enclosed in a hood with low noise levels, ensuring safety and reproducibility of the generator performance. FEATURES ⇋ Low maintenance and easy to operate ⇋ 304 stainless steel body ⇋ Suitable for air flow in 5000 m3/h or less ⇋ Continuous and stable aerosol particles are produced ⇋ Polydispersity of aerosols produced SPECIFICATIONS 1 to 2.5 m3 h Output flow Productive rate 0.5 to 2 × 1013 P/h Atomizing Pressure ≥ 10 to 80 kPa Size distribution 0.02 to 2 µm Aerosol type DEHS cold more scattered, PAO/DOP cold more scattered Check air outside < 0.7 MPa clean and stable gas supply Overall Dimensions 200 × 250 × 370 mm Weight 3 kg APPLICATIONS It is mainly utilized in testing the efficacy of HEPA filters, Clean room units, etc by challenging it by load of aerosols to detect the leakage. Also, in sectors like Medical Science to test the efficacy of aerosol generating medical devices, CDC, hospitals, pharmaceutical industries and in Research and Development studies of nanoparticles.
