paper impact of software engineering research on the practice of software configuration management

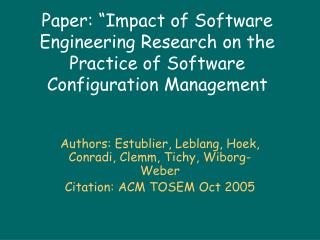

Paper: “Impact of Software Engineering Research on the Practice of Software Configuration Management

Authors: Estublier, Leblang, Hoek, Conradi, Clemm, Tichy, Wiborg-Weber

Citation: ACM TOSEM Oct 2005

the impact project
The Impact Project

• Provide scientific scholarly answers to:

– What impact has academic and industry research really had on the practice of software engineering?

– What future impacts should be expected?

– What future directions will software research take?

• How?

– ACM Sigsoft project (international)

– NSF and Sigsoft funding

– EU, Japanese, private funding

- Deliverables: journal articles, conference panels

2000 - 2003

initial subject areas
Initial Subject Areas

• Reviews/Walkthroughs – Dieter Rombach/Dewayne Perry

• Configuration Management – Jacky Estublier

• Testing and Analysis – Lori Clarke/David Rosenblum

• Middleware – Wolfgang Emmerich

• Process/workflow/lifecycle models – Volker Gruhn

• Modern Programming Languages – Mary Lou Soffa/Barbara Ryder

• Requirements Engineering – Anthony Finkelstein/Axel van Lamsweerde

• Reverse Engineering – Hausi Muller

• Cost/Economic Models

how do they define impact
How do they define Impact?

The research must have been:

  • Published – publicly available, AND
  • Incorporated in actual SCM product that are (or were) on the market, commercially or free.

Other impacts not considered:

- people (graduates)

- workshops and conferences

software configuration management is
Software Configuration Management is…

The discipline of managing change in large, complex software systems.

Goals: manage and control corrections, extensions, and adaptations throughout lifetime of software system

- Systematic and traceable software development process

- Managing files and directories

in the beginning
In the beginning…
  • 1950s
      • Aerospace industry
      • Colored punch cards
  • 1960s
      • Integrated within OS
  • 1970s
      • Separate discipline
scm spectrum of functionality
SCM Spectrum of Functionality
  • Components
  • Versions
  • Configurations
  • Baselines
  • Project contexts
  • (keep track)
  • Structure
  • System model
  • Interfaces
  • Consistency
  • Selection
  • (how related)
  • Construction
  • Building
  • Snapshots
  • Regeneration
  • Optimization
  • (create exec)
  • Controlling
  • Access control
  • Change requests
  • Bug tracking
  • Partitioning
  • (track change)
  • Accounting
  • Statistics
  • Status
  • Reports
  • (gather stats)
  • Auditing
  • History
  • Traceability
  • Logging
  • (archive/rollback)
  • Process
  • Lifecycle support
  • Task mgmt.
  • Communication
  • Documentation
  • (choose tasks)
  • Team
  • Workspaces
  • Merging
  • Families
  • (conflicts)

Susan Dart, SCM-3, 1991

And,…remain universally applicable – PL and App independent

partition of scm approaches
Partition of SCM Approaches

Product

- Versioning

- System Models and selection: support aggregate artifacts – configuration concept

Tool

- Workspace control: distributed users?, integration of change

- Building: executable

Process

- Support for general development processes to manipulate artifacts

approaches to versioning
Approaches to Versioning
  • Capture artifacts as configuration items
  • Track relations among items in version graph

Edges:

    • revision-of – seq develop
    • variant-of - || development
    • merge variants

1.0

1.1

1.2

1.2.1.0

2.0

1.2.1.1

2.1

when disk space was scarce
When disk space was scarce:
  • Delta storage (eg, SCCS, RCS): baseline+deltas
  • Data compression
  • Combination of delta and compression
  • More accuracy in deltas:
    • Context-oriented
    • Operation-oriented
    • Semantics-oriented
    • Syntax-oriented
  • But for generality -> classic line-based merging
advanced versioning change sets
Advanced Versioning – Change sets
  • How it works:
    • Each change stored as a delta independently from other changes
    • Allow more flexibility
    • Can combine changes as desired
  • Not used in practice:
    • Deltas overlap/conflict – some combos do not work
    • For binary objects – cannot combine some deltas
  • Too unwieldy for large projects with large change
alternative change packages task activity package subproject
Alternative: Change PackagesTask, Activity, package, Subproject,…

1.0

1.0

1.0

1.0

2.0

1.1

1.1

1.1

2.1

1.2

1.2.1.0

1.2

2.2

2.0

1.2.1.1

1.3

2.0.1.0

1.2

2.3

2.1

2.0

- track changes at logical level

aggregating and accessing multiple artifacts
Aggregating and Accessing Multiple Artifacts
  • Data Models
  • Early 1970s – SCCS and RCS = file system
  • Since then – on top of commercial database systems
  • Research systems:
    • Adele, 1985: active, oop, versioned model
    • Object=any entity
    • Attribute=primitive, compound, predefined
    • Relations=model associations like derivation, dependency, composition
  • More advance commercial system: Aide-De-Camp 1989
aggregating and accessing multiple artifacts15
Aggregating and Accessing Multiple Artifacts
  • System Models – late 1970s onward
    • MIL (Module interconnection language) to describe system structure
      • Model interfaces – provided, required functions
      • Behaviors - Pre and post conditions
      • Hierarchical construction of modules
      •  system architecture; UML
    • Integrate into SCM – users can manage real organization of software
    • Major Problem – keeping evolution of model and implementation versions in synch
aggregating and accessing multiple artifacts16
Aggregating and Accessing Multiple Artifacts
  • Selection
    • How do I get a set of artifacts in my workspace without requesting them individually?
    • Default: All latest version in workspace. Fetch the rest individually.
    • Other approaches:
      • Hierarchical workspaces 1989. local, parent,…
      • General queries 1984.
        • (status = approved) AND owner = Jacky) OR (date > 6.20.83)
      • Leverage change-sets 2000.
        • Baseline 2.5 + bug-fix2.83 + bugfix.2 + feature-12
      • Rule-based 88, 94.
        • First, my checked-out versions
        • Otherwise, the latest versions on my branch
        • Otherwise, the latest versions on the main branch
a typical development scenario
A Typical Development Scenario

Pete’s workspace

Ellen’s workspace

A

B

C

D

E

C

CMrepository

workspace control
Workspace Control

3 functions of the workspace:

  • Sandbox – freely edit. May be locks.
  • Building – expand compressed files, keep compiled/derived objects
  • Isolation – allow developer to make changes, compile, test, debug without interference
workspace control19
Workspace Control

Classic SCCS and RCS Systems –

no workspace management

CVS – first scripts on top of RCS

Need: avoid source file copies in 100s of workspaces

Sun/Forte Teamware – manage projects of subprojects

Virtual workspaces – only copies of files editing

ClearCase – avoid recompiling sources on builds

building
Building
  • Make, 1979. – dependencies, date-based rebuild, fast.
  • Improvement - Rebuild only if any source versions now in workspace are not exactly the same as in last build.
    • BOMs – bill of materials for each target object built
  • Language-based smart rebuild: semantic changes and dependencies
  • Winking-in (ClearCase) – language independent, reuse binaries across workspaces
process support
Process Support

Software Process = sequence of activities during creation and evolution

  • Change control:
    • Change request (requirement change)
    • Trouble report (malfunction issue)
successful transitions
Successful Transitions
  • SCCE, Make, RCS – immediate, long lasting impact
  • Change sets – slow, nonpractical, but standard feature – change packages.
  • Process support – advanced support for modeling and enforcing process
  • Differencing/merging – binary deltas, not semantic-based
  • Distributed/remote development – client-server protocol, web-based interfaces
failed transitions
Failed Transitions
  • Semantic-based recompilation – language dependent
  • Advanced systems models – more power than needed
  • Generic platform - research has focused on managing source code only. Too much needed for extra artifacts.
summary
Summary
  • High impact Research – useful, ease of use by developer, generality
  • Low impact Research – level of complexity too high, not easy to master idea as a feature
what is next for scm
What is Next for SCM?
  • How to fit SCM with rest of development process/tools?
    • Manage other artifacts beyond source code
    • Maybe not be language independent
recognizing a valuable resource mining software repositories
Recognizing a Valuable Resource: Mining Software Repositories
  • Configuration management repositories are traditionally a “depot”
    • occasional roll-back
    • occasional search for relevant information
  • But what if we used the information captured by configuration management repositories to our advantage
    • understanding software developers
    • helping software developers
