performance tuning apache tomcat

Performance TuningApache Tomcat

Steve Heckler, President


what we ll cover
What We’ll Cover
  • Removing unneeded applications
  • Tuning and monitoring the JVM
    • This section “borrows” some from Sun’s official documentation
  • Tuning and monitoring connectors
  • Compiling native connectors
  • Tuning and monitoring database connection pools
  • Turning off JSP development mode
  • Reducing logging
  • Precompiling JSPs and caching output
tomcat version in use
Tomcat Version in Use
  • We’ll use Tomcat 6, but the majority of strategies shown are applicable to earlier versions
word of advice 1 use a recent java se version
Word of Advice #1:Use a Recent Java SE version
  • Java 1.5 sizes heap generations much more efficiently than 1.4 and earlier
  • Java 1.6 has an option to perform garbage collections in parallel (more about this later)
remove unneeded applications
Remove Unneeded Applications
  • At your discretion, you can remove every installed application that ships “out of the box” in Tomcat
  • This will save you startup time, as well as memory used by preloaded servlets
  • ROOT should definitely be replaced
  • Only keep manager (and in 5.5 and later, host-manager) if you need them
tomcat monitoring
Tomcat Monitoring
  • Tomcat is difficult to monitor prior to Java 1.5 and later builds of Tomcat 4.1.x
  • Java 1.5 and later support monitoring the JVM using JConsole and the jstat command line tool (both included with the JDK)
  • Tomcat 5.0 and later have especially good JMX MBeans support
what are jmx and mbeans
What are JMX and MBeans
  • JMX: Java Management Extensions, a standard way of managing Java applications
  • MBeans: Management beans. An application can provide management beans that enable you to interact with and configure the applications. MBeans have:
    • Attributes that you can get or set
    • Operations that you can invoke
  • MBeans can be interacted with programmatically or via JConsole
enabling jmx monitoring via setenv sh
Enabling JMX monitoring(via


if [ "$1" = "start" ] ; then


# \

# \




enabling jmx monitoring windows
Enabling JMX Monitoring (Windows)
  • In a production environment, you can set these in CATALINA_OPTS by editing the service.bat before registering the service
  • Alternatively, edit the registry keys directly after the service is registered
jmx monitoring key decisions
JMX Monitoring: Key Decisions
  • Only specify a port if you want to allow remote access (potentially a security hole)
  • Consider configuring authentication and/or SSL if you do open a port
    • has details on this
once jmx is enabled
Once JMX is enabled
  • You can run jconsole from the command line of any computer with JDK 1.5 or later installed
  • Accessing your JVM remotely will require that a port be opened
  • jstat can be run locally to monitor your JVM (dumps output to STDOUT)
introduction to java garbage collection
Introduction to JavaGarbage Collection
  • Java memory utilization and garbage collection are two of the most critical issues in Tomcat performance tuning.
  • Garbage collection is the process whereby memory is reclaimed from the application
  • Java tends to shield developers from control of garbage collection, but not from the consequences
introduction to java garbage collection14
Introduction to JavaGarbage Collection
  • In Java, objects become eligible for garbage collection when they no longer have any references pointing to them
  • The story of how this occurs is rather complicated…
gc scalability graphic shown at http java sun com javase technologies hotspot gc gc tuning 6 html
GC Scalability(graphic shown at
gc scalability
GC Scalability
  • Demonstrates that an application that spends 10% of its time in garbage collection can lose 75% of its throughput when scaled out to 32 processors
heap versus non heap memory
Heap versus Non-Heap Memory
  • JVM manages 2 kinds of memory: heap and non-heap:
    • Heap memory is the runtime data area from which the JVM allocates memory for all class instances and arrays.
    • The heap may be of a fixed or variable size.
    • The garbage collector is an automatic memory management system that reclaims heap memory for objects.
heap versus non heap memory18
Heap versus Non-Heap Memory
  • Non-heap memory includes a method area shared among all threads and memory required for the internal processing or optimization for the JVM.
  • It stores per-class structures such as a runtime constant pool, field and method data, and the code for methods and constructors.
heap versus non heap memory19
Heap versus Non-Heap Memory
  • A JVM implementation may require memory for internal processing or optimization which also belongs to non-heap memory.
  • For example, the JIT compiler requires memory for storing the native machine code translated from the JVM code for high performance.
garbage collection
Garbage Collection
  • Garbage collection (GC) is how the JVM frees memory occupied by objects that are no longer referenced.
  • It is common to think of objects that have active references as being "alive" and un-referenced (or unreachable) objects as "dead.“
  • Garbage collection is the process of releasing memory used by the dead objects. The algorithms and parameters used by GC can have dramatic effects on performance
generational garbage collection
Generational Garbage Collection
  • In practice, most programs create:
    • many objects that have short lives (for example, iterators and local variables).
    • some objects that have very long lifetimes (for example, high level persistent objects)
generational garbage collection22
Generational Garbage Collection
  • GC divides memory into several generations, and assigns each a memory pool.
  • When a generation uses up its allotted memory, the VM performs a partial garbage collection (also called a minor collection) on that memory pool to reclaim memory used by dead objects.
  • This partial GC is usually much faster than a full GC.
generational garbage collection23
Generational Garbage Collection
  • Generations:
    • young generation (“the nursery”)
      • eden space
        • Most objects initially assigned here (and die here)
      • two survivor spaces
        • Objects that survive a minor GC in eden space are moved here
    • old generation
      • tenured space
        • Objects that survive long enough in the survivor spaces
        • When tenured space fills up, full GC occurs (often slow and involves all live objects)
    • permanent generation
      • holds all the reflective data of the virtual machine itself, such as class and method objects
generational garbage collection24
Generational Garbage Collection
  • If the garbage collector has become a bottleneck, you may be able to improve performance by customizing the generation sizes.
  • details how to customize these sizes.
    • Java 6 version at
  • Customizing the sizes is less necessary in Java 1.5 and later
tuning the total heap
Tuning the Total Heap
  • Total available memory is the most important knob affecting GC performance
  • By default, the JVM grows or shrinks the heap at each collection to try to keep the proportion of free space to living objects at each collection within a specific range
  • This target range is set as a percentage by the parameters -XX:MinHeapFreeRatio=<minimum> and -XX:MaxHeapFreeRatio=<maximum>,  and the total size is bounded below by -Xms and above by -Xmx
tuning the total heap26
Tuning the Total Heap
  • Some notes:
    • Unless you have problems with pauses, try granting as much memory as possible to the JVM.  The default size (64MB on a 32-bit OS) is often too small.
    • Setting -Xms and -Xmx to the same value increases predictability by removing the most important sizing decision from the JVM.
    • Be sure to increase heap size as you add cores or processors
    • 32-bit OSes cap the heap size at between 1.5 and 2.5GB

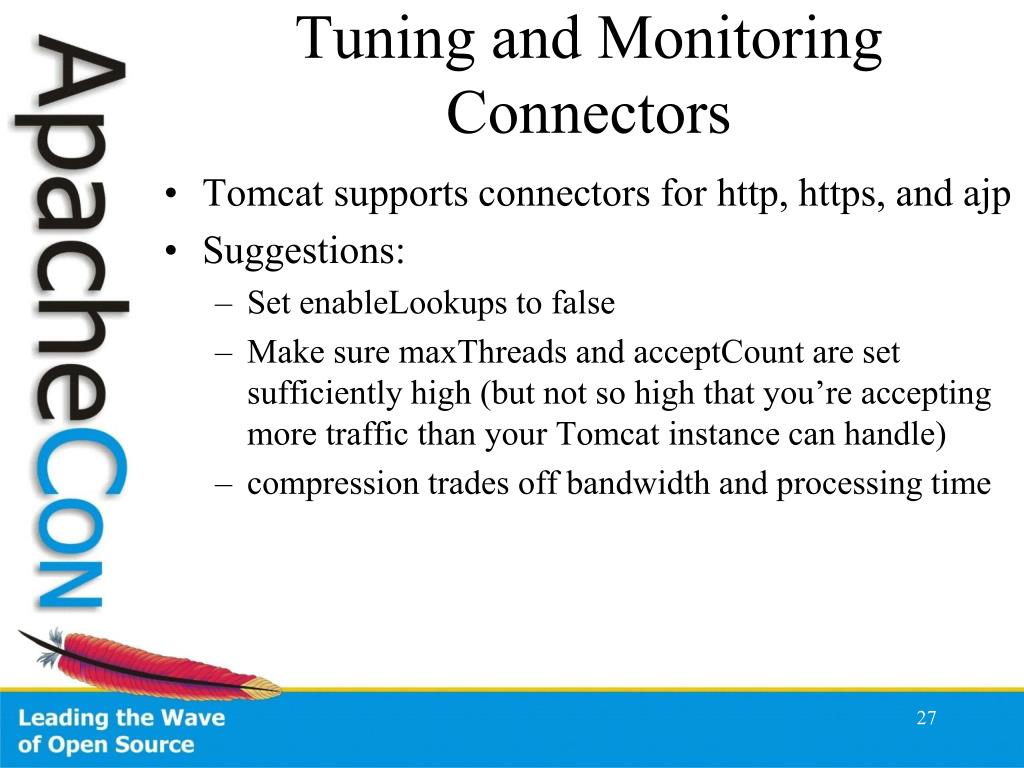

tuning and monitoring connectors
Tuning and Monitoring Connectors
  • Tomcat supports connectors for http, https, and ajp
  • Suggestions:
    • Set enableLookups to false
    • Make sure maxThreads and acceptCount are set sufficiently high (but not so high that you’re accepting more traffic than your Tomcat instance can handle)
    • compression trades off bandwidth and processing time
alternatives to the classic java blocking connector
Alternatives to the ClassicJava Blocking Connector
  • NIO
    • New input/output
    • Supported starting in Tomcat 6
    • Provides access to low-level I/O operations of modern operating systems, including multiplexed, non-blocking I/O and polling
  • APR connector (Apache Portable Runtime)
    • Tomcat 5.5.15 and later (reliably)
    • Uses OpenSSL
    • Native code and thus faster
  • Bottom of has a good comparison
building the native connectors
Building the Native Connectors
  • Dependencies
    • OpenSSL (you need the source) - 0.9.8a or later
    • APR (on Red Hat and variants, apr-devel RPM is sufficient) - 2.2 or later
  • Steps:
    • Locate or download APR
    • Download OpenSSL (you do need the source)
    • Unpack the native connector
building the native connectors30
Building the Native Connectors
  • Steps (continued)
    • ./configure --with-ssl=[path to extracted SSL] --with-apr=[path to apr-1-config, possibly /usr/bin/apr-1-config]
    • make
    • make install
    • Update to use the built library CATALINA_OPTS="$CATALINA_OPTS -Djava.library.path=/usr/local/apr/lib"
building the native connectors31
Building the Native Connectors
  • Steps (continued)
    • configure the APR connector(s) in server.xml
    • Update protocol attributes:
      • HTTP: org.apache.coyote.http11.Http11AprProtocol
      • AJP: org.apache.coyote.ajp.AjpAprProtocol
    • Optionally, configure SSL and set up the APR https connector
building the native connectors32
Building the Native Connectors
  • Sample APR SSL connector

<Connector protocol="org.apache.coyote.http11.Http11AprProtocol" port="8443" minSpareThreads="5" maxSpareThreads="75" enableLookups="true" disableUploadTimeout="true" acceptCount="100" maxThreads="200" scheme="https" secure="true" SSLEnabled="true" SSLCertificateFile="/usr/local/ssl/server.crt" SSLCertificateKeyFile="/usr/local/ssl/server.pem" clientAuth="false" sslProtocol="TLS"/>

monitoring database connection pools
Monitoring DatabaseConnection Pools
  • Can be done via /Catalina/DataSource in the MBeans tree within JConsole
  • Parameters for your pool are shown at
  • Be sure to make your pool large enough for the traffic you anticipate
  • Be sure to time out requests for connections
  • Consider removing abandoned connections
other suggestions
Other Suggestions
  • Turn off JSP development mode in production by setting the development parameter of the jsp servlet to false
    • Keeps JSPs from being checked for modification
  • Scale back access and error logging to just what’s needed
  • Consider precompiling your JSPs – see
in closing
In Closing
  • Thank you for joining me!
  • Please email me at with questions
  • Good luck with tuning Tomcat! 
