video scorm

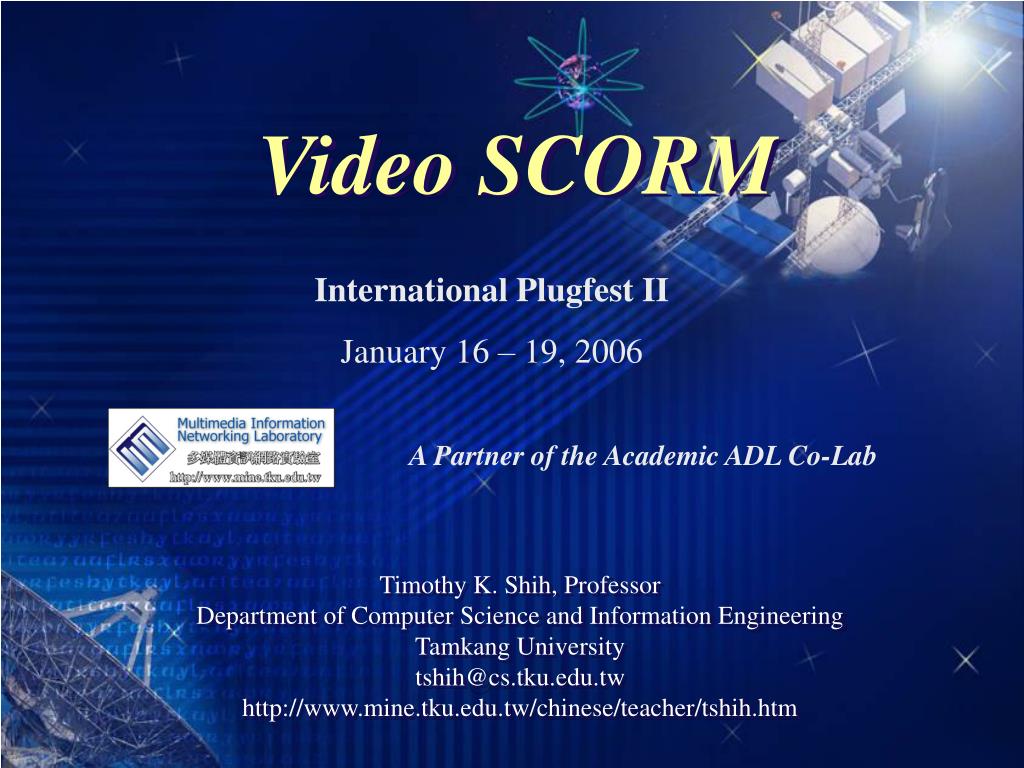

International Plugfest II

January 16 – 19, 2006

Timothy K. Shih, Professor

Department of Computer Science and Information Engineering

Tamkang University

A Partner of the Academic ADL Co-Lab

ubiquitous e learning devices



Digital TV and Set-top Box

Hyper Pen and Book

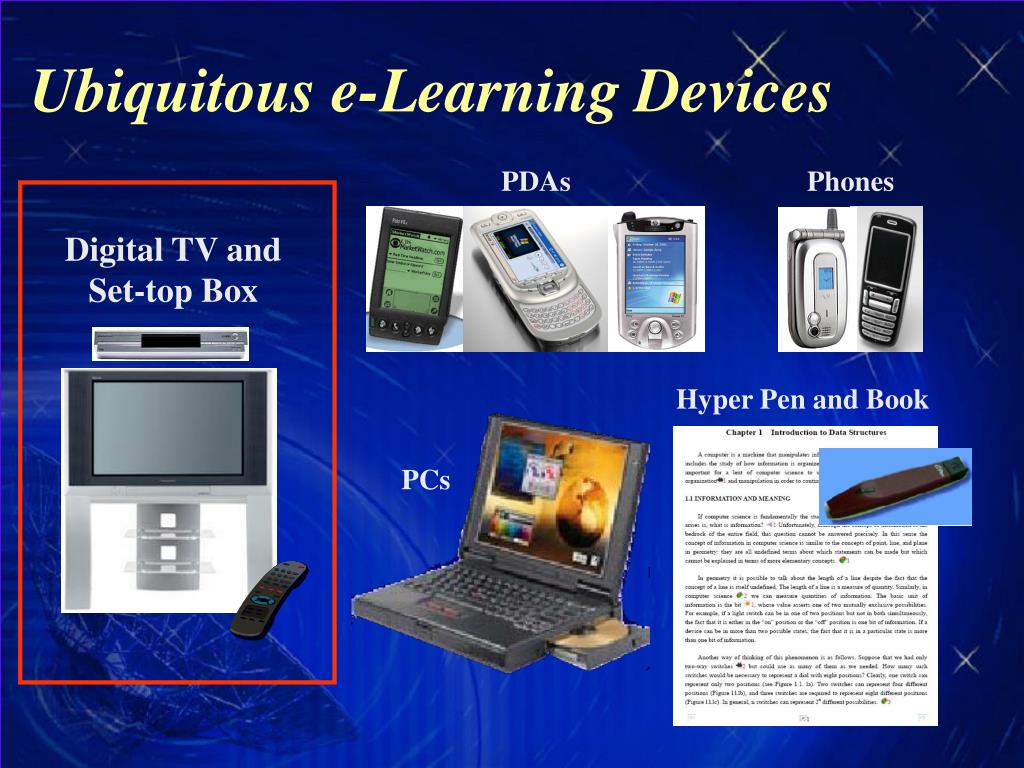

Ubiquitous e-Learning Devices

The Hard SCORM Authoring Tool

  • Automatic Generation of Hard SCORM Tags
  • Print Hardcopy Textbooks
  • Tags Are Recognized by Hyper Pens which is Connected to LMS
design issues
Design Issues
  • Authoring Hard SCORM Tags
  • The Metadata Wizard(New)
  • Searching on Repository
  • Pre-fetching of Learning Objects (New, for Pocket SCORM)
  • Automatic Sequencing Testing (Mew)
  • Video Presentation and Flash Playback
  • Video SCORM (New)
presentation recording
Presentation Recording
  • Select PowerPoint file
  • Adjust Camera
  • Select Style File
  • Start Recording
  • Authoring Metadata
  • Delivery
presentation editing and processing
Presentation Editing and Processing
  • Add/Delete Slides
  • Combine Presentations
  • Adding Slides and Flash Objects
the metadata wizard
The Metadata Wizard
  • Metadata is useful for object reuse
  • Time consuming to fill in metadata
  • Background of Users
  • Need tools to help the user
    • A user profile is filled only once
    • Interactive questions may or may not be asked by the authoring tool
    • Deduction rules can be designed by professionals and customized to individual needs
    • The author makes a final confirmation of metadata
system architecture of the wizard

Learning Content Management System

Authoring Tool

Metadata Editor

User Profile

Question Agent

Metadata Wizard

Deduction Engine

Deduction Rules

Environment and Platform Information

System Architecture of the Wizard
implementation of the wizard
Implementation of the Wizard
  • Users make a final confirmation to use the generated metadata
sequencing testing
Sequencing Testing
  • Sequencing Control Modes
    • Choice, Choice Exit, Flow, Forward Only
  • Problems
    • “Unreachable” Clusters
    • “Sink” Clusters
  • Solution
    • Automatic Sequencing Testing
  • Integrated with the Hard SCORM Authoring Tool
activity tree with problem
Activity Tree – with Problem

Choice = true

Choice Exit = true

Flow = false

Forward Only = false

Choice = true

Choice Exit = true

Flow = false

Forward Only = false

Choice = true

Choice Exit = true

Flow = false

Forward Only = false

Choice = true

Choice Exit = true

Flow = false

Forward Only = false

Choice = true

Choice Exit = true

Flow = false

Forward Only = false

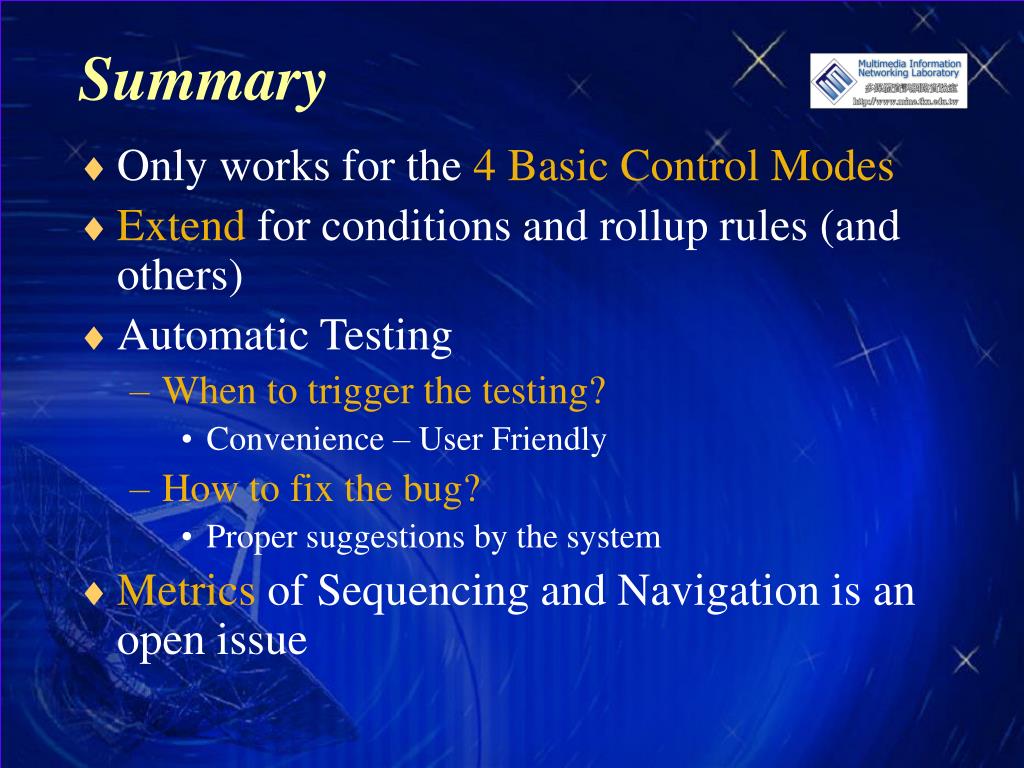

  • Only works for the 4 Basic Control Modes
  • Extend for conditions and rollup rules (and others)
  • Automatic Testing
    • When to trigger the testing?
      • Convenience – User Friendly
    • How to fix the bug?
      • Proper suggestions by the system
  • Metrics of Sequencing and Navigation is an open issue
url references
URL References
  • The Authoring Tool is available at
    • (video demos)
  • Need .net framework 1.1
  • Automatic installation
  • User’s manual
reading by using hyper pen
Reading by Using Hyper Pen
  • Using Hyper Pen as Input Device
  • Reading on HardcopyTextbooks
  • Using Audio Messages for Navigation Control
  • Using Multimedia Clips as References
reading on pcs
Reading on PCs
  • Integrated with Pocket SCORM Reader
  • Consistent Learner Records on PC, PDA, Smart Phone, and Hyper Pen
reading on pdas and smart phones
Reading on PDAs and Smart Phones
  • Running on PDAs
    • Dopod 700, HP iPAQ 5550, and AnexTEK SP230
  • Running on Cellular Phones
    • Dopod 565 and Mio8390

Dopod 565

Mio 8390

Dopod 700

HP iPAQ 5550

AnexTEK SP230

caching on mobile devices
Caching on Mobile Devices
  • SCORM LMSs with Mobile Devices
    • Pocket PC
    • Smart phone
  • Limitation of Storage
  • Divide a Course into Several Parts (Clusters)
  • Preserve the Features of Sequencing
  • Caching Strategies
    • Download Order
    • Replacement Order
reference urls
Reference URLs
  • Demonstration by Trans Asia Airline
    • Pocket SCORM: the 2005 Brandon Hall Excellence in Learning Awards, Innovative Technology
  • Other Demonstrations
  • Implementing the SCORM Forum
plug n play




Plug N Play
  • Tuesday, January 17 1:00PM – 6:00PM
  • Wednesday, January 18 10:00AM – 6:00PM
  • Thursday, January 19 9:00AM – 11:00AM

Interactive Video

  • Hyper Video
  • Interactive Lecture
  • Video Annotation
    • Picture
    • Text
    • WWW
  • Interactive Player
  • Interactive Video Authoring Tool
  • Annotate MPEG-2 User Defined Data
video decomposition
Video Decomposition
  • User Interaction (i.e., hyper jump)
  • User Annotation (i.e., picture, text, URL, etc.)

End point

Start point

Sequence start point

Sequence end point

Picture Annotation

Text Annotation

interactive video authoring tool
Interactive Video Authoring Tool

Video Editing Window

Story Board

Editing Functions


Video Sequences

interactive video player
Interactive Video Player

Web Reference

Annotation Tag

Hyper Jump Tag

Video Playback and Hyper Tags

Annotation and Reference

Web Control Panel

Video Control Panel


Demo of Interactive Video

Video Clip Available at

the video scorm project
The Video SCORM Project
  • How about SCORM on TV?
  • How about interactivity?
  • How about standard?
  • The DVB Multimedia Home Platform (MHP)
    • Defined by the DVB consortium
    • Adopted in many countries
      • Italy, Germany, Finland, Singapore, S. Korea, Australia and others
      • Included in the US OpenCable & ACAP standards
  • Can we combine MHP with SCORM?
what is mhp
What is MHP
  • A Platform Definition
  • A Set of Java APIs
  • A Set of HTML Document Type Definitions
  • An Extension to Existing Open Standards DVB, MPEG, JavaTV
  • MHP 1.0.x (1.0.0 – 1.0.3)
    • The original MHP specification plus updates
    • The most commonly deployed version of MHP
  • MHP 1.1.x
    • HTML Support, Stored Applications, Internet Client APIs, Smart Card APIs
the video scorm authoring tool
The Video SCORM Authoring Tool
  • Integrated with the Hard SCORM Authoring Tool

Content Aggregation

Web Tag


Video Tag

the video scorm authoring tool30
The Video SCORM Authoring Tool
  • A video SCORM component is an SCO
  • Divides scenes into video stream files
  • Allow users to add metadata and sequence rules
  • However, sequence rules among scenes is our future work


Actor for video jump

Web link

the video scorm run time
The Video SCORM Run-time
  • Integrated with the Hard SCORM LMS (Web-based)
  • Download video SCORM components from server

Video Scene

Web Content

Video Control

interactive digital tv
Interactive Digital TV
  • Traditional Cable TV
  • Interactive TV (Video): interactivity between the users and broadcasting program, could be PC-based
  • Set-top Box and Digital TV
    • Limited computation power
    • Limited input device
  • Is MHP a solution?
running an mhp based program
Running an MHP-based Program
  • You must have:
    • Transport stream and object carousel generator
    • A playback system
    • Cable or satellite TV channel
  • Expensive? Yes
  • Alternative resource for research
    • Digital TV Simulator
browsing video scorm on simulator
Browsing Video SCORM on Simulator
  • Simulator: OSMOSYS SDK 2.1
  • MHP 1.1
general broadcasting system








Authoring &


Raw video & audio data

Directories containing applications & assets





Object carousel generator

(broadcast file system)



Elementary stream

Full transport stream

(Incl. service information )

Transport stream playout system


For satellite network only


Receiver (Set Top Box)

General Broadcasting System
  • PC-based
    • Video SCORM AuthoringTool
    • Video SCORM Run-time Environment
    • Integrated with the Hard SCORM LMS
  • Set-top Box and Broadcasting System
    • Simulator
    • Not yet completed
reference urls37




Reference URLs
  • Plug N Play
  • Ubiquitous e-Learning
  • Multimedia
  • Seeking for collaborations
    • Academic Projects
    • Free tools for industry
  • Judy Brown, Director of Academic ADL Co-Lab
  • David Wirth, Deputy Director of Academic ADL Co-Lab
  • John Toews, Academic ADL Co-Lab
  • Doug Hamilton, Academic ADL Co-Lab
  • Lichieh Lin, Director of e-Learning Technology Center, III, Taiwan
  • Andy Tsai, Section Manager of e-Learning Technology Center, III, Taiwan

We will like to thank the following people for their discussion and suggestions:

thank you
Thank You
  • Timothy K. Shih, Advisor
  • Wen-Chih Chang, Ph. D.
  • Nigel H. Lin , Ph. D.
  • Te-Hua Wang, Ph. D. Candidate
  • Hsiau Wen (Freya) Lin, Ph. D. Candidate
  • Hsuan-Pu Chang, Ph. D. Student
  • Han-Bin Chang, Ph. D. Student
  • Shin-Zu Chen , MS Student
  • Yun-Long Sie, MS Student
  • Mon-Tin Tzou, MS Student
  • Linus Jan, MS Student

A Partner of the Academic ADL Co-Lab

E-Learning Team, MINE Lab, Tamkang University
