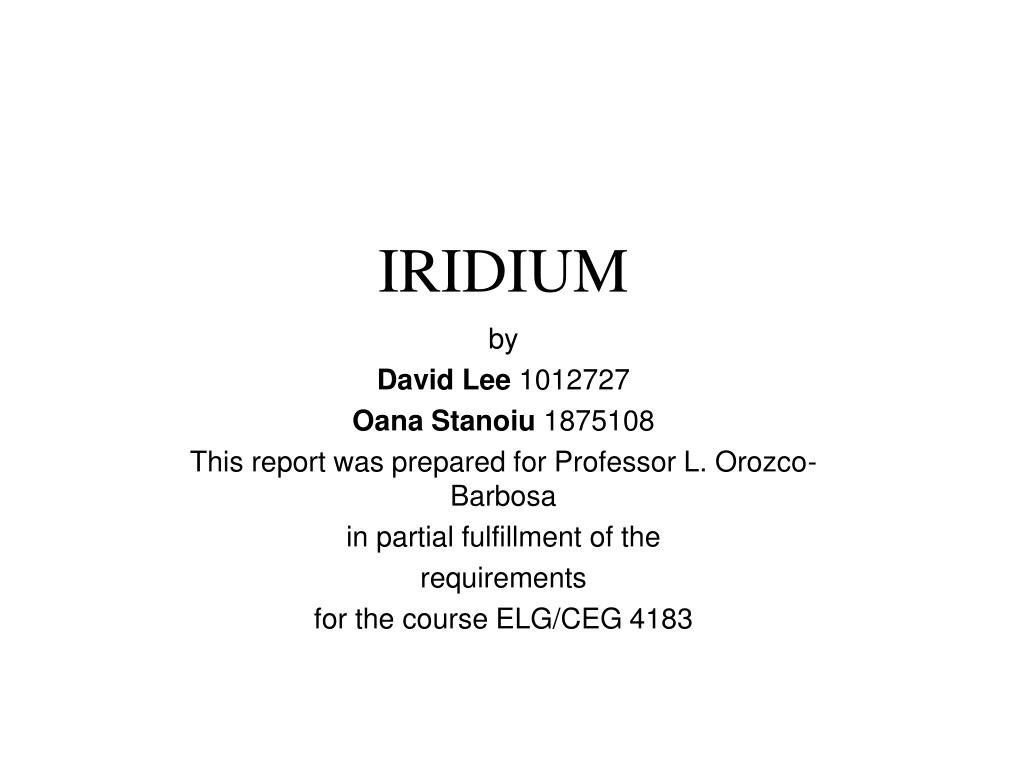

iridium

IRIDIUM

by

David Lee 1012727

Oana Stanoiu 1875108

This report was prepared for Professor L. Orozco-Barbosa

in partial fulfillment of the

requirements

for the course ELG/CEG 4183

outline

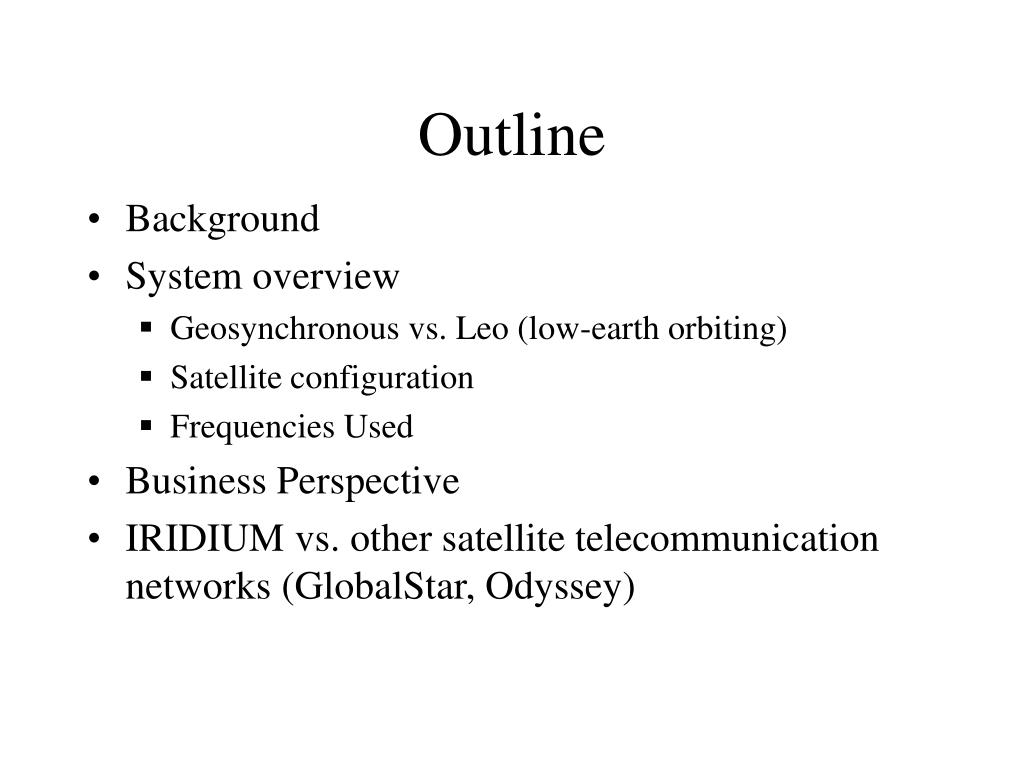

Outline
  • Background
  • System overview
    • Geosynchronous vs. Leo (low-earth orbiting)
    • Satellite configuration
    • Frequencies Used
  • Business Perspective
  • IRIDIUM vs. other satellite telecommunication networks (GlobalStar, Odyssey)
background

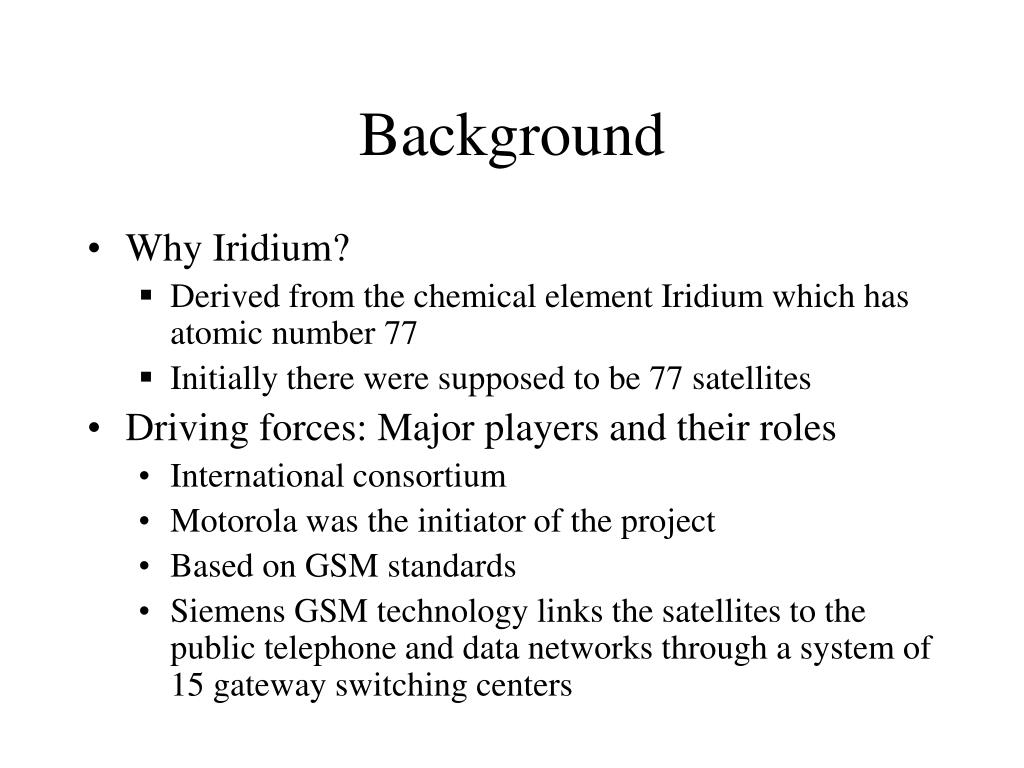

Background
  • Why Iridium?
    • Derived from the chemical element Iridium which has atomic number 77
    • Initially there were supposed to be 77 satellites
  • Driving forces: Major players and their roles
    • International consortium
    • Motorola was the initiator of the project
    • Based on GSM standards
    • Siemens GSM technology links the satellites to the public telephone and data networks through a system of 15 gateway switching centers
system overview

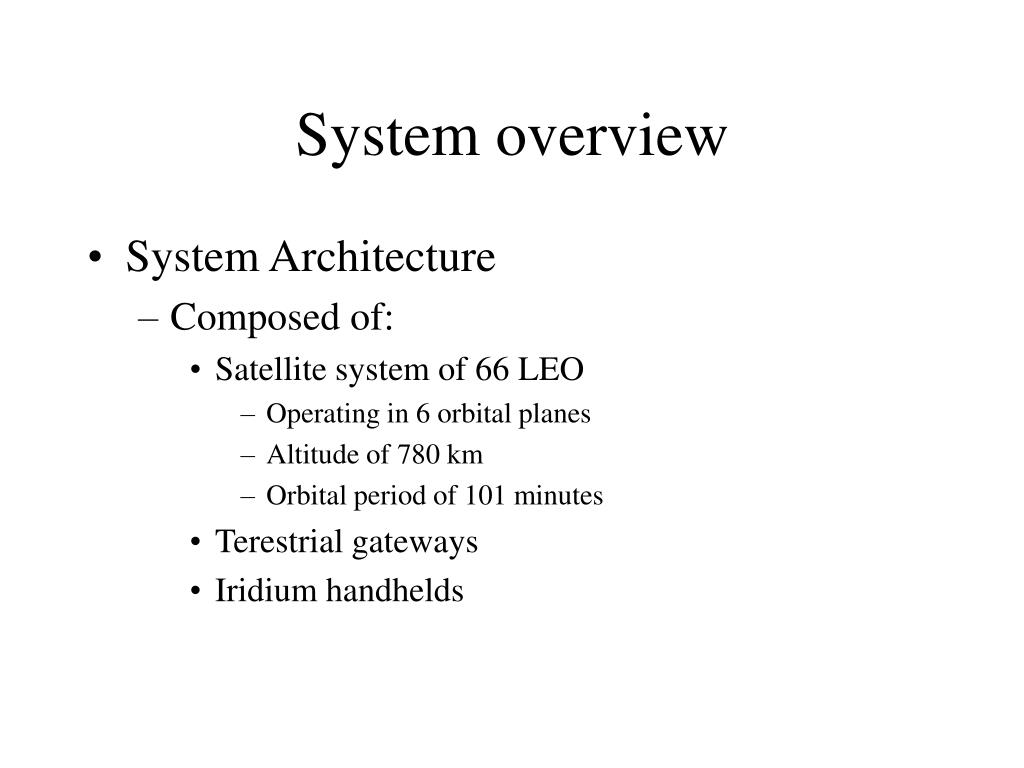

System overview
  • System Architecture
    • Composed of:
      • Satellite system of 66 LEO
        • Operating in 6 orbital planes
        • Altitude of 780 km
        • Orbital period of 101 minutes
      • Terestrial gateways
      • Iridium handhelds
geo vs leo

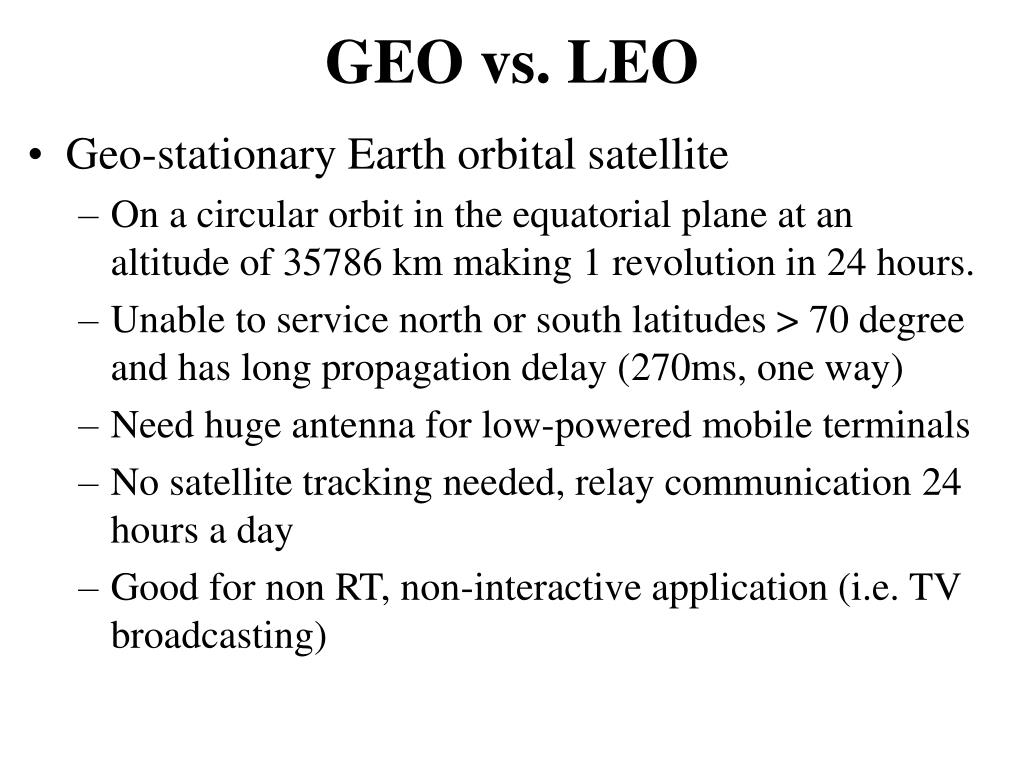

GEO vs. LEO
  • Geo-stationary Earth orbital satellite
    • On a circular orbit in the equatorial plane at an altitude of 35786 km making 1 revolution in 24 hours.
    • Unable to service north or south latitudes > 70 degree and has long propagation delay (270ms, one way)
    • Need huge antenna for low-powered mobile terminals
    • No satellite tracking needed, relay communication 24 hours a day
    • Good for non RT, non-interactive application (i.e. TV broadcasting)
geo vs leo7

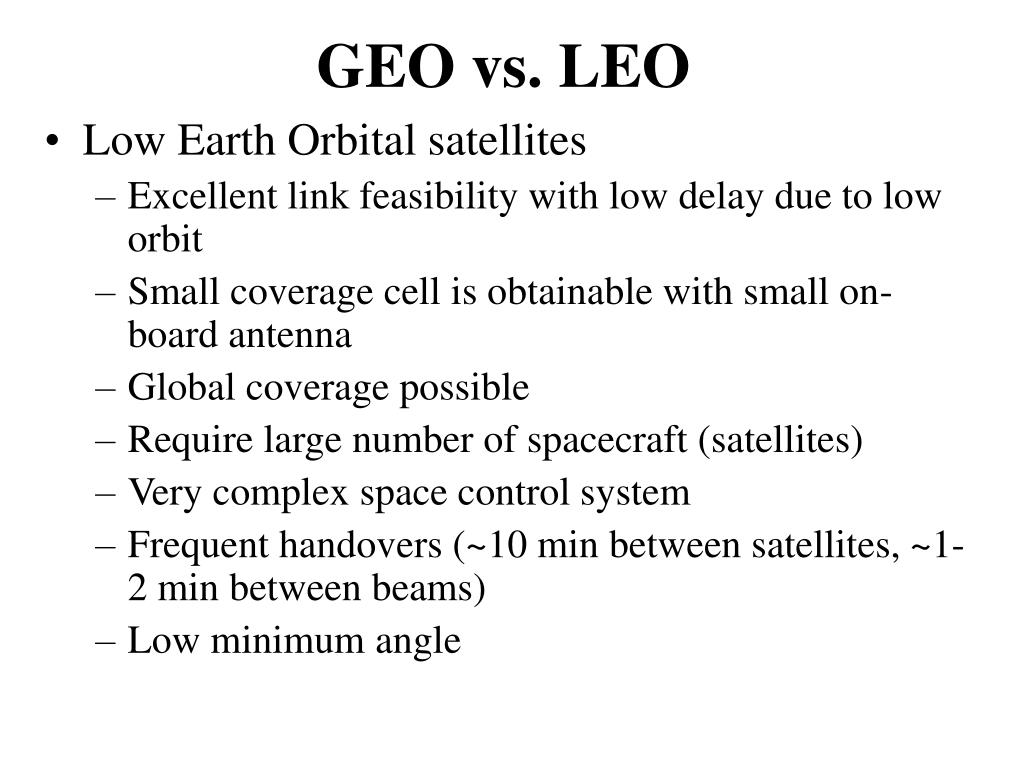

GEO vs. LEO
  • Low Earth Orbital satellites
    • Excellent link feasibility with low delay due to low orbit
    • Small coverage cell is obtainable with small on-board antenna
    • Global coverage possible
    • Require large number of spacecraft (satellites)
    • Very complex space control system
    • Frequent handovers (~10 min between satellites, ~1-2 min between beams)
    • Low minimum angle

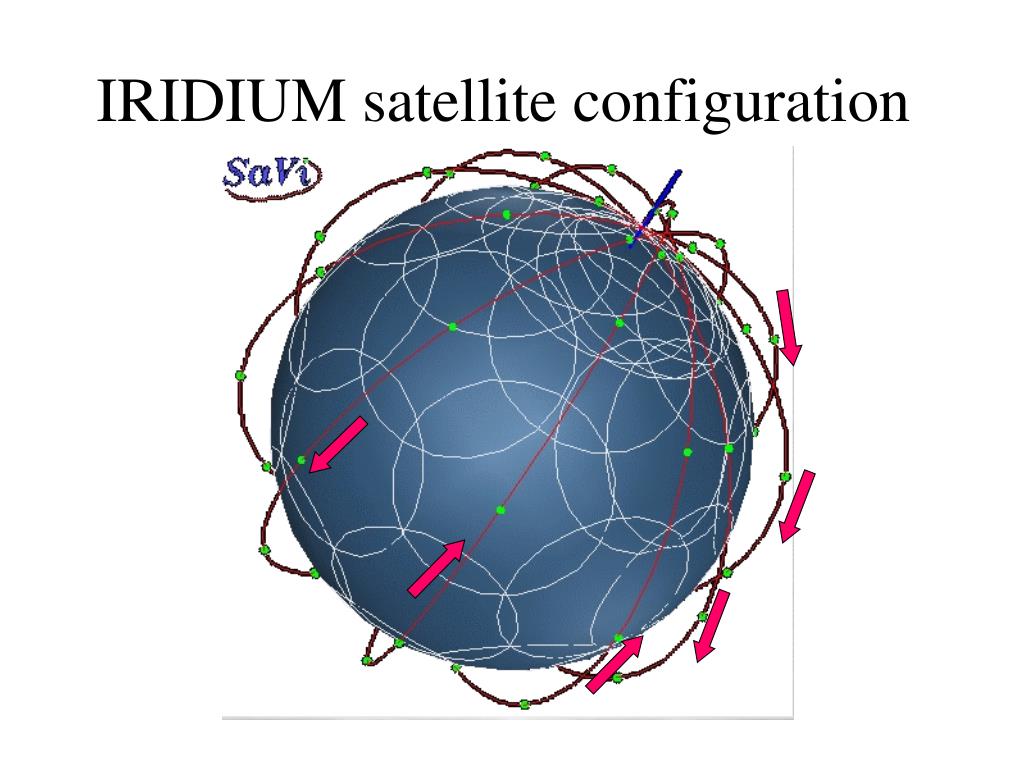

technology description

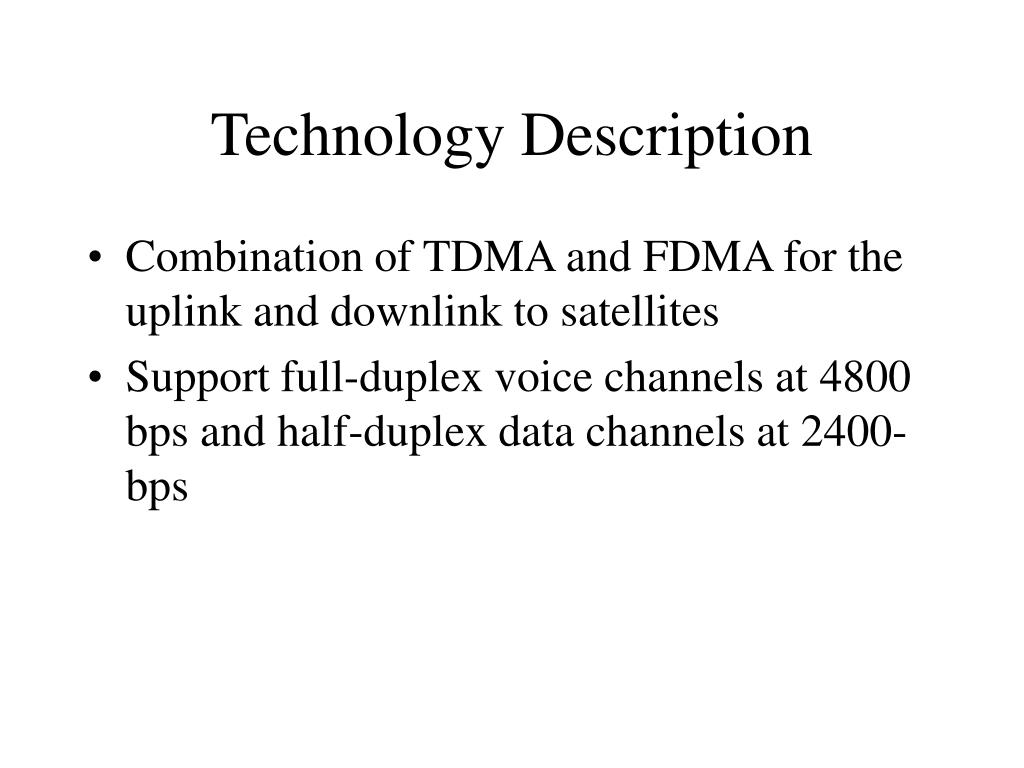

Technology Description
  • Combination of TDMA and FDMA for the uplink and downlink to satellites
  • Support full-duplex voice channels at 4800 bps and half-duplex data channels at 2400-bps

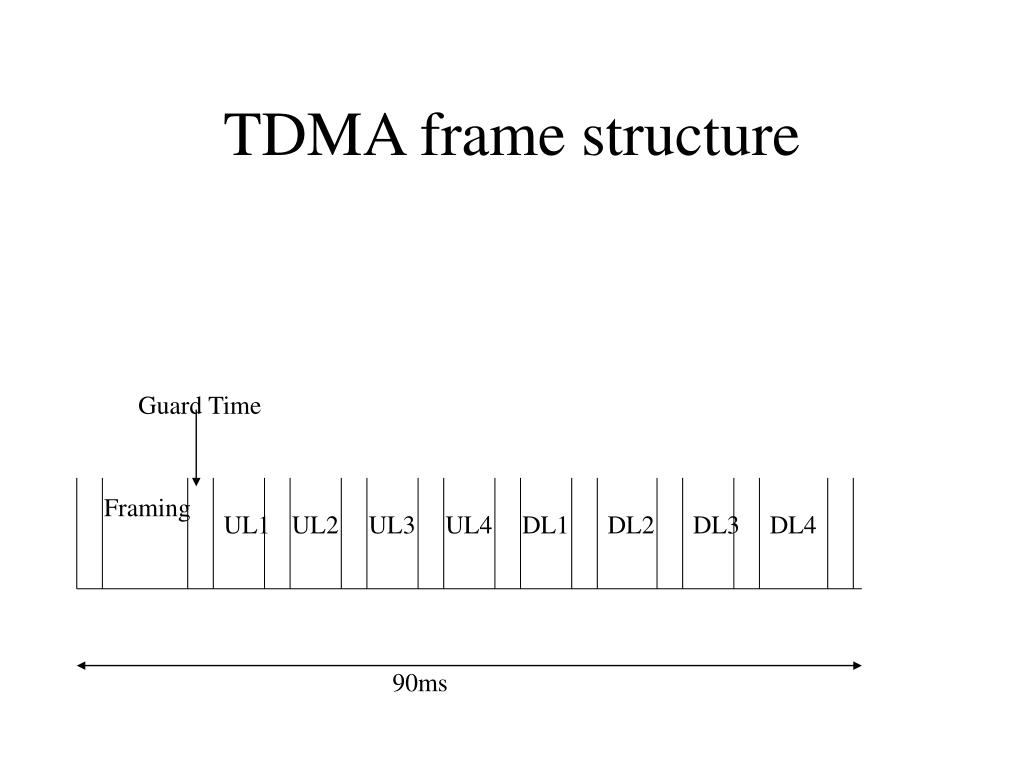

tdma frame structure
TDMA frame structure

Guard Time

Framing

UL1

UL2

UL3

UL4

DL1

DL2

DL3

DL4

90ms

fdma structure

Guard band

41.67kHz

CH1

CH2

CH240

1626.5MHz

1616MHz

10.5MHz

FDMA Structure
channel frequency reuse
Channel Frequency Reuse
  • Each IRIDIUM satellite has 3 phased array antennas with 16 spot beams

48 spot beams/satellite

  • Spot beams are assigned a fraction of the available frequency channels
  • Channels can be reused throughout the network by assigning them to cells that are far enough apart to minimize co-channel interference
  • IRIDIUM network uses a cluster factor of 12
frequency reuse schema

J

E

E

E

E

D

D

D

D

F

F

F

F

L

L

L

L

A

A

A

A

G

G

G

G

C

C

C

C

K

K

K

K

B

B

B

B

H

H

H

H

J

J

J

J

I

I

I

I

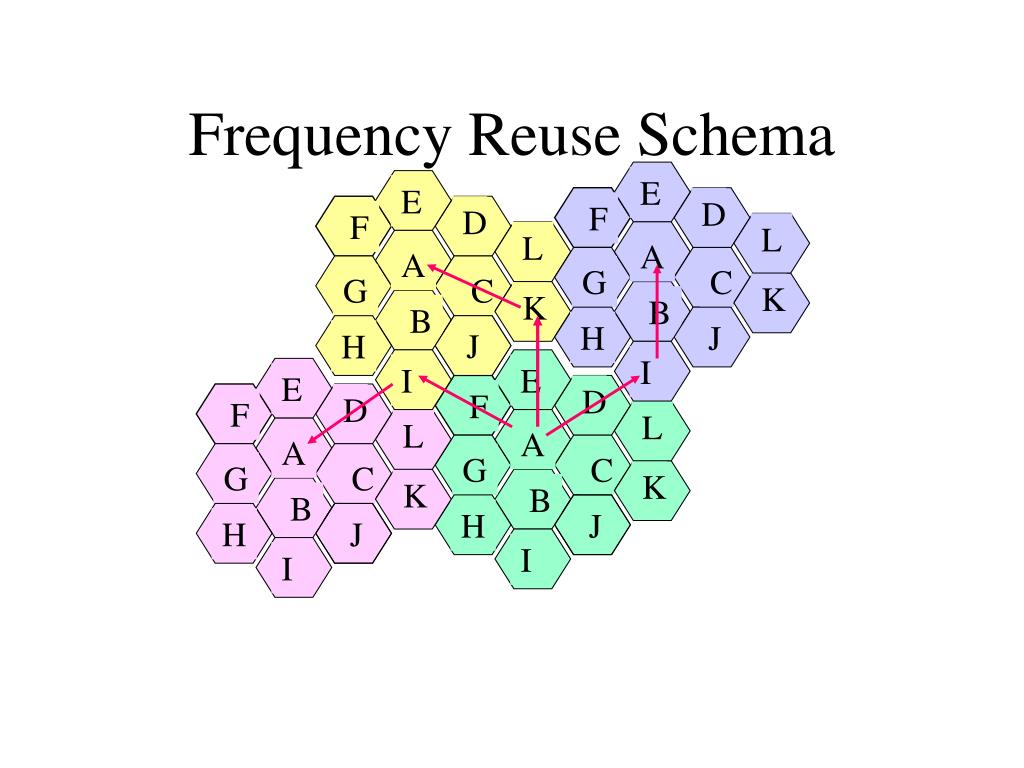

Frequency Reuse Schema
link strategy
Link Strategy
  • IRIDIUM has 2 Intra-Orbit ISL and 2 Inter-Orbit ISL
  • Intra-Orbit ISLs connect satellites within the same orbit
  • Inter-Orbit ISLs connect satellites on different orbits
performance

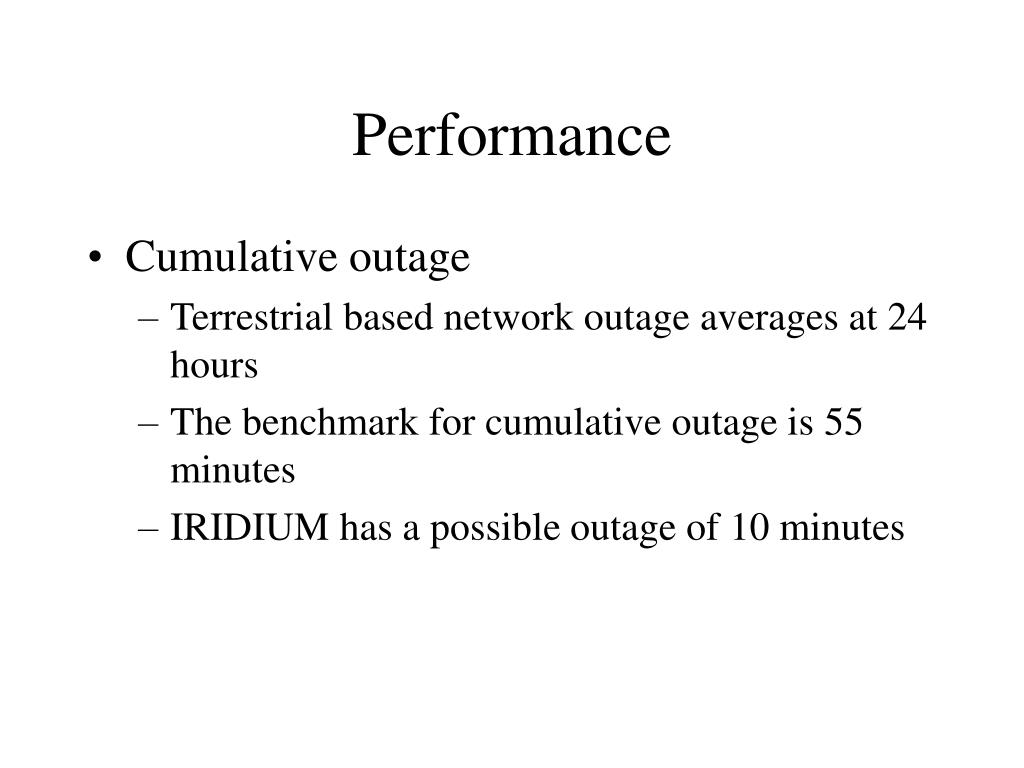

Performance
  • Cumulative outage
    • Terrestrial based network outage averages at 24 hours
    • The benchmark for cumulative outage is 55 minutes
    • IRIDIUM has a possible outage of 10 minutes
business perspective

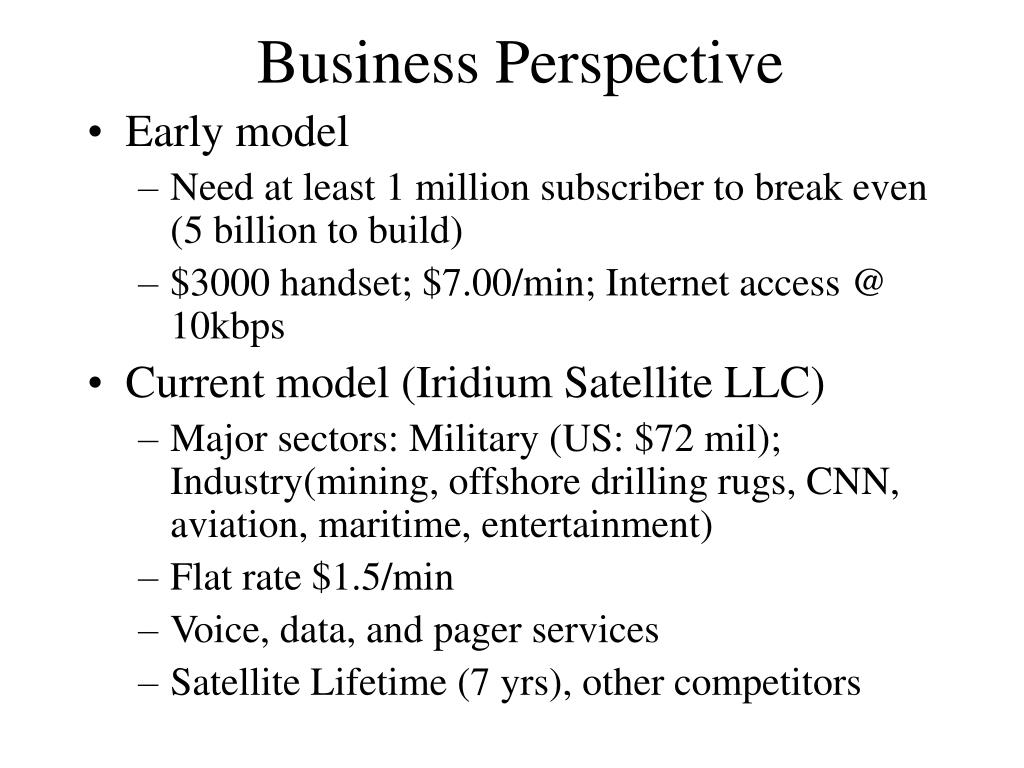

Business Perspective
  • Early model
    • Need at least 1 million subscriber to break even (5 billion to build)
    • $3000 handset; $7.00/min; Internet access @ 10kbps
  • Current model (Iridium Satellite LLC)
    • Major sectors: Military (US: $72 mil); Industry(mining, offshore drilling rugs, CNN, aviation, maritime, entertainment)
    • Flat rate $1.5/min
    • Voice, data, and pager services
    • Satellite Lifetime (7 yrs), other competitors
business perspective cont

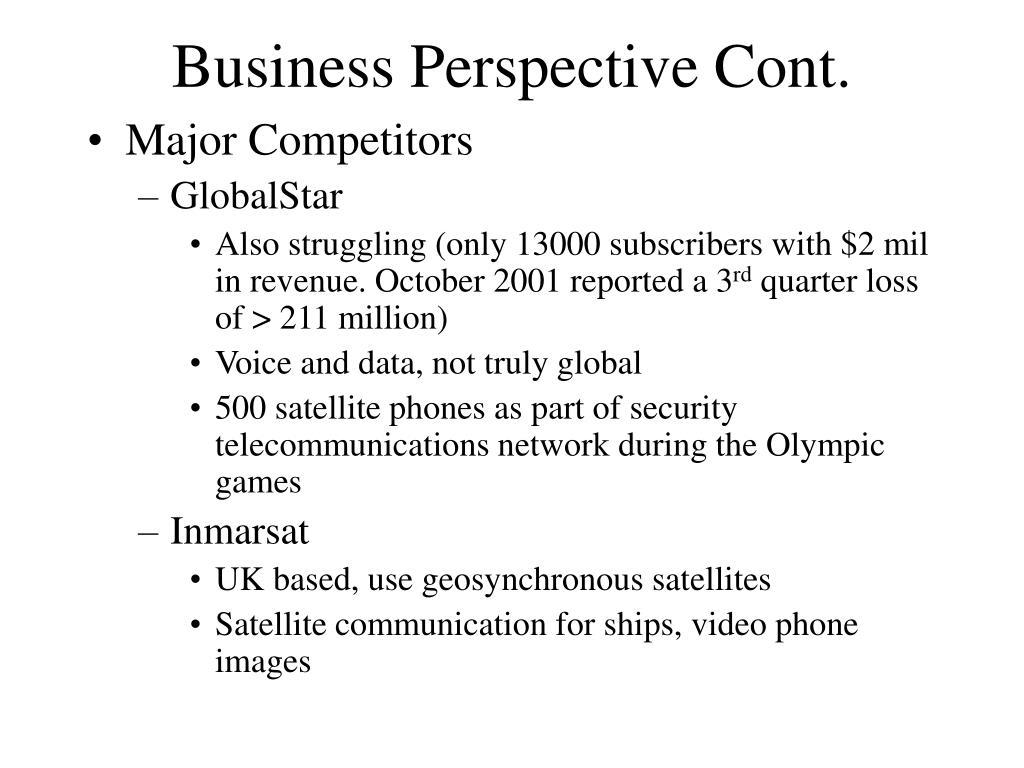

Business Perspective Cont.
  • Major Competitors
    • GlobalStar
      • Also struggling (only 13000 subscribers with $2 mil in revenue. October 2001 reported a 3rd quarter loss of > 211 million)
      • Voice and data, not truly global
      • 500 satellite phones as part of security telecommunications network during the Olympic games
    • Inmarsat
      • UK based, use geosynchronous satellites
      • Satellite communication for ships, video phone images
iridium vs other satellite telecommunication network
IRIDIUM vs. other satellite telecommunication network
  • Geographical coverage
    • Iridium: truly global with 66 satellites; Others focuses on regions in the mid-latitudes (Globalstar has 24 satellites, Odyssey has 9)
  • Co-operation with terrestrial Networks
    • Iridium uses 1 gateway; Globalstar and Odyssey require maximum co-operation with terrestrial networks (no gateway, no service)
iridium vs other satellite telecommunication network19
IRIDIUM vs. other satellite telecommunication network

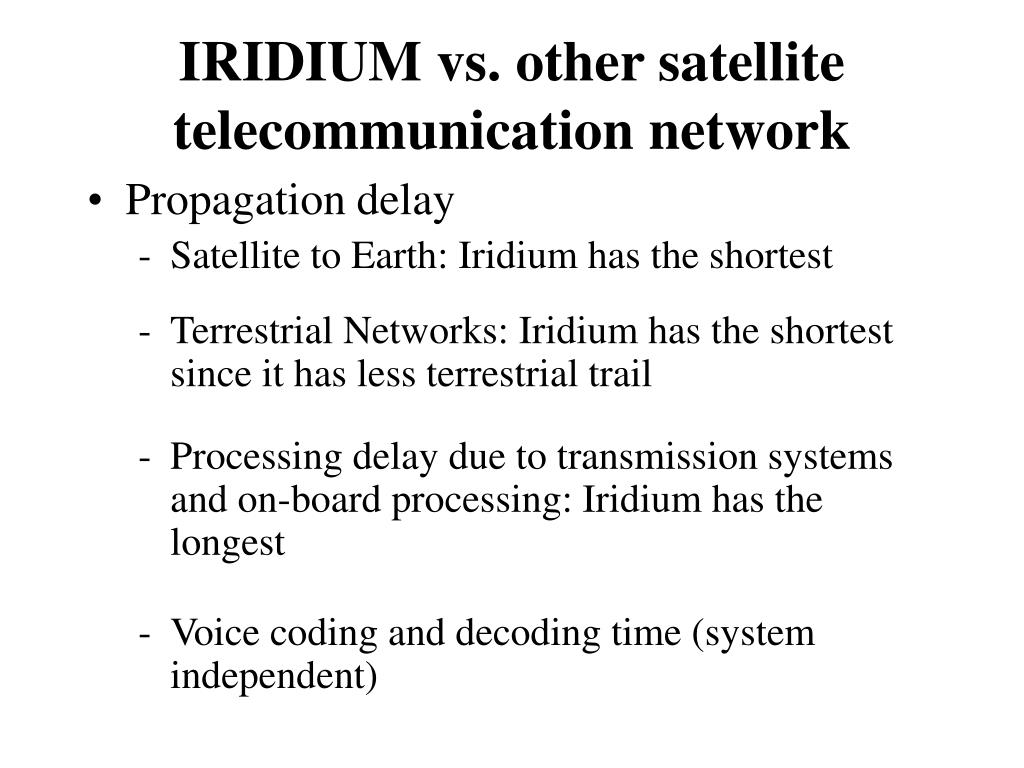

  • Propagation delay
    • Satellite to Earth: Iridium has the shortest
    • Terrestrial Networks: Iridium has the shortest since it has less terrestrial trail
    • Processing delay due to transmission systems and on-board processing: Iridium has the longest
    • Voice coding and decoding time (system independent)
iridium vs other satellite telecommunication network20
IRIDIUM vs. other satellite telecommunication network
  • Frequency bands and multiple access techniques
    • Iridium has a greater capacity (~0.3 mErlang/km2) than the Globalstar (~0.06 mErlang/km2) and Odyssey (~0.2 mErlang/km2)
    • Iridium uses TDMA access technique to coexist with the other systems while Globalstar and Odyssey’s S-band downlink is share with ISM applications leading to service degradation in populated urban area
iridium vs other satellite telecommunication network21
IRIDIUM vs. other satellite telecommunication network

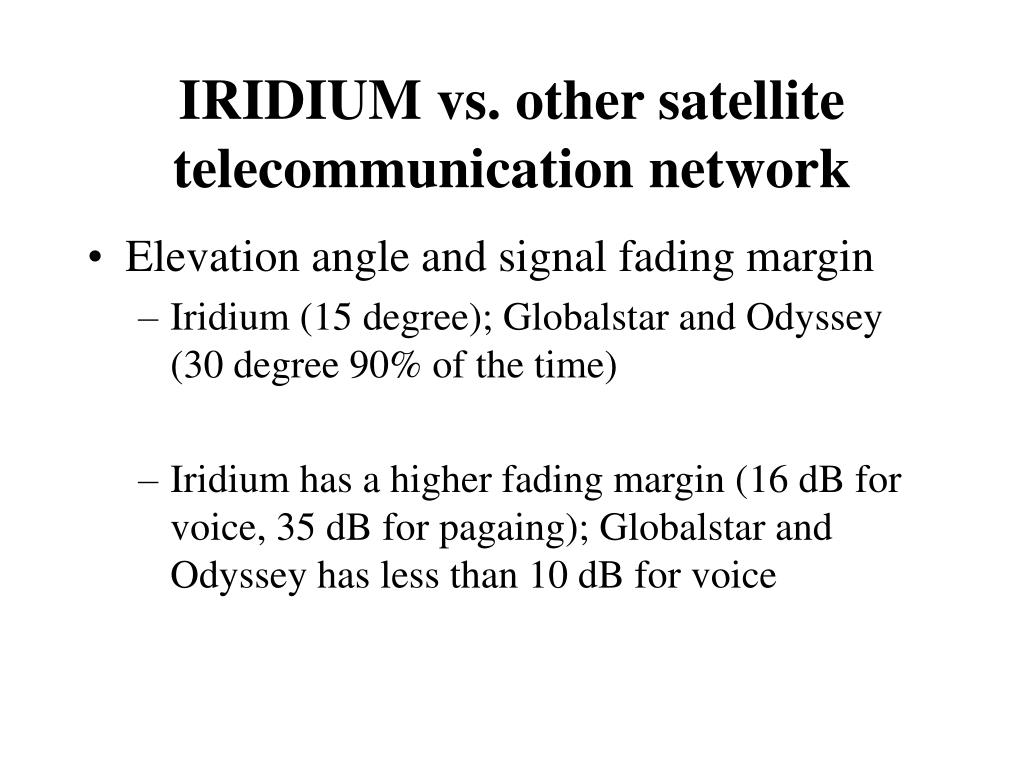

  • Elevation angle and signal fading margin
    • Iridium (15 degree); Globalstar and Odyssey (30 degree 90% of the time)
    • Iridium has a higher fading margin (16 dB for voice, 35 dB for pagaing); Globalstar and Odyssey has less than 10 dB for voice
questions
Questions
  • 1) Why is LEO a better choice for global satellite telecommunication network than GEO (Geo-stationary Earth orbit)?
  • 2) Who was the initiator of the IRIDIUM program?
  • 3) Name two differences between IRIDIUM and GlobalStar satellite networks?
  • 4) What was the cause of the initial failure of the IRDIUM program?
  • 5) How many satellites are in the IRIDIUM satellite network?
  • 6) Define Erlang.
