Presentation Transcript
cryptosystem design
Cryptosystem Design
  • With cryptosystems, we desire perfect secrecy:
    • the probability that the contents of some intercepted data corresponds to some plaintext message is unaltered by knowledge of the ciphertext for that message.
  • Measuring the strength for cryptosystem by what is known as its work factor:
    • the amount of time needed to decipher a message without knowledge of the key.
    • A cryptosystem is considered secure when its workfactor is exponential in the length of the key: 2.

keylen

cryptosystem design3

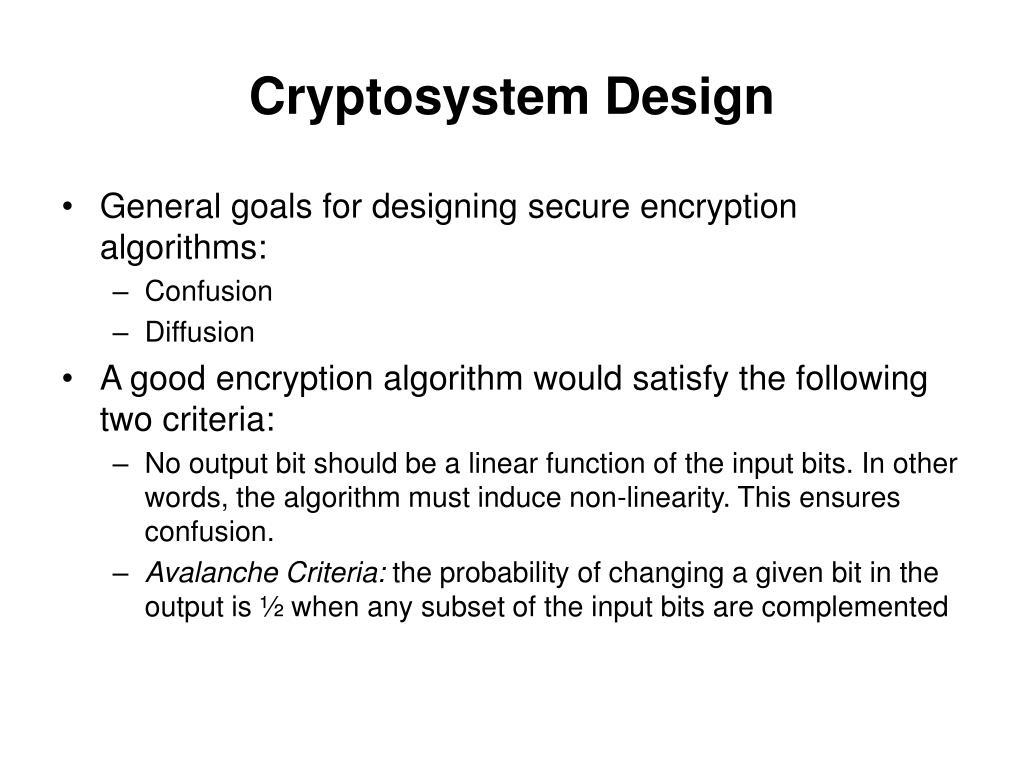

Cryptosystem Design
  • General goals for designing secure encryption algorithms:
    • Confusion
    • Diffusion
  • A good encryption algorithm would satisfy the following two criteria:
    • No output bit should be a linear function of the input bits. In other words, the algorithm must induce non-linearity. This ensures confusion.
    • Avalanche Criteria: the probability of changing a given bit in the output is ½ when any subset of the input bits are complemented
cryptosystem design4
Cryptosystem Design
  • Types of Cryptographic Functions:
    • Secret key (symmetric): involves 1 key, known as the secret key
    • Public key (asymmetric):involves 2 keys, known as the private & public keys
    • hash: involves 0 keys
advanced encryption standard aes
Advanced Encryption Standard (AES)
  • the US "standard" secret key cryptosystem, replacing DES (Data Encryption Standard, adopted in 1977)
  • AES is the result of a three year competition. This competition was announced in September 1997 and had entries from 12 different countries
  • The one submission that eventually won was called "Rijndael" and was invented by two Belgians, Joan Daemen and Vincent Rijmen.
a brief history of des
A Brief History of DES
  • In 1974, IBM proposed "Lucifer", an encryption algorithm that uses 64-bit keys. Two years later, NBS (in consultation with NSA) made a modified version of that algorithm into a standard.
  • DES takes in 64 bits of data, employs a 56-bit key, and executes 16 cycles of substitution and permutation before outputting 64 bits of encrypted data.
a brief history of des8
A Brief History of DES
  • In the summer of 1998, the Electronic Frontier Foundation (EFF) built a DES cracker machine at a cost of $250,000
  • It had 1536 chips, worked at a rate of 88 billion keys per second, and was able to break a DES encrypted message in 56 hours
  • One year later, with the cracker working in tandem with 100,000 PCs over the Internet, a DES encrypted message was cracked in only 22 hours.
  • One common way to make DES more secure today is to encrypt three times using DES.
    • triple-DES (3DES).
    • 3DES is extremely slow, so a better algorithm was needed.
requirements for aes
Requirements for AES
  • AES had to be a private key algorithm. It had to use a shared secret key.
  • It had to support the following key sizes:
    • 128 bits ( = 3.4 x 10 keys, equivalent to 2560-bit RSA)
    • 192 bits ( = 6.2 x 10 keys)
    • 256 bits ( = 1.1 x 10 keys)
  • DES uses only 56-bit keys, giving a key space of 7.2 x 10 keys
  • If you were able to search half the DES key space in 1 second, then on average, it would take 149 trillion years to crack a 128-bit AES key.

38

57

77

16

requirements for aes10

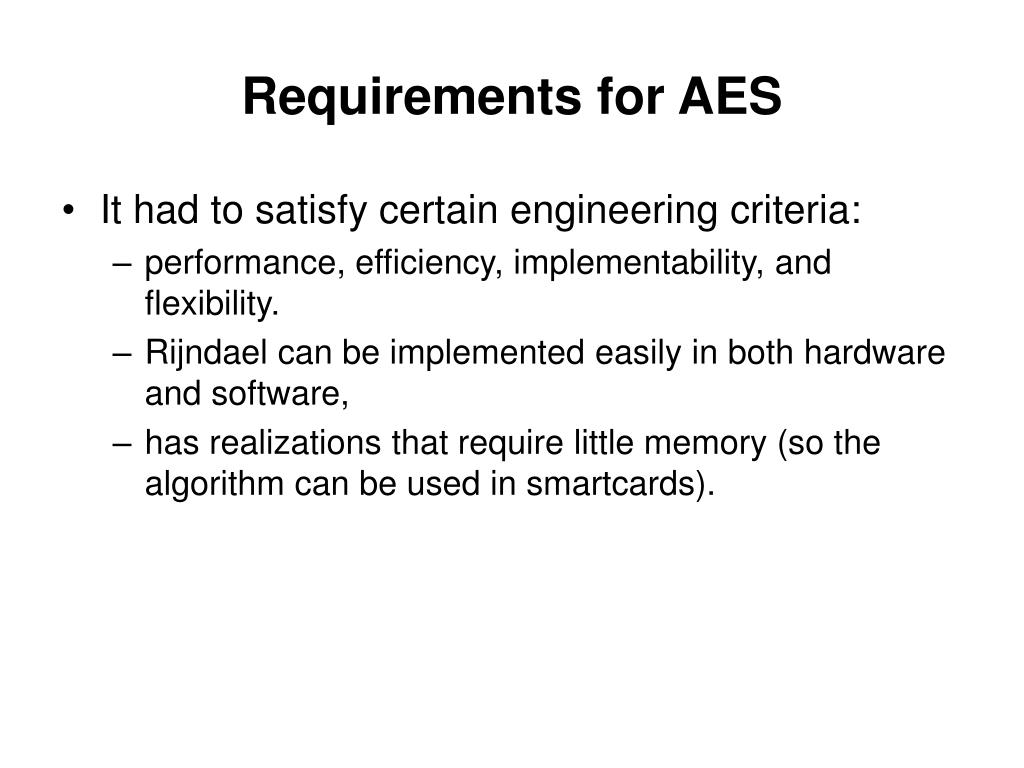

Requirements for AES
  • It had to satisfy certain engineering criteria:
    • performance, efficiency, implementability, and flexibility.
    • Rijndael can be implemented easily in both hardware and software,
    • has realizations that require little memory (so the algorithm can be used in smartcards).
requirements for aes11

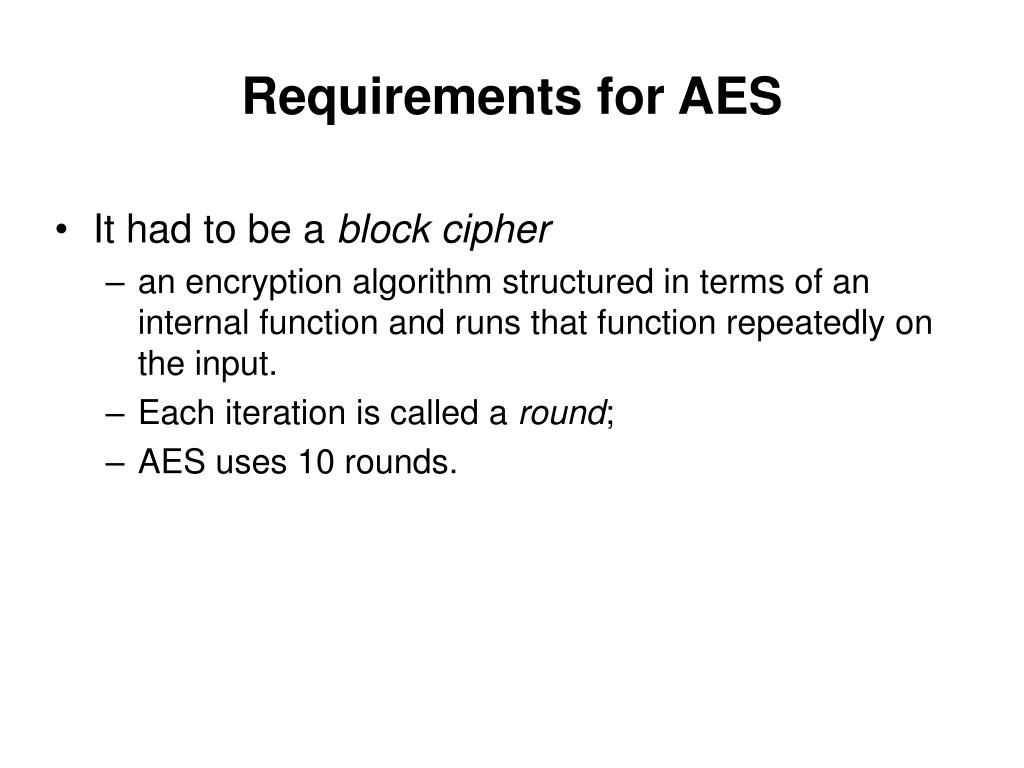

Requirements for AES
  • It had to be a block cipher
    • an encryption algorithm structured in terms of an internal function and runs that function repeatedly on the input.
    • Each iteration is called a round;
    • AES uses 10 rounds.
requirements for aes12
Requirements for AES
  • AES is also an instance of a Feistel cipher, a special case of a block cipher.
    • The input to such a cipher consists of 2t bits.
    • The input is first divided into 2 parts:
    • L and R
    • The cipher then proceeds in rounds.
  • In the i-th round,

Li := Ri-1

Ri := Li-1 XOR f(Ri-1, ki),

  • where f is some function, and k is some number derived from the key, to be used in round i.

0

0

i

i

idea international data encryption algorithm

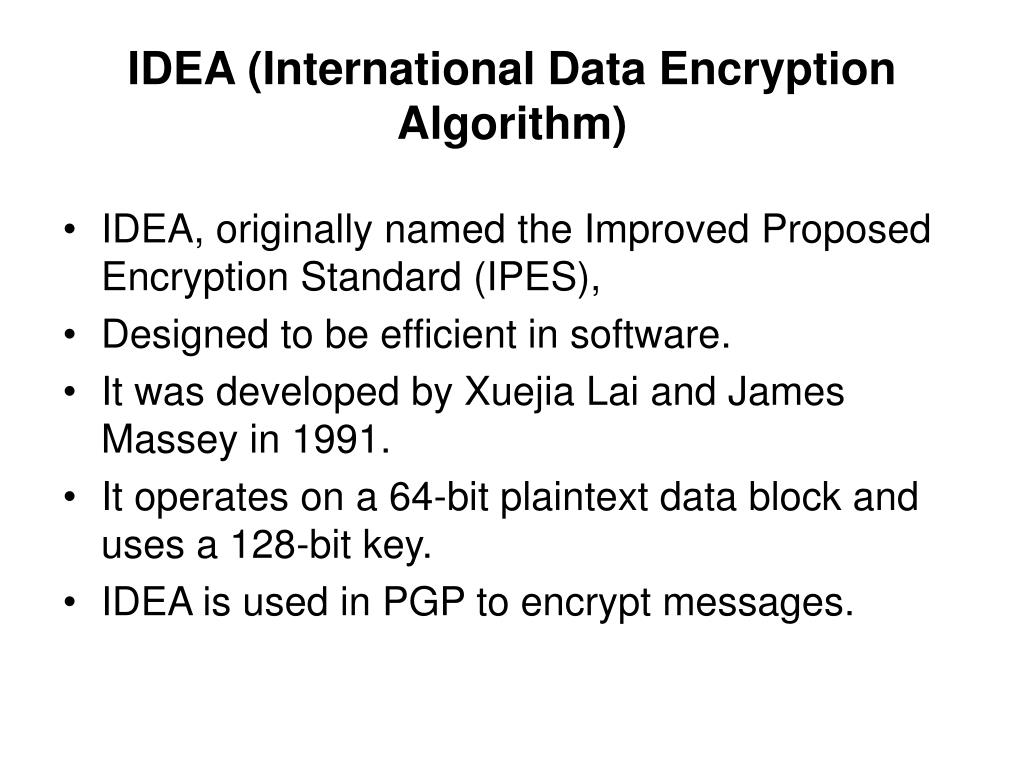

IDEA (International Data Encryption Algorithm)
  • IDEA, originally named the Improved Proposed Encryption Standard (IPES),
  • Designed to be efficient in software.
  • It was developed by Xuejia Lai and James Massey in 1991.
  • It operates on a 64-bit plaintext data block and uses a 128-bit key.
  • IDEA is used in PGP to encrypt messages.
