connectivity aware routing for vehicular ad hoc networks

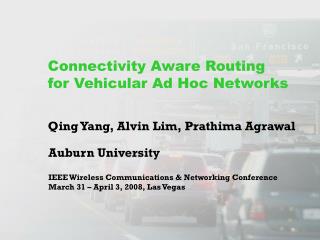

Connectivity Aware Routing for Vehicular Ad Hoc Networks

Qing Yang, Alvin Lim, Prathima Agrawal

Auburn University

IEEE Wireless Communications & Networking Conference March 31 – April 3, 2008, Las Vegas

outline
Outline
  • Goals
  • Basic concepts
  • Related works
  • Assumptions
  • Model of the connectivity
    • Validation with VanetMobiSim
  • Routing strategy
  • Simulations and result analysis
  • Conclusions

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

goals
Goals
  • Achieves routing between two ends

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

basic concepts
Basic concepts
  • Model the probability of connectivity of each road segment
  • Find the route with the highest probability of connectivity
  • Carry-and-forward the packet while facing network partitions

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

related works
Related Works
  • VADD (’06Infocom)
    • Vehicle-Assisted Data Delivery
  • MURU (’06MobiQuitous)
    • Multi-Hop Routing for Urban Vanet
  • GSR (’05MC2R)
    • Geographic source routing
  • GPSR (’00MobiCom)

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

assumption
Assumption
  • GPS on each vehicle
    • Standard component
  • Digital maps [1,2]
    • Vehicle density
    • Vehicle speed
    • Traffic light period

1. http://www.mapmechanics/

2. http://www.yahoo.com/

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

model of connectivity

….

n cars

n0 cells

m cells

Model of connectivity
  • One lane road segment
    • road segment (length is L) is equally divided into m cells
    • each cell can contain only one node
    • communication range is size of n0 cells

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

multiple lanes case

….

….

Multiple lanes case
  • One lane road segment
    • Number of empty cells is m-n
  • Multiple lanes road segment
    • Number of lanes is n’
    • Number of empty cells ranges [m-n, m-n/n’]

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

problem formulation

….

Problem formulation
  • Problem formulation
    • What is the probability that network is connected
    • The probability that no gap in networks is larger than the communication range
  • Random Allocation (RA) theory

1

0

0

1

1

0

1

2

0

1

1

1

1

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

probability of connectivity
Probability of connectivity
  • P1 (exists exactly k empty cells)
  • P2 (exists more than n0continuous empty cells)
  • Pcon (Probability of connectivity)

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

vanetmobisim
VanetMobiSim
  • Feature
    • multi-lane roads
    • separate directional flows
    • traffic signs at intersections
    • Intersection management
    • Lane changing
  • VanetMobiSim[3] mobility patterns have been validated against TSIS-CORSIM
    • a well known and validated traffic generator

3. http://vanet.eurecom.fr

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

validation of connectivity model
Validation of connectivity model
  • Length of road
    • 1000m, 1800m
  • Traffic light period
    • 60sec., 120sec.
  • Average velocity
    • 7.5m/s, 10m/s

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

result of validation
Result of validation
  • 1000m, 7.5m/s and 60sec

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

result of validation cont
Result of validation (cont’)
  • 1800m, 10m/s and 120sec

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

probability of connectivity of route
Probability of connectivity of route

p3

p8

  • Pi: probability of connectivity of road segment i
  • Pcon: probability of connectivity of selected route (path)
    • Defined as ∏Pi

p1

p11

p6

p4

p9

p1*p4*p7*p12=Max?

p2

p7

p12

p5

p10

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

computation of pr
Computation of Pr
  • Define of Pr:
    • sequence of road segments from source to destination
  • Modified Dijkstra Algorithm
    • Final goal: maximize the probability of whole path
    • Each step: add one more edge, the probability of new path decrease
  • Can be computed
    • Centralized
    • Distributed

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

computation of pr cont
Computation of Pr (cont’)
  • Centralized
    • Path Pr was computed only by source node
    • Size of packet header is proportionate to hop number
  • Distributed
    • Every node who received packet computes Pr
    • More processing on vehicles

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

routing strategy
Routing strategy
  • Compute Pr
  • Find hops on road segment along Pr
    • Every node beacons its current position
    • Predict neighbor’s position while choosing next hop
  • Carry and forward
    • Buffered packet if no available next hop
    • Send buffered packet when new next hop is in range

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

carry and forward strategy
Carry and forward strategy
  • Buffer packets which cannot be forwarded
  • Send out buffered packet if new next hop is available
  • Good for VANET
    • Lots of “holes” in VANET
    • On path Pr, higher probability of obtaining a new next hop
    • Big buffer is feasible in cars

Wisitpongphan, N.; Bai, F.; Mudalige, P.; Tonguz, O. K., "On the Routing Problem in Disconnected Vehicular Ad-hoc Networks," INFOCOM 2007. 26th IEEE International Conference on Computer Communications. IEEE , vol., no., pp.2291-2295, May 2007

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

simulation
Simulation
  • Nodes movement
    • VanetMobiSim
  • Map
    • TIGER/LINE
    • Real map from Tennessee
  • Network simulation
    • Ns2 setup
    • Result analysis

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

map information
Map information
  • TIGER[4]
    • Topologically Integrated Geographic Encoding and Referencing
  • A format used by the United States Census Bureau to describe land attributes
    • Roads, buildings, rivers, and lakes
    • Can be read by Tivec[5]

4. http://www.census.gov/geo/www/tiger/

5. http://www.triusinc.com/latest.htm

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

map in simulation
Map in simulation
  • Centered at
    • Long: -84877562
    • Lat: 35162102
  • Size
    • Width: 2000m
    • Length: 2000m

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

ns2 setup
Ns2 setup
  • Simulation Area: 2000m*2000m
  • Number of nodes: 100, 200
  • Communication range: 250m
  • Packet size: 512 Byte
  • CBR rate: 0.1 ~ 1packet/sec.
  • Random selected source and fixed destination
  • Buffer size: 64kBytes
  • Beacon interval: 1.0 sec.
  • Velocity: 15 ~ 35 MPH

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

data delivery ratio 100nodes
Data delivery ratio (100nodes)

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

data delivery ratio 200nodes
Data delivery ratio (200nodes)

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

networking delay 100nodes
Networking delay (100nodes)

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

networking delay 200nodes
Networking delay (200nodes)

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

throughput
Throughput

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

conclusions
Conclusions
  • Connectivity issue is very important in VANET
  • CAR performs well and is independent on the network density
  • Perimeter mode of GPSR suffers in frequently disconnected networks

IEEE Wireless Communications & Networking Conference (WCNC), Las Vegas, 2008

questions and comments
Questions and comments

Thanks!
