Presentation Transcript
automobile

Automobile

Self-propelled vehicle that travel on land

slide2

Automobile Timeline

1769 - Nicholas Joseph Cugnot designs and M. Brezon constructs the first “automobile”.

1750

1840

1896 - The company later named after him, Henry Ford produced his first car, the two-cylinder “quadricycle”.

1876 - German, Nikolaus A. Otto designed and developed the first practical 4 stroke engine.

1840

1885

1930

1860 - Lenoir built first internal combustion engine, operated by vegetable oil.

1914 - Henry Ford introduces the assembly-line technique for manufacture of the Model T.

1892 - German engineer, Rudolph Diesel constructed the first diesel engine.

1886 –Daimler&Benz produced first automobile

slide3

History of Automobile

  • 1769 - Nicholas-Joseph Cugnot built a steam tractor
  • 1860 - Lenoir engine
  • 1876 - Otto four stroke “spark ignition” engine
  • 1880s - Two stroke engine
  • 1886 - First automobile was produced by Daimler& Benz
  • 1892 - Diesel four stroke “compression ignition” engine
  • 1957 - Wenkel “rotary” engine
slide4

History of Automobile

1769 - Nicholas Joseph Cugnot with Steam “automobile”.

SI Engine(1876) by

Nicolaus August Otto

slide6

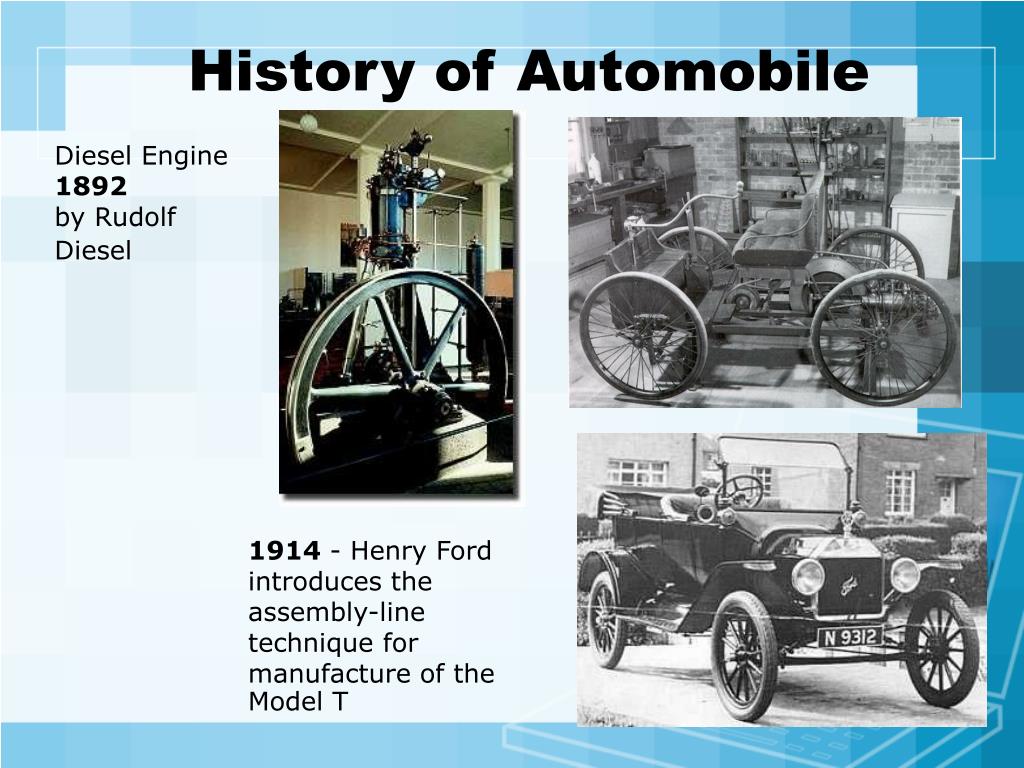

History of Automobile

Diesel Engine 1892

by Rudolf Diesel

1914 - Henry Ford introduces the assembly-line technique for manufacture of the Model T

slide7

Automobile History

  • 1849 -- Volvo ติดตั้งระบบเข็มขัดนิรภัย
  • 1854 -- Samuel McKeen ออกแบบเครื่องวัดระยะทาง odometer
  • 1901 -- Frederick William Lanchesterคิดค้นdisc brakes
  • 1904 – Christie modelถูกติดตั้งยางและล้อรถยนต์ที่สามารถถอดเปลี่ยนได้
  • 1905 -- Mary Anderson ผลิตที่ปัดน้ำฝน และถูกติดตั้งเข้ากับรถยนต์เมื่อปี1916
slide8

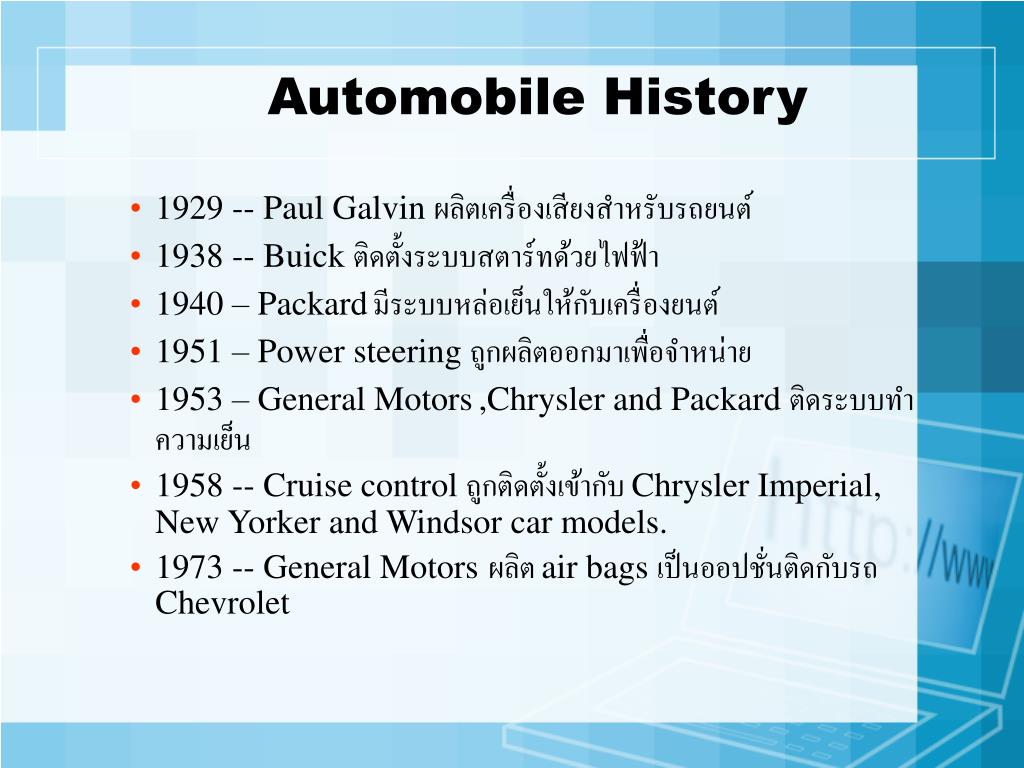

Automobile History

  • 1929 -- Paul Galvin ผลิตเครื่องเสียงสำหรับรถยนต์
  • 1938 -- Buick ติดตั้งระบบสตาร์ทด้วยไฟฟ้า
  • 1940 – Packardมีระบบหล่อเย็นให้กับเครื่องยนต์
  • 1951 – Power steering ถูกผลิตออกมาเพื่อจำหน่าย
  • 1953 – General Motors,Chrysler and Packard ติดระบบทำความเย็น
  • 1958 -- Cruise control ถูกติดตั้งเข้ากับChrysler Imperial, New Yorker and Windsor car models.
  • 1973 -- General Motorsผลิตair bags เป็นออปชั่นติดกับรถChevrolet
construction

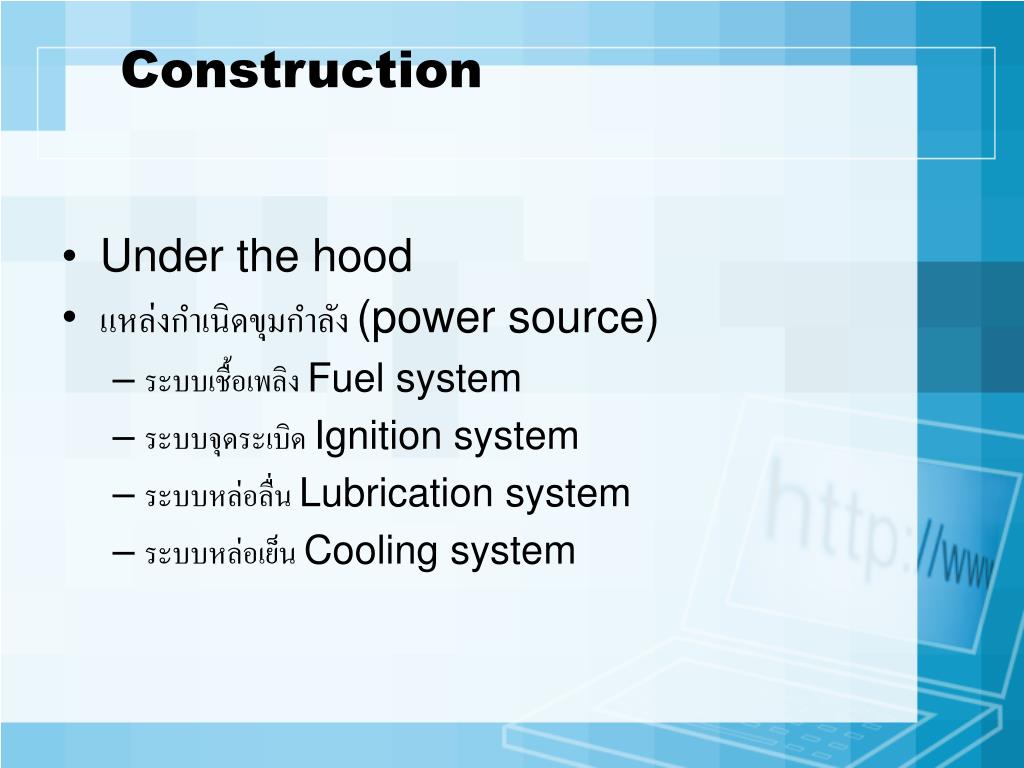

Construction
  • Under the hood
  • แหล่งกำเนิดขุมกำลัง (power source)
    • ระบบเชื้อเพลิง Fuel system
    • ระบบจุดระเบิด Ignition system
    • ระบบหล่อลื่น Lubrication system
    • ระบบหล่อเย็น Cooling system
slide11

Engine

Throttle

Radiator

slide13

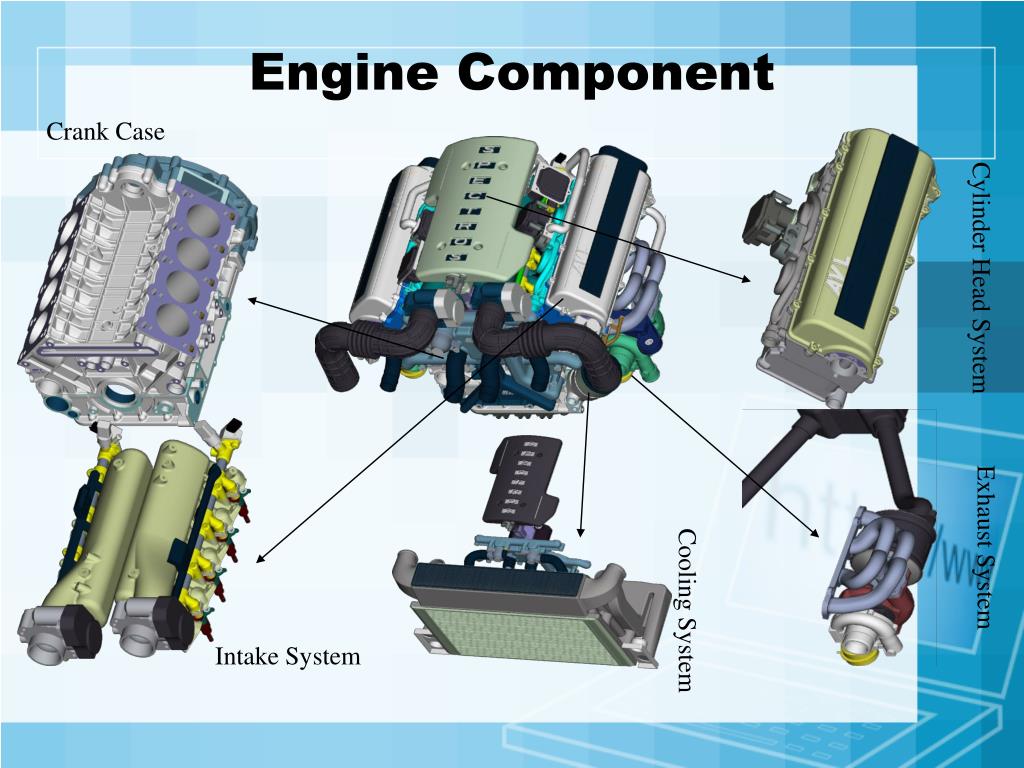

Engine Component

Crank Case

Cylinder Head System

Exhaust System

Cooling System

Intake System

slide14

Manifold

Cam shaft

Drive belt

power to wheels
Power to Wheels
  • Power train
  • Clutch
  • Transmission
  • Differential
  • Tires and wheels
slide17

Body

transmission

Engine

chassis

suspension

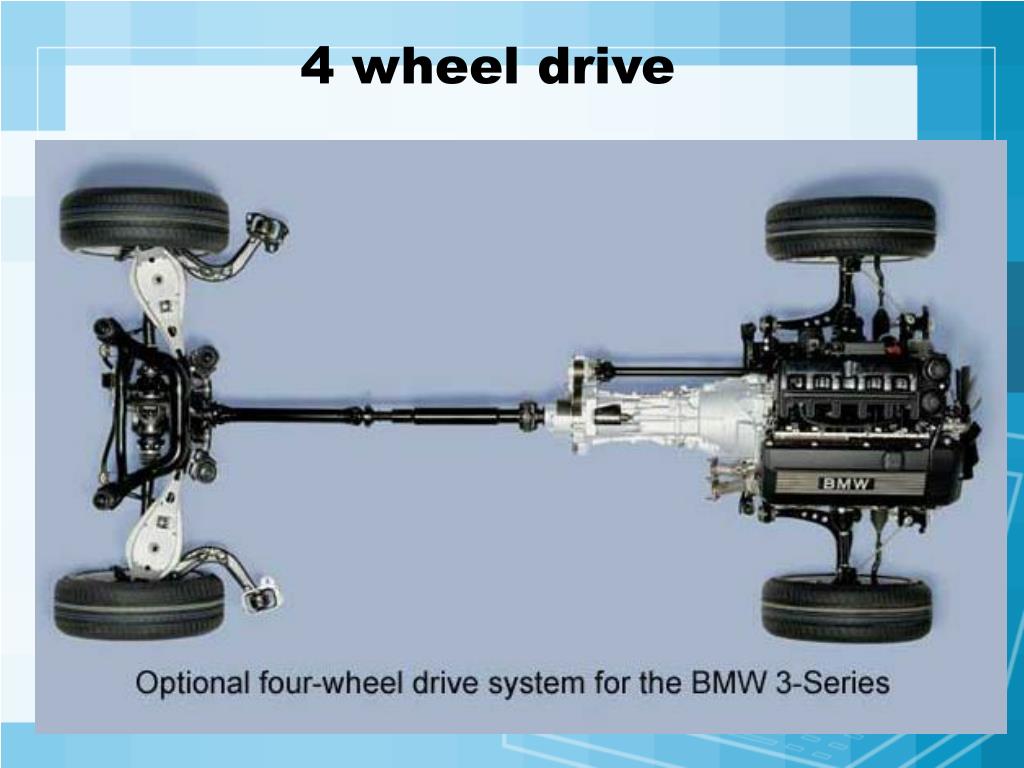

4 wheel drive

controlling ride and handling
Controlling ride and Handling
  • Suspension system
  • Steering system
  • Braking system
accessories
Accessories
  • Electronic controls system
  • Body design
  • Regulation
    • Air pollution
    • Safety
    • Fuel economy
slide26

New Technology

GDI(Gasoline Direct Injection)

Engine

PILOT/MAIN/POST INJECTION

(Diesel Engine)
