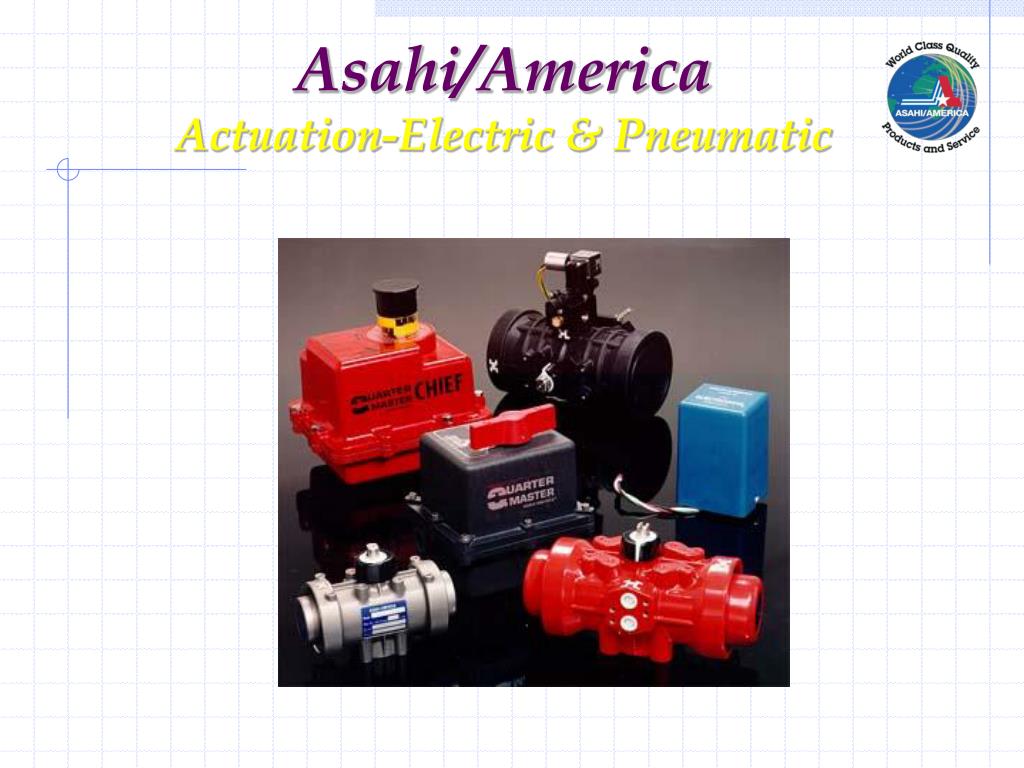

slide1 l.
Download
Skip this Video
Loading SlideShow in 5 Seconds..
Asahi/America Actuation-Electric & Pneumatic PowerPoint Presentation
Download Presentation
Asahi/America Actuation-Electric & Pneumatic

Loading in 2 Seconds...

play fullscreen
1 / 26

Asahi/America Actuation-Electric & Pneumatic - PowerPoint PPT Presentation


  • 333 Views
  • Uploaded on

Asahi/America Actuation-Electric & Pneumatic Asahi/America Actuation Actuator Packages State of the Art Design Ability to Interface In-House Manufacturing Specials Over 25 Years Experience Asahi/America Actuation Markets Water Purification Waste Treatment Chemical Landfills

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Asahi/America Actuation-Electric & Pneumatic' - benjamin


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

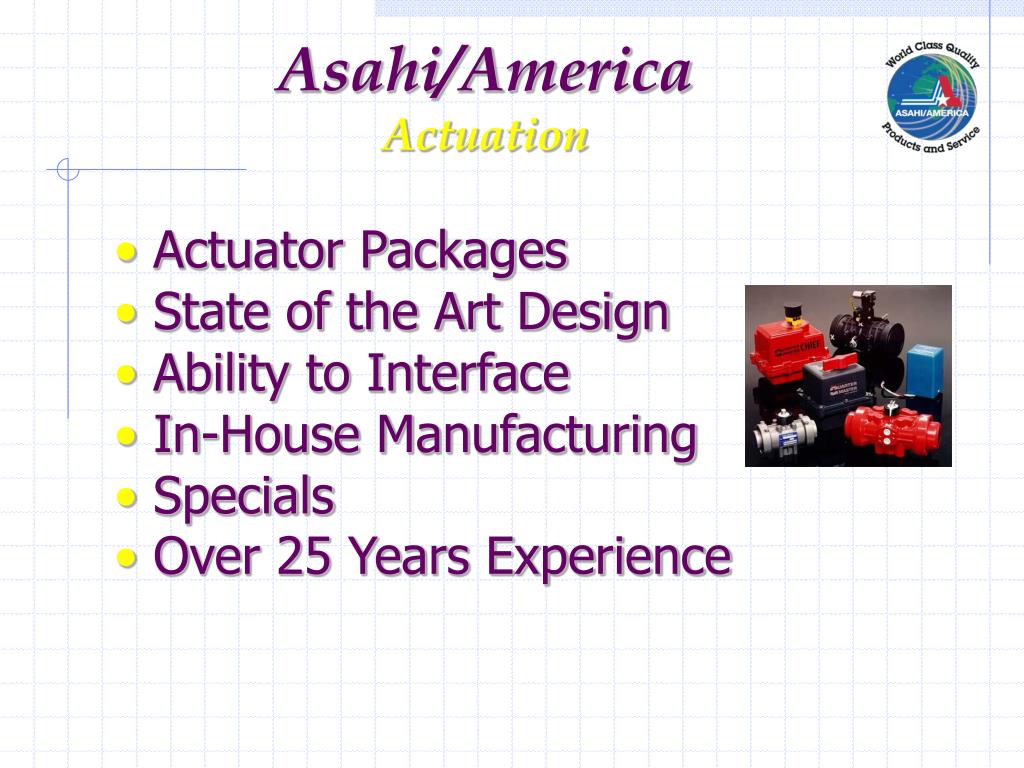

slide2

Asahi/AmericaActuation

  • Actuator Packages
  • State of the Art Design
  • Ability to Interface
  • In-House Manufacturing
  • Specials
  • Over 25 Years Experience

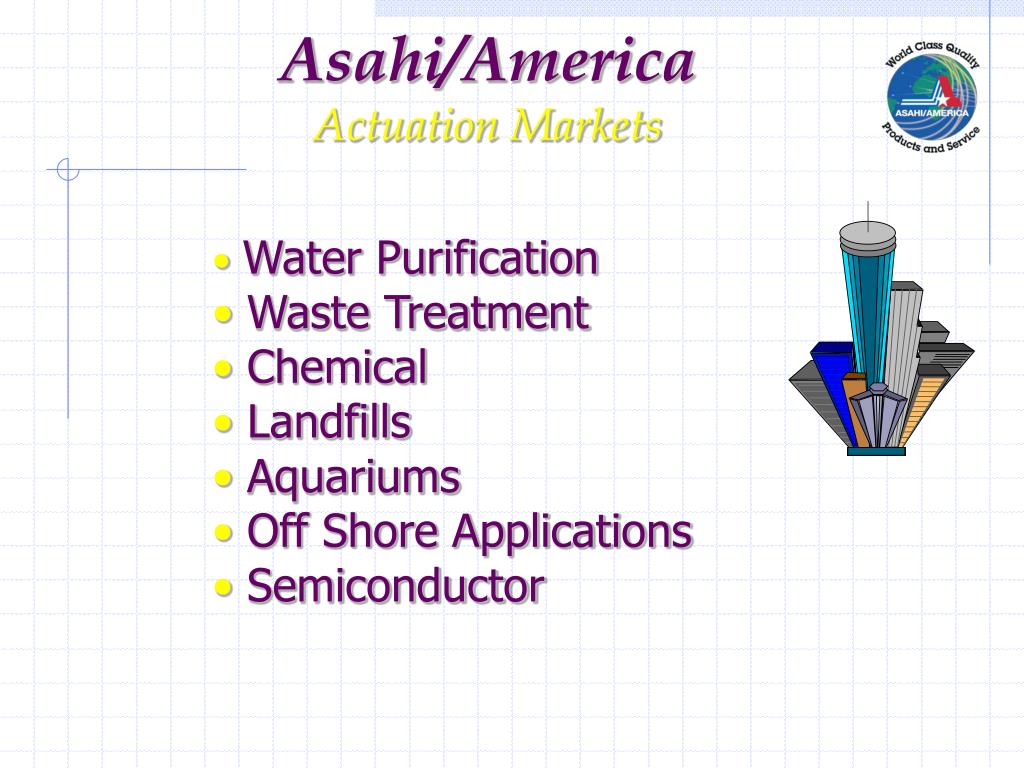

slide3

Asahi/AmericaActuation Markets

  • Water Purification
  • Waste Treatment
  • Chemical
  • Landfills
  • Aquariums
  • Off Shore Applications
  • Semiconductor
slide4

Asahi/AmericaElectric &Pneumatic Actuators

Series 83-Electromni

Series 94-Quartermaster

Series 92-Quartermaster Chief

Series 79- Pneumatic

slide5

Asahi/AmericaActuation

Actuator Packages

(Multiturn)

(90-180 Electric)

(90 Pneumatic)

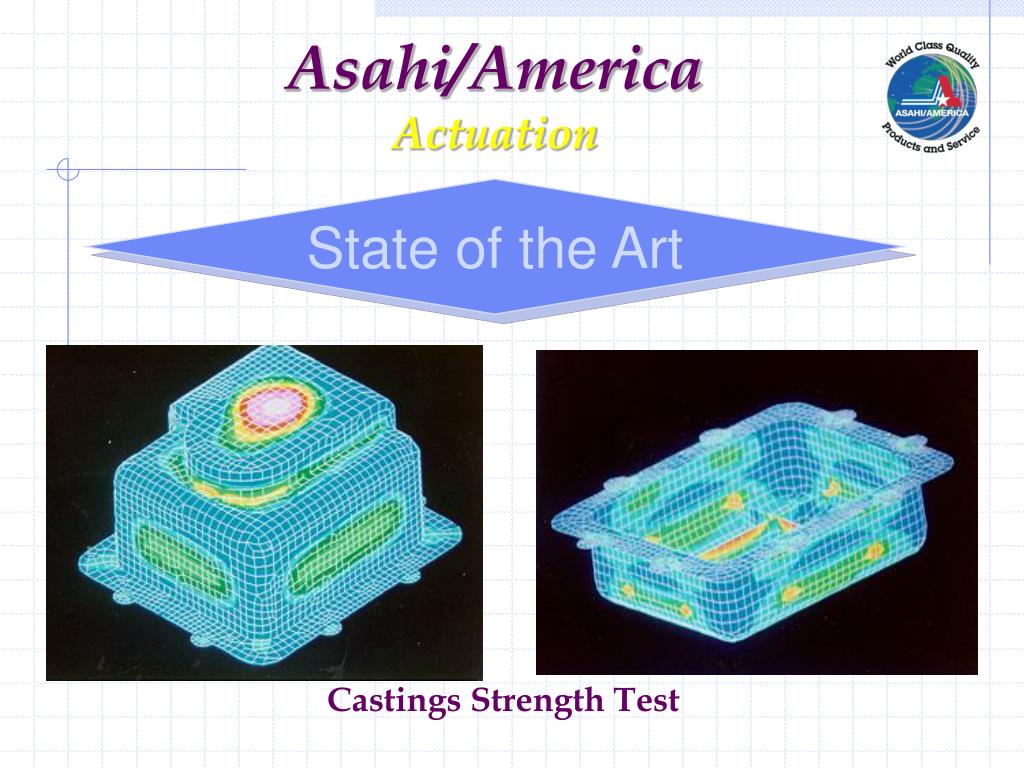

slide6

Asahi/AmericaActuation

State of the Art

Castings Strength Test

slide7

Asahi/AmericaActuation

Ability to Interface

slide8

Asahi/AmericaActuation

In-House Manufacturing

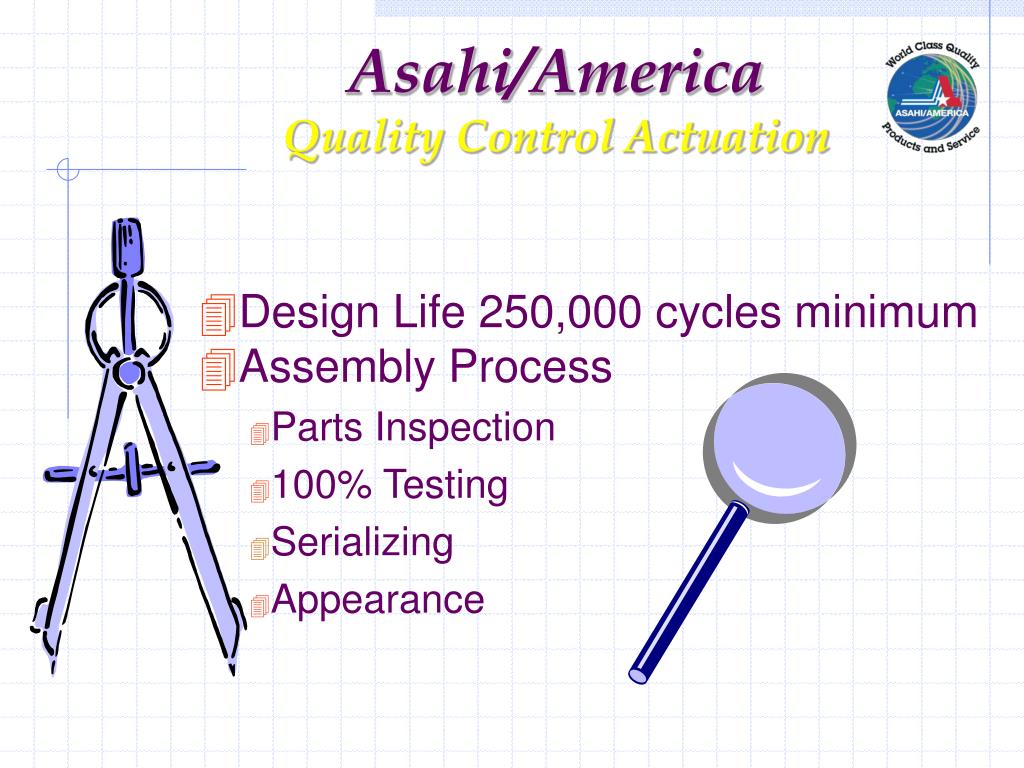

slide10

Asahi/AmericaQuality Control Actuation

  • Design Life 250,000 cycles minimum
  • Assembly Process
    • Parts Inspection
    • 100% Testing
    • Serializing
    • Appearance
slide11

Asahi/AmericaActuation

Electric Actuator Terminology

  • Reversing/Unidirectional
  • Duty Cycle
  • Nema Ratings
  • Switches
  • Flow Control Loop

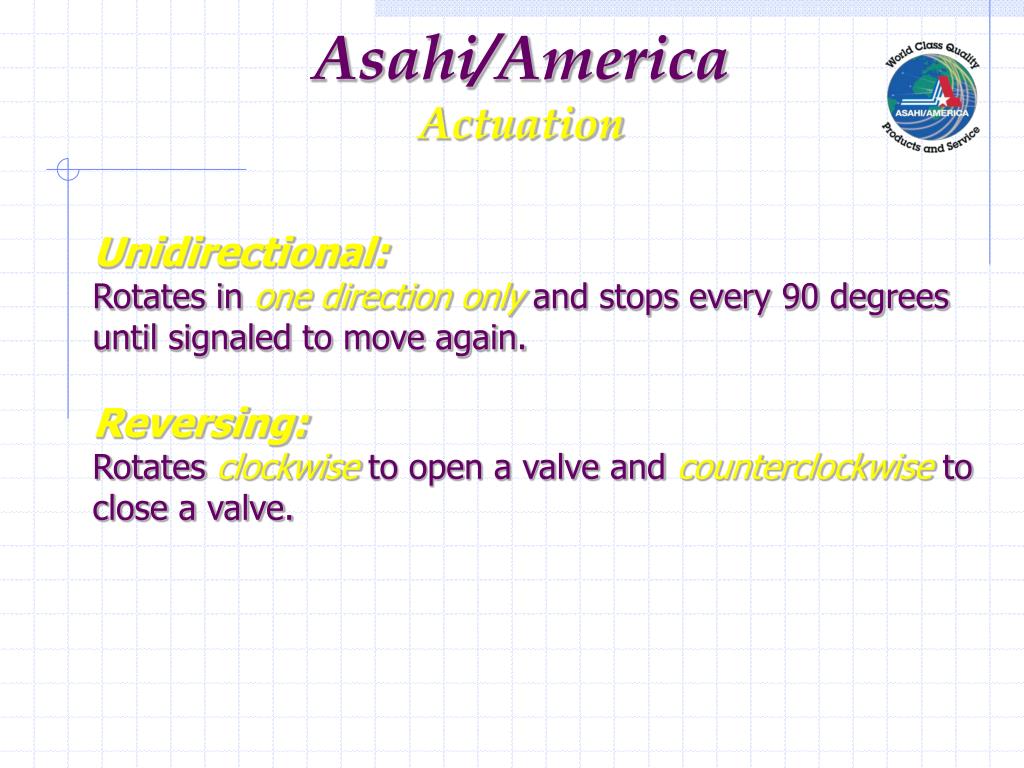

slide12

Asahi/AmericaActuation

Unidirectional:

Rotates in one direction only and stops every 90 degrees

until signaled to move again.

Reversing:

Rotates clockwiseto open a valve and counterclockwiseto

close a valve.

slide13

Asahi/AmericaActuation

Electric Actuator Design-Spur Gear

Stator

Capacitor

Gearbox

Motor

  • Pinion Gear

Main Output Gear

slide14

Asahi/AmericaActuation

Duty Cycle

Duty Cycle is the ratio between actuator cycle time

and the “cool off” time required based on 100%

to avoid thermal cut out.

Example: 25% Duty Cycle means that the unit can

be cycled 25%of the time.

If the actuator is cycled for 1 minute continuously,

Necessary cool off time is 3 minutes.

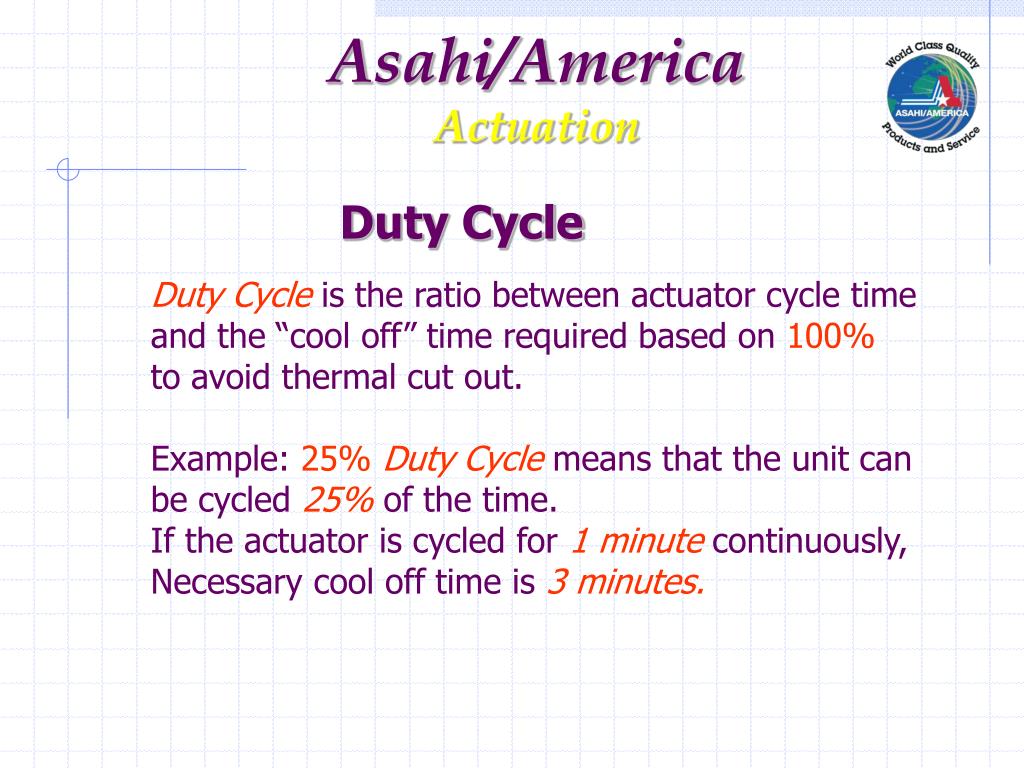

slide15

Asahi/AmericaActuation

Nema Ratings (Non Hazardous Locations)

  • Type 1 General Purpose - Indoor
  • Type 2 Dripproof - Indoor
  • Type 3 Dusttight, Raintight and Sleet (Ice)-Proof - Outdoor
  • Type 3R Rainproof and Sleet (Ice)-Resistant - Outdoor
  • Type 3S Dusttight, Raintight and Sleet (Ice)-Proof - Outdoor
  • Type 4Watertight and Dusttight - Indoor and Outdoor
  • Type 4XWatertight, Dusttight and Corrosion-Resistant - Indoor and Outdoor
  • Type 5 Superseded by Type 12 for Control Apparatus
  • Type 6 Submersible, Watertight, Dripproof and Sleet (Ice)- Resistant - Indoor and Outdoor
  • Type 11 Corrosion-Resistant and Dripproof - Oil-immersed - Indoor
  • Type 12 Industrial Use - Dusttight and Dripproof - Indoor
  • Type 13 Oiltight and Dusttight - Indoor
slide16

Asahi/AmericaActuation

Nema Ratings (Hazardous Locations)

  • Type 7Class I, Group A, B, C, or D - Indoor Hazardous Locations - Air-break Equipment
  • Type 8 Class I, Group A, B, C, or D - Indoor Hazardous Locations - Oil-Immersed Equipment
  • Type 9 Class II, Group E, F, or G - Indoor Hazardous Locations - Air-break Equipment
  • Type 10 Bureau of Mines
slide17

Asahi/AmericaActuation

Nema Ratings (Hazardous Location Class & Divisions)

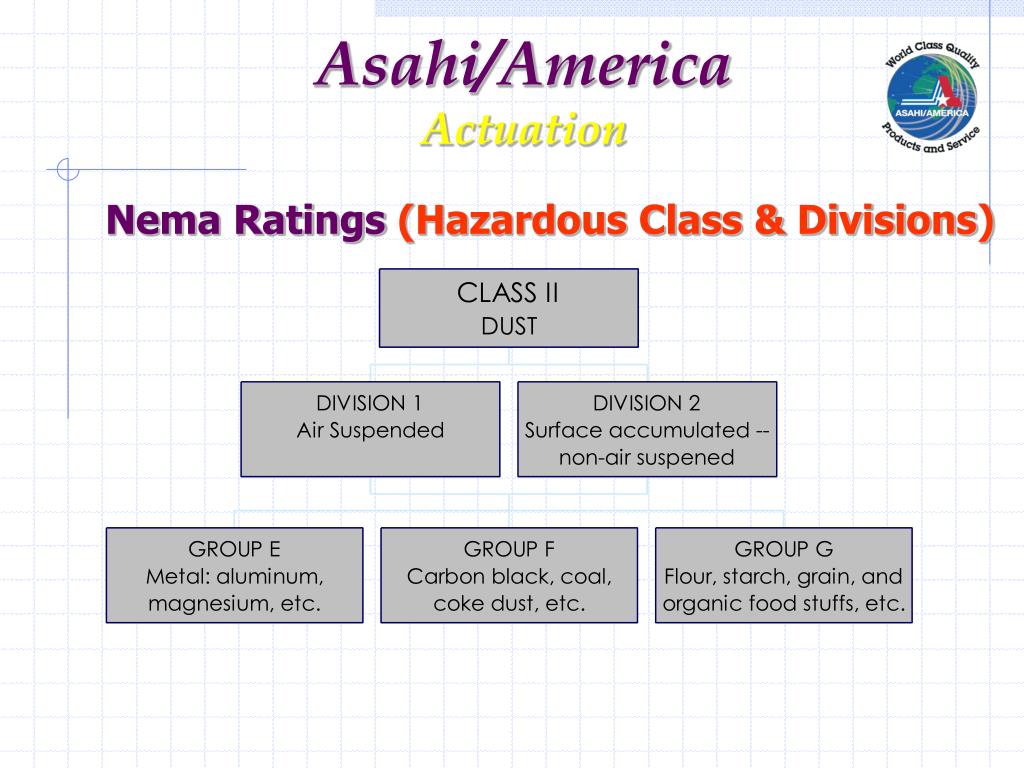

slide18

Asahi/AmericaActuation

Nema Ratings (Hazardous Class & Divisions)

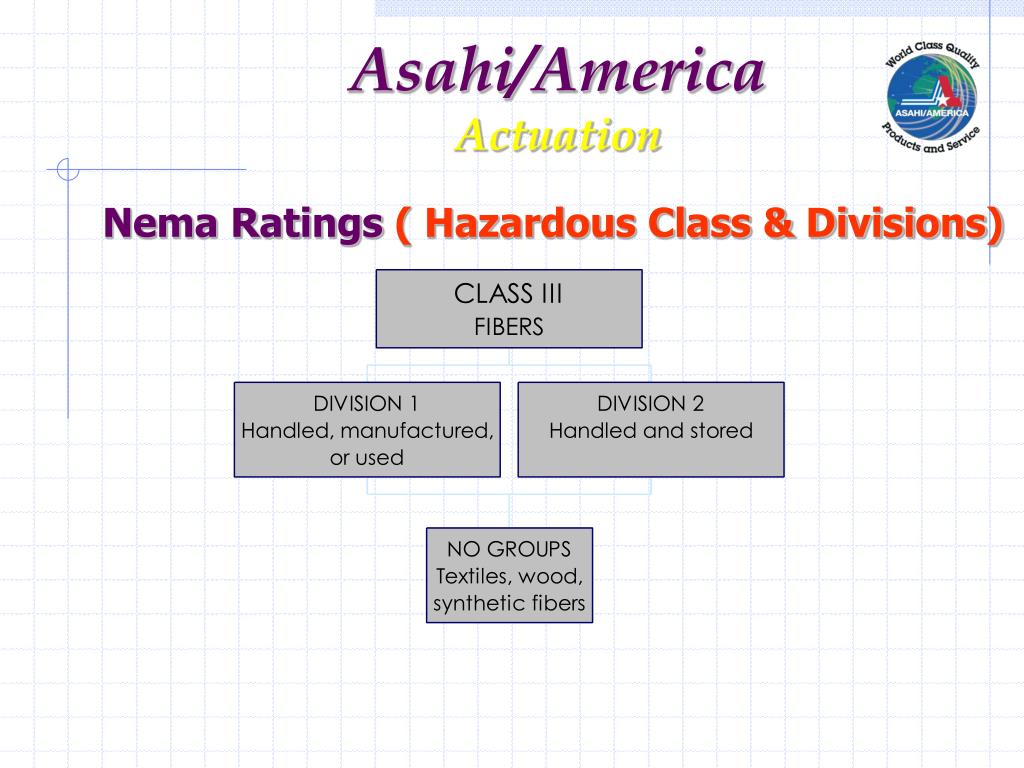

slide19

Asahi/AmericaActuation

Nema Ratings ( Hazardous Class & Divisions)

slide20

Asahi/America

Wiring Schematic Series 92

slide21

Asahi/AmericaActuation

Aluminum

316 SS

Plastic (Glass filled Polyamide)

slide22

Asahi/AmericaActuation

Pneumatic Actuator Terminology

  • Designs
  • Double Acting (Air to Air)
  • Single Acting (Spring Return)
  • Switches

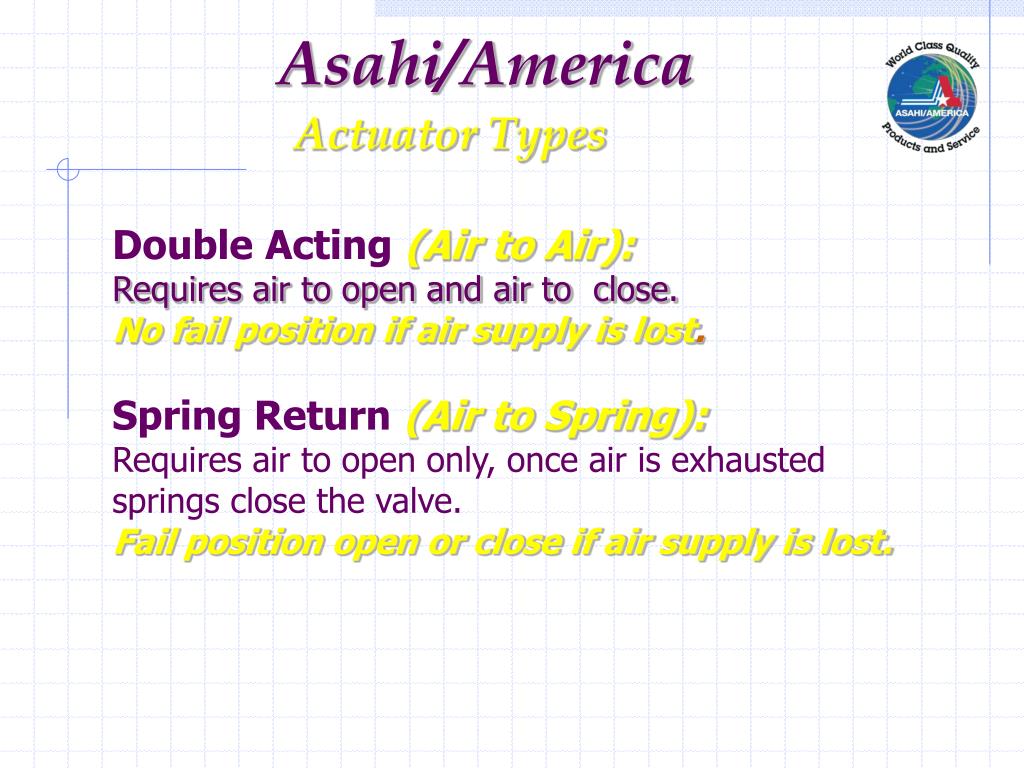

slide23

Asahi/America

Actuator Types

Double Acting (Air to Air):

Requires air to open and air to close.

No fail position if air supply is lost.

Spring Return (Air to Spring):

Requires air to open only, once air is exhausted

springs close the valve.

Fail position open or close if air supply is lost.

slide24

Asahi/AmericaActuation

Double Piston Rack & Pinion

Namur Dimensions

Piston

Rack

Concentric Springs

Pinion

Double O Ring Sealing

slide25

Asahi/America

Actuation-Switches

SPST

Line

Voltage

(Single Pole Single Throw)

Used for Solenoid Valves

SPDT

Line

Voltage

(Single Pole Double Throw)

Used for one Electric Actuator

DPDT

A

Equipment

(Double Pole Double Throw)

Used for two Electric Actuators

Line

Voltage

B

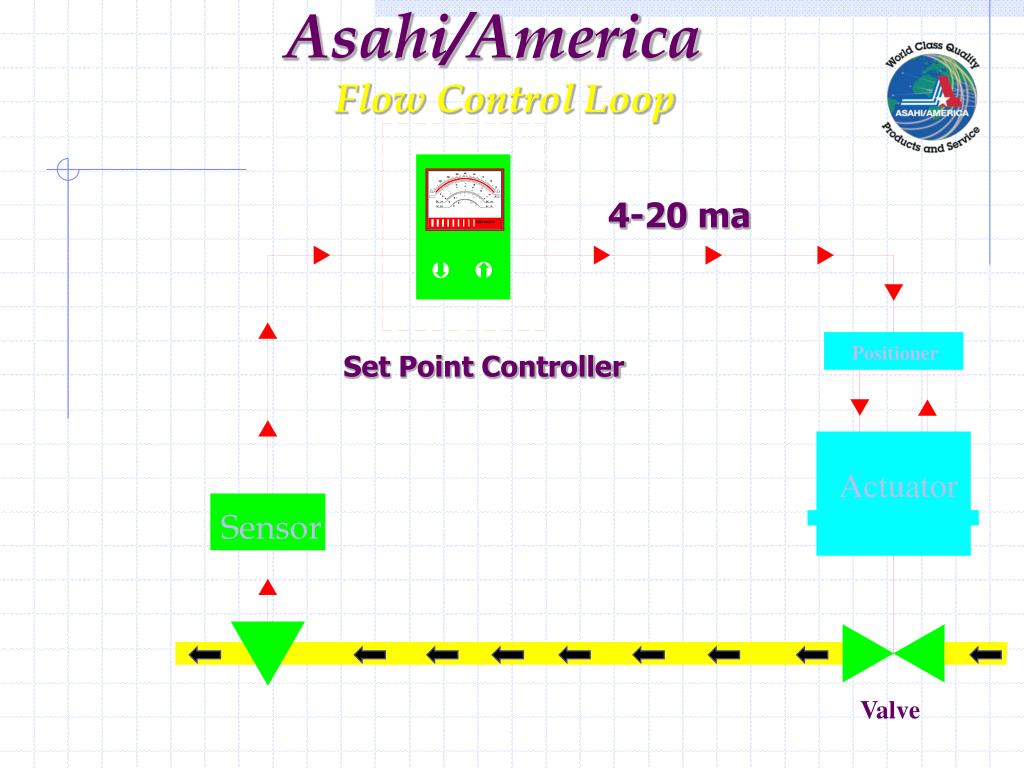

slide26

Asahi/America

Flow Control Loop

4-20 ma

Þ Ý

Positioner

Set Point Controller

Actuator

Sensor

Valve
