  1. Distributed Systems Lecture # 3

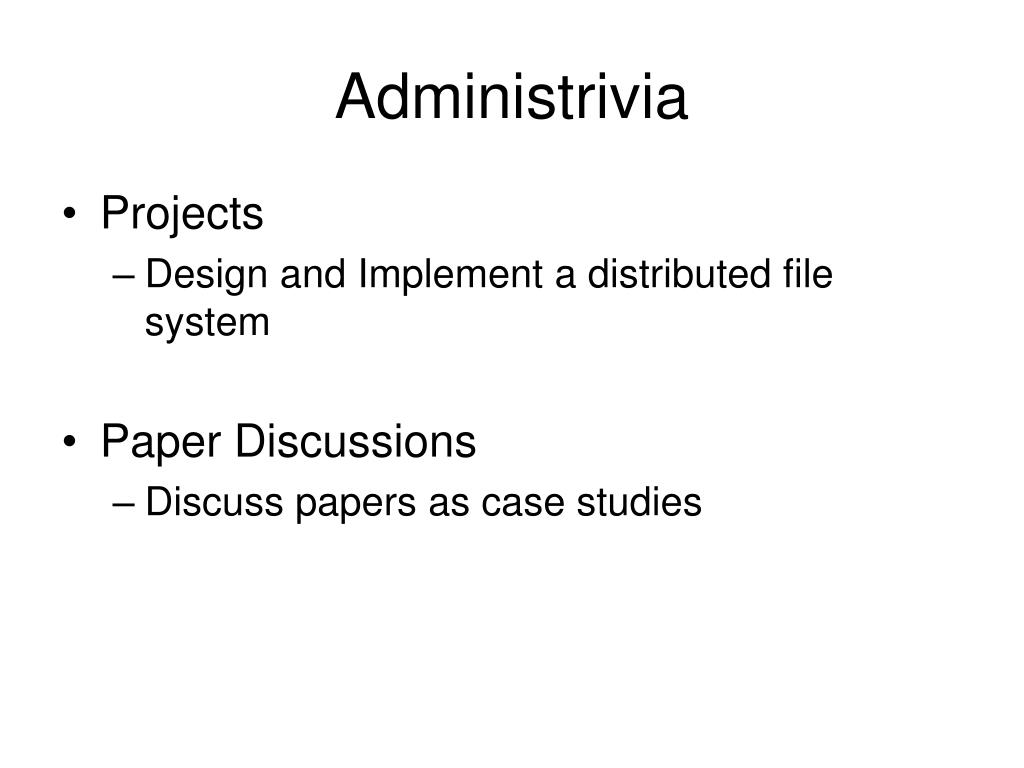

  2. Administrivia • Projects • Design and Implement a distributed file system • Paper Discussions • Discuss papers as case studies

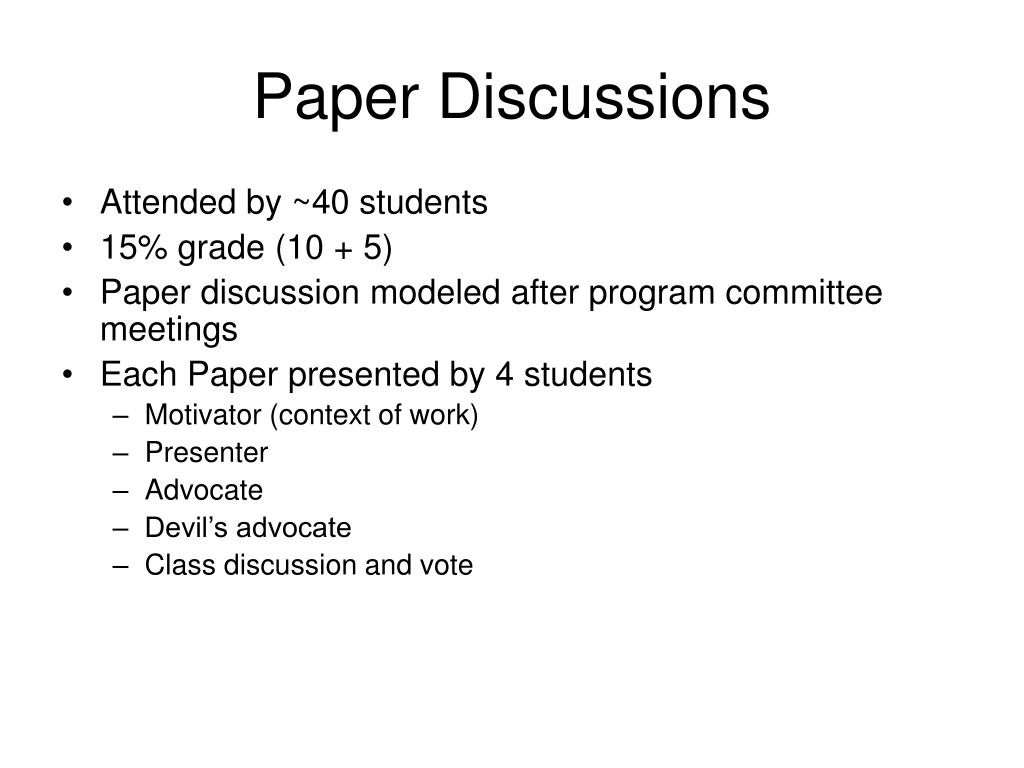

  3. Paper Discussions • Attended by ~40 students • 15% grade (10 + 5) • Paper discussion modeled after program committee meetings • Each Paper presented by 4 students • Motivator (context of work) • Presenter • Advocate • Devil’s advocate • Class discussion and vote

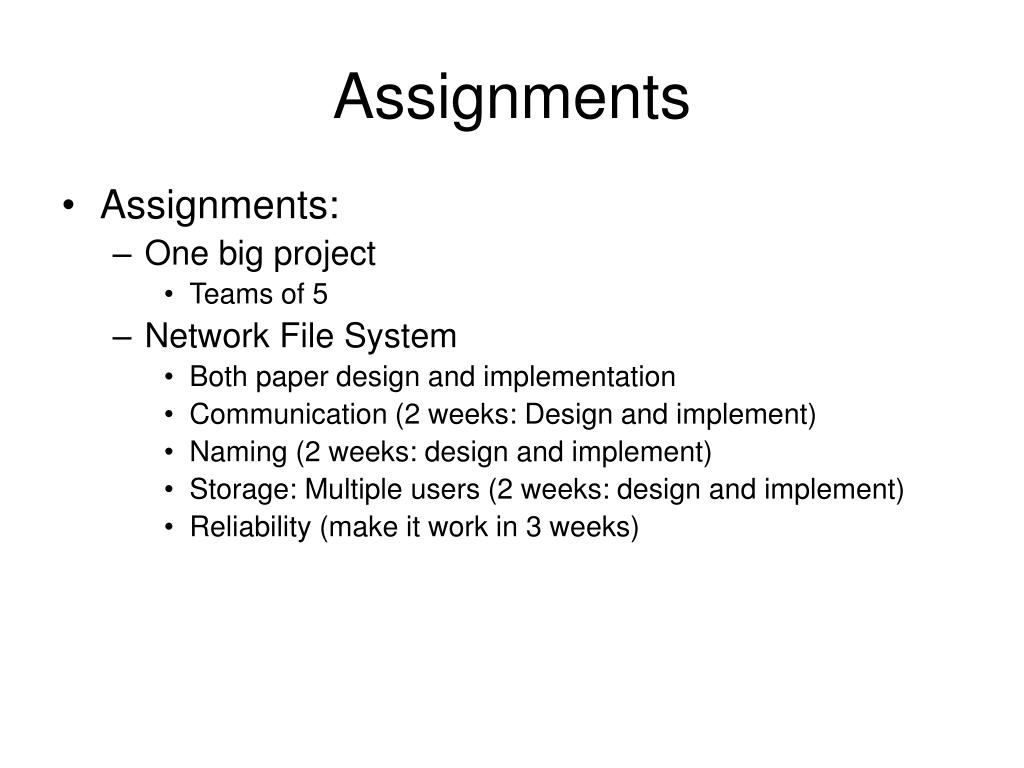

  4. Assignments • Assignments: • One big project • Teams of 5 • Network File System • Both paper design and implementation • Communication (2 weeks: Design and implement) • Naming (2 weeks: design and implement) • Storage: Multiple users (2 weeks: design and implement) • Reliability (make it work in 3 weeks)

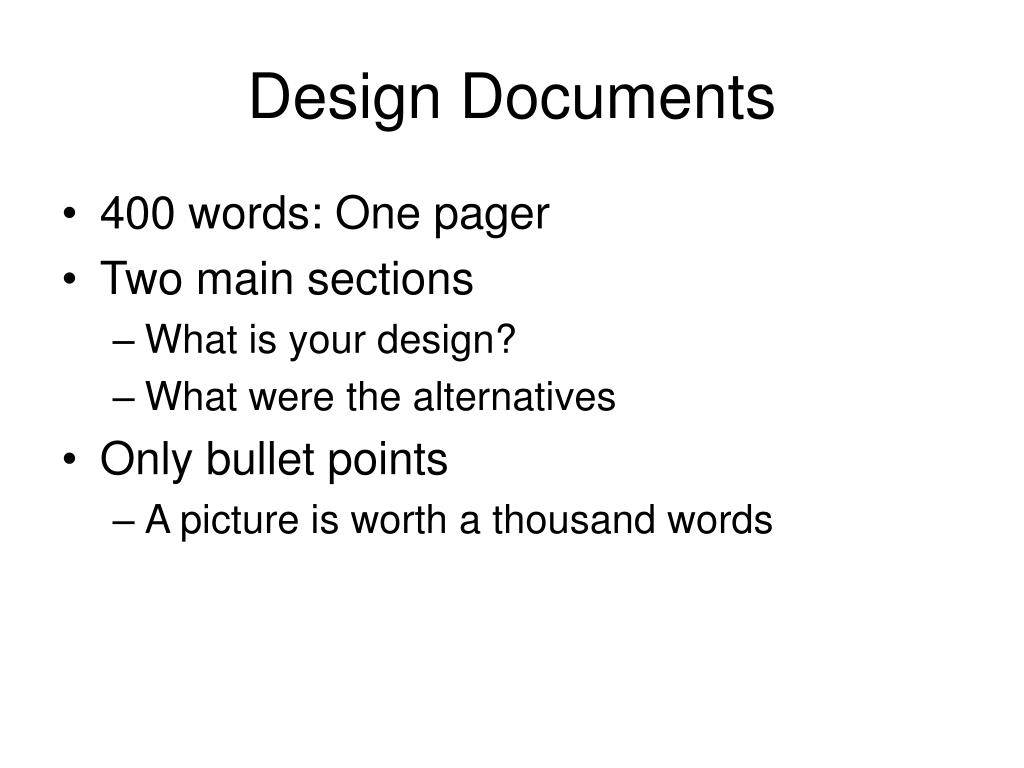

  5. Design Documents • 400 words: One pager • Two main sections • What is your design? • What were the alternatives • Only bullet points • A picture is worth a thousand words

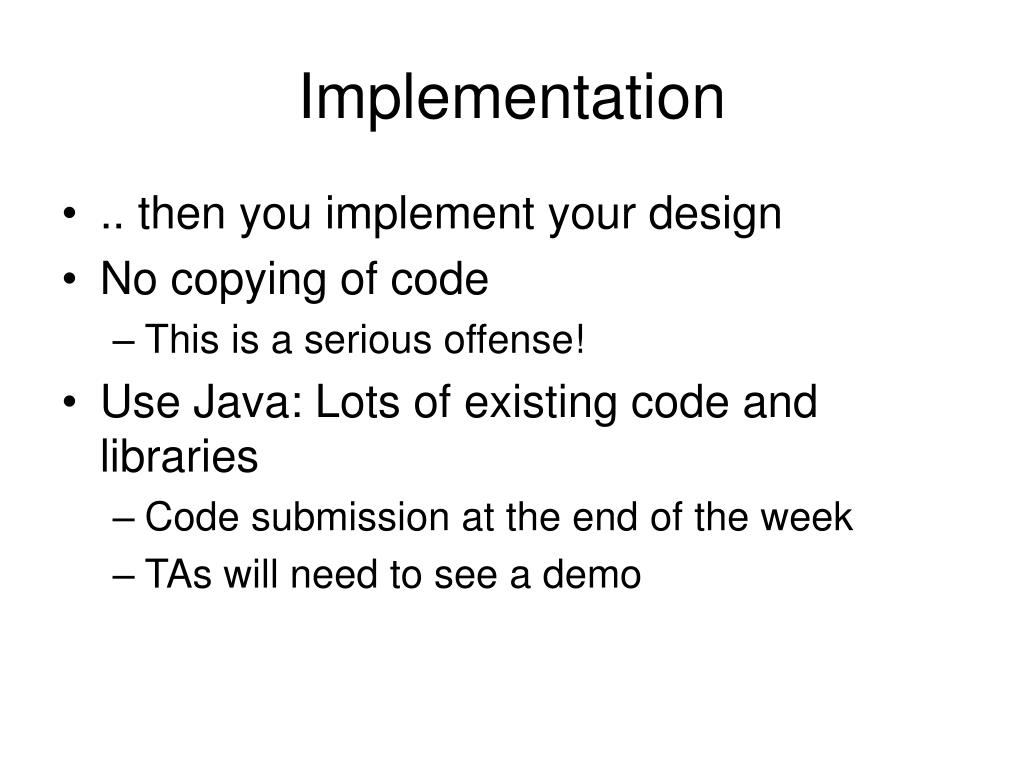

  6. Implementation • .. then you implement your design • No copying of code • This is a serious offense! • Use Java: Lots of existing code and libraries • Code submission at the end of the week • TAs will need to see a demo

  7. Layered Communication Application Distributed System (RPC) Socket TCP/IP UDP/IP OS

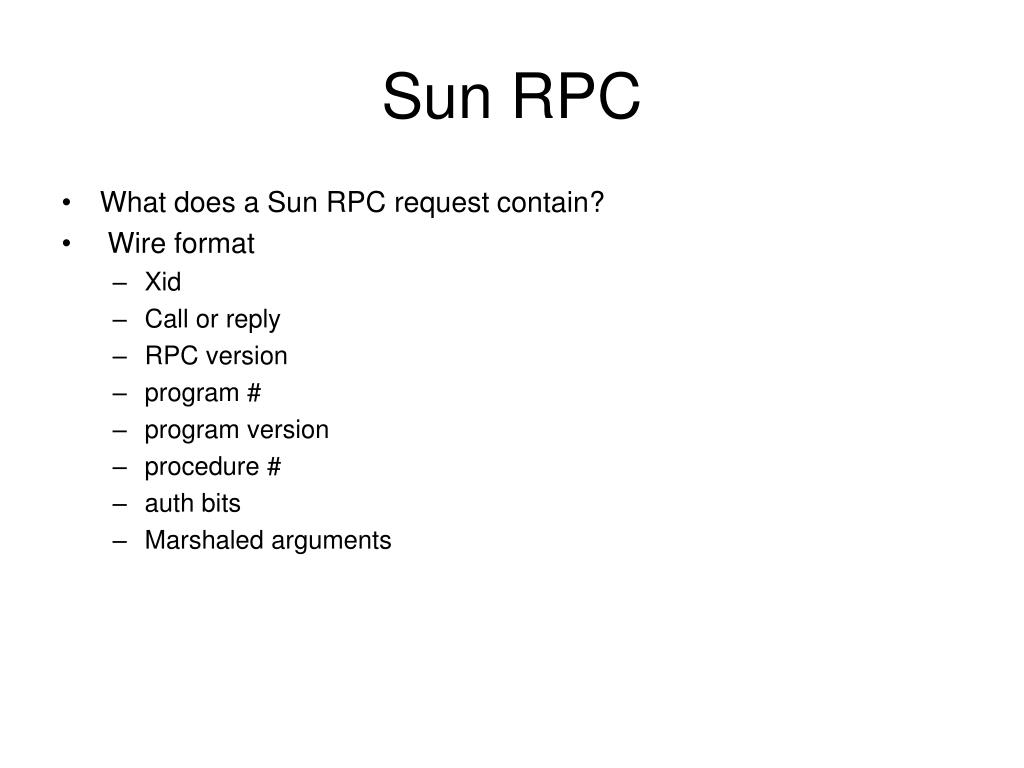

  8. Sun RPC • What does a Sun RPC request contain? • Wire format • Xid • Call or reply • RPC version • program # • program version • procedure # • auth bits • Marshaled arguments

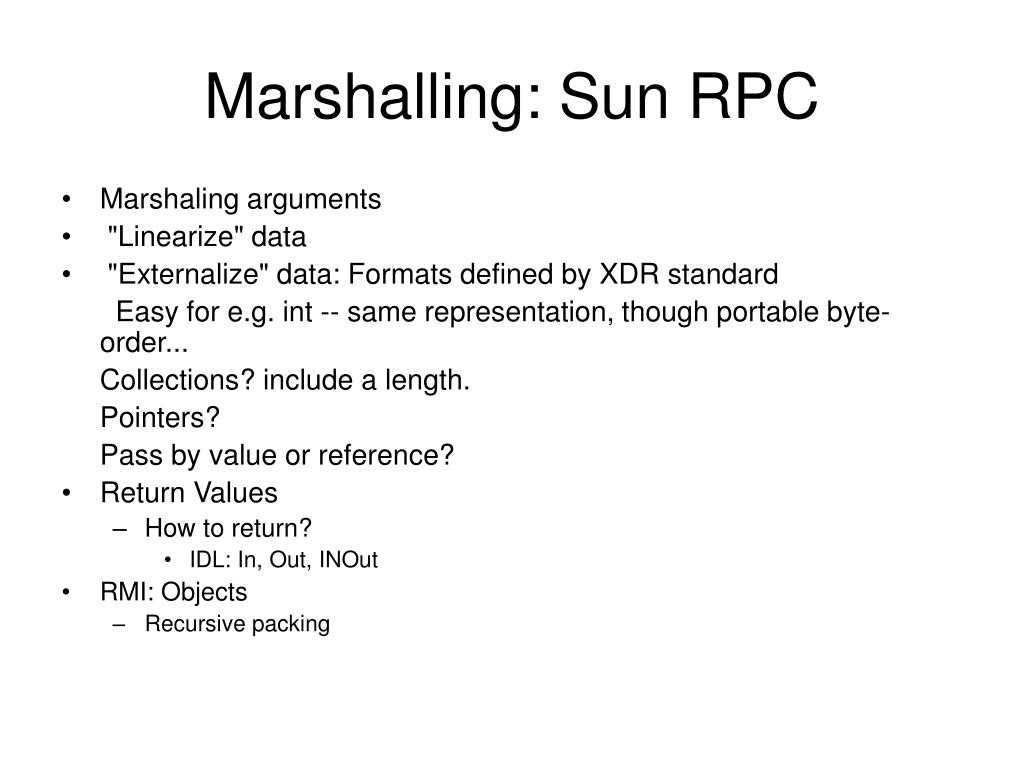

  9. Marshalling: Sun RPC • Marshaling arguments • "Linearize" data • "Externalize" data: Formats defined by XDR standard Easy for e.g. int -- same representation, though portable byte-order... Collections? include a length. Pointers? Pass by value or reference? • Return Values • How to return? • IDL: In, Out, INOut • RMI: Objects • Recursive packing

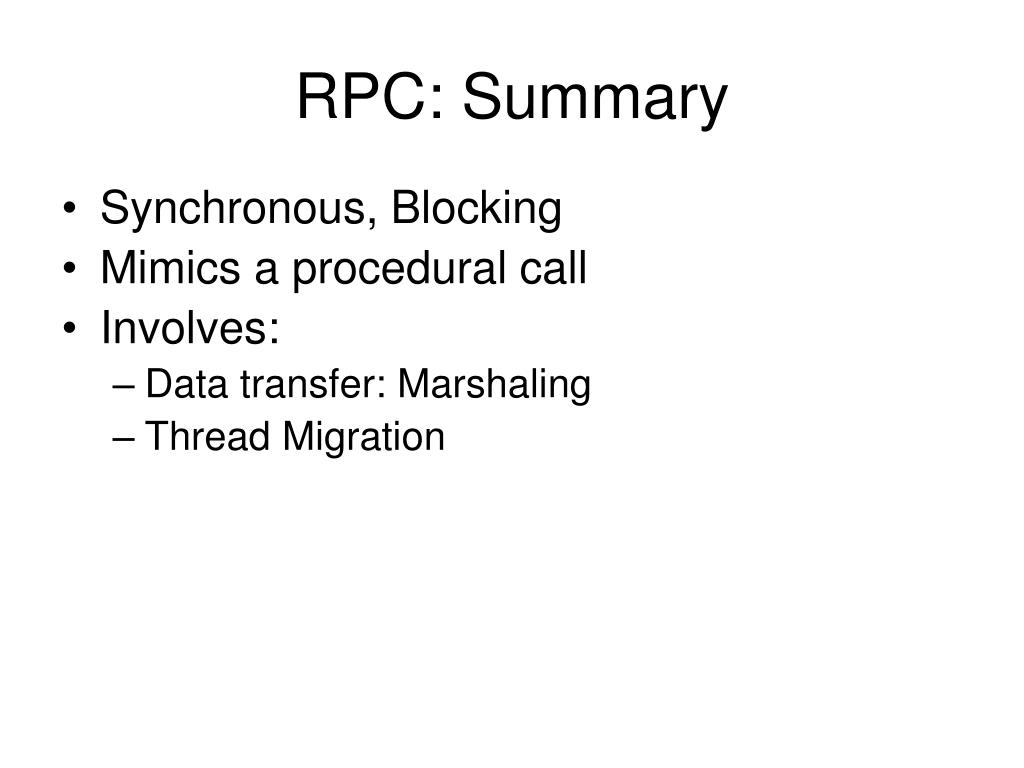

  10. RPC: Summary • Synchronous, Blocking • Mimics a procedural call • Involves: • Data transfer: Marshaling • Thread Migration

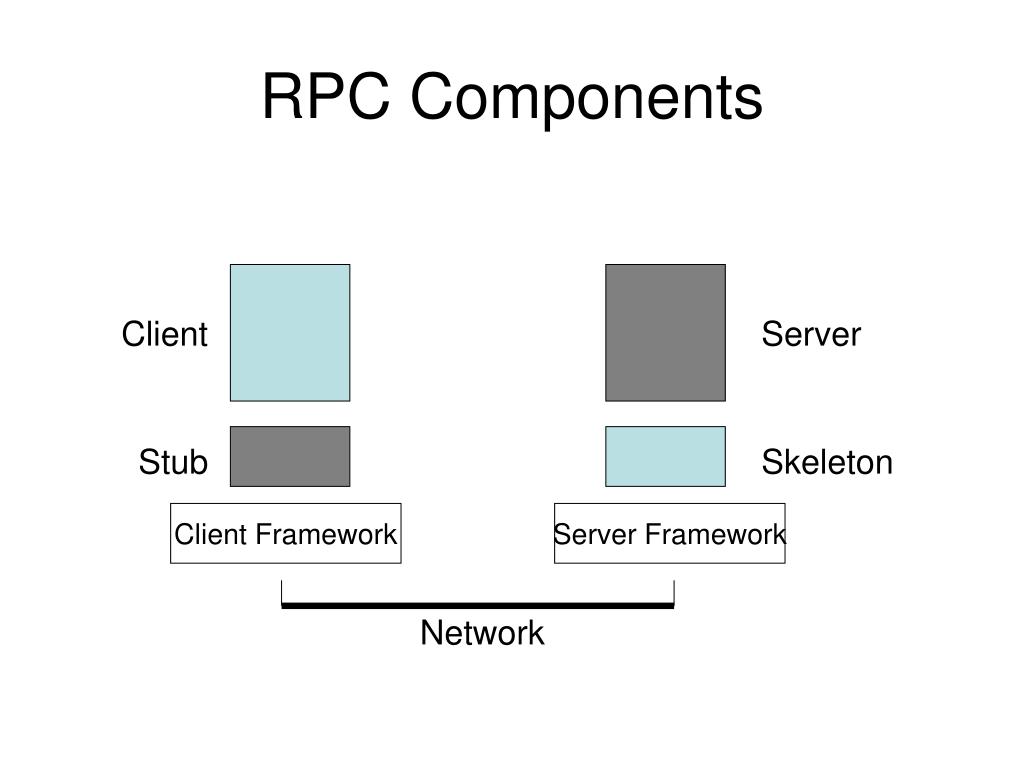

  11. RPC Components Client Server Stub Skeleton Client Framework Server Framework Network

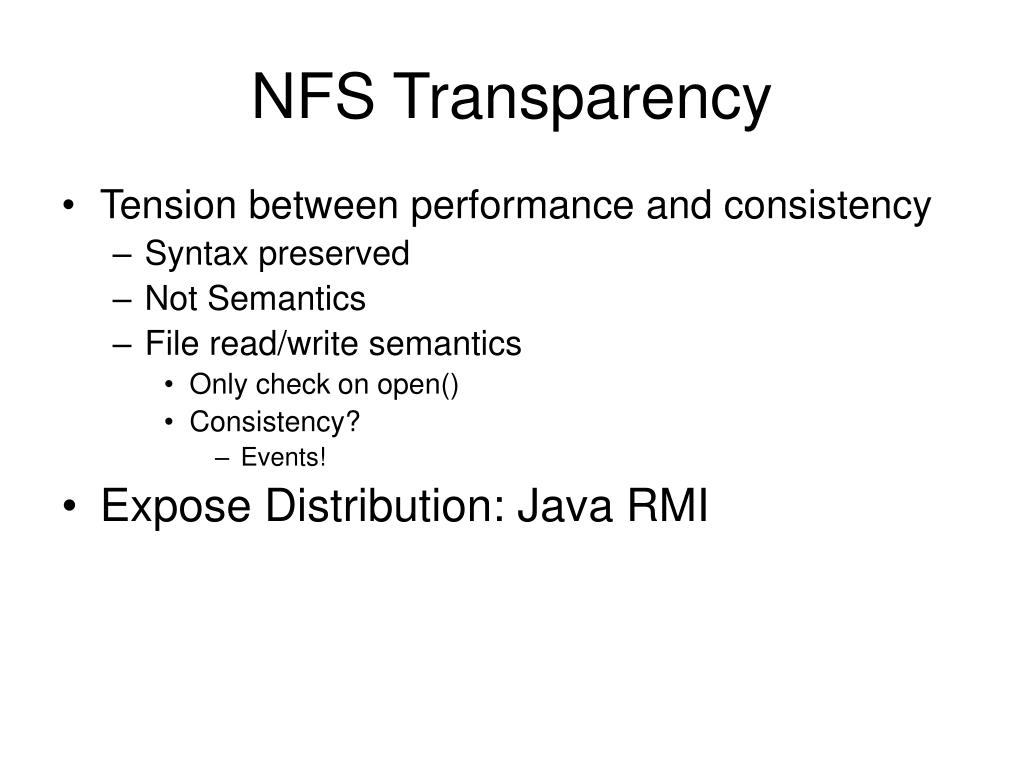

  12. NFS Transparency • Tension between performance and consistency • Syntax preserved • Not Semantics • File read/write semantics • Only check on open() • Consistency? • Events! • Expose Distribution: Java RMI

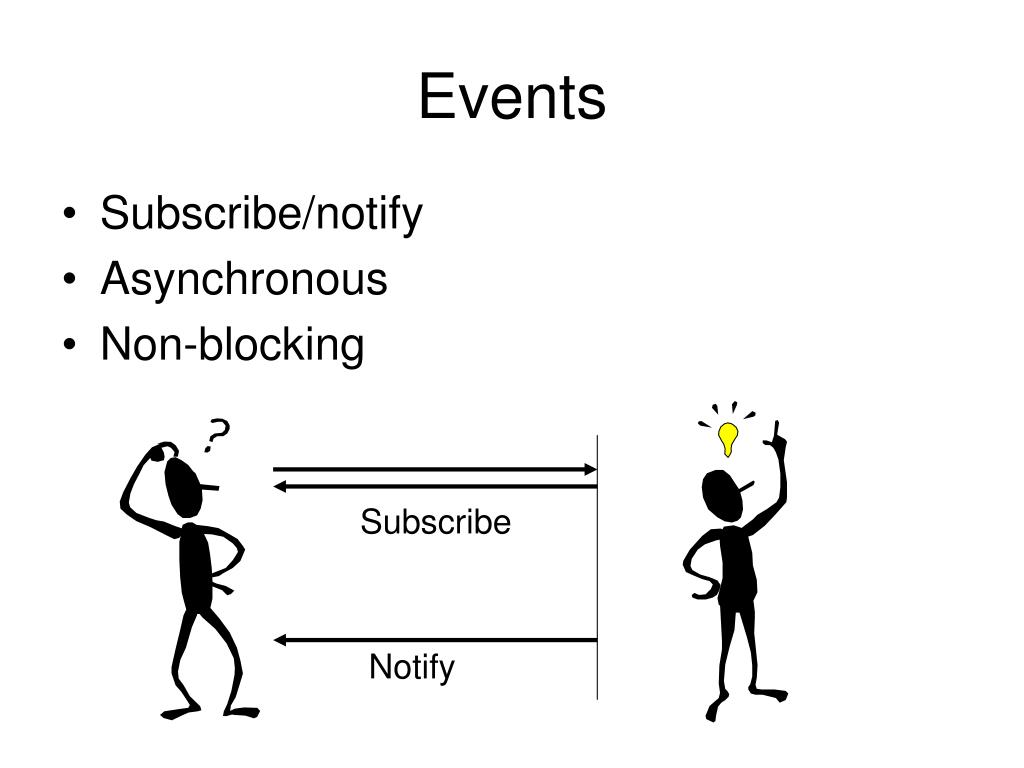

  13. Events • Subscribe/notify • Asynchronous • Non-blocking Subscribe Notify

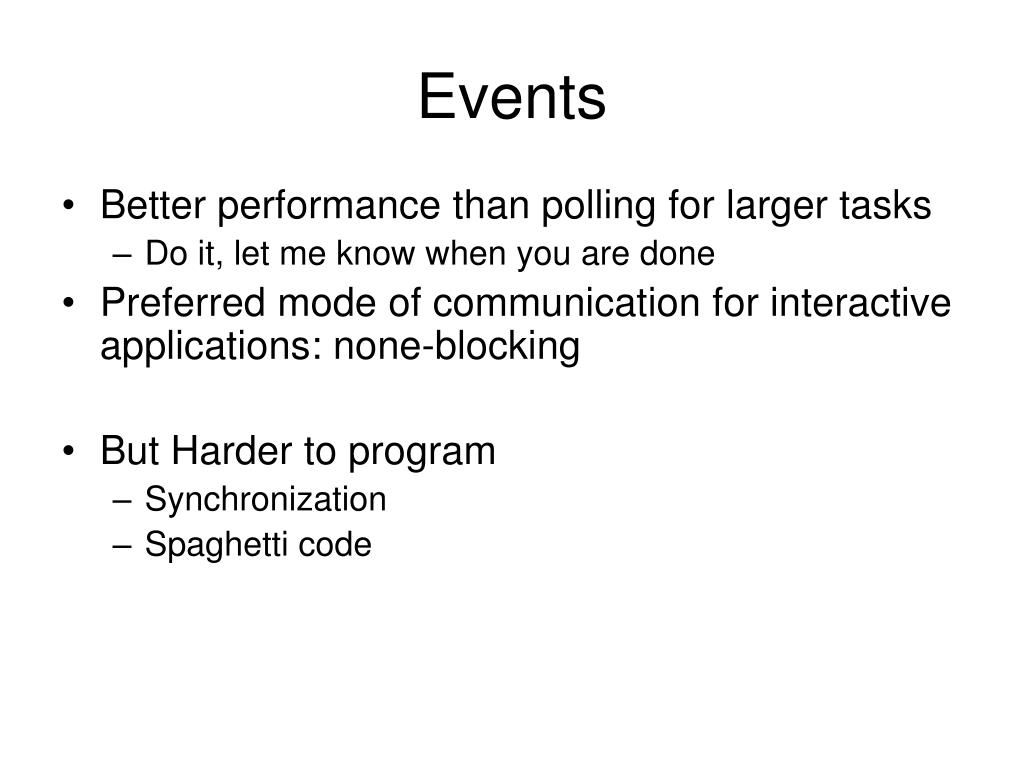

  14. Events • Better performance than polling for larger tasks • Do it, let me know when you are done • Preferred mode of communication for interactive applications: none-blocking • But Harder to program • Synchronization • Spaghetti code

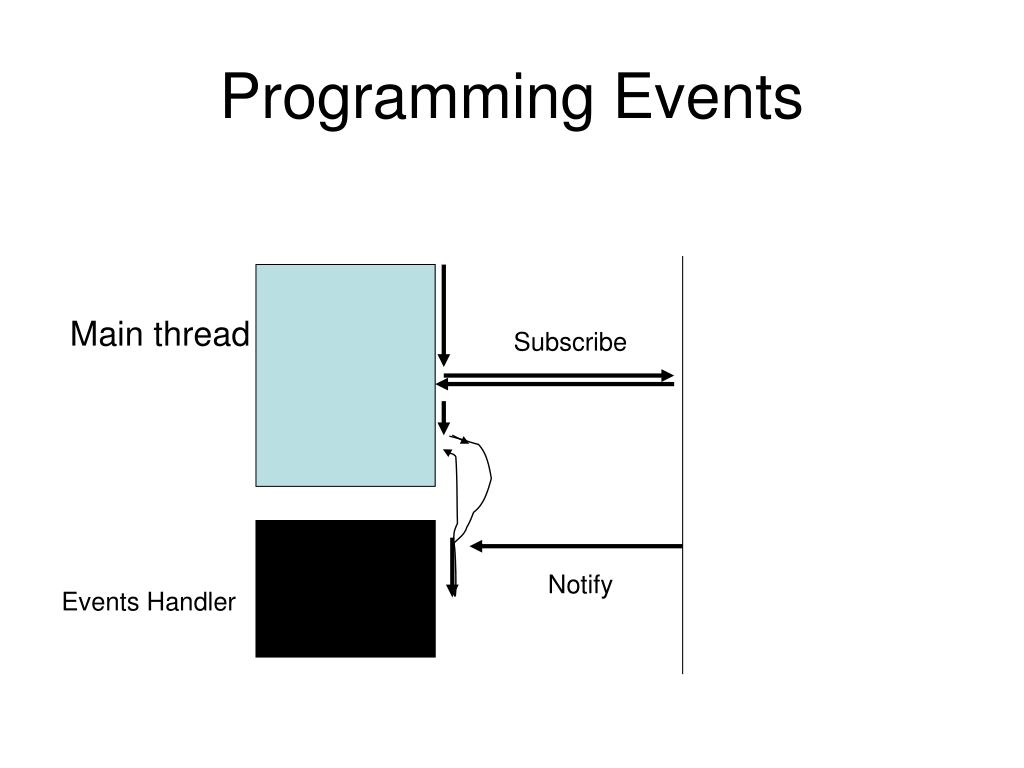

  15. Programming Events Main thread Subscribe Notify Events Handler

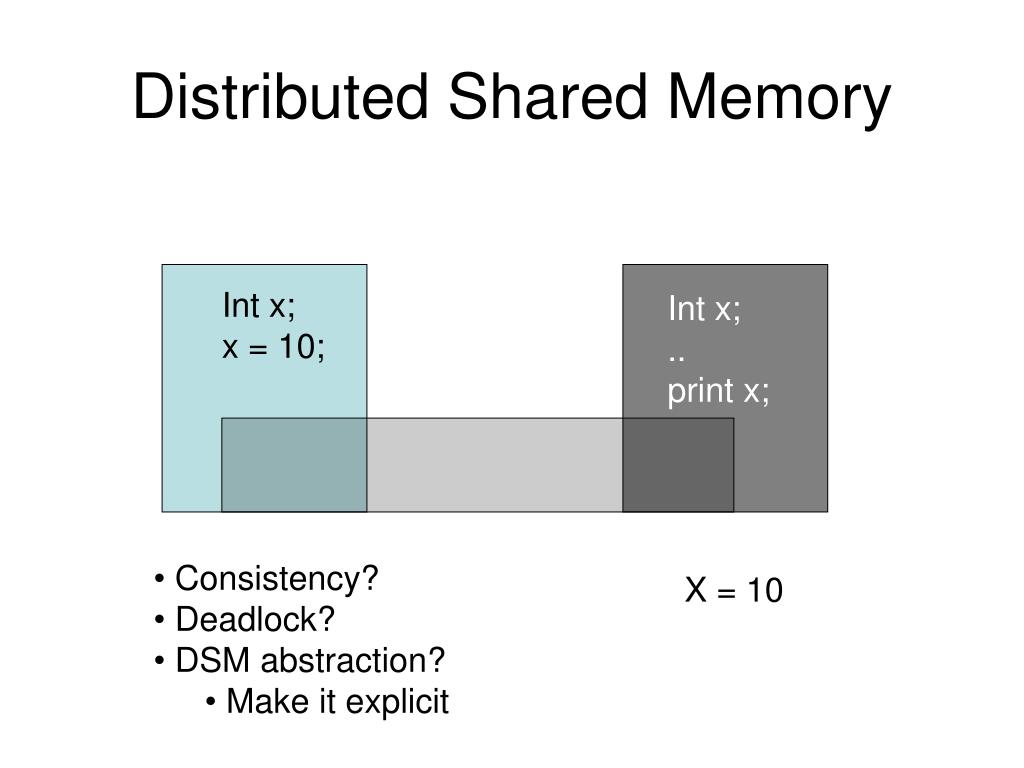

  16. Distributed Shared Memory Int x; x = 10; Int x; .. print x; • Consistency? • Deadlock? • DSM abstraction? • Make it explicit X = 10

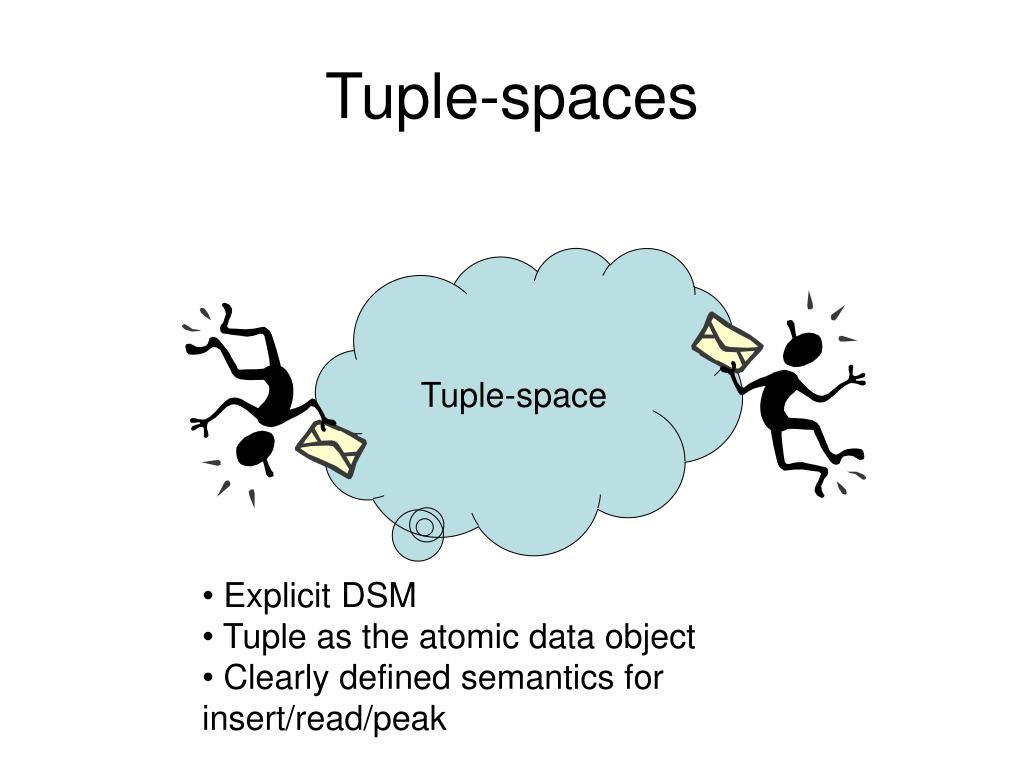

  17. Tuple-spaces Tuple-space • Explicit DSM • Tuple as the atomic data object • Clearly defined semantics for insert/read/peak

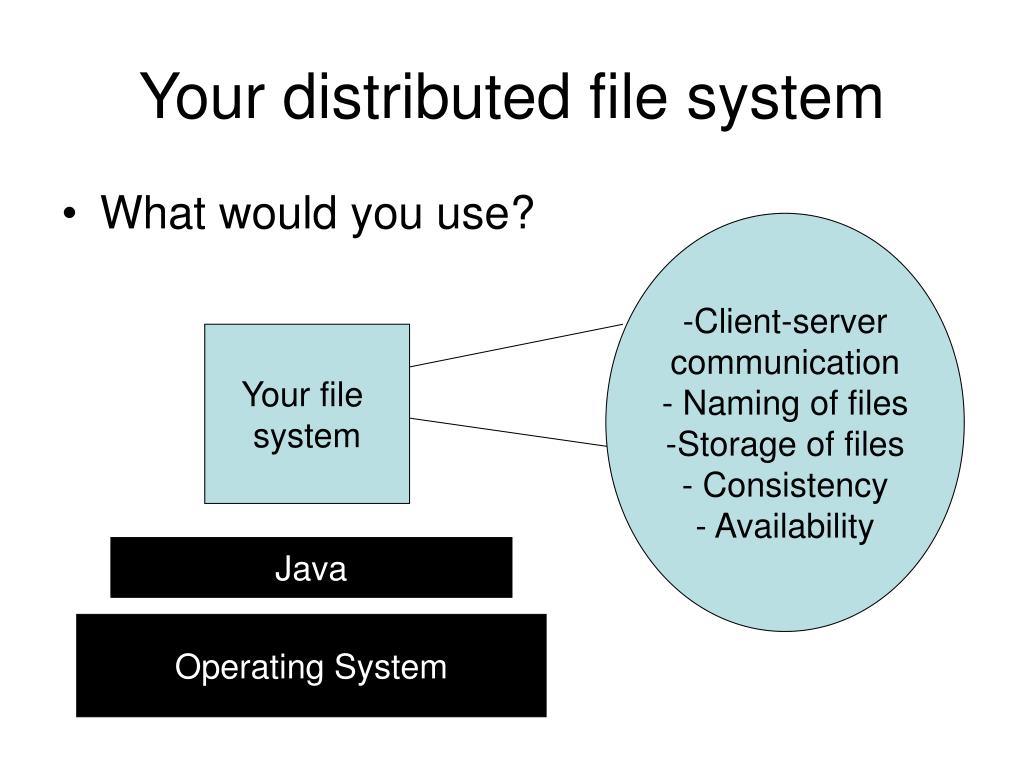

  18. Your distributed file system • What would you use? • Client-server • communication • - Naming of files • Storage of files • Consistency • - Availability Your file system Java Operating System

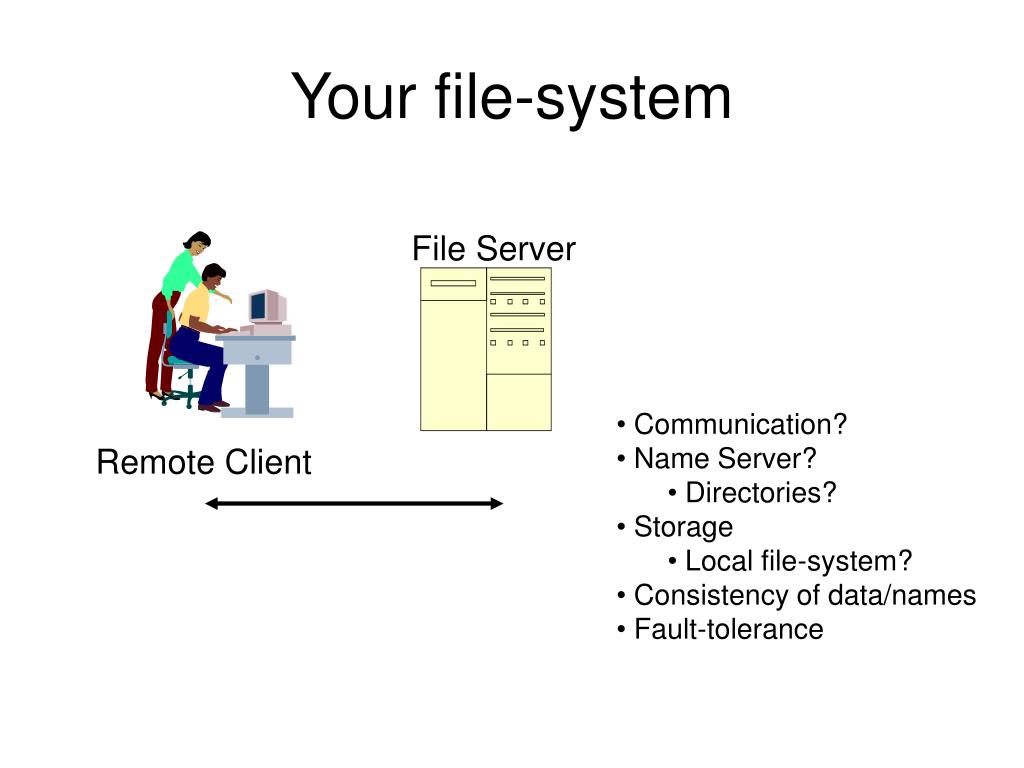

  19. Your file-system File Server • Communication? • Name Server? • Directories? • Storage • Local file-system? • Consistency of data/names • Fault-tolerance Remote Client
