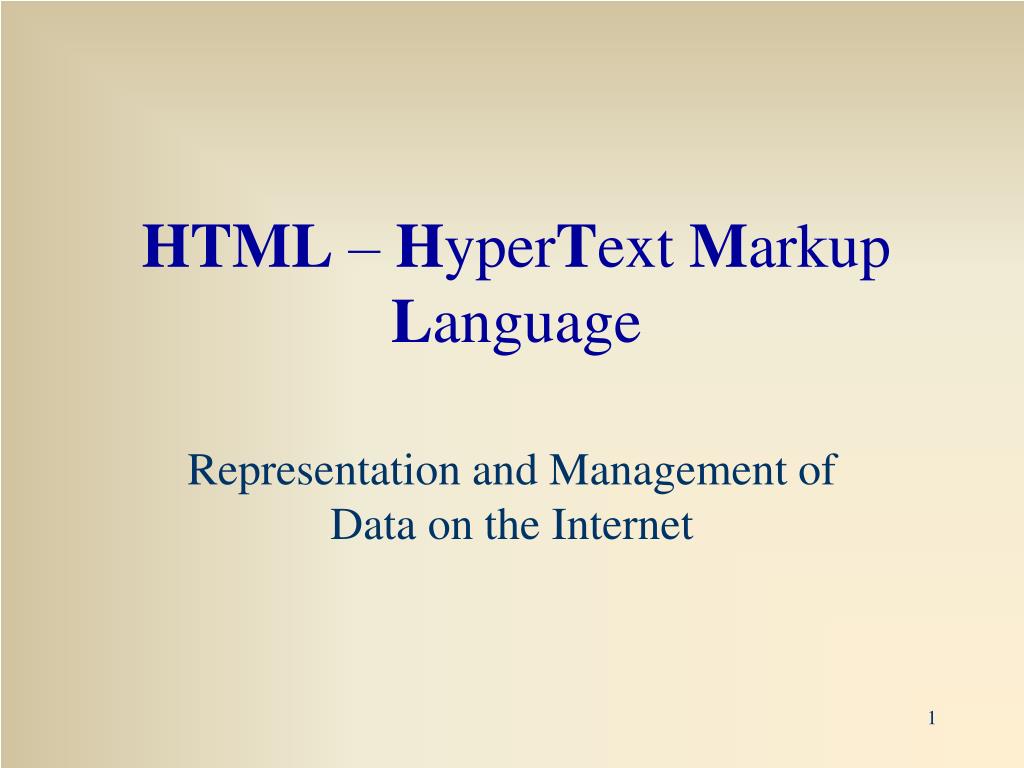

  1. HTML – HyperText Markup Language Representation and Management of Data on the Internet

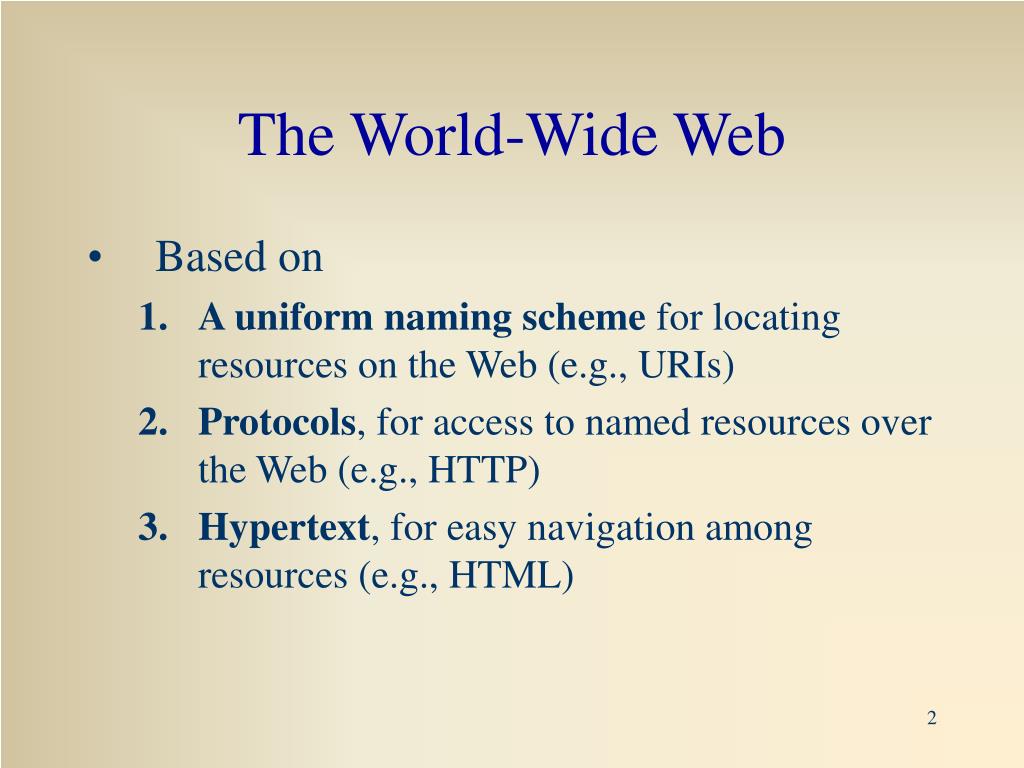

  2. The World-Wide Web • Based on • A uniform naming scheme for locating resources on the Web (e.g., URIs) • Protocols, for access to named resources over the Web (e.g., HTTP) • Hypertext, for easy navigation among resources (e.g., HTML)

  3. URI’s • URIs typically consist of three pieces: • The naming scheme of the mechanism used to access the resource • The name of the machine hosting the resource • The name of the resource itself, given as a path

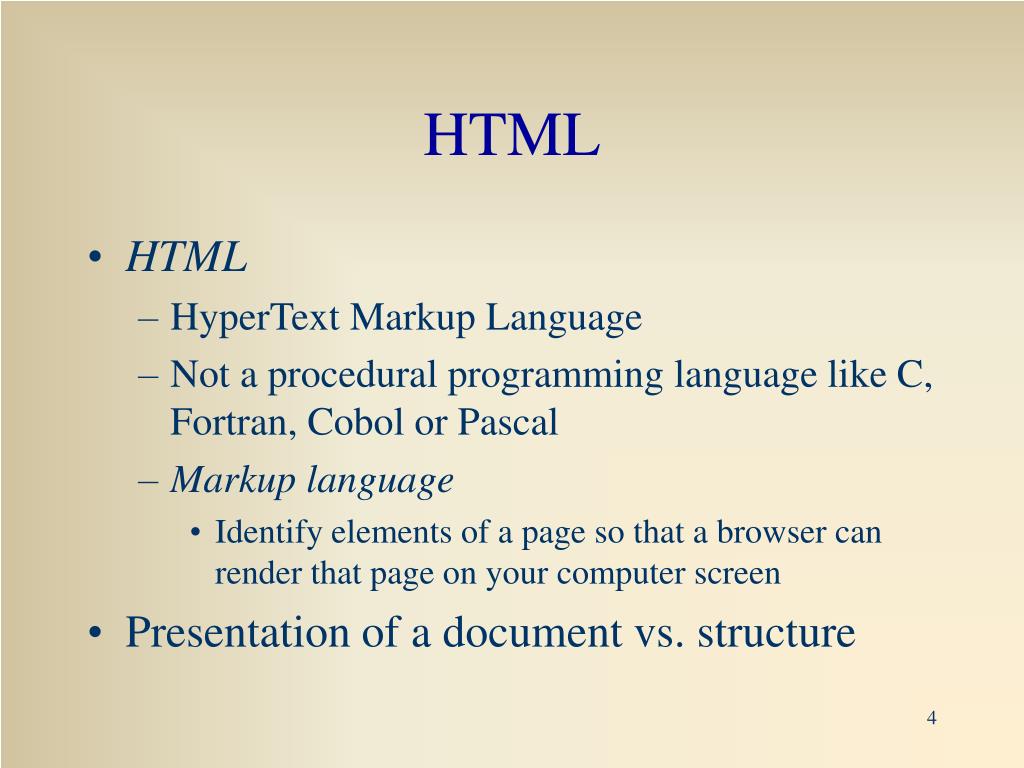

  4. HTML • HTML • HyperText Markup Language • Not a procedural programming language like C, Fortran, Cobol or Pascal • Markup language • Identify elements of a page so that a browser can render that page on your computer screen • Presentation of a document vs. structure

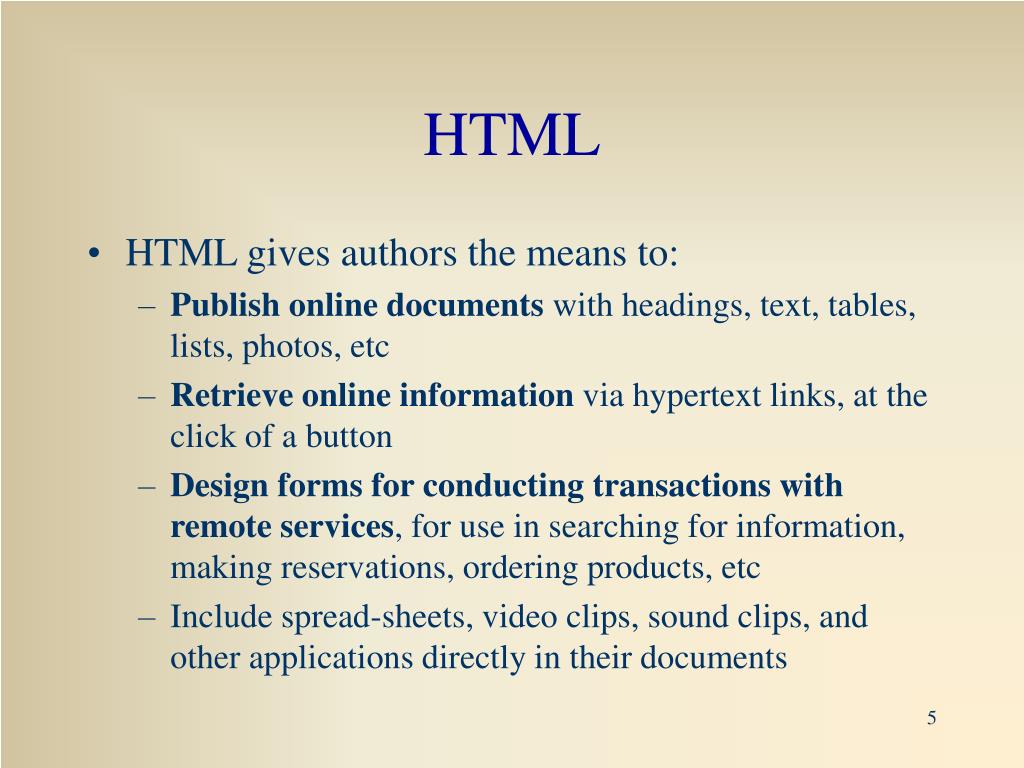

  5. HTML • HTML gives authors the means to: • Publishonline documents with headings, text, tables, lists, photos, etc • Retrieve online information via hypertext links, at the click of a button • Design forms for conducting transactions with remote services, for use in searching for information, making reservations, ordering products, etc • Include spread-sheets, video clips, sound clips, and other applications directly in their documents

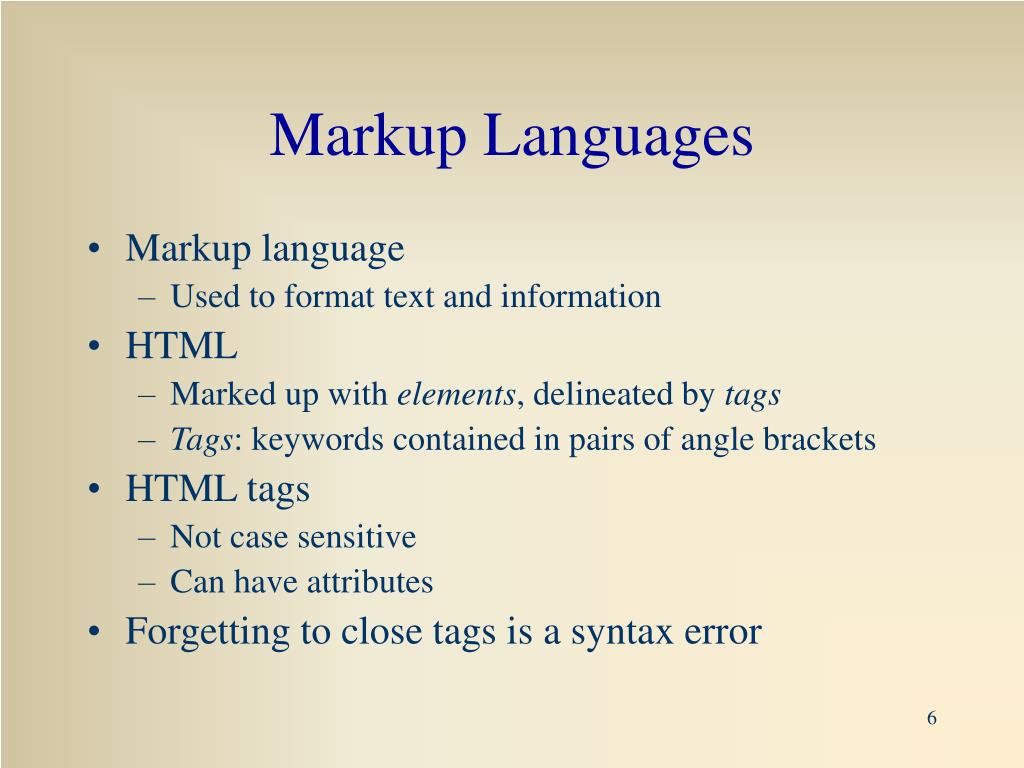

  6. Markup Languages • Markup language • Used to format text and information • HTML • Marked up with elements, delineated by tags • Tags: keywords contained in pairs of angle brackets • HTML tags • Not case sensitive • Can have attributes • Forgetting to close tags is a syntax error

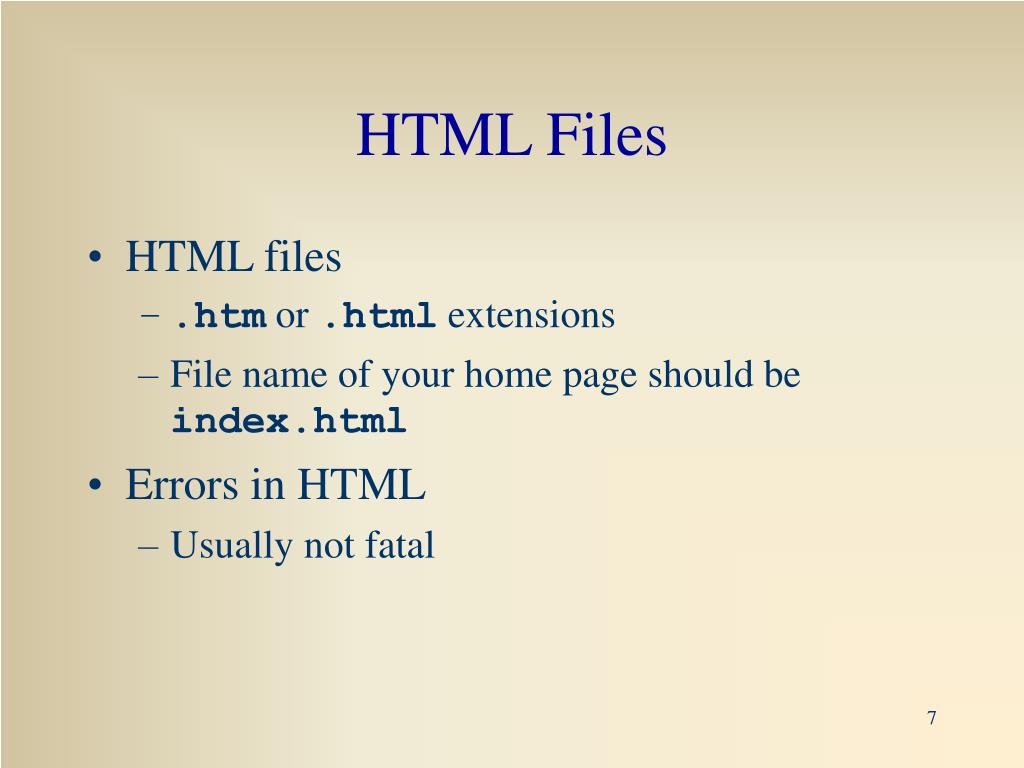

  7. HTML Files • HTML files • .htm or .html extensions • File name of your home page should be index.html • Errors in HTML • Usually not fatal

  8. DTD Document Hello World <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN“ "http://www.w3.org/TR/html4/strict.dtd"> <HTML> <HEAD> <TITLE>My first HTML document</TITLE> </HEAD> <BODY> <P>Hello world! <!-- This is a comment --> </BODY> </HTML> HEAD + BODY

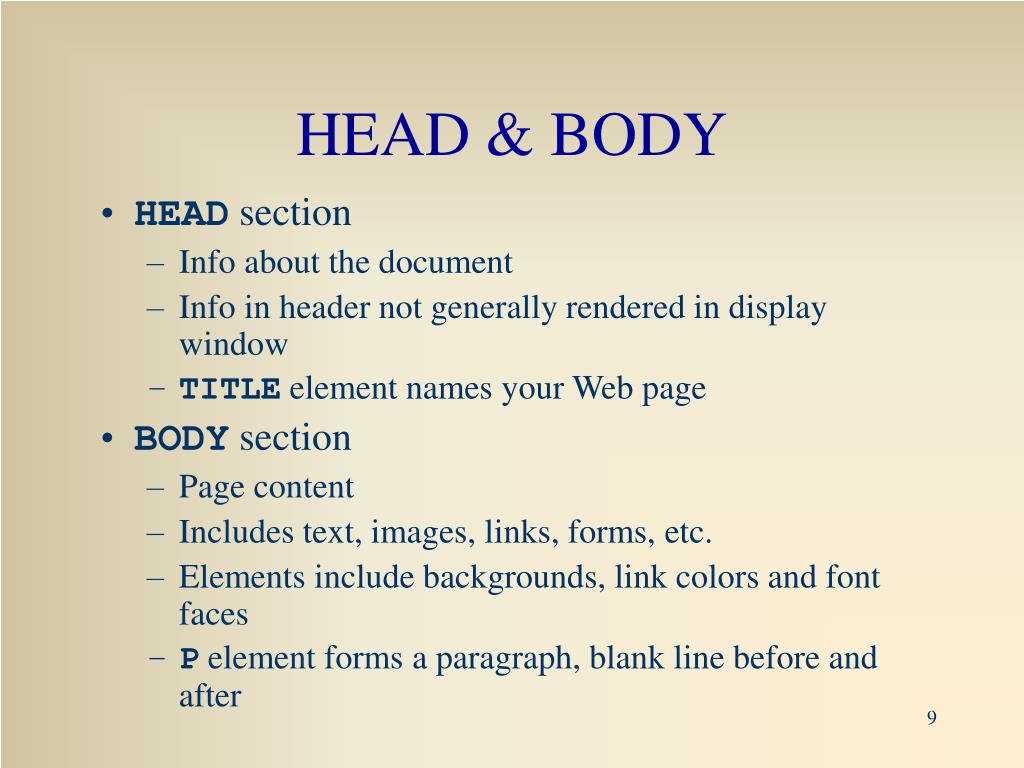

  9. HEAD & BODY • HEAD section • Info about the document • Info in header not generally rendered in display window • TITLE element names your Web page • BODY section • Page content • Includes text, images, links, forms, etc. • Elements include backgrounds, link colors and font faces • P element forms a paragraph, blank line before and after

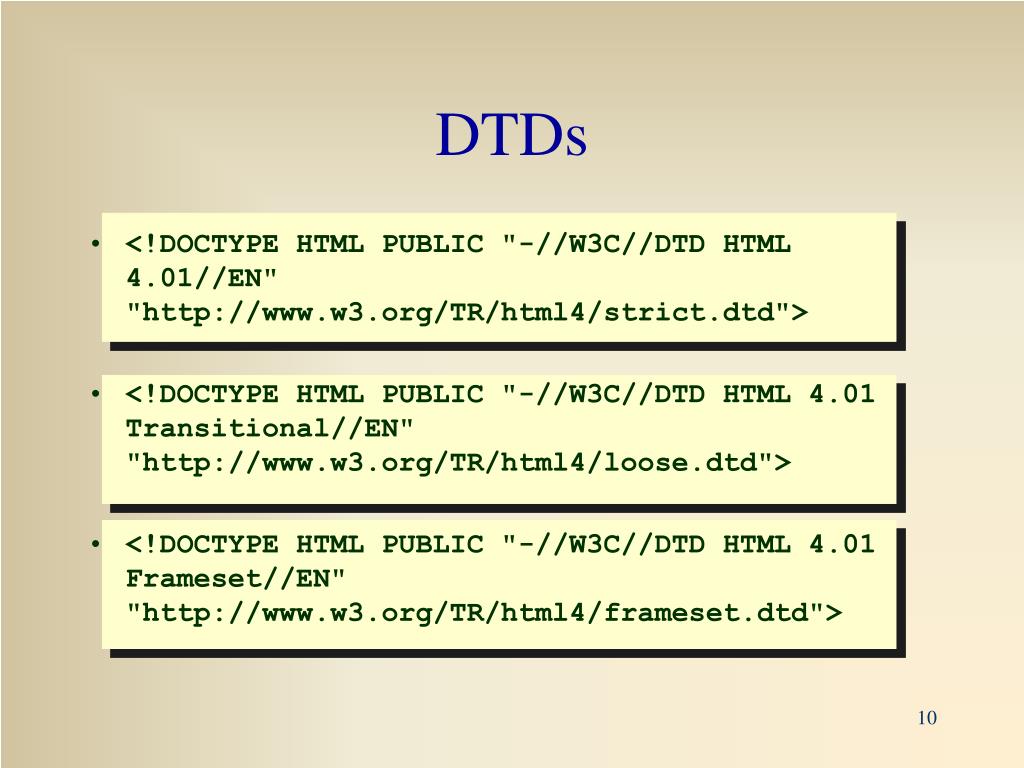

  10. DTDs • <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd"> • <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd"> • <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Frameset//EN" "http://www.w3.org/TR/html4/frameset.dtd">

  11. Character Encoding • Used to set the Document Character Set • In the Browser you can see the encoding by “View>Encoding” or “View>CharacterEncoding” <meta http-equiv="content-type" content="text/html; charset=iso-8859-8-I">

  12. Hebrew In the Page • You can use logical Hebrew: • charset=“windows-1255” • Only good in Explorer • Hebrew text is written from right to left • You can use visual Hebrew: • charset=“iso-8859-8” • Can be seen in Netscape • Hebrew text is written from left to right Also neededalign=“right”

  13. Meta Information • The META tag adds information about the document (rather than content) • name <META name="Author" content=“Danny Din"> • http-equiv <META http-equiv="Expires" content="Tue, 20 Aug 1996 14:25:27 GMT"> • content • schema <META scheme="ISBN" name="identifier“ content="0-8230-2355-9">

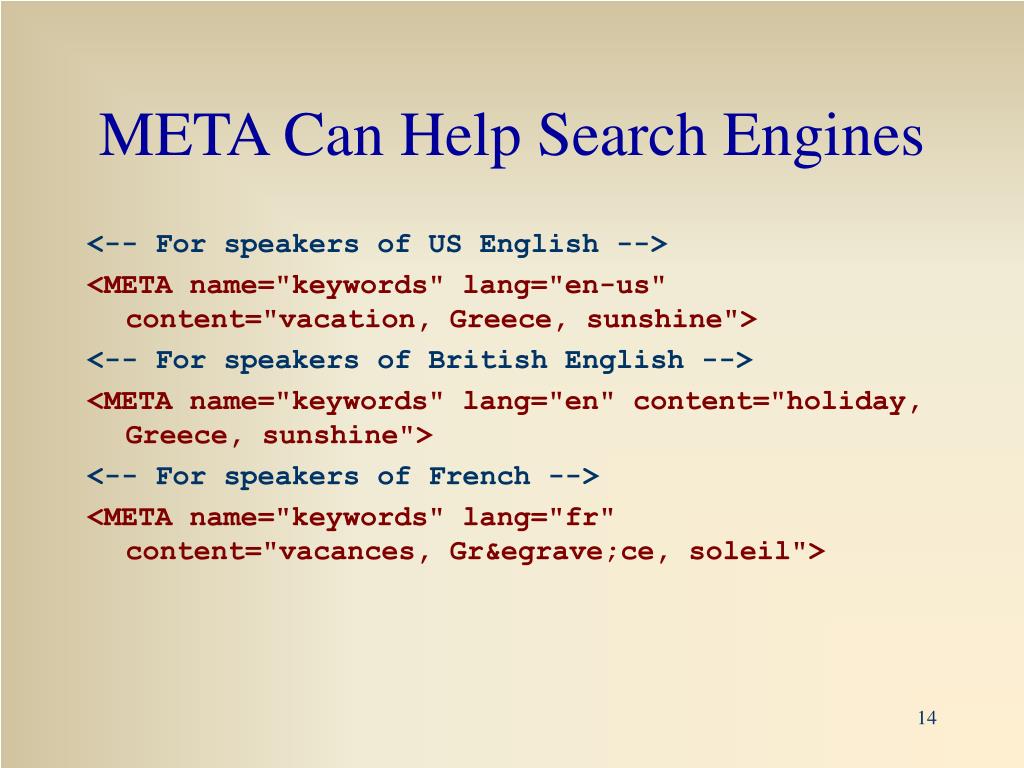

  14. META Can Help Search Engines <-- For speakers of US English --> <META name="keywords" lang="en-us" content="vacation, Greece, sunshine"> <-- For speakers of British English --> <META name="keywords" lang="en" content="holiday, Greece, sunshine"> <-- For speakers of French --> <META name="keywords" lang="fr" content="vacances, Gr&egrave;ce, soleil">

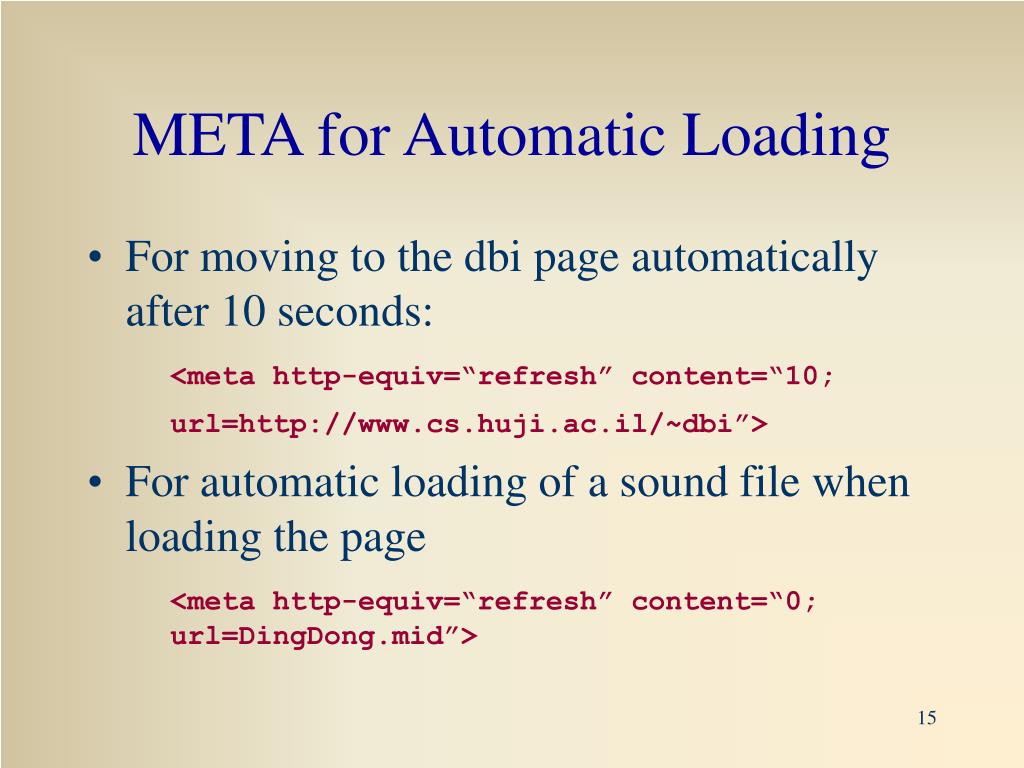

  15. META for Automatic Loading • For moving to the dbi page automatically after 10 seconds: <meta http-equiv=“refresh” content=“10; url=http://www.cs.huji.ac.il/~dbi”> • For automatic loading of a sound file when loading the page <meta http-equiv=“refresh” content=“0; url=DingDong.mid”>

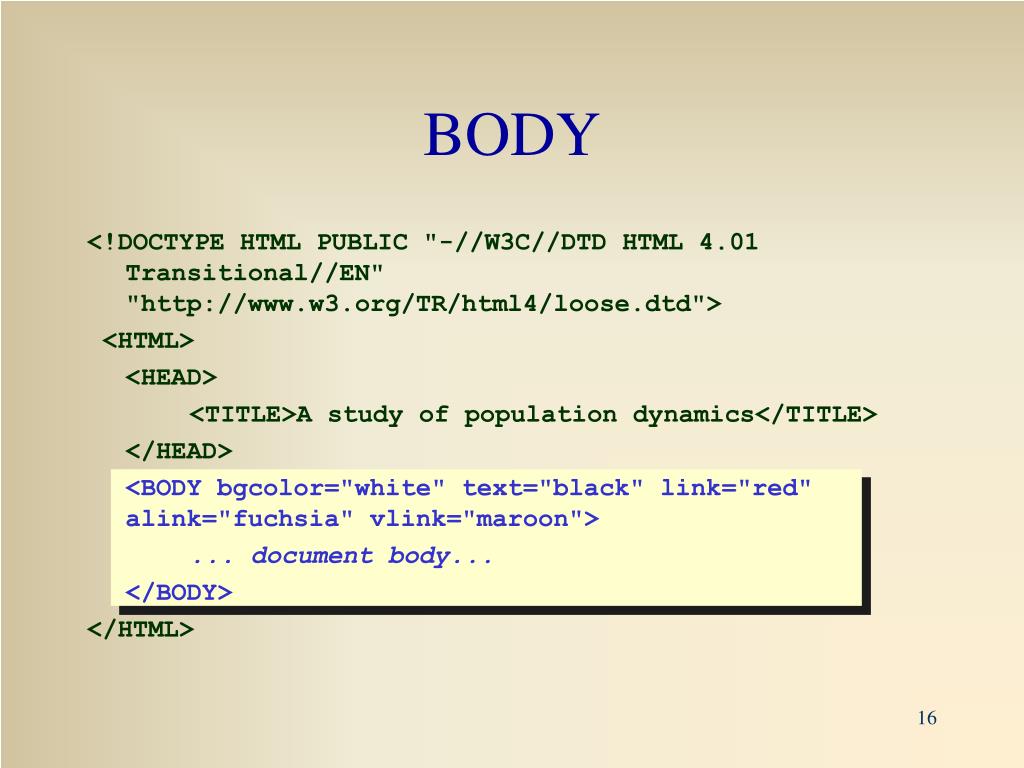

  16. BODY <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd"> <HTML> <HEAD> <TITLE>A study of population dynamics</TITLE> </HEAD> <BODY bgcolor="white" text="black" link="red" alink="fuchsia" vlink="maroon"> ... document body... </BODY> </HTML>

  17. Body With Style <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN""http://www.w3.org/TR/html4/strict.dtd"> <HTML> <HEAD> <TITLE>A study of population dynamics</TITLE> <STYLEtype="text/css"> BODY{background:white;color:black}A:link{color:red}A:visited{color:maroon}A:active{color:fuchsia}</STYLE> </HEAD> <BODY> ... document body... </BODY> </HTML>

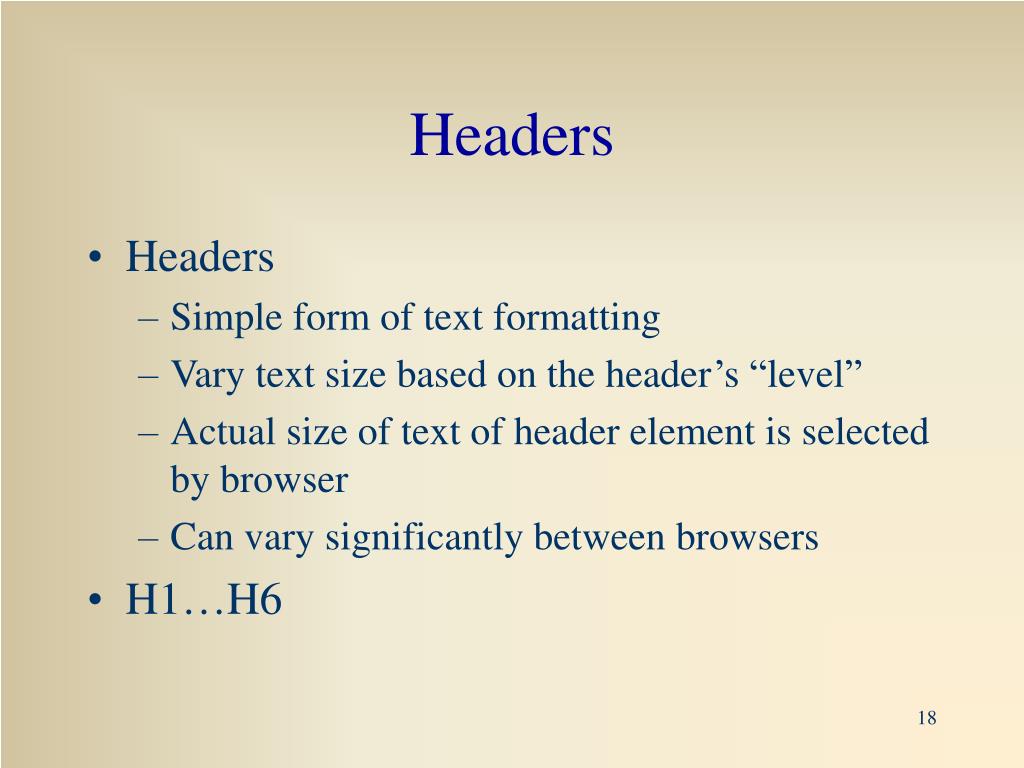

  18. Headers • Headers • Simple form of text formatting • Vary text size based on the header’s “level” • Actual size of text of header element is selected by browser • Can vary significantly between browsers • H1…H6

  19. Text Types • EM: Indicates emphasis • STRONG: Indicates stronger emphasis • CITE: Contains a citation or a reference to other sources • DFN: Indicates that this is the defining instance of the enclosed term • CODE: Designates a fragment of computer code • SAMP: Designates sample output from programs, scripts, etc • KBD: Indicates text to be entered by the user • VAR: Indicates an instance of a variable or program argument • ABBR: Indicates an abbreviated form (e.g., WWW, HTTP, URI, Mass., etc.) • ACRONYM: Indicates an acronym (e.g., WAC, radar, etc.)

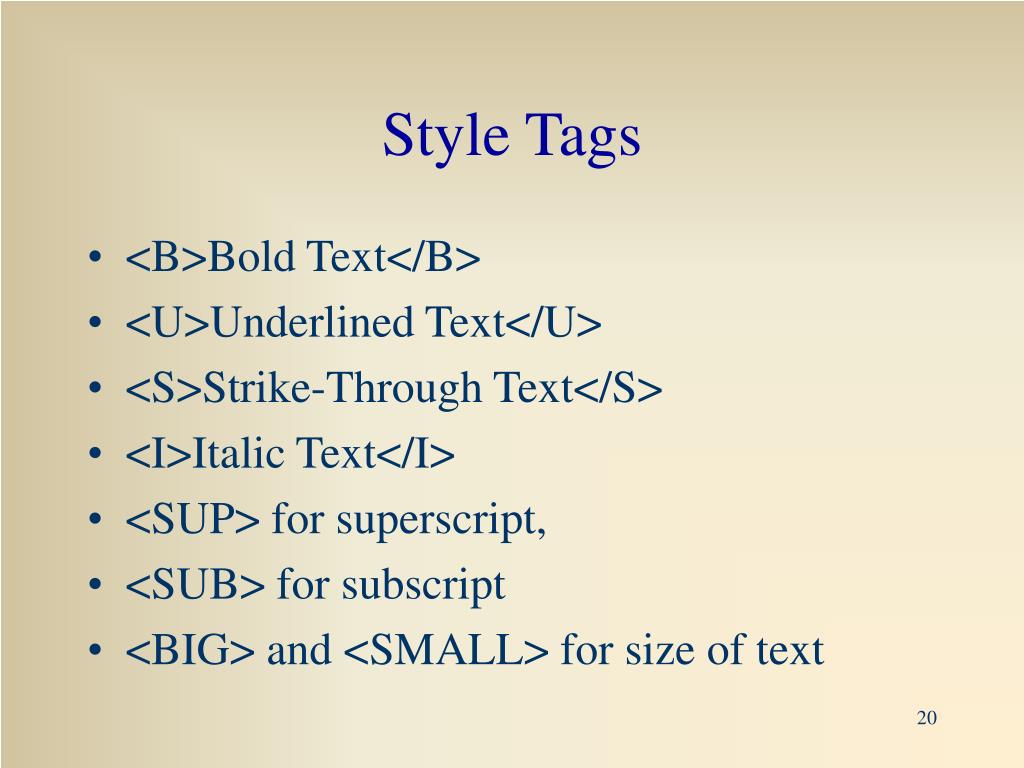

  20. Style Tags • <B>Bold Text</B> • <U>Underlined Text</U> • <S>Strike-Through Text</S> • <I>Italic Text</I> • <SUP> for superscript, • <SUB> for subscript • <BIG> and <SMALL> for size of text

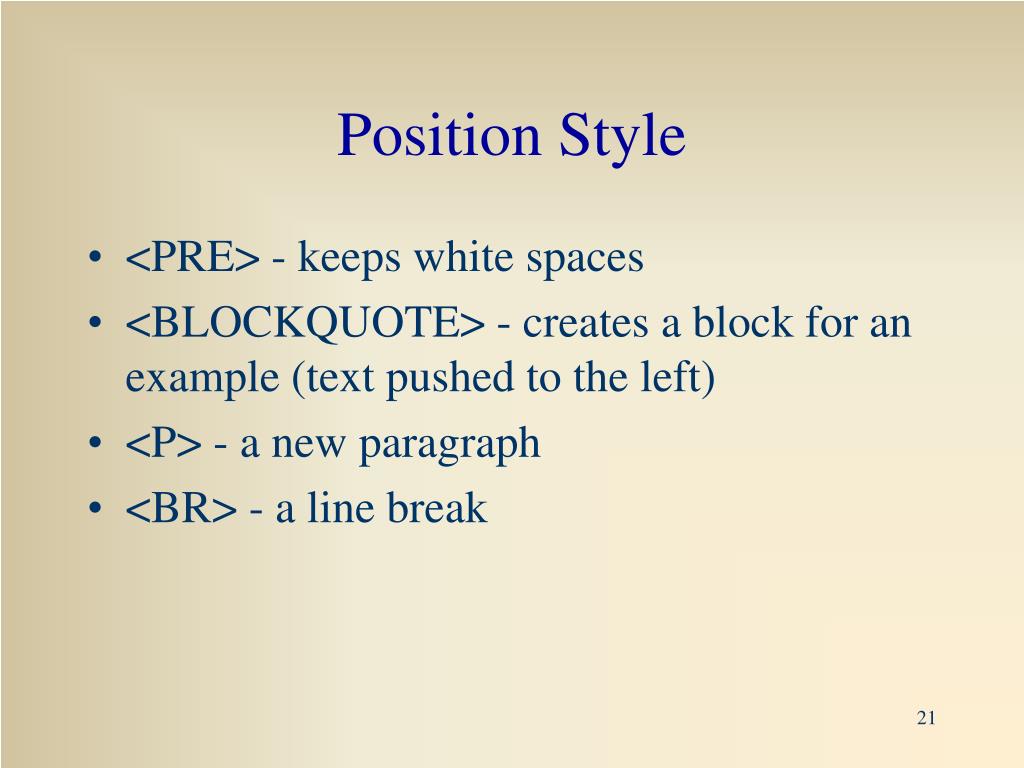

  21. Position Style • <PRE> - keeps white spaces • <BLOCKQUOTE> - creates a block for an example (text pushed to the left) • <P> - a new paragraph • <BR> - a line break

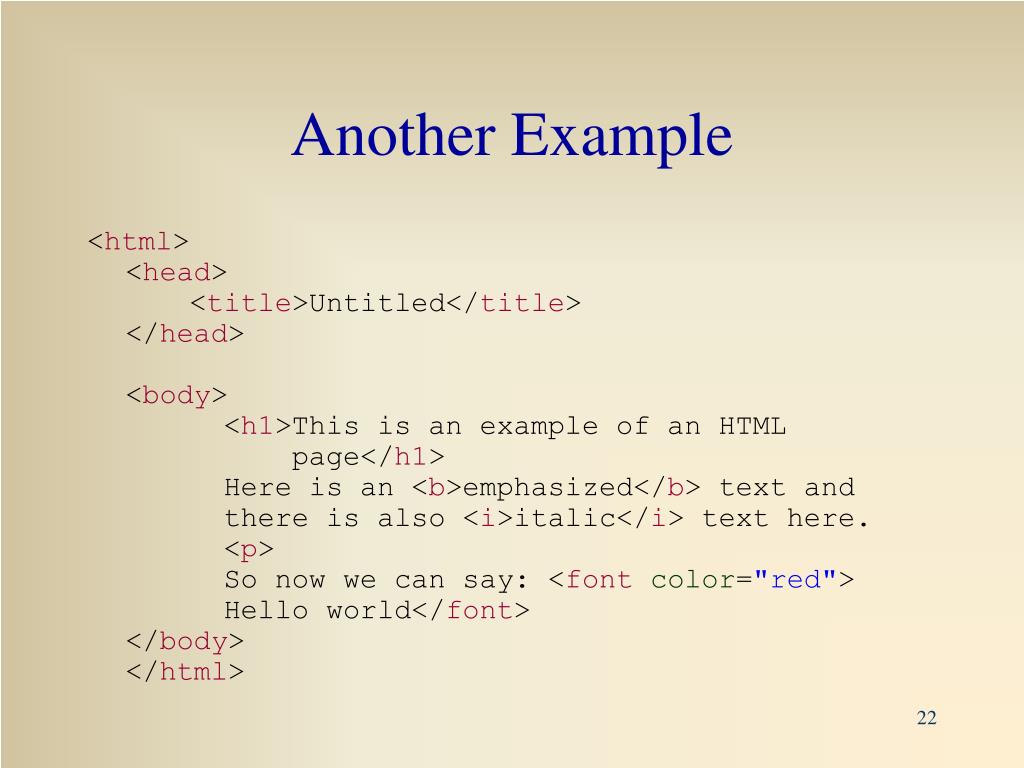

  22. Another Example <html><head> <title>Untitled</title></head><body> <h1>This is an example of an HTML page</h1> Here is an <b>emphasized</b> text and there is also <i>italic</i> text here. <p> So now we can say: <fontcolor="red"> Hello world</font></body></html>

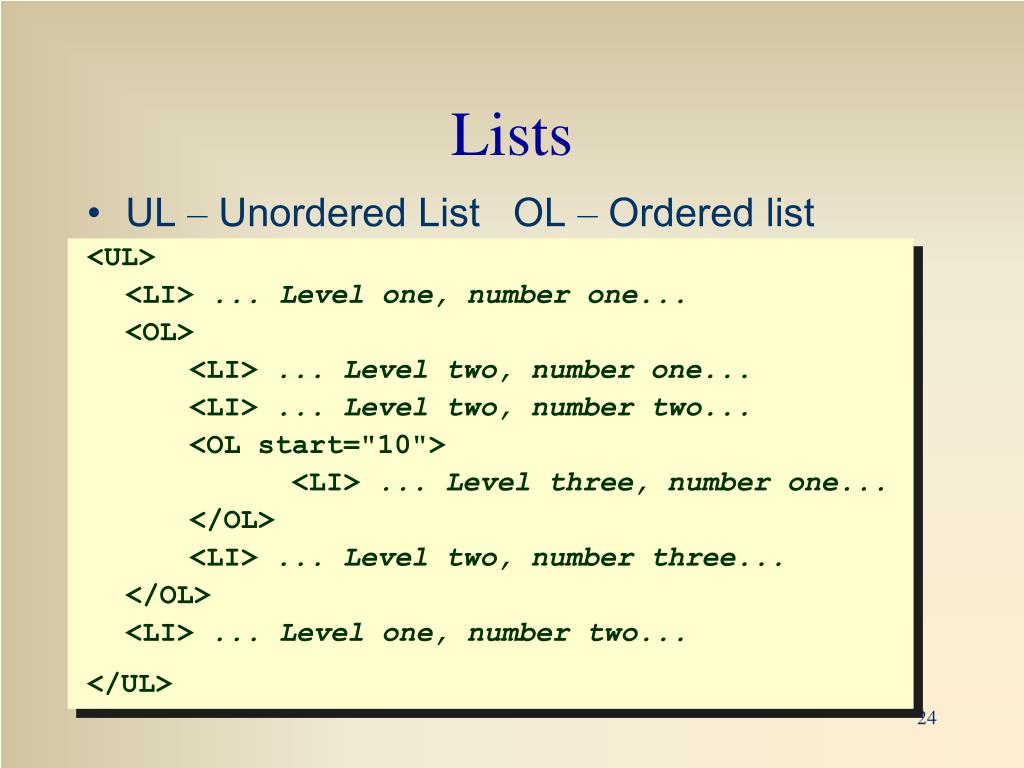

  23. Lists • UL – Unordered List OL – Ordered list <UL> <LI> ... Level one, number one... <OL> <LI> ... Level two, number one... <LI> ... Level two, number two... <OL start="10"> <LI> ... Level three, number one... </OL> <LI> ... Level two, number three... </OL> <LI> ... Level one, number two... </UL>

  24. Tables <TABLE border="1"> <CAPTION><EM>A test table with merged cells</EM> </CAPTION> <TR><TH rowspan="2"></TH><TH colspan="2">Average</TH><TH rowspan="2">Red<BR>eyes</TH></TR> <TR><TH>height<TH>weight</TR> <TR><TH>Males</TH><TD>1.9</TD> <TD>0.003</TD><TD>40%</TD> <TR><TH>Females</TH><TD>1.7</TD><TD>0.002</TD><TD>43%</TD></TR> </TABLE>

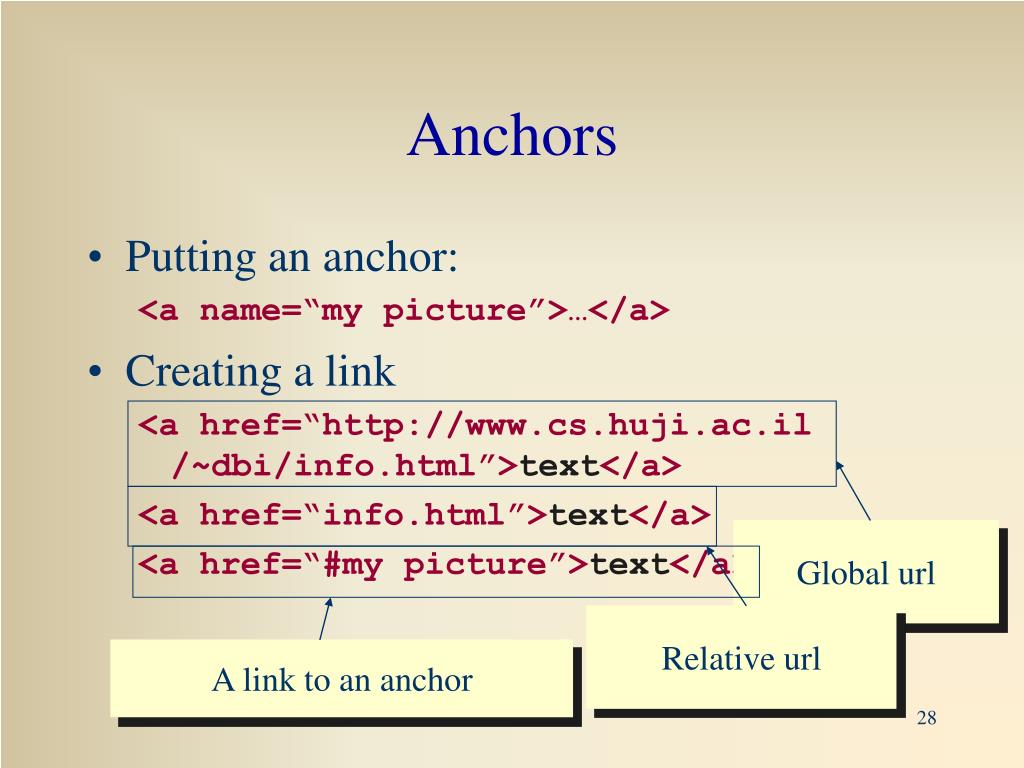

  25. Global url Relative url A link to an anchor Anchors • Putting an anchor: <a name=“my picture”>…</a> • Creating a link <a href=“http://www.cs.huji.ac.il /~dbi/info.html”>text</a> <a href=“info.html”>text</a> <a href=“#my picture”>text</a>

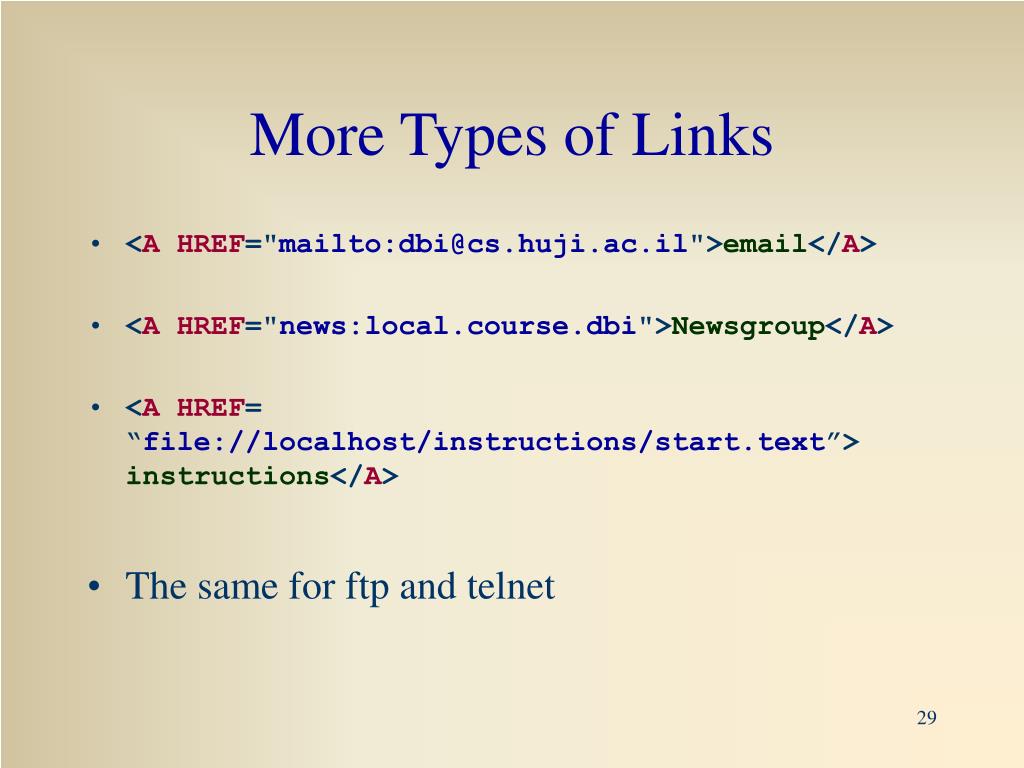

  26. More Types of Links • <A HREF="mailto:dbi@cs.huji.ac.il">email</A> • <A HREF="news:local.course.dbi">Newsgroup</A> • <A HREF= “file://localhost/instructions/start.text”> instructions</A> • The same for ftp and telnet

  27. Images • Adding images to the page can be done using the IMG tag <img src=“monkey.gif” alt=“Picture of a monkey”> • Am image can be used as a link <a href=“monkies.html”><img src=“monkey.gif” alt=“Picture of a monkey”></a>

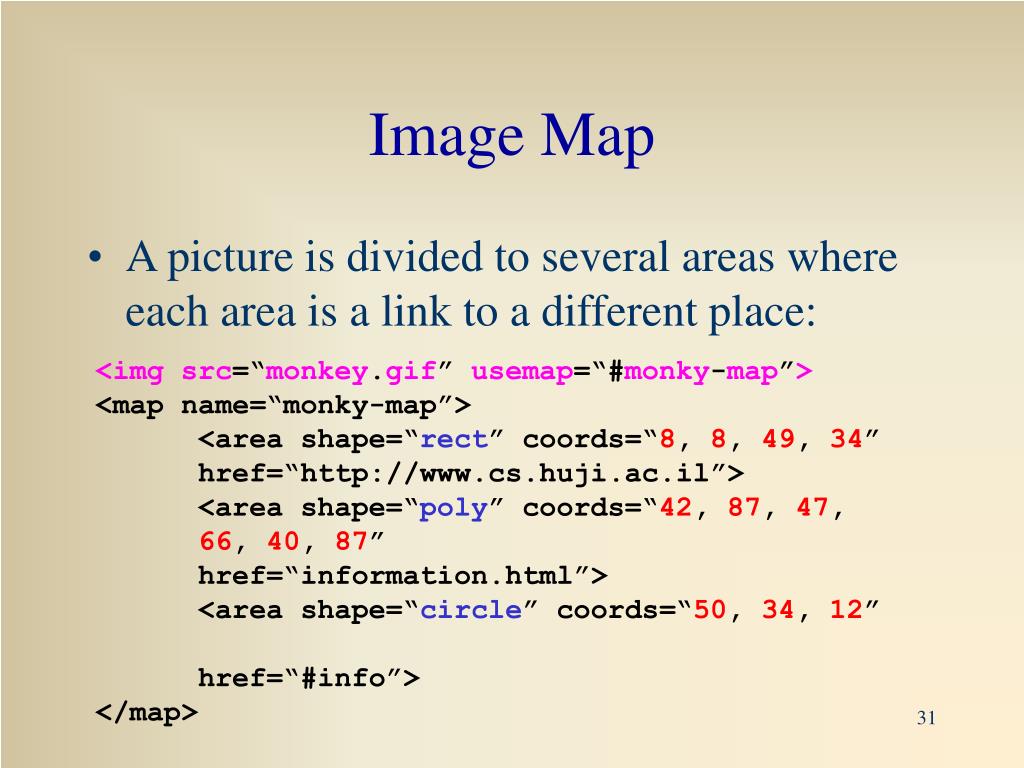

  28. Image Map • A picture is divided to several areas where each area is a link to a different place: <imgsrc=“monkey.gif” usemap=“#monky-map”><map name=“monky-map”> <area shape=“rect” coords=“8, 8, 49, 34” href=“http://www.cs.huji.ac.il”> <area shape=“poly” coords=“42, 87, 47, 66, 40, 87” href=“information.html”> <area shape=“circle” coords=“50, 34, 12” href=“#info”></map>

  29. Frames <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Frameset//EN“"http://www.w3.org/TR/html4/frameset.dtd"><HTML><HEAD><TITLE>A simple frameset document</TITLE> </HEAD><FRAMESET cols="20%, 80%"> <FRAMESET rows="100, 200"> <FRAME src="flower.gif"> <FRAME src="table.html"> </FRAMESET> <FRAME src="list.html"> <NOFRAMES> <P>This frameset document contains: <UL> <LI><Ahref="list.html">The lists page</A> <LI><IMGsrc="flower.gif"alt="A flower"> <LI><Ahref="table.html">The tables page</A> </UL> </NOFRAMES></FRAMESET></HTML>

  30. Links in Frames • The TARGET attribute can specify where the new link will be opened: • target=“frame-name” : in the specified frame • target=“_self” : in the frame where the link is • target=“_top” : in the same window over the whole screen • target-=“_blank” : in a new window of the navigator

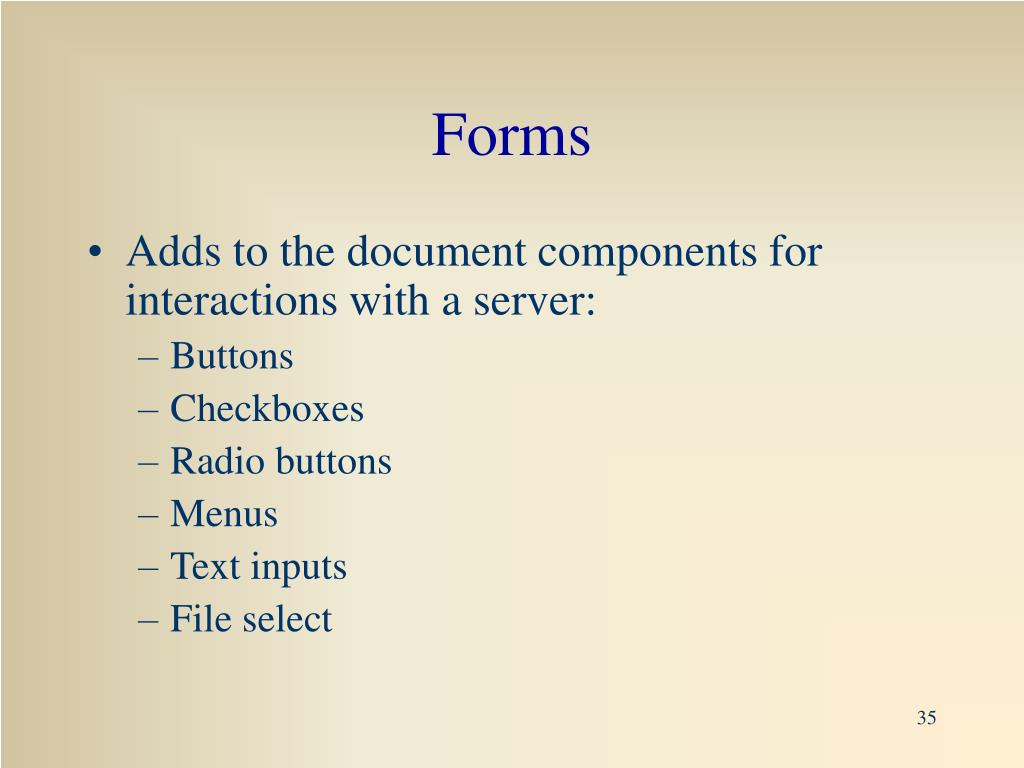

  31. Forms • Adds to the document components for interactions with a server: • Buttons • Checkboxes • Radio buttons • Menus • Text inputs • File select

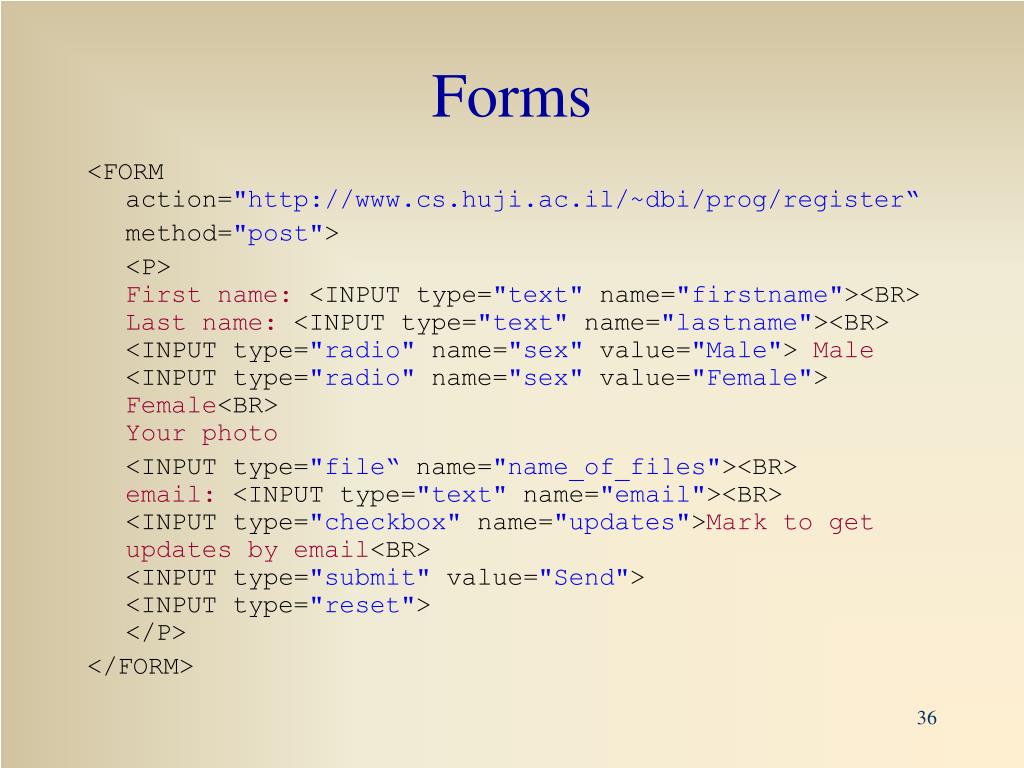

  32. Forms <FORM action="http://www.cs.huji.ac.il/~dbi/prog/register“ method="post"> <P>First name: <INPUT type="text" name="firstname"><BR>Last name: <INPUT type="text" name="lastname"><BR><INPUT type="radio" name="sex" value="Male"> Male<INPUT type="radio" name="sex" value="Female"> Female<BR>Your photo <INPUT type="file“ name="name_of_files"><BR>email: <INPUT type="text" name="email"><BR><INPUT type="checkbox" name="updates">Mark to get updates by email<BR><INPUT type="submit" value="Send"> <INPUT type="reset"></P> </FORM>
