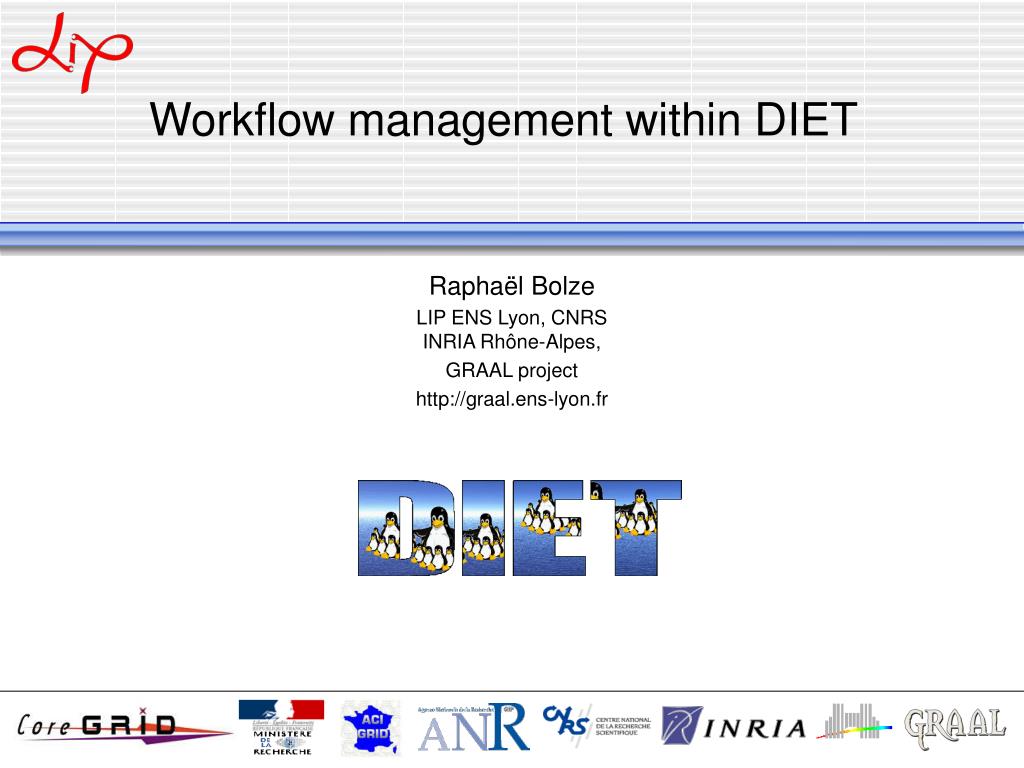

Workflow management within DIET. Raphaël Bolze LIP ENS Lyon, CNRS INRIA Rhône-Alpes, GRAAL project http://graal.ens-lyon.fr. Introduction. Distributed Interactive Engineering Toolbox RPC and grid-computing : gridRPC DIET goals DIET environment & architecture Request management

benard
Download Presentation

Workflow management within DIET

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Workflow management within DIET Raphaël Bolze LIP ENS Lyon, CNRSINRIA Rhône-Alpes, GRAAL project http://graal.ens-lyon.fr

  2. Introduction • Distributed Interactive Engineering Toolbox • RPC and grid-computing : gridRPC • DIET goals • DIET environment & architecture • Request management • Research topics & features • DIET and workflow management • Needs • Language • Architectures • Scheduling propose • Target applications • PipeAlign • Docking • Robinson • Cosmology • Current works R. Bolze – 19 oct 2006 Edinburgh

  3. Distributed Interactive Engineering Toolbox

  4. RPC and Grid-Computing: GridRPC • One simple idea • One simple (and efficient) paradigm for grid computing: offering (or leasing) computational power and/or storage capacity through the Internet • One simple solution: implementing the RPC programming model over the Grid • Using resources accessible through the network • Mixed parallelism model (data-parallel model at server level and task parallelism between servers) • Features needed • Load-balancing (resource localization and performance evaluation, scheduling), • Data and replica management, • Security, • Fault-tolerance, • Interoperability with other systems, • … • Design of a standard interface • within the GGF/OGF (GridRPC WG, C. Lee) • www.ogf.org, forge.gridforum.org/projects/gridrpc-wg • Existing implementations: GridSolve, Ninf, DIET, XtremWeb R. Bolze – 19 oct 2006 Edinburgh

  5. RPC and Grid Computing: Grid RPC Request S2 ! A, B, C Answer (C) AGENT(s) Client Op(C, A, B) S4 S3 S1 S2 R. Bolze – 19 oct 2006 Edinburgh

  6. DIET’s Goals • Our goals • To develop a toolbox for the deployment of environments using the Application Service Provider (ASP) paradigm with different applications • Use as much as possible public domain and standard software • To obtain a high performance and scalable environment • Implement and validate our more theoretical results • Scheduling for heterogeneous platforms, data (re)distribution and replication, performance evaluation, algorithmic for heterogeneous and distributed platforms, … • Based on CORBA, NWS, LDAP, and our own software developments • CoRI for performance evaluation, • FAST • CoRI-easy • LogService for monitoring, • VizDIET for the visualization, • GoDIET for the deployment • Several applications in different fields (simulation, bioinformatic, cosmological application…) • Release 2.1 available on the web • Release 2.2 coming soon http://graal.ens-lyon.fr/DIET/ R. Bolze – 19 oct 2006 Edinburgh

  7. DIET Environment C C C C C C C C C A A A A A A A A A A A SequentialApplication Parallel Application Data managementApplication S S S S S S CLIENT R. Bolze – 19 oct 2006 Edinburgh

  8. DIET Architecture LA LA Client Master Agent MA ServerDeamons LA Local Agent LA R. Bolze – 19 oct 2006 Edinburgh

  9. Requests Management bestServer = S3 FindServer() agent Aggregate() { min(…); } FindServer() runService(…); agent FindServer() Aggregate() { min(…); } server estimate() { predExecTime(…); } R. Bolze – 19 oct 2006 Edinburgh

  10. Research Topics • Scheduling • Distributed scheduling • Plug-in schedulers • Data-management • Scheduling of computation requests and links with data-management • Replication, data prefetching • Deployment • Mapping components on available (selected) resources • Software platform deployment with or without dynamic connections between components • Performance evaluation • Application modeling • Dynamic information about the platform (network, clusters) • Fault Tolerance • Failure Detection • Application recovery … R. Bolze – 19 oct 2006 Edinburgh

  11. Scheduling

  12. DIET Scheduling • SeD level • Performance estimation function • Estimation metric vector (estVector_t) - dynamic collection of performance estimation values • Performance measures available through DIET • FAST-NWS performance metrics • Time elapsed since the last execution • CoRI (Collector of Resource Information) • Developer defined values • Standard estimation tags for accessing the fields of an estVector_t • EST_FREEMEM • EST_TCOMP • EST_TIMESINCELASTSOLVE • EST_FREECPU • Aggregation Methods • Defining mechanism how to sort SeD responses: associated with the service and defined at SeD level • Tunable comparison/aggregation routines for scheduling • Priority Scheduler • Performs pairwise server estimation comparisons returning a sorted list of server responses; • Can minimize or maximize based on SeD estimations and taking into consideration the order in which the request for those performance estimations was specified at SeD level. R. Bolze – 19 oct 2006 Edinburgh

  13. DIET Scheduling CoRI Manager FAST Collector CoRI-Easy Collector • Collector of Resource Information (CoRI) • CoRI-Easy – provides basic measurements of the environment • CoRI Manager – manage the use of different collectors Other Collectors like Ganglia FAST Software R. Bolze – 19 oct 2006 Edinburgh

  14. Data management

  15. Data/replica management Client A Server 1 B F B B X Server 2 G Y Client • Two needs • Keep the data in place to reduce the overhead of communications between clients and servers • Replicate data whenever possible • Two approaches for DIET • DTM (LIFC, Besançon) • Hierarchy similar to the DIET’s one • Distributed data manager • Redistribution between servers • JuxMem (Paris, Rennes) • P2P data cache • Work done within the GridRPC Working Group (OGF) • Relations with workflow management R. Bolze – 19 oct 2006 Edinburgh

  16. Data management with DTM within DIET • Persistence at the server level • To avoid useless data transfers • Intermediate results • Between clients and servers • Between servers • “transparent” for the client • Data Manager/Loc Manager • Hierarchy mapped on the DIET one • modularity • Proposition to the Grid-RPC WG (OGF) • Data handles • Persistence flag • Data management functions R. Bolze – 19 oct 2006 Edinburgh

  17. JUXMEM PARIS project, IRISA, France • A peer-to-peer architecture for a data-sharing service in memory • Persistence and data coherency mechanism • Transparent data localization • Toolbox for the development of P2P applications • Set of protocols • One peer • Unique ID • Several communication protocols (TCP, HTTP, …) Peer ID Peer ID Peer ID Peer ID Peer ID Peer ID Peer ID Peer ID Peer Peer Peer Peer Peer Peer Peer Peer Peer TCP/IP Firewall Peer Peer Peer Firewall Peer Peer HTTP R. Bolze – 19 oct 2006 Edinburgh

  18. Deployment and visualization

  19. Deployment Management Distributed deployment of DIET DIETAdministration Traces TraceSubset GoDIET LogService XML: • Resources • Machines • Storage • DIET hierarchy Trace subset VizDIET R. Bolze – 19 oct 2006 Edinburgh

  20. VizDIET R. Bolze – 19 oct 2006 Edinburgh

  21. Workflow management

  22. Workflow Management : needs ? Workflow representation : Direct Acyclic Graph (DAG) Each vertex is a tasks Each directed edge represents communication between tasks Questions : Ordering problem ? Mapping problem ? R. Bolze – 19 oct 2006 Edinburgh

  23. Workflow Management : goals • Goals • Build and execute workflow • Use different heuristic methods to solve scheduling problems • Extensibility to address mutli-workflows submission and large grid platform • Manage heterogeneity and variability of environment R. Bolze – 19 oct 2006 Edinburgh

  24. Workflow Management : existing languages ? • Workflows languages: • No standard (XML, scripts) • Exemples : • Condor DAGman : script • Pegasus : DAX (xml) • Taverna : XScuffl (xml) • 2 levels of description : • Abstract : application description • Concrete : execution description R. Bolze – 19 oct 2006 Edinburgh

  25. Workflow Management • Workflow description in DIET • Xml format • DIET profile : problem (id), parameters (in, inout ,out) • Description of tasks and data dependency <!-- NORMD 2 --> <node id="normd2" path="normd"> <in name="in_file" type="DIET_FILE" source="rascal1#out_file" /> <out name="normd_value" type="DIET_FLOAT" /> <out name="srv_time" type="DIET_DOUBLE" /> <prec id="rascal1" /> </node> <!-- LEON 1 --> <node id="leon1" path="leon"> <arg name="protein_name" type="DIET_STRING" value="P07942" /> <in name="clustalw_file" type="DIET_FILE" source="clustalw1#out_file" /> <in name="rascal_file" type="DIET_FILE" source="rascal1#out_file" /> <in name="clustalw_normd" type="DIET_FLOAT" source="normd1#normd_value" /> <in name="rascal_normd" type="DIET_FLOAT" source="normd2#normd_value" /> <out name="srv_time" type="DIET_DOUBLE" /> <out name="out_file1" type="DIET_FILE" /> <out name="out_file2" type="DIET_FILE" /> <prec id="normd2" /> </node> R. Bolze – 19 oct 2006 Edinburgh

  26. Workflow Management : architecture • 2 Architectures : • Meta scheduler in the client side • Meta scheduler distributed in the client and in the MA-DAG R. Bolze – 19 oct 2006 Edinburgh

  27. Workflow Management : Meta scheduler : client • Architecture 1 : • Meta scheduler in the client side MA Client LA LA LA SeD SeD SeD SeD SeD R. Bolze – 19 oct 2006 Edinburgh

  28. Workflow management : Meta scheduler : client • Disadvantages : • No coordination between the different clients • Depends on client capability • Benefits : • More flexible for evolution : • Client can use his own algorithm. • More scalable, depends on client capability. R. Bolze – 19 oct 2006 Edinburgh

  29. Workflow management • Architecture 2 : • Meta scheduler distributed in the client and in the MA-DAG MA DAG Client MA LA LA LA SeD SeD SeD SeD SeD R. Bolze – 19 oct 2006 Edinburgh

  30. Workflow management - Meta scheduler • Base Scheduler : • No ranking, respect the topological order of the DAG • HEFT heuristic • Flexibility : • Architecture 1 : • Client can have his own schedule • No needs to re-build the platform • Architecture 2 : • Schedulers are define at the compile time. • Needs to re-build the platform if some decide the change. Abstract Workflow Scheduler Virtual void execute(); Virtual void reSchedule(); User defined Scheduler Virtual void execute(); Virtual void reSchedule(); R. Bolze – 19 oct 2006 Edinburgh

  31. Target applications

  32. Docking Application params docking docking docking docking merge • Detection of protein-protein and protein-DNA interactions. • Screening a database containing thousands of proteins for functional sites involved in binding to other proteins, DNA or ligand targets. R. Bolze – 19 oct 2006 Edinburgh

  33. PipeAlign Application • The sequence-to-function relationship can be understood through the analysis of conserved patterns and evolution of protein organization mainly based on amino acid sequence comparisons in the context of the multiple alignments. blastall ballast filtering clustalw rascal normd normd leon normd R. Bolze – 19 oct 2006 Edinburgh

  34. Robinson application extract extract extract extract extract extract Build DB blastall blastall blastall blastall • This application annotate human genes according to their expression in neurological or muscular tissues, but also to the expression of their homolog other species. R. Bolze – 19 oct 2006 Edinburgh

  35. Cosmology application Grapfic1 rollWhiteNoise Grapfic1 Grapfic1 Grapfic1 Grapfic1 Grapfic1 Grapfic2 Grapfic2 Grapfic2 Grapfic2 Grapfic2 Grapfic2 Grapfic2 Grapfic2 Grapfic2 Grapfic2 Ramses3D HaloMaker HaloMaker HaloMaker HaloMaker TreeMaker + GalaxyMaker • Simulate the evolution of dark matter particles during time to compare it to the real observation. Centre de Recherche en Astronomie de Lyon R. Bolze – 19 oct 2006 Edinburgh

  36. Current Work

  37. Multi-Workflow • Deal with multiple workflow submission • On-line scheduling, different submission time • Implements “fair” scheduling strategies • Implements specific scheduling heuristics • Distribute the workflow management ? grid R. Bolze – 19 oct 2006 Edinburgh

  38. Multi-Workflow • Simulations • Real experiments on Grid’5000 R. Bolze – 19 oct 2006 Edinburgh

  39. Conclusion • DIET • Workflow enabled • Data management : DTM, JuXMEM • Performance information : CoRI, FAST • Plugin schedulers • Multi-Applications R. Bolze – 19 oct 2006 Edinburgh

  40. Questions ? http://graal.ens-lyon.fr
