Molecular Geometry

AP Chemistry. Molecular Geometry. Created by Geoff Trousdale. XeF 4. SF 6. O 2. BeCl 2. H 2 O. NH 3. CH 4. ClO 4 −. ClF 5. HF. BrF 3. PCl 3. SO 4 2−. BF 3. PCl 5. SF 4. BrF 5. CO 2. SO 2. SO 3. ClF 3. O 2. Electron Domain Geometry. Molecular Geometry. Diatomic.

benard
Download Presentation

Molecular Geometry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. AP Chemistry Molecular Geometry Created by Geoff Trousdale

  2. XeF4 SF6 O2 BeCl2 H2O NH3 CH4 ClO4− ClF5 HF BrF3 PCl3 SO42− BF3 PCl5 SF4 BrF5 CO2 SO2 SO3 ClF3

  3. O2 Electron Domain Geometry Molecular Geometry Diatomic Diatomic

  4. HF Electron Domain Geometry Molecular Geometry Diatomic Diatomic

  5. BeCl2 Electron Domain Geometry Molecular Geometry Linear Linear

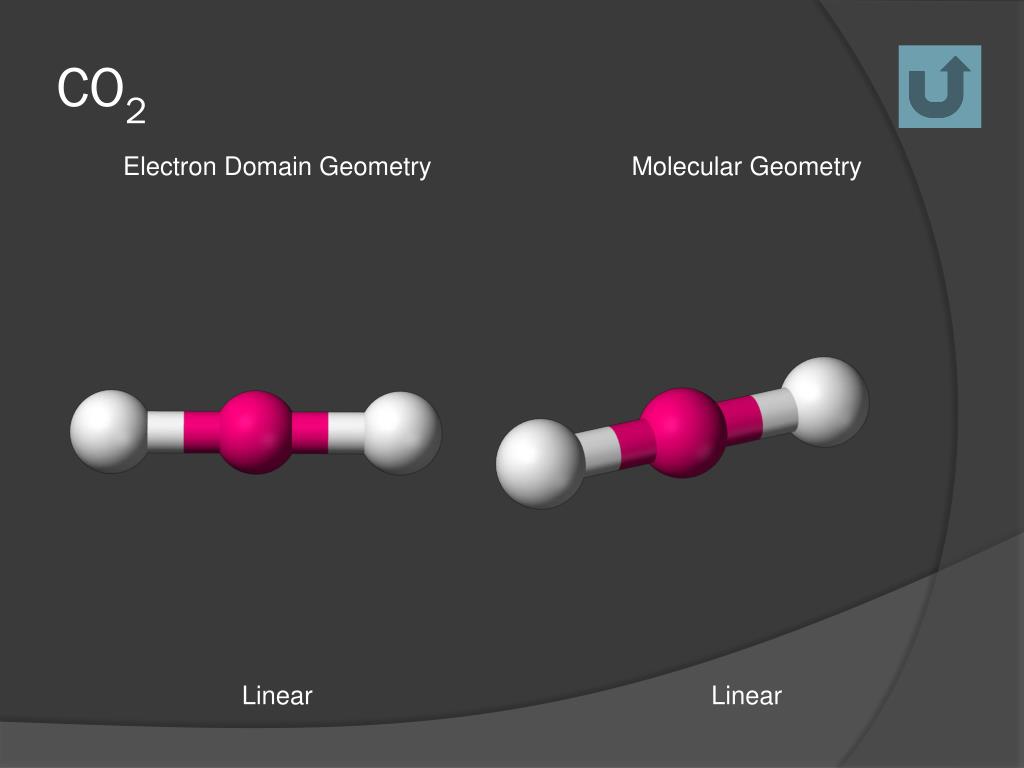

  6. CO2 Electron Domain Geometry Molecular Geometry Linear Linear

  7. SO2 Electron Domain Geometry Molecular Geometry Trigonal Planar Bent

  8. H2O Electron Domain Geometry Molecular Geometry Tetrahedral Bent

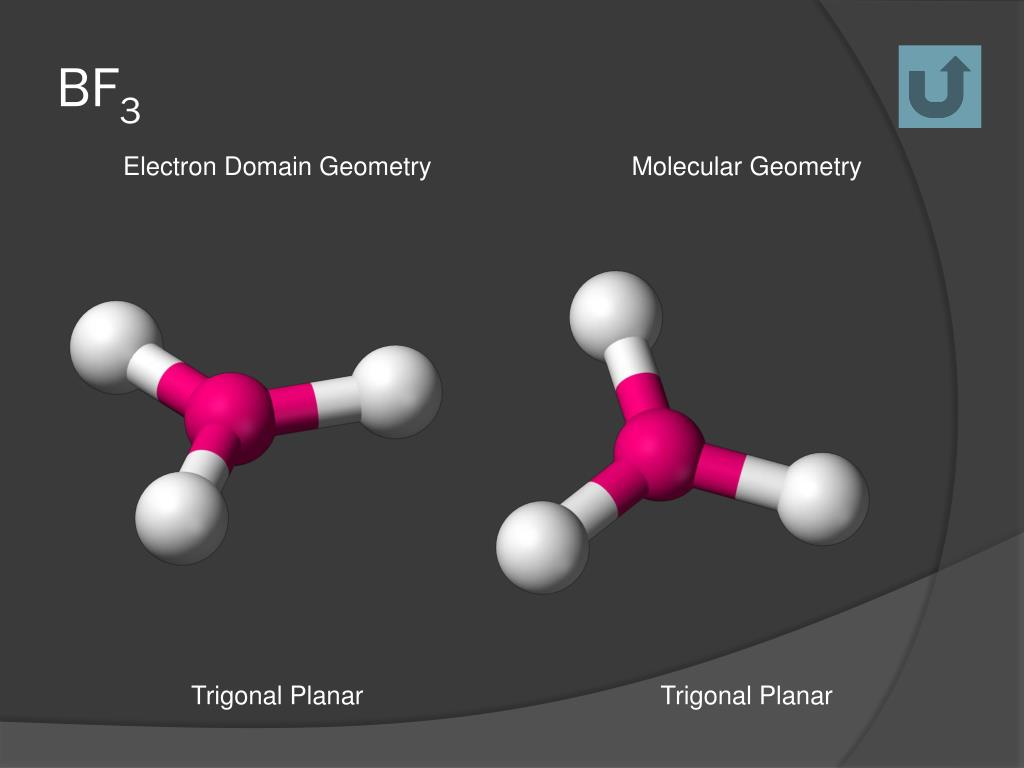

  9. BF3 Electron Domain Geometry Molecular Geometry Trigonal Planar Trigonal Planar

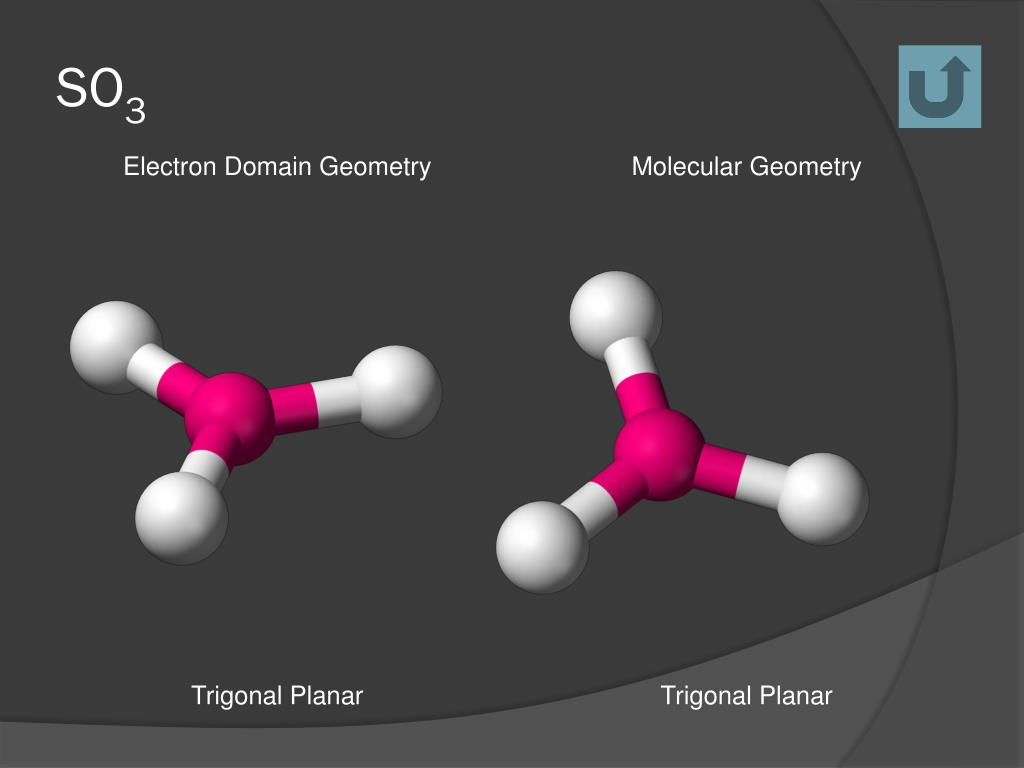

  10. SO3 Electron Domain Geometry Molecular Geometry Trigonal Planar Trigonal Planar

  11. NH3 Electron Domain Geometry Molecular Geometry Tetrahedral Trigonal Pyramidal

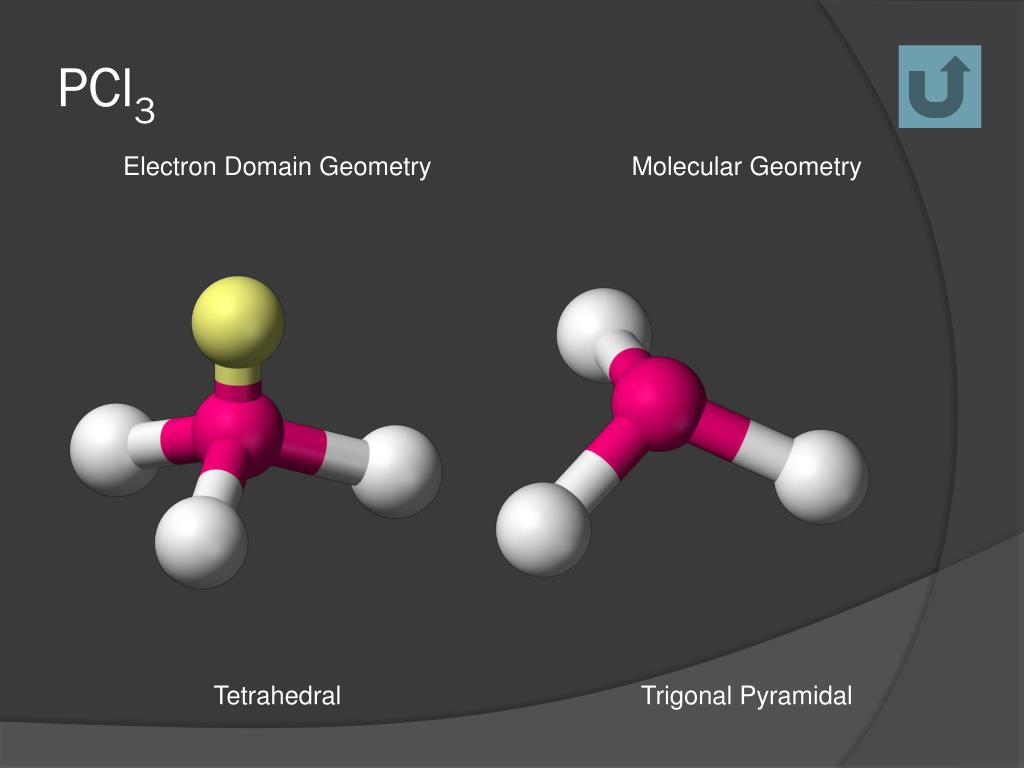

  12. PCl3 Electron Domain Geometry Molecular Geometry Tetrahedral Trigonal Pyramidal

  13. BrF3 Electron Domain Geometry Molecular Geometry Trigonal Bipyramidal T-Shaped

  14. ClF3 Electron Domain Geometry Molecular Geometry Trigonal Bipyramidal T-Shaped

  15. CH4 Electron Domain Geometry Molecular Geometry Tetrahedral Tetrahedral

  16. SO42− Electron Domain Geometry Molecular Geometry Tetrahedral Tetrahedral

  17. ClO4− Electron Domain Geometry Molecular Geometry Tetrahedral Tetrahedral

  18. SF4 Electron Domain Geometry Molecular Geometry Trigonal Bipyramdial Seesaw

  19. XeF4 Electron Domain Geometry Molecular Geometry Octahedral Square Planar

  20. PCl5 Electron Domain Geometry Molecular Geometry Trigonal Bipyramidal Trigonal Bipyramidal

  21. ClF5 Electron Domain Geometry Molecular Geometry Octahedral Square Pyramidal

  22. BrF5 Electron Domain Geometry Molecular Geometry Octahedral Square Pyramidal

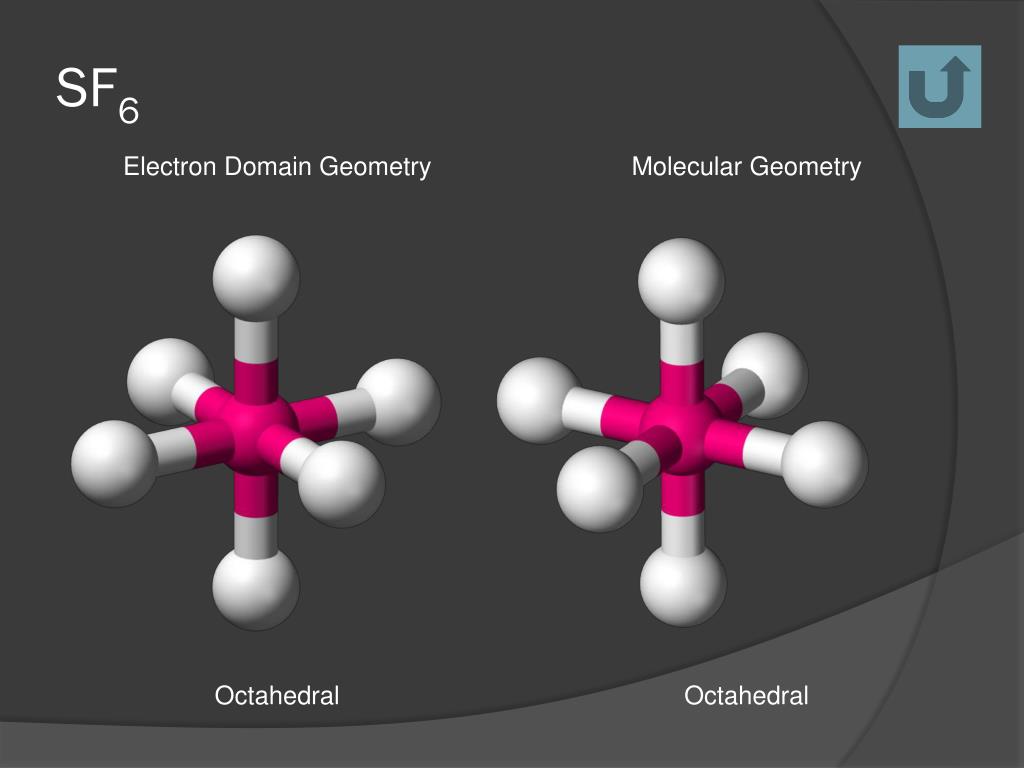

  23. SF6 Electron Domain Geometry Molecular Geometry Octahedral Octahedral
