Interactive Machine Learning: Leveraging Human Intelligence

1. Interactive Machine Learning: Leveraging Human Intelligence Dan R. Olsen Jr. Brigham Young University Dept. of Computer Science

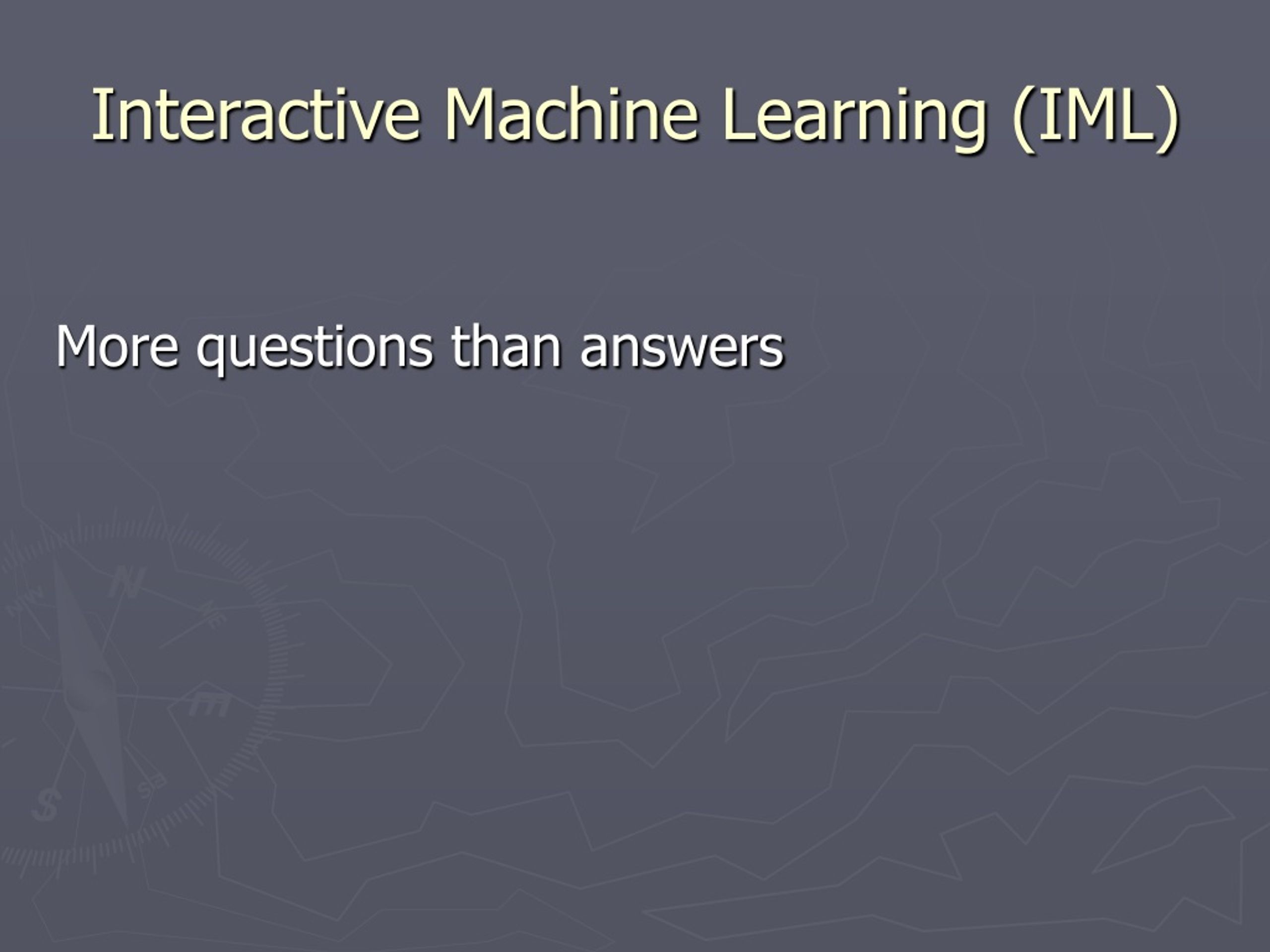

2. Interactive Machine Learning (IML) More questions than answers

3. Why is IML of Interest?

4. Why is IML of Interest? • Exponential Growth • Computer processor speed • Memory size • Available data on the Internet • Static Humans • Fixed USABLE screen size Fixed Cost

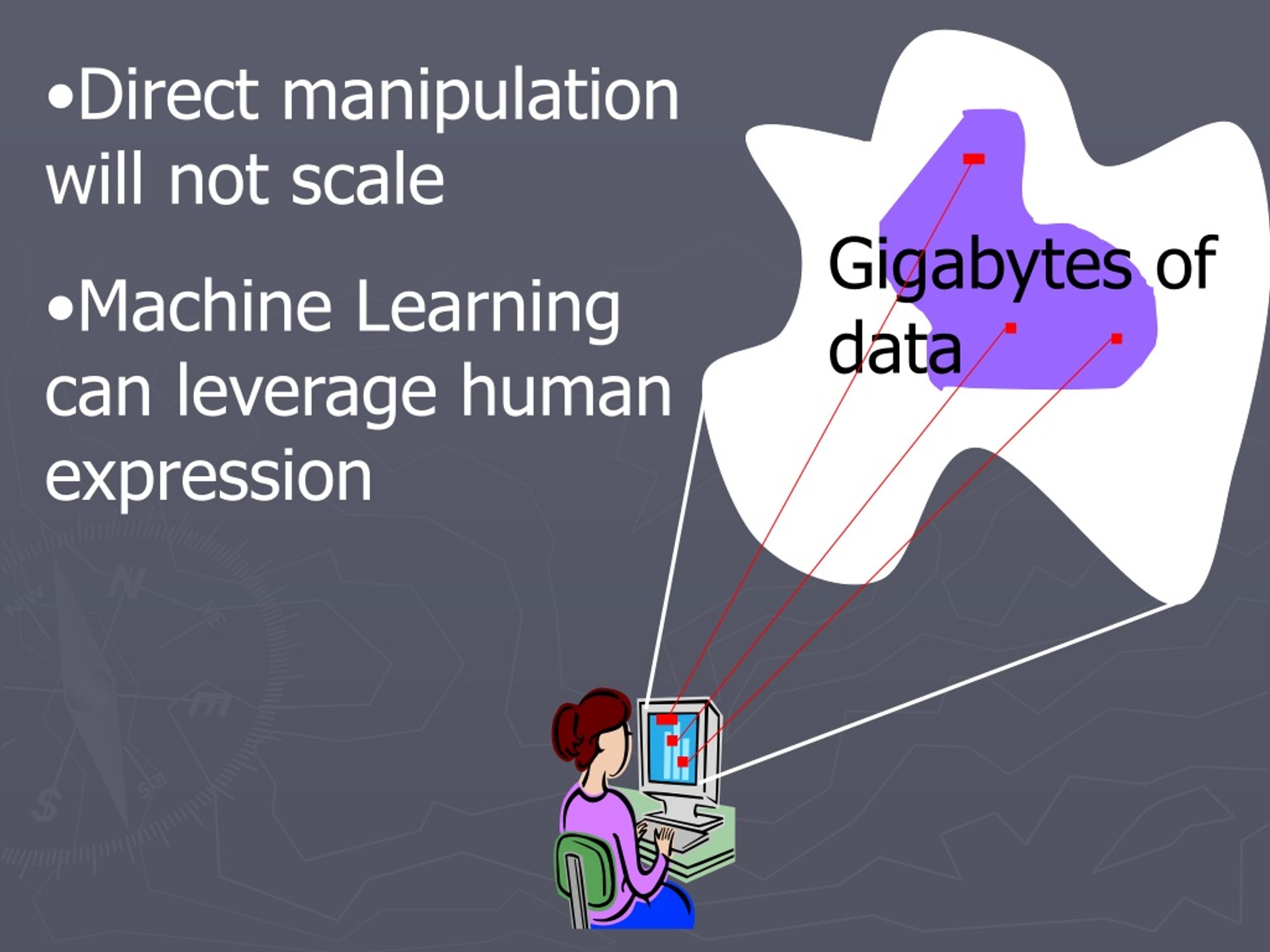

5. Direct manipulation will not scale • Machine Learning can leverage human expression Gigabytes of data

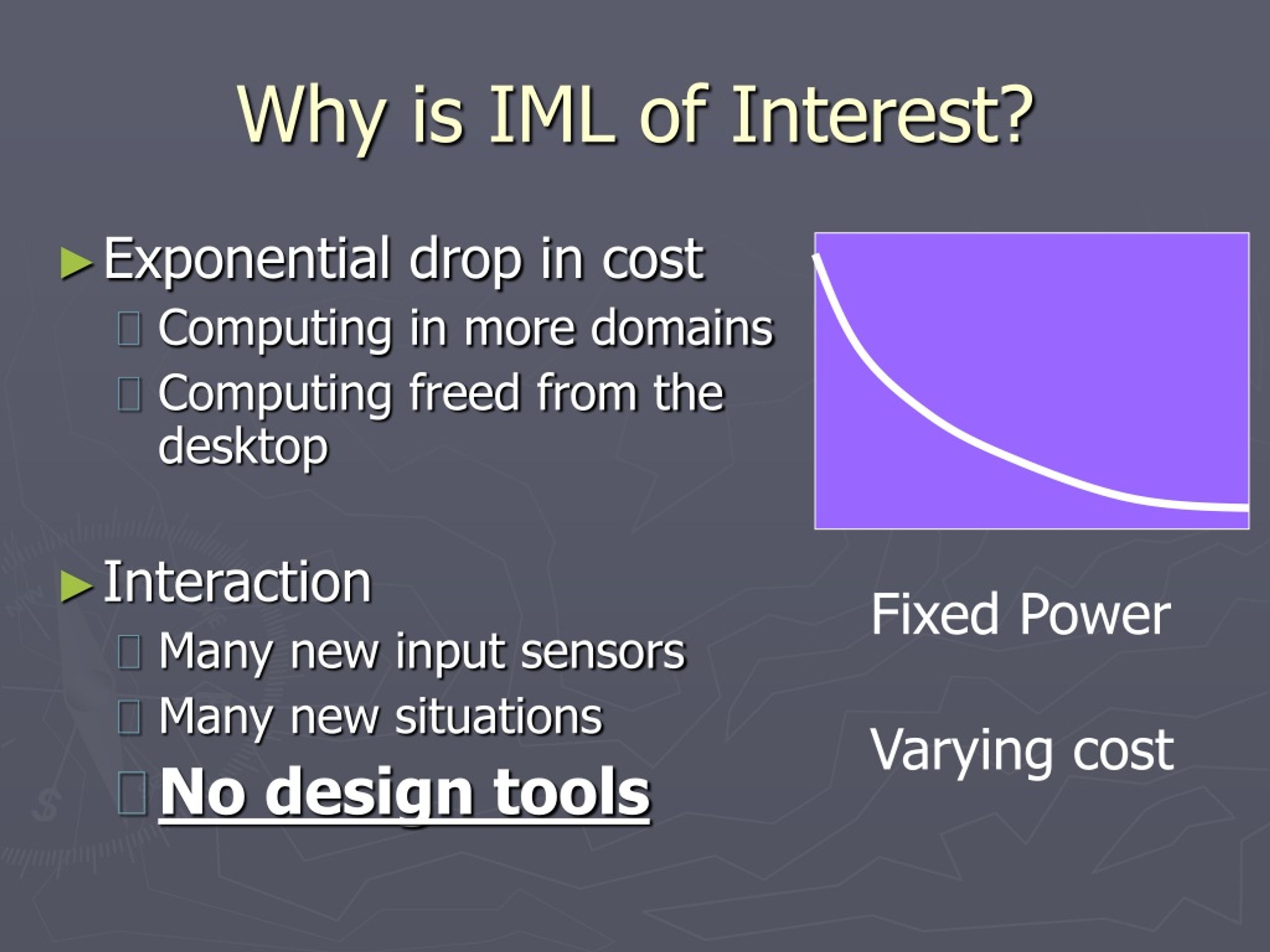

6. Why is IML of Interest? • Exponential drop in cost • Computing in more domains • Computing freed from the desktop • Interaction • Many new input sensors • Many new situations • No design tools Fixed Power Varying cost

7. IML Examples • Characteristics of IML • Feedback Effect • When are we done? • Future

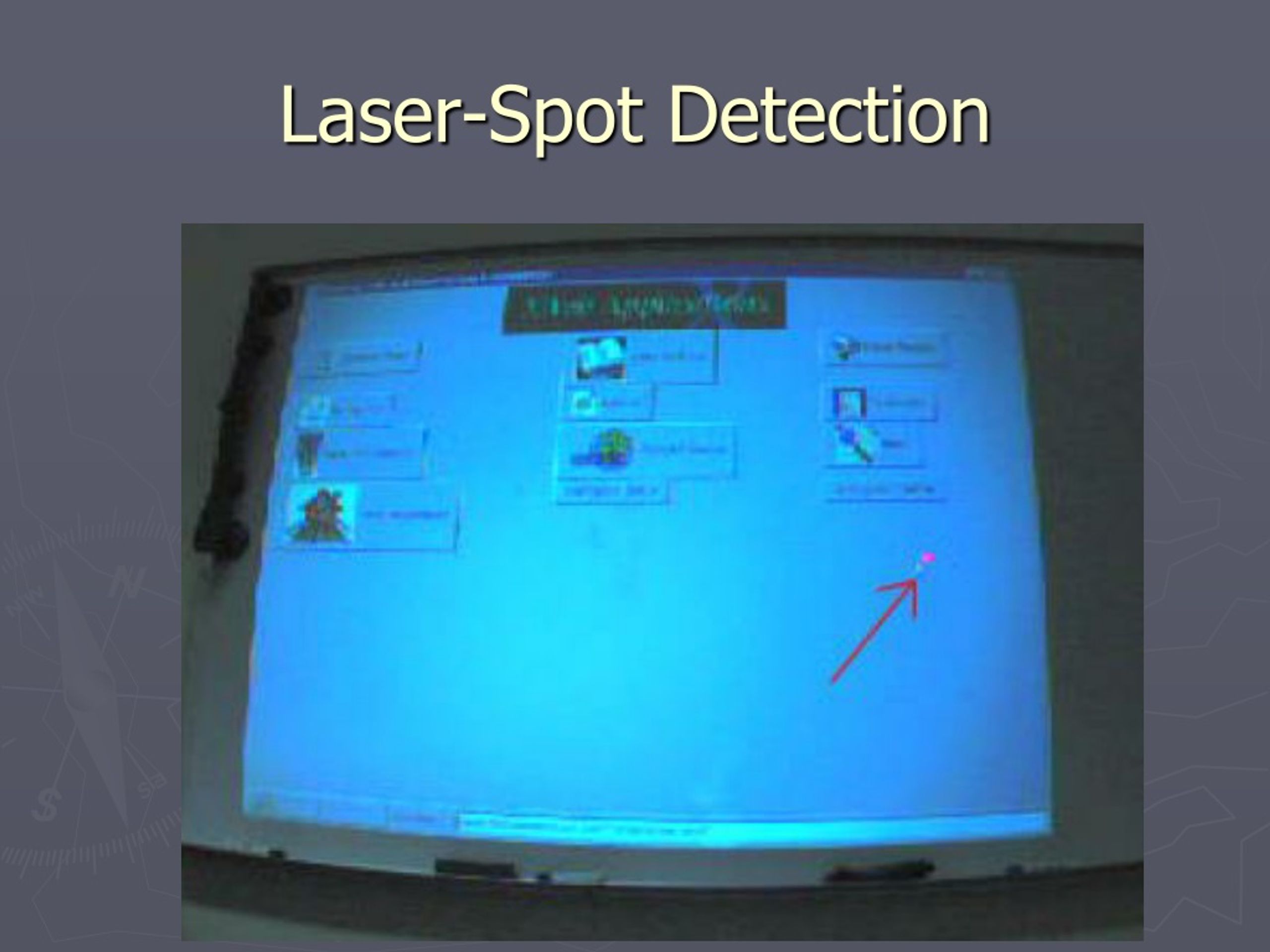

8. Laser-Spot Detection

9. People Tracking – (Join/Capture)

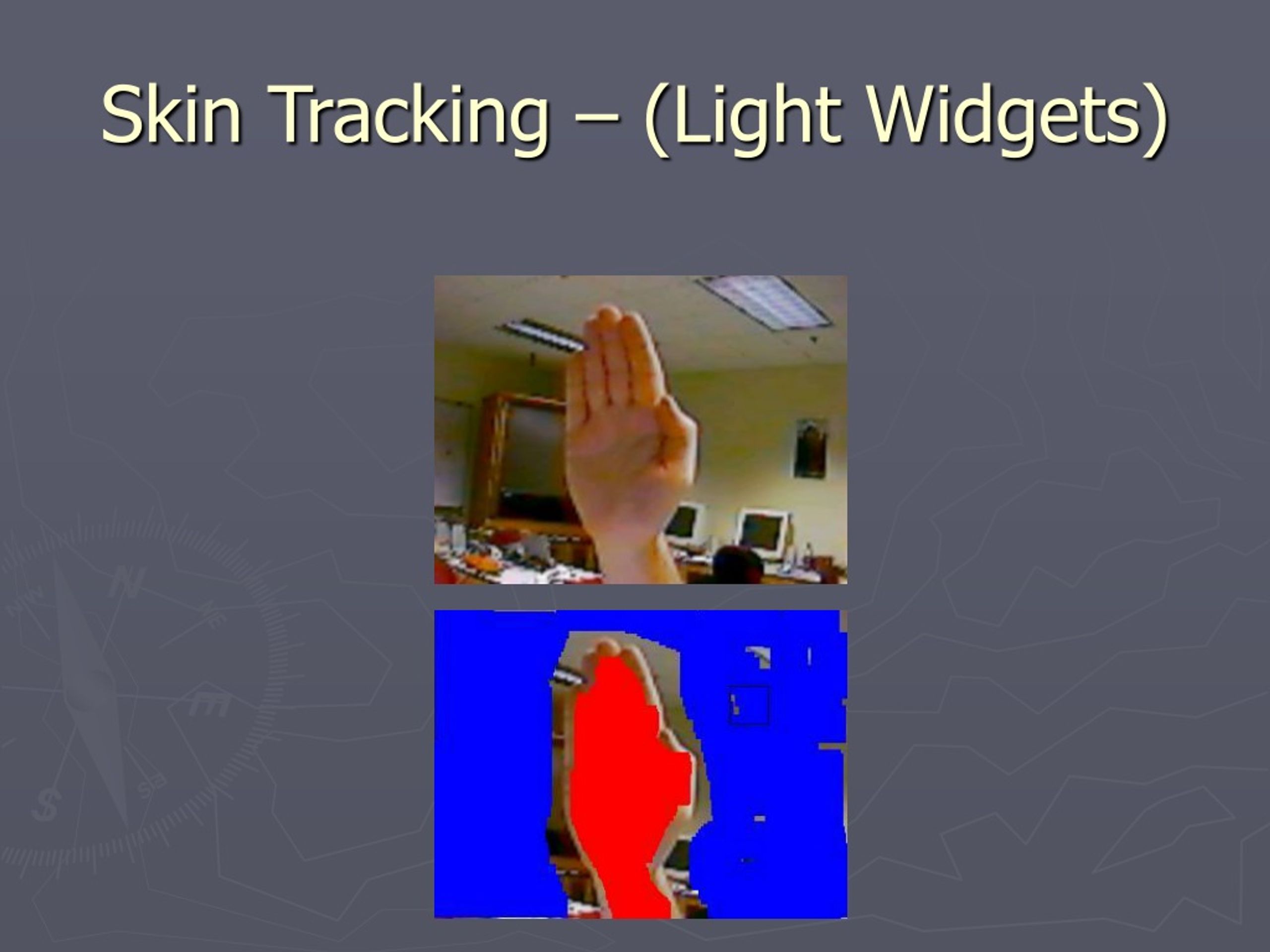

10. Skin Tracking – (Light Widgets)

11. Image Processing with Crayons • Design in minutes not months • Use image painting as the design metaphor • Base the learning on selection from hundreds of features rather than combination of a few

13. Safe/Unsafe Driving • Problem: Steering robots • Increase operator neglect time so that attention can be used elsewhere • Reduce collisions with unseen objects • Solution: Teach the robot what is safe and what is not

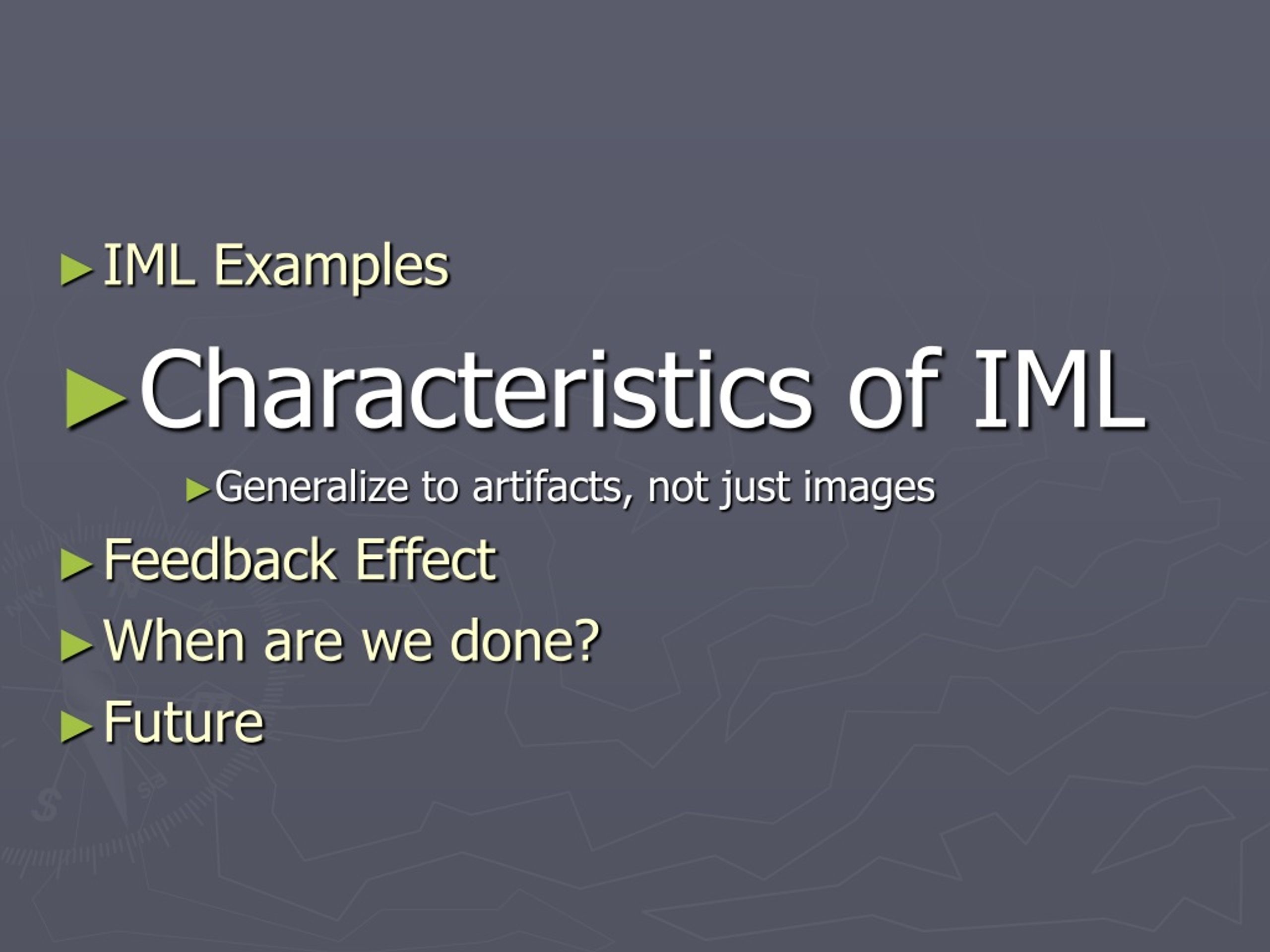

15. IML Examples • Characteristics of IML • Generalize to artifacts, not just images • Feedback Effect • When are we done? • Future

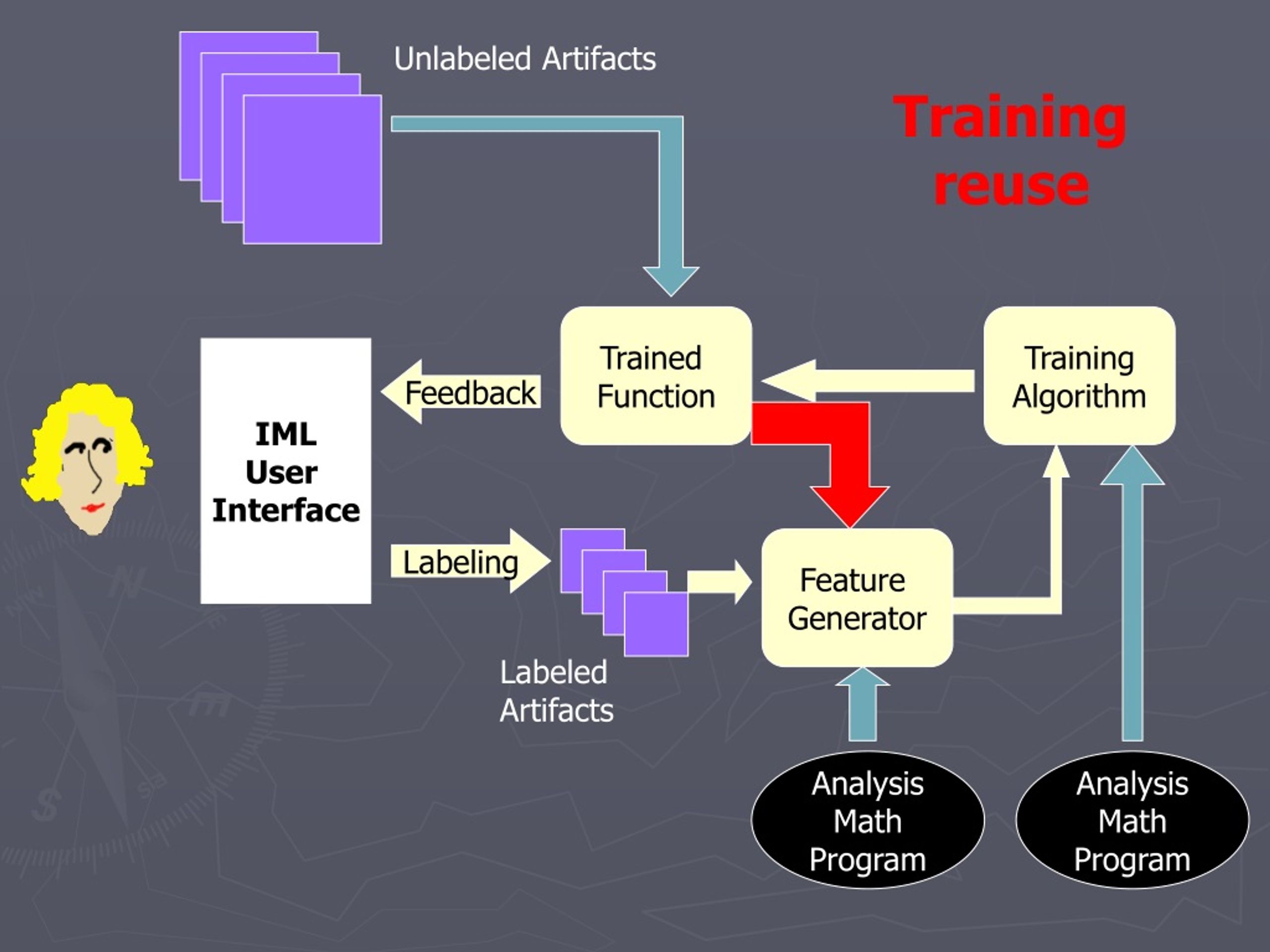

16. Unlabeled Artifacts Trained Function Training Algorithm IML User Interface Feedback Labeling Feature Generator Labeled Artifacts Analysis Math Program Analysis Math Program

17. Unlabeled Artifacts Trained Function Training Algorithm IML User Interface Feedback Labeling Feature Generator ? ? Labeled Artifacts Analysis Math Program Analysis Math Program

18. Shape and texture features needed to separate grass from trees

19. Unlabeled Artifacts Seconds not days Trained Function Training Algorithm IML User Interface Feedback Labeling Feature Generator Labeled Artifacts Analysis Math Program Analysis Math Program

20. Unlabeled Artifacts Trained Function Training Algorithm IML User Interface Feedback Labeling Feature Generator Labeling time dominates the process Labeled Artifacts Analysis Math Program Analysis Math Program

21. Unlabeled Artifacts Trained Function Training Algorithm IML User Interface Feedback Labeling Feature Generator Rapid discovery of wrong solutions Labeled Artifacts Analysis Math Program Analysis Math Program

22. Unlabeled Artifacts Trained Function Training Algorithm IML User Interface Feedback Labeling Feature Generator Exploration of a space of problems Labeled Artifacts Analysis Math Program Analysis Math Program

23. IML Examples • Characteristics of IML • Feedback Effect • When are we done? • Future

24. Unlabeled Artifacts Does Feedback Matter? Trained Function Training Algorithm ? IML User Interface Feedback Labeling Feature Generator Labeled Artifacts Analysis Math Program Analysis Math Program

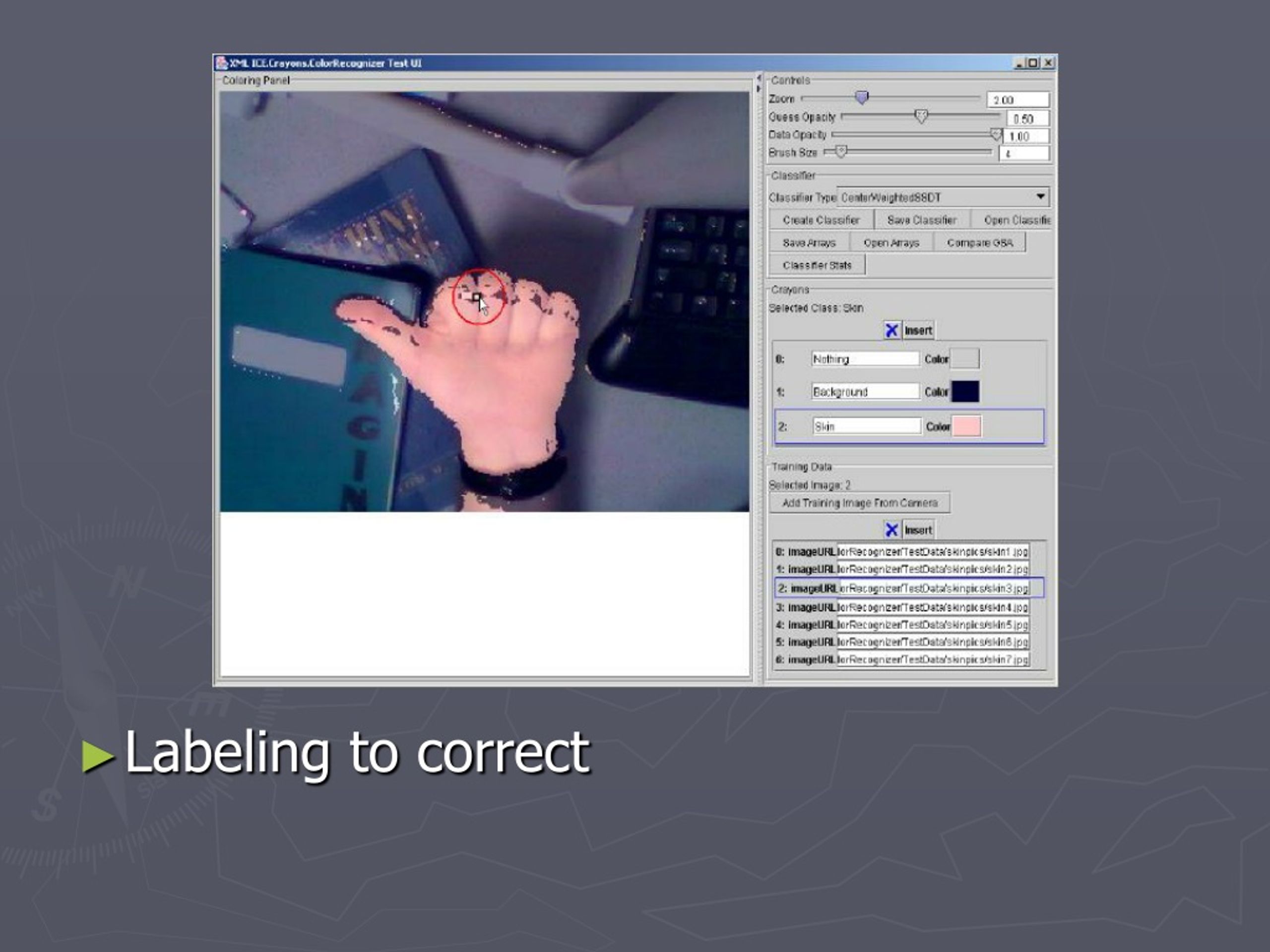

25. Labeling to correct

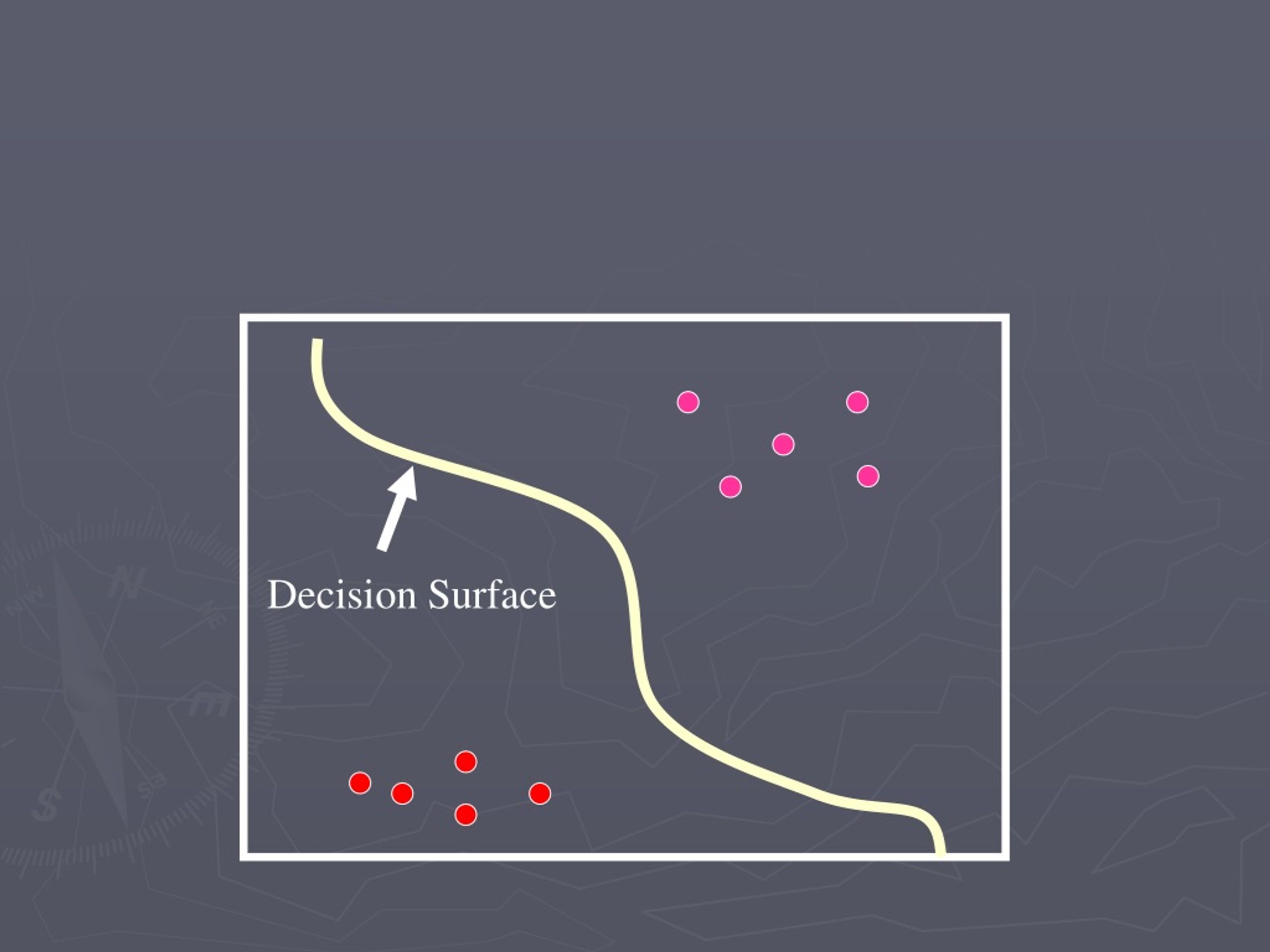

26. Decision Surface

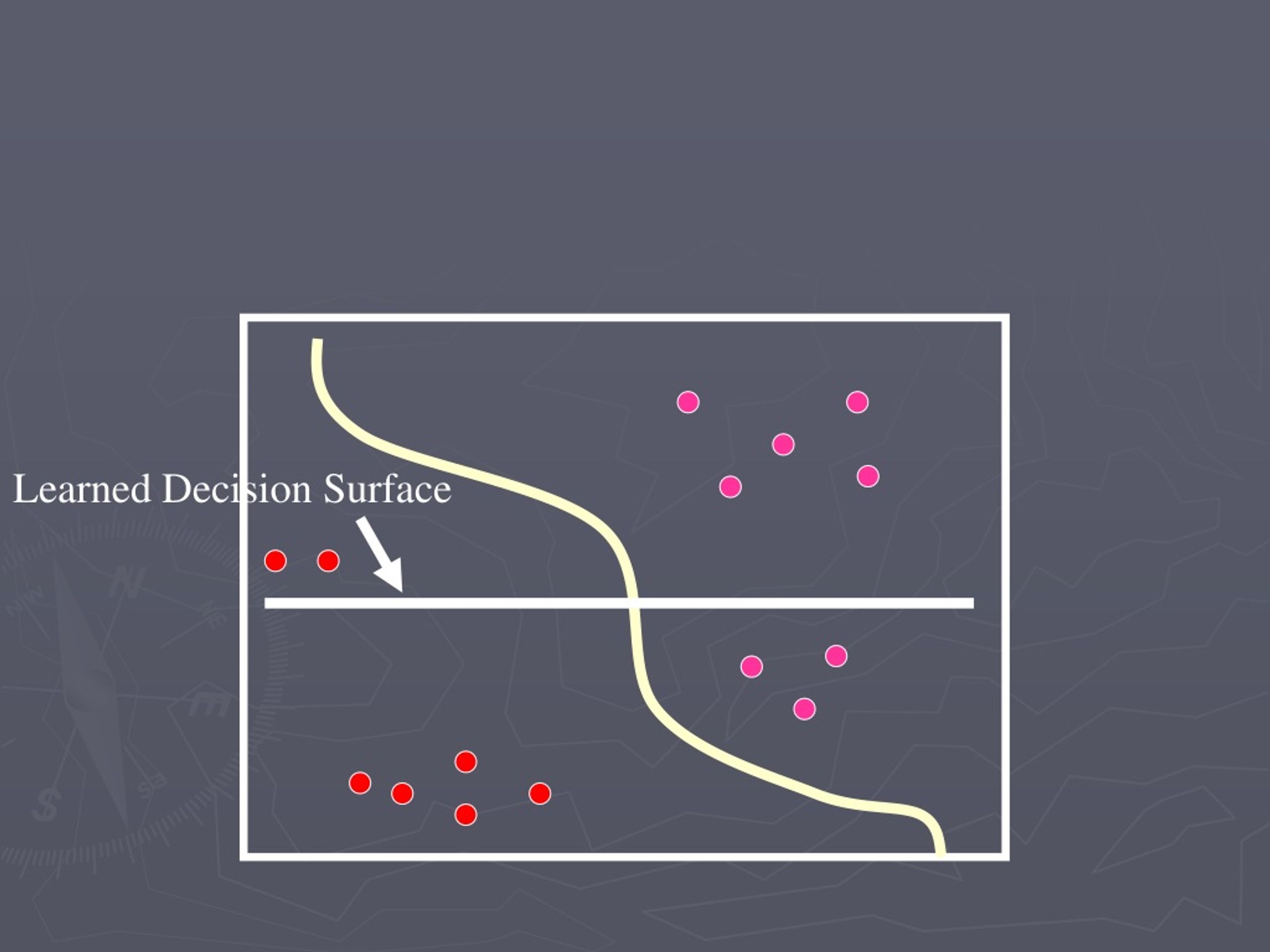

27. Learned Decision Surface

30. Data->Learn->Feedbackimplicit focus on decision surface(like boosting)

31. Does feedback/correction reduce effort? • Simulation • Artificial oracles • 1) Train with random selection • 2) Train by selecting only corrections of the decision • 15% less training examples  • Margin-based rather than area-based classifiers

32. Does feedback/correction reduce effort? • User Studies • Fully annotate 20 pictures to create a standard • 1) Have users “paint” classifications without feedback • 2) Have users “paint” with feedback • No significant difference • Why?

33. IML Examples • Characteristics of IML • Feedback Effect • Are we done yet? • Future

34. How does the user find out that the current feature set cannot separate grass from trees?

35. Estimating Accuracy • Strategies from Machine Learning • Hold-out set • K-fold cross validation

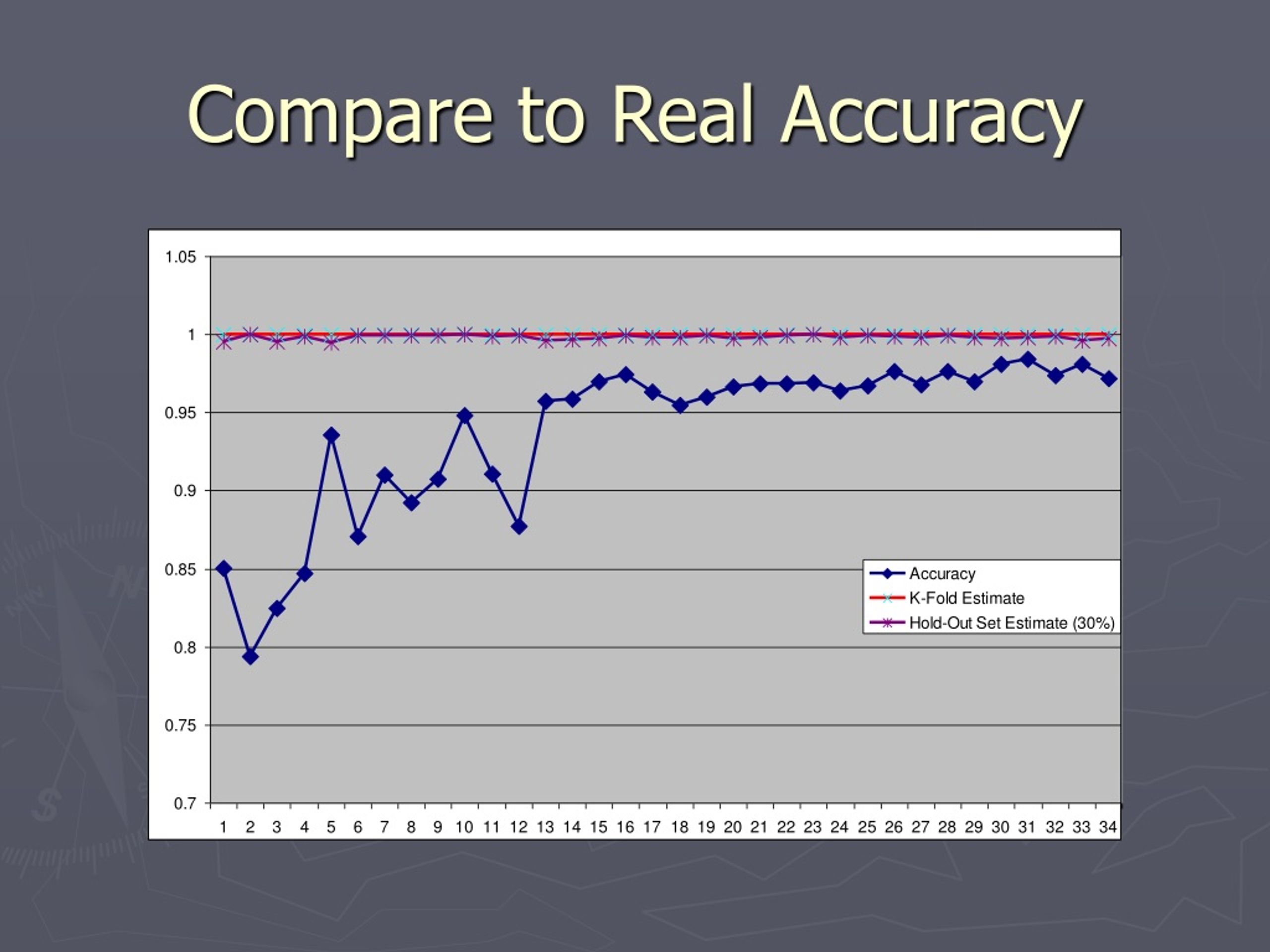

36. Compare to Real Accuracy

37. Incremental Difference Estimate • Create a classifier C(i) for training set I • Create a classifier C(i+500) for training set (I+500) • Compare how C(i) and C(i+500) classify unlabeled data. • Percent difference is the error estimate

38. Incremental Difference Estimate

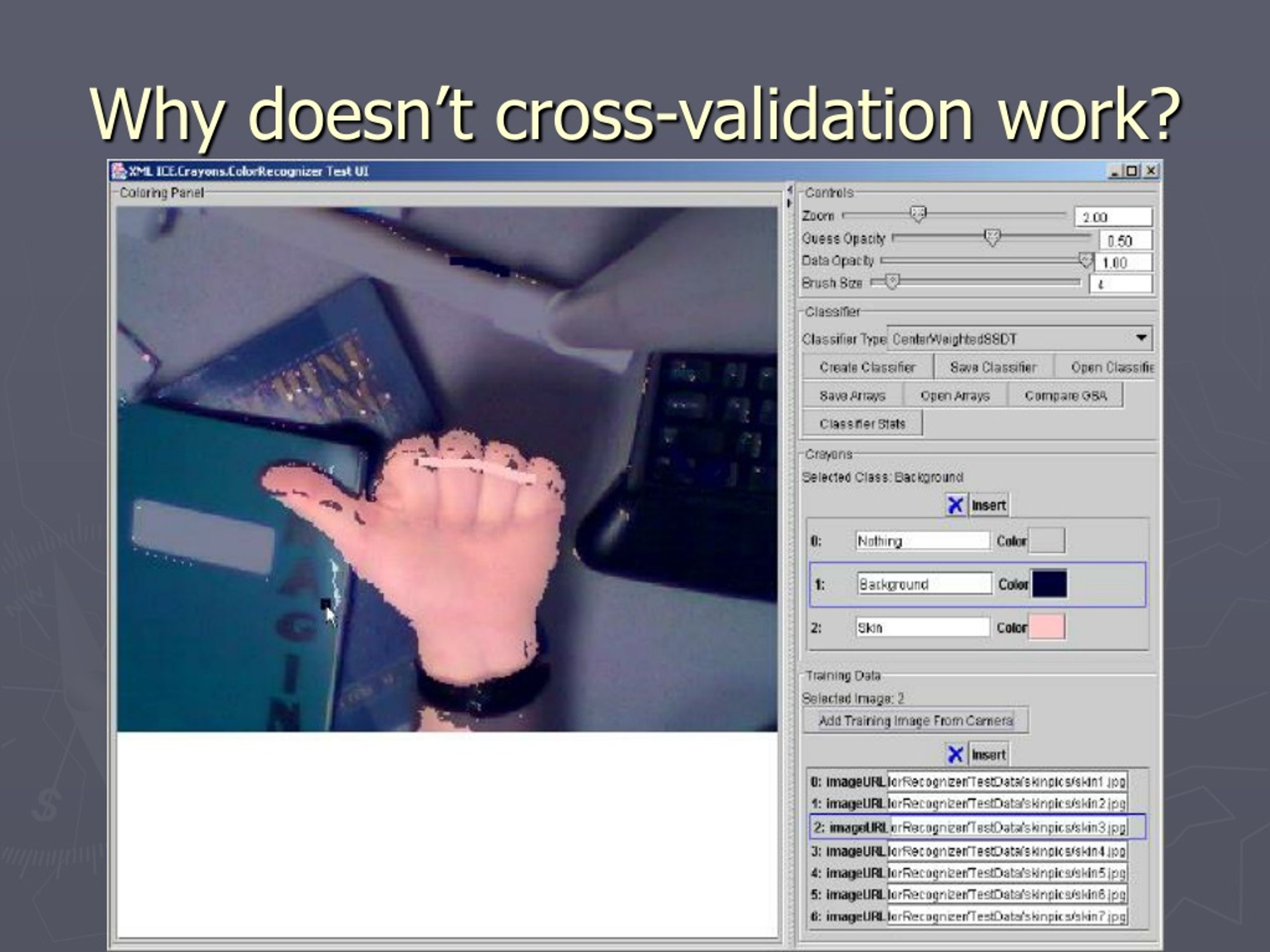

39. Why doesn’t cross-validation work?

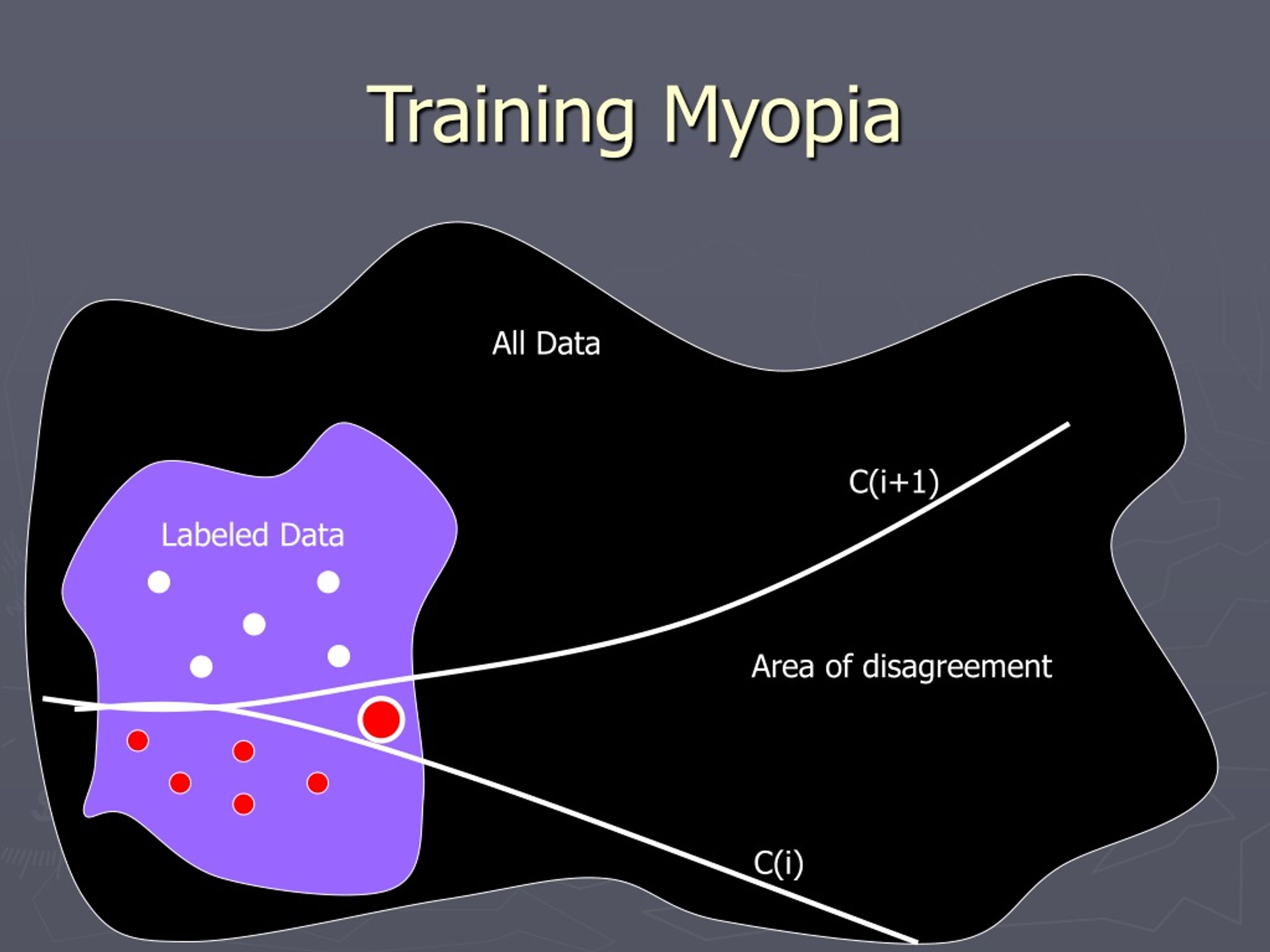

40. C(i+1) Area of disagreement Training Myopia All Data Labeled Data C(i)

41. Use incremental classifier distance to suggest regions to label

42. Unlabeled Artifacts Does Feedback Matter? Trained Function Training Algorithm ? IML User Interface Feedback Labeling Feature Generator Labeled Artifacts Maybe  Analysis Math Program Analysis Math Program

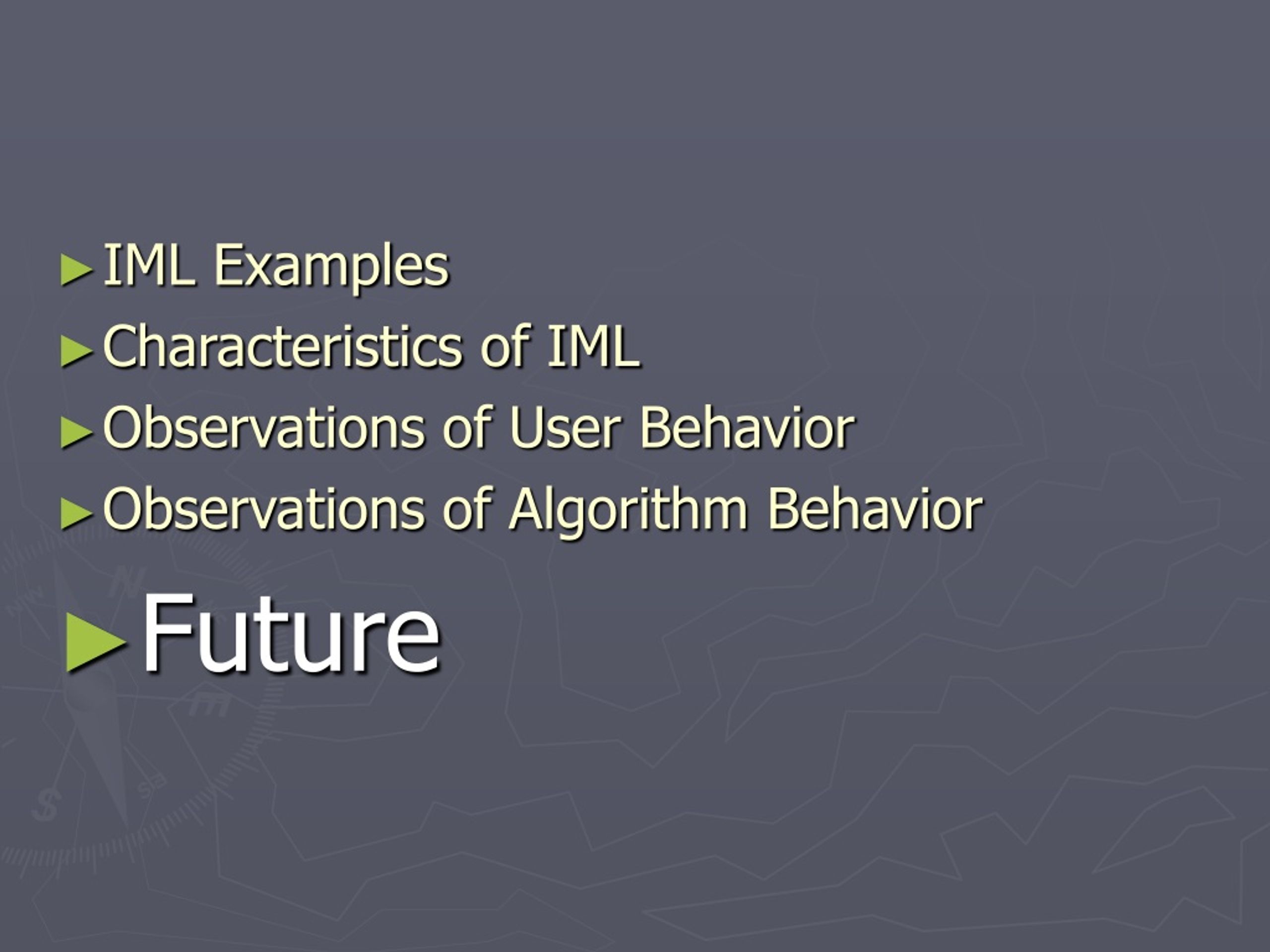

43. IML Examples • Characteristics of IML • Observations of User Behavior • Observations of Algorithm Behavior • Future

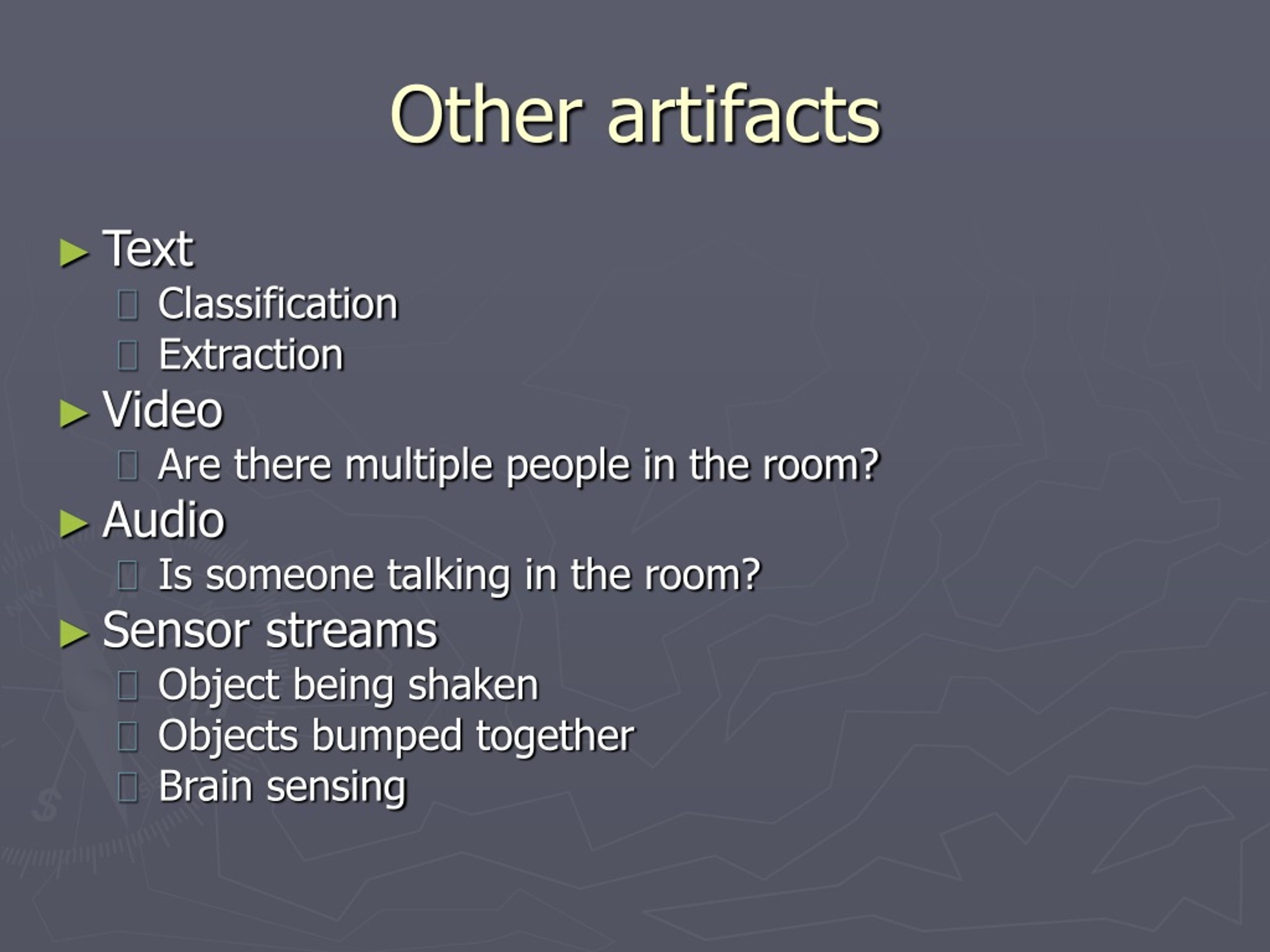

44. Other artifacts • Text • Classification • Extraction • Video • Are there multiple people in the room? • Audio • Is someone talking in the room? • Sensor streams • Object being shaken • Objects bumped together • Brain sensing

45. Unlabeled Artifacts Trained Function Training Algorithm IML User Interface Feedback Labeling Feature Generator Labeled Artifacts Different artifact types have differing labeling effort Analysis Math Program Analysis Math Program

46. Alternative interfaces • Selection  Classification Select all frames of a football game where the ball is actually In play

47. Alternative interfaces • Copy and Paste is a learnable data transformation

48. Alternative interfaces • Similarity metrics • Sesame Street Learning – One of these things is not like the other A Niched Pareto Genetic Algorithm for Multiobjective Optimization Principles And Implementation Of Deductive Parsing Grammatical Trigrams: A Probabilistic Model of Link Grammar

49. Alternative interfaces • Placing artifacts in a folder structure is classification

50. Alternative interfaces • Hints • Query by Critique Price too high Wrong color
