Presentation Transcript
Malacca straits l.jpg

MALACCA STRAITS

Name: Poon Tsz Ha, Wendy

Fu, Vivian

TF Tse


Presentation outline l.jpg
Presentation Outline

  • Background of the project

  • Methodology of the project

  • Data Analysis

  • Recommendations

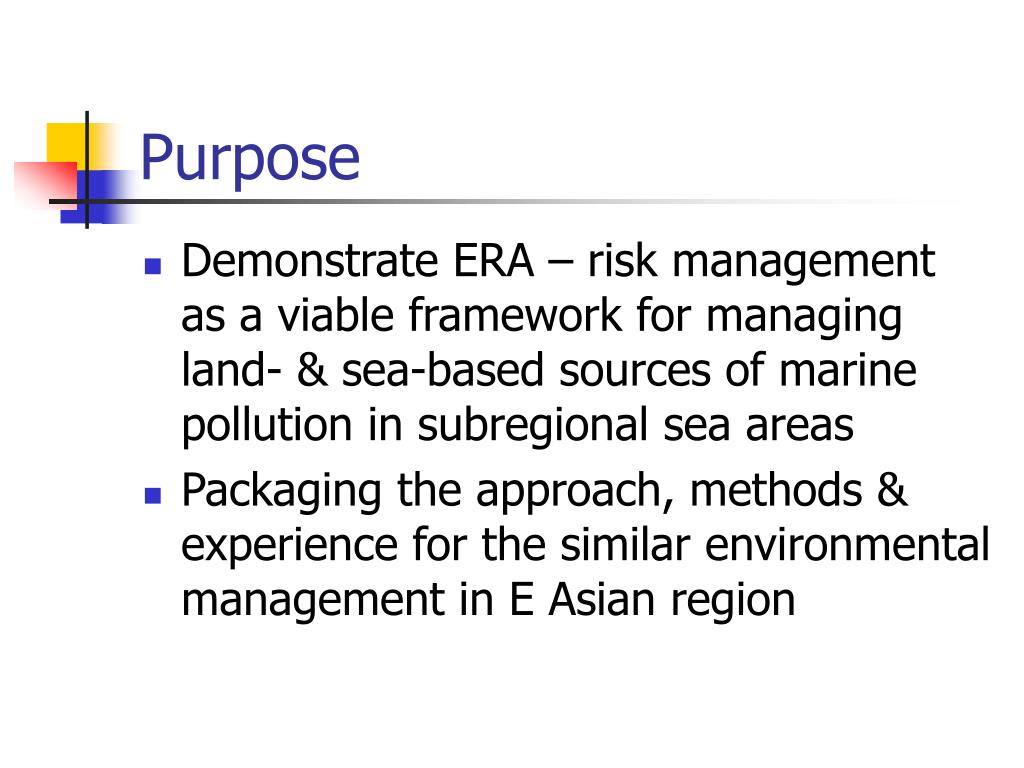

Purpose l.jpg
Purpose

  • Demonstrate ERA – risk management as a viable framework for managing land- & sea-based sources of marine pollution in subregional sea areas

  • Packaging the approach, methods & experience for the similar environmental management in E Asian region


Malacca straits4 l.jpg

MALACCA STRAITS

Background Information


Unique ecological system l.jpg
Unique ecological system

  • High productivity & diversity

  • Rich mix of fauna & flora

  • Intricate hydrodynamics

  • Complex interactions within & between water body & land-based activities


Geography l.jpg
Geography

  • Natural channel between Indian & Pacific Ocean

  • Bounded by 3 littoral States

  • 2nd busiest shipping lane in the world (300 vessels/day)

Source: http://en.wikipedia.org/wiki/Strait_of_Malacca


Geography7 l.jpg
Geography

  • Euryhaline condition

    • Rich nutrient level

    • Shelter from strong currents & wave action

    • High & uniform temperature

    • Adequate tidal flushing

      • High biological productivity & diversity

      • Rich mix of fauna and flora from Indian & Pacific Ocean


Natural biological resources l.jpg
Natural biological resources

  • Mangrove: 80% at Indonesian side

  • Seagrass bed: patchy and abundant

    • Nursery grounds for many fish species

    • Shows relationship between availability of habitats, fish stocks & sustainable yield

  • Corals: patchy but not very abundant


Natural biological resources9 l.jpg
Natural biological resources

  • Exploited along both coasts of the Strait

    • Fisheries for demersal & pelagic species: NW half of the Strait

    • Mangrove removal for timber & aquaculture : entire length

    • Extensive aquaculture: cause potential problem to environment through release of organic waste & chemicals


Population employment l.jpg
Population & Employment

  • Indonesia: 11m; predominant on agriculture & fisheries, derivative industries based on natural resources

  • Malaysia: 10m; mix of agriculture, fisheries, heavy & light manufacturing industries

  • Singapore: 3m; manufacturing & commercial activities

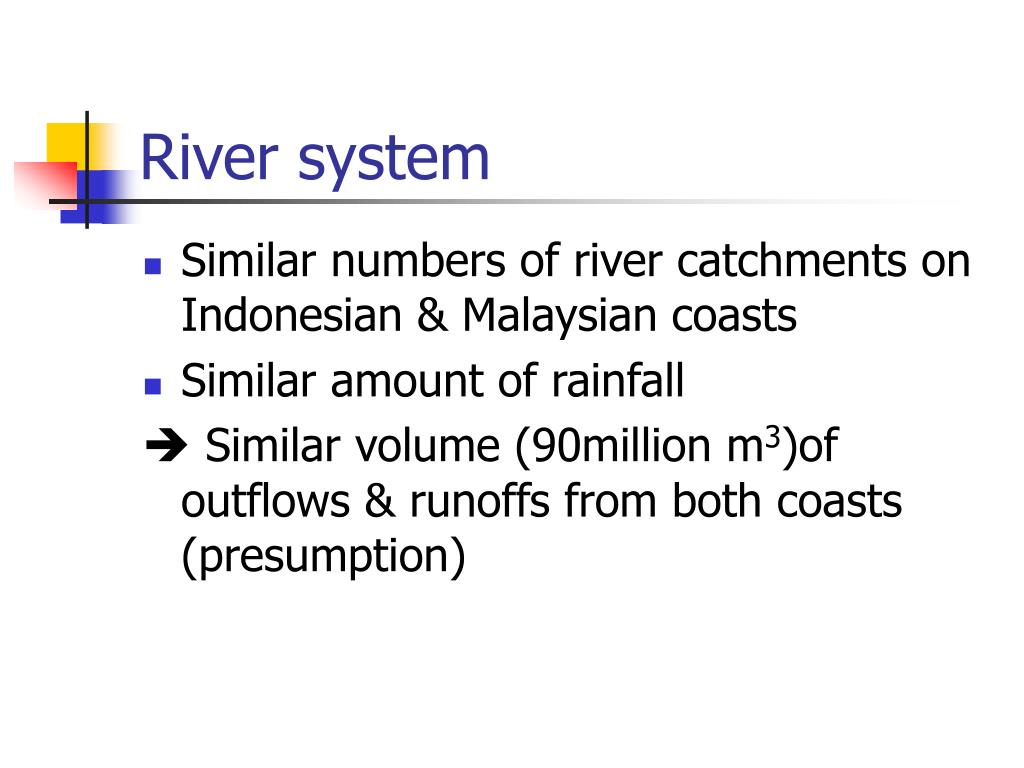

River system l.jpg
River system

  • Similar numbers of river catchments on Indonesian & Malaysian coasts

  • Similar amount of rainfall

     Similar volume (90million m3)of outflows & runoffs from both coasts (presumption)



Impacts to the strait l.jpg
Impacts to the Strait

  • Increase of total suspended solids in the water column & sedimentation

    • Mangrove removal (esp. NW half of Strait)  increase erosion

    • River load

    • Agricultural runoff

    • Aquaculture

        O2 depletion, light attenuation & physical cover  impacts on mangroves, seagrass beds & corals

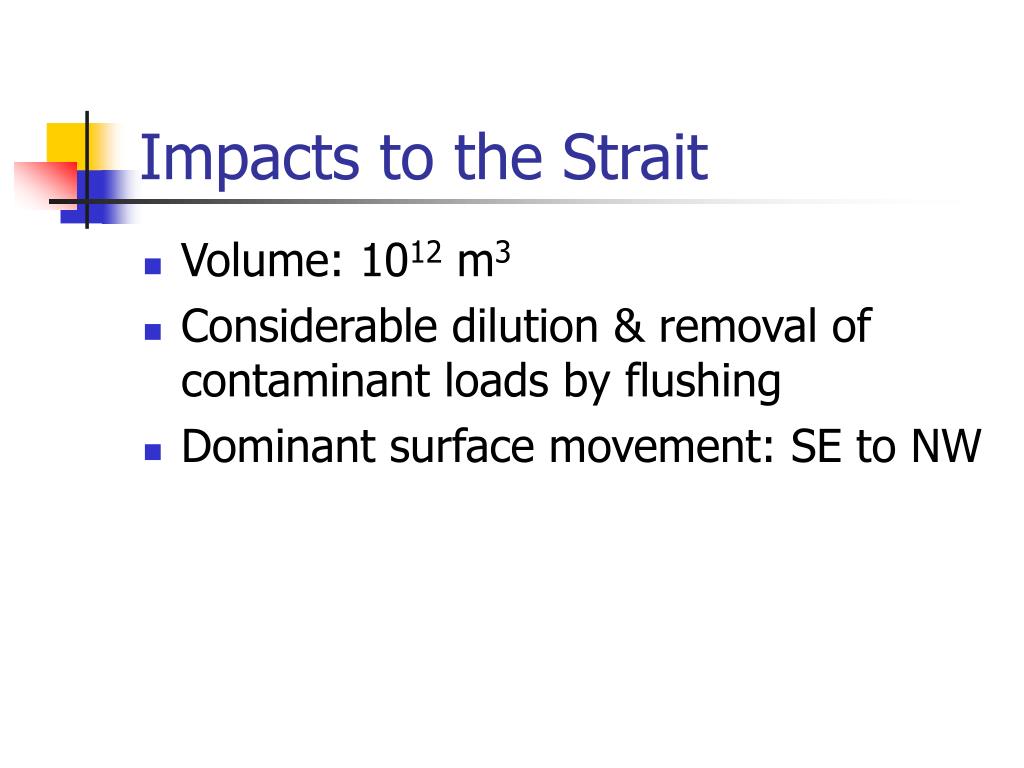

Impacts to the strait14 l.jpg
Impacts to the Strait

  • Volume: 1012 m3

  • Considerable dilution & removal of contaminant loads by flushing

  • Dominant surface movement: SE to NW


Temperature and its impacts l.jpg
Temperature and its impacts

  • Constant high temperature (26 – 30。C)

  • Exposure side:  rate of biodegradation

     contaminants

  • Effect side:  rate of contaminant

    High level of metabolism

    (Ecotoxicological effect)


Rainfall and its impacts l.jpg
Rainfall and its impacts

  • High intensity but Short duration

  • Considerable contamination of dissolved and particulate materials from storm water runoff

  • Reduce in salinity  Osmotic stress in marine species   contaminant exposure

  • Reduce in salinity  Alter bioavailability of many contaminant (e.g.  Cd   fraction of dissolved metal exits as free ions)


Malacca straits17 l.jpg

MALACCA STRAITS

Methodology


Target l.jpg
Target

  • Human health

    • Fish / seafood consumption

    • Contamination of fish / seafood by metals, pesticides & hydrocarbon

  • Habitat

    • Mangroves, peat swamps, seagrass beds, coral reefs, soft-bottom habitats

  • Species

    • Commercial & non-commercial marine species

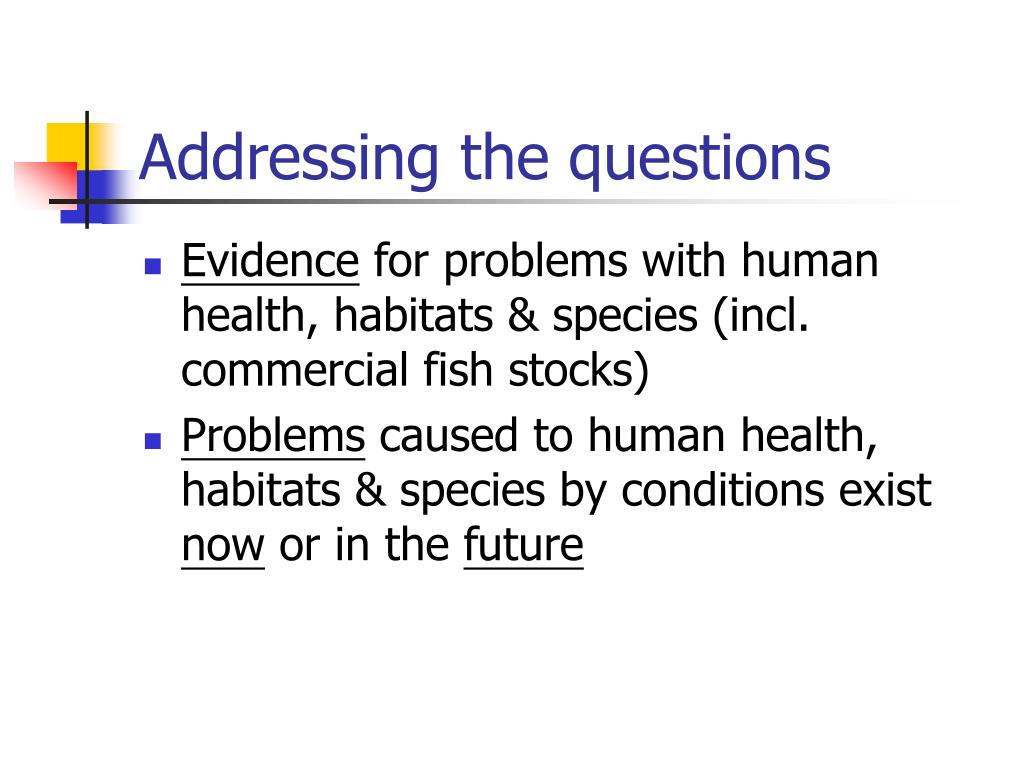

Addressing the questions l.jpg
Addressing the questions

  • Evidence for problems with human health, habitats & species (incl. commercial fish stocks)

  • Problems caused to human health, habitats & species by conditions exist now or in the future


Identify assessment measurement endpoint l.jpg
Identify assessment & measurement Endpoint

  • Risk = f(H)(E)

    Where: H = Potential harm

    E = Likelihood of exposure to potential harm

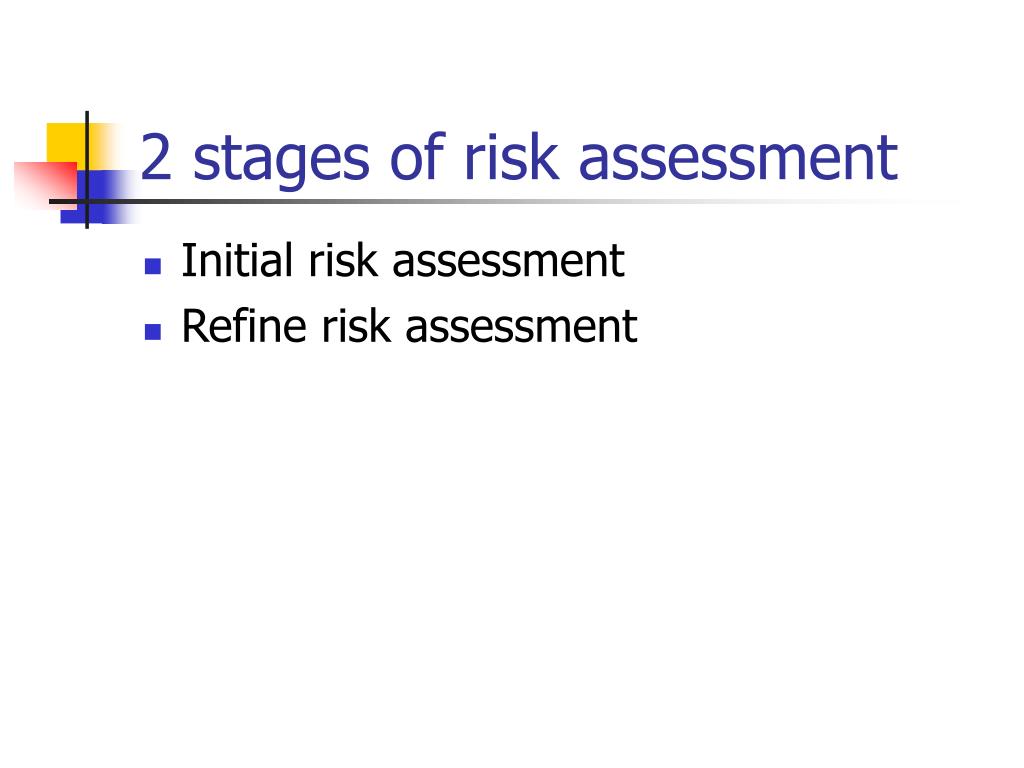

2 stages of risk assessment l.jpg
2 stages of risk assessment

  • Initial risk assessment

  • Refine risk assessment


Initial risk assessment l.jpg
Initial risk assessment

  • Screening mechanism: identify priority environmental concern on a Strait-wide basis, related data gaps & uncertainties

    Objective:

  • Utilize available information on sources, exposure & effect of land- & sea-based activities, and pollution derived therefrom on living & non-living resources


Program outline for initial risk assessment l.jpg
Program outline for initial risk assessment

  • Preparation of draft report

    • Major polluting sources & activities, and their effects on living & non-living environment

    • Delineation of the significant indicators of ecological, human health & social risk from pollutive land- & sea-based activities

    • Spatial & temporal scales of assessment


Program outline for initial risk assessment24 l.jpg
Program outline for initial risk assessment

1. Preparation of draft report (cont)

  • Interaction between land- & sea-based activities and interactions with living & non-living resources in & along the Straits

  • Combine effects of multiple & diverse stress on ecology

  • Systematic effect of a catastrophic event, e.g. oil / dangerous chemicals spillage by shipping accident


Program outline for initial risk assessment25 l.jpg
Program outline for initial risk assessment

2. Identify data gaps & uncertainties that need comprehensive risk characterization

3. Formulation of action plan for comprehensive risk assessment

Utilize available expertise & resources to develop risk management program for the subregion


Refine risk assessment l.jpg
Refine risk assessment

  • The Strait as a whole

    • The Strait as a single compartment and estimate a single average exposure concentration for the entire Strait)

  • Selected contaminants, risk to local areas within the Strait

    • Local exposure concentration in the vicinity of specific human activities or natural resources


Refine risk assessment27 l.jpg
Refine risk assessment

  • Complete refined risk assessment of land- & sea-based sources of pollution & their effects on living & non-living resources

  • Using results of initial risk assessment & updated information from the 3 littoral states to produce a comprehensive document on ERA


Program outline for refined risk assessment l.jpg
Program outline for refined risk assessment

1. Review & analyze available data provided, update and/or verify the methodologies, conclusions & recommendation of initial risk assessment

2. Model development & demonstration of series of scenarios. Analysis of scenarios

3. Test techniques for improving uncertainty analyses and report the results


Others l.jpg
Others

  • Uncertainty assessment

    • Qualitative & quantitative method

  • Society risk

    • Environmental degradation & its impact to the economy

    • Risk-benefit analysis

    • Prioritize risk assessment in the society, as a key in risk management


Consideration l.jpg
Consideration

  • Relation between potential causes of problems for human health and the environment

  • Consequences in the Strait

  • Analysis of risk pathways: high economic importance, incl. social, national, governmental commercial interests


Consideration31 l.jpg
Consideration

  • Sources of hazards related to economic

  • Knock-on effects to economy by pollution

  • Influence judgment about priorities for action  Direct risk assessment  Weigh benefits to human health and the environment with costs to economy Influence management actions taken


Malacca straits32 l.jpg

MALACCA STRAITS

Risk Assessment


Approaches of risk assessment l.jpg
Approaches of risk assessment

  • Retrospective risk assessment

  • Prospective risk assessment



Key ingredients l.jpg
Key ingredients

  • Identifying targets and endpoints precisely

  • Identifying significant adverse changes

    • Evidences to show the problems Identifying possible causes of the changes

  • Identifying possible consequences of the changes for ecosystems and human welfare

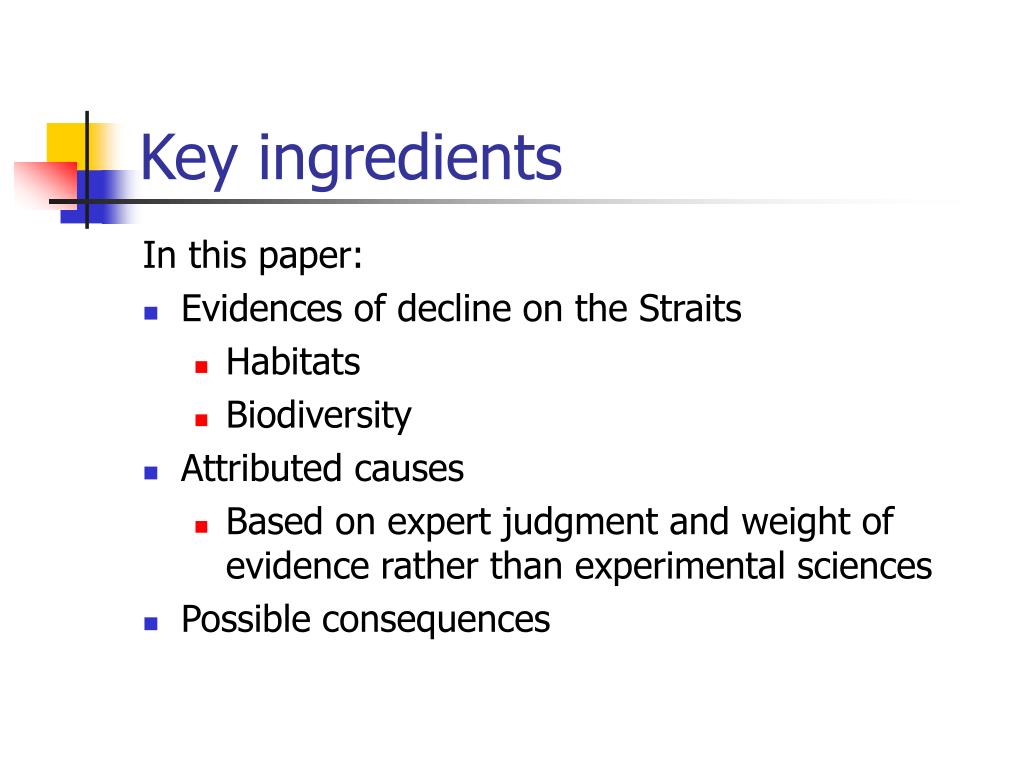

Key ingredients36 l.jpg
Key ingredients

In this paper:

  • Evidences of decline on the Straits

    • Habitats

    • Biodiversity

  • Attributed causes

    • Based on expert judgment and weight of evidence rather than experimental sciences

  • Possible consequences



Habitats mangroves l.jpg
Habitats - Mangroves

  • Evidences of decline

    • Sumatra (Indonesia): loss 24% of mangrove coverage in 7 years (1987-1993)

    • Malaysia: loss 17% of mangrove coverage in 2 decades (1965-1985)

    • Singapore: loss approximately 81% of mangrove coverage in the last 2 decades


Habitats mangroves39 l.jpg
Habitats - Mangroves

  • Attribute causes

    • Clearance for brackish water ponds

    • Over-exploitation for timber and charcoal

    • Clearance for development

    • Sedimentation and pollution

  • Consequences

    • Reduced protection from coastal erosion and natural disaster

    • Reduced nursery grounds for commercial and non-commercial fish and invertebrates

    • Loss of habitat for endangered species

    • Economic loss for the timber industry


Habitat peat swamp forests l.jpg
Habitat: Peat swamp forests

  • Evidences of decline

    • Sumatra (Indonesia): 7.3-9.3 million hectares to 3.6 million hectares (50% reduction)

    • West coast of Peninsular Malaysia: 299,145 hectares (77% of this area are indicated as “disturbed and logged-over”)


Habitat peat swamp forests41 l.jpg
Habitat: Peat swamp forests

  • Attribute causes

    • Logging of commercially valuable tree species

    • Land conversion to rice, palm and coconut plantations

  • Consequences

    • Loss of biodiversity

    • Similar to the consequences of the loss of mangrove coverage


Habitat coral reefs l.jpg
Habitat: Coral reefs

  • Evidences of decline

    • No data on the total area of coral reefs in the Straits and the loss of coral reef area

    • Indonesia:

      • Poor condition: 42%; Fair condition: 29%; Good condition: 24%; Excellent condition: 5%

    • Malaysia:

      • Most of the coral reefs are rated as fair condition

    • Singapore:

      • Among the most stressed in Asia coral reef

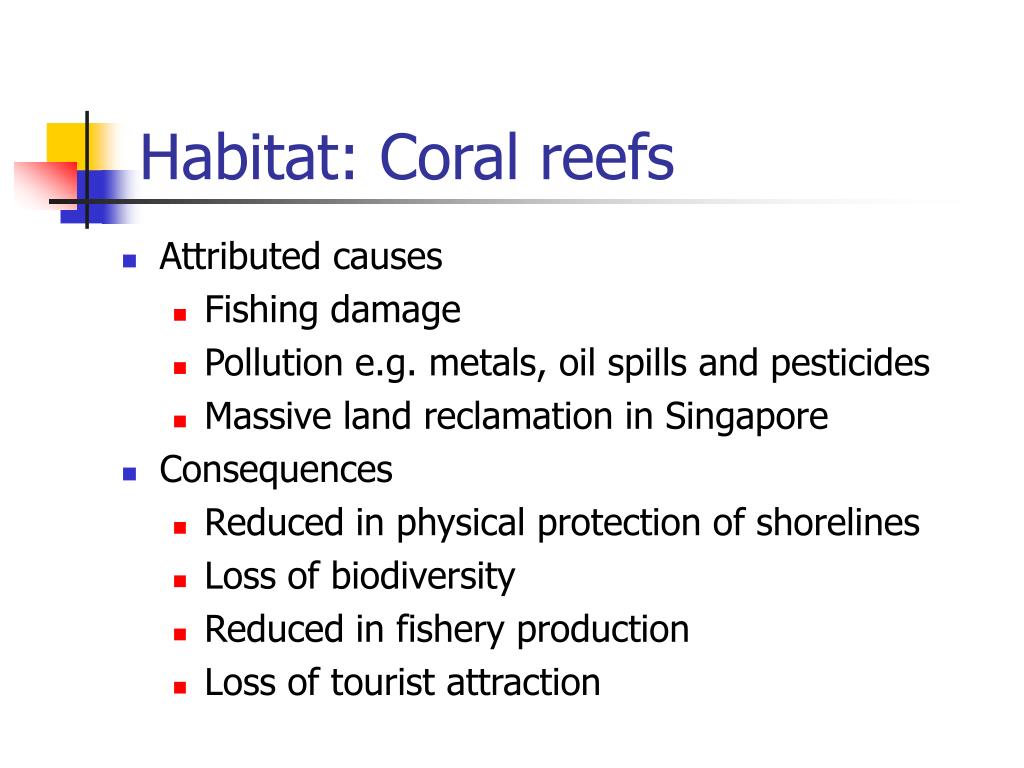

Habitat coral reefs43 l.jpg
Habitat: Coral reefs

  • Attributed causes

    • Fishing damage

    • Pollution e.g. metals, oil spills and pesticides

    • Massive land reclamation in Singapore

  • Consequences

    • Reduced in physical protection of shorelines

    • Loss of biodiversity

    • Reduced in fishery production

    • Loss of tourist attraction


Habitat seagrass beds l.jpg
Habitat: Seagrass beds

  • Evidences of decline

    • No quantitative data on areal coverage or its loss

    • Singapore: Extensive seagrass beds  Isolated patches

    • 50 known seagrass species

      • Indonesia:12 species

      • West coast of Peninsular Malaysia: 9 species

      • Singapore: 9 species decline to 7 species(1990s)


Habitat seagrass beds45 l.jpg
Habitat: Seagrass beds

  • Attributed causes

    • Destruction due to the conversion to coastal aquaculture

    • Natural disaster e.g. storm and disease

    • Deposits of mining spoils and tailings

    • Excessive sediments due to deforestation Pollution

  • Consequences

    • Loss of buffering zone from wave action

    • Reduced stabilization of sediment

    • Reduced in biodiversity

    • Loss of harvestable invertebrates, macroalgae and grass

    • loss of nursery grounds for fishes


Habitat soft bottom habitats l.jpg
Habitat: Soft-bottom habitats

  • Evidences of decline

    • Straits: covered by sandy and muddy bottom extensively

    • * Quality in supporting species

      • An examination of effects on female reproductive systems in gastropods in terms of percent female imposex

      • Negative correlations between females with imposex and distance to the nearest shipping route

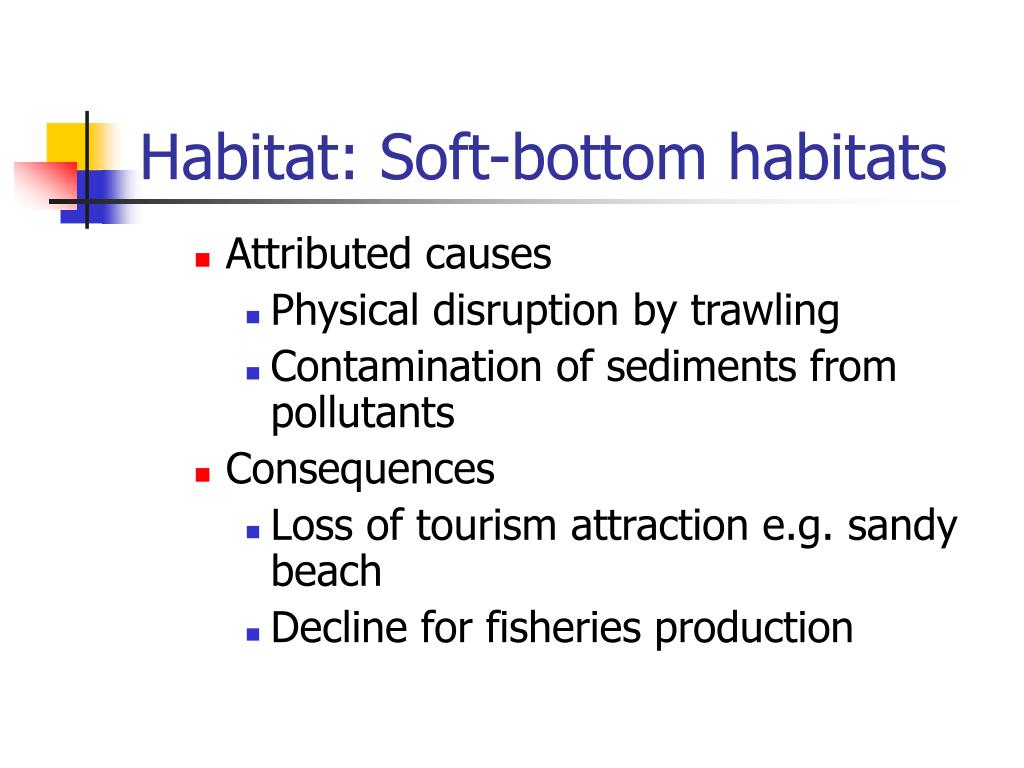

Habitat soft bottom habitats47 l.jpg
Habitat: Soft-bottom habitats

  • Attributed causes

    • Physical disruption by trawling

    • Contamination of sediments from pollutants

  • Consequences

    • Loss of tourism attraction e.g. sandy beach

    • Decline for fisheries production


Biodiversity l.jpg
Biodiversity

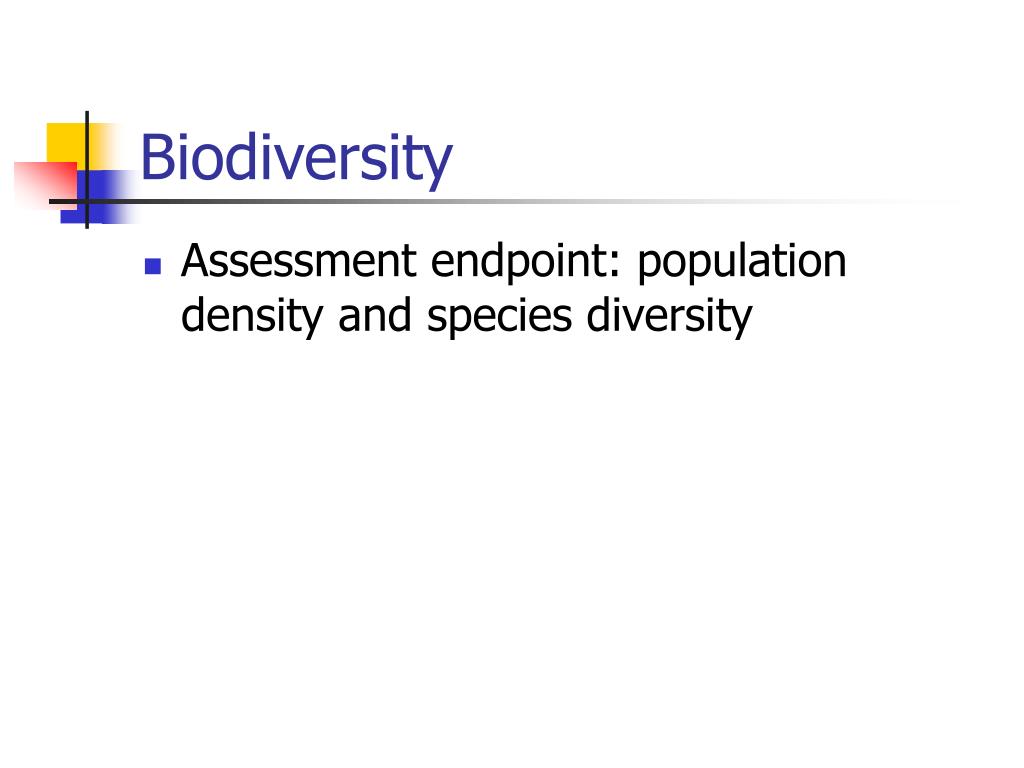

  • Assessment endpoint: population density and species diversity


Biodiversity49 l.jpg
Biodiversity

  • Evidence of decline on on-commercial species

    • Population density: Two indigenous fish species (Alosa toil and Lactarius lacarius) are getting rare in Singapore

    • Species diversity: 52 species of fish, 13 species of coral and anemones, 12 specie of crustaceans – extinct; >50 other species – threatened in Singapore


Biodiversity50 l.jpg
Biodiversity

  • The increasing deterioration of environmental conditions in the Straits and increasing human activities result in changes of species composition (disappearance of other species and the increasing number of endangered species)


Biodiversity51 l.jpg
Biodiversity

  • Attributed causes

    • Loss of major habitats

    • Contamination

  • Consequences

    • Loss of tourist attraction

    • Increase in instability of the ecosystem


Biodiversity52 l.jpg
Biodiversity

  • Evidences of decline on commercial species:

    • Indonesia: Decline in catch-per-unit-effort (CPUE)

    • Malaysia: fall in total catch and catch rate


Biodiversity53 l.jpg
Biodiversity

  • Attribute causes

    • Over-fishing

    • Losses of nursery grounds

    • Pollution

  • Consequences

    • Economic loss

    • Reduction of fish species



Prospective risk assessment55 l.jpg
Prospective risk assessment

  • Identify the likely problems for harm to ecological

  • Scientific and objective measurement

    • Risk quotient

  • Risk quotient

    • Provide indices of risk for further detailed analyses


Risk quotient rq l.jpg
Risk Quotient (RQ)

  • Measurement

    • RQ = PEC / PNEC

    • RQ = MEC / STD

  • Certain substances that occur naturally i.e. background concentrations

    • BQ = MEC / background concentration


Uncertainty analysis l.jpg
Uncertainty analysis

  • Carried out for the prospective risk assessment to the varying levels of sophistication

  • PNECs and STDs

    • Depend on the reliability of the ecotoxicological and toxicological data

  • MECs

    • Depend on the reliability of sampling and analytical techniques

  • PECs

    • Depend on the assumptions of the models used in making predictions and the reliability of input data


Prospective risk assessment58 l.jpg
Prospective risk assessment

In this paper

  • Estimate the likelihood of adverse effects from environmental conditions within the Straits

  • By comparing measured environmental concentrations (MECs) and predicted environmental concentrations (PECs)


Likely problems for harm to ecological l.jpg
Likely problems for harm to ecological

  • Various heavy metals in the water and sediment

  • Pesticides in the water and sediment

  • Problems arising from suspended solids



Concentration of heavy metals in water61 l.jpg
Concentration of heavy metals in water

  • RQ analysis

    • RQ > 1 = High risk

    • Metals of Pb, Hg, Cd and Cu >1

    • Results of BQ is consistent with RQ


Concentration of heavy metals in water62 l.jpg
Concentration of heavy metals in water

Uncertainty analysis

  • Variability among standards

    • Purpose for use

  • Variability in MECs

    • Values above or below the critical value (Log RQ = 0)

    • Data of RQ have to be transformed and presented as mean log value

    • Log RQs for all metal > 0



Concentration of heavy metals in water64 l.jpg
Concentration of heavy metals in water

  • Klang River

    • Greatest density of manufacturing industry along the west coast of Peninsular Malaysia

    • Heavy Metal contamination in coastal waters was limited to certain areas close to industrial sites and estuaries


Concentration of heavy metals in sediments l.jpg
Concentration of heavy metals in sediments

  • No general accepted sediment quality standards

  • RQ estimation

    • Based on water quality

    • Csed = (Cw X Ksw) / r

    • Critical concentration of metal in sediment = (concentration of metal in water X solids-water partition coefficient) / empirically derived concentration ratio between suspended matter



Concentration of heavy metals in sediments67 l.jpg
Concentration of heavy metals in sediments

  • Lack of concordance between water column and sediment data

    • The water and sediment samples were taken from different sites

    • Different metals were included in the 2 types of analysis

    • Periodically dredged of sediment

    • Dissolved and particle-bound form of sediments


Heavy metals and human health l.jpg
Heavy metals and human health

  • RQ = daily metal intake / tolerable daily intake (TDI)

  • Daily metal intake = daily intake X metal content of the intake

  • Level of concern (Action level) = Tolerable daily intake / Seafood consumption

     Likely problems for harm to ecology and human


Heavy metals and human health69 l.jpg
Heavy metals and human health

Uncertainty analysis

  • Uncertainty in tolerable daily intakes

  • TDIs standard varies between countries

  • Dermal exposure to metal e.g. bathing


Conclusion l.jpg
Conclusion

Retrospective Risk Assessment

  • Decline in mangroves, peat swamp forests, coral reefs, seagrass beds and soft bottom habitats

  • Mainly caused by habitat destruction such as coral reef were affected by increased sediment loads

  • Reduction in fish stocks due to overfishing

  • Pollution was probably a contributory factor


Slide71 l.jpg

Prospective Risk Assessment

  • Various heavy metals were found in water column and sediment, pesticides

  • TBT or nutrients were not identified

    Human Health Prospective Risk Assessment

  • No indication that health problems might arise from oil and hydrocarbon exposure


Slide72 l.jpg

  • Oil and Hydrocarbon Pollution

    Long term exposure

    – land based industrial activities

    Short-term exposure

    – accident was calculated on the basis of historical experience


Malacca straits73 l.jpg

MALACCA STRAITS

Recommendations


Recommendations l.jpg
Recommendations

General Recommendations

  • Standards used in future risk assessment should be agreed by all littoral States

  • E.g. definition of ecological targets on both scientific and societal issues

  • E.g. definition of thresholds (standards and PNECs)


Slide75 l.jpg

General Recommendations

  • Regional monitoring programs should be available for future risk assessments

  • Exposure models should be developed for future risk assessment.

  • Needs in human health risk assessment to reduce the uncertainties with both threshold effect values and exposure information


Recommendations to risk management l.jpg
Recommendations to Risk Management

  • agreement on the approach between littoral States to mangrove clearance

  • controlling fishing intensity

  • food contamination monitoring from metals and pesticides should be considered


Recommendations to risk management77 l.jpg
Recommendations to Risk Management

  • prevention of the exposure on the most contaminated beaches to avoid sewage infection

  • Management strategies should be more proactive to reduce the potential for contact between high risk vessels and vulnerable habitats


Risk management actions l.jpg
Risk Management Actions

Retrospective Assessment

  • The loss of mangroves, peat swamps and seagrass beds

  • The declining fishing

  • Protection of other species


Risk management actions79 l.jpg
Risk Management Actions

Prospective Analysis

  • Immediate action on RQs greater than 1000

  • Food contamination from metals and pesticides deserves serious attention
