  1. Saint-Gobain Construction Products Submission on Energy Efficiency 5 September 2012

  2. CONTENT OF THE PRESENTATION Saint-Gobain Government – National Building Regulations & Research Proposal Example of Interventions Other Advantages Conclusion Questions?

  3. Saint-Gobain

  4. Saint-Gobain Commitment Chairman and CEO, Pierre-Andre de Chalendar: “… Our challenge is to save energy and protect the environment by aiding in the creation of healthy buildings that are comfortable to live in. This significant opportunity comes with an obligation to be above reproach in the way we conduct our business.” “Sustainability is at the core of Saint-Gobain’s habitat and construction strategy.”

  5. Saint-Gobain Construction Products – South Africa • Gyproc - Saint-Gobain’s Gypsum Activity, supply a complete gypsum-based product range. • Isover - Saint-Gobain’s Insulation Activity; local operations include Glasswool, Mineral Wool and Expanded Polystyrene. • Weber - Saint-Gobain’s Mortars Activity; manufacture tile adhesive and grout, wall and floor coatings, Marbelite and other swimming pool coatings; and an external insulation system for new and retrofitted buildings. • PAM - Saint-Gobain Pipelines; manufacture Cast Iron products for the building and civil construction industry. It has the distinction that it manufactures a complete range of manhole covers and frames, storm water gratings and the iconic South African three-legged pot. • Norton - Saint-Gobain Abrasives; manufacturer and supplier of performance engineered abrasives for technical and commercial applications, as well as general household and automotive refinishing solutions.

  6. Government - National Energy Efficiency Regulation & Research

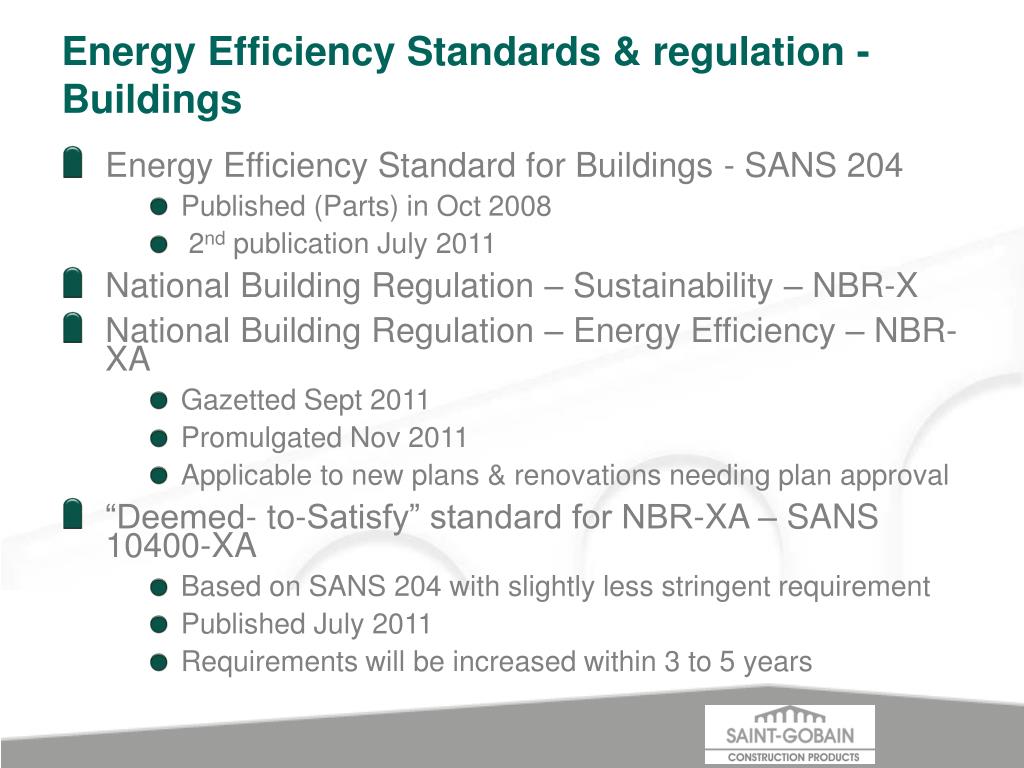

  7. Energy Efficiency Standards & regulation - Buildings • Energy Efficiency Standard for Buildings - SANS 204 • Published (Parts) in Oct 2008 • 2nd publication July 2011 • National Building Regulation – Sustainability – NBR-X • National Building Regulation – Energy Efficiency – NBR-XA • Gazetted Sept 2011 • Promulgated Nov 2011 • Applicable to new plans & renovations needing plan approval • “Deemed- to-Satisfy” standard for NBR-XA – SANS 10400-XA • Based on SANS 204 with slightly less stringent requirement • Published July 2011 • Requirements will be increased within 3 to 5 years

  8. Department of Energy Research Report – OR13554 • Before any building standard can be made mandatory, it has to be demonstrated that it will not be inflationary. • Dept of Energy commissioned report to investigate if the interventions in SANS 204 complied with this criterion • Demonstrated the interventions had a positive LCC (life cycle cost) • i.e. Interventions have a pay back in less than the life span of buildings • Pay back worked out much shorter than this • Insulated ceilings & walls are an energy efficiency intervention with relatively short pay-back periods

  9. Building Envelope ≈ 35% Roof Summer ≈ 10%Air gaps Principle of insulation ≈ 10% Walls Glazing ≈ 25% Thermal bridges Winter Floor ≈ 10% ≈ 10%Ground Correctly insulating the building envelope in combination with energy saving techniques can control energy losses and reduce energy consumption by up to 78%

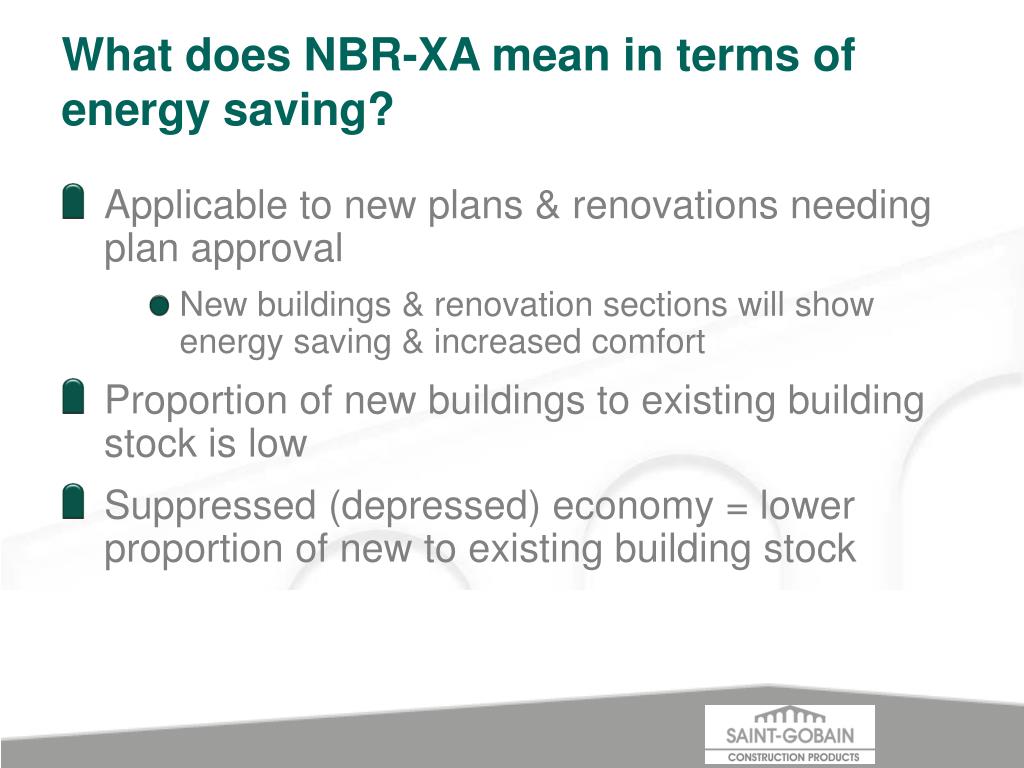

  10. What does NBR-XA mean in terms of energy saving? • Applicable to new plans & renovations needing plan approval • New buildings & renovation sections will show energy saving & increased comfort • Proportion of new buildings to existing building stock is low • Suppressed (depressed) economy = lower proportion of new to existing building stock

  11. Proposal

  12. How can we redress this? • Retrofitting program for existing buildings • Insulation & ceiling interventions • Performance parameters according to SANS 204 • Many countries have programs such as this where energy savings are used to fund or partially fund programs • Assist Department of Energy in their strategy of achieving Energy Savings in Buildings (and more) • Residential • Commercial • Others

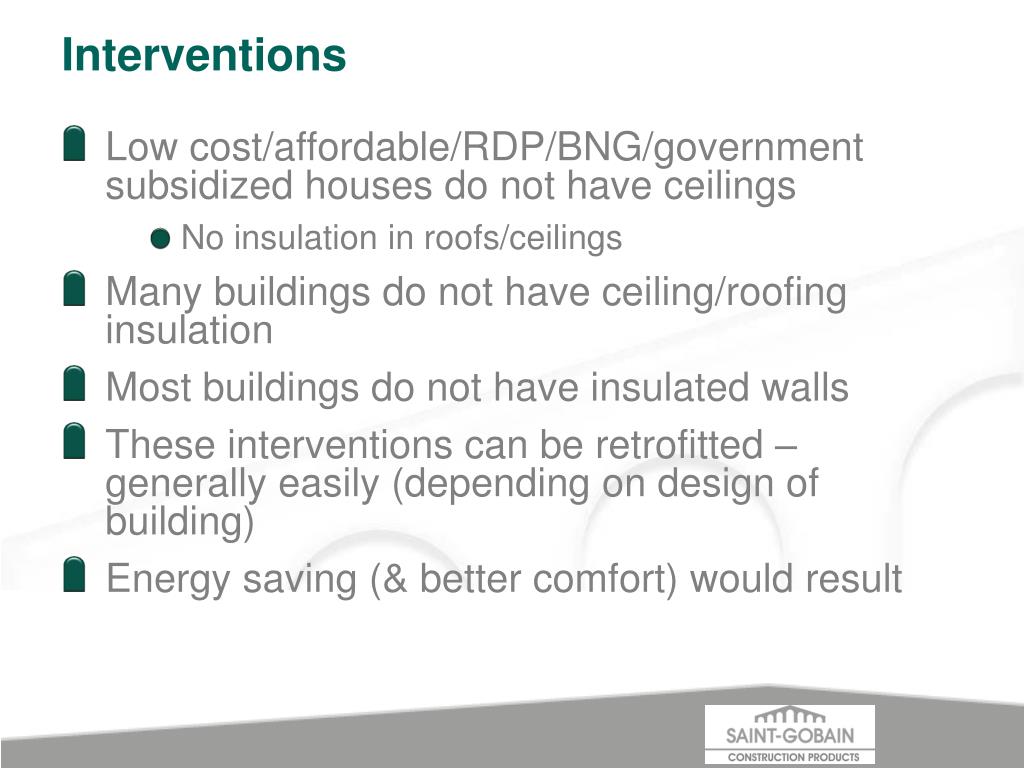

  13. Interventions • Low cost/affordable/RDP/BNG/government subsidized houses do not have ceilings • No insulation in roofs/ceilings • Many buildings do not have ceiling/roofing insulation • Most buildings do not have insulated walls • These interventions can be retrofitted – generally easily (depending on design of building) • Energy saving (& better comfort) would result

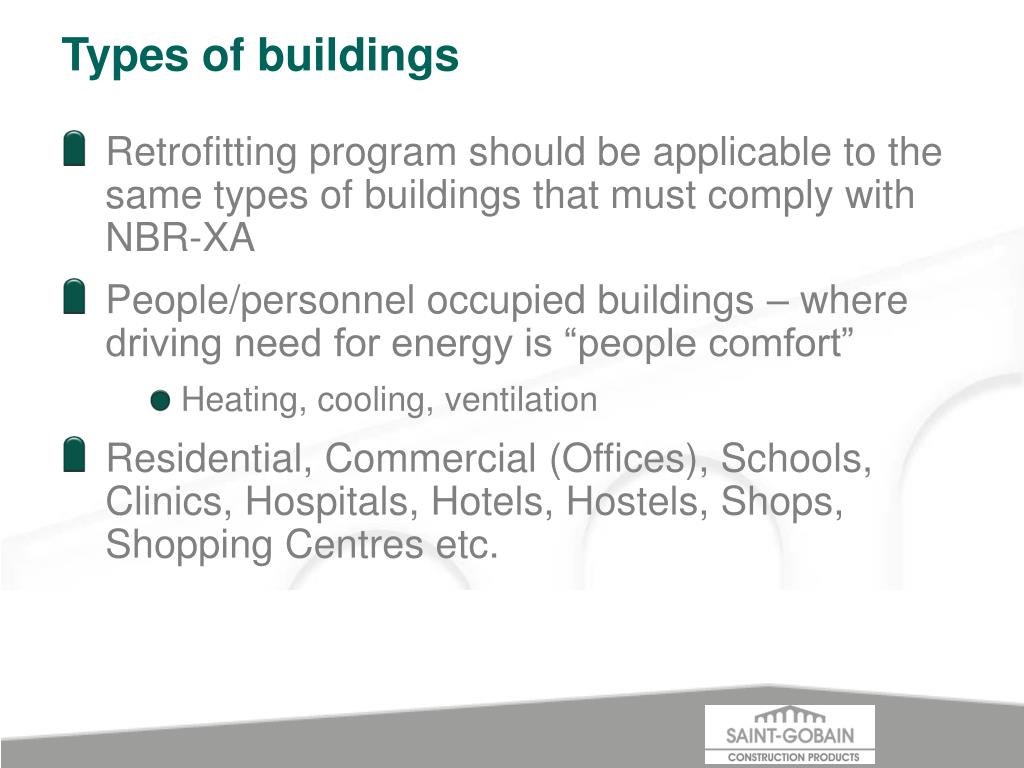

  14. Types of buildings • Retrofitting program should be applicable to the same types of buildings that must comply with NBR-XA • People/personnel occupied buildings – where driving need for energy is “people comfort” • Heating, cooling, ventilation • Residential, Commercial (Offices), Schools, Clinics, Hospitals, Hotels, Hostels, Shops, Shopping Centres etc.

  15. Examples of interventions

  16. Roofing/Ceiling solutions

  17. Other Solutions Traditional wall R = 0.26 Cavity wall, insulation R = 1.00 Cavity wall, dry lining R = 1.69 ETICS on steel frame R = 3.76 ETICS on single brick wall; R = 2.21 Lightweight steel frame wall R = 2.50 R-value required for Zone 1 = 2.20 Quoted R-value is subject to thickness of intervention insulation material

  18. Other Advantages

  19. Health • Nedlac report (2003) – R2.3 billion spent on healthcare due to respiratory diseases caused by poor indoor air quality from the burning of wood, paraffin and other fossil fuels for heat & cooking • Increased energy efficiency = better comfort = decreased driver for burning fossil fuels = better health • Decreased health costs result

  20. Job Creation • In countries with similar programs, it has been measured that the jobs created by retrofitting programs are more than those created by generating energy (electricity) • Skilled & semi-skilled jobs • Labour from communities implementing program • Training • On site • Facilities such as those at Saint-Gobain or others • New training programs = new opportunities for employment

  21. Conclusion

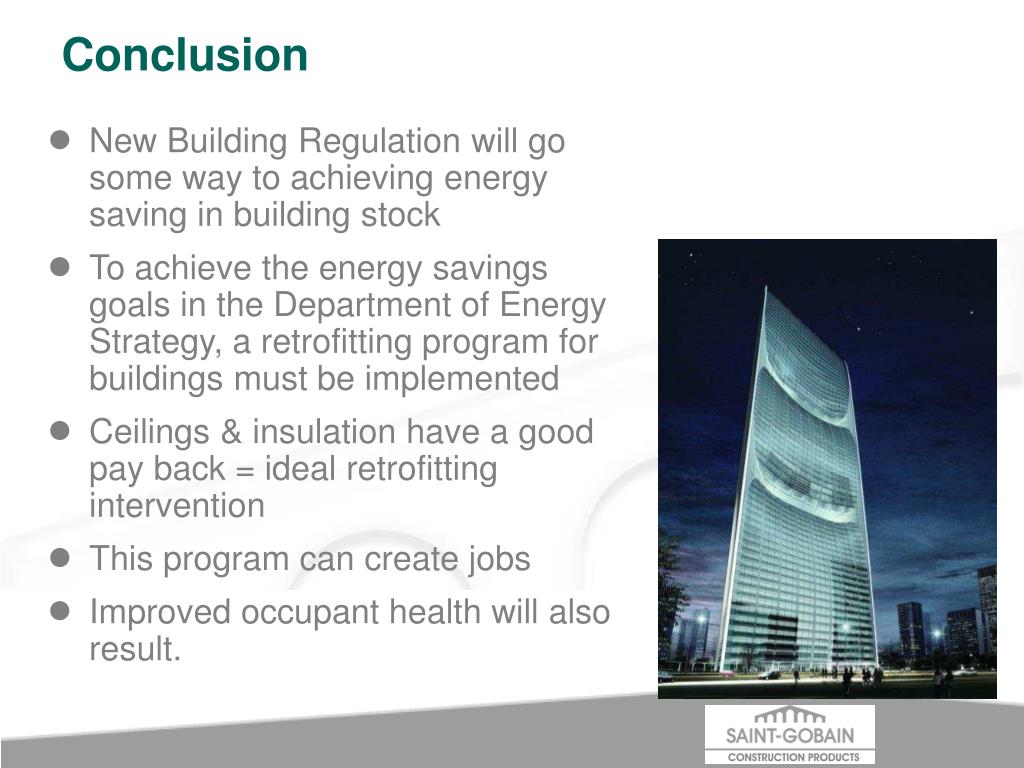

  22. Conclusion • New Building Regulation will go some way to achieving energy saving in building stock • To achieve the energy savings goals in the Department of Energy Strategy, a retrofitting program for buildings must be implemented • Ceilings & insulation have a good pay back = ideal retrofitting intervention • This program can create jobs • Improved occupant health will also result.

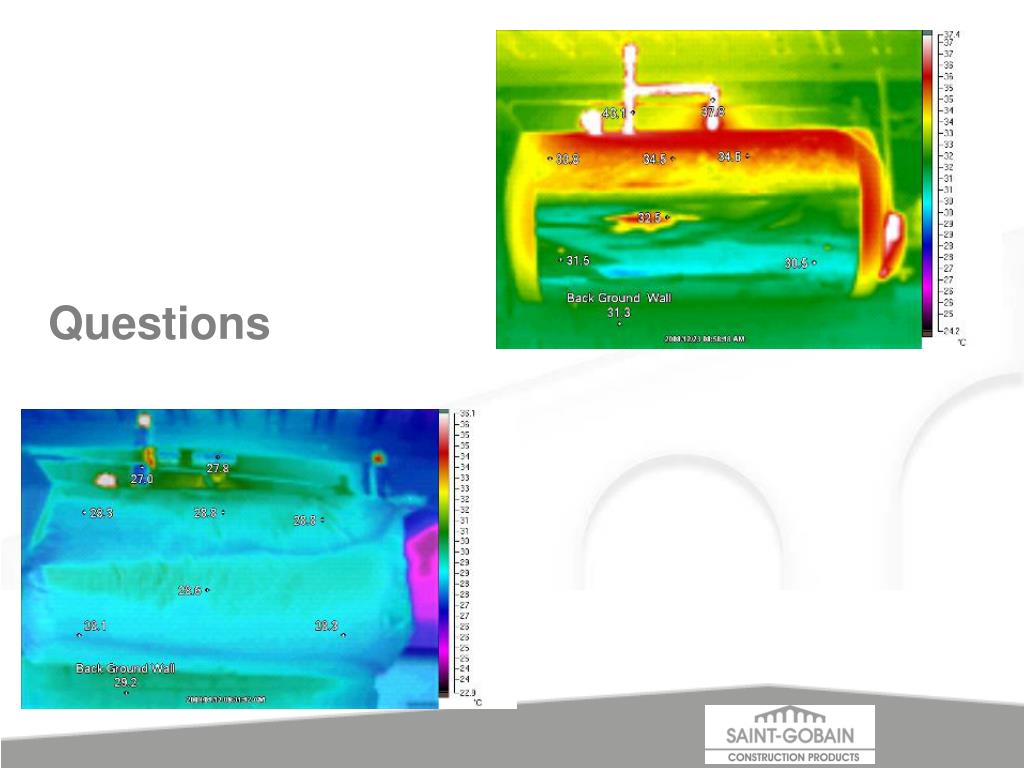

  23. Questions
