  1. Comments on Supernovae Riess 2004 sample of SNIa Comments onSNIa systematics NextSNIa surveys SomeKosmoshow analysisof present SNIa data Charling TAO April 2004, Toulouse

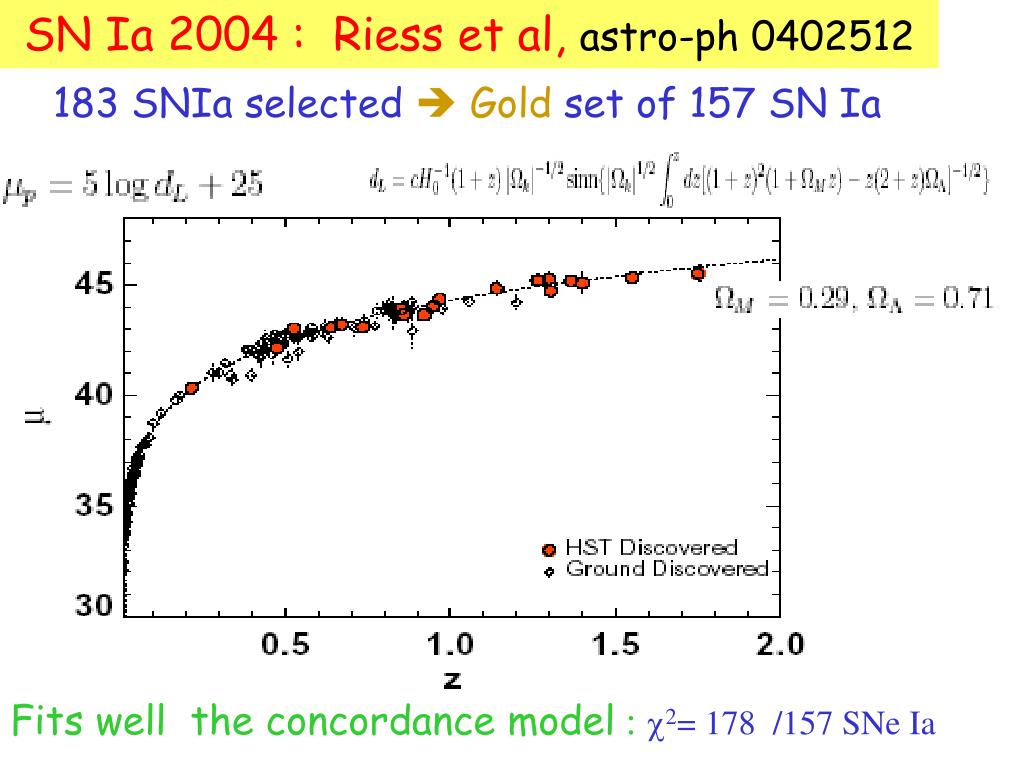

  2. SN Ia 2004 : Riess et al, astro-ph 0402512 183 SNIa selected  Gold set of 157 SN Ia Fits well the concordance model : c2= 178 /157 SNe Ia

  3. SNIA 2004: Riess et al,astro-ph 0402512 16 new SNIA with HST(GOOD ACS Treasury program) 6 / 7 existing with z >1.25 + Compilation (Tonry et al. 2003): 172 with changes… * Knop et al, 2003, SCP : 11 new 0.4 < z < 0.85 reanalysis of 1999 Perlmutter et al. *15 / original 42 excluded:inaccurate colour measurements and uncertain classification * 6 /42 and 5/11: fail « strict  SNIA » sample cut * Barris et al, 2003, HZT: 22 newvarying degrees of completeness on photometry and spectroscopy records * Blakesly et al, 2003 : 2 with ACS on HST • * Low z : 0.01 < z < 0.15 • Calan-Tololo (Hamuy et al., 1996) : 29 • CfA I (Riess et al. 1999): 22 • CfA II (Jha et al, 2004b): 44 (not published yet)

  4. Determination of Cosmological parameters w=p/r w= w0+w’ z Riess et al, astro-ph 0402512

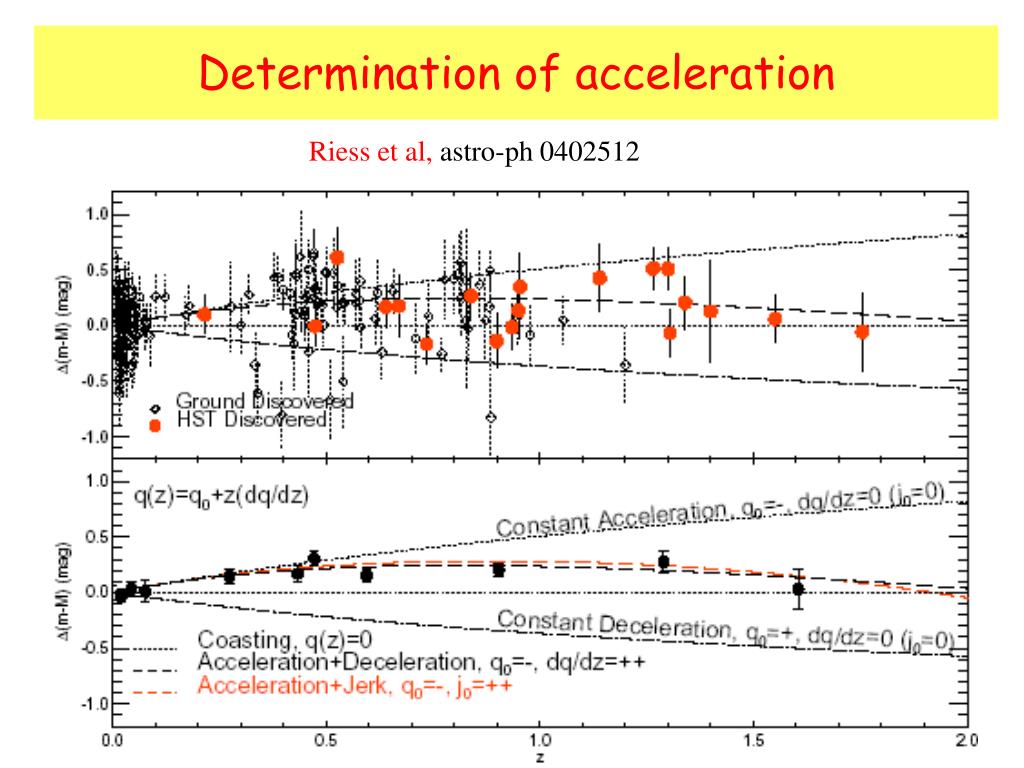

  5. Determination of acceleration Riess et al, astro-ph 0402512

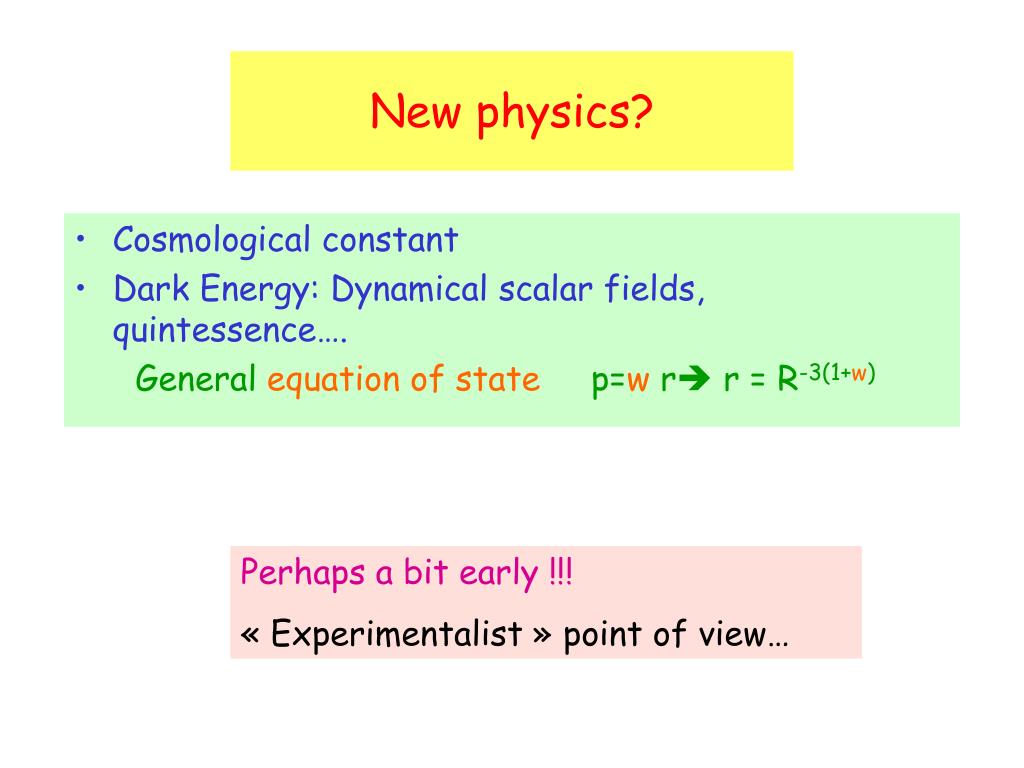

  6. New physics? • Cosmological constant • Dark Energy: Dynamical scalar fields, quintessence…. General equation of state p=w r r = R-3(1+w) Perhaps a bit early !!! « Experimentalist » point of view…

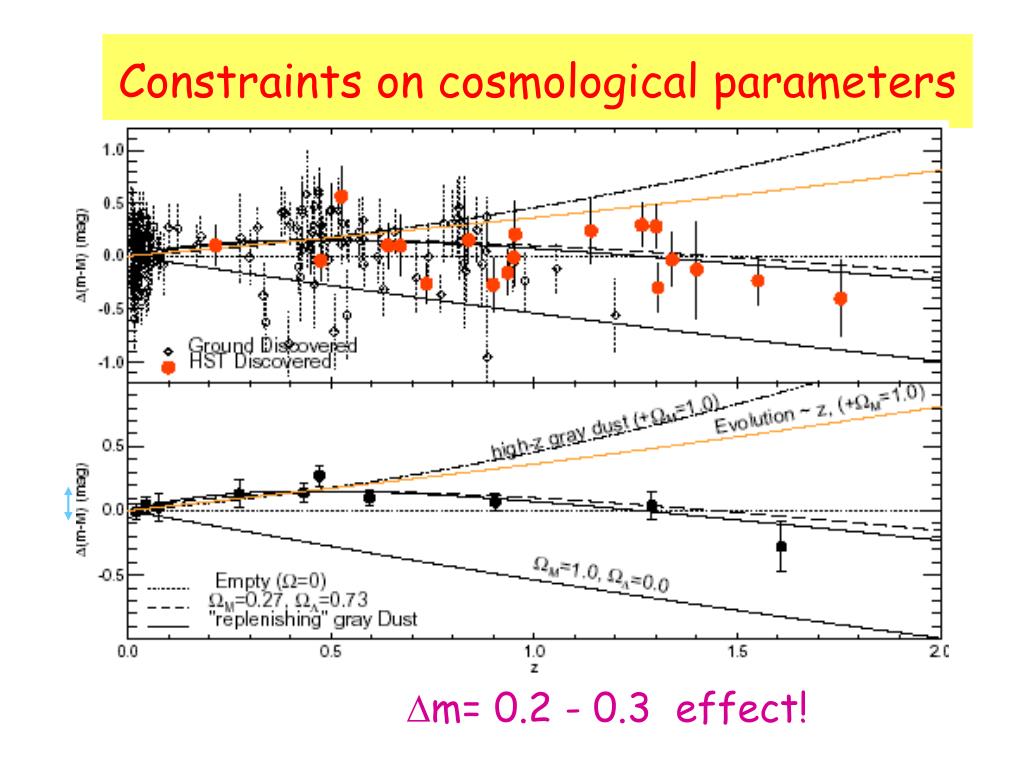

  7. Constraints on cosmological parameters Dm= 0.2 - 0.3 effect!

  8. Systematic error on magnitude 3 fit with no prior Use Kosmoshow: an IDL program by A. Tilquin! marwww.in2p3.fr/~renoir/kosmoshow.html 20% calibration error on intermediate fluxes gives no cosmological constant

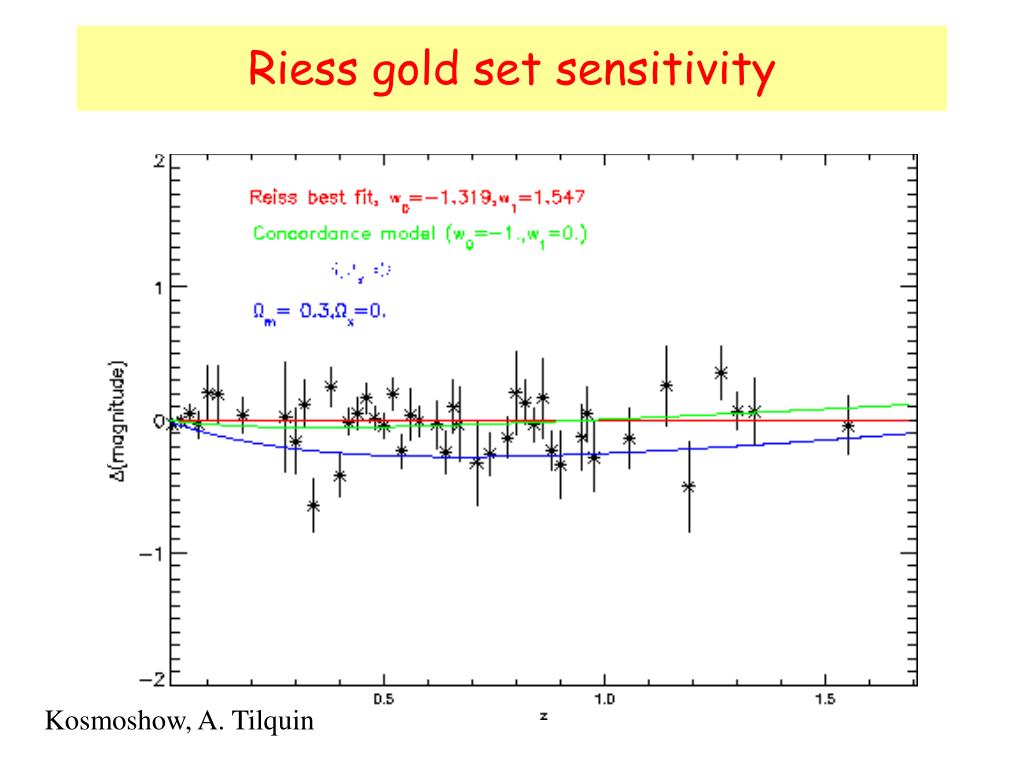

  9. Riess gold set sensitivity Kosmoshow, A. Tilquin

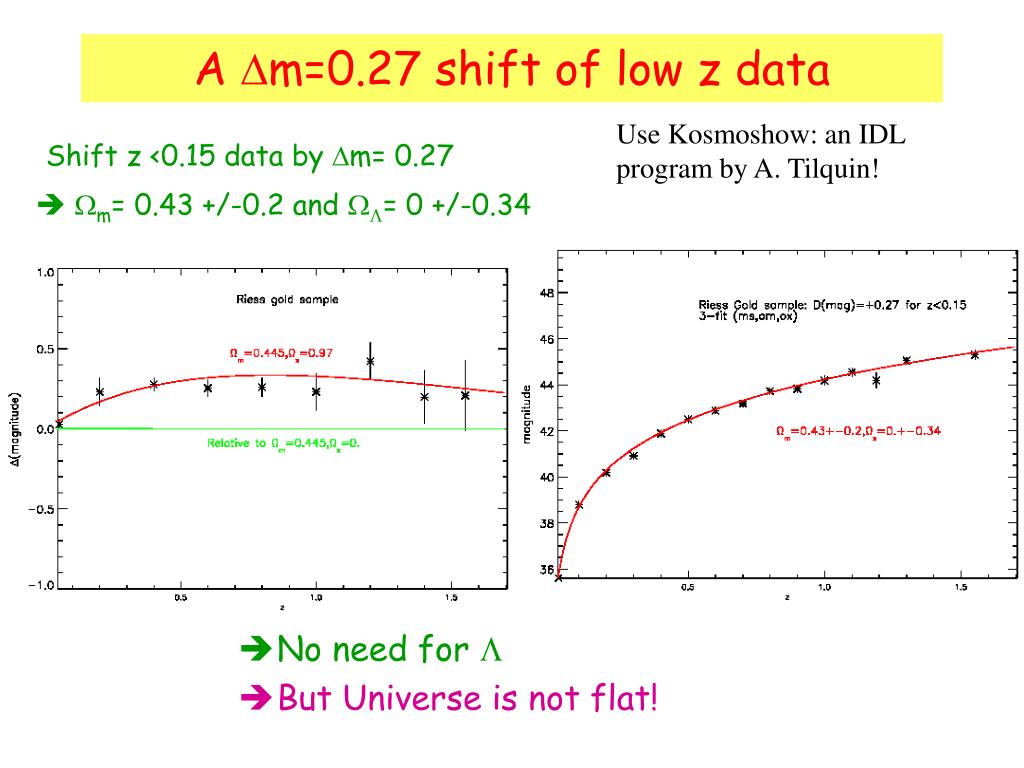

  10. A Dm=0.27 shift of low z data Use Kosmoshow: an IDL program by A. Tilquin! Shift z <0.15 data by Dm= 0.27  Wm= 0.43 +/-0.2 and WL= 0 +/-0.34 • No need for L • But Universe is not flat!

  11. Systematic differences between methods

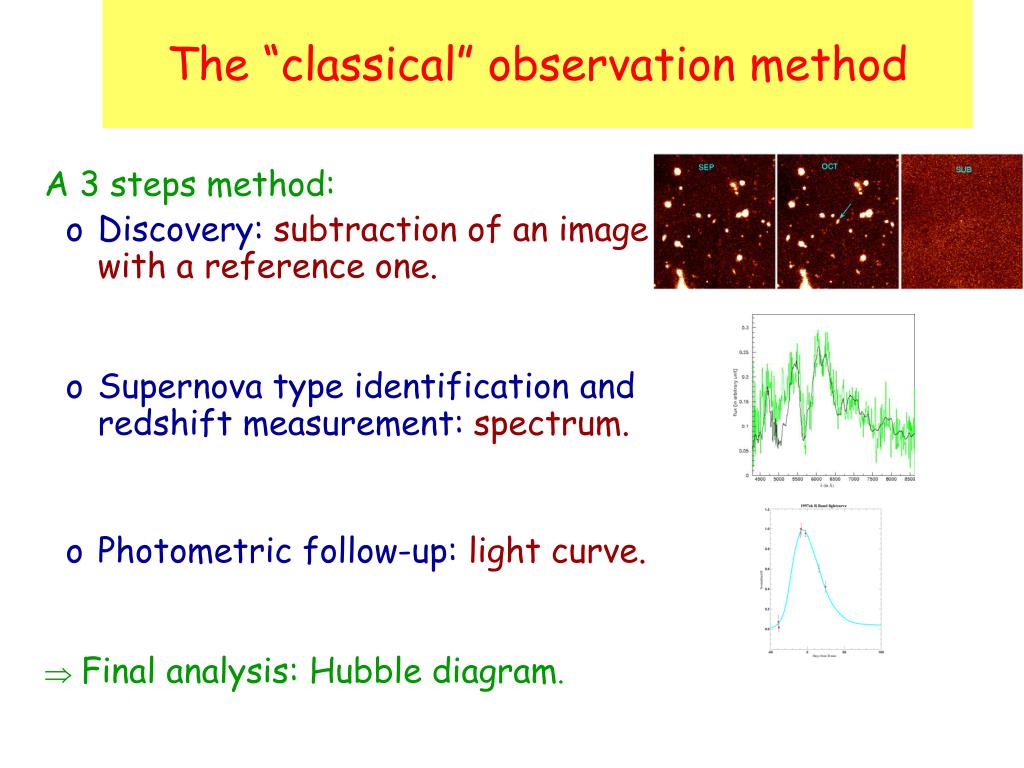

  12. The “classical” observation method A 3 steps method: • Discovery: subtraction of an image with a reference one. • Supernova type identification and redshift measurement: spectrum. • Photometric follow-up: light curve.  Final analysis: Hubble diagram.

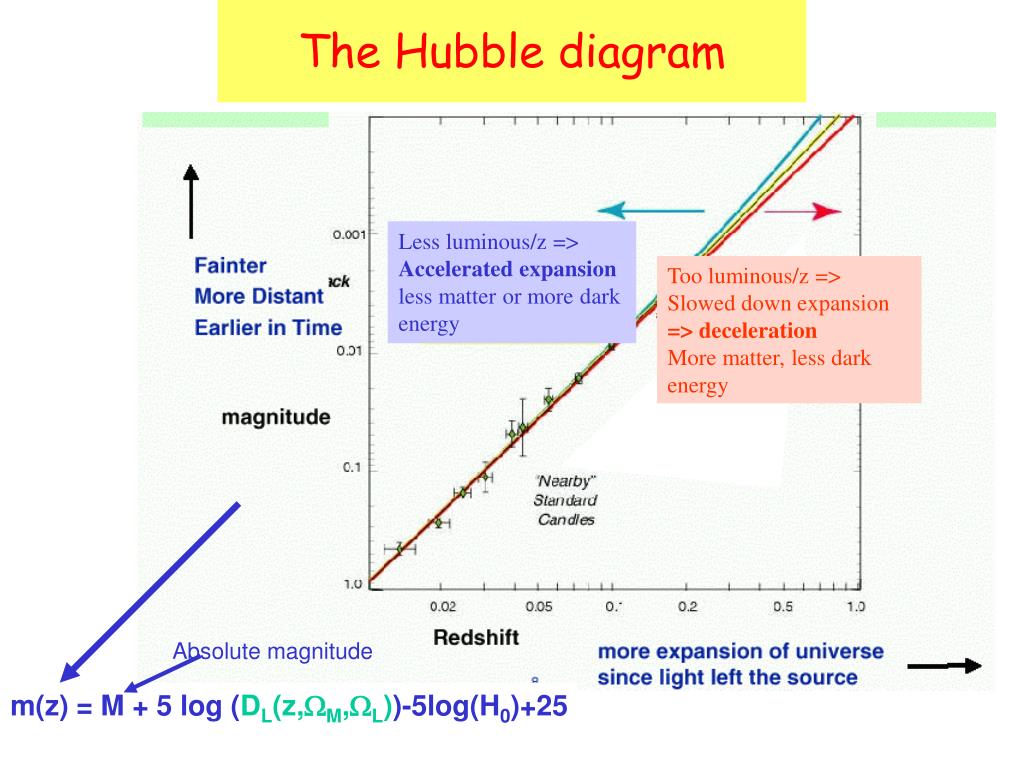

  13. The Hubble diagram Less luminous/z => Accelerated expansion less matter or more dark energy Too luminous/z => Slowed down expansion => deceleration More matter, less dark energy Absolute magnitude m(z) = M + 5 log (DL(z,WM,WL))-5log(H0)+25

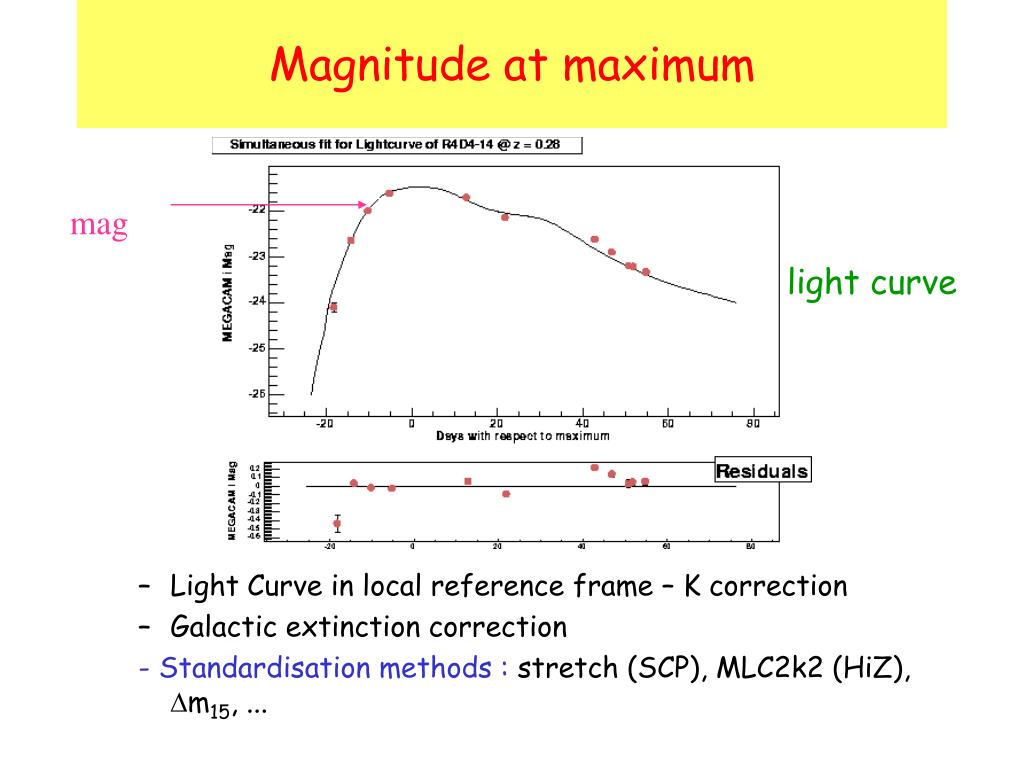

  14. Magnitude at maximum mag • Light Curve in local reference frame – K correction • Galactic extinction correction - Standardisation methods : stretch (SCP), MLC2k2 (HiZ), Dm15, ... light curve

  15. Standardisation: stretch method Before: mB After : mBcor = mB – a (s-1)

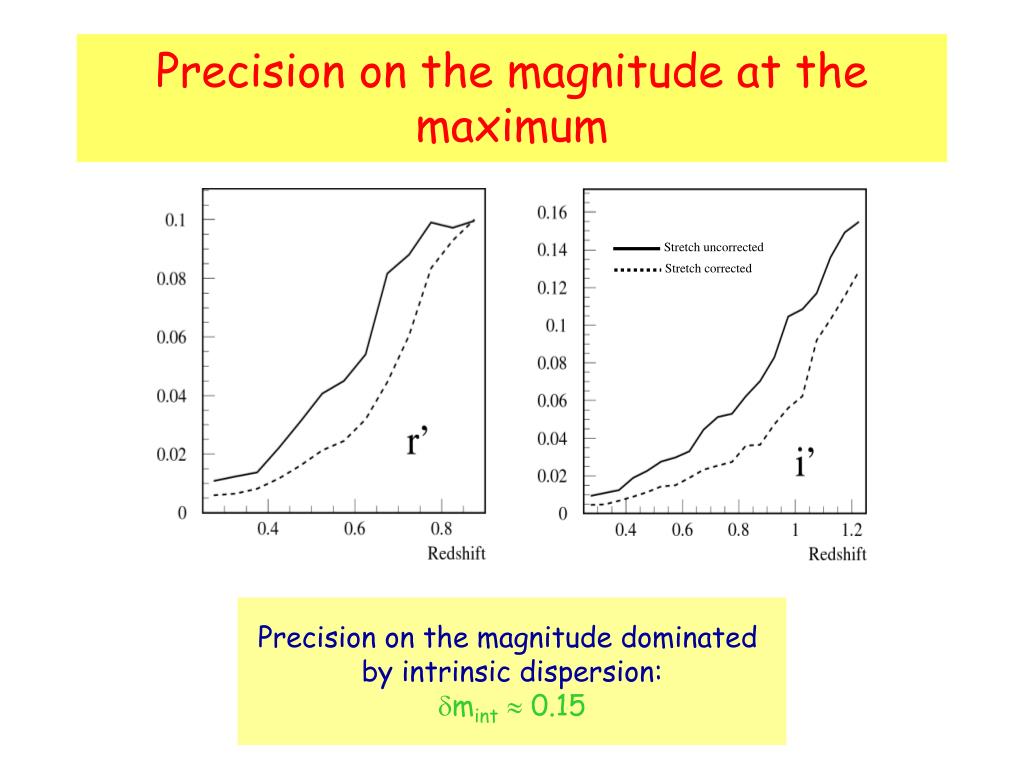

  16. Precision on the magnitude at the maximum Stretch uncorrected Stretch corrected Precision on the magnitude dominated by intrinsic dispersion: dmint 0.15

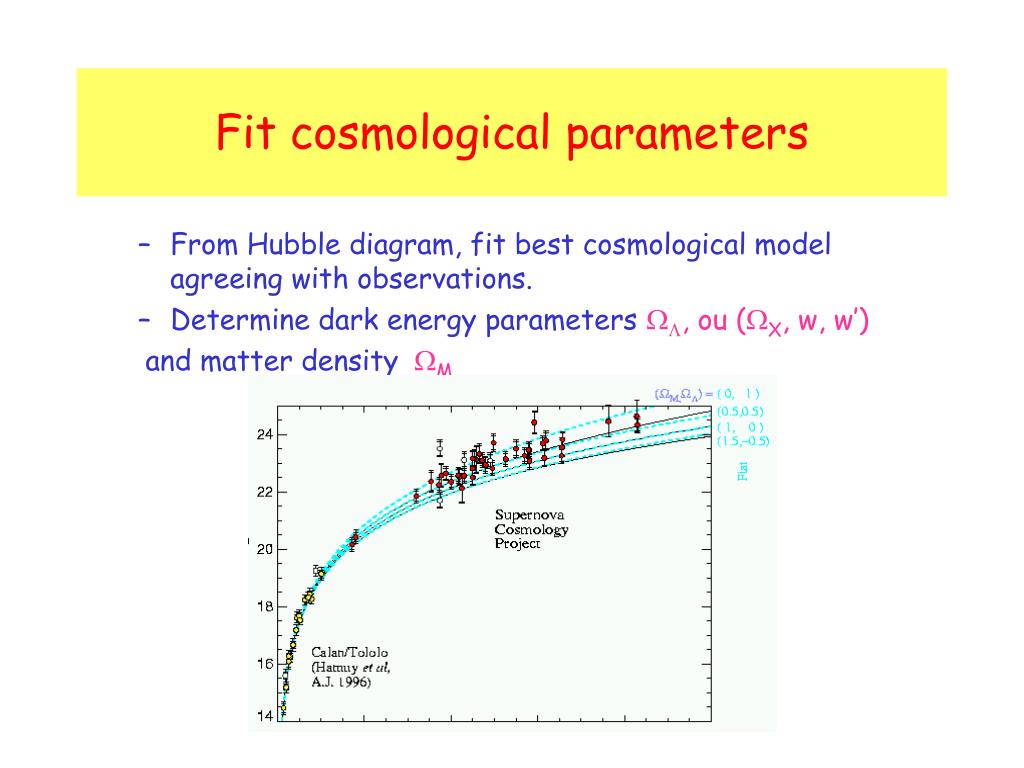

  17. Fit cosmological parameters • From Hubble diagram, fit best cosmological model agreeing with observations. • Determine dark energy parameters WL, ou (WX, w, w’) and matter density WM

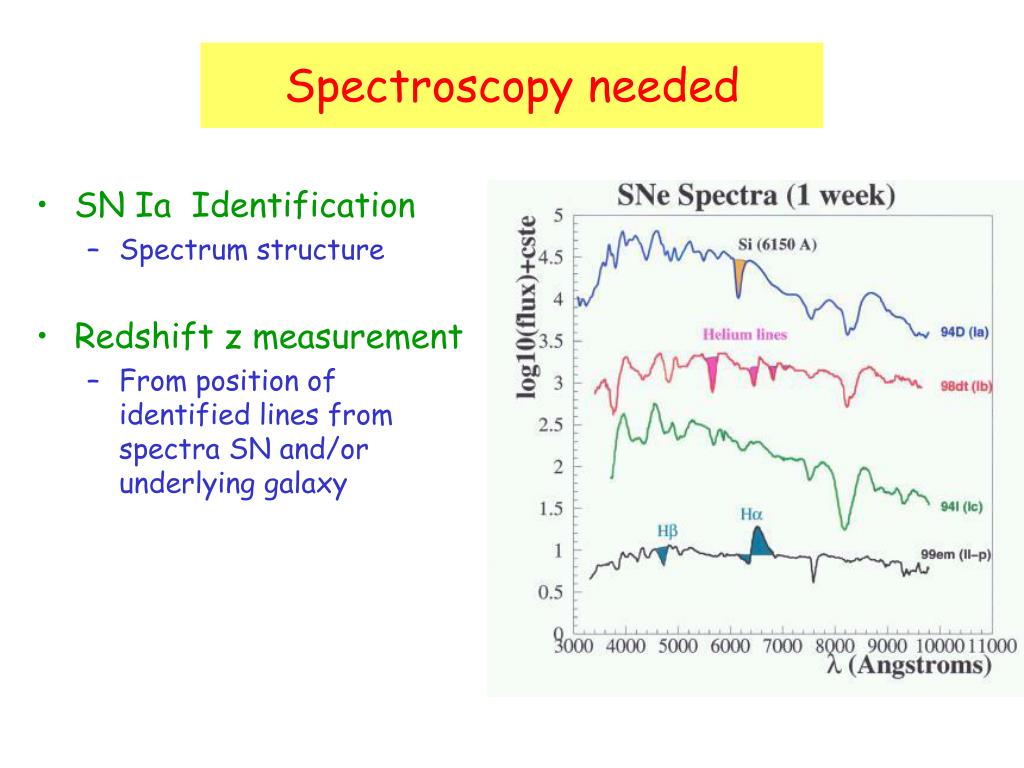

  18. Spectroscopy needed • SN Ia Identification • Spectrum structure • Redshift z measurement • From position of identified lines from spectra SN and/or underlying galaxy

  19. data analysis physics The « classical » method galaxy magnitude z(redshift) Images Hubble + identification. Spectra Ia

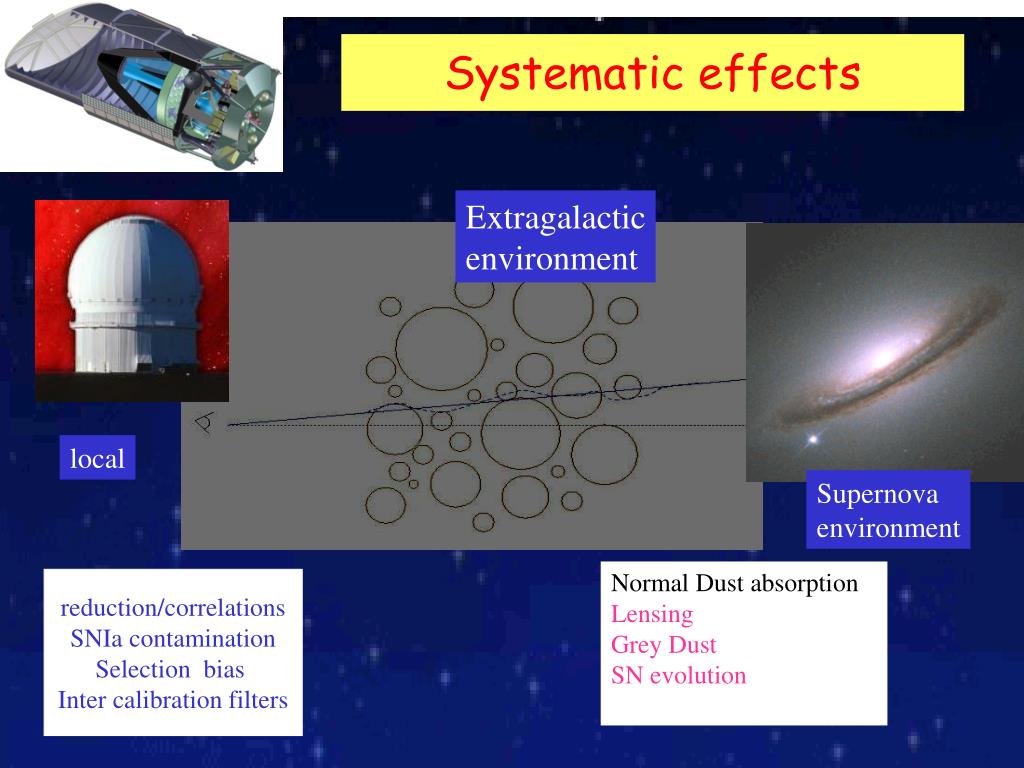

  20. Systematic effects Extragalactic environment local Supernova environment Normal Dust absorption Lensing Grey Dust SN evolution reduction/correlations SNIa contamination Selection bias Inter calibration filters

  21. Systematic effects • SN evolution • Internal extinction not negligible in spiral galaxies • Corrections for peculiar velocity effects • Grey dust • Lensing • Rowan-Robinson astro-ph/021034 • Perlmutter & Schmidt 0303428 • Observational problems • Standardisation method • Light curve fitting • Subtractions • Calibrations • Atmospheric corrections • K-corrections • Selection bias • Heterogeneity of SN data • SNIa identification

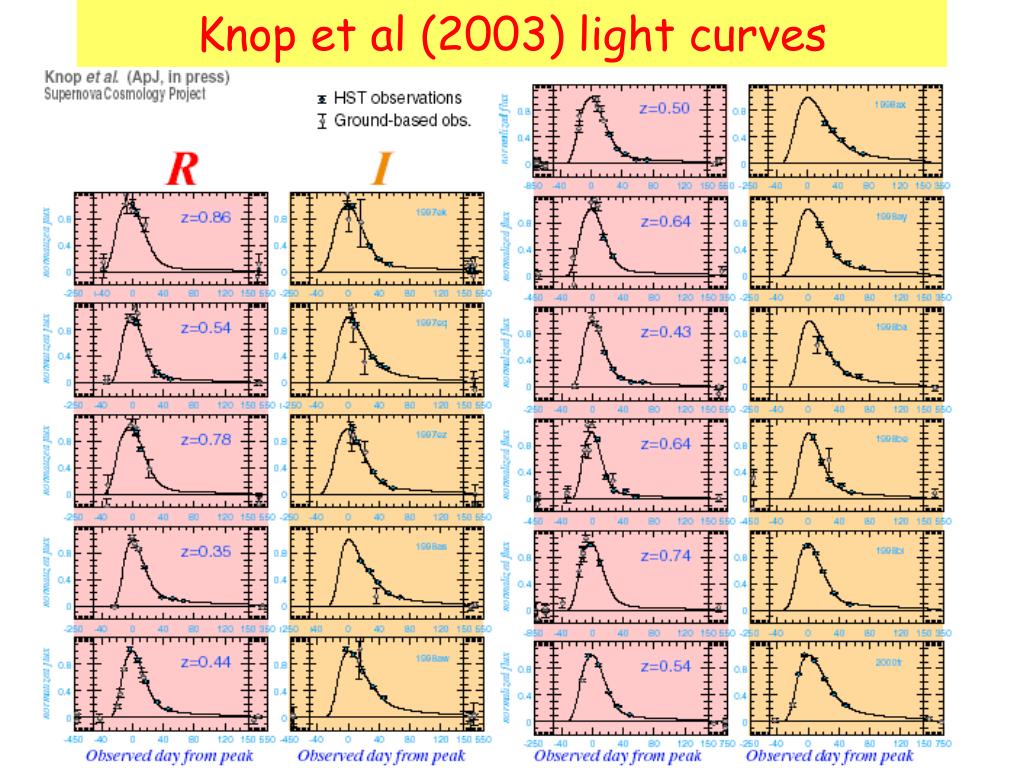

  22. Knop et al (2003) light curves

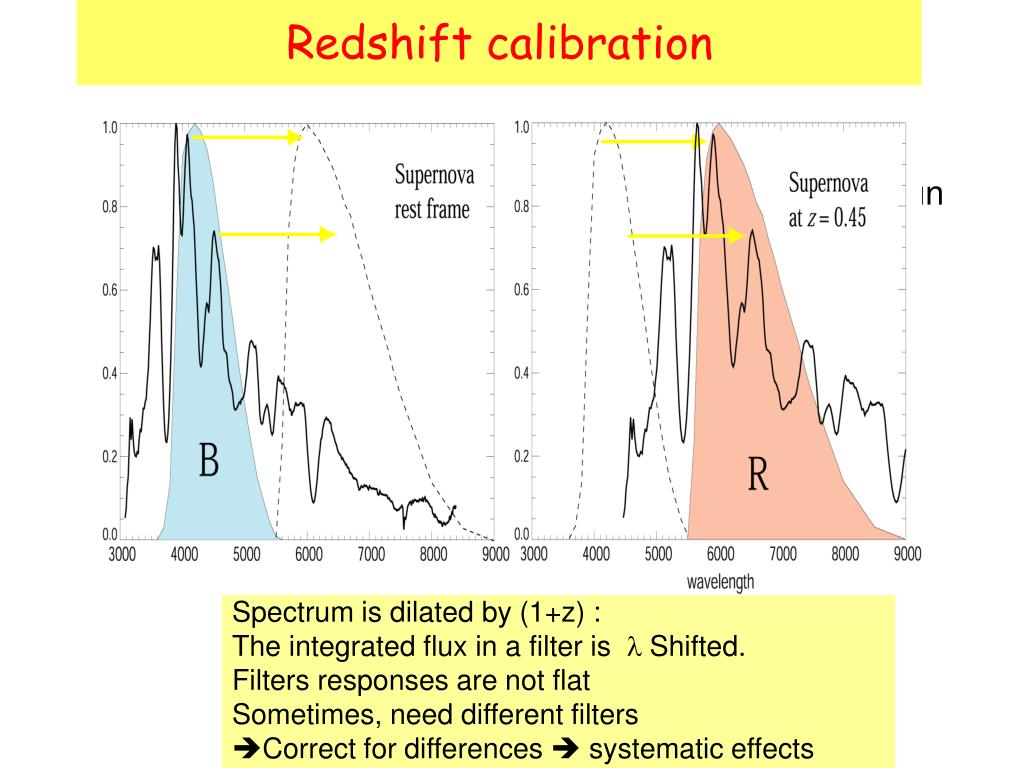

  23. Redshift calibration Le flux est intégré sur un filtre pour un point de photométrie • Spectrum is dilated by (1+z) : • The integrated flux in a filter is l Shifted. • Filters responses are not flat • Sometimes, need different filters • Correct for differences  systematic effects

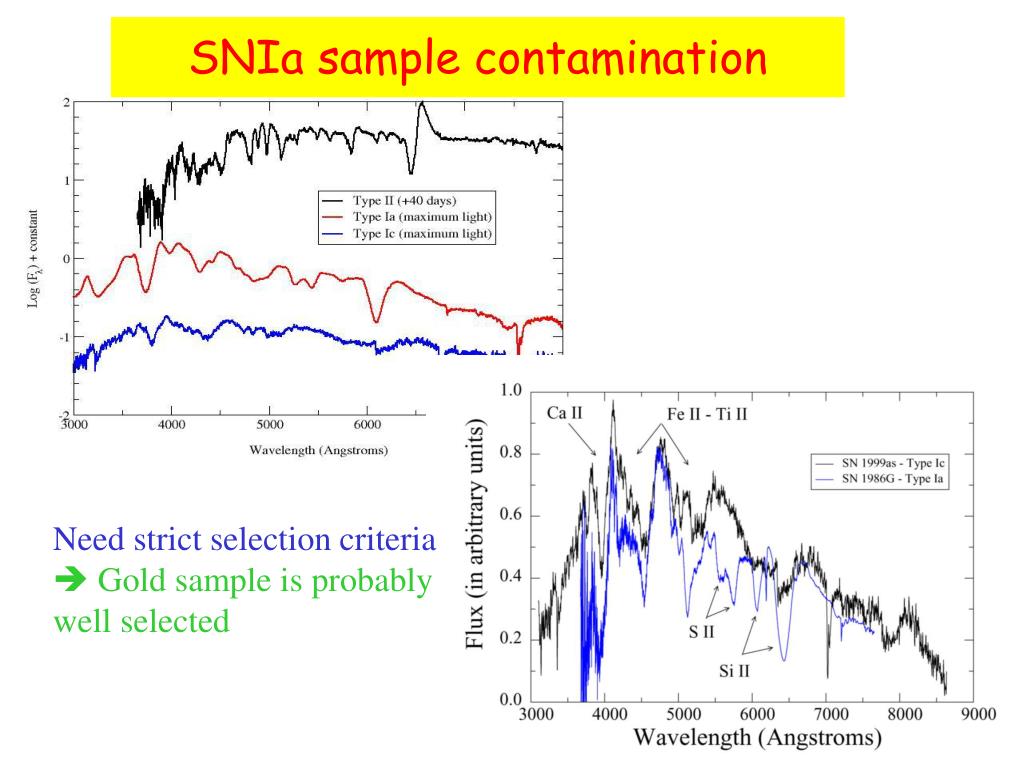

  24. SNIa sample contamination Need strict selection criteria Gold sample is probably well selected

  25. Supernovæ identification Ca H&K SiII 4100 With Spectra Main stamp of the SNe Ia: Si II at 6150 Å: Hardly observable beyond z > 0.4-0.5. Otherwise, search for features in the range 3500-5500 Å (supernova rest frame): Ca H&K, SiII at 4100 Å, SII, … Simulation of a SN Ia spectrum at z0,5

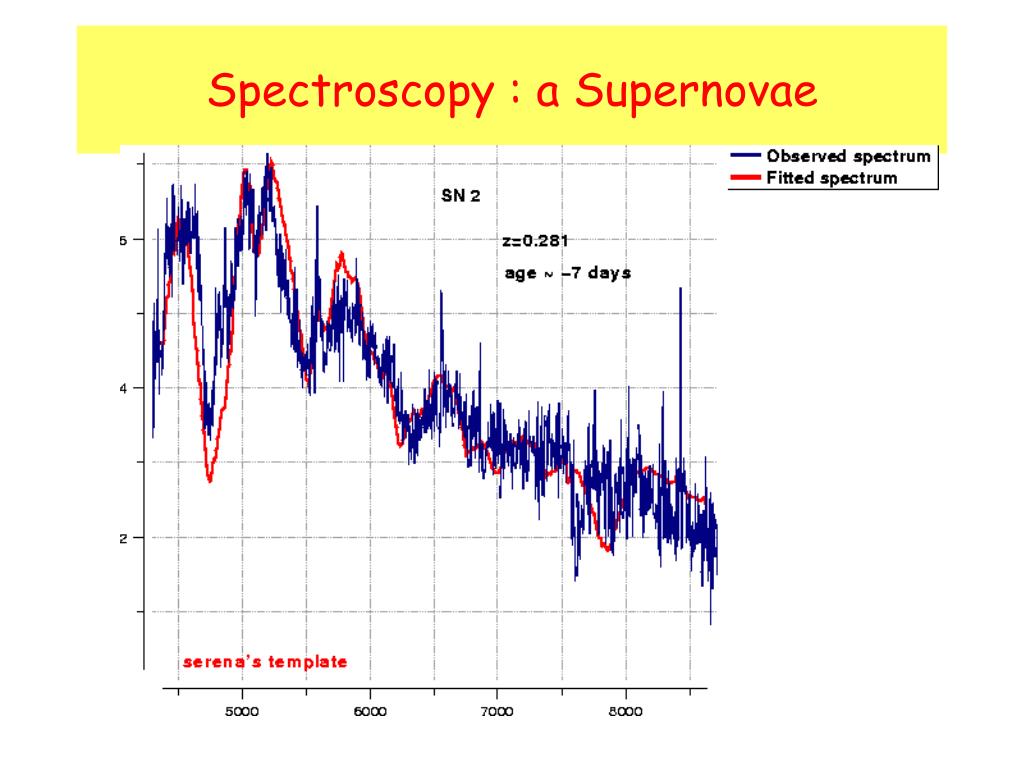

  26. Spectroscopy : a Supernovae

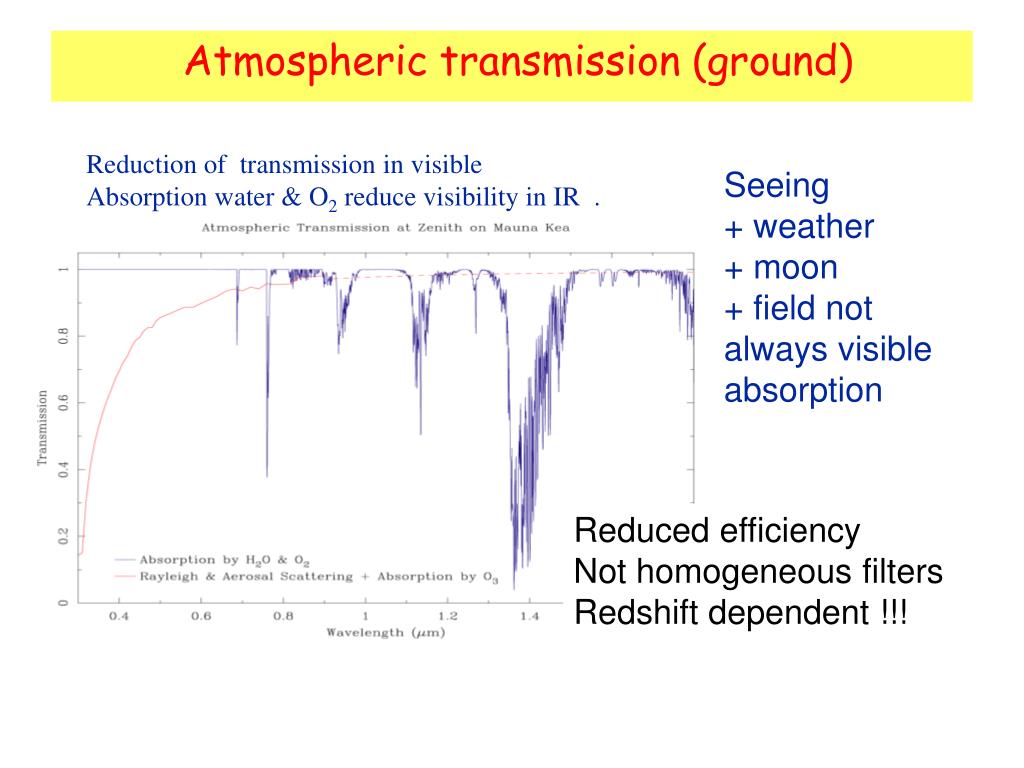

  27. Atmospheric transmission (ground) Reduction of transmission in visible Absorption water & O2 reduce visibility in IR . Seeing + weather + moon + field not always visible absorption Reduced efficiency Not homogeneous filters Redshift dependent !!!

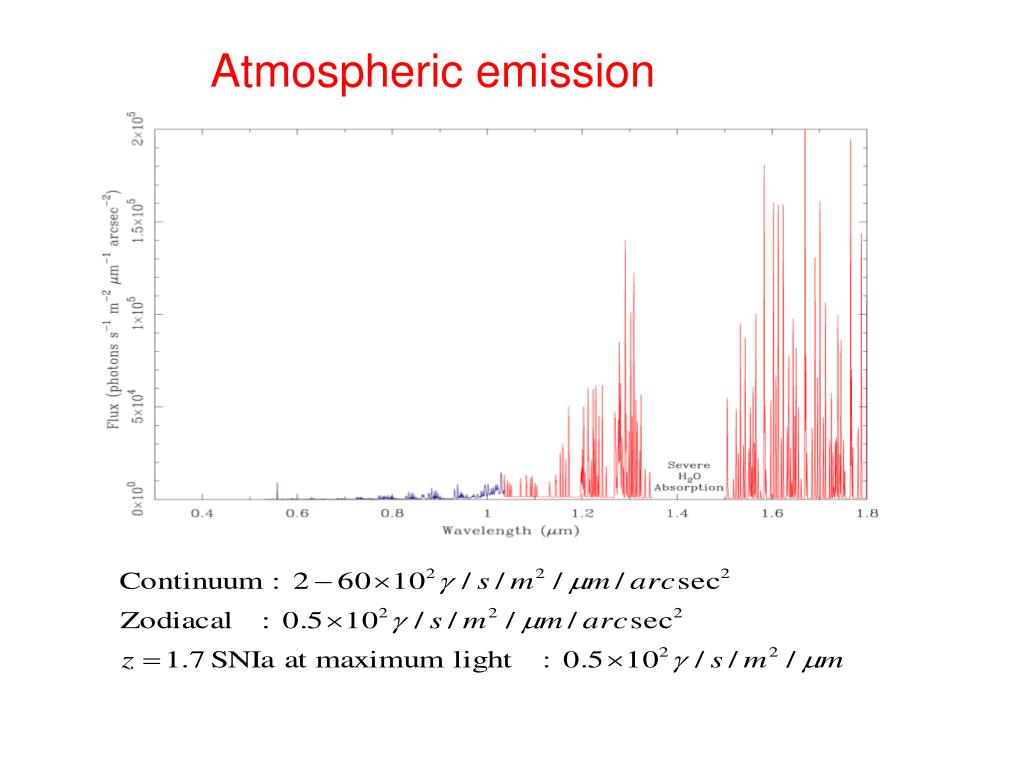

  28. Les Atmospheric emission

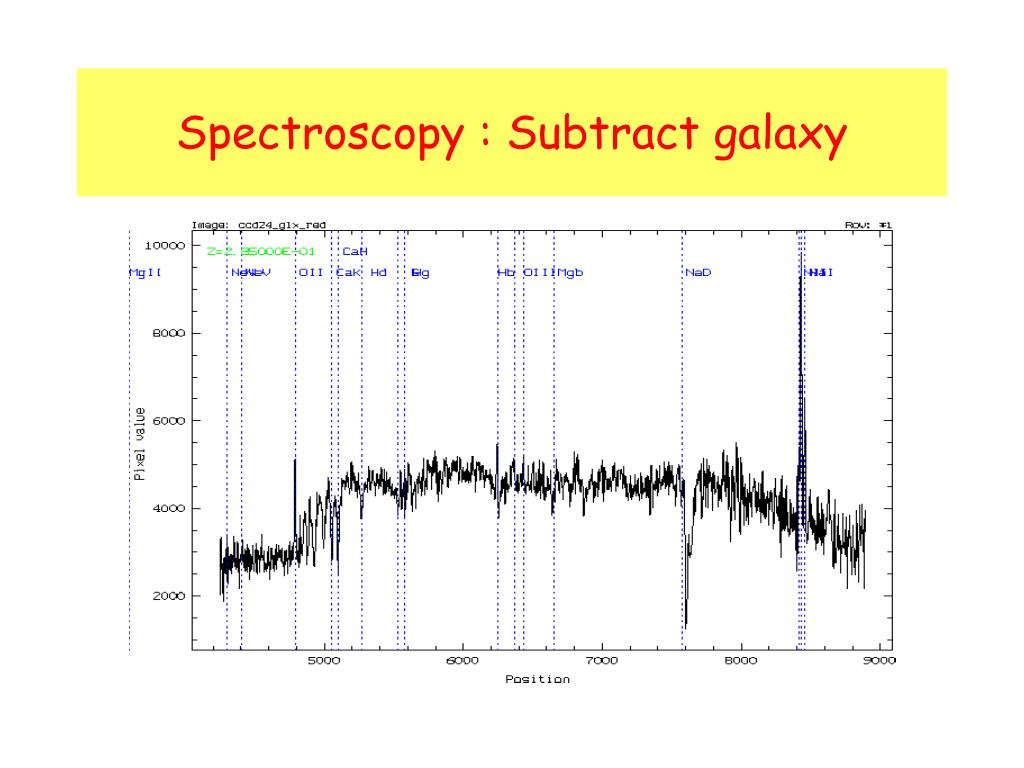

  29. Spectroscopy : Subtract galaxy

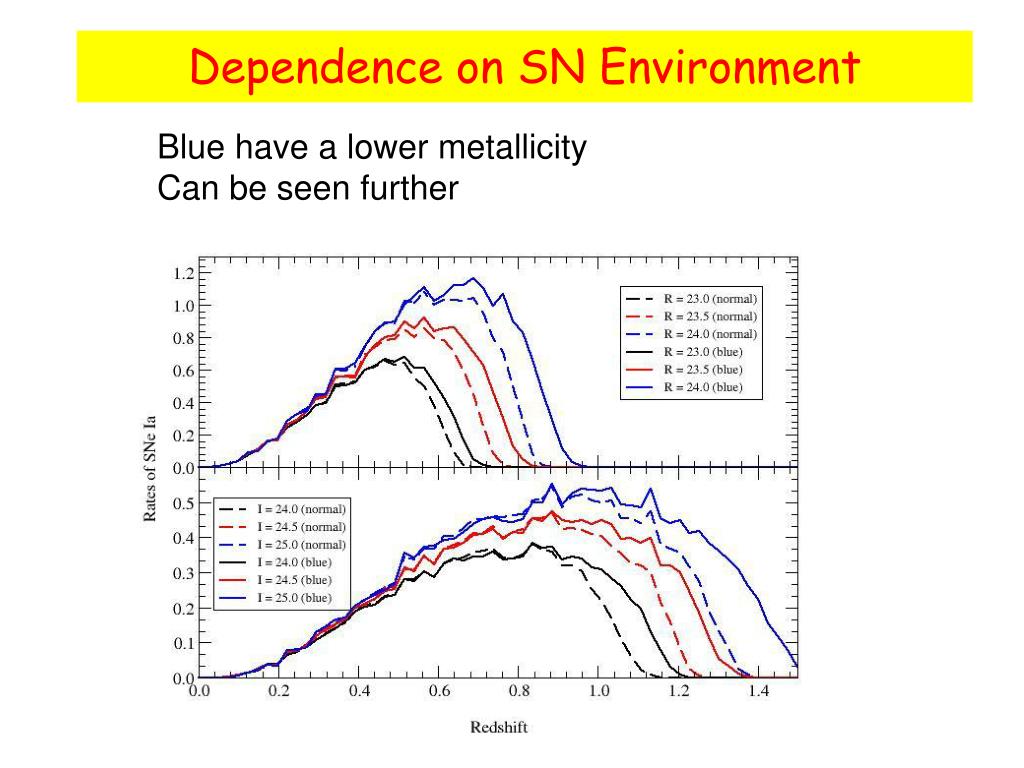

  30. Dependence on SN Environment Blue have a lower metallicity Can be seen further

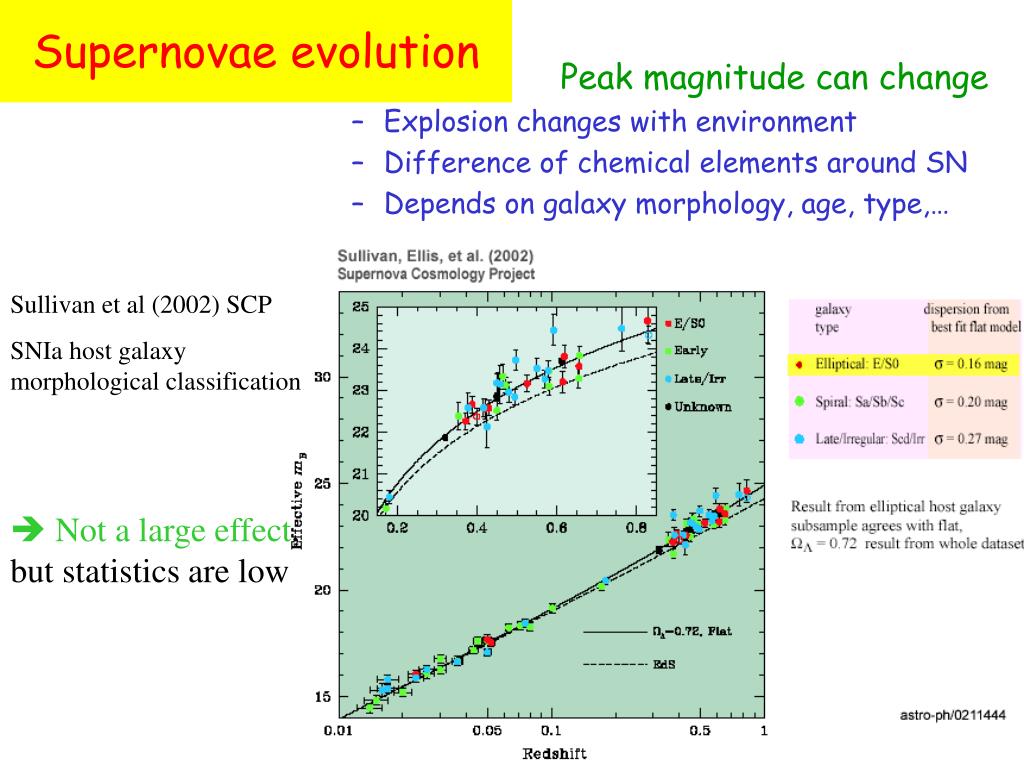

  31. Supernovae evolution Peak magnitude can change • Explosion changes with environment • Difference of chemical elements around SN • Depends on galaxy morphology, age, type,… Sullivan et al (2002) SCP SNIa host galaxy morphological classification  Not a large effect, but statistics are low

  32. Extinction and Dust • Extinction by dust from Our or SN galaxy • Correction factor to the magnitude • A = R* E(B-V) • Measurements in many filters • Select minimal dust regions ? Before extinction Rv=3.1 +/- 0.3 for OUR galaxy  Very large correction After correction • Grey dust:not well known, intergalactic,?

  33. A strong limit on grey dust? Peerels, Tells, Petric, Helfand (2003) • A 24.7 hr Chandra exposure of QSO 1508-5714 z=4.3 shows no dust scattering halo • Upper limit on mass density of large grained (>1mm) intergalactic dust: Wdust < 2 10-6

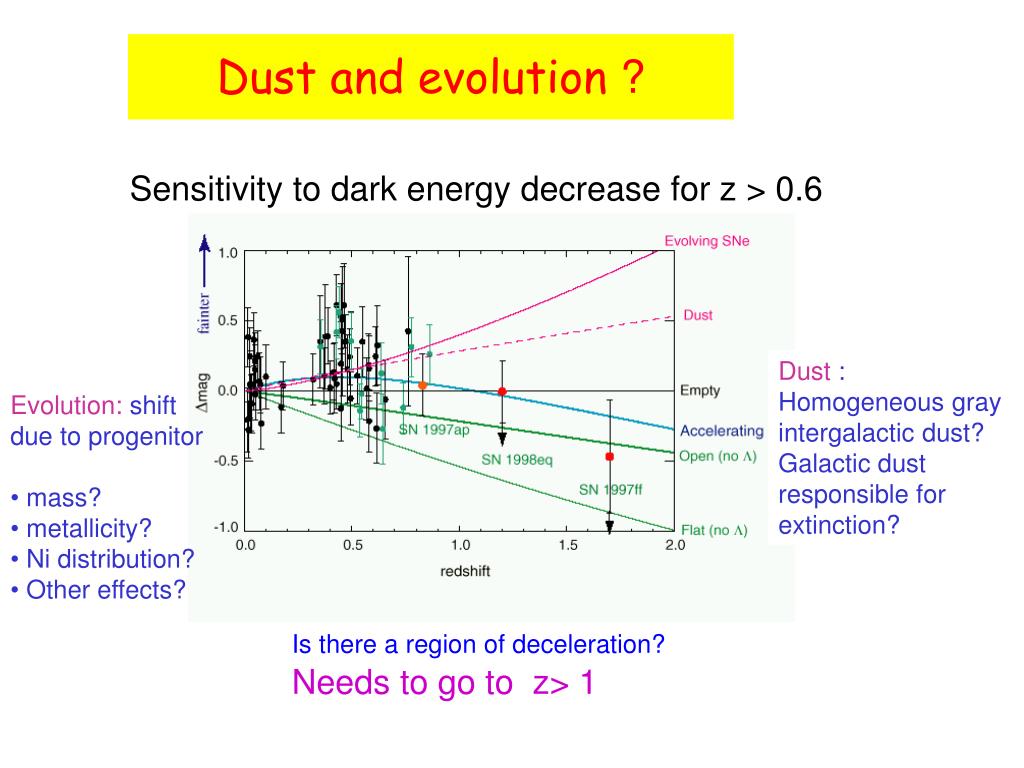

  34. Dust and evolution ? Sensitivity to dark energy decrease for z > 0.6 Dust : Homogeneous gray intergalactic dust? Galactic dust responsible for extinction? • Evolution: shift due to progenitor • mass? • metallicity? • Ni distribution? • Other effects? Is there a region of deceleration?Needs to go to z> 1

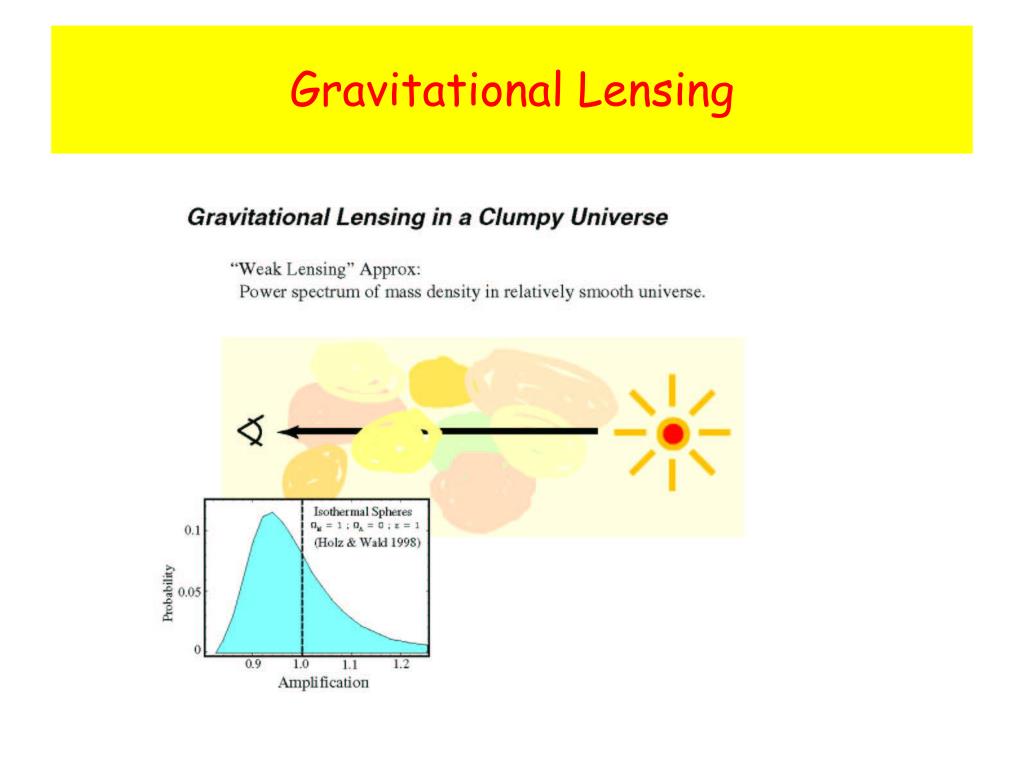

  35. Gravitational Lensing

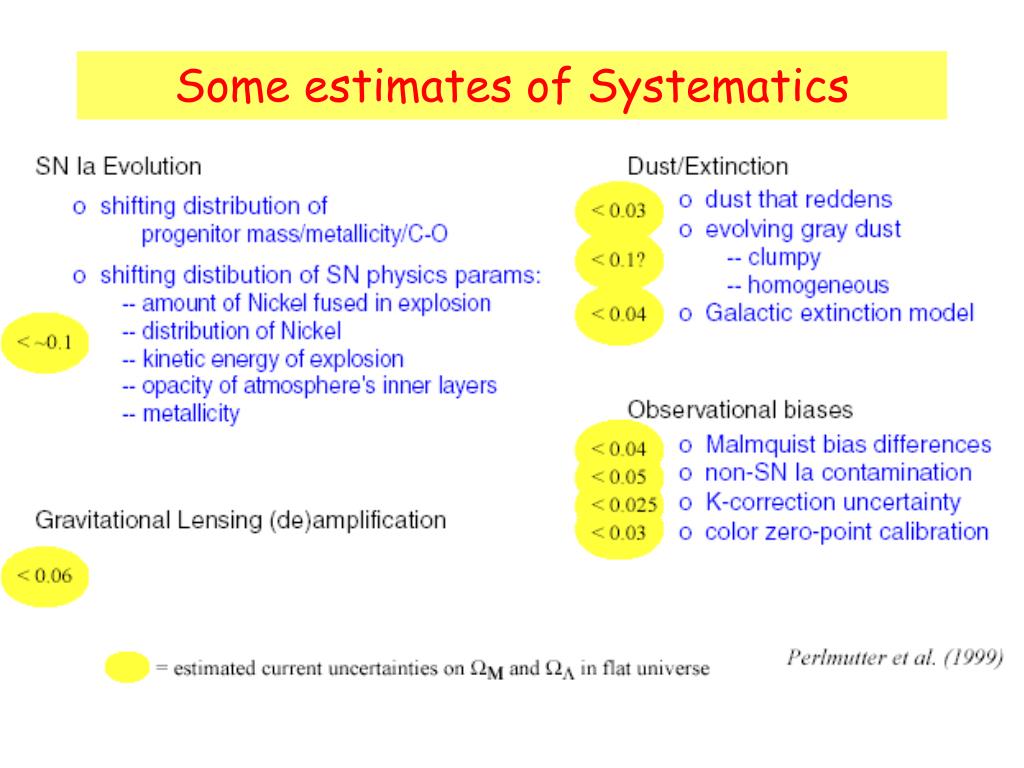

  36. Some estimates of Systematics

  37. Systematics Effect of de/amplification

  38. SN demographics studies Understand environment To classify and correct Need precise measurements with statistics Perlmutter

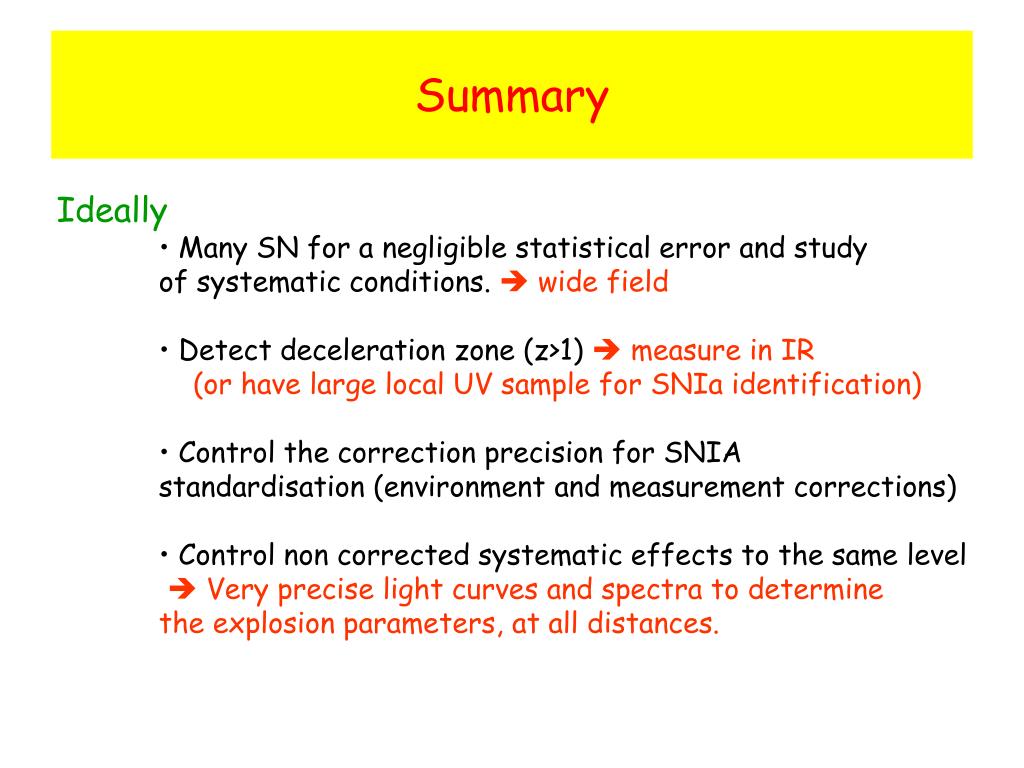

  39. Summary • Ideally • Many SN for a negligible statistical error and study • of systematic conditions.  wide field • Detect deceleration zone (z>1)  measure in IR • (or have large local UV sample for SNIa identification) • Control the correction precision for SNIA • standardisation (environment and measurement corrections) • Control non corrected systematic effects to the same level •  Very precise light curves and spectra to determine • the explosion parameters, at all distances.

  40. Hubble diagrams: Space vs ground Ground limitation at z around 1 due to atmosphere ground simulation space

  41. Advantage of space same observation in space and from ground • More galaxy surface density • Less impact from a more constant PSF • More information on shape Optimisation of mission

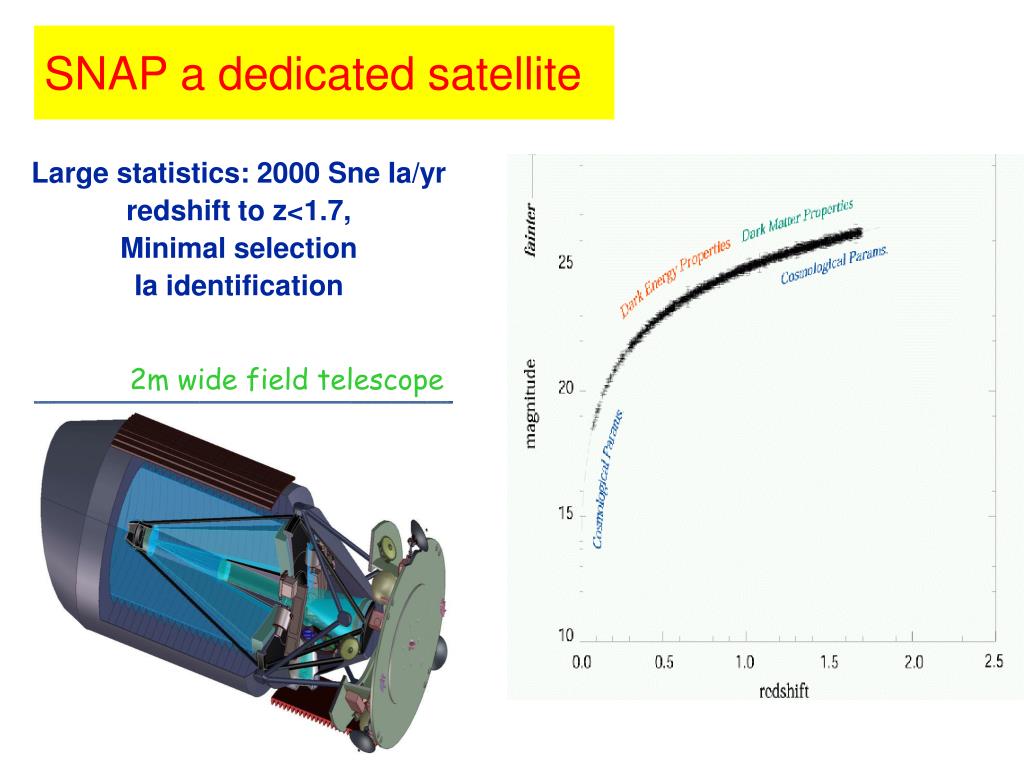

  42. SNAP a dedicated satellite Large statistics: 2000 Sne Ia/yr redshift to z<1.7, Minimal selection Ia identification 2m wide field telescope

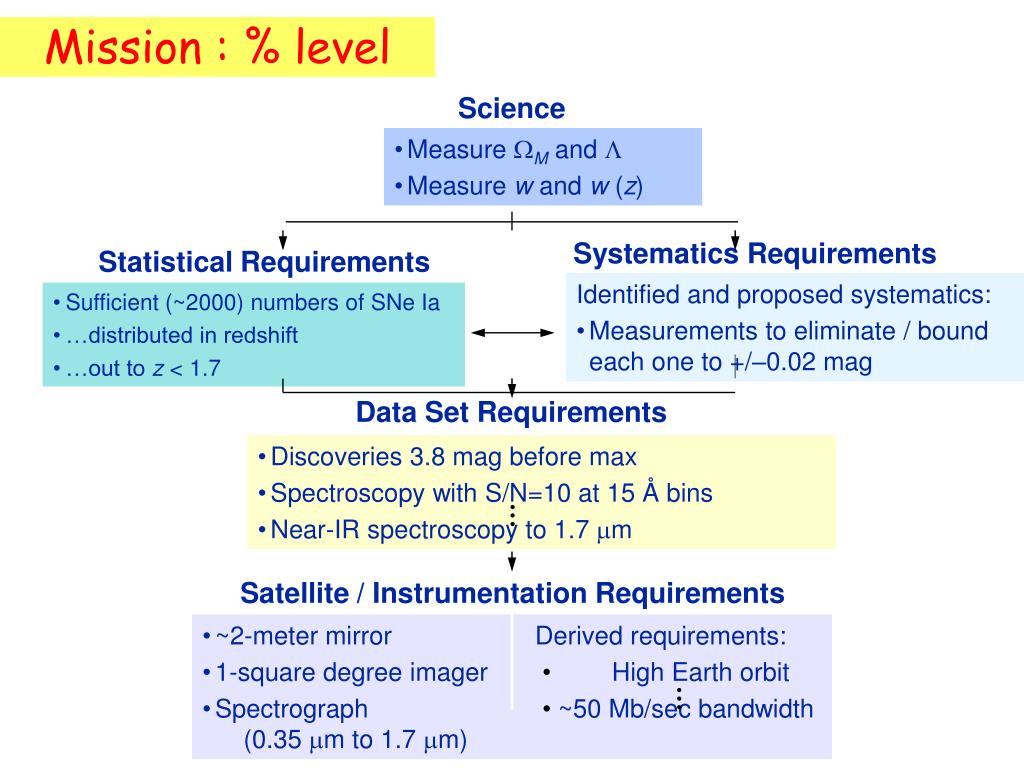

  43. Mission : % level Science • Measure M and  • Measure w and w (z) Systematics Requirements Statistical Requirements • Identified and proposed systematics: • Measurements to eliminate / bound each one to +/–0.02 mag • Sufficient (~2000) numbers of SNe Ia • …distributed in redshift • …out to z < 1.7 Data Set Requirements • Discoveries 3.8 mag before max • Spectroscopy with S/N=10 at 15 Å bins • Near-IR spectroscopy to 1.7 m • • • Satellite / Instrumentation Requirements • ~2-meter mirror Derived requirements: • 1-square degree imager • High Earth orbit • Spectrograph • ~50 Mb/sec bandwidth (0.35 m to 1.7 m) • • •

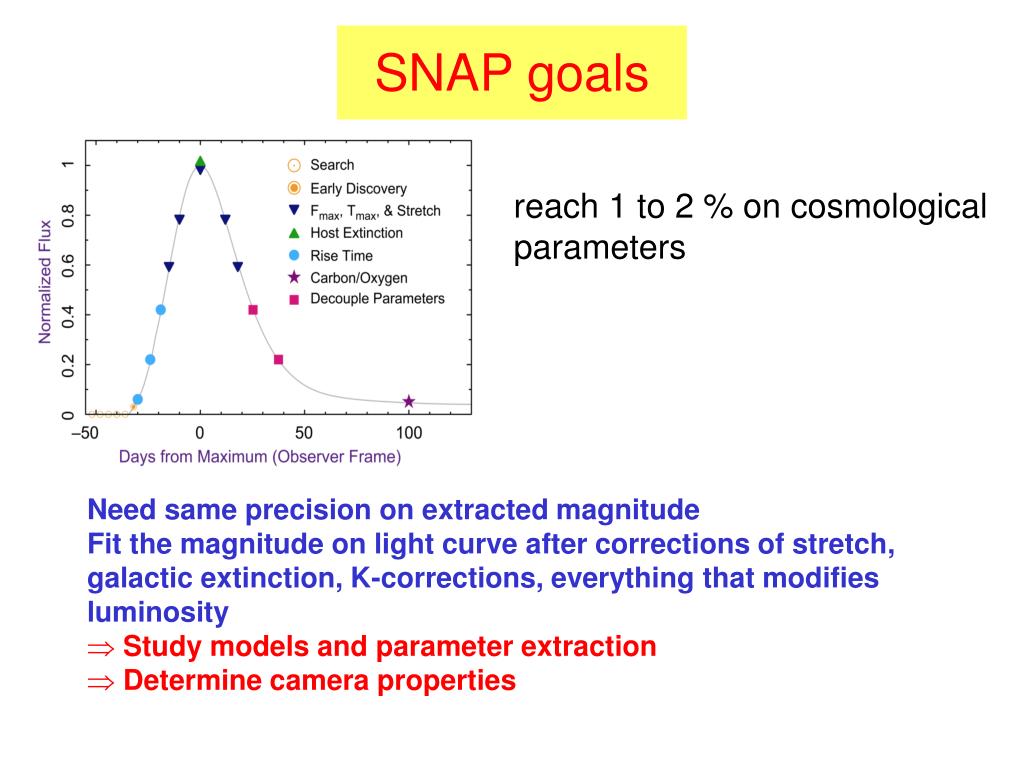

  44. SNAP goals reach 1 to 2 % on cosmological parameters • Need same precision on extracted magnitude • Fit the magnitude on light curve after corrections of stretch, galactic extinction, K-corrections, everything that modifies luminosity • Study models and parameter extraction • Determine camera properties

  45. data analysis physics SNAP: Observation method The same !! But optimised for systematics galaxy magnitude z(redshift) Images Hubble + same spectra, allows identification. M , L Spectra Ia SiII

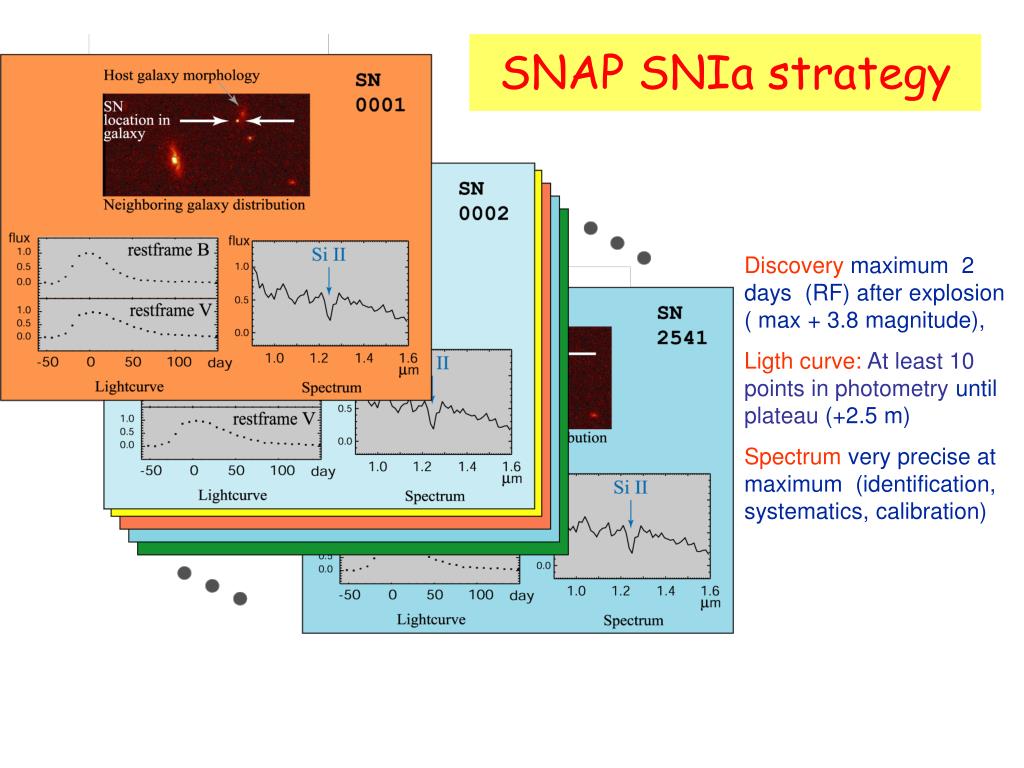

  46. SNAP SNIa strategy Discovery maximum 2 days (RF) after explosion ( max + 3.8 magnitude), Ligth curve:At least 10 points in photometry until plateau (+2.5 m) Spectrum very precise at maximum (identification, systematics, calibration)

  47. SNAP survey Hubble Deep Field Observe repeatedly same sky area Wide field !! • Surveys: • Supernova Survey: • 2X7,5 sq. deg. • 2X16 months • R<30.4 (9 bands) • Weak Lensing Survey • 300 sq. deg. • 0.5-1 year • R<28.8 (9 bands) Supernova Survey Weak Lensing Survey Each field is est observed ~4 days All images are cumulated

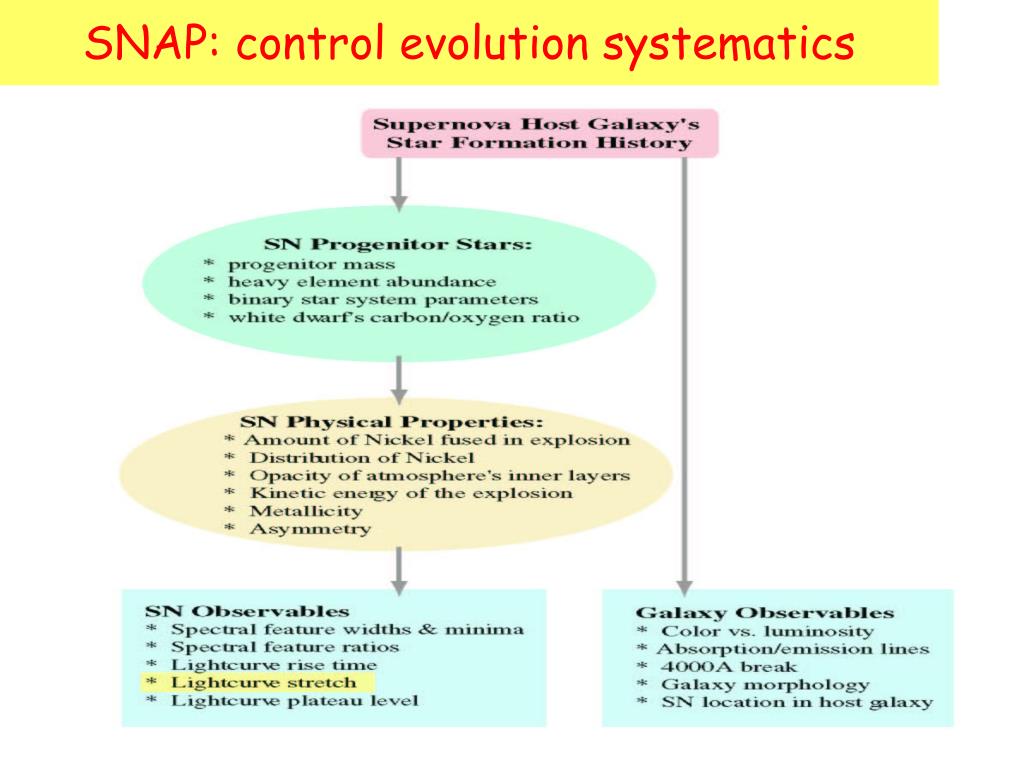

  48. SNAP: control evolution systematics

  49. Light curves Multi band Photometry Peak measurement 2 % K correction Selection bias Very precise measurement of beginning and end of light curve

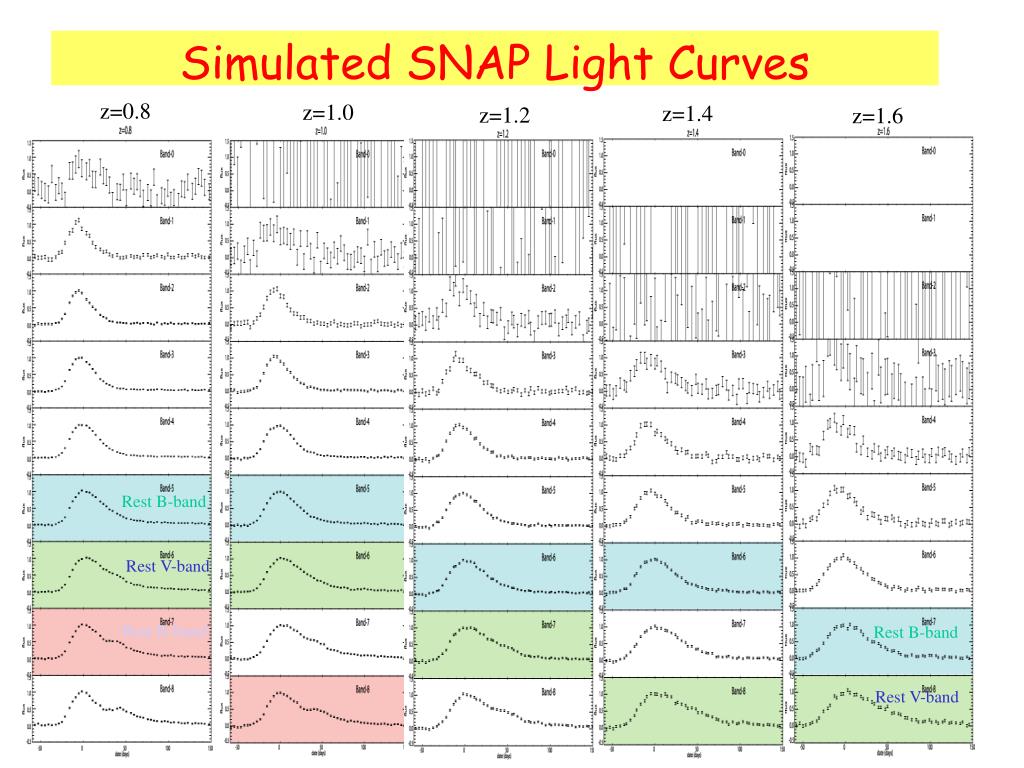

  50. Simulated SNAP Light Curves z=0.8 z=1.0 z=1.4 z=1.2 z=1.6 Rest B-band Rest V-band Rest R-band Rest B-band Rest V-band
