  1. Conductance through coupled quantum dots J. Bonča Physics Department, FMF, University of Ljubljana, J. Stefan Institute, Ljubljana, SLOVENIA

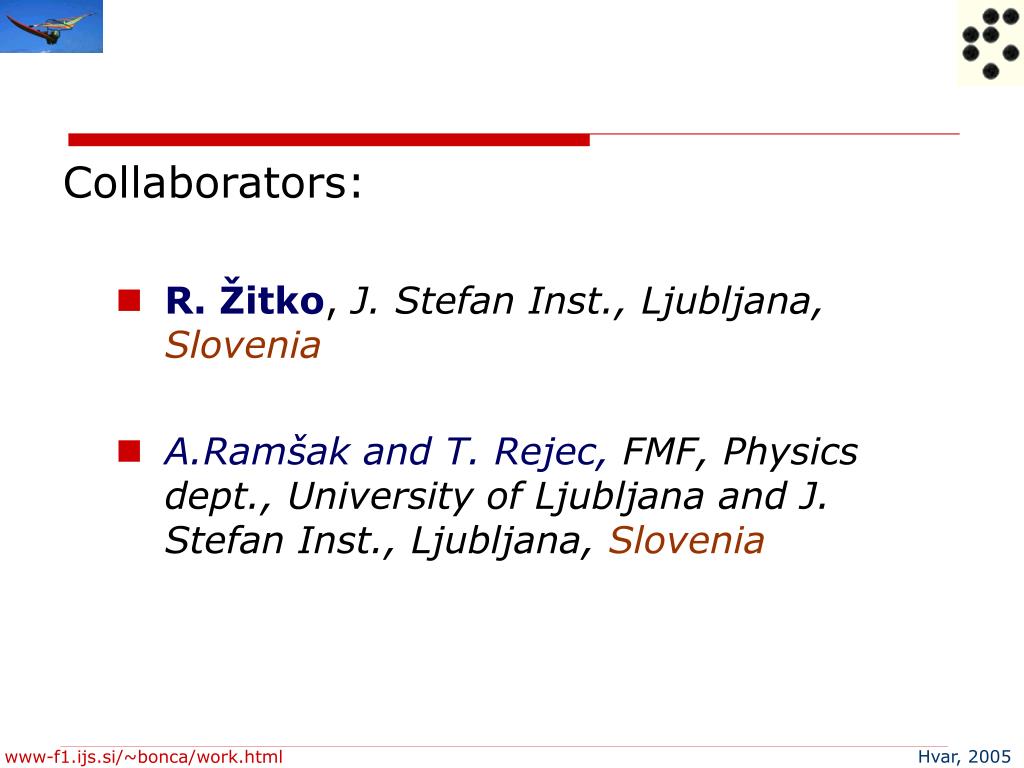

  2. Collaborators: • R. Žitko, J. Stefan Inst., Ljubljana, Slovenia • A.Ramšak and T. Rejec,FMF, Physics dept., University of Ljubljana and J. Stefan Inst., Ljubljana, Slovenia

  3. Introduction • Experimental motivation • Single QD: using three different methods: NRG, CPMC and GS – accurate results in a wide parameter regime • DQD system: • Large td: Kondo regimes for odd DQD occupancy • Small td: Two-stage Kondo regime • Adding FM coupling • Three QD’s: • Good agreement between CPMC and GS. • Two regimes • t’’>G: three peaks in G(d) due to 3 molecular levels • t’’<G: a single peak in G(d) of width ~ U

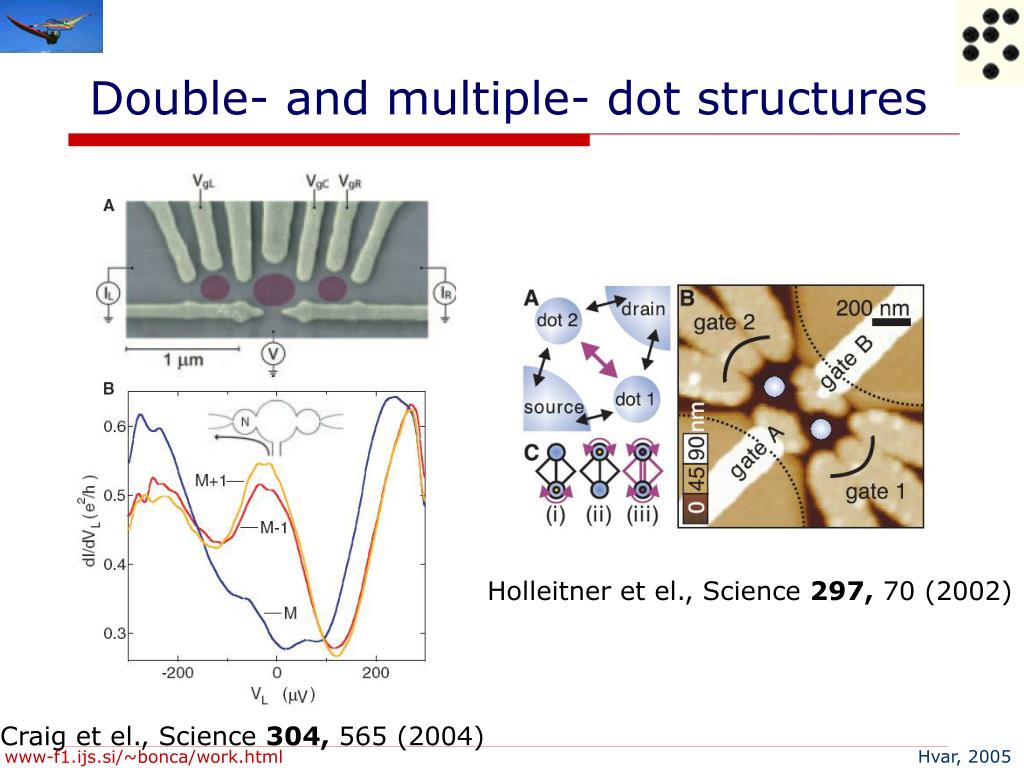

  4. Double- and multiple- dot structures Holleitner et el., Science 297, 70 (2002) Craig et el., Science 304, 565 (2004)

  5. Quantum Dot(Anderson single impurity problem) d

  6. ed+U ed Quantum Dot U=1 d d=ed+U/2

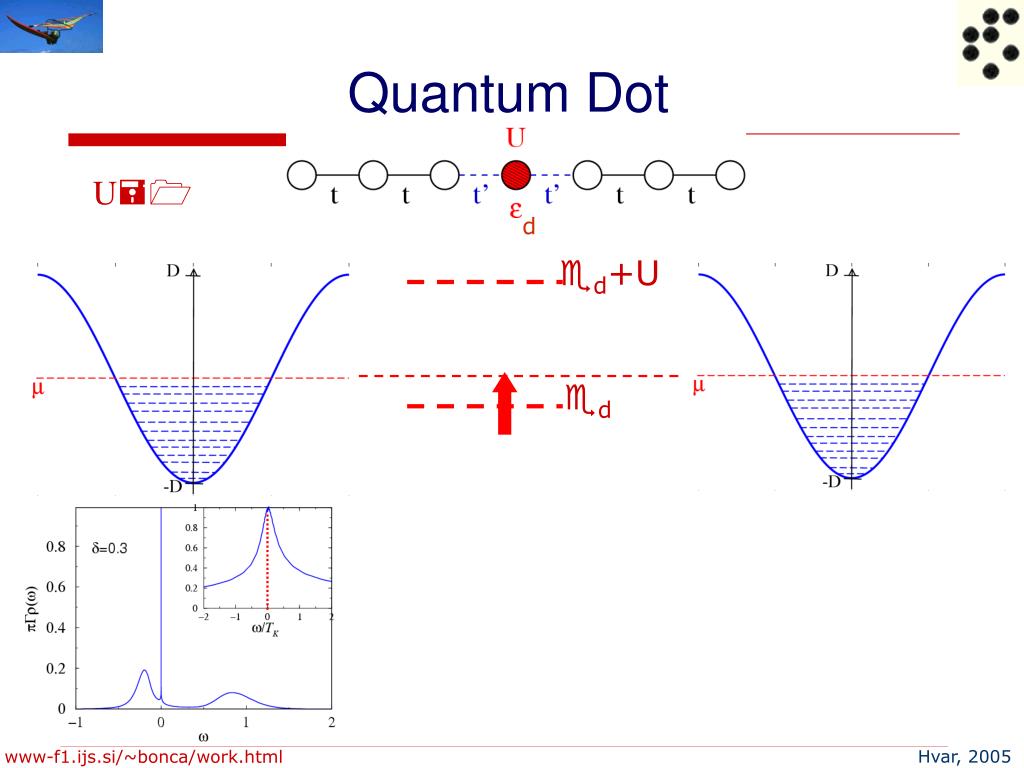

  7. ed+U ed Quantum Dot U=1 d

  8. ed+U ed Quantum Dot U=1 d

  9. ed+U ed Quantum Dot U=1 d

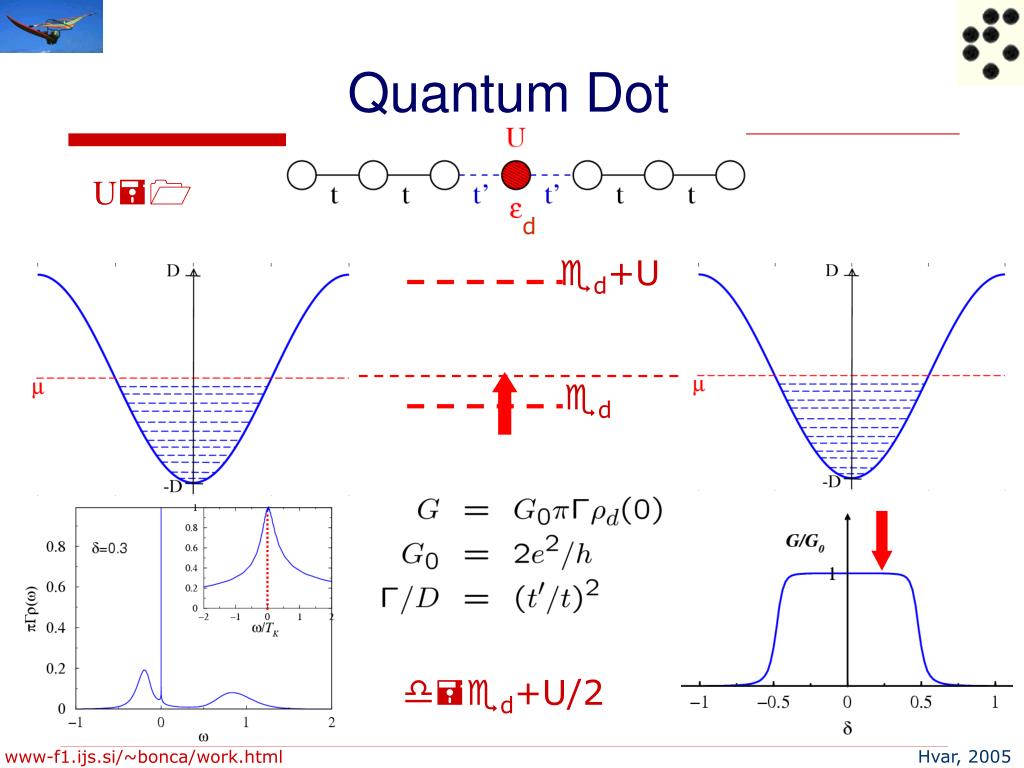

  10. ed+U ed Quantum Dot U=1 d

  11. ed+U ed Quantum Dot U=1 d

  12. ed+U ed Quantum Dot U=1 d

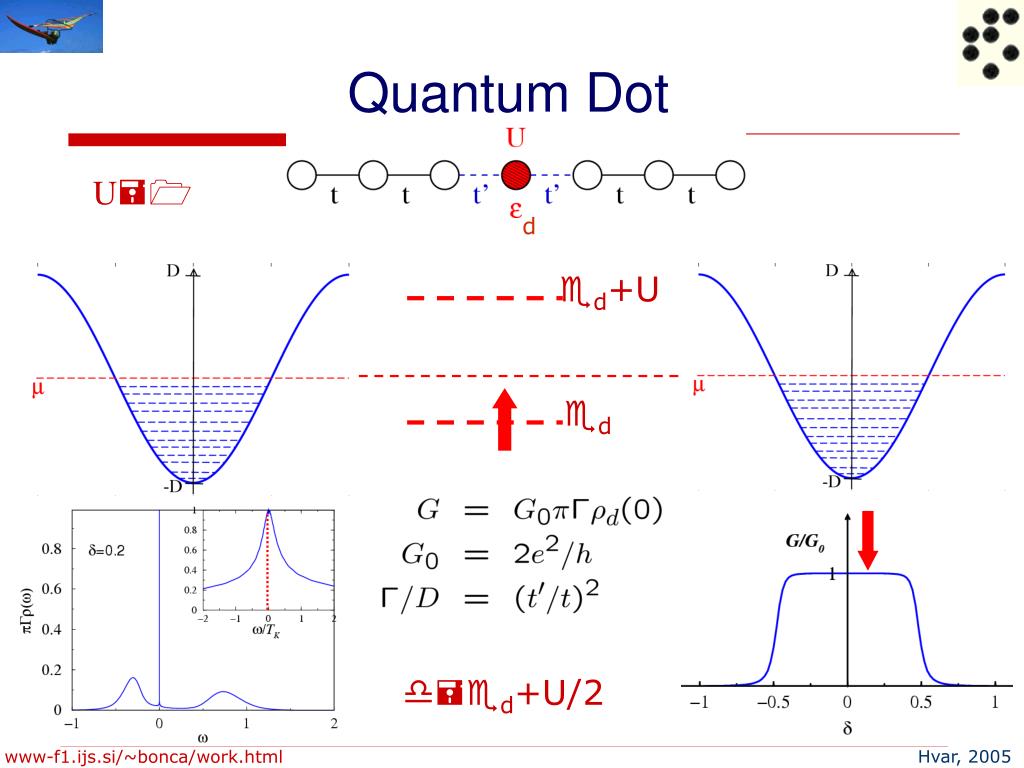

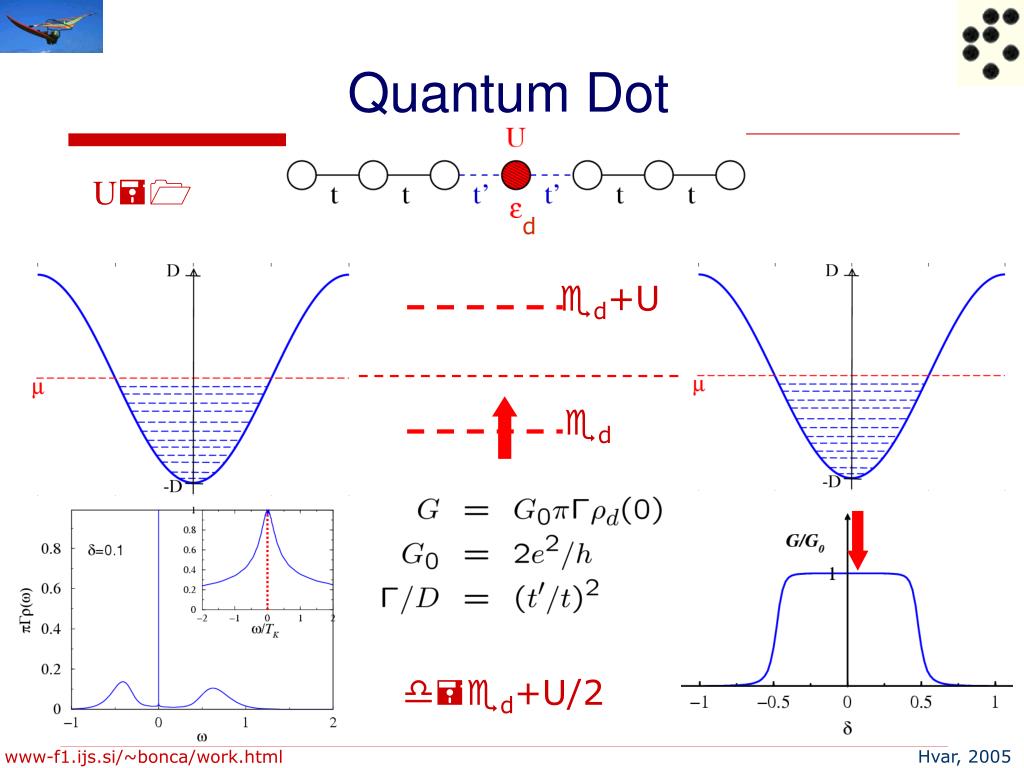

  13. ed+U ed Quantum Dot U=1 d d=ed+U/2 Meir-Wingreen, PRL 68,2512 (1992)

  14. ed+U ed Quantum Dot U=1 d d=ed+U/2

  15. ed+U ed Quantum Dot U=1 d d=ed+U/2

  16. ed+U ed Quantum Dot U=1 d d=ed+U/2

  17. ed+U ed Quantum Dot U=1 d d=ed+U/2

  18. ed+U ed Quantum Dot U=1 d d=ed+U/2

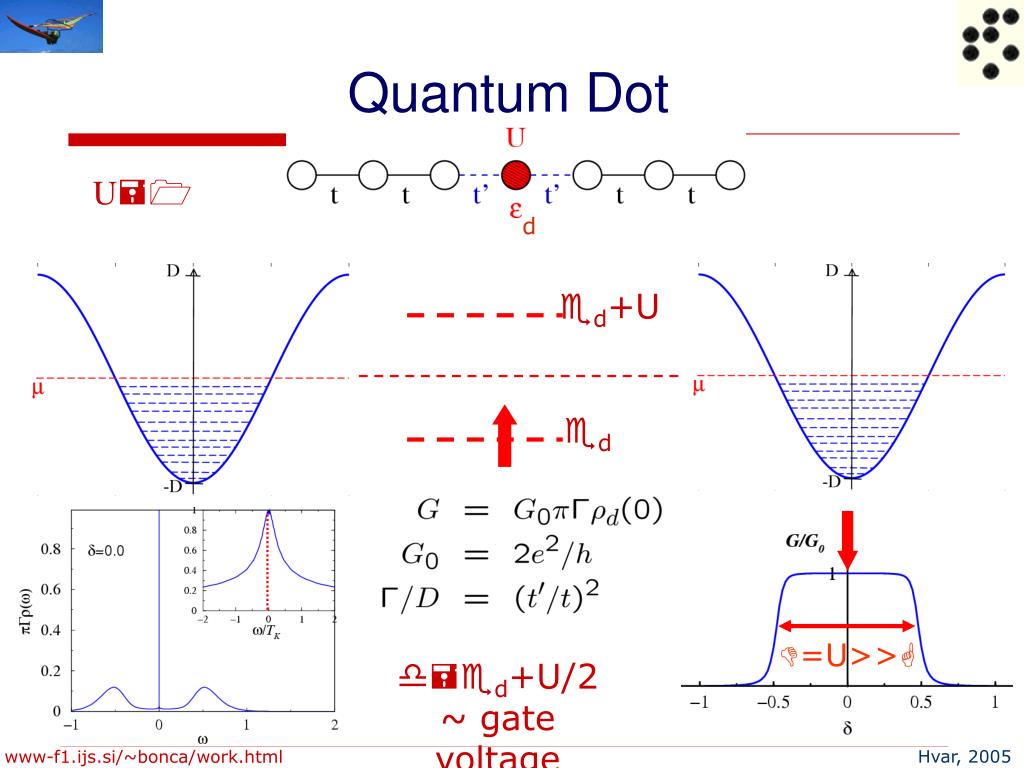

  19. ed+U ed Quantum Dot U=1 d D=U>>G d=ed+U/2 ~ gate voltage

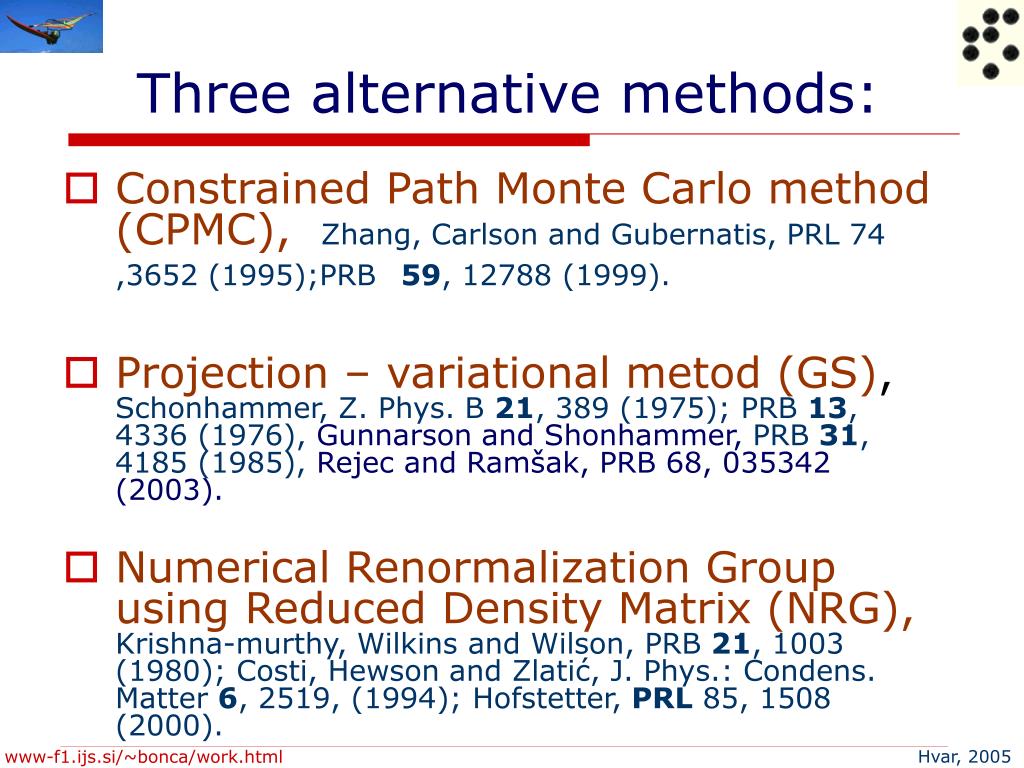

  20. Three alternative methods: • Constrained Path Monte Carlomethod(CPMC),Zhang, Carlson and Gubernatis, PRL 74 ,3652 (1995);PRB 59, 12788 (1999). • Projection – variational metod (GS), Schonhammer, Z. Phys. B 21, 389 (1975); PRB 13, 4336 (1976), Gunnarson and Shonhammer, PRB 31, 4185 (1985), Rejec and Ramšak, PRB 68, 035342 (2003). • Numerical Renormalization Group using Reduced Density Matrix (NRG), Krishna-murthy, Wilkins and Wilson, PRB 21, 1003 (1980); Costi, Hewson and Zlatić, J. Phys.: Condens. Matter 6, 2519, (1994); Hofstetter, PRL 85, 1508 (2000).

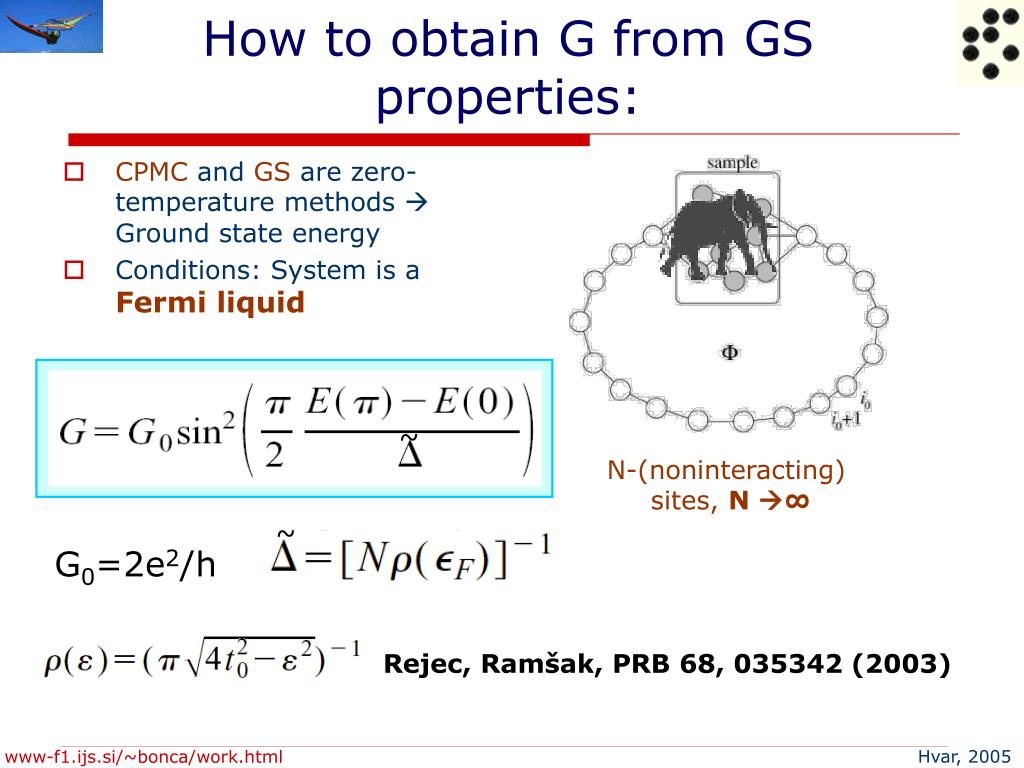

  21. How to obtain G from GS properties: • CPMC and GS are zero-temperature methods  Ground state energy • Conditions: System is a Fermi liquid ~ N-(noninteracting) sites, N ∞ ~ G0=2e2/h Rejec, Ramšak, PRB 68, 035342 (2003)

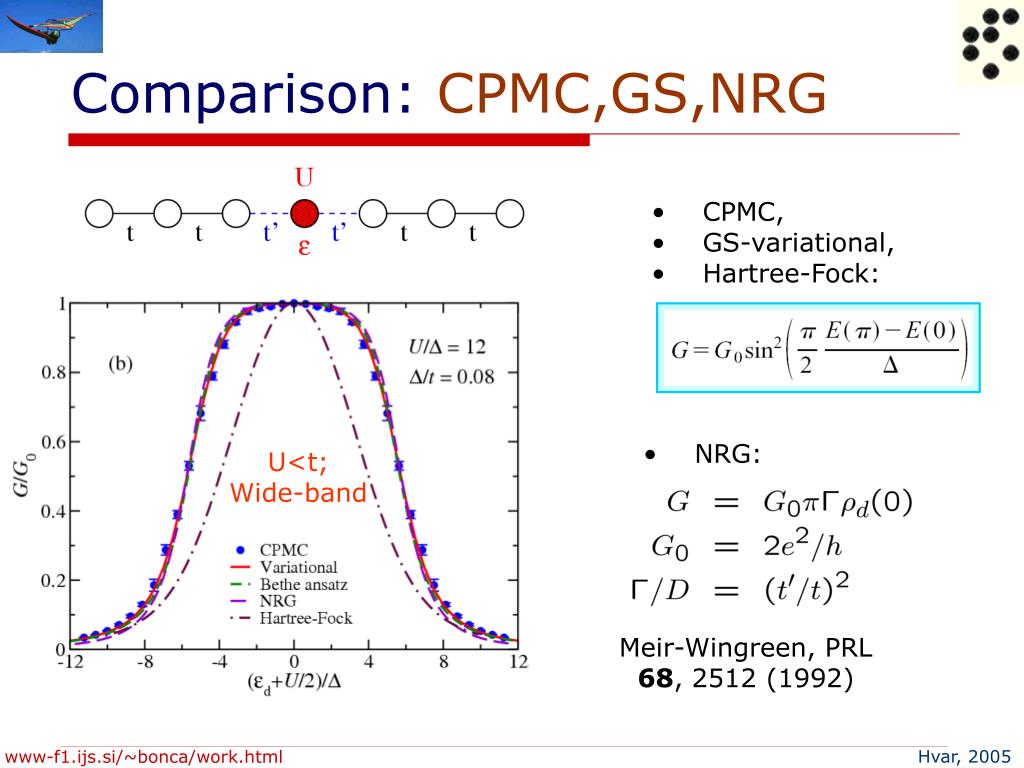

  22. Comparison: CPMC,GS,NRG • CPMC, • GS-variational, • Hartree-Fock: • NRG: U<t; Wide-band Meir-Wingreen, PRL 68,2512 (1992)

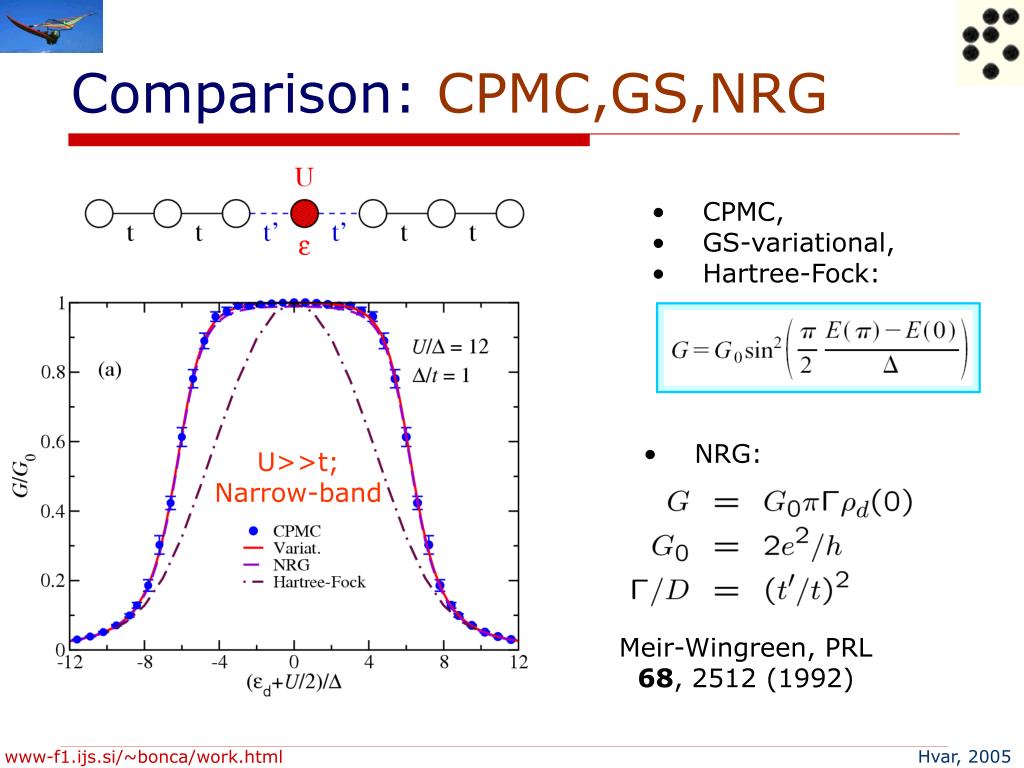

  23. Comparison: CPMC,GS,NRG • CPMC, • GS-variational, • Hartree-Fock: • NRG: U>>t; Narrow-band Meir-Wingreen, PRL 68,2512 (1992)

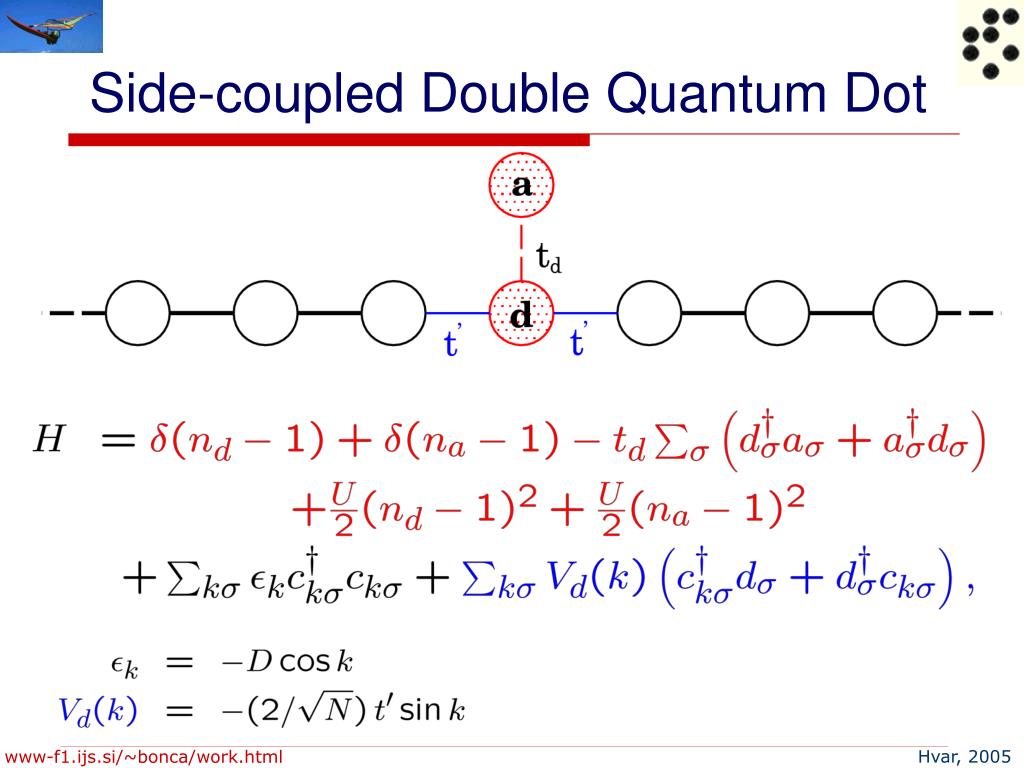

  24. Side-coupled Double Quantum Dot

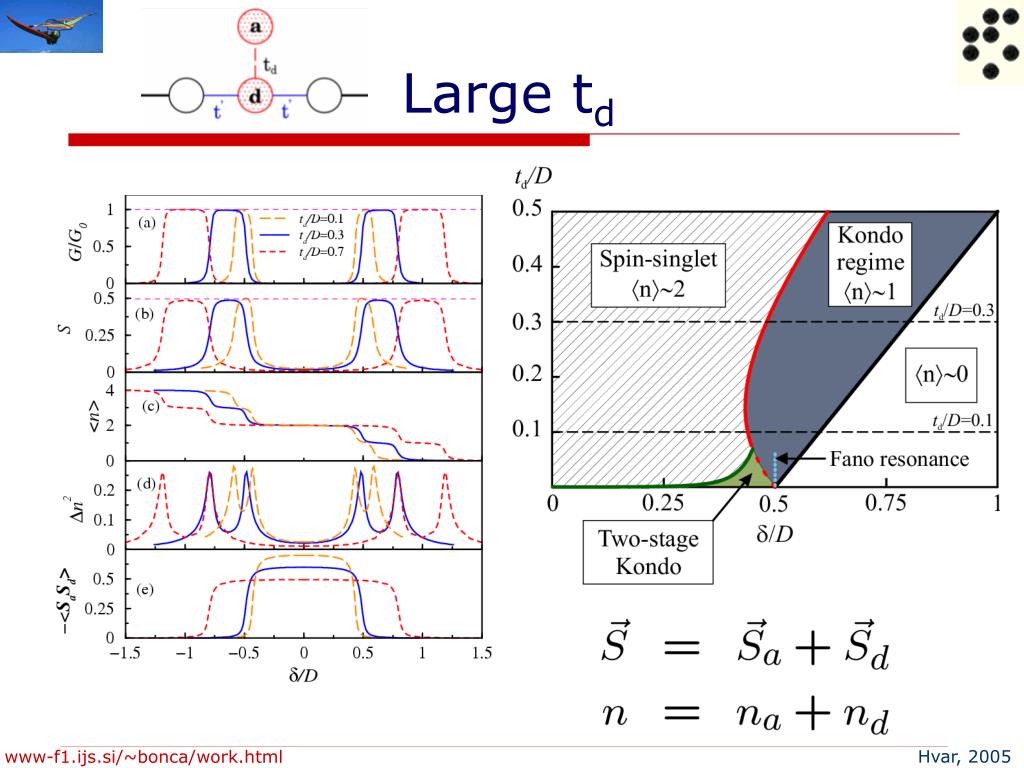

  25. Large td

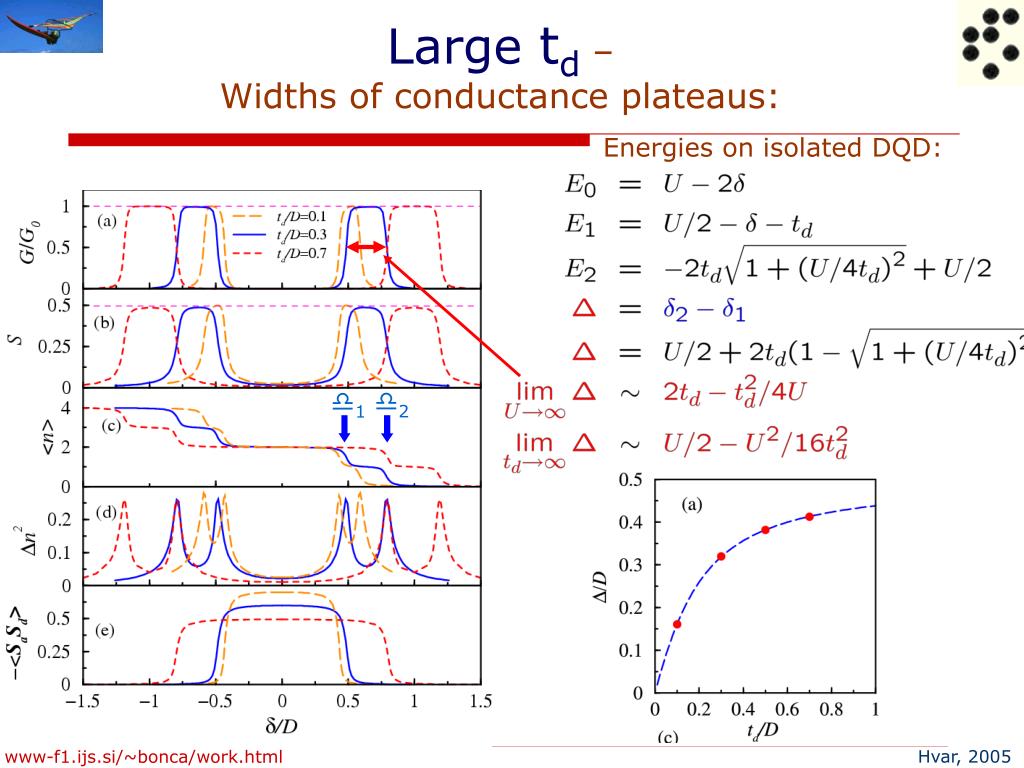

  26. Large td – Widths of conductance plateaus: Energies on isolated DQD: d2 d1

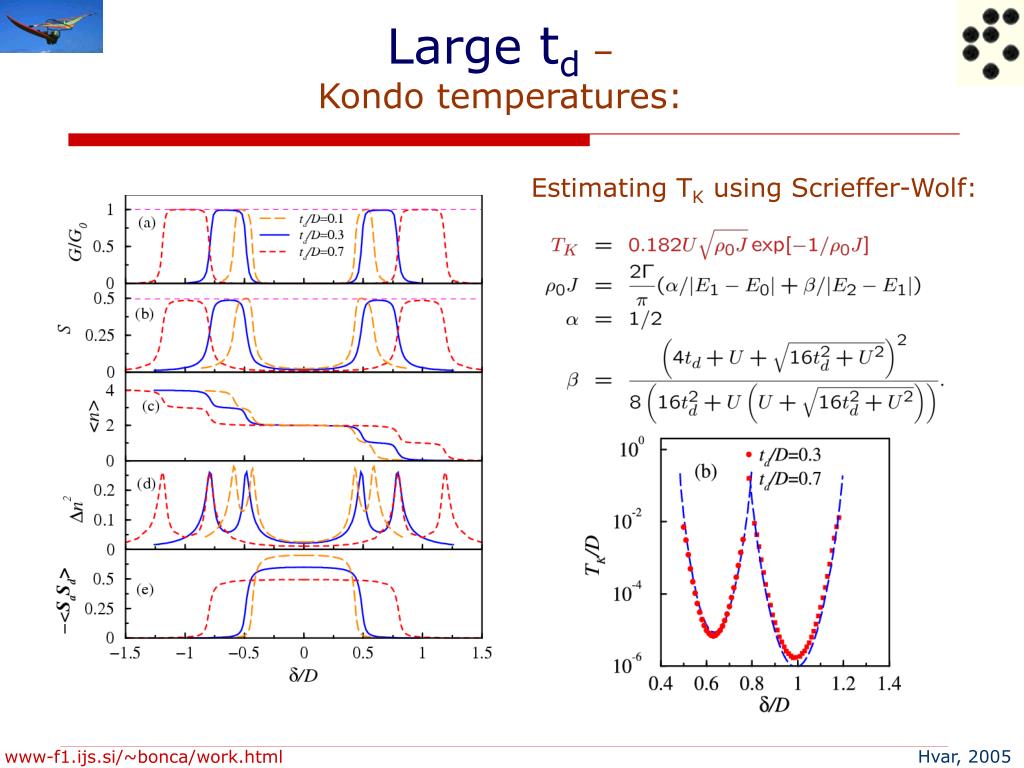

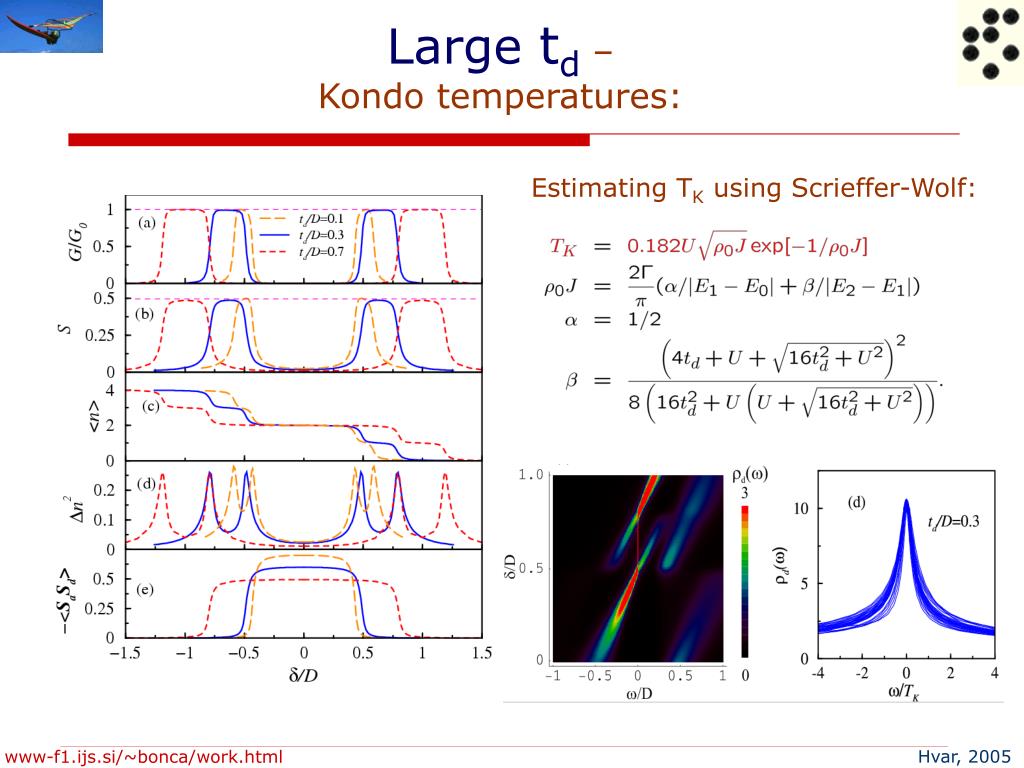

  27. Large td – Kondo temperatures: Estimating TK using Scrieffer-Wolf:

  28. Large td – Kondo temperatures: Estimating TK using Scrieffer-Wolf:

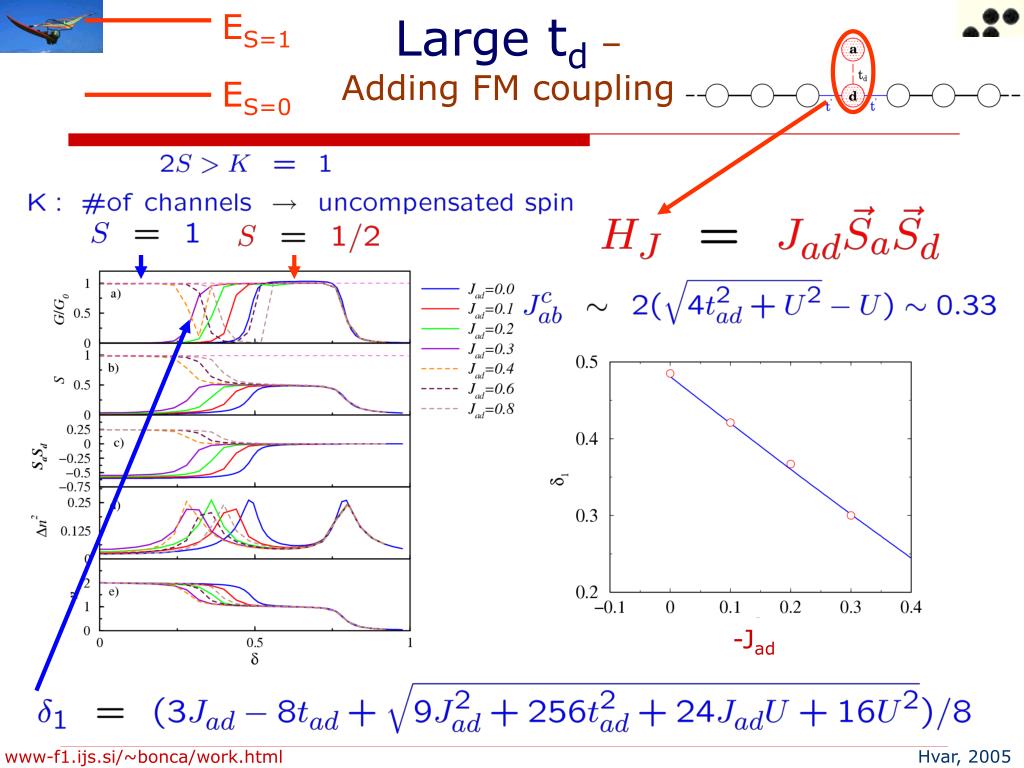

  29. ES=1 ES=0 Large td – Adding FM coupling -Jad

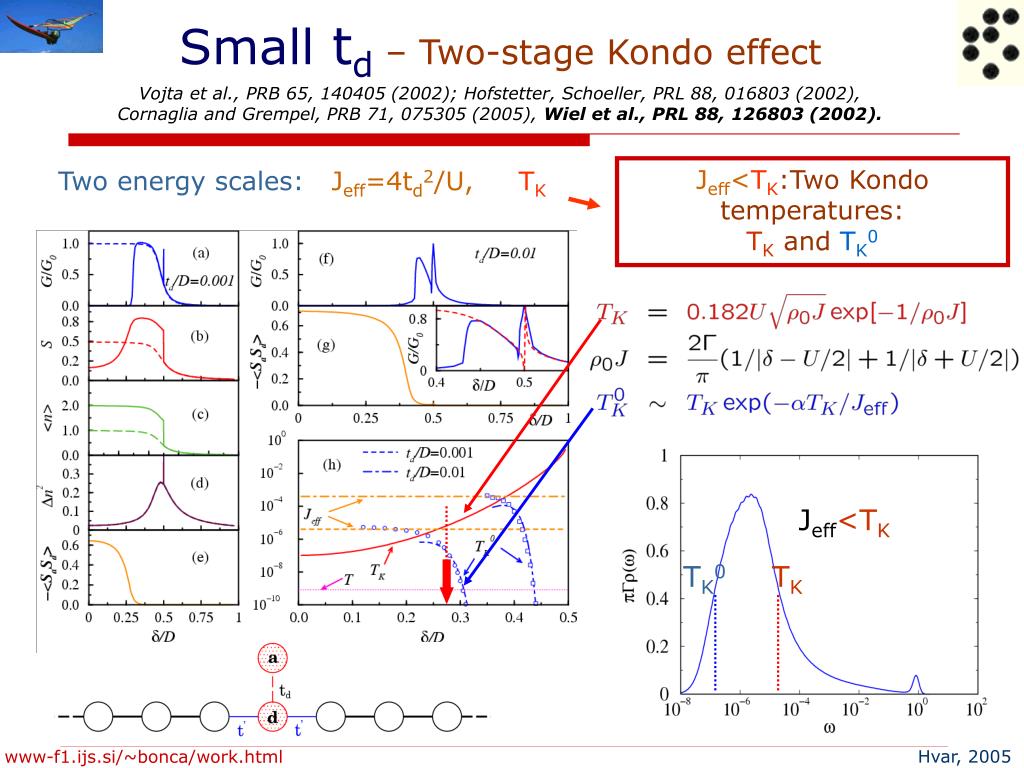

  30. Small td – Two-stage Kondo effect Vojta et al., PRB 65, 140405 (2002); Hofstetter, Schoeller, PRL 88, 016803 (2002), Cornaglia and Grempel, PRB 71, 075305 (2005), Wiel et al., PRL 88, 126803 (2002). Jeff<TK:Two Kondo temperatures: TK and TK0 Two energy scales: Jeff=4td2/U, TK Jeff<TK TK0 TK

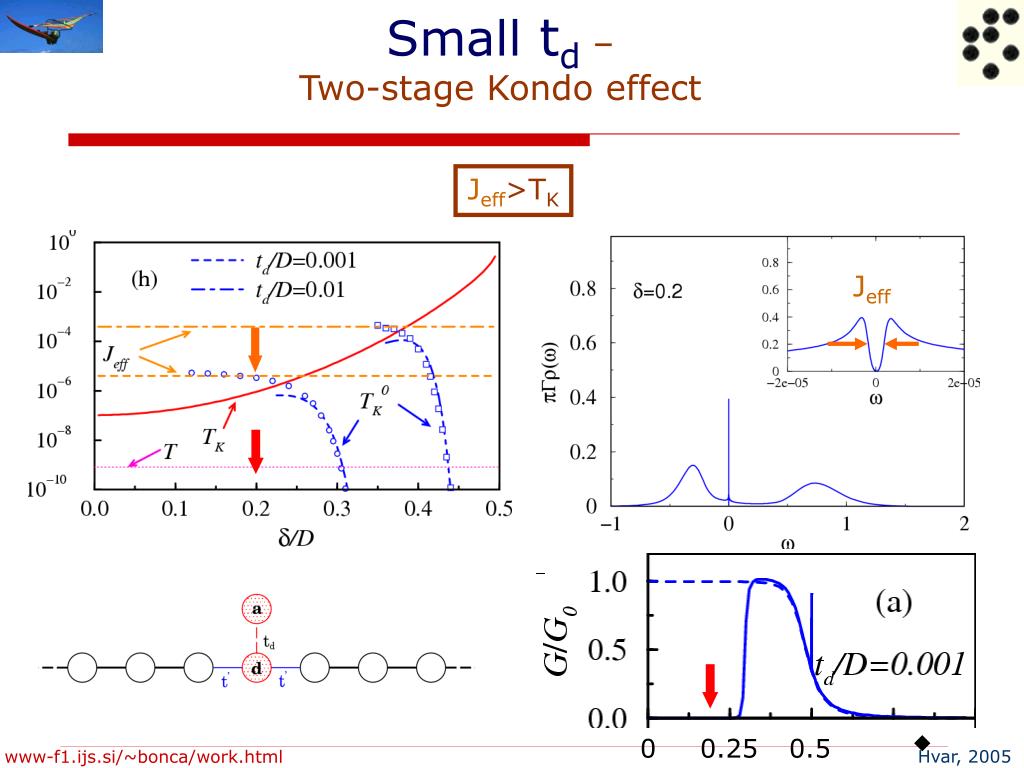

  31. Small td – Two-stage Kondo effect Jeff>TK Jeff w 0 0.25 0.5

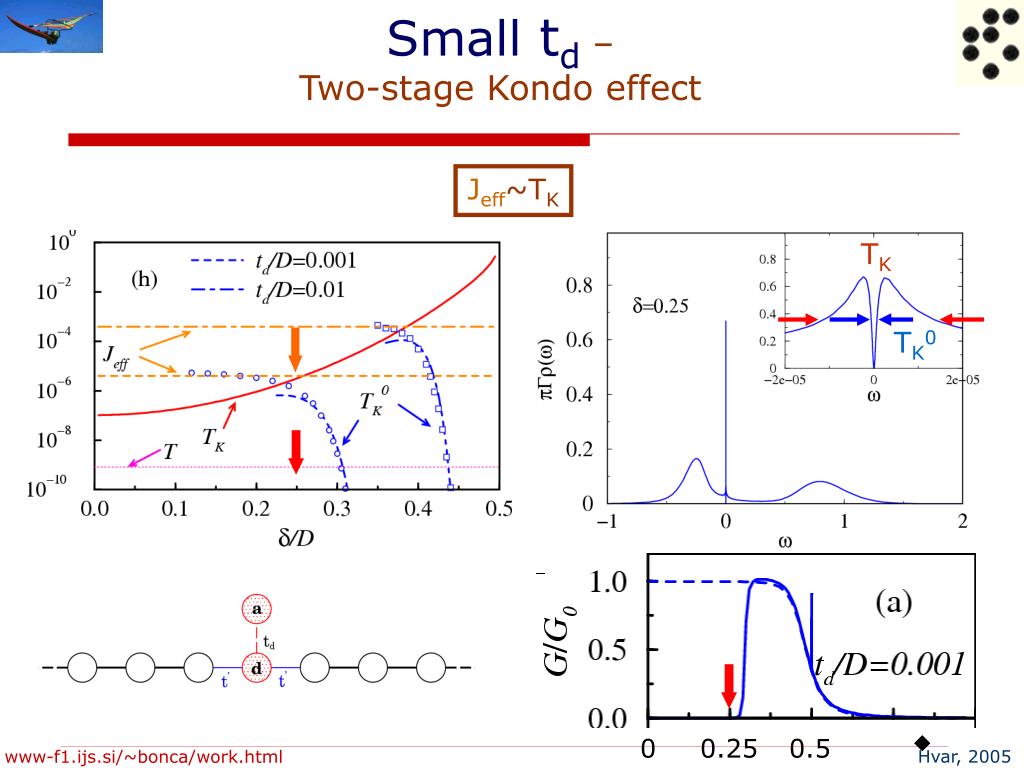

  32. Small td – Two-stage Kondo effect Jeff~TK TK TK0 w 0 0.25 0.5

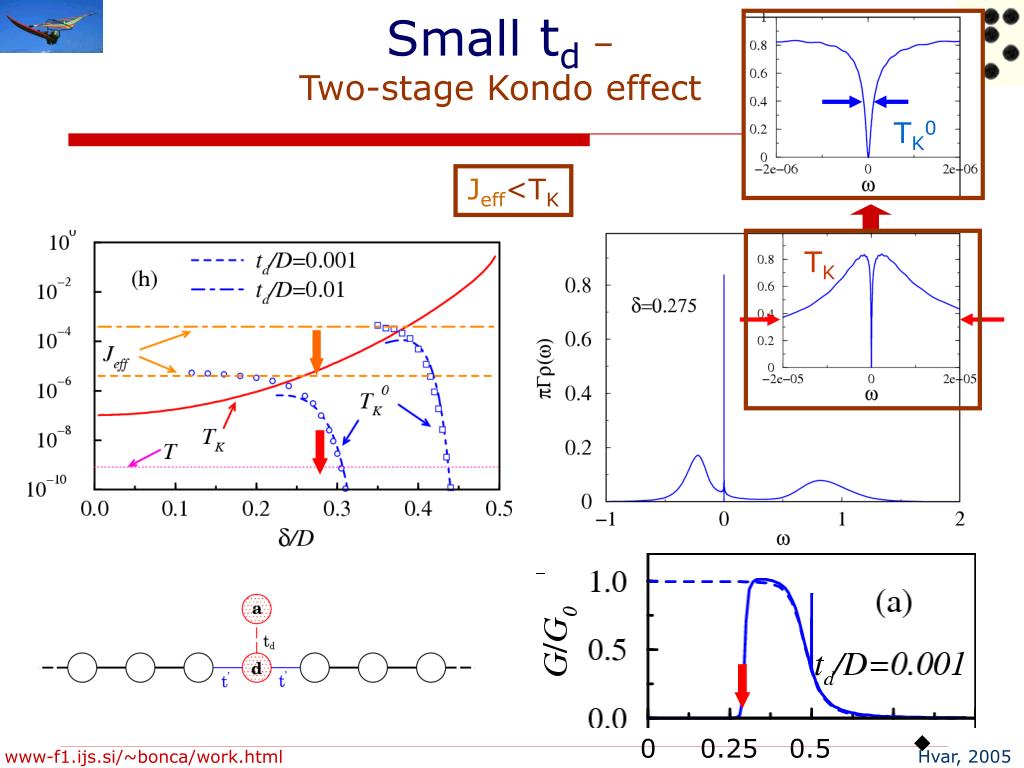

  33. Small td – Two-stage Kondo effect TK0 Jeff<TK TK w 0 0.25 0.5

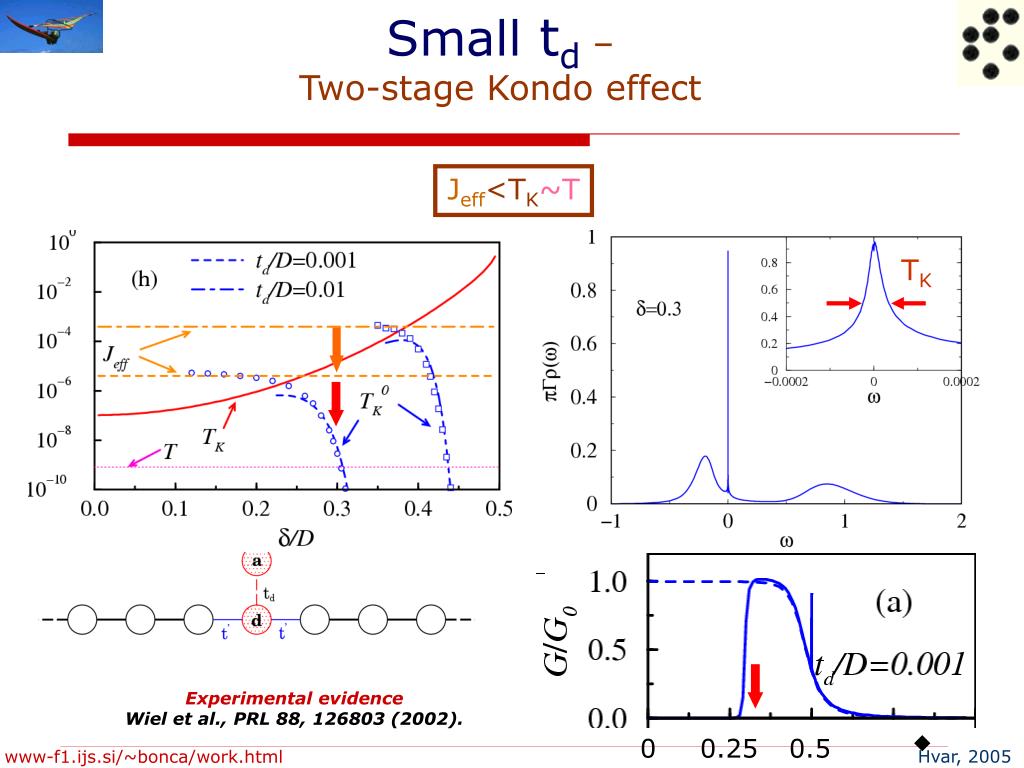

  34. Small td – Two-stage Kondo effect Jeff<TK~T TK Experimental evidence Wiel et al., PRL 88, 126803 (2002). w 0 0.25 0.5

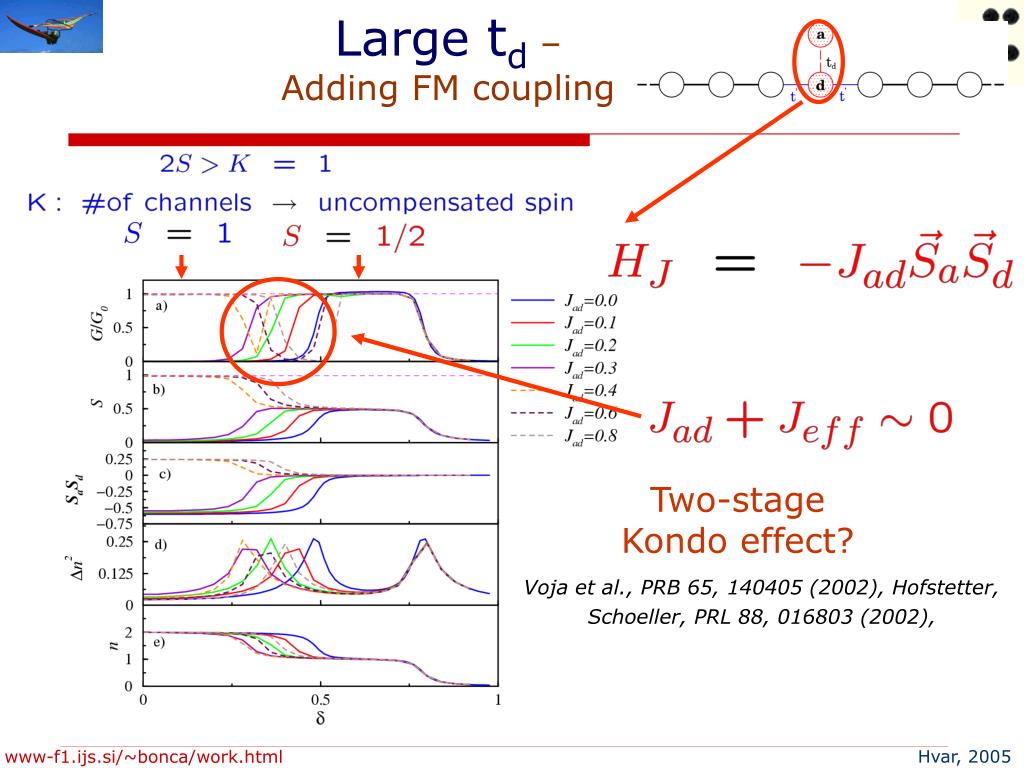

  35. Large td – Adding FM coupling Two-stage Kondo effect? Voja et al., PRB 65, 140405 (2002), Hofstetter, Schoeller, PRL 88, 016803 (2002),

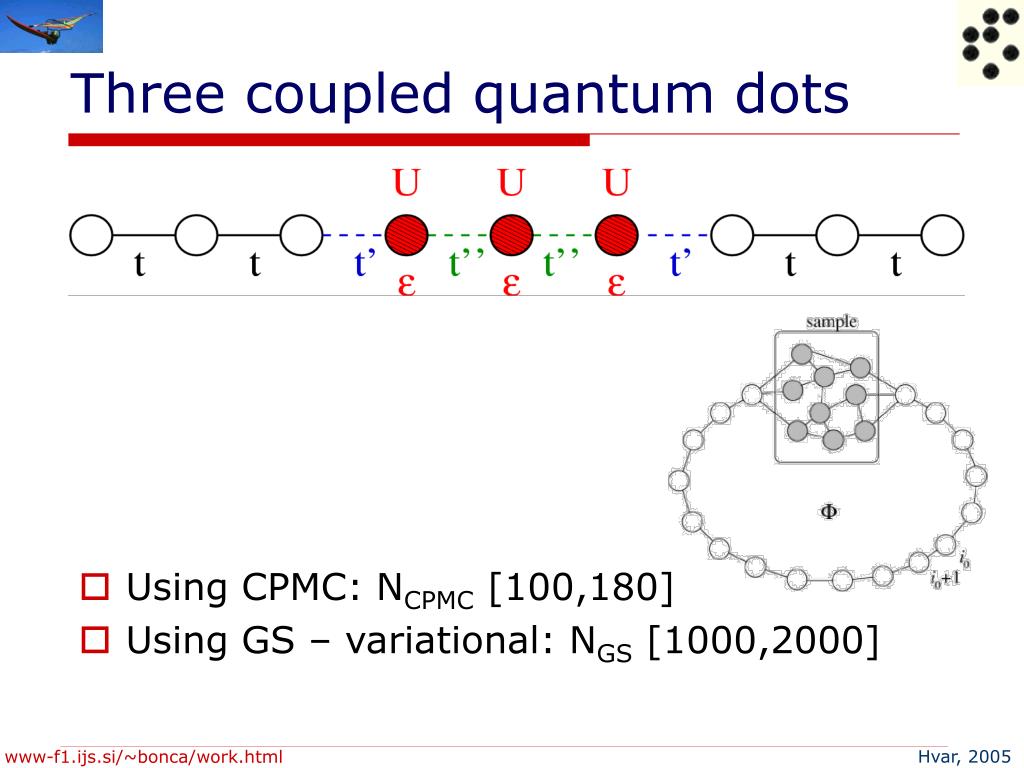

  36. Three coupled quantum dots • Using CPMC: NCPMC [100,180] • Using GS – variational: NGS [1000,2000]

  37. Three coupled QDs 1 2 3 Oguri, Nisikawa,Hewson, cond-mat/0504771

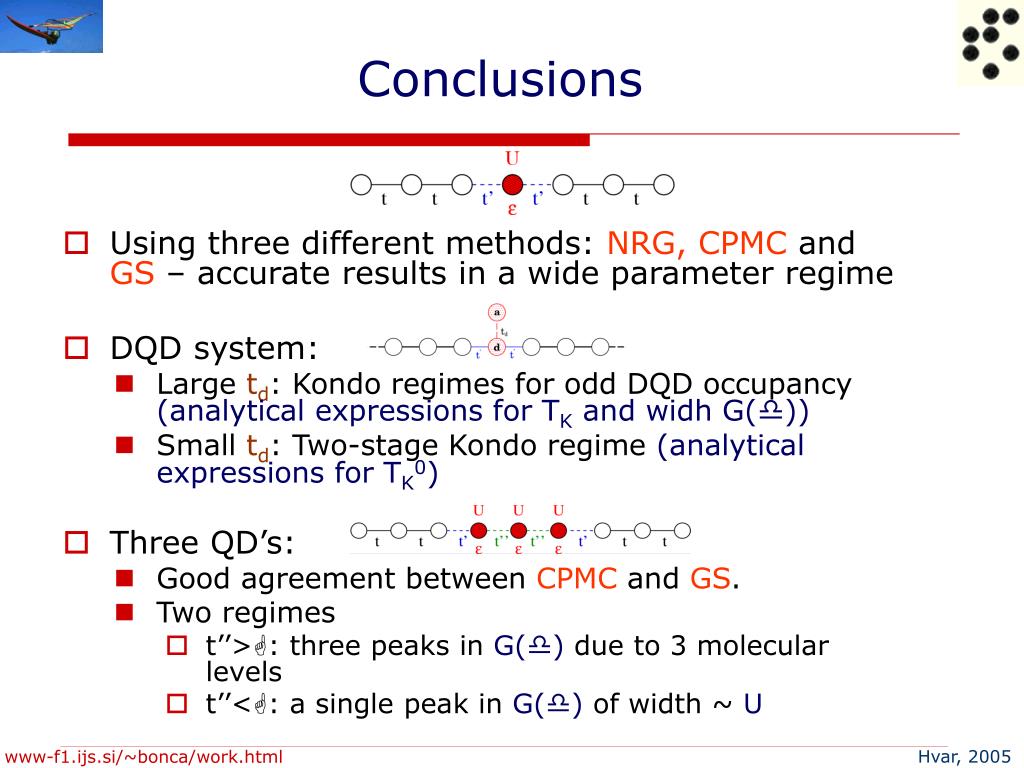

  38. Conclusions • Using three different methods: NRG, CPMC and GS – accurate results in a wide parameter regime • DQD system: • Large td: Kondo regimes for odd DQD occupancy (analytical expressions for TK and widh G(d)) • Small td: Two-stage Kondo regime (analytical expressions for TK0) • Three QD’s: • Good agreement between CPMC and GS. • Two regimes • t’’>G: three peaks in G(d) due to 3 molecular levels • t’’<G: a single peak in G(d) of width ~ U
