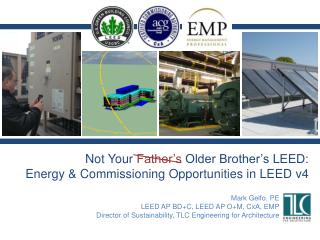

  1. Not YourFather’s Older Brother’s LEED: Energy & Commissioning Opportunities in LEED v4 Mark Gelfo, PE LEED AP BD+C, LEED AP O+M, CxA, EMP Director of Sustainability, TLC Engineering for Architecture

  2. What are we going to talk about? The CxA and EMP’s Opportunities, Roles, and Impact: • Designing High Performance Buildings • Commissioning • Measurement & Verification • Energy Auditing • Existing Building Cx At the conclusion of this session you will be able to: • Understand the new requirements of LEED v4 in general, and specifically as they apply to commissioning, retro-commissioning, and energy auditing • Understand the CxA’s and EMP’s Role, Responsibilities, and Opportunities on a LEED v4 Project (NC & EB O+M) • Be able to implement the Cx, Retro-Cx, and Energy Auditing Credit Requirements in multiple LEED v4 rating systems • Learn from the lessons learned from the LEED v4 beta projects and early projects in the v4 rating system

  3. How did we get here? Years in development Public comment periods Beta Projects USGBC Voting Membership Approval 4 6 120 86% • Launched at Greenbuild Philly last November • LEED 2009 available for new projects thru June 2015

  4. “If I had asked people what they wanted, they would have said faster horses.” -Henry Ford

  5. LEED v4 is not just a faster horse…. LEED v3 LEED v2 LEED v4 …it’s about performance.

  6. Matrix of New Rating Systems

  7. LEED BD+C vs LEED EB O+M ?? BD+C EB O+M Min Energy Performance Optimize Energy Performance Demand Response Min Energy Performance Optimize Energy Performance Demand Response Energy Performance Integrative Process Fundamental Cx & Verification Enhanced Cx: Include s Envelope Option Existing Building Cx: Implementation Ongoing Commissioning Commissioning Building Level Metering Advanced Energy Metering M&V is part of Cx Measurement & Verification Building Level Metering Advanced Energy Metering Energy Efficient Best Management Practices Existing Building Cx: Analysis Energy Auditing

  8. LEED BD+C plus LEED EB O+M !! EB O+M Designing High Performance Buildings Constructing High Performance Buildings Operating High Performance Buildings Auditing Low Performance Buildings EB-Cx of Low Performance Buildings BD+C • Integrative Process • Min/Optimize Energy Performance • Bldg Level & Advanced Energy Metering • Demand Response • Building Level Metering • Min Energy Performance • Energy Efficient Best Management Practices • Existing Building Cx: Analysis • Existing Building Cx: Implement • Optimize Energy Performance • Advanced Energy Metering • Fund Cx & Verification • Enhanced Cx + Envelope Option • Demand Response • M&V • Ongoing Cx Existing Low Performance Buildings EB O+M

  9. Designing High Performance Buildings in LEED v4 BD+C Credit: Integrative Process • Synergies & Strategies for energy and water • Start in Schematic Design & continue thru Design Phase • Conduct prelim energy & water research • Simple box energy model during SDs • Water budget analysis • Goal setting workshop • Evaluate Strategies • Document how analysis informed design, OPR & BOD Engage the Owner Align Common Goals Evaluate Project Costs

  10. Designing High Performance Buildings in LEED v4 • LEED v4 BD+C: ASHRAE 90.1 2010 EAp2: 5% Reduction EAc1: 50% Reduction =18 pts

  11. Designing High Performance Buildings in LEED v4 BD+C EA Prerequisite: Bldg Level Energy Metering • Building level meters for total bldg energy consumption: electric, natural gas, chilled water, steam, fuel oil, propane, etc • Compile data monthly, manual or automated • Commit to share for 5 years BD+C EA Credit: Advanced Energy Metering • Whole building energy sources, plus • Major users >10% of total load • Record to remote location • <1hr intervals, remotely accessible • Record consumption & demand

  12. Designing High Performance Buildings in LEED v4 BD+C EA Credit: Demand Response Case 1 – Demand Response Program Available • Shed 10% of Peak Load • On-site elec generation does NOT count • Include Demand Response in Cx Plan and Functional Testing Case 2 – No DR Program Available • Plan for Future DR Increase Participation in DR Programs Save Money Make Energy Gen & Dist More Efficient Defer Need for new Plants & Infrastructure Increase Grid Reliability Reduce Emissions

  13. Constructing High Performance Bldgs in LEED v4 Who can be the CxA? • Experience on 2 similar size/scope projects • Fundamental: Owner, independent consultant, employee of the design or construction firm not part of the project, or disinterested subcontractor • Fundamental: <20K sf can be member of design team or Contractor • Enhanced: Owner, independent consultant, or a disinterested subcontractor • Reports findings directly to Owner Expanded Commissioning Scope in LEED v4 “….as they relate to energy, water, indoor environmental quality, and durability”

  14. Constructing High Performance Bldgs in LEED v4 BD+C EA Prerequisite: Fundamental Cx & Verification What’s different? • List of 12 things CxA does • ASHRAE Guideline 0 & 1.1 • Envelope included in OPR, BOD, & Design Reviews • CxA on board by end of DDs • Prepare & Maintain Facilities Requirements & OM Plan • Design Review • Elec & Plumbing Scope Expanded

  15. Constructing High Performance Bldgs in LEED v4 BD+C EA Credit: Enhanced Cx & Verification What’s different? Option 1 • Path 1: (3 points) • Enhanced Cx, similar to LEED 2009 • Added Seasonal Testing • Added Re Cx Plan • Path 2: (4 points) • Path 1 + Measurement & Verification of Energy & Water Systems Option 2 • Envelope Cx (2 points) • Don’t have to do Option 1 to earn Option 2 • Path 2: Monitoring-based procedures to measure, evaluate & assess energy and water consuming systems. Include in Cx Plan.

  16. Design + Construction Case Study Example Lessons Learned from Palandino: • Manage expectations. • Preparation is essential. • Don’t chase points. Focus on performance. • Engage the team. • Take your time. Palandino Office Relocation Seattle, WA LEED ID+C v4 Beta Paladino was surprised to find its tenant improvements would qualify for only a silver rating under the new LEED version, not a platinum as it would under the old version. “Our internal commissioning team is using the monitoring requirements of LEED v4 to create a learning lab in our office, routing waste heat from the servers into the occupied office and exploring how carbon dioxide set points relate to natural ventilation needs”. http://www.djc.com/news/en/12062744.html Paladino’s offices have operable windows and steam heat. The 11-story building was completed in 1923.

  17. Existing Building Energy Auditing & EBCx: EMP Process

  18. Auditing Low Performance Buildings in LEED v4 Benchmarking with LEED v4 EBO+M: Score based on Performance EBO+M EA Prereq: Min Energy Performance • EnergyStar Score 75 • 25% improvement from historical benchmark EBO+M EA Credit: Optimize Energy Performance • EnergyStar Score 95 = 20 pts • 45% improvement =20pts

  19. Auditing Low Performance Buildings in LEED v4 EBO+M EA Prerequisite: Bldg Level Energy Metering • Building level meters for total bldg energy consumption: electric, natural gas, chilled water, steam, fuel oil, propane, etc • Compile data monthly, manual or automated • Commit to share for 5 years EBO+M EA Credit: Advanced Energy Metering • Whole building energy sources, plus • Major users >20% of total load (minus plugs) • Record to remote location • <1hr intervals, remotely accessible • Record consumption & demand

  20. Auditing Low Performance Buildings in LEED v4 EBO+M EA Prerequisite: Energy Efficiency Best Management Practices (no change from LEED v3) • ASHRAE Level 1 Energy Audit • Prepare & Maintain current Facility Requirements and O&M plan: • Sequence of Operations • Occupancy schedule • Equipment run-time schedules • HVAC equipment setpoints for all • Lighting Level setpoints • Minimum Outside Air requirements • Non-standard schedules or setpoints (seasonal, weekend, holiday, etc) • Mech & Elec systems narrative • Preventive Maintenance Plan

  21. Auditing Low Performance Buildings in LEED v4 EBO+M EA Credit: Existing Building Cx – Analysis (no change from LEED v3) Option 1: Existing Bldg Cx • Develop EbCx Plan, including: • “description of the approach for identifying and analyzing facility improvement opportunities” • “process for reviewing and prioritizing identified opportunities with the owner and developing an implementation plan” Option 2: Energy Audit • ASHRAE Level 2 Energy Survey & Analysis

  22. EBCx Low Performance Buildings in LEED v4 Complete EBCx - Analysis EBO+M EA Credit: Existing Building Cx - Implementation • Must first earn Existing Building Cx - Analysis credit • Energy systems, including ltg, process loads, HVAC, domestic HW & renewable energy • Implement no/low-cost operational improvements • Develop 5yr plan for equipment replacement, mods, upgrades • Confirm training of O&M staff • Develop tracking program (M&V) for projects implemented under EBCx process. Develop Implementation Plan Implement Low/No Cost ECMs & FIMs O&M Staff Training ECM Verification & Tracking (M&V) Plan Update Facility O&M Plan

  23. EBCx Low Performance Buildings in LEED v4 Show improvement from the initial Benchmarking with LEED v4 EBO+M: Score based on Performance EBO+M EA Prereq: Min Energy Performance • EnergyStar Score 75 • 25% improvement from historical benchmark EBO+M EA Credit: Optimize Energy Performance • EnergyStar Score 95 = 20 pts • 45% improvement =20pts

  24. Operating High Performance Buildings in LEED v4 EBO+M EA Credit: Demand Response Case 1: Demand Response Program Available • Shed 10% of peak (elec) demand, • Min 1 yr, with intent to continue • On-site elec generation NOT eligible • Include Demand Response in Cx Plan and Functional Testing Case 2: No DR Program Available • Plan for Future DR Case 3: Permanent Load Shift to Off-Peak • Shift 10% of peak (elec) demand • ie, Thermal Storage

  25. Operating High Performance Buildings in LEED v4 EBO+M EA Prerequisite: Bldg Level Energy Metering • Building level meters for total bldg energy consumption: electric, natural gas, chilled water, steam, fuel oil, propane, etc • Compile data monthly, manual or automated • Commit to share for 5 years EBO+M EA Credit: Advanced Energy Metering • Whole building energy sources, plus • Major users >20% of total load (minus plugs) • Record to remote location • <1hr intervals, remotely accessible • Record consumption & demand Commercial Building Total Site Energy Consumption Source: Energy Information Administration, 2003 Commercial Buildings Energy Consumption Survey, Table E1A. BAS

  26. Operating High Performance Buildings in LEED v4 EBO+M WE Prereq: Bldg Level Water Metering • Permanently installed • Measure total potable water use in building & grounds • Record Monthly. Manual or Automated EBO+M WE Credit: Water Metering • Permanently installed sub-meters (2 or 4 of following): • Irrigation (all) • Indoor plumbing fixtures (80% min) • Cooling Towers (all) • Domestic Hot Water (80% min) • Reclaimed Water (all) • Other Process Water (80% min) • Record min of weekly BAS

  27. Operating High Performance Buildings in LEED v4 Measurement & Verification Under BD+C EA Credit: Enhanced Cx & Verification • Path 2: Monitoring-based procedures to measure, evaluate & assess energy and water consuming systems. Include in Cx Plan. Under EBO+M EA Credit: Existing Building Cx - Implementation • Develop tracking program (M&V) for projects implemented under EBCx process.

  28. Operating High Performance Buildings in LEED v4 EBO+M EA Credit: Ongoing Commissioning (no change from LEED v3) • Must first earn Existing Building Cx - Analysis credit AND Existing Building Cx Implementation credit • Energy systems, including ltg, process loads, HVAC, domestic HW & renewable energy • Establish ongoing Cx process • Update Systems Manual • Update Facility O&M Plan

  29. Existing Building Operations Case Study Example • First LEED EBOM v4 Certified Project • Energy Star Rating of 81 • Earned all EBCx credits • Earned EBOM 2009 Gold • Simultaneously EBOM v4 Beta (Silver) 1800 K Street Washington, D.C. LEED v4 EBOM Silver 1800 K Street in Washington, D.C. (certified Silver under LEED for Existing Buildings: Operations & Maintenance, or LEED-EBOM

  30. How Does This Help Me Win More Work ? Energy Services & LEED v4

  31. How Does This Help Me Win More Work ? Energy Services & LEED v4

  32. What did we talk about? EB O+M Designing High Performance Buildings Constructing High Performance Buildings Operating High Performance Buildings Auditing Low Performance Buildings EB-Cx Low Performance Buildings BD+C • Integrative Process • Min/Optimize Energy Performance • Bldg Level & Advanced Energy Metering • Demand Response • Building Level Metering • Min Energy Performance • Energy Efficient Best Management Practices • Existing Building Cx: Analysis • Existing Building Cx: Implement • Optimize Energy Performance • Advanced Energy Metering • Fund Cx & Verification • Enhanced Cx + Envelope Option • Demand Response • M&V • Ongoing Cx Existing Low Performance Buildings EB O+M • Designing High Performance Buildings • Commissioning • Measurement & Verification • Energy Auditing • Existing Building Cx

  33. Design Green. Build Green. Operate Green. Questions ? Mark Gelfo TLC Engineering for Architecture mark.gelfo@tlc-eng.com 904-306-9111 Everyone Profits.
