Presentation Transcript
death by software

Death by Software

The Therac-25 Radio-Therapy Device

Brian MacKay

ESE6361 - Requirements Engineering – Fall 2013

Final Presentation

recap software that kills
Recap: Software that Kills
  • Early to mid-1980s
  • Revolutionary Double-Pass medical particle accelerator
  • Moved to complete software control
  • Injured 6 people, killing 3 of them
  • Two different underlying bugs
  • But it was more than just bugs
    • Poor software engineering practices
let s look at the pig in detail
Let’s Look at the PIG in Detail

Don’t Kill or Injure People

Injures & Kills People

Increment Overflow Bug

Indecipherable Error Messages

++

++

Malfunction 54 Bug

+

Operator “Malfunction Fatigue”

+

40 Malfunctions/

Day

assembly language programming

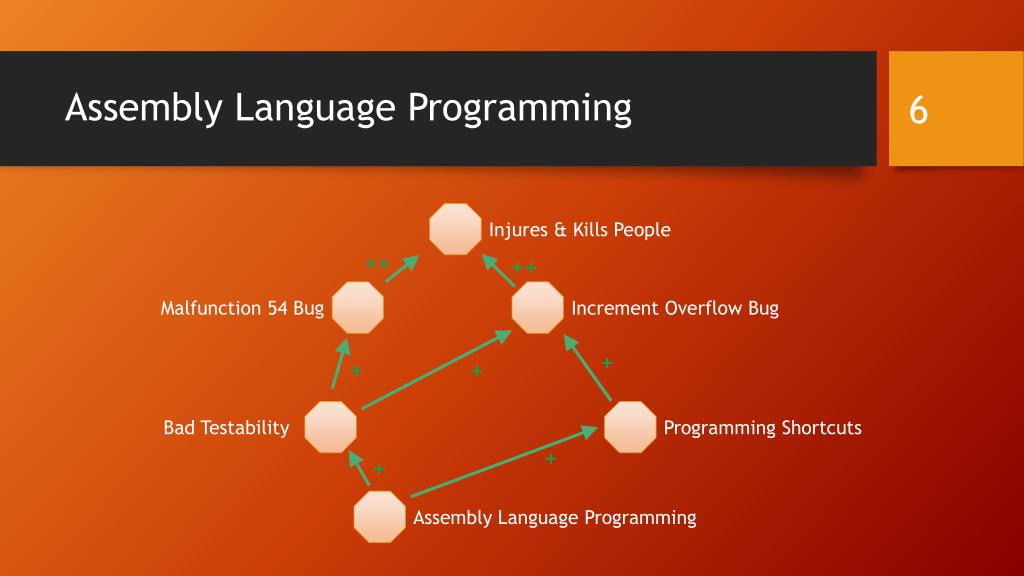

Assembly Language Programming

Injures & Kills People

Increment Overflow Bug

Assembly Language Programming

Programming Shortcuts

++

++

Malfunction 54 Bug

+

+

+

+

+

Bad Testability

code reuse
Code Reuse

Code Reuse

Injures & Kills People

Increment Overflow Bug

Expensive Hardware, etc

RT Synchronization Issues

++

++

Homemade RT-OS

Malfunction 54 Bug

+

+

+

++

+

+

“Working Code”

moving to complete computer control
Moving to Complete Computer Control

!!

Move to Computer Control

Mechanical Controls “Less Cool”

Toxic Situation

Increment Overflow Bug

Injures & Kills People

No Mechanical Interlocks

++

++

Mechanical Controls Fail

Malfunction 54 Bug

++

++

Code Reuse

++

+

+

cross cutting issues
Cross-Cutting Issues

Injures & Kills People

Increment Overflow Bug

Faith in Software

No Auditing

Hardware Focused Organization

++

++

Malfunction 54 Bug

the real issue
The Real Issue
  • A combination of:
    • Code Reuse
    • The removal of the mechanical interlocks
    • An unreasonable faith in Software
    • General bad software engineering practice
the solution domain
The Solution Domain
  • Based in early 1980’s technology
    • Hindsight is one thing
    • But 30 years of technological innovation is cheating
  • Based on my experiences
    • I was a junior engineer starting my career in process & manufacturing systems
control system design
Control System Design
  • In the 1980s – and now
  • Uses a “Distributed Control System”
  • Provides for strong segregation between the layers
  • Early user of networking technology
  • Typically combined
  • Done with a“PLC”
plc programmable logic controller
PLC: Programmable Logic Controller
  • In 1980s used “Ladder Logic” graphical programming language
  • Program spec-ed by an engineer – Programmed by an electrician
  • Consider…
plc ladder logic
PLC: Ladder Logic

Pump

Programmable by an Electrician

Pump On

Switch

Valve Position Open

the rest of the system
The Rest of the System
  • Multi-bus system and enclosure
  • Intel 8086 with 8087 coprocessor
  • 512 kilobytes of memory
  • 20 megabyte disk drive: program, logs and audits
  • Mark Williams “C” Compiler
  • Intel iRMX-86 real-time operating system
  • RS-232 and RS-485 serial connections
  • Commercial terminal management software
  • ANSI compatible terminal (e.g. VT-100)

All this is Off the Shelf

error messages
Error Messages
  • Even with something like aVT-100 Green Screen a “windowed” interface is possible
  • Lots of terminal management software was available commercially to handle this

PATIENT NAME : JOHN DOE

TREATMENT MODE : FIX BEAM TYPE: X ENERGY (MeV): 25

ACTUAL PRESCRIBED

UNIT RATE/MINUTE 0 200

MONITOR UNITS 50 50 200

TIME (MIN) 0.27 1.00

GANTRY ROTATION (DEG) 0.0 0 VERIFIED

COLLIMATOR ROTATION (DEG) 359.2 359 VERIFIED

COLLIMATOR X (CM) 14.2 14.3 VERIFIED

COLLIMATOR Y (CM) 27.2 27.3 VERIFIED

WEDGE NUMBER 1 1 VERIFIED

ACCESSORY NUMBER 0 0 VERIFIED

DATE : 84-OCT-26 SYSTEM : BEAM READY OP.MODE: TREAT AUTO

TIME : 12:55. 8 TREAT : TREAT PAUSE X-RAY 173777

OPR ID : T25VO2-RO3 REASON : OPERATOR COMMAND:

PATIENT NAME : JOHN DOE

TREATMENT MODE : FIX BEAM TYPE: X ENERGY (MeV): 25

ACTUAL PRESCRIBED

UNIT RATE/MINUTE 0 200

MONITO┌──────────────────────────────────────┐

TIME │ Error 54: │

│ This is a serious error and could │

GANTRY ROT│ compromise patient safety │ VERIFIED

COLLIMATOR│ The system must be reset │ VERIFIED

COLLIMATOR│ [Enter] │ VERIFIED

COLLIMATOR└──────────────────────────────────────┘ VERIFIED

WEDGE NUMBER 1 1 VERIFIED

ACCESSORY NUMBER 0 0 VERIFIED

DATE : 84-OCT-26 SYSTEM : BEAM READY OP.MODE: TREAT AUTO

TIME : 12:55. 8 TREAT : TREAT PAUSE X-RAY 173777

OPR ID : T25VO2-RO3 REASON : OPERATOR COMMAND:

final system design
Final System Design

Intel 8086/8087

Running iRMX-86

Programmed in “C”

UI Implemented Using Commercial Terminal Manager Software

PLC Programmed in Ladder Logic

references
References
  • “Medical Devices – The Therac-25”,Levenson, Nancy.http://sunnyday.mit.edu/papers/therac.pdf
  • “An Investigation of the Therac-25 Accidents”, Levenson, Nancy and Turner, Clark S., IEEE Computer, Vol. 26, No. 7, July 1993, pp. 18-41http://courses.cs.vt.edu/~cs3604/lib/Therac_25/Therac_1.html
  • “Fatal Dose - Radiation Deaths linked to AECL Computer Errors”,Rose, Barbara Wade, Saturday Night (magazine), June, 1994http://www.ccnr.org/fatal_dose.html
  • “Safety-Critical Computing: Hazards, Practices, Standards, and Regulation”, Jacky, Jonathan, http://staff.washington.edu/jon/pubs/safety-critical.html
  • “Therac-25”,Wikipediahttp://en.wikipedia.org/wiki/Therac-25
