  1. eDevelopment Technologies to empower, enrich and interconnect Michael L. BestLeandro BurnesMarco EscobedoHani Shakeel Pilot Project - Bohechio Village Area Network March of 2001

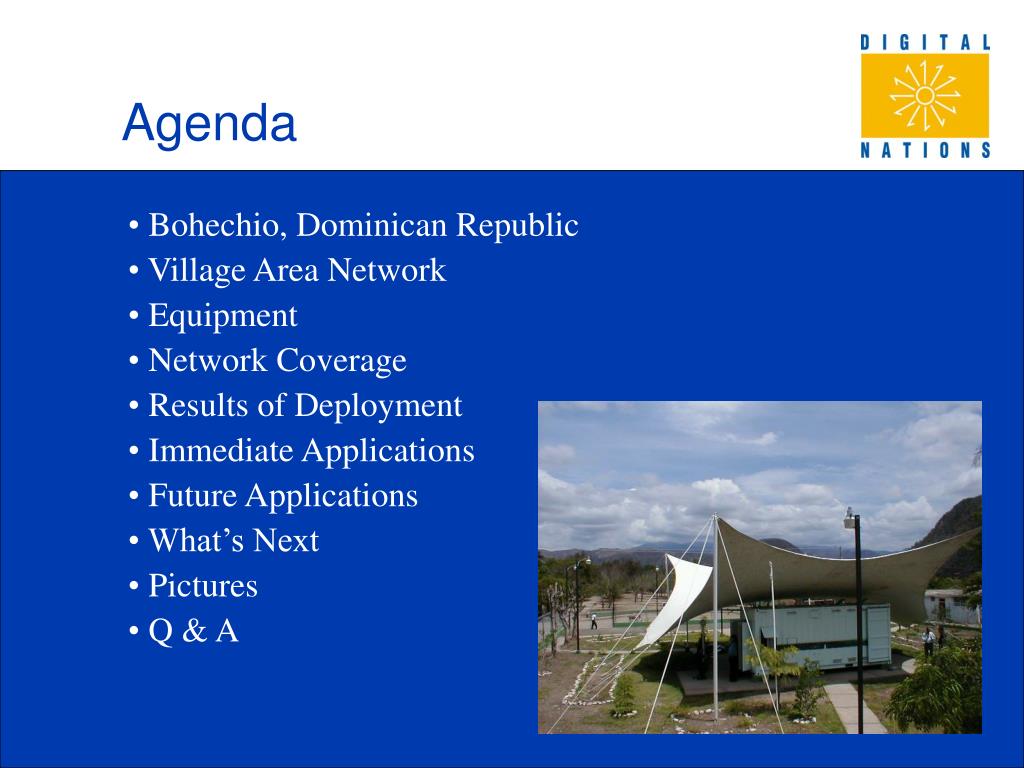

  2. Agenda • Bohechio, Dominican Republic • Village Area Network • Equipment • Network Coverage • Results of Deployment • Immediate Applications • Future Applications • What’s Next • Pictures • Q & A

  3. Bohechio, Dominican Republic • Located in the center of the • Dominican Republic. • Population is approximately • 10,000 people. • Main economic activities are • agriculture and livestock. • Prior to Wireless Village Area • Network, only 5 telephone lines.

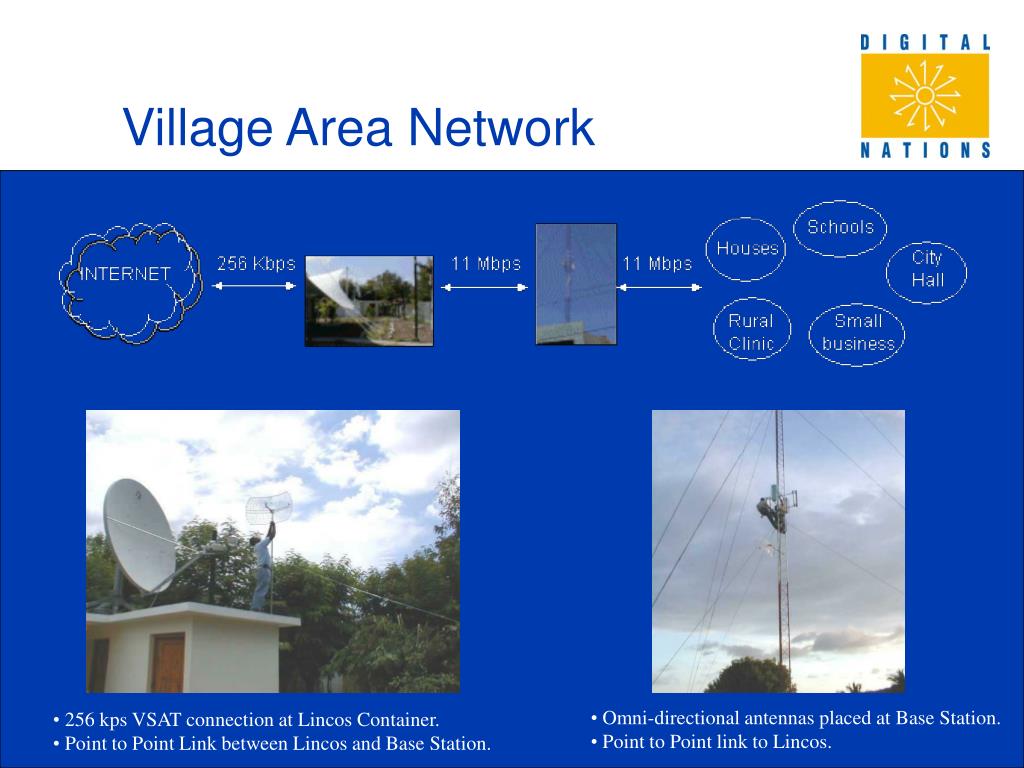

  4. Village Area Network • Omni-directional antennas placed at Base Station. • Point to Point link to Lincos. • 256 kps VSAT connection at Lincos Container. • Point to Point Link between Lincos and Base Station.

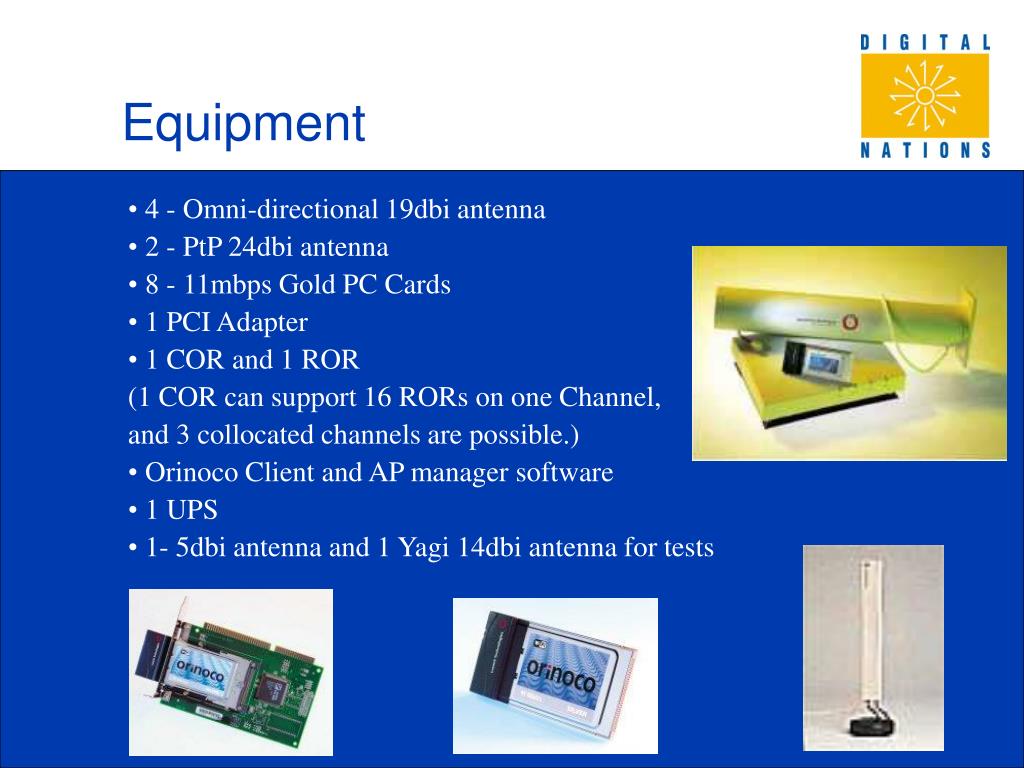

  5. Equipment • 4 - Omni-directional 19dbi antenna • 2 - PtP 24dbi antenna • 8 - 11mbps Gold PC Cards • 1 PCI Adapter • 1 COR and 1 ROR • (1 COR can support 16 RORs on one Channel, • and 3 collocated channels are possible.) • Orinoco Client and AP manager software • 1 UPS • 1- 5dbi antenna and 1 Yagi 14dbi antenna for tests

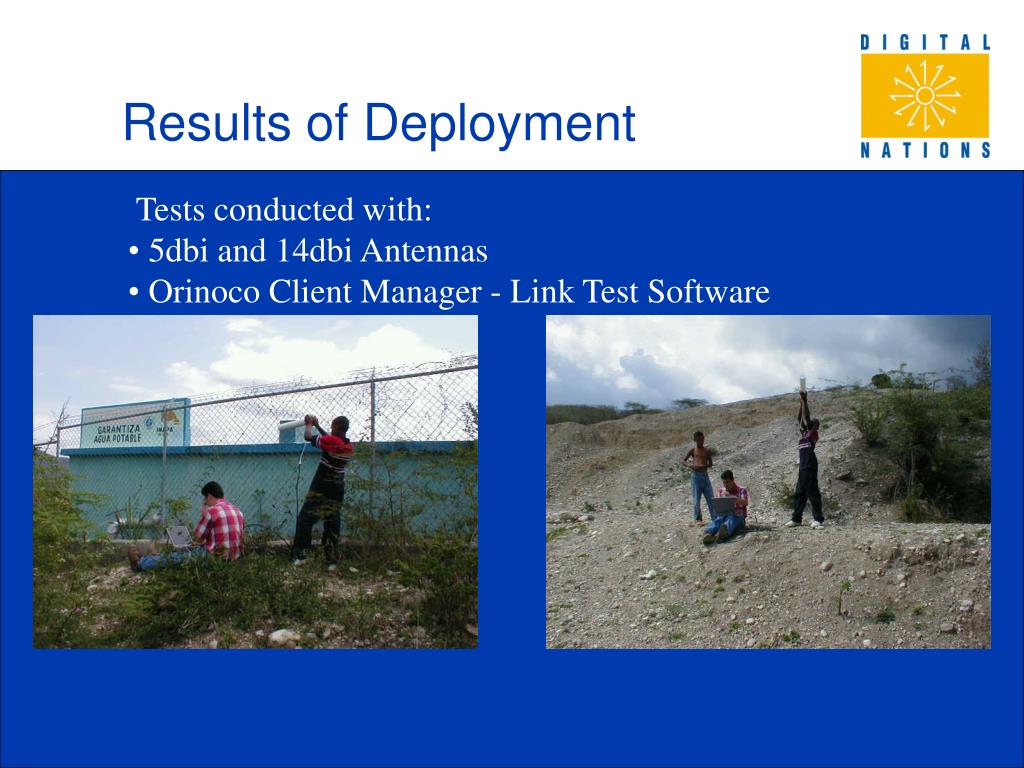

  6. Results of Deployment • Tests conducted with: • 5dbi and 14dbi Antennas • Orinoco Client Manager - Link Test Software

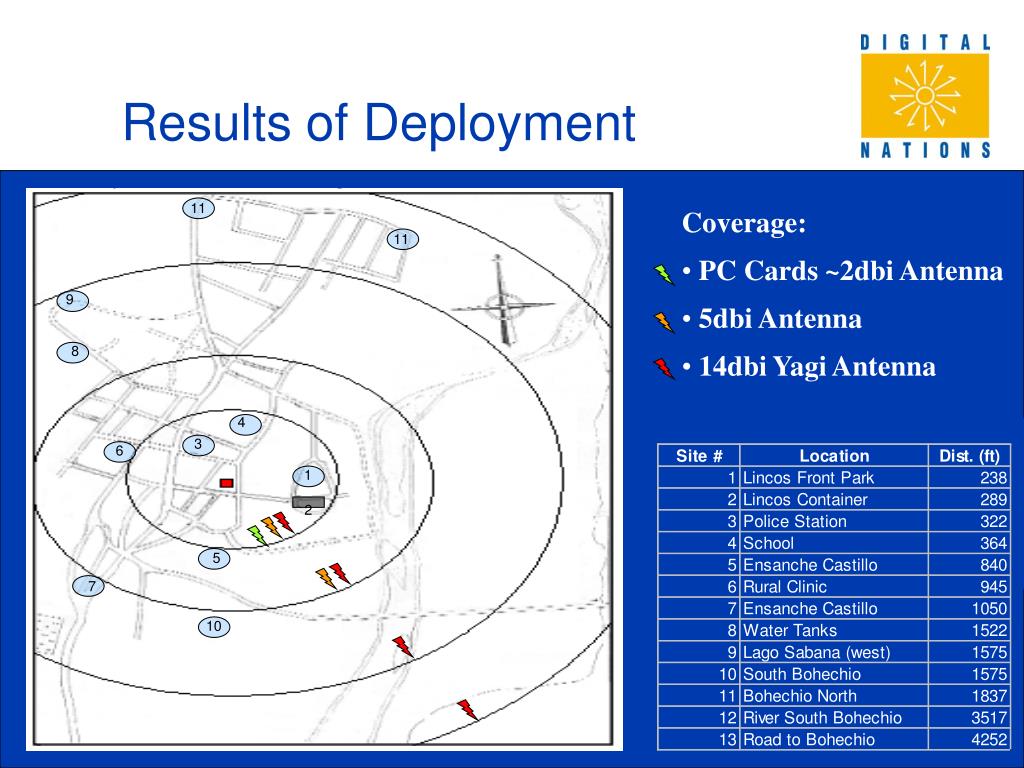

  7. 11 11 9 8 4 3 6 1 2 5 7 10 Results of Deployment • Coverage: • PC Cards ~2dbi Antenna • 5dbi Antenna • 14dbi Yagi Antenna

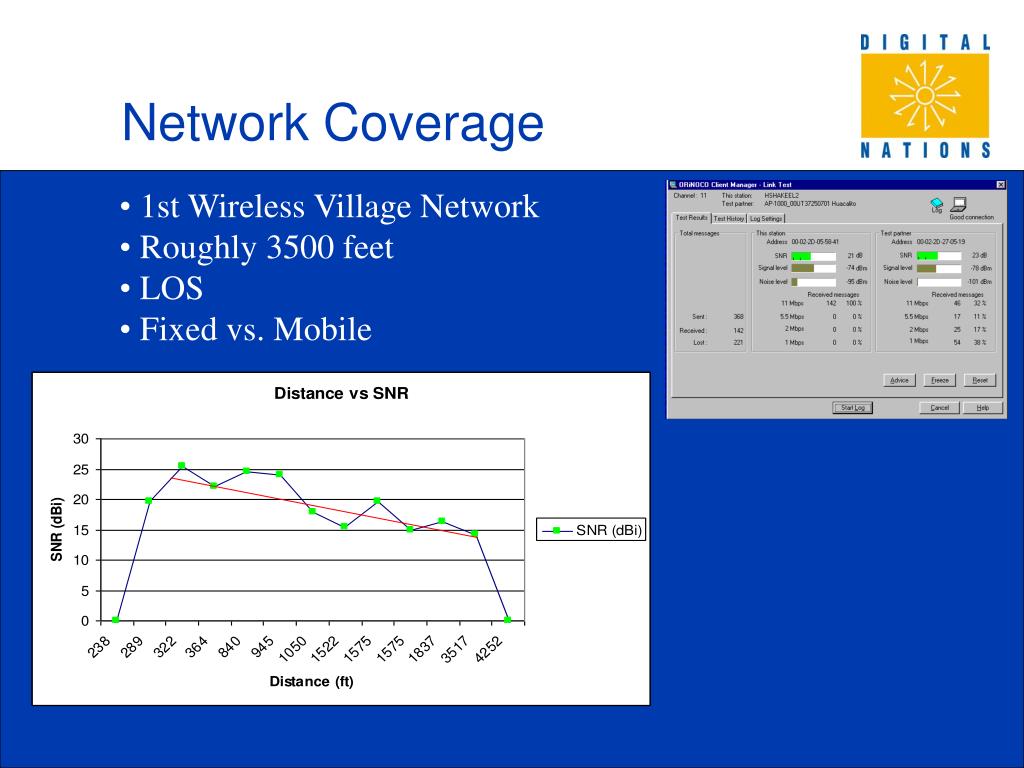

  8. Network Coverage • 1st Wireless Village Network • Roughly 3500 feet • LOS • Fixed vs. Mobile

  9. Immediate Applications • Lincos, School, Clinic and Municipal Building

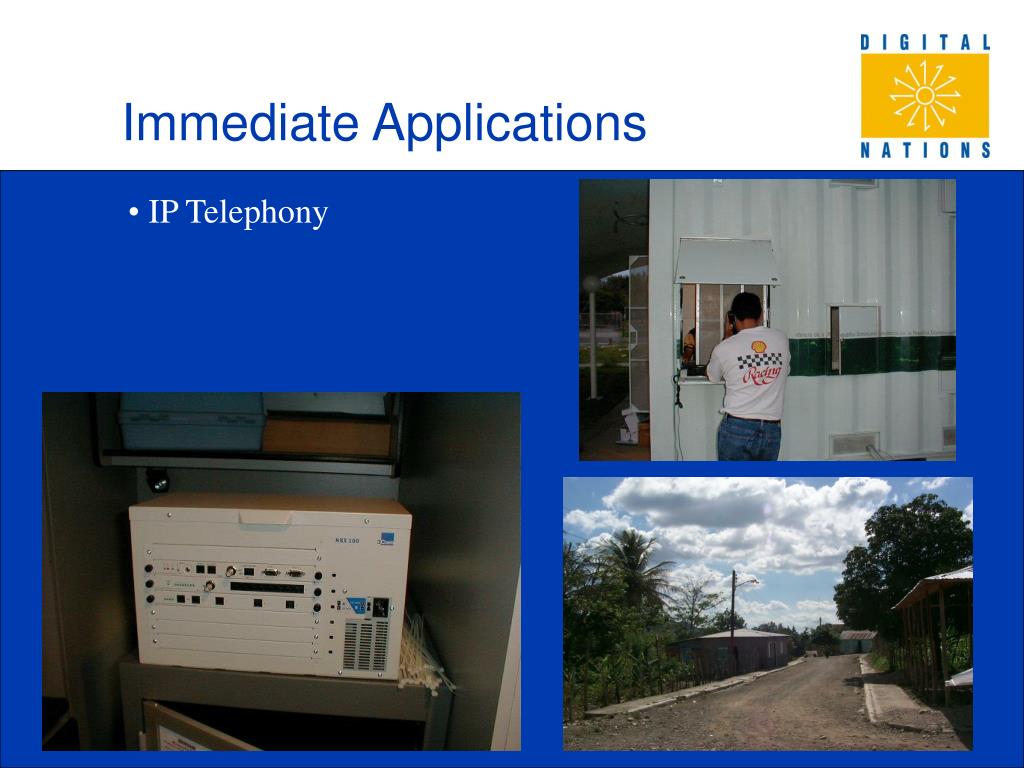

  10. Immediate Applications • IP Telephony

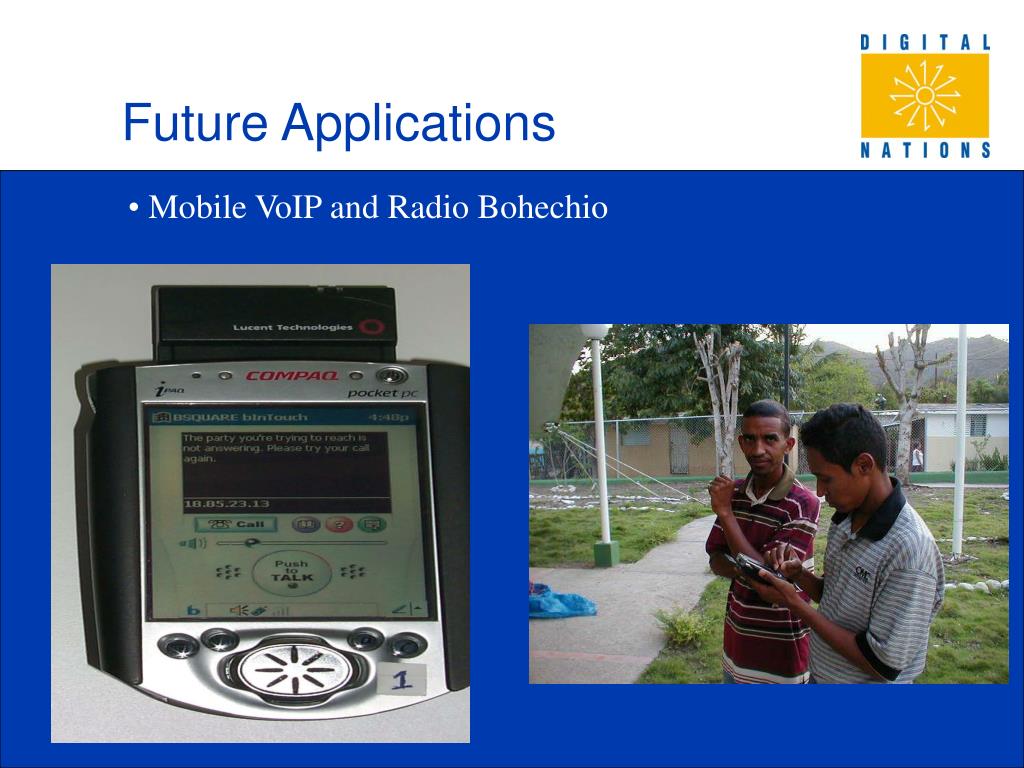

  11. Future Applications • Mobile VoIP and Radio Bohechio

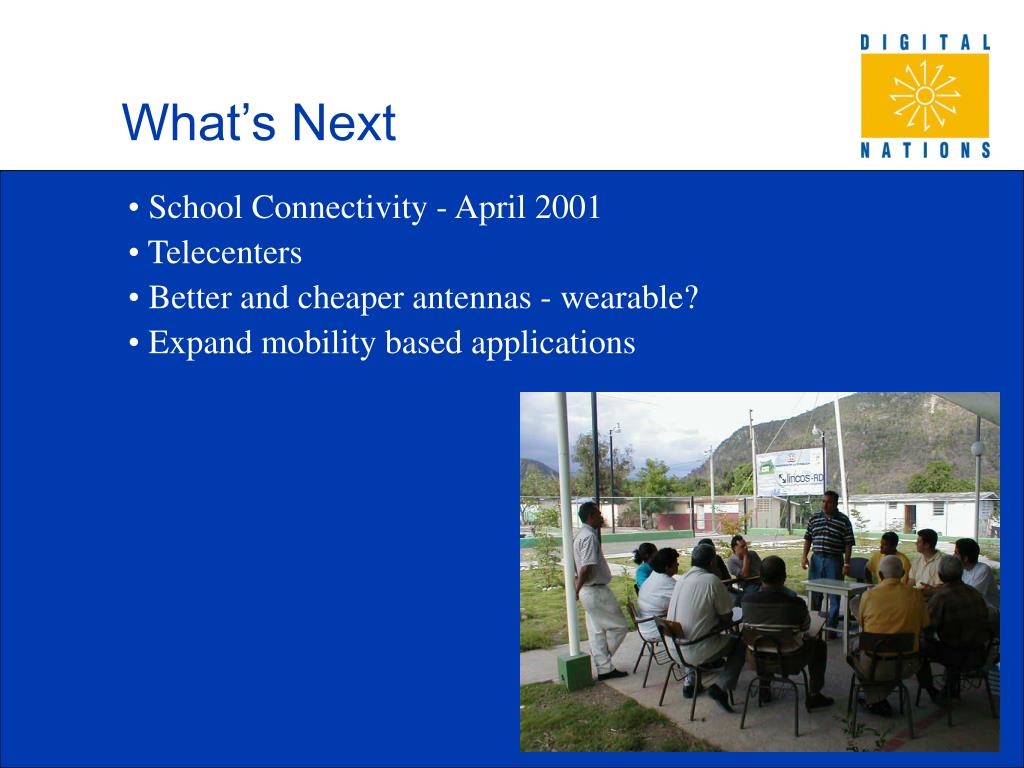

  12. What’s Next • School Connectivity - April 2001 • Telecenters • Better and cheaper antennas - wearable? • Expand mobility based applications

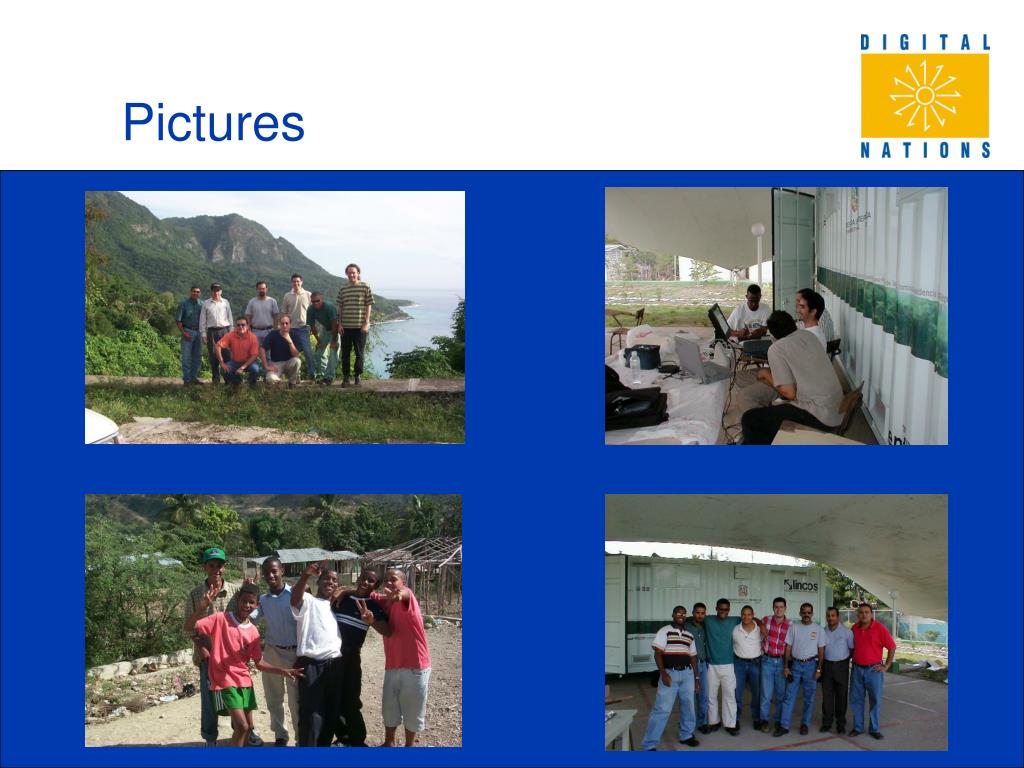

  13. Pictures

  14. Question and Answer • Contact Information: • Edevelopment Group • The Media Laboratory • Massachusetts Institute of Technology • Room E15-309 • 20 Ames Street • Cambridge, MA 02139 USA • http://edevelopment.media.mit.edu/
