Presentation Transcript

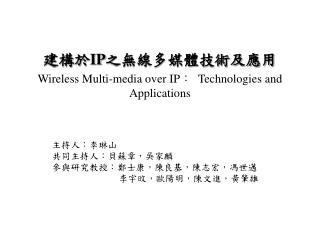

slide1

建構於IP之無線多媒體技術及應用

  • Wireless Multi-media over IP:Technologies and Applications
      • 主持人:李琳山
      • 共同主持人:貝蘇章,吳家麟
      • 參與研究教授:鄭士康,陳良基,陳志宏,馮世邁
      • 李宇旼,歐陽明,陳文進,黃肇雄
slide2
計劃主題及目標

本年度主要工作項目

本年度重要成績舉例及展示

計劃產出列表

下年度工作計劃

總檢討及結論

大綱
slide3
90年度教育部考評委員會評語:

“在原核定項目下進行良好,唯有若干核定項目與電信關連性較 低,應考慮調整計劃重心”

90年7月決定調整方向:

“智慧型訊號處理與多媒體資訊環境”

(Intelligent Signal Processing and Multi-media Information Environment)

“建構於IP之無線多媒體技術及應用”

(Wireless Multi-media over IP: Technologies and Applications)

以無線通訊及IP環境下之多媒體技術為主軸

方向調整
slide4

Future Integrated Networks

  • Real–time
  • Information
  • weather, traffic
  • flight schedule
  • stock price
  • sports scores
  • Private Services
  • personal notebook
  • business databases
  • home appliances
  • network
  • entertainments
  • Intelligent Working
  • Environment
  • e–mail processors
  • intelligent agents
  • teleconferencing
  • distant learning
  • Knowledge
  • Archieves
  • digital libraries
  • virtual museums
  • Electronic
  • Commerce
  • virtual banking
  • on–line transactions
  • on–line investments

Future Network Era

  • Multi–media, Multi–lingual, Multi–functionalities
  • • Cross–cultures, Cross–domains, Cross–regions
  • • Integrating All Knowledge/Information/Services Globally
  • Most Attractive Representation for Knowledge/Information/Services will be in form of Multi-media Signals
slide5

Public Information

and

Services

Future Networks

Private

and

Personal Services

Wireless Communications are Creating a Whole Variety of User Terminals and a Completely New User Environment

  • Network Access at Any Time, from Anywhere
  • Personal Notebooks, Handsets, PDA’s , Hand-held Devices …
  • Small in Size, Light in Weight, Ubiquitous…
  • Keyboard/Mouse Most Convenient for PC’s not Convenient any longer
    • human fingers never shrink, and application environment is changed
  • Multi-media Signals will be the Most Convenient Interface for ALL User Terminals at Any Time, from Anywhere
wireless communications are creating a completely new transmission networking environment
Information Flow from Servers to Users via Both Wired and Wireless Networks

Many Different Network Technologies for Wired and Wireless Co-existing

Wireless Communications are Creating a Completely New Transmission/Networking Environment
link level characteristics for wireless vs wired
Wireless Links

examples: Personal Area Networks (Bluetooth, etc.), Wireless LAN (IEEE 802.11), Cellular (GSM, GPRS, 3G), etc.

time-varying fading and noise characteristics

time-varying signal level and signal-to-noise ratios

bursty errors with much higher error rates

much smaller and dynamic bandwidth, much lower

and changing bit rates

highly unreliable

supporting mobility : at any time, from anywhere

Link Level Characteristics for Wireless vs Wired
transport level issues in wireless multi media
UDP/IP- Real-time, No Retransmission/Delay as in TCP/IP

Errors Packet Loss Real-time Transmission

with Lost Information

Packets out of Sequence

Problems of Wireless Multi-media

multi-media applications require real-time continuous transmission of huge quantities of data

smaller and dynamic bandwidth offers only limited and time-varying data rates

bursty errors with higher error rates are difficult to correct

errors translated to packet loss, which are not acceptable

packets out of sequence also creating problems

time-varying transmission quality even varies across different wireless technologies

Transport Level Issues in Wireless Multi-media
proposed approach for wireless multi media
Improved Link Level Technologies

better link quality

Enhanced Transport Level Protocols

to accommodate multi-media traffic and link unreliability

Developing “Convergence Functionalities” in the Application Level

wireless link level problems and transport level variations become transparent to “core technologies”

“core technologies” shielded from and equally applicable to all different link/transport environments

examples: scalability, error concealment,etc.

Robust “Core Technologies” including Intelligent User Interfaces

Combatting with residual errors

Examples: signal verification,error resilience, etc.

Intelligent user interface for different terminals

Proposed Approach for Wireless Multi-media
wireless multi media over ip year 2001
Wireless Multi-media over IP- Year 2001
  • Multi-media
  • virtual reality
  • video
  • audio
  • speech
  • text
  • Basic Signal
  • Processing
  • analysis
  • segmentation
  • detection

Robustness

Error Concealment

Scalability

  • Most Link/Transport Level Technologies have been Well Standardized and Widely Used
    • impact due to enhancement less easy
  • Most Efforts Concentrated on Application Level
slide12

Mission Statement

  • Basic Research
    • developing fundamental technologies for multi-media considering issues created by wireless communications
    • link unreliability and user interface requirements
    • link level, transport level, convergence functionalities and core technologies
  • Application Tasks
    • multi-media information streaming and retrieval
  • Academic Prototype Systems
    • technology demonstration

Academic

Prototype

Systems

Application

Tasks

Basic

Research

slide13

satellites

servers

Integration with Other Subprojects

  • Microwave and Millimeter-wave Technologies
  • Wireless Multi-media over IP: Technologies and Applications

Networks

fiber

C

radio

Global

Knowledge,

Information

and Services

cable

... 0110...

...1101...

  • Communications and Networking Technologies
wireless multi media over ip year 20011
Wireless Multi-media over IP- Year 2001
  • Multi-media
  • virtual reality
  • video
  • audio
  • speech
  • text
  • Basic Signal
  • Processing
  • analysis
  • segmentation
  • detection

Robustness

Error Concealment

Scalability

  • Most Link/Transport Level Technologies have been Well Standardized and Widely Used
    • impact due to enhancement less easy
  • Most Efforts Concentrated on Application Level
slide15

Improved Transmission Technologies for Wireless ― Block Time Division Multiplexing (BTDM)

IFFT

P/S

F

E

Q

CP

insertion

D/A

CP

Removal

A/D

channel

FFT

S/P

Receiver

Transmitter

  • Orthogonal Frequency Division Multiplexing (OFDM)- A Mainstream Transmission Technology for Wireless
  • Multi-carrier with Many Attractive Properties
  • Difficulties
    • suffering from performance flooring in the presence of spectral nulls
    • high peak-to-average power ratio (PAPR) requiring special considerations for transmitter amplifier
slide16

Improved Transmission Technologies for Wireless ― Block Time Division Multiplexing (BTDM)

P/S

IFFT

F

E

Q

CP

insertion

D/A

CP

Removal

A/D

channel

FFT

S/P

Transmitter

Receiver

  • BTDM System Block Diagram
  • Nice Properties
    • no performance flooring in the presence of spectrall nulls
    • very small peak-to-average power ratio
    • shown to be the optimal channel independent transmitter that minimizes the bit error rate (BER)
slide17

Improved Transmission Technologies for Wireless ― Block Time Division Multiplexing (BTDM)

OFDM

OFDM

BTDM

BTDM

  • Example Results
    • Linear Time Invariant Channel with a Spectral Null
  • Rayleigh fading Channel
  • 3-10 db Gain over OFDM Observed
wireless multi media over ip year 20012
Wireless Multi-media over IP- Year 2001
  • Multi-media
  • virtual reality
  • video
  • audio
  • speech
  • text
  • Basic Signal
  • Processing
  • analysis
  • segmentation
  • detection

Robustness

Error Concealment

Scalability

  • Most Link/Transport Level Technologies have been Well Standardized and Widely Used
    • impact due to enhancement less easy
  • Most Efforts Concentrated on Application Level
slide19

Video Streaming (I) – Reversible Variable Length Code (RVLC)

  • Variable Length Code
    • different code length for different symbols with different probabilities
    • average bit rate minimized for compression purposes
    • encoded/decoded in forward direction only
    • errors may propagate
  • Reversible Variable Length Code (RVLC)
    • can be decoded in both the forward and backward directions
    • to eliminate error propagation and enhance error-resilience capabilities
slide20

Video Streaming (I) – Reversible Variable Length Code (RVLC)

  • Two types of RVLC
    • Symmetric RVLC: only one code table required for both forward and backward decoding
    • Asymmetric RVLC: two code tables required, one for forward decoding and the other backward
slide21

Video Streaming (I) – Reversible Variable Length Code (RVLC)

  • Better Compression Achieved by Proposed Techniques
slide22

Experimental Results

    • Error rate: Random error 10

-4

Without RVLC

With RVLC

Video Streaming (I) – Reversible Variable Length Code (RVLC)

slide23

Video Streaming (II) – An Integrated Error Handling System

  • Different Error Handling Technologies at Different Stages Integrated
  • Based on H.263 Video Codec
  • Technologies Integrated
    • Resynchronization
    • Periodically Refreshing
    • Data Partitioning
    • Reversible Variable Length Code
    • Forward Error Correction Code
    • Error Concealment
slide26

proxy

Uplink data/ARQ

Terminal

data

Bitstream &

Frame Buffer

Packet loss

proxy

Uplink data/ARQ

Terminal

(truncated

Bitstream

Decoding)

data

Important Data Resent

Bitstream &

Frame Buffer

Video Streaming (III) – Error Handling with Video Proxy

  • No Error
    • bitstream stored at Proxy and deleted after ARQ confirmed
  • Errors Occur
    • important information (e.g. motion vectors) resent, while others depending on available bandwidth
    • packet loss message sent to source requesting rate control
slide27

Typical Experimental Result Example

    • Error rate =10

-3

Error Free

Errors plus

Video Proxy

with Errors

Video Streaming (III) – Error Handling with Video proxy

results

Video Streaming (III) – Error Handling with Video proxy

Results

Error Free

Random Error 1e-3

Random Error 1e-3

w/ FEC

Random Error 1e-3

w/ Video Proxy

Forman 64kbit/sec QCIF 10fps

slide29

Video Streaming (IV) – Scalable Video Compression

  • Data Rate Scalability
    • bandwidth/data rate much smaller and time-varying in wireless networks
  • Spatial Scalability
    • different user terminals requiring different video sizes
  • Temporal Scalability
    • trading frame rate with picture resolution
  • SNR Scalability
    • different user terminals requiring different SNR conditions
  • Core Technologies
    • discrete Wavelet Transform for spatial compression
    • motion estimation/compensation for temporal compression
slide30

SP3

SP1

SP2

SP4

bitstream

Video Streaming (IV) – Scalable Video Compression

  • Spatial Scalability Examples
slide31

(a)

(b)

Video Streaming (IV) – Scalable Video Compression

  • Temporal Scalability Example – Trading Frame Rate with Picture Resolution

30fps

15fps

wireless multi media over ip year 20013
Wireless Multi-media over IP- Year 2001
  • Multi-media
  • virtual reality
  • video
  • audio
  • speech
  • text
  • Basic Signal
  • Processing
  • analysis
  • segmentation
  • detection

Robustness

Error Concealment

Scalability

  • Most Link/Transport Level Technologies have been Well Standardized and Widely Used
    • impact due to enhancement less easy
  • Most Efforts Concentrated on Application Level
slide33

Public Information and Services

multi-media presentation

Future

Networks

user-network interaction

multi-media information retrieval

user instructions

Private and Personal Services

network response

Multi-media Information Retrieval

  • To Find the Desired Multi-media Information out of the Huge Quantities of Data over the Networks
  • Multi-media Information is Difficult for Pattern Matching, Browsing and Retrieving
  • Errors and Bandwidth Limitations for Wireless
  • Content-based Multi-media Information Retrieval
slide34

Multi-media Information Retrieval (I) –Image Retrieval

  • Shape Indexing Features
    • MPEG-7 Shape Descriptor
  • Color IndexingFeatures
    • Color Histogram
    • Regional Color
  • Texture Indexing Features
    • Angular Second Moment
    • Inverse Difference Moment
    • Contrast
    • Entropy
slide35

Multi-media Information Retrieval (I) –Image Retrieval

  • Typical Experimental Result Examples
    • Color Histogram-based Image Query
slide36

Multi-media Information Retrieval (I) –Image Retrieval

  • Typical Experimental Result Examples
    • Regional Color-based Image Query with/without Logic Scheme
slide37

Multi-media Information Retrieval (I) –Image Retrieval

  • Typical Experimental Result Examples
    • Texture based Image Query
  • Both Color and Texture Image Query
slide38

Multi-media Information Retrieval (II) – 3D Object Retrieval

  • Primarily Based on the Skeletal and Topological Structures of 3D Objects
    • Calculating the sum of the Geodesic distance from each vertex to all others
    • A Reeb Graph generated with each node representing a region according to these values
    • Similarity between two objects calculated from the nodes on the Reeb Graphs
  • Robust against Translation, Rotation, Scaling, Simplification, Subdivision, Noise, Deformation
slide39

Multi-media Information Retrieval (II) – 3D Object Retrieval

Desired

Object

Similarity

Retrieved Objects

  • An Example
    • http://3dsite.dhs.org/~dynamic
    • 445 objects in the database
    • 0.08 sec for comparing two objects on the average
slide40

Multi-media Information Retrieval (III) – Music Retrieval

Original

Detected Results

  • Initial Progress – Melody Extraction including Octave Dection
  • A Typical Example
slide41

Multi-media Information Retrieval (IV) –Voice-based Information Retrieval

Voice Instructions

Text Instructions

我想找有關紐約受到恐怖攻擊的新聞?

Text Information

d1

Voice Information

d2

d1

d3

d2

美國總統布希今天早上…

d3

  • Speech may become a New Data Type, if the Difficulties in Browsing and Retrieval can be Overcome
  • Application Examples: Personal Memo、Meeting Minutes、Personal Phone Records、Voice Mail Databases、Course Lectures Databases、Broadcast Programs …
slide42

Multi-media Information Retrieval (IV) –Voice-based Information Retrieval

Typical Experimental Results for Mandarin Chinese in Non-interpolated Average Precision

Syllable-based is the best when S(N), N=1~3, P(M), M=1~3 included, except character-based is the best for TQ/TD

S(N), N=1~3, P(M), M=1~3

S(N), N=1~2

S(N), N=1

TQ: Text Queries TD: Text Document

SQ: Spoken Queries SD: Spoken Document

voice based multi media information retrieval demo

User

Voice-based Multi-media Information Retrieval — Demo
  • Chinese Text/Speech/Video News Collected from Internet and Broadcast Radio and Stored in a Server
  • User Retrieving the Desired News via a Notebook PC
  • News Corpora Easy to Obtain, with Plenty of New Words and a Variety of Subjects
  • Relatively High Degree of Difficulties Suitable for Academic Research
  • “請幫我找”or“請幫我查”as the Keywords for Initializing the Retrieval

Radio Station

TV

Server

Radio

Internet

NTU Campus Backbone

slide45
一、國際期刊論文已發表及接受32篇

Y.P.Lin and S.M.Phoong,〝ISI free FIR filter bank transceivers for frequency selective channels, 〞IEEE Trans. Signal Processing, pp. 2648-2658,Nov.2001.

Y.P.Lin and S.M.Phoong, 〝Optimal ISI free DMT transceivers for distorted channels with colored noise,〞IEEE Trans. Signal Processing,pp.2702-2712, Nov.2001.

Y.P.Lin and S.M.Phoong, 〝Minimum Redundancy for ISI free FIR DMT Transceivers, 〞accepted for publication in IEEE Trans. Signal Processing,2002.

S.M.Phoong and Y.P.Lin, 〝Optimal Biorthogonal Transform for Colored Noise Suppression with Subband Wiener Filtering, 〞accepted for publication in IEEE Signal Processing Letters,2002.

Lin-Shan Lee and Yumin Lee, 〝Voice Access of Global Information for Broadband Wireless: Technologies of Today and Challenges of Tomorrow, 〞Proceedings of the IEEE,Vol.89, No.1, pp.1-17, Jan. 2001.

90年度計畫產出列表
slide46
S.C.Pei and P.H.Wang,〝Analytical design of maximally flat FIR fractional Hilbert transformers, 〞Signal Processing, Vol.81, pp.643-661,2001.

S.C.Pei and C.C.Tseng,〝A new eigenfilter based on total least squares error criterion, 〞IEEE Trans. on Circuits and Systems, part I: Fundamental Theory and Applications, Vol.48, No.6, pp.699-709, June 2001.

S.C.Pei and P.H.Wang, 〝Closed-form design of maximally flat FIR Hilbert transformers, Differentiators, and Fractional Delayers by Power Series Expansion, 〞to appear in IEEE Trans. on Circuits and Systems, Part I: Fundamental Theory and Applications, Vol.48, No.4, pp.389-398, April 2001.

S.C.Pei and J.J.Ding, 〝Two-dimensional generalized affine fractional Fourier transform, 〞IEEE Trans. on Signal Processing, Vol.49, No.4, p.878-897, April 2001.

S.C.Pei and J.J.Ding,〝Relations between fractional operations and time-frequency distributions and their applications, 〞IEEE Transon Signal Processing, Vol.49, No.8, pp.1638-1655, Aug.2001.

90年度計畫產出列表
slide47
C.C.Tseng and S.C.Pei, 〝Stable IIRnotch filter design with optimal pole placement, 〞IEEE Trans. on Signal Processing, Vol.49, No.11, pp.2673-2681, Nov.2001.

S.C.Pei and M.H.Yeh,〝The discrete fractional cosine and sine transforms,〞IEEE Trans on Signal Processing,Vol.49,No.6,pp.1198-1207,June2001.

C.K.Chen, P.C.Tseng, Y.C.Chang and L.G.Chen,〝A Digital Signal Processor with Programmable Correlator Array Architecture for 3rd Generation Wireless Communication System, 〞IEEE Trans. on Circuits and Systems II: Analog and Digital Signal Processing, 2001(accepted).

T.H.Tsai, R.J.Wu and L.G.Chen, 〝A Cost-Effective Design for MPEG-2 Audio Decoder with Embedded RISC Core, 〞Journal of VLSI Signal Processing, Vol.29, pp.255-265, Nov. 2001(SCI&EI).

90年度計畫產出列表
slide48
P.C.Tseng, C.K.Chen and L.G.Chen, 〝CDSP: An Application-Specific Digital Signal Processor for Third Generation Wireless Communications, 〞IEEE Trans. on Consumer Electronics, Vol.47, pp.672-677, No.3, Aug.2001.

J.F.Shen, T.C.Wang and L.G.Chen, 〝A Novel Low-Power Full Search Block-Matching Motion Estimation Design for H.263+, 〞IEEE Trans. on Circuits and Systems for Video Technology, Vol.11, No.7, pp.890-897, July 2001(SCI&EI).

C.Y.Chen, Z.L.Yang, T.C.Wang and L.G.Chen, 〝A Programmable Parallel VLSI Architecture for 2D Discrete Wavelet Transform, 〞Journal of VLSI Signal Processing, Vol.28, pp.151-163, July 2001(SCI&EI).

P.C.Wu and L.G.Chen,〝An efficient architecture for two-dimensional discrete wavelet transform, 〞IEEE Trans. on Circuits and Systems for Video Technology, Vol.11, No.4, pp.536-545, April 2001(SCI&EI).

90年度計畫產出列表
slide49
Yi-Shin Tung, Ja-Ling Wu, His-Kang Tsao and Chi-Hui Huang, 〝A Highly Rate-Scalable System Based on MPEG-4 Spatial-Temporal-FGS Video Coding, 〞Advances in Automation, Multimedia and Video Systems, and Modern Computer Science, ISBN 960-8052-44-0, WSES Press, pp. 320-325.

Chien-Wu Tsai and Ja-Ling Wu, 〝Modified Symmetrical Reversible Variable Length Code And Its Theoretical Bounds, 〞IEEE Transactions on Information Theory, Vol. 47, No. 6, pp. 2543-2548, Sept. 2001.

Chien-Wu Tsai and Ja-Ling Wu,〝On Constructing the Huffman-Code Based Reversible Variable Length Codes, 〞IEEE Transactions on Communications, Vol. 49, No. 9, pp. 1506-1509, Sept. 2001.

P.C.Cheng, J.H.Chen, S.C.Hwang and C.K.Sun,〝Three-dimensional reconstructions of Zea mays stem by magnetic resonance imaging (MRI) technology, 〞 Scanning Vol. 23,2 pp. 98-99, (2001).

90年度計畫產出列表
slide50
Kai-Hsiang Chuang and Jyh-Horng Chen,〝IMPACT: Image-based Physiological Artifacts Estimation and Correction Technique for fMRI, 〞 Magnetic Resonance in Medicine, 46:344-353, 2001.

Ching-Po Lin, Wen-Yih Isaac Tseng, Hui-Cheng Cheng and Jyh-Horng Chen,〝Validation of Diffusion Tensor Magnetic Resonance Axonal Fiber Imaging with Registered Manganese-enhanced Tractography, 〞 NeuroImage, 14:1035-1047, 2001.

M.J.Chiu, C.C.Lin, K.H.Chuang, J.H.Chen and K.M.Huang,〝Tissue Segmentation-Assisted Analysis of fMRI for Human Motor Response: An Approach Combining Artificial Neural Network and Fuzzy C Means, 〞 J. Digital Imaging, Vol. 14, No.1, March 2001, pp38-47.

H.S.Chen, F.R.Guo, C.Y.Chen, J.H.Chen and T.S.Kuo, 〝Review of Telemedicine Projects in Taiwan, 〞 Int. J. Medical Informatics, May 2001; 61(2-3): 17-29.

90年度計畫產出列表
slide51
Bor-shen Lin and Lin-shan Lee, 〝Computer-aided Analysis and Design for Spoken Dialogue Systems Based on Quantitative Simulations, 〞 IEEE Transactions on Speech and Audio Processing, Vol.9, No.5, July 2001, pp. 534-548.

Jeih-weih Hung, Jia-lin Shen and Lin-shan Lee, 〝New Approaches for Domain Transformation and Parameter Combination for Improved Accuracy in Parallel Model Combination (PMC) Techniques, 〞 paper to appear on IEEE Transactions on Speech and Audio Processing, Nov 2001.

Berlin Chen, Hsin-Min Wang and Lin-shan Lee, 〝Discriminating Capabilities of Syllable-based Features and Approaches of Utilizing Them for Voice Retrieval of Speech Information in Mandarin Chinese, 〞 to appear on IEEE Transactions on Speech and Audio Processing.

Fu-Chiang Chou, Chiu-Yu Tseng and Lin-shan Lee, 〝A Set of Corpus-based Text-to-speech Synthesis Technologies for Mandarin Chinese, 〞 to appear on IEEE Transactions on Speech and Audio Processing.

90年度計畫產出列表
slide52
S.C.Pei and C.L.Lai ,〝A morphological approach of target detection on perspective plane, 〞b Signal Processing,Vol.81,pp.1975-1984,2001.

S.C.Pei, C.L.Tseng and C.C.Wu, 〝Using color histogram normalization for recovering chromatic illumination-changed images ,〞J. Opt. Soc. Am. A, Vol.18, No.11,pp.2641-2658,Nov2001.

90年度計畫產出列表
slide53
二、國際會議論文已發表及接受55篇

Y.P.Lin, Wei-Luan Weng and S.M.Phoong,〝Block Based DMT Systems with Reduced Redundancy, 〞in Proc. Int. Conf. Acoust. Speech, Signal Processing, Salt Lake City, Utah, May 2001.

S.M.Phoong and Y.P.Lin,〝Optimal Block based DMT Transceivers, 〞in Proc. Int. Conf. Acoust. Speech, Signal Processing, Salt Lake City, Utah, May 2001.

T.C.Liao, S.M.Phoong and Y.P.Lin,〝A Multi-Stage Multi-Candidate Algorithm for Motion Estimation, 〞in Proc. Int. Conf. Acoust. Speech, Signal Processing, Salt Lake City, May 2001.

Karine Gosse, Arnauld Taffin and Yumin Lee,〝Iterative Hybrid Decision-Aided Equalization for High-Speed Wireless Communications, 〞2001 IEEE International Conference on Communications, June 11-14, 2001.

90年度計畫產出列表
slide54
Pinchieh Huang and Yumin Lee,〝Adaptive Decision-Feedback Orthogonality Restoration Filter for Windowed OFDM, 〞2001 Fall IEEE Vehicular Technology Conference, October 6-11, 2001.

Hsiao-Yong Chen and Yumin Lee,〝Space-Time Adaptive Interference-Canceling Equalizer for W-CDMA With Known and Unknown Interference, 〞2002 IEEE Wireless Communication and Networking Conference(accepted).

Pinchieh Huang and Yumin Lee,〝Performance Analysis of an Adaptive Decision-Feedback Orthogonality Restoration Filter for Windowed OFDM, 〞2002 IEEE Wireless Communication and Networking Conference(accepted).

Yumin Lee and Pinchieh Huang,〝Channel Interpolation and MMSE MIMO Frequency Domain DFE for Wireless Data Communications Using OFDM,〞2002 IEEE International Conference on Communications(accepted).

90年度計畫產出列表
slide55
Yumin Lee and Jyh-Hau Chen,〝The Effect of Channel Estimator Memory Mismatch on the Performance of MLSE in Wireless Data Communications,〞2002 IEEE International Conference on Communications(accepted).

C.J.Lian, L.G.Chen, H.C.Chang and Y.C.Chang,〝Design and Implementation of JPEG Encoder IP Core, 〞Asia and South Pacific Design Automation Conference(ASP-DAC 2001),Yokohama, Japan, Jan.2001.

Y.C.Wang, H.C.Chang and L.G.Chen,〝Efficient Architecture of Binary Motion Estimation for MPEG-4 Shape Coding, 〞SPIE International Conference on Visual Communications and Image Processing(VCIP 2001), San Jose, CA, Jan.2001.

S.F.Lin, W.S.Ji and L.G.Chen,〝An Efficient Test Bistream Design Methodology For Fast Visual Hardware Simulation, 〞Picture Coding Symposium 2001 (PCS 2001), Seoul, Korea, Apr. 2001.

90年度計畫產出列表
slide56
S.Y.Chien, S.Y.Ma and L.G.Chen,〝A Partial-Result-Reuse Architecture and its Design Technique for Morphological Operations, 〞IEEE International Conference on Acoustic, Speech, and Signal Processing 2001 (ICASSP 2001), Salt Lake City, Utah, May 2001.

S.Y.Chien, Y.W.Huang, S.Y.Ma and L.G.Chen,〝A hybrid morphology processing units architecture for real-time video segmentation systems, 〞IEEE International Symposium on Circuits and Systems 2001 (ISCAS 2001), Sydney, Australia, May 2001.

K.F.Chen, C.J.Lian, H.H.Chen and L.G.Chen,〝Analysis and architecture design of EBCOT for JPEG-2000, 〞IEEE International Symposium on Circuits and Systems 2001 (ISCAS 2001), Sydney, Australia, May 2001.

90年度計畫產出列表
slide57
H.C.Chang, Z.L.Yang, C.J.Lian and L.G.Chen,〝Hardware-efficient architecture design of tree-depth scanning and multiple quantization scheme for MPEG-4 still texture coding, 〞IEEE International Symposium on Circuits and Systems 2001 (ISCAS 2001), Sydney, Australia, May 2001.

C.J.Lian, K.F.Chen, H.H.Chen and L.G.Chen,〝Lifting based discrete wavelet transform architecture for JPEG2000, 〞IEEE International Symposium on Circuits and Systems 2001 (ISCAS 2001), Sydney, Australia, May 2001.

M.Y.Hsu, H.C.Chang, Y.C.Wang and L.G.Chen,〝Scalable module-based architecture for MPEG-4 BMA motion estimation, 〞IEEE International Symposium on Circuits and Systems 2001 (ISCAS 2001), Sydney, Australia, May 2001.

90年度計畫產出列表
slide58
S.Y.Chien, Y.W.Huang, S.Y.Ma and L.G.Chen,〝A Real-time Practical Video Segmentation Algorithm for MPEG-4 Camera Systems, 〞International Conference on Consumer Electronics 2001 (ICCE 2001), Los Angeles, USA, Jun. 2001.

T.C.Wang, P.C.Tseng and L.G.Chen,〝H.26L intra mode encoder architecture for digital camera application, 〞International Conference on Consumer Electronics 2001 (ICCE 2001), Los Angeles, USA, Jun. 2001.

P.C.Tseng, C.K.Chen and L.G.Chen,〝CDSP: An Application-Specific Digital Signal Processor for Third Generation Wireless Communication, 〞International Conference on Consumer Electronics 2001 (ICCE 2001), Los Angeles, USA, Jun. 2001.

90年度計畫產出列表
slide59
P.J.Lee, L.G.Chen, W.J.Wang and M.J.Chen,〝Roust Error Concealment Algorithm for MPEG-4 with the Aid of Fuzzy Theory, 〞International Conference on Consumer Electronics 2001 (ICCE 2001), Los Angeles, USA, Jun. 2001.

S.Y.Ma, C.F.Shen and L.G.Chen,〝An Efficient Motion Estimation Algorithm for Real-Time MPEG-4 Video Encoding on Multimedia Processors, 〞 2nd Workshop and Exhibition on MPEG-4, San Jose, USA, Jun. 2001.

L.G.Chen, C.J.Lian, K.F.Chen and H.H.Chen,〝Analysis and Architecture Design of JPEG2000, 〞 IEEE International Conference on Multimedia and Expo 2001 (ICME 2001), Tokyo, Japan, Aug. 2001.

Y.C.Chang, C.C.Huang, H.C.Chang, H.C.Fang and L.G.Chen,〝Error-Propagation Analysis and Concealment Strategy for MPEG-4 Video Bitstream with Data Partitioning, 〞IEEE International Conference on Multimedia and Expo 2001 (ICME 2001), Tokyo, Japan, Aug. 2001.

90年度計畫產出列表
slide60
S.Y.Chien, Y.W.Huang, S.Y.Ma and L.G.Chen,〝Automatic Video Segmentation for MPEG-4 Using Predictive Watershed, 〞IEEE International Conference on Multimedia and Expo 2001 (ICME 2001), Tokyo, Japan, Aug. 2001.

C.J.Lian, H.C.Chang, K.F.Chen and L.G.Chen,〝A JPEG Decoder IP Core Supporting User-defined Huffman Table Decoding, 〞 International Symposium on Integrated Circuits, Devices and Systems 2001 (ISIC 2001), Marina Mandarin, Singapore, Sep. 2001.

S.F.Lin, S.C.Huang, F.S.Yang, C.W.Ku and L.G.Chen,〝An efficient linear-phase FIR filter architecture design for wireless embedded system, 〞 IEEE Workshop on Signal Processing System 2001 (SiPS 2001), Antwerp, Belgium, Sep. 2001.

90年度計畫產出列表
slide61
Yi-Shin Tung, Ja-Ling Wu, His-Kang Tsao and Chi-Hui Huang,〝A Highly Rate-Scalable System Based on MPEG-4 Spatial-Temporal-FGS Video Coding, 〞WSES/IEEE Intl. Conf. Multimedia, Internet, Video Technology, 2001.

Shu-Wei Liu, Chi-Hui Huang and Ja-Ling Wu,〝A Fully Scalable Video Codec, 〞SPIE Visual Communications and Image Processing 2001. pp. 908-919.

Chien-Wu Tsai, Ja-Ling Wu, To-Ju Huang and Kuo-Lin Fang, 〝A Hybrid and Flexible H.263-based Error Resilient and Testing System, 〞Proc. IEEE TENCON 2001 International Conference on Electrical and Electronic Technology, SuperStar Virgo Cruise, 19 – 22 August 2001, Vol. 1, pp.122-128.

90年度計畫產出列表
slide62
M.J.Shieh, K.L.Perng and W.C.Chen,〝The Design and Implementation of a Visual MPEG-4 Scene-Authoring Tool, 〞International Conference on IEEE MPEG-4 2nd Workshop & Exhibition, San Jose, CA, U.S.A., June, 2001.

Te-Yi Liu, Yi-Chin Huang and Wen-Chin Chen,〝A Novel Algorithm For Real-Time Full Screen Capture System, 〞 Proceeding of 2001 IEEE 5th Workshop on Multimedia Signal Processing, Oct. 2001.

C.L.Liu, C.C.Chen, Y.H.Wang, C.T.Yen and J.H.Chen(2001) ,〝Brain Activation by Global Form with Different Local Element Configuration: An fMRI Study, 〞Society For Neuroscience 31thAnnual Meeting, 2001.

H Chuang and Jyh-Horng Chen,〝Independent Component Analysis in the Detection and Correction of Physiological Artifact in fMRI, 〞 Conf. Human Brain Mapping, Brighton, United Kingdom, 2001.

90年度計畫產出列表
slide63
Ching-Po Lin, Wen-Yih Isaac Tseng and Jyh-Horng Chen,〝Dependence of SNR and spatial resolution on the accuracy of DTMRI in defining local tract orientations: validated with Mn-enhanced optic tracts, 〞Proc ISMRM/ESMRMB Ann Meeting, Glasgow, Scotland, 2001.

Nick J.C.Wang, Shang-Ming Lee, Frank Seide and Lin-shan Lee,〝Rapid Speaker Adaptation Using A Priori Knowledge by Eigenspace Analysis of MLLR Parameters, 〞International Conference on Acoustics, Speech and Signal Processing, Salt Lake City, Utah, USA, CD-ROM, May 2001.

Bor-shen Lin and Lin-shan Lee,〝Early Stage Evaluation of Spoken Dialogue System Performance Based on Quantitative Simulations, 〞2001 Oriental COCOSDA Workshop, Taejon, Korea, pp. 97-106, Aug 2001.

90年度計畫產出列表
slide64
Berlin Chen, Hsin-min Wang and Lin-shan Lee,〝Improved Spoken Document Retrieval by Exploring Extra Acoustic and Linguistic Cues, 〞2001 European Conference on Speech Communication and Technology, Aalborg, Denmark, Sept 2001, CD-ROM.

Berlin Chen, Hsin-min Wang and Lin-shan Lee,〝An HMM/N-gram-based Linguistic Processing Approach for Mandarin Spoken Document Retrieval, 〞2001 European Conference on Speech Communication and Technology, Aalborg, Denmark, Sept 2001, CD-ROM.

Yu-Tsao, Shang-Ming Lee, Fu-Chiang Chou and Lin-shan Lee,〝Segmental Eigenvoice for Rapid Speaker Adaptation, 〞2001 European Conference on Speech Communication and Technology, Aalborg, Denmark, Sept 2001, CD-ROM.

90年度計畫產出列表
slide65
Nick J.C.Wang, Wei-Ho Tsai and Lin-shan Lee,〝Eigen-MLLR Coefficients as New Feature Parameters for Speaker Identification, 〞2001 European Conference on Speech Communication and Technology, Aalborg, Denmark, Sept 2001, CD-ROM.

Ming-yi Tsai, Fu-Chiang Chou and Lin-shan Lee,〝Pronunciation Variation Analysis with respect to Various Linguistic Levels and Contextual Conditions for Mandarin Chinese, 〞2001 European Conference on Speech Communication and Technology, Aalborg, Denmark, Sept 2001, CD-ROM.

Yiou-Wen Cheng and Lin-shan Lee,〝Credibility Proof for Speech Content and Speaker Verification by Fragile Watermarking with Consecutive Frame-based Processing, 〞2001 European Conference on Speech Communication and Technology, Aalborg, Denmark, Sept 2001, CD-ROM.

90年度計畫產出列表
slide66
Jeih-weih Hung, Hsin-min Wang and Lin-shan Lee,〝Comparative Analysis for Data-driven Temporal Filters Obtained via Principal Component Analysis (PCA) and Linear Discriminant Analysis (LDA) in Speech Recognition, 〞2001 European Conference on Speech Communication and Technology, Aalborg, Denmark, Sept 2001, CD-ROM.

B.Su and S.K.Jeng, 〝Multi-timbre Chord Classification Using Wavelet Transform and Self-Organized Map Neural Networks, 〞 2001 IEEE International Conference on Acoustic, Speech, and Signal Processing (ICASSP' 2001), Salt Lake City, USA, May 2000.

Y.R.Chien and S.K.Jeng,〝An Automatic Transcription System with Octave Detection, 〞submitted to 2002 IEEE International Conference on Acoustic, Speech and Signal Processing (ICASSP’ 2002).

90年度計畫產出列表
slide67
S.C.Pei, J.J.Ding and J.H.Chang , 〝Color pattern recognition by quaternion correlation,〞Proc. of IEEE Int’1 Conf. On Image processing , Thessaloniki, Greece, Oct. 2001.

S.C.Pei and C.L.Tseng, 〝Adaptive morphology shortest path planning based on rotating object and critical transition point , 〞Proc. of IEEE Int’1 Conf. On Image Processing, Thessaloniki, Greece, Oct. 2001.

S.C.Pei and Y.F.Hsu,〝Robust time-domain audio watermarking with perfect correlation sequence and repeated insertion,〞14th IPPR Conference on Computer Vision, Graphics and Image Processing, Kun-Ding, ROC, Aug. 2001.

I-chen Lin, Jeng-sheng Yeh and Ming Ouhyoung, 〝Realistic 3D Facial Animation Parameters from Mirror-reflected Multi-view Video,〞Computer Animation 2001 (IEEE), pp. 2-11, Seoul, Korea, Nov. 2001.

90年度計畫產出列表
slide68
Guo-Luen Perng, Wei-Teh Wang and Ming Ouhyoung,〝A Real-time 3D Virtual Sculpting Tool Based on Marching Cubes,〞 to appear Proc. ICAT2001 (Intl. Conf. on Artificial Reality and Tele-existence), Tokyo, Dec. 2001.

I-Chen Lin, Jeng-sheng Yeh and Ming Ouhyoung,〝Extraction of 3D Facial Parameters from Mirror-Reflected Multi-view Video for Audio-Visual Synthesis,〞Proc. of AVSP2001 (International Conf. of Auditory-Visual Speech Processing), (ISBN 0-9712714-0-2) pp. 66-71, Aalborg, Denmark, Sept., 2001.

Fu-Che Wu, Murphy Chien-Chang Ho and Ming Ouhyoung,〝Automatic Modeling of Animated Faces from Multiview Video,〞Proc. EUROGRAPHICS 2001, short presentation, pp.211-217, Vol. 20, No. 3, Manchester, UK, Sept. 2001.

Chai-Ying Lee, Wei-Ru Chen, Eugenia Leu* and Ming Ouhyoung ,〝A Rotor Platform Assisted System for 3D Hairstyles,〞 to appear in (WSCG'2002) - the 10-th International Conference in Central Europe on Computer Graphics, Visualization and Computer Vision'2002.

90年度計畫產出列表
slide69
三、專利8件(美國專利4件、中華民國專利4件)三、專利8件(美國專利4件、中華民國專利4件)

〝CMOS Active Pixel Sensor, 〞US. patent no.6,215,113, 2001.4.10~ 2019.4.

〝Method of generating a symmetrical reversible variable length code, 〞US.patent no.6229460.

〝Method of Image Processing Using Three Facial Feature Points in Three-Dimensional Head Motion Tracking, 〞 US. patent in application.

〝使用語音與單一影像即時合成動態臉部表情的方法, 〞 US. patent in application.

〝適用於MPEG-II音頻訊號解碼之逆量化與多聲道處理之硬體架構及組成, 〞中華民國專利號碼:102678,2001.3.6~2018.8.3.

90年度計畫產出列表
slide70
〝使用臉部三點特微值於三維頭部運動之影像處理方法, 〞中華民國專利 號碼:124290 , 2000.12.01- 2019.02.25.

〝對稱可逆式可變長度碼之產生方法, 〞中華民國專利公告號: 425776.

〝使用語音與單一影像即時合成動態臉部表情的方法, 〞中華民國專利申 請中.

四、畢業博士生7人

丁建均,馬仕毅,張皓傑,蔡建戊,莊凱翔,陳柏琳,洪志偉

五、畢業碩士生36人

林宜鋒,陳聰岳,劉佳怡,陳志豪,陳孝勇,黃品傑,黃愛梅,

陳家鵬,陳冠夫,王逸竹,曾博志,紀緯祥,劉書維,黃琪惠,

劉德懿,黃偉修,吳晉賢,蔡協甫,游乾坤,高偉倫,黃銘裕,

楊惠婷,蕭信志,施宜成,林滋惟,李上銘,曹 昱,鍾偉仁,

方士豪,董志楠,蘇柏青,許宇鳳,譚耀光,何適宇,李佳穎,

彭國倫

90年度計畫產出列表
slide71
六、出席國際會議46人次

European Conference on Speech Communication and Technology, Alborg, Denmark, Sept 2001,共7人次.

IEEE International Symposium on Circuits and Systems 2001 (ISCAS 2001), Sydney, Australia, May 2001, 共5人次.

Int. Conf. Acoust. Speech, Signal Processing, Salt Lake City, Utah, May 2001.共4人次.

International Conference on Consumer Electronics 2001 (ICCE 2001), Los Angeles, USA, Jun. 2001, 共4人次.

IEEE International Conference on Multimedia and Expo 2001 (ICME 2001), Tokyo, Japan, Aug. 2001, 共3人次.

90年度計畫產出列表
slide72
2001 IEEE International Conference on Communications, Helsinki, Finland, June11-14, 共2人次.

2001 IEEE Global Telecommunications Conference, San Antonio, Texas, USA, Nov.25-29, 共2人次.

2nd Workshop and Exhibition on MPEG-4, San Jose, USA, Jun. 2001, 共2人次.

7th Annual Meeting of the Organization for Human Brain Mapping (OHBM) Brighton, U.K., June 2001 , 共2人次.

2001 IEEE Fall Vehicular Technology Conference, Atlantic City, NJ, USA, October 7-11, 共1人次.

Asia and South Pacific Design Automation Conference (ASP-DAC 2001), Yokohama, Japan, Jan. 2001, 共1人次.

90年度計畫產出列表
slide73
SPIE International Conference on Visual Communications and Image Processing (VCIP 2001), San Jose, CA, Jan. 2001, 共1人次.

Picture Coding Symposium 2001 (PCS 2001), Seoul, Korea, Apr. 2001, 共1人次.

International Symposium on Integrated Circuits, Devices and Systems 2001 (ISIC 2001), Marina Mandarin, Singapore, Sep. 2001, 共1人次.

IEEE Workshop on Signal Processing System 2001 (SiPS 2001), Antwerp, Belgium, Sep. 2001, 共1人次.

WSES/IEEE International Conference on Multimedia, Internet and Video Technology,2001,馬爾他, 共1人次.

SPIE Visual Communications and Image Processing, 2001,美國聖荷西, 共1人次.

90年度計畫產出列表
slide74
IEEE TENCON 2001 International Conference on Electrical and Electronic Technology,新加坡, 共1人次.

2001 IEEE 5th Workshop on Multimedia Signal Processing, Oct. 2001, 共1人次.

Proc ISMRM/ESMRMB Annual Meeting, Glasgow, Scotland, 2001, 共1人次.

Society For Neuroscience 31thAnnual Meeting, 2001, 共1人次.

2001 Oriental COCOSDA Workshop, Taejon, Korea, Aug. 2001,共1人次.

Computer Animation 2001 (IEEE), Seoul, Korea, Nov. 2001,共1人次.

ICAT2001 (Intl. Conf. on Artificial Reality and Tele-existence), Tokyo, Dec. 2001,共1人次.

90年度計畫產出列表
slide75
七、在國際會議擔任特殊角色15人次

Technical Program Committee Member, 2001 IEEE International Conference on Communications, Helsinki, Finland, June 11-14, 1人次.

Symposium Chair, IEEE Global Telecommunications Conference, San Antonio, Texas, USA, November25-29, 1人次.

Member of Steering Committee, IEEE International Conference on Multimedia and Expo 2001 (ICME 2001), Tokyo, Japan, Aug. 2001, 1人次.

Member of Scientific Committee, European Conference on Speech Communication & Technology, Alborg, Denmark, Sept 2001, 1人次.

Member of International Steering Committee, IEEE International Symposium on Intelligent Signal Processing and Communication Systems (ISPACS), Oct 2000, 1人次.

90年度計畫產出列表
slide76
General Convener, COCOSDA Workshop, Aalborg, Denmark, Sept 2001, 1人次.

Session Organizer, 2001 IEEE International Conference on Communications, Helsinki, Finland, June 11-14, 1人次.

Session Chair, 2001 IEEE International Conference on Communications, Helsinki, Finland, June 11-14, 1人次.

Session Chair, 2001 IEEE Fall Vehicular Technology Conference, Atlantic City, NJ, USA, October 7-11, 1人次.

Session Chair, 2001 IEEE International Symposium on Circuits and Systems, 1人次.

Session Chair, 2nd Workshop and Exhibition on MPEG-4, San Jose, USA, 1人次.

90年度計畫產出列表
slide77
Session Chair, IEEE International Conference on Multimedia and Expo 2001 (ICME 2001), Tokyo, Japan, Aug. 2001, 1人次.

Member of International Advisory Board, Asian Pacific Conference on Communications (APCC), Aug 2000, 1人次.

Session chair, Intl. Conf. on Artificial Reality and Tele-existence, Tokyo, Dec. 2001 1人次.

Session chair, Computer Animation 2001 (IEEE), Seoul, Korea, Nov. 2001, 1人次.

90年度計畫產出列表
slide78
八、在國際期刊擔任特殊角色11人次

Guest Editor, The Journal of VLSI Signal Processing-Systems for Signal, Image, and Video Technology, 1人次.

Member of International Advisory Board, Natural Language Processing (by Oxford University Press), 1人次.

Member of International Advisory Board, IEICE Transactions on Communications, 1人次.

Member of International Advisory Board, Journal of Communications and Networks, 1人次.

Associate Editor, IEEE Transactions on Circuits and Systems II: Analog and Digital Signal Processing, 1人次.

Associate Editor, IEEE Transactions on Circuits and Systems for Video Technology, 1人次.

90年度計畫產出列表
slide79
Associate Editor, IEEE Transactions on Very Large Scale Integration (VLSI) Systems, 1人次.

Associate Editor, Journal of Circuits, Systems, and Signal Processing, 1人次.

Member of Editorial Board, Wireless Personal Communications (by Kluwer Academic Publications), 1人次.

Member of Editorial Board, International Journal of Pattern Recognition and Artificial Intelligence (by Word Scientific Publishing Co.), 1人次.

Editor, Journal of Computer-Aided Design & Computer Graphics, ISSN 1003-9775,1人次.

90年度計畫產出列表
slide80
九、在國際學會擔任特殊角色14人次

Fellow of IEEE, 3人.

Convener, the International Coordinating Committee of Speech Databases and Assessment (COCOSDA), 1人次.

Advisor, Asia Pacific Board, IEEE Communications Society, 1人次.

Member of the Board and Regional Coordinator for Asia, International Speech Communication Association (ISCA), 1人次.

Vice Chair, Chapters Coordination Committee, IEEE Communications Society, Asia-Pacific Board, 1人次.

Chair-elect, Multimedia Systems and Applications Technical Committee, IEEE Circuits and Systems Society, 1人次.

Member, VLSI Systems and Applications Technical Committee, IEEE Circuits and Systems Society, 1人次.

Member, Visual Signal Processing and Communications Technical Committee, IEEE Circuits and Systems Society, 1人次.

90年度計畫產出列表
slide81
Member, Design and Implementation of Signal Processing Systems Technical Committee, IEEE Signal Processing Society, 1人次.

Member (appointed by president), Strategic Planning Committee, IEEE Communications Society, 1人次.

Member, Signal Processing and Communication Electronics Technical Committee, IEEE Communications Society, 2人次.

十、技術移轉3項

「MPEG4 解碼組件」,圓剛科技,2001.11.1.

「MPEG-4 Scene Editor」,太極影音有限公司,2001.9月.

90年度計畫產出列表
slide90
主題之重要性及創新性

描繪未來無線多媒體資訊世界之遠景,針對無線網路中各種問題研發新一代訊號處理技術之前瞻性方向,及諸多創新性技術成果均證明本分項計劃主題之重要性及創新性

與總計劃及各分項計劃間之整合程度

調整新方向後,與總計劃及各分項計劃之整合程度益加提高

提升我國學術水準之效益及達到學術卓越及國際一流水準之程度

論文發表,在國際會議、國際期刊、國際學會中之角色及參與,及諸多前瞻性的研究課題及成果,均可證明本計畫的研究在國際學界主流中有一定地位

總檢討與結論
slide91
熟習關鍵技術之人才培育

所培養之研究生,他們的諸多研究成果(論文發表、系統實作、專利等)均為有關效益之證明

對產業發展及實際應用之效益

無線多媒體科技居「知識經濟」之核心地位,專利、技術移轉、實際操作之系統、人才培育等均為有關效益之證明

總檢討與結論
slide92
主持人及參與教授勝任計畫之程度

由論文發表,在國際會議、期刊、學會中之角色及參與,專利、技術移轉,實際操作之系統,人才培育等均為具體明確指標

人力、經費配置、進度控制、計畫書內容

相當理想

這一年只是新方向的開始,未來進展仍有賴各方鼎力支持

總檢討與結論
