uts library database

UTS Library Database

Ankur Kandikatla

HD Assignment 3, Autumn 2007

uts library database1
UTS Library Database
  • This database aims to model the UTS library system, with simplification
  • Has information about borrowers, their memberships, library branches , staff and books
  • Particular focus on the transaction aspect of database, i.e. checking out of books
1 m relationship

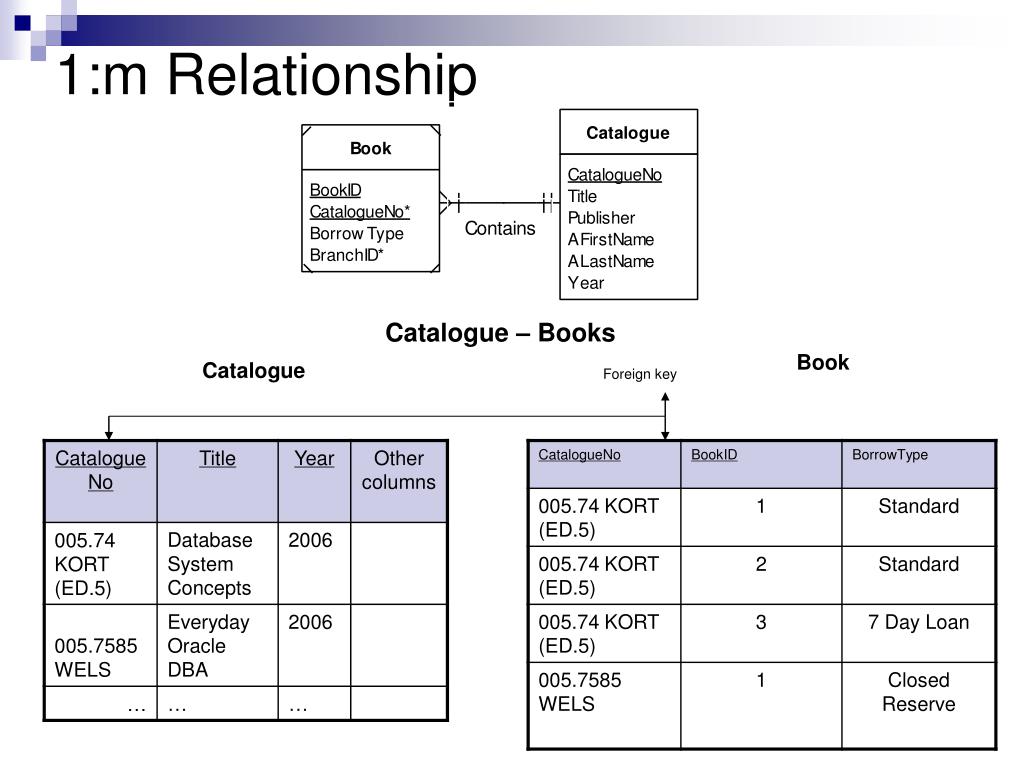

1:mRelationship

Catalogue – Books

Book

Catalogue

Foreign key

m m relationship

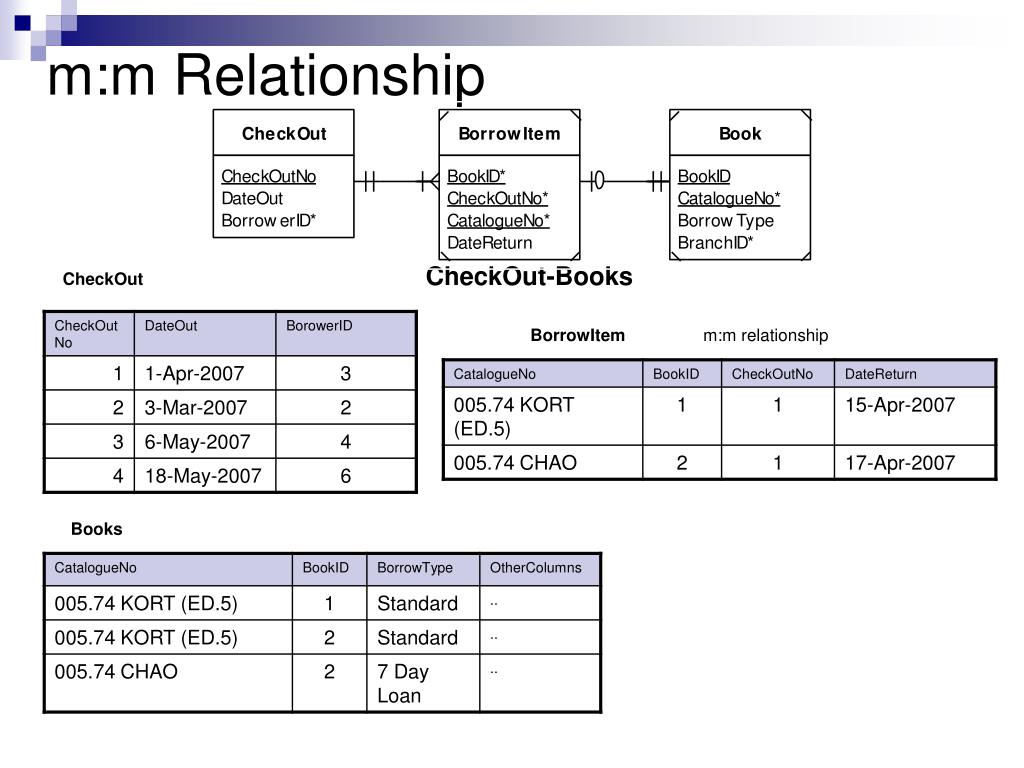

m:m Relationship

CheckOut-Books

CheckOut

BorrowItem

m:m relationship

Books

single table query
Single Table Query

Selecting a few items from the catalogue

SELECT CatalogueNo, Title

FROM Catalogue;

catalogueno | title

--------------------+-------------------------------------

005.74 KORT (ED.5) | Database System Concepts

005.74 CHAO | Database Development and Management

005.74 POWE | Beginning Database Design

005.7585 WELS | Everyday Oracle DBA

658.872 KUMA | Mobile Database Systems

(5 rows)

natural join
NATURAL JOIN

Identifying the branch of staff members

SELECT SFirstName, SLastName, BranchID

FROM Staff NATURAL JOIN LibBranch;

sfirstname | slastname | branchid

------------+------------+-----------

Colin | Richardson | City

Kathy | Jays | KuringGai

Neeraj | Matta | City

David | Tong | KuringGai

Mushfika | Hossain | City

Tat | Nguyen | City

Mark | Bonnett | City

(7 rows)

natural join cross product
NATURAL JOIN (Cross Product)

Identifying the branch of staff members

SELECT SFirstName, SLastName, Staff.BranchID

FROM Staff, LibBranch

WHERE Staff.BranchId = LibBranch.BranchId;

sfirstname | slastname | branchid

------------+------------+-----------

Colin | Richardson | City

Kathy | Jays | KuringGai

Neeraj | Matta | City

David | Tong | KuringGai

Mushfika | Hossain | City

Tat | Nguyen | City

Mark | Bonnett | City

(7 rows)

group by

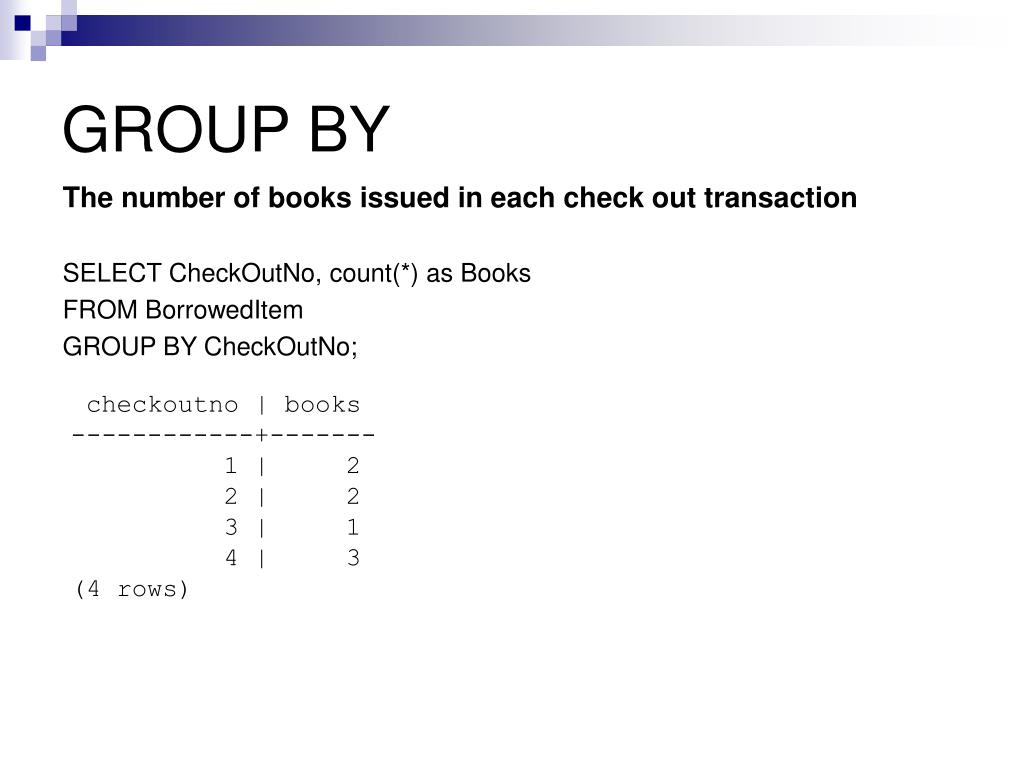

GROUP BY

The number of books issued in each check out transaction

SELECT CheckOutNo, count(*) as Books

FROM BorrowedItem

GROUP BY CheckOutNo;

checkoutno | books

------------+-------

1 | 2

2 | 2

3 | 1

4 | 3

(4 rows)

sub query

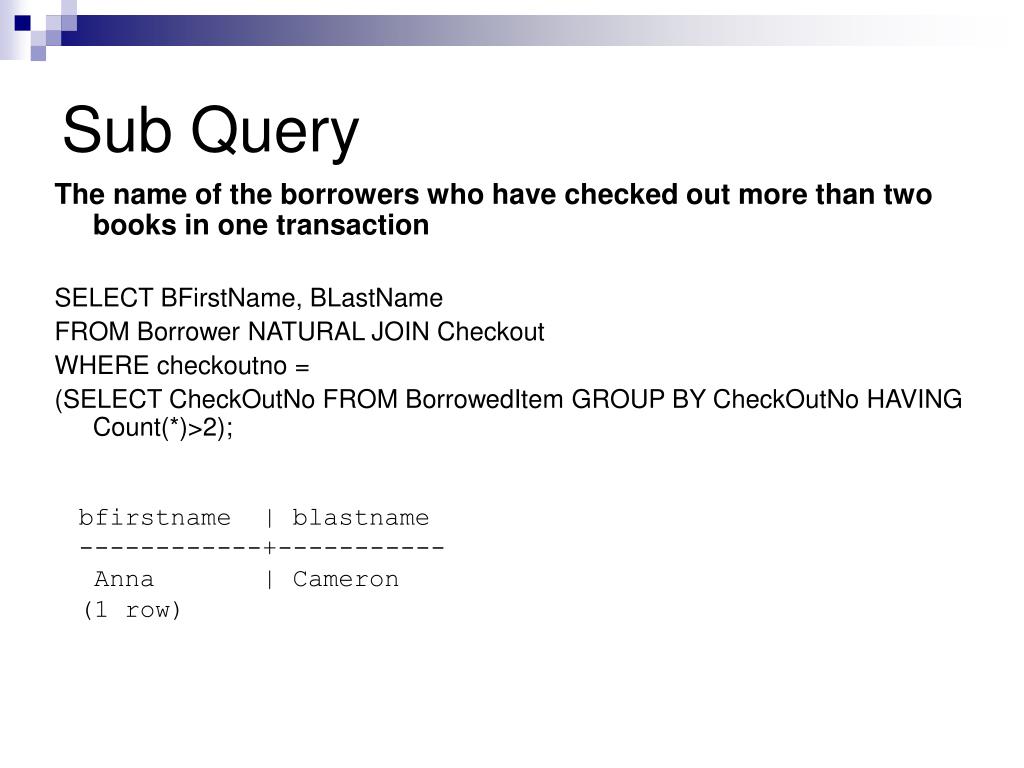

Sub Query

The name of the borrowers who have checked out more than two books in one transaction

SELECT BFirstName, BLastName

FROM Borrower NATURAL JOIN Checkout

WHERE checkoutno =

(SELECT CheckOutNo FROM BorrowedItem GROUP BY CheckOutNo HAVING Count(*)>2);

bfirstname | blastname

------------+-----------

Anna | Cameron

(1 row)

self join

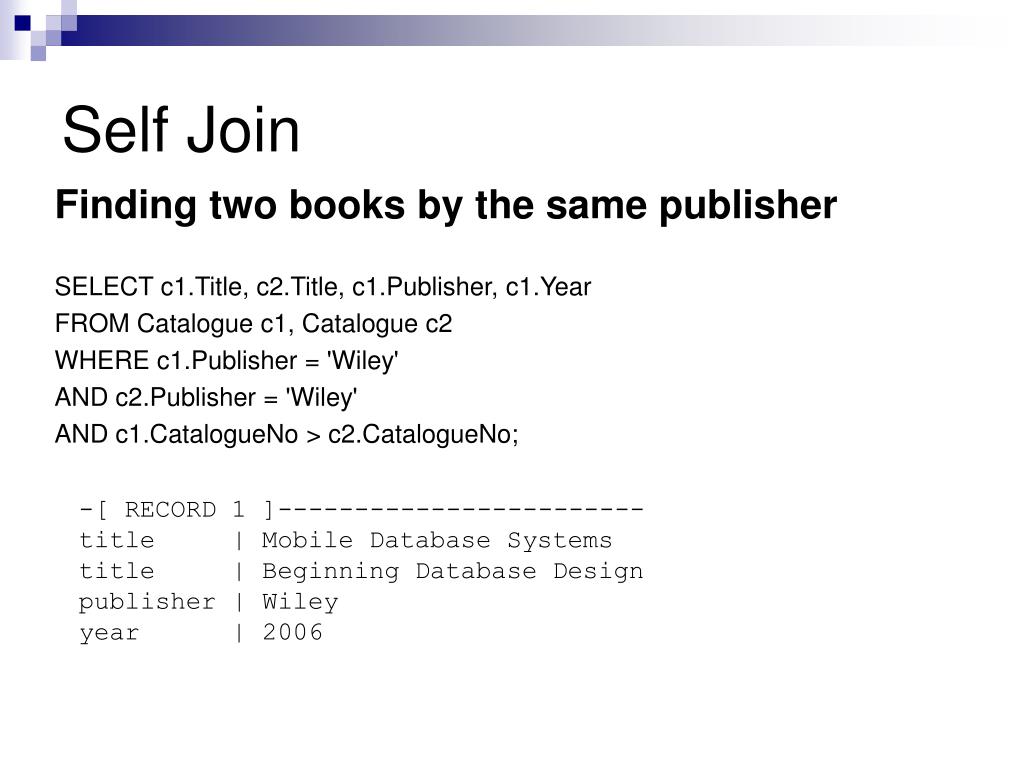

Self Join

Finding two books by the same publisher

SELECT c1.Title, c2.Title, c1.Publisher, c1.Year

FROM Catalogue c1, Catalogue c2

WHERE c1.Publisher = 'Wiley'

AND c2.Publisher = 'Wiley'

AND c1.CatalogueNo > c2.CatalogueNo;

-[ RECORD 1 ]------------------------

title | Mobile Database Systems

title | Beginning Database Design

publisher | Wiley

year | 2006

check statements
Check Statements

Checking for book borrow type

CONSTRAINT Book_BorrowType CHECK

(BorrowType IN ('7 Day Loan', 'Closed Reserve', 'Standard'))

Checking for Postcode

CONSTRAINT LibPostcode_Range CHECK

((LibPostcode >= 1000) AND (LibPostcode <=9999))

action statements

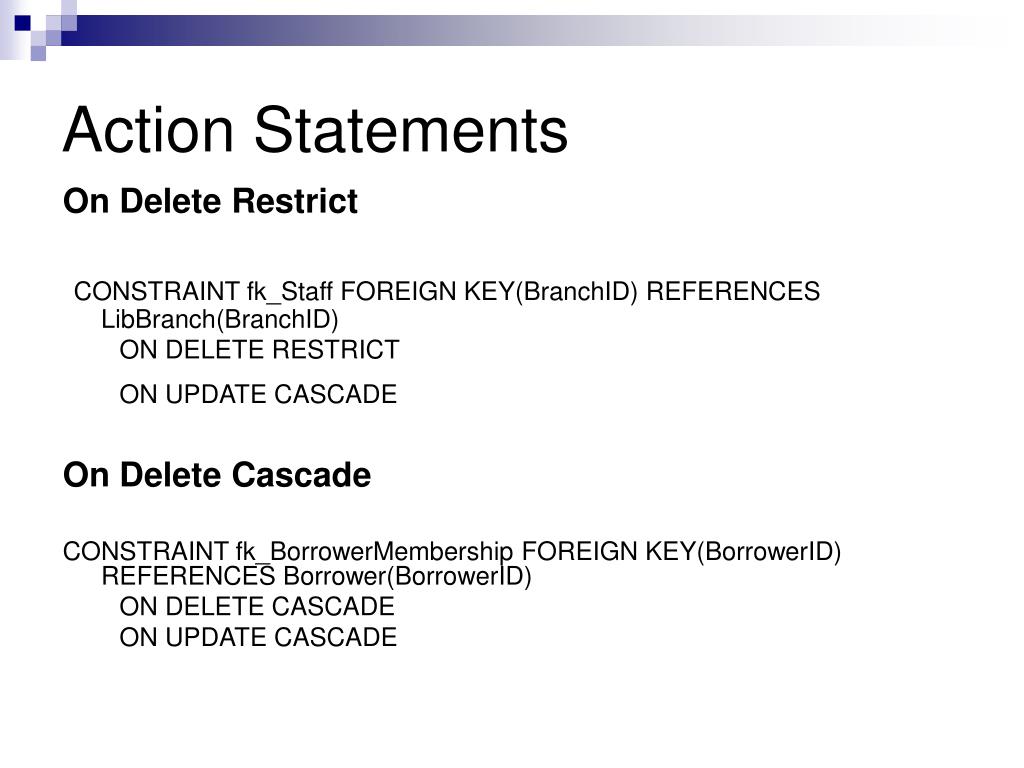

Action Statements

On Delete Restrict

CONSTRAINT fk_Staff FOREIGN KEY(BranchID) REFERENCES LibBranch(BranchID)

ON DELETE RESTRICT

ON UPDATE CASCADE

On Delete Cascade

CONSTRAINT fk_BorrowerMembership FOREIGN KEY(BorrowerID) REFERENCES Borrower(BorrowerID)

ON DELETE CASCADE

ON UPDATE CASCADE

views

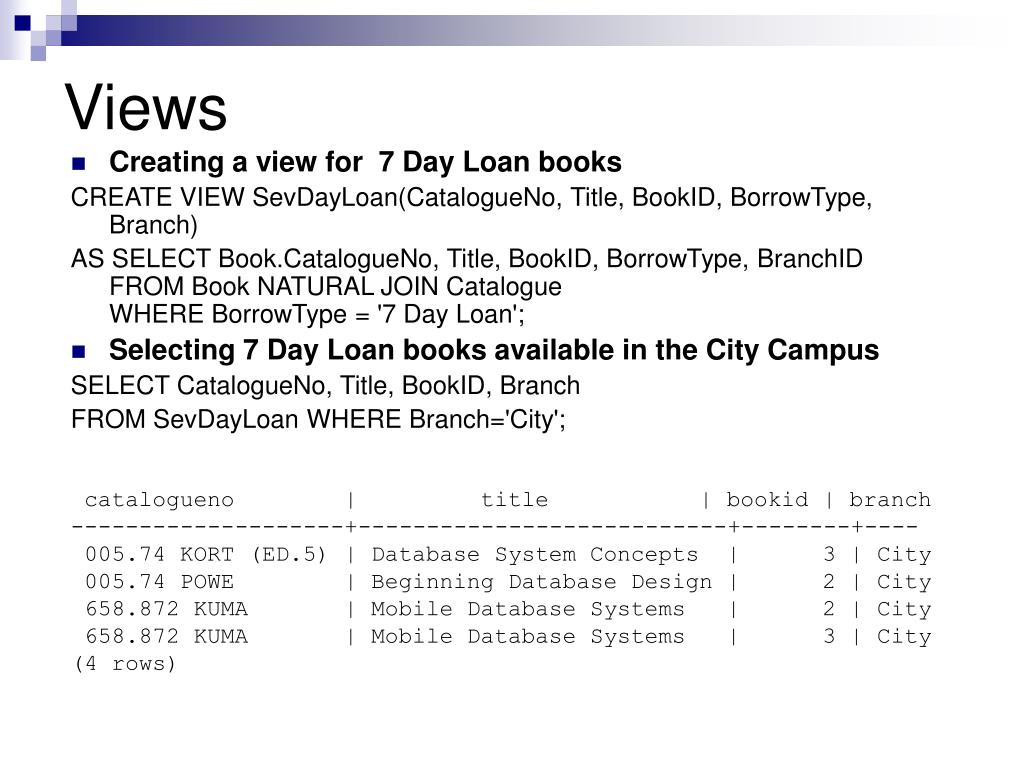

Views
  • Creating a view for 7 Day Loan books

CREATE VIEW SevDayLoan(CatalogueNo, Title, BookID, BorrowType, Branch)

AS SELECT Book.CatalogueNo, Title, BookID, BorrowType, BranchID FROM Book NATURAL JOIN Catalogue WHERE BorrowType = '7 Day Loan';

  • Selecting 7 Day Loan books available in the City Campus

SELECT CatalogueNo, Title, BookID, Branch

FROM SevDayLoan WHERE Branch='City';

catalogueno | title | bookid | branch

--------------------+---------------------------+--------+----

005.74 KORT (ED.5) | Database System Concepts | 3 | City

005.74 POWE | Beginning Database Design | 2 | City

658.872 KUMA | Mobile Database Systems | 2 | City

658.872 KUMA | Mobile Database Systems | 3 | City

(4 rows)
