    1. Minerals

    2. What is a mineral? • A mineral is a naturally occurring, inorganic solid with an orderly crystalline structure and a definite chemical composition

    3. 5 Characteristics of Minerals • 1. Naturally occurring- forms by natural geologic processes, synthetic gems are not considered minerals • 2. Solid Substance- within temperature ranges that occur at Earth’s surface • 3. Orderly crystalline Structure- atoms are arranged in an orderly and repetitive manner • 4. Definite Chemical Composition- minerals are chemical compounds made up of a two or more elements (exception- native elements) • 5. Generally Considered Inorganic- table salt is inorganic, sugar is organic and is not a crystal. Sugar comes from a plant • Calcium carbonate- secreted by marine animals, inorganic or organic?

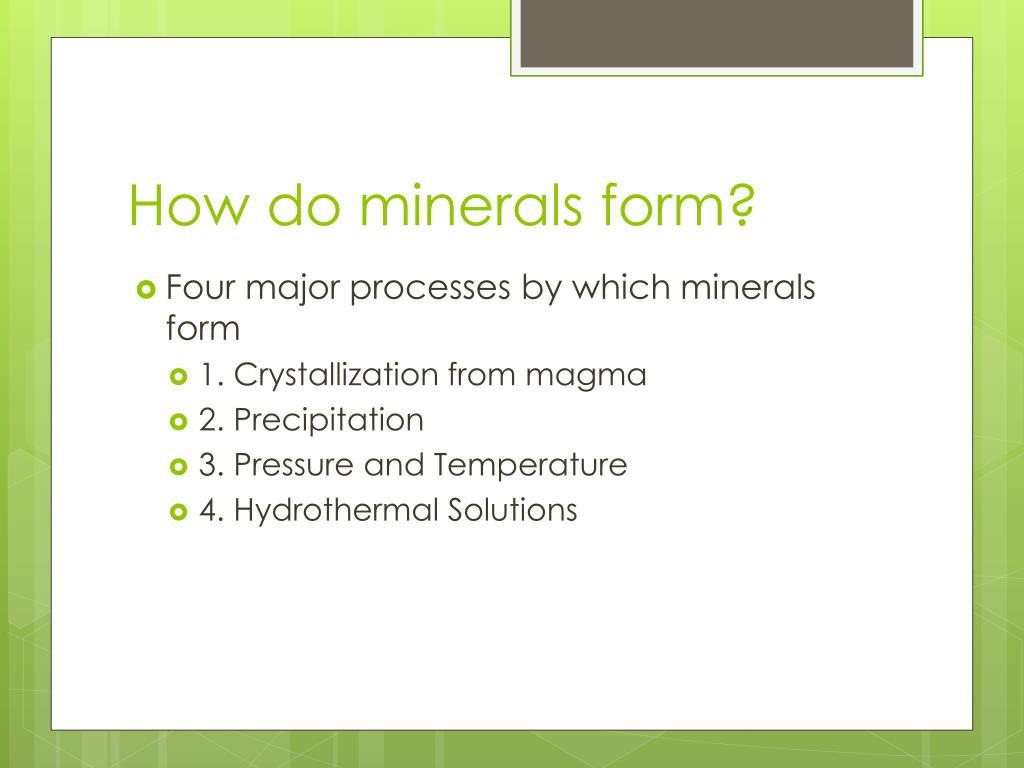

    4. How do minerals form? • Four major processes by which minerals form • 1. Crystallization from magma • 2. Precipitation • 3. Pressure and Temperature • 4. Hydrothermal Solutions

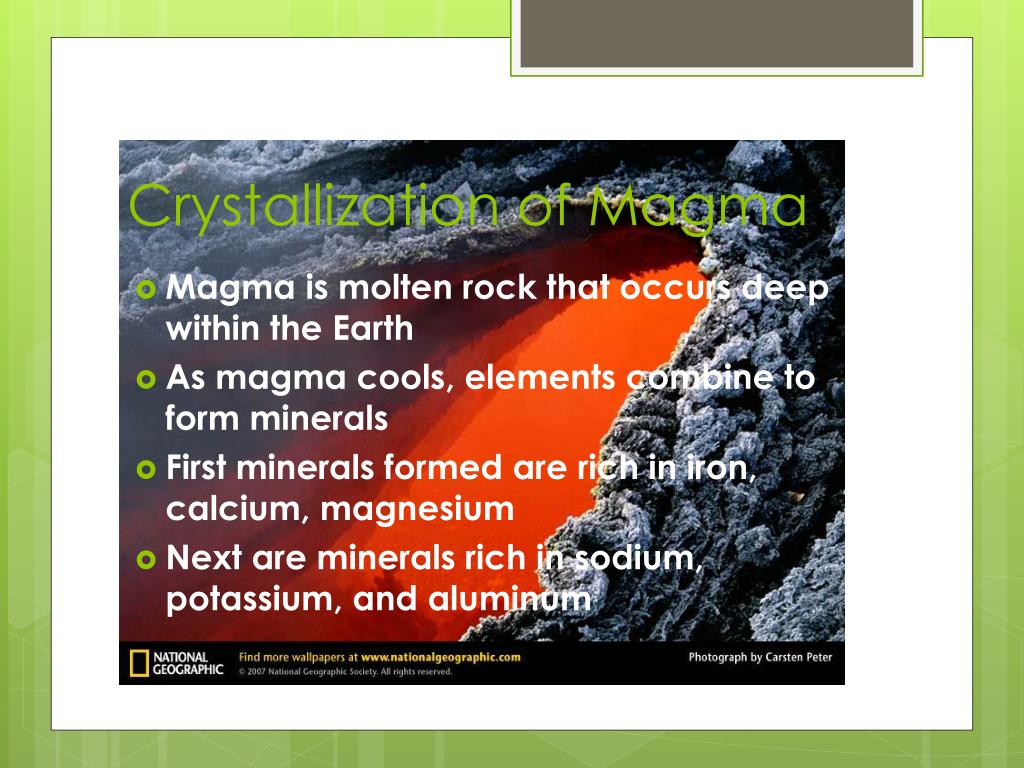

    5. Crystallization of Magma • Magma is molten rock that occurs deep within the Earth • As magma cools, elements combine to form minerals • First minerals formed are rich in iron, calcium, magnesium • Next are minerals rich in sodium, potassium, and aluminum

    6. Precipitation • Minerals form when water evaporates in lakes, rivers, ponds, and oceans • Minerals are left behind or precipitated from the water • Halite and calcite form this way

    7. Pressure and Temperature • Some minerals from when others are subject to changes in pressure and temperature • Atoms are rearranged to form more compact minerals • Talc and muscovite are formed this way

    8. Hydrothermal Solutions • Hydro (water) thermal (heat) • Very hot mixtures of water and dissolved substances • Can have temperature between 100oC and 300oC • Chemical reactions occur at these temperatures causing minerals to form, or as solution cools minerals form

    9. Mineral Groups • There are over 3800 named minerals on Earth and more are identified each year • Common Minerals are classified into groups based on their composition • Seven mineral groups- • Silicates, carbonates, oxides, sulfates, sulfides, halides, native elements

    10. Silicates • These are the most common- remember from chemistry unit, the most abundant elements in Earth’s crust are oxygen and silicon • Silicon-oxygen tetrahedron- structure which consists of one silicon to four oxygen molecules (most silicates occur in this form) • Most silicate minerals form from crystallization of magma near or far below earth’s surface • Examples include- quartz, augite, micas

    11. Carbonates • Second most abundant mineral group • Contain carbon, oxygen, and one or more other metallic elements • Examples include calcite, dolomite, limestone, marble

    12. Oxides • Oxides contain oxygen and one or more other elements, which are usually metals • Some form under Earth’s surface from crystallization of magma (rutile), others from when minerals are subject to changes in temperature and pressure (corundum), others form when a mineral is exposed to liquid water (hematite, iron oxide)

    13. Sulfates and Sulfides • Both contain sulfur • Sulfates- (anhydrite, and gypsum) form when mineral rich waters evaporate • Sulfides- (galena, sphalerite, pyrite) form from hydrothermal solutions

    14. Halides • This group contains a halogen ion plus one or more other elements • Halogens occur in group 17 (7a) of the periodic table • Examples include- halite and fluorite

    15. Native Elements • This group occurs in pure elemental form • Examples include- gold, silver, copper, sulfur, carbon (graphite and diamonds)

    16. Properties of Minerals and Mineral Identification • Properties of minerals are determined by composition and structure • Color • Streak • Luster • Crystal Form • Hardness • Cleavage • Fracture • Density • Unique properties include- magnetism, double refraction, chemical reactions with HCl

    17. Color and Luster • Color can be unique to some minerals, but for most it is not the most useful for identification • Color within minerals can vary depending on other elements present within the mineral • Luster- how light is reflected from the surface of a mineral • Metallic (metal like), vitreous/glassy (quartz), pearly, silky, earthy

    18. Streak and Crystal Form • Color of a mineral in its powdered form • We can use a streak plate (a sheet of unglazed porcelain) to determine this property • Crystal form- visible expression of internal arrangement of atoms • When a mineral forms without any space restrictions it will develop into a perfect crystal with well developed faces • 6 Crystal Forms

    19. Type 1: Isometric (Cubic) • 6 sides • All sides are square • Examples *pyrite *halite *diamond *galena

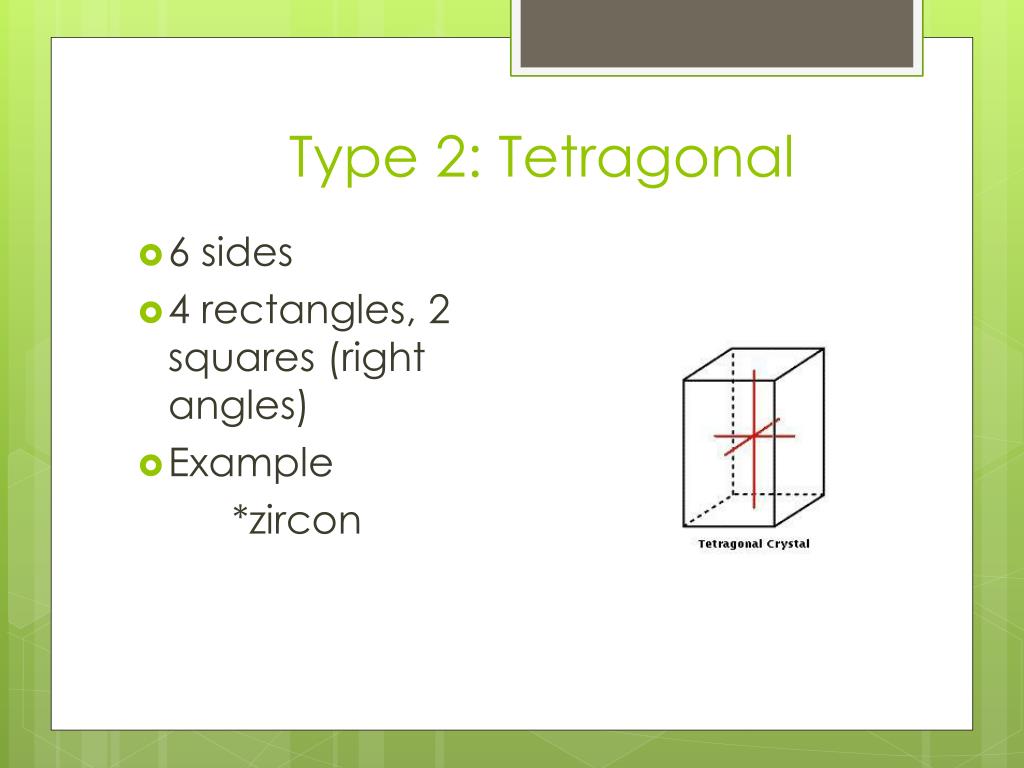

    20. Type 2: Tetragonal • 6 sides • 4 rectangles, 2 squares (right angles) • Example *zircon

    21. Type 3: Hexagonal • 8 sides • 2 hexagons, 6 rectangles (right angles) • Examples *ice *quartz *emeralds

    22. Type 4: Orthorhombic • 6 sides • 6 rectangles (3 pairs of rectangles with different sizes at right angles) • Examples *topaz *barite

    23. Type 5: Monoclinic • 6 sides • 4 rectangles, 2 parallelograms (several angles) • Examples *gypsum *muscovite

    24. Type 6: Triclinic • 6 sides • Parallelograms (no right angles) • Example *turquoise

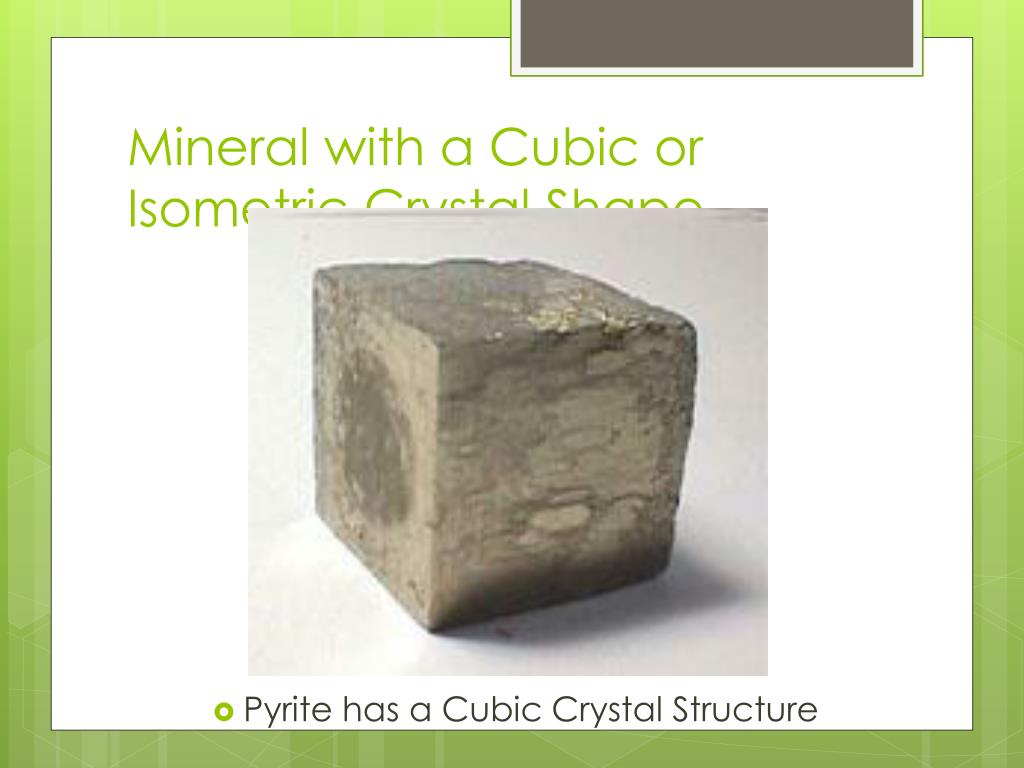

    25. Mineral with a Cubic or Isometric Crystal Shape • Pyrite has a Cubic Crystal Structure

    26. Mineral with a Tetragonal Crystal Shape • Rutile has a Tetragonal Crystal Structure

    27. Mineral with a Hexagonal Crystal Shape • Ruby has a Hexagonal Crystal Structure

    28. Minerals with Orthorhombic Crystal Shapes • The is a very big crystal system containing gemstones such as topaz, peridot, tanzanite, and many others

    29. Mineral with a Monoclinic Crystal Shape • Gypsum is a mineral with a Monoclinic Crystal Structure

    30. Mineral with a Triclinic Crystal Shape • Calcite- Triclinic crystal look like a rectangular box that someone pushed from one side to make it lean

    31. Hardness • One of the more useful properties for identification • Done by rubbing two minerals together, one will scratch the other unless they have the same hardness • Mohs Hardness Scale- 1-10 • Talc is the softest, what is hardest?

    32. Moh’s Hardness Scale

    33. Cleavage and Fracture • Cleavage is the tendency of a mineral to cleave or break along flat, even surfaces • Fracture is what happens to all other minerals that do not display cleavage • Fracture can be described as the uneven breakage of a mineral • Internal atomic structure determines whether a mineral will display cleavage or fracture

    34. Fracture or Cleavage? Selena

    35. Density • Ratio of an objects mass to its volume • D= M/V • For minerals we would use g/cm3, since we are looking at solids • Density of pure minerals are of constant value. Therefore we can use density to identify pure minerals or to tell if a mineral is not in pure form.

    36. Other Properties • Magnetism- some types of magnetite are magnetic and can be used to pick of metal objects • Double Refraction- When calcite is placed over printed words the letters appear doubled • Chemical Reactions with HCl- Carbonate minerals will fizz when they come into contact with hydrochloric acid

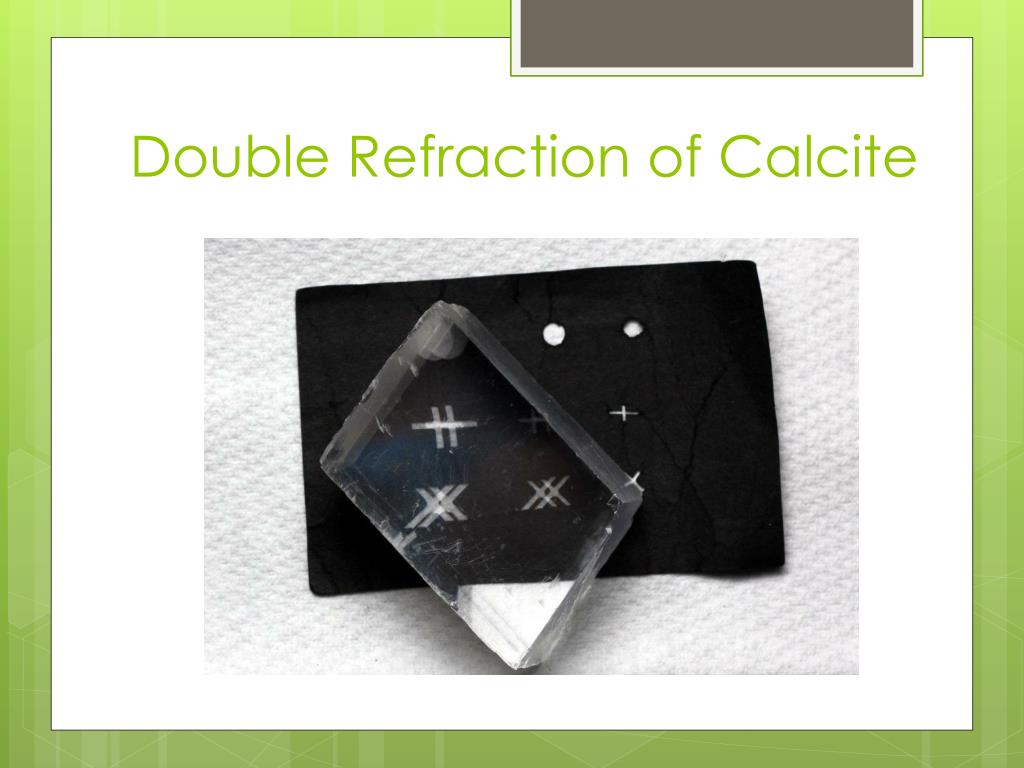

    37. Double Refraction of Calcite

    38. Magnetism
