JVM Overview

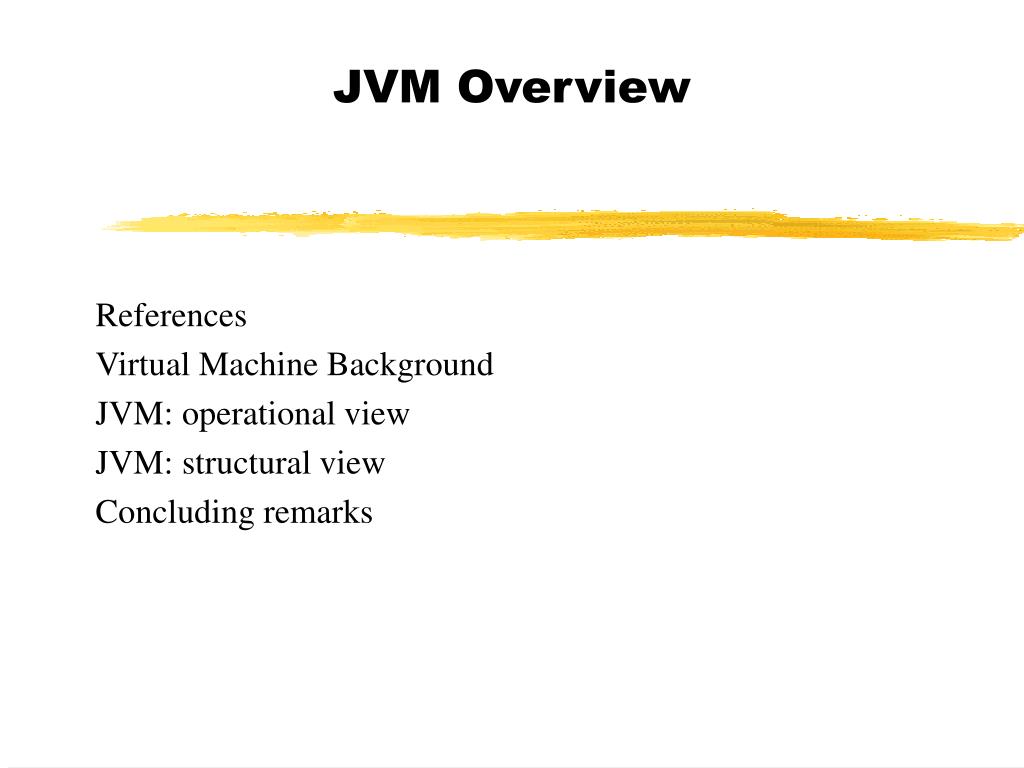

1. JVM Overview References Virtual Machine Background JVM: operational view JVM: structural view Concluding remarks

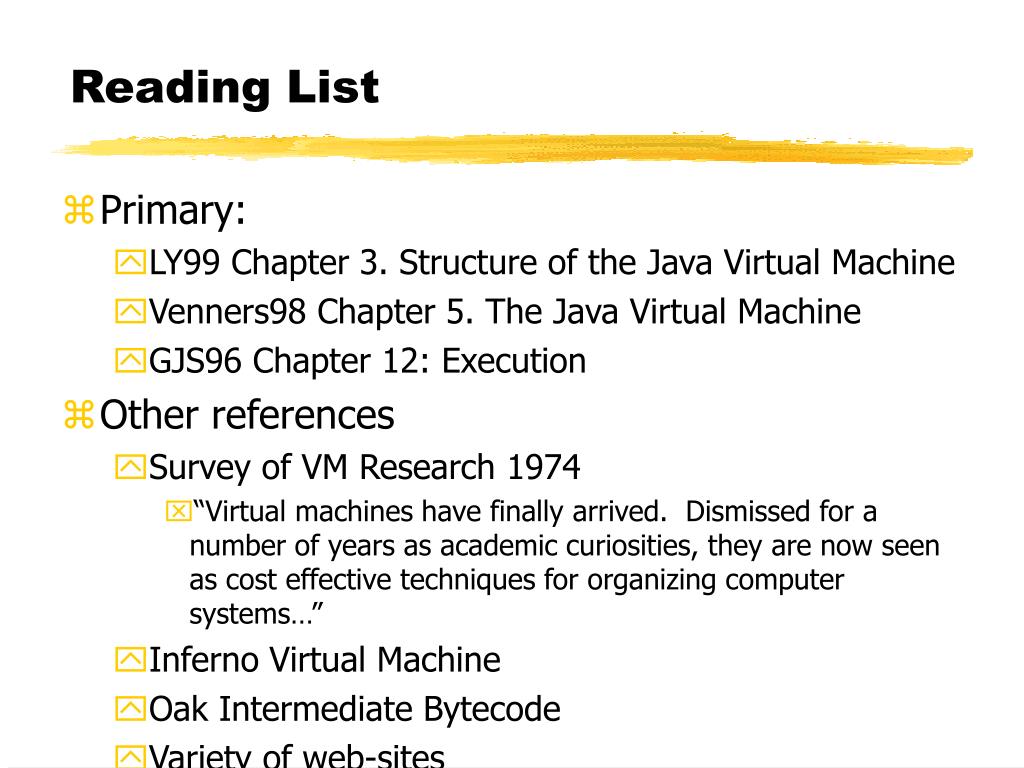

2. Reading List • Primary: • LY99 Chapter 3. Structure of the Java Virtual Machine • Venners98 Chapter 5. The Java Virtual Machine • GJS96 Chapter 12: Execution • Other references • Survey of VM Research 1974 • “Virtual machines have finally arrived. Dismissed for a number of years as academic curiosities, they are now seen as cost effective techniques for organizing computer systems…” • Inferno Virtual Machine • Oak Intermediate Bytecode • Variety of web-sites

3. What is a virtual machine? • David Gelernter: Truth, beauty, and VMs • “A running program is often referred to as a VM -- a machine that doesn’t exist as a matter of actual physical reality. The virtual machine idea is … most elegant in the history of technology … a crucial step in the evolution of ideas about software.” • an operating system • a control program to run multiple operating systems

4. Design Goals • abstract enough • close enough to the hardware • question: what is the intended use? • Inferno: run OS code • JVM: run application code

5. What is the JVM?

6. Key Distinction • what is the specification? • what is the implementation? • object layout is not part of the specification • garbage collection is not part of the spec

7. JVM: View 1 • from the language point of view • trace the lifetime of a virtual machine • invocation, loading-linking, object lifetime, exit

8. VM in action • invoked “java Test args” • attempts to find class Test • VM uses the class loader • Link • Initialize • Invoke Test.main

9. Loading • check whether already loaded • if not, invoke the appropriate loader.loadClass • internal table is part of the specification? • class loader flexibility: prefetch, load a bunch • prefetching can be non-transparent! • errors, however, need to be reported separately • class loader hooks: defineClass, findSystemClass, resolveClass

10. Link • Link = verification, preparation, resolution • Verification: semantic checks, proper symbol table • proper opcodes, good branch targets • conservation of stack depth • Preparation: allocation of storage (method tables) • Resolution: resolve symbol references, check access, check concreteness • Resolution: eager vs lazy strategy

11. Initialization • initialize class variables, static initializers • direct superclass need to be initialized prior • happens on direct use: method invocation, construction, field access • synchronized initializations: state in Class object • check for recursive initializations

12. Example class Super { static { System.out.print(“Super “); } class One { static { System.out.print(“One “); } class Two extends Super { static { System.out.print(“Two “); } class Test { public static void main(String[] args) { One o = null; Two t = new Two(); System.out.println((Object)o == (Object)t); } }

13. Example class Super { static int taxi = 1729; } class Sub extends Super { static { System.out.print(“Sub “); } class Test { public static void main(String[] args) { System.out.println(Sub.taxi); } }

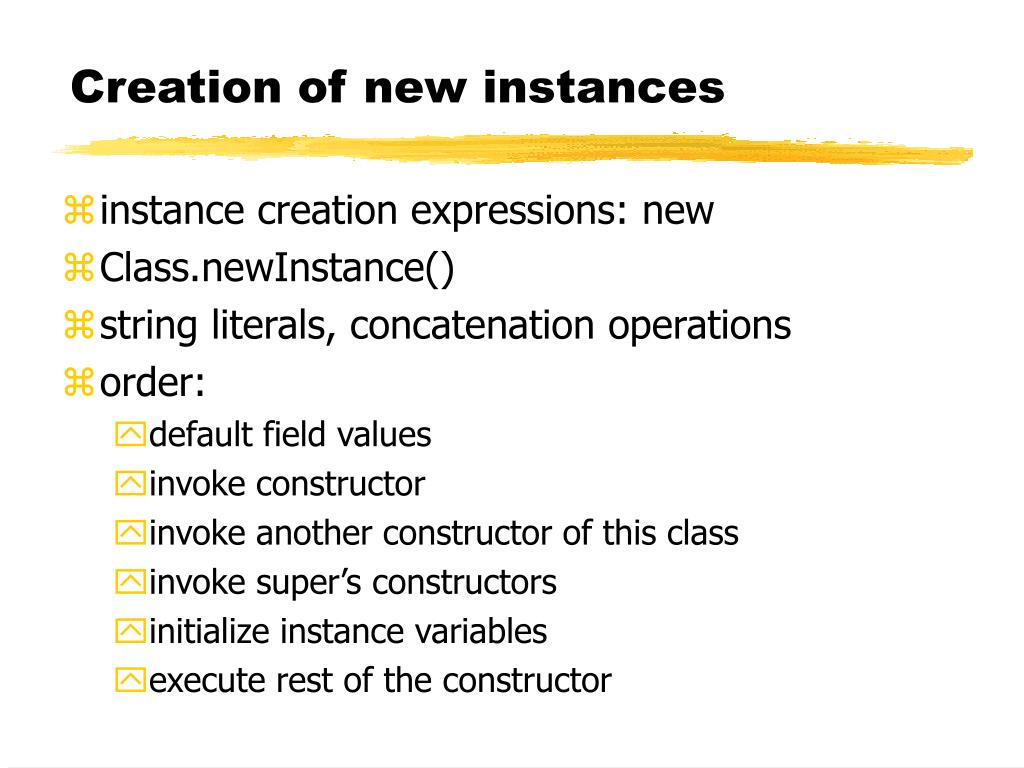

14. Creation of new instances • instance creation expressions: new • Class.newInstance() • string literals, concatenation operations • order: • default field values • invoke constructor • invoke another constructor of this class • invoke super’s constructors • initialize instance variables • execute rest of the constructor

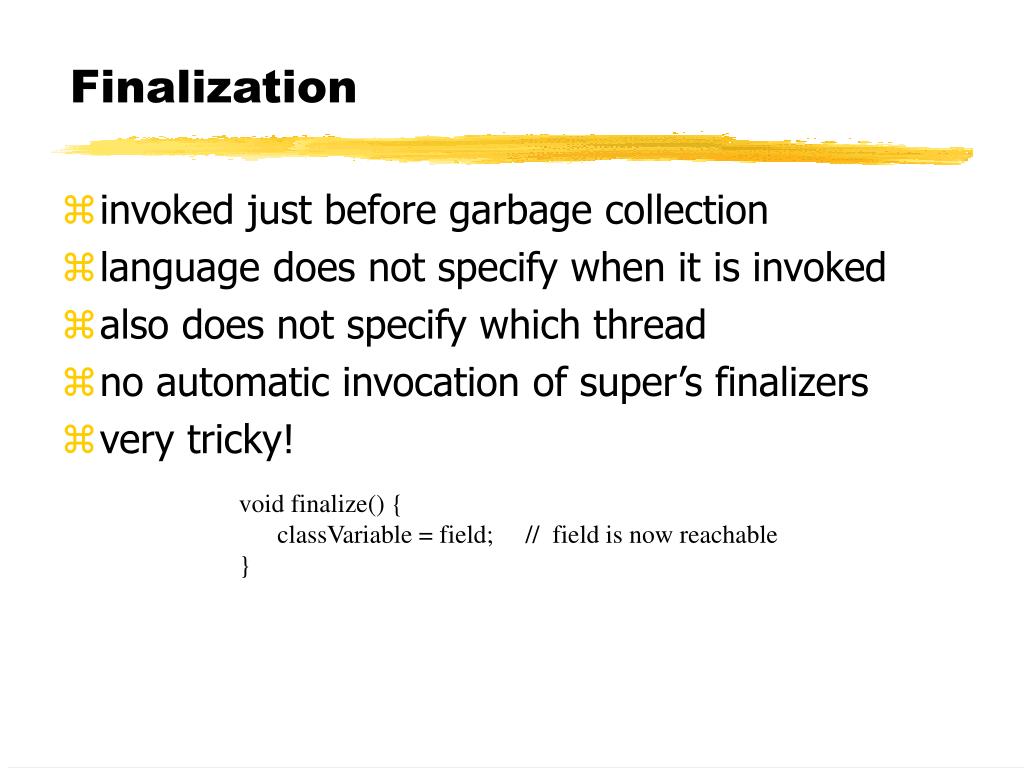

15. Finalization • invoked just before garbage collection • language does not specify when it is invoked • also does not specify which thread • no automatic invocation of super’s finalizers • very tricky! void finalize() { classVariable = field; // field is now reachable }

16. State Machine

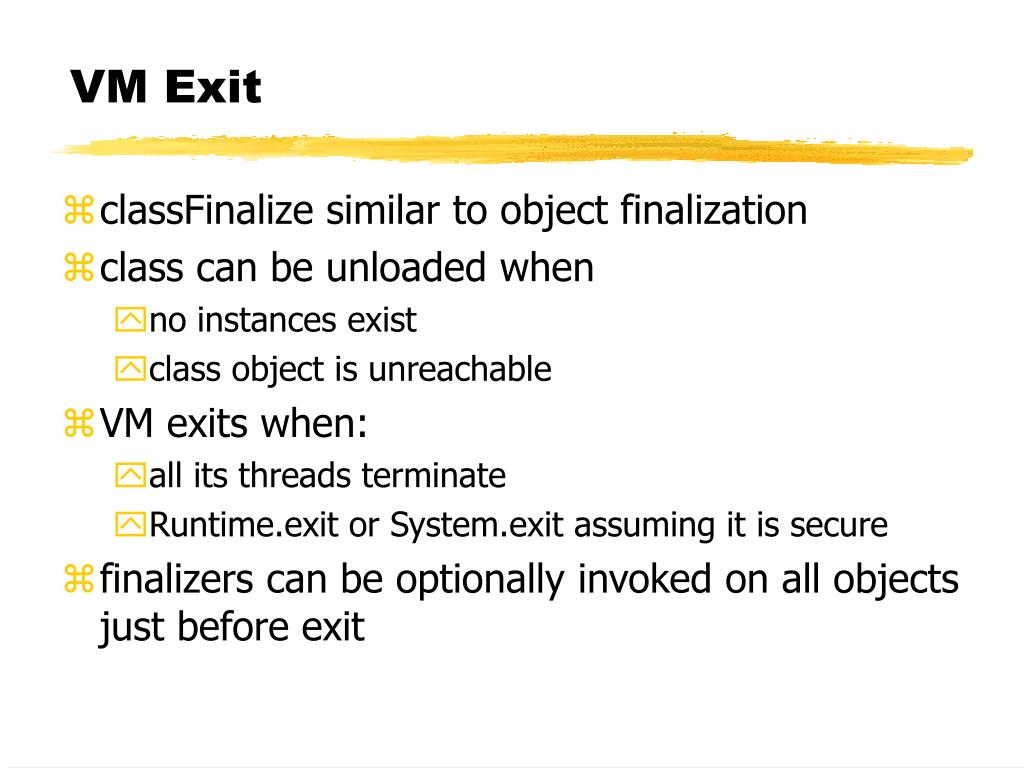

17. VM Exit • classFinalize similar to object finalization • class can be unloaded when • no instances exist • class object is unreachable • VM exits when: • all its threads terminate • Runtime.exit or System.exit assuming it is secure • finalizers can be optionally invoked on all objects just before exit

18. JVM: View 2 • data types, values • runtime data areas • exceptions • instruction set • object management • support for special libraries

19. Data types and values • corresponds to Java language types • byte, short, int, long, char, float, double, boolean • returnAddress type is only exception • references: concrete value of null left to implementation • integer sizes: is it too constraining? • floating point values: standard and extended • no runtime type information • instruction specifies the type of operands • iadd as opposed to fadd

20. Object Representation • left to the implementation • add extra level of indirection • make garbage collection easier • need pointers to instance data and class data • mutex lock • GC state (flags)

21. Runtime Data Areas • per-thread vs. VM wide • pc register: per thread, undefined while executing native methods • VM stack (per-thread) • local variables, partial results • method invocation, return • can be heap allocated as well as non-contiguous • size can be manipulated by the programmer • StackOverflowError vs OutOfMemoryError

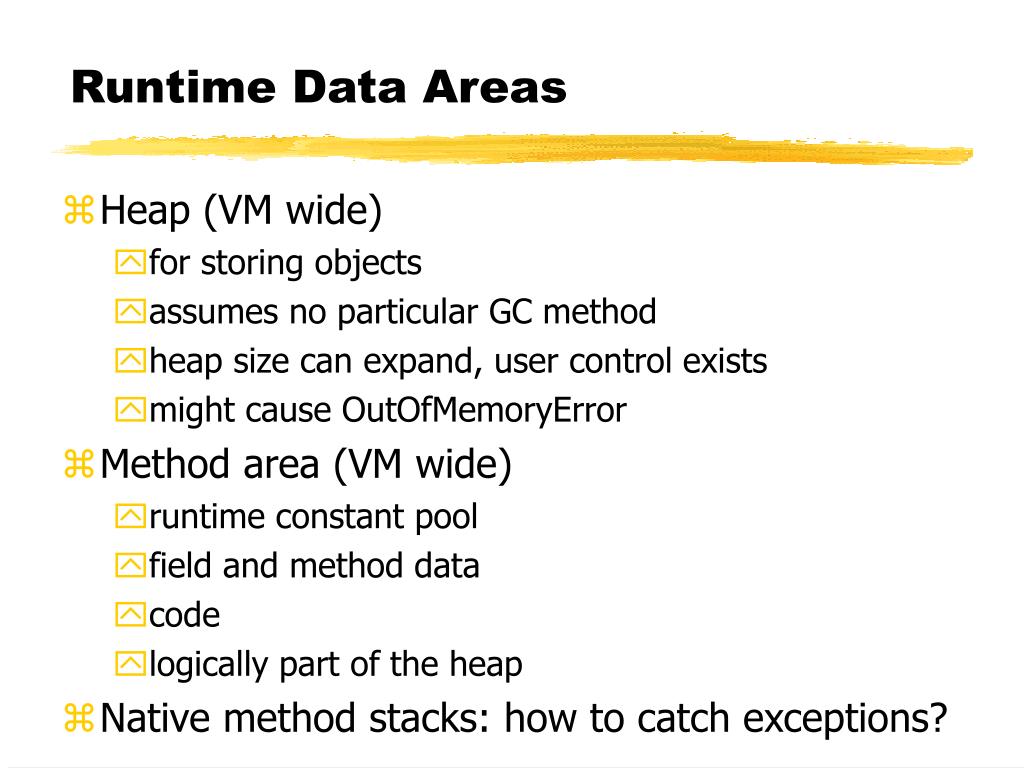

22. Runtime Data Areas • Heap (VM wide) • for storing objects • assumes no particular GC method • heap size can expand, user control exists • might cause OutOfMemoryError • Method area (VM wide) • runtime constant pool • field and method data • code • logically part of the heap • Native method stacks: how to catch exceptions?

23. VM Stack Frames • created and destroyed with method invocations • local variable array, own operand stack • local variable array elements can store a float/int • over-specification? • used for parameter passing • instance methods pass “this” as 0th argument • operand stack: depth determined at compile-time • elements can hold any type • reference to the class’s runtime constant pool • symbolic references for dynamic linking

24. Initialization Methods • specially named • <init> for instances • invokespecial instruction • can be invoked only on uninitialized instances • <clinit> for classes • implicitly invoked

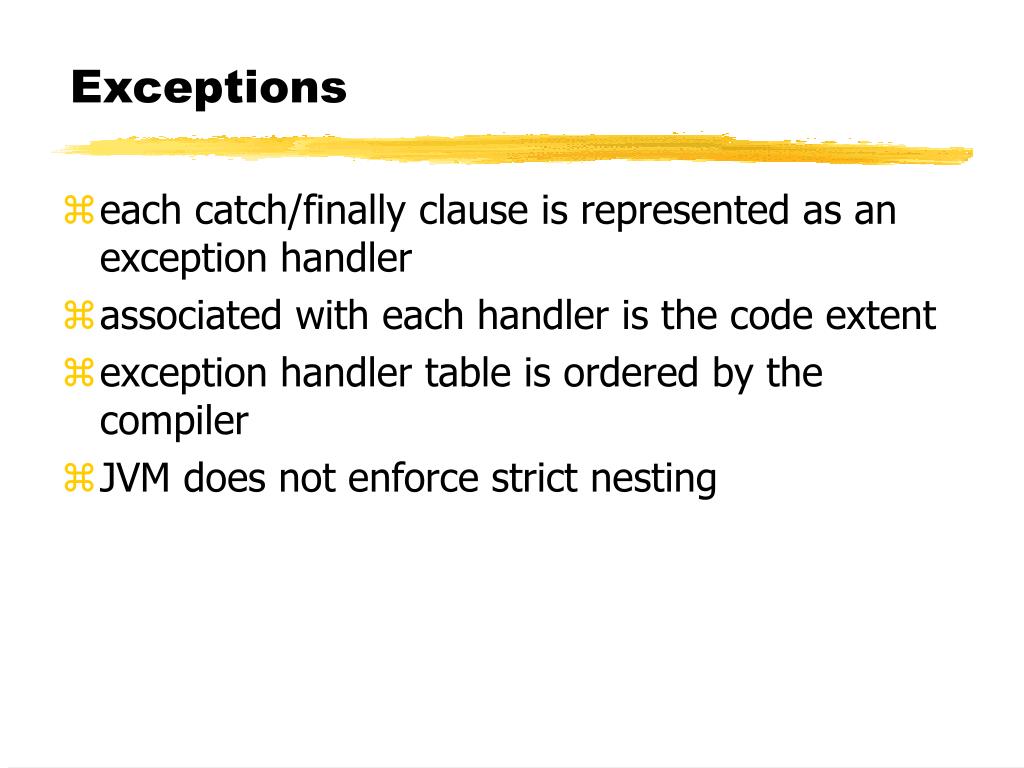

25. Exceptions • each catch/finally clause is represented as an exception handler • associated with each handler is the code extent • exception handler table is ordered by the compiler • JVM does not enforce strict nesting

26. Instruction set • variable size instruction • one-byte opcode followed by arguments • byte aligned except for operands of tableswitch and lookupswitch • compactness vs. performance • types part of the instruction (iload, fload) • use int operations for byte, char, short, int, reference • some are type-independent (pop, swap)

27. Instructions • load/store • arithmetic • conversion • object creation, access fields, load/store array elements, get array length, type checks • operand stack management • control transfer, method invocation, throw • monitor entry/exit

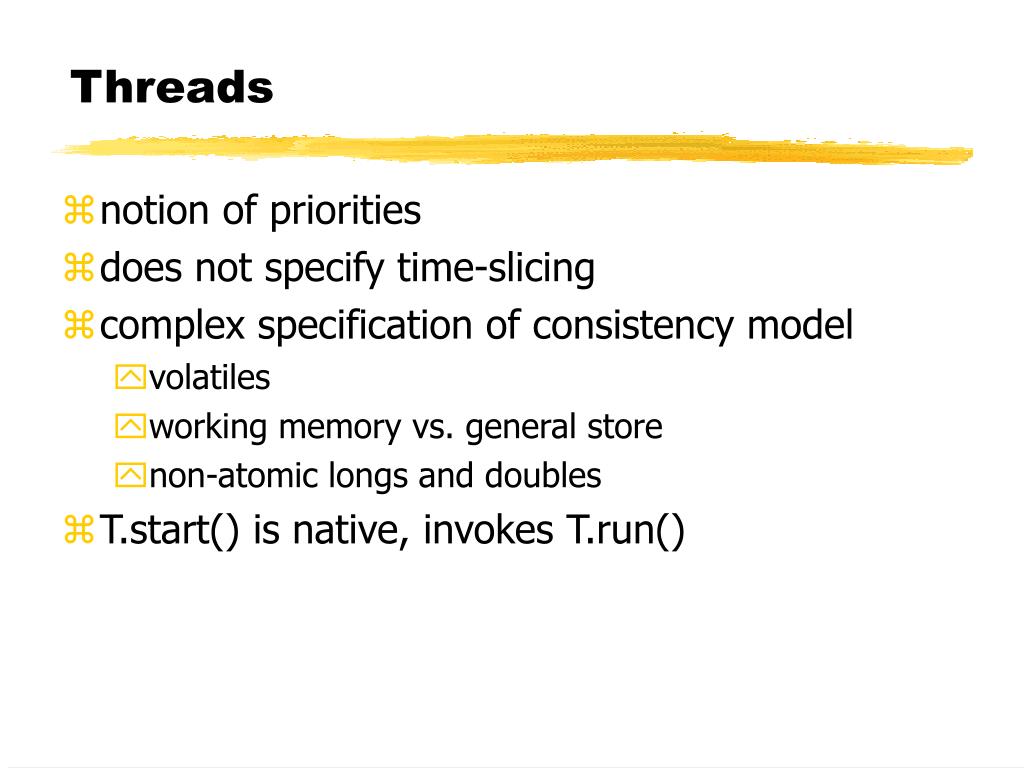

28. Threads • notion of priorities • does not specify time-slicing • complex specification of consistency model • volatiles • working memory vs. general store • non-atomic longs and doubles • T.start() is native, invokes T.run()

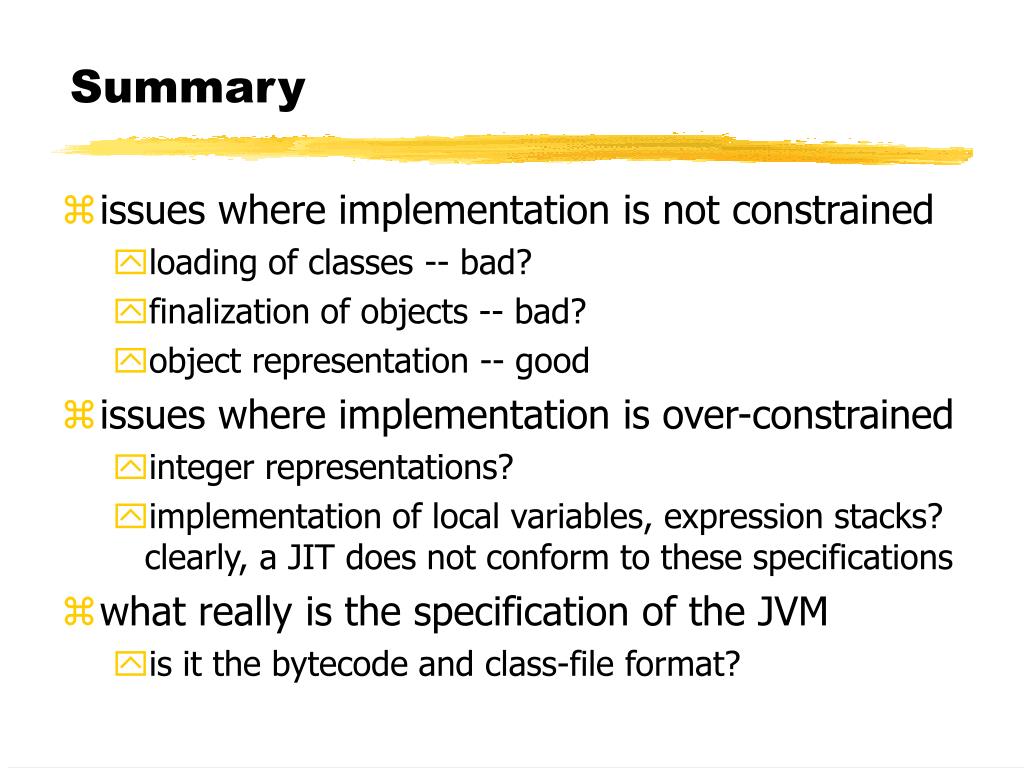

29. Summary • issues where implementation is not constrained • loading of classes -- bad? • finalization of objects -- bad? • object representation -- good • issues where implementation is over-constrained • integer representations? • implementation of local variables, expression stacks? clearly, a JIT does not conform to these specifications • what really is the specification of the JVM • is it the bytecode and class-file format?
