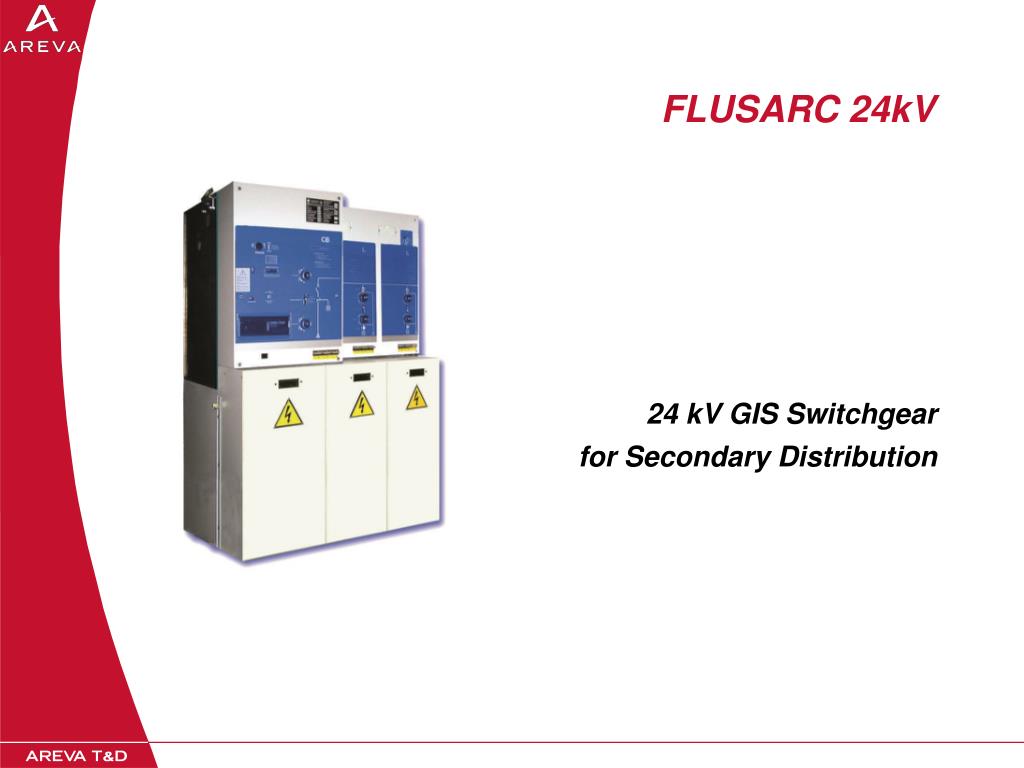

flusarc 24kv

FLUSARC 24kV

24 kV GIS Switchgear

for Secondary Distribution

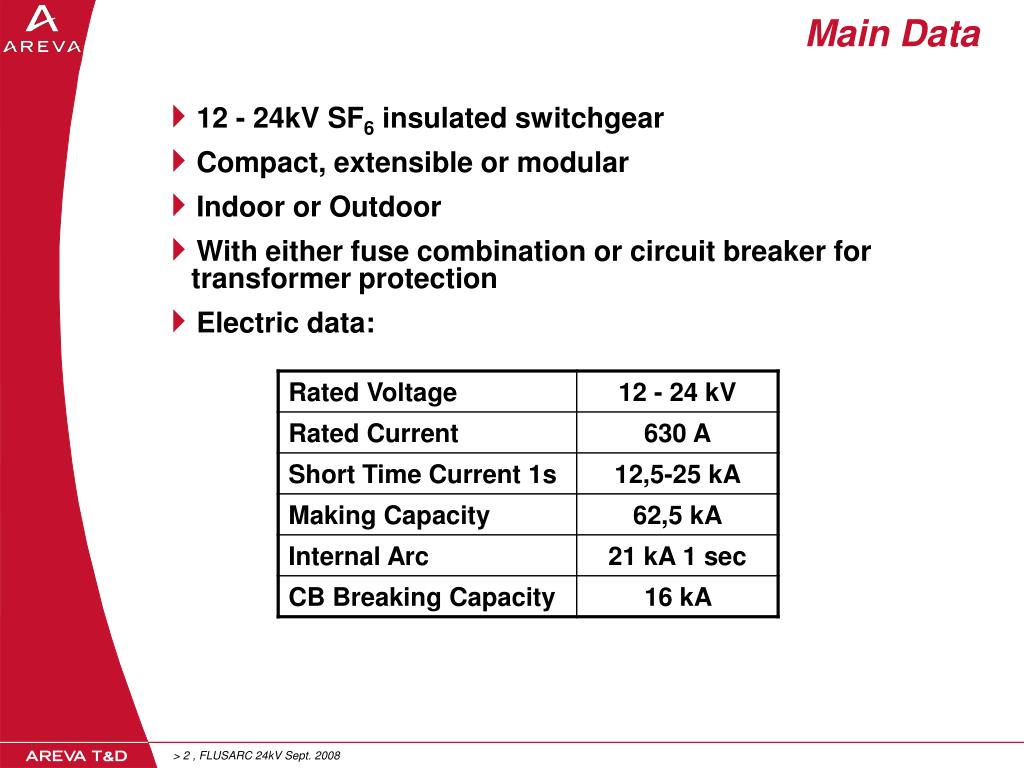

main data
Main Data
  • 12 - 24kV SF6 insulated switchgear
  • Compact, extensible or modular
  • Indoor or Outdoor
  • With either fuse combination or circuit breaker for transformer protection
  • Electric data:
main features installation
Main Features Installation
  • Easy installation
    • Can reach installation site already pre-assembled
    • No need for specialized civil works
    • Fast cable connection due to standardized bushing + coupling MV cable terminals
  • Reduced dimensions
    • (CCT1, 2 disconnecting switch & 1 disconnecting switch+fuses)
      • Width 1065mm
      • Height 1665mm
      • Depth 825mm
    • Also available in 1290mm height
      • SF6 compartment is the same
      • Smaller footprintand cable compartment
main features maintenance
Main FeaturesMaintenance
  • Cable testing
    • Easy cable testing thanks to standardized bushings
    • Cable testing can be done without interruption of service

Terminal cover

Capacitive insulator

Test kit rod

Adapter terminal

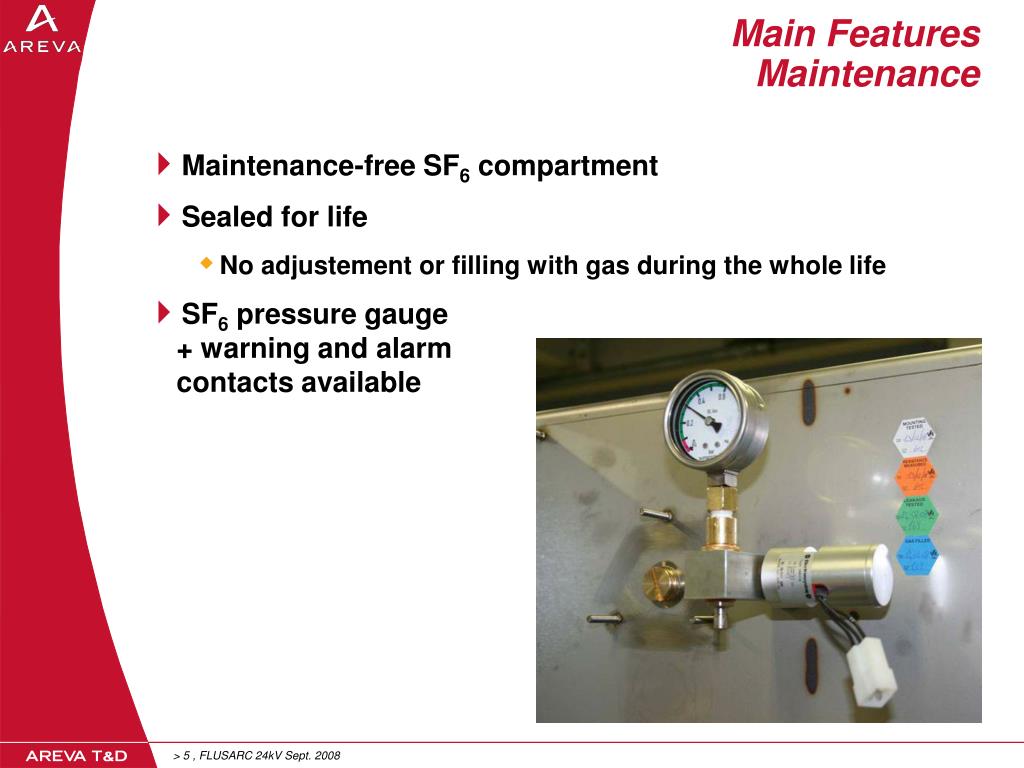

main features maintenance5
Main FeaturesMaintenance
  • Maintenance-free SF6 compartment
  • Sealed for life
    • No adjustement or filling with gas during the whole life
  • SF6 pressure gauge+ warning and alarm contacts available

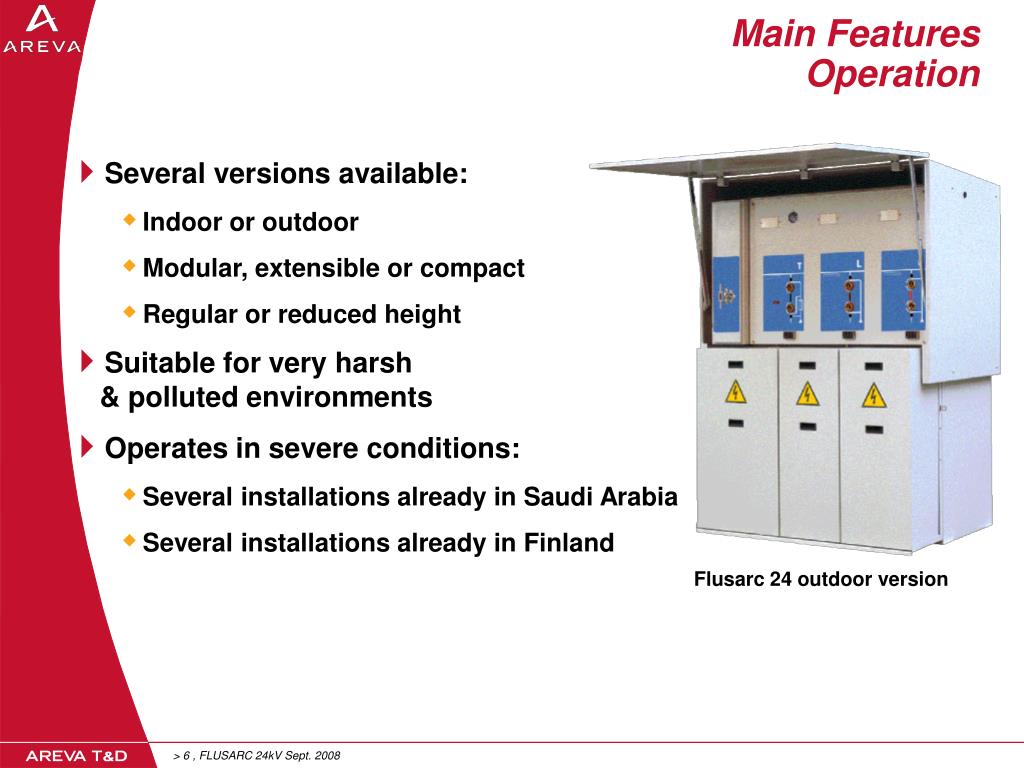

main features operation
Main FeaturesOperation
  • Several versions available:
    • Indoor or outdoor
    • Modular, extensible or compact
    • Regular or reduced height
  • Suitable for very harsh & polluted environments
  • Operates in severe conditions:
    • Several installations already in Saudi Arabia
    • Several installations already in Finland

Flusarc 24 outdoor version

main features operation7
Main FeaturesOperation
  • Reliable working of the operating devices
    • Field-proven experience with thousand of installations over 15 years
  • All the operations are carried out from the front
    • Mechanical signals show the position of the various switching components
  • Correct sequence instructions is showed on switchgear front

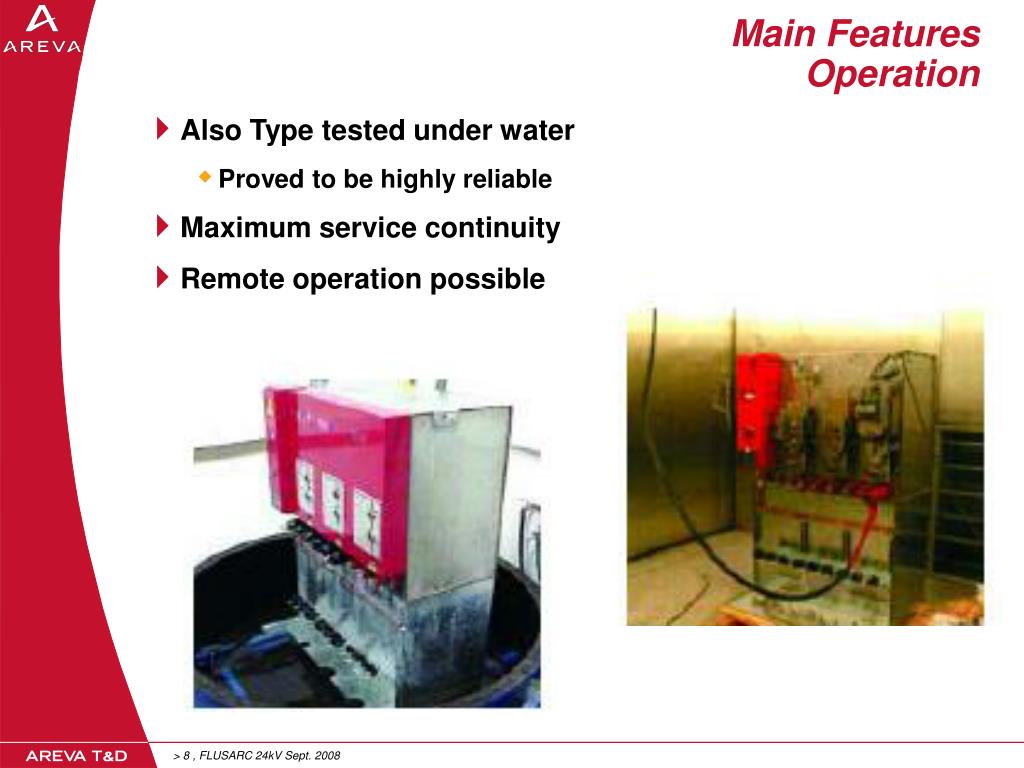

main features operation8
Main FeaturesOperation
  • Also Type tested under water
    • Proved to be highly reliable
  • Maximum service continuity
  • Remote operation possible

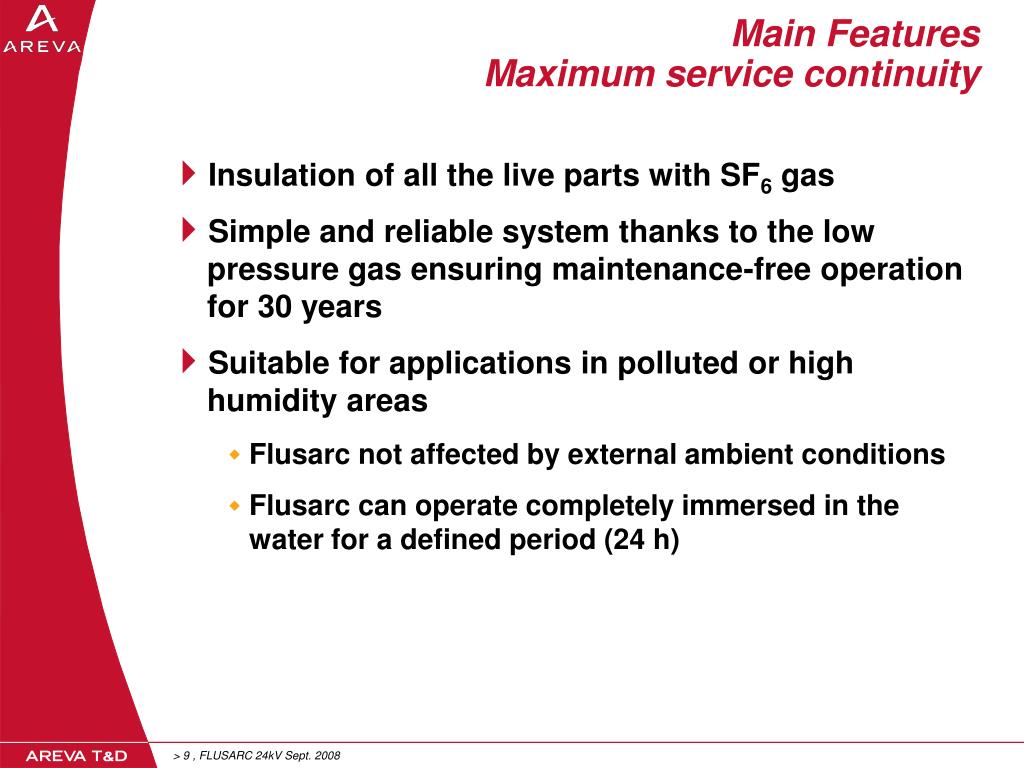

main features maximum service continuity
Main FeaturesMaximum service continuity
  • Insulation of all the live parts with SF6 gas
  • Simple and reliable system thanks to the low pressure gas ensuring maintenance-free operation for 30 years
  • Suitable for applications in polluted or high humidity areas
    • Flusarc not affected by external ambient conditions
    • Flusarc can operate completely immersed in the water for a defined period (24 h)
main features personnel safety
Main featuresPersonnel safety
  • Direct earthing of the whole switchgear structure
  • Total segregation of live parts located in a completely sealed SF6 stainless steel metal housing
  • Access to fuses without any danger with earthing at both sides
  • Mechanical interlocks ensure correct sequence of operations
  • Security and simplicity of locking devices
  • Internal arc proof in the tank
    • On request also in cable compartment
  • CESI type tests certification
main features personnel safety11
Main featuresPersonnel safety
  • SF6 prevents fires from spreading
  • Overpressure valves are placed under the switchgear:
    • allows the hot exhaust gas escape into cable conduit
    • eliminates any risk for the operator

Overpressure valves

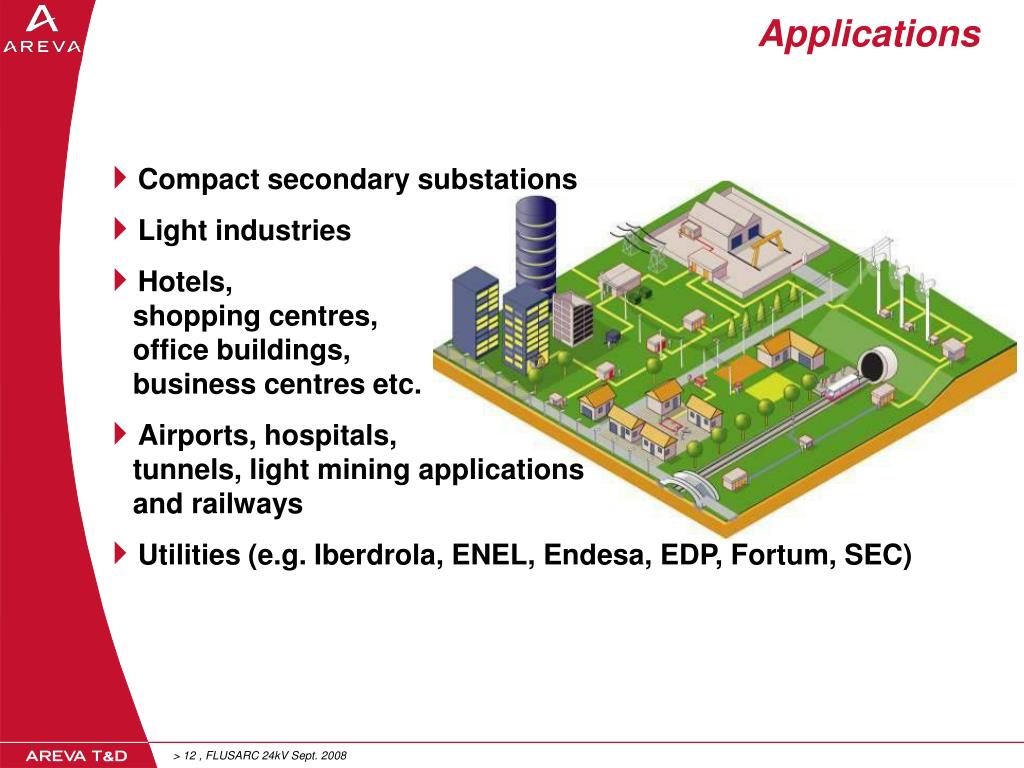

applications
Applications
  • Compact secondary substations
  • Light industries
  • Hotels, shopping centres, office buildings, business centres etc.
  • Airports, hospitals, tunnels, light mining applications and railways
  • Utilities (e.g. Iberdrola, ENEL, Endesa, EDP, Fortum, SEC)
circuit breaker function
Circuit Breaker Function
  • Characteristics:
    • 24kV 630A
    • Short-time current: 16kA 1s
  • Option of two different relay types for CB (Self powered and Auxiliary powered)
  • Manual and motorized versions
  • Several versions available
    • Outdoor
    • Extensible
    • Reduced height

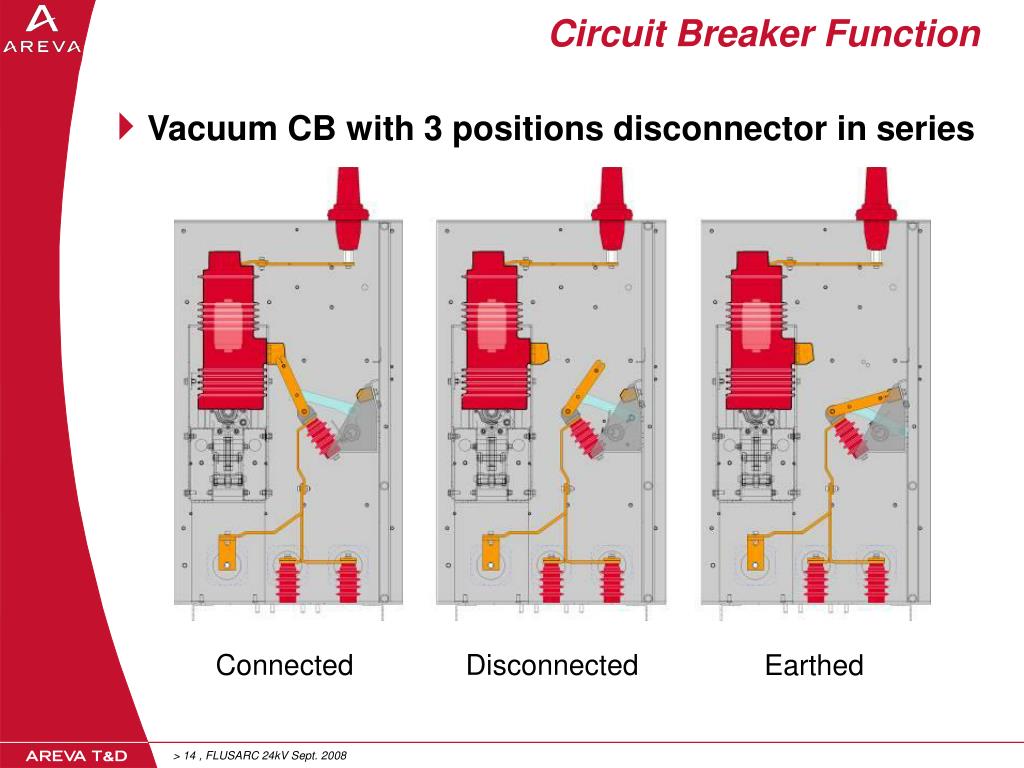

circuit breaker function14
Circuit Breaker Function
  • Vacuum CB with 3 positions disconnector in series

Connected

Disconnected

Earthed

circuit breaker function15
Vacuum interruption technology guarantees high performance and reliability

30 years without maintenance

Circuit breaker placed inside SF6 compartment

Reduced dimension

Disconnecting switch placed inside SF6 compartment

Reduced dimension

High reliability, same mechanism for disconnecting switch and earthing switch

Circuit Breaker Function

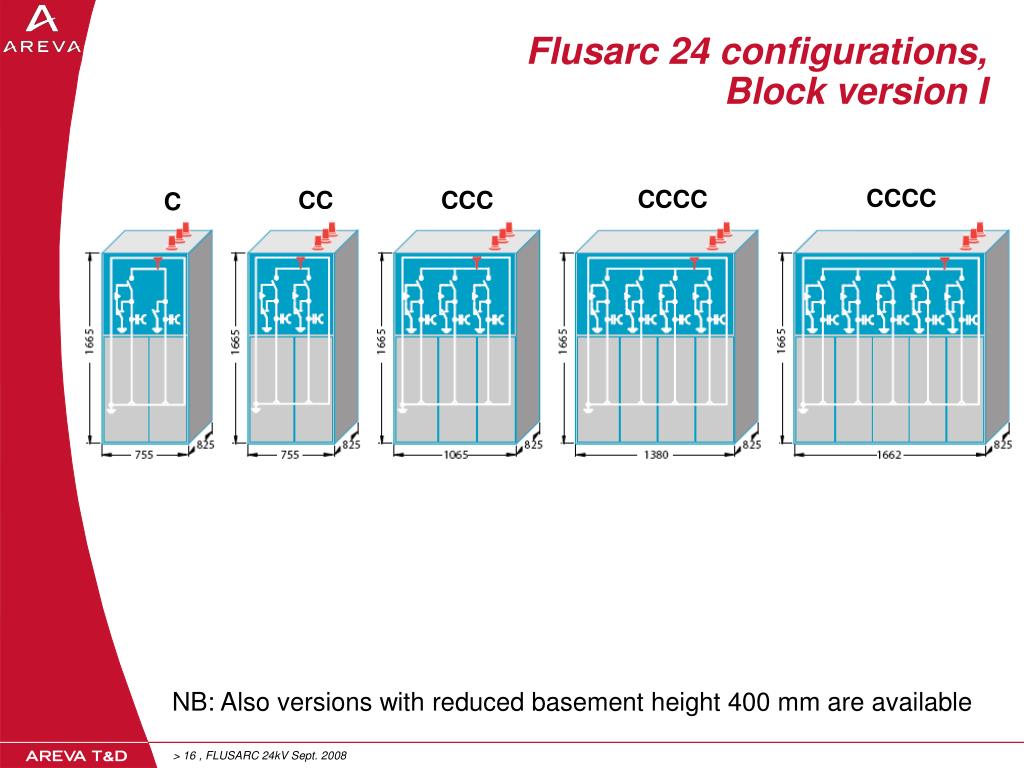

flusarc 24 configurations block version i

CCCC

CCCC

CC

CCC

C

Flusarc 24 configurations,Block version I

NB: Also versions with reduced basement height 400 mm are available

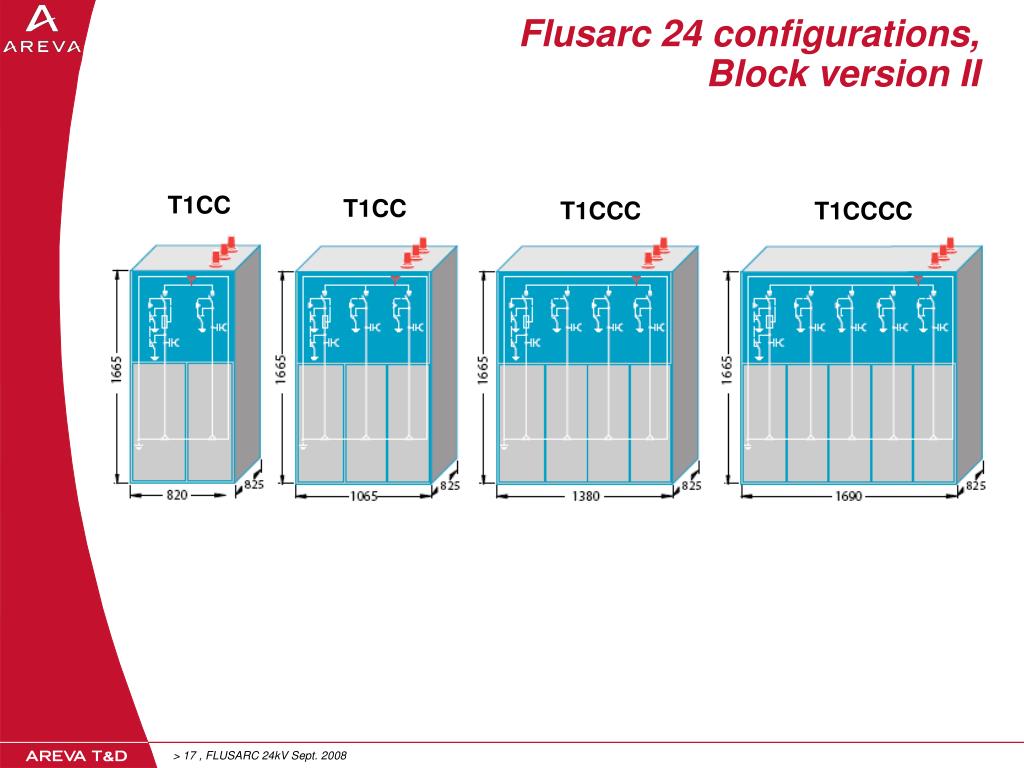

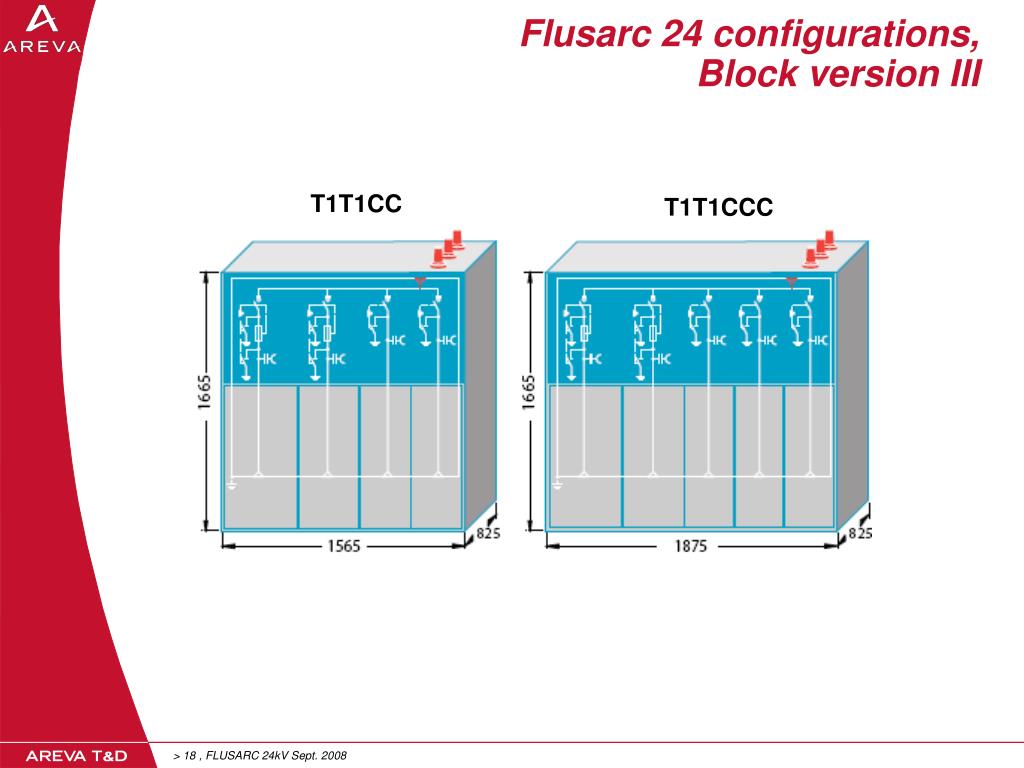

flusarc cb 24

CBCC

CBCCC

CBCBCCC

CBCCCC

CBCBCC

Flusarc CB 24

CBC

slide24

CUSTOMERCOUNTRY

ENEL ITALY

ACEA ITALY

AEM ITALY

SELMA / ENDESA SPAIN

FASYMON / IBERDROLA SPAIN

ELCONTROL BULGARIA

TECHNICAL UNIVERSITY-SOFIA BULGARIA

BEIJING POWER UTILITY CHINA

ZHUHDI POWER UTILITY CHINA

ELKAMO FINLAND

NOAVARAN BARQARIA IRAN

TENAGA NATIONAL BERHAD MALAYSIAPower Utility

LME (EDP Power Utility) PORTUGAL

TIEPCO (SEC Power Utility) SAUDI ARABIA

ARKO S.R.O. SLOVENSKA

INTERSWITCH PTY LTD SOUTH AFRICA

CRYSTAL CONSULTING & ENG. SWITZERLAND

STATIONENBAU AG SWITZERLAND

GIRISIM ELEKTRIC D.S. TURKEY(Tedas Power Utility)

BINH SON ELECTRIC CO.LTD VIETNAM

ONE CO.LTD VIETNAM

MAIN REFERENCES
