Pointer

Pointer. To hold the location of another variable Declaration: a type and a name with an asterisk E.g. int *ptr; Assigning a value ptr = &k;. Pointers and Structures. Declaration struct date *datePtr; Initialization datePtr = &today; Access members (*datePtr).year datePtr->year.

barbie
Download Presentation

Pointer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

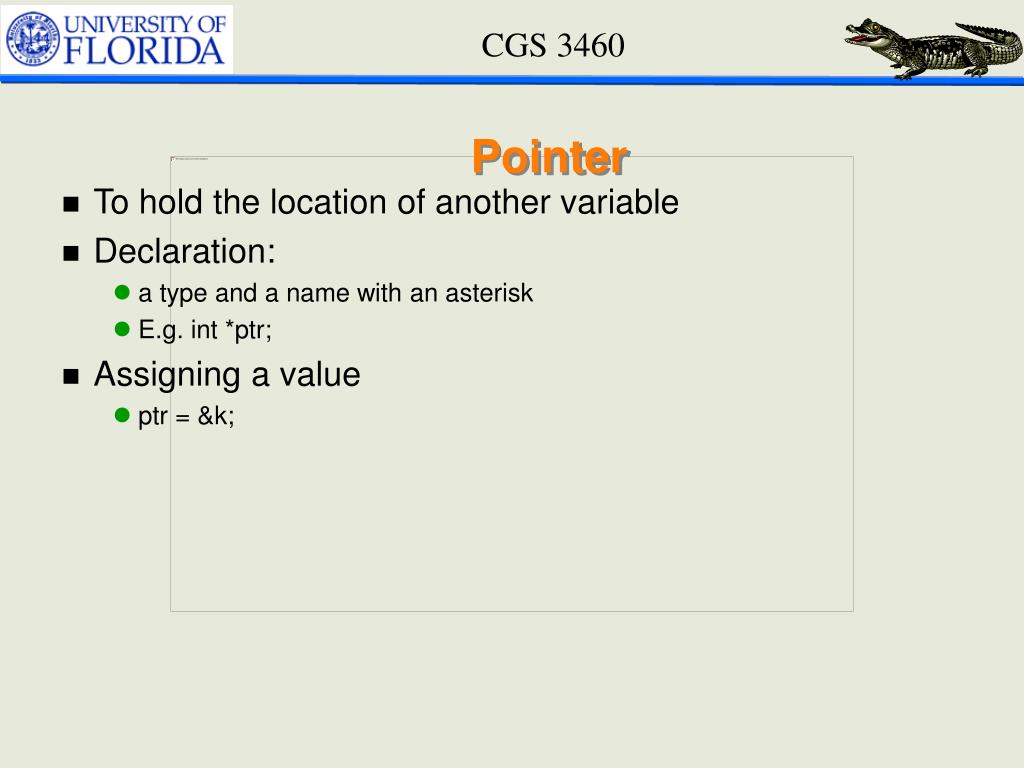

  1. Pointer • To hold the location of another variable • Declaration: • a type and a name with an asterisk • E.g. int *ptr; • Assigning a value • ptr = &k;

  2. Pointers and Structures • Declaration struct date *datePtr; • Initialization datePtr = &today; • Access members • (*datePtr).year • datePtr->year • struct date{ • int day; • char month[10]; • int year; • }; • struct date today;

  3. Structures contains pointers • Pointers can be members in a structure struct date{ int day; char* month; int year; }; • Special case: struct date{ int day; char* month; int year; struct date *next; };

  4. Linked List • What is a list? • Node • Link • An alternative to Array • Pros/Cons • + More flexible • + Can grow and shrink as necessary • + Insert and delete node with particular index • - Cannot be randomly accessed • + sorted (ordered list)

  5. Linked List • Operations • Start a list • Create a node • Insert • Delete • Search • Print

  6. Memory Allocation • malloc is by far most frequently used • Defined in <stdlib.h> void *malloc(size_t size); • Allocate memory space with size bytes • Why does it return a void pointer? • Because it doesn't matter to malloc to what type this memory will be used for • If no memory of the size available, will return null • Be sure to check whether it is null;

  7. Function sizeof • Helpful when dynamically allocating memory • sizeof(data type) returns a size_t of the data type in byte(s) • For a typical 32-bit machine • sizeof(int) returns 4

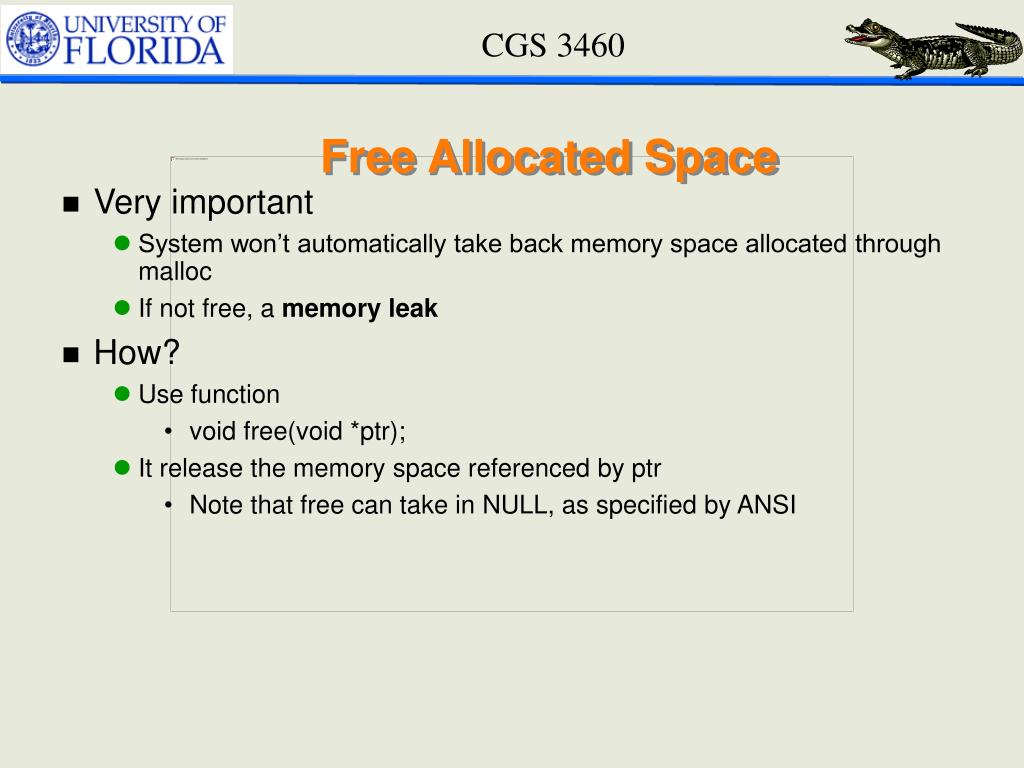

  8. Free Allocated Space • Very important • System won’t automatically take back memory space allocated through malloc • If not free, a memory leak • How? • Use function • void free(void *ptr); • It release the memory space referenced by ptr • Note that free can take in NULL, as specified by ANSI

  9. Build a Linked List • Build a structure representing a node struct studentRecord { int idNum; struct studentRecord *next; }; • Initialize the node struct studentRecord *first = NULL; NULL first

  10. Create a node • Follow these steps: • Allocate memory for the node • Set data into the node struct studentRecord *new_student; new_student = malloc(sizeof(struct studentRecord )); (* new_student).idNum = 1; new_student next = NULL; new_student

  11. Insert a node: insert in the front(empty) • Follow these steps: • Create a node • Set the node pointing to the front of the list • Set it as the starting node of this list new_student = malloc(sizeof(struct studentRecord )); new_student  idNum = 2; new_student next = first; first = new_student ; NULL new_student first

  12. Insert a node: insert in the front(not empty) • Follow these steps: • Create a node • Set the node pointing to the front of the list • Set it as the starting node of this list new_student = malloc(sizeof(struct studentRecord )); new_student  idNum = 2; new_student next = first; first = new_student ; NULL first new_student

  13. Insert a node: insert in middle • To insert a new node after node called pt, follow these steps: • Create a node • Set the node pointing to the next node after pt in the list • Set it as the next node of this list after pt new_student = malloc(sizeof(struct studentRecord )); new_student  idNum = 2; new_student next = pt  next; pt  next = new_student ; first pt NULL new_student

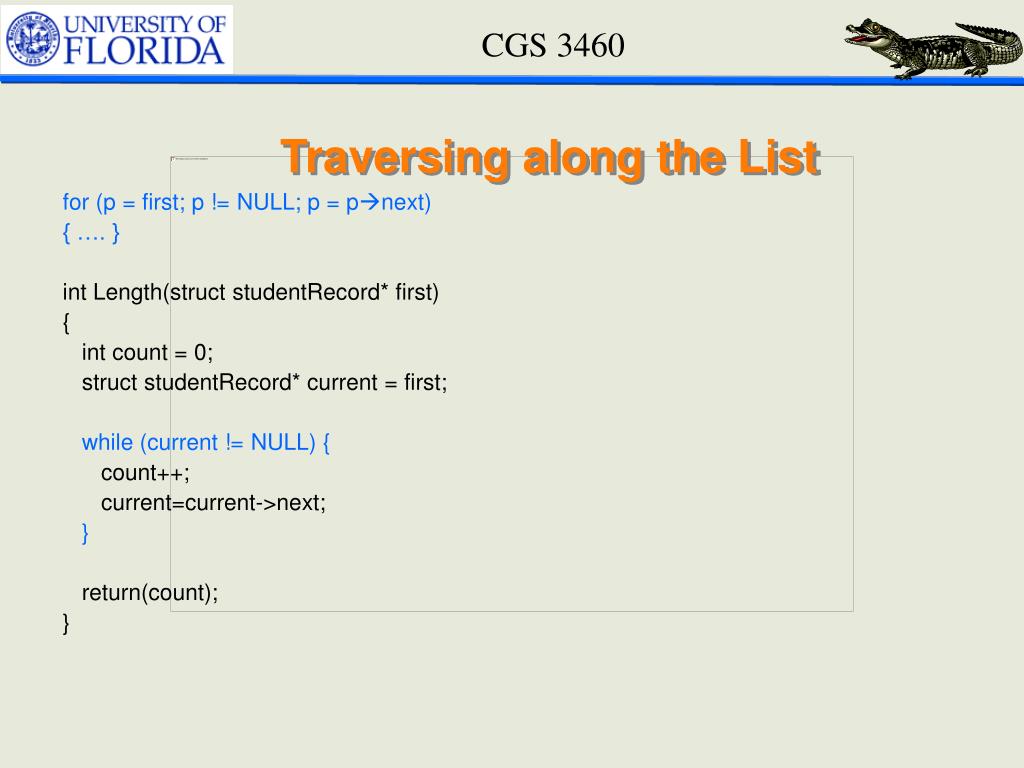

  14. Traversing along the List for (p = first; p != NULL; p = pnext) { …. } int Length(struct studentRecord* first) { int count = 0; struct studentRecord* current = first; while (current != NULL) { count++; current=current->next; } return(count); }

  15. Get nth Element in List int GetNth(struct studentRecord * first, int index) { struct studentRecord * current = first; int count = 0; // the index of the node while (current != NULL) { if (count == index) return(current idNum ); count++; current = current  next; } return(-1); // if we get to this line, the caller was asking // for a non-existent element }

  16. Delete • Delete (almost reverse of insertion) • locating the node to be deleted (see search a linked list) • altering the previous node to bypass the deleted node • calling free to reclaim the space occupied by the deleted node

  17. Example for deleting • To delete a node p from a linked list, you should also know the node which is in front of p in the list (q) if (p != NULL) { q  next = p  next; free(p); } q p NULL first

  18. Example for deleting • If deleting the first node in the list if( p == first ) { first = p->next; free(p); } p NULL first

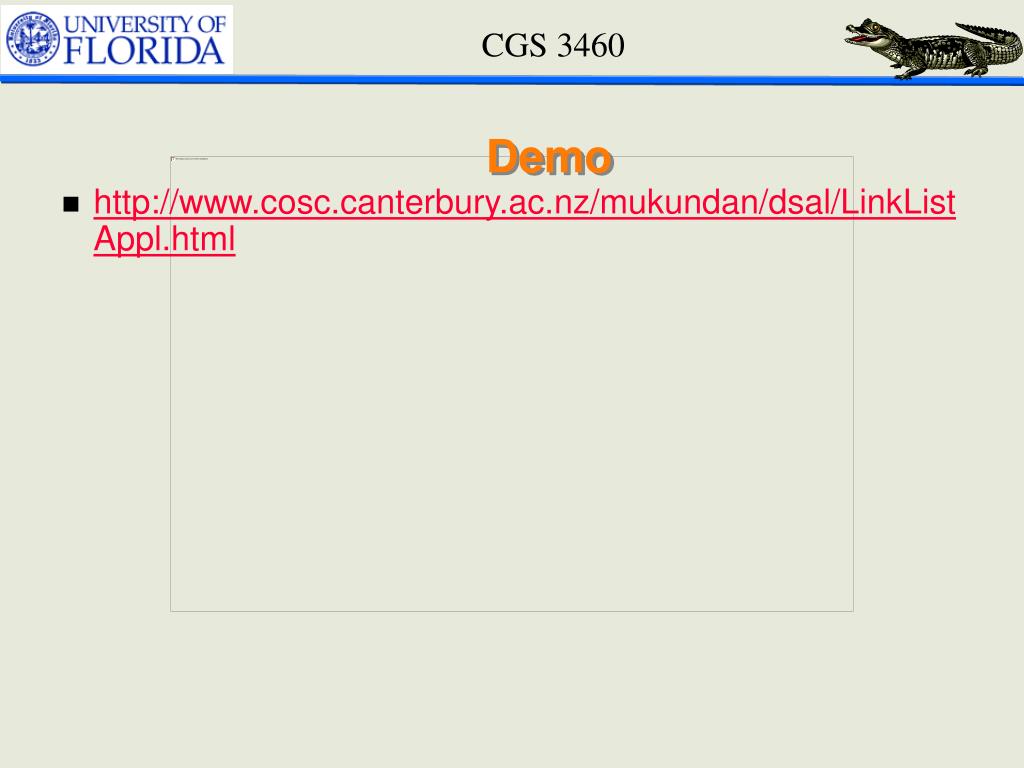

  19. Demo • http://www.cosc.canterbury.ac.nz/mukundan/dsal/LinkListAppl.html
