Translational Motion movement of the centre of mass

The Ladybugs are undergoing translational motion The disc is experiencing rotational motion. What’s the difference?. Translational Motion movement of the centre of mass . Rotational Motion movement around the centre of mass; centre of mass remains stationary.

bao
Download Presentation

Translational Motion movement of the centre of mass

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

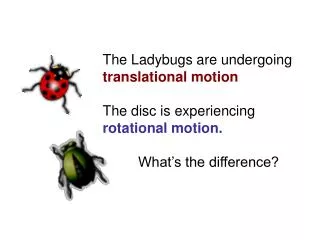

  1. The Ladybugs are undergoing translational motionThe disc is experiencing rotational motion. What’s the difference?

  2. Translational Motion movement of the centre of mass Rotational Motion movement around the centre of mass; centre of mass remains stationary

  3. Translational Motion movement of the centre of mass linear and circular motion Rotational Motion Movement around the centre of mass; centre of mass remains stationary

  4. Translational Motion movement of the centre of mass linear and circular motion Rotational Motion Movement around the centre of mass; centre of mass remains stationary Spinning motion

  5. Translational Motion movement of the centre of mass Includes linear and orbital/circular motion In orbital motion the CofM of object moves around the centre of rotation at a set radius and a corresponding velocity Rotational Motion Movement around the centre of mass; centre of mass remains stationary Spinning motion

  6. Translational Motion movement of the centre of mass Includes linear and orbital/circular motion In orbital motion the CofM of object moves around the centre of rotation at a set radius and a corresponding velocity Rotational Motion Movement around the centre of mass; centre of mass remains stationary Spinning motion In rotational motion the CofM is at the centre of rotation.

  7. Translational Motion movement of the centre of mass Includes linear and orbital/circular motion In orbital motion the CofM of object moves around the centre of rotation at a set radius and a corresponding velocity Rotational Motion Movement around the centre of mass; centre of mass remains stationary Spinning motion In rotational motion the CofM is at the centre of rotation. Radius and velocity aren’t useful anymore because they are different for each point on the object!

  8. Translational Motion In orbital motion the CofM of object moves around the centre of rotation at a set radius and a corresponding velocity Pure Translational motion occurs when forces act thru the centre of mass Rotational Motion In rotational motion the CofM is at the centre of rotation. Radius and velocity aren’t useful

  9. Translational Motion In orbital motion the CofM of object moves around the centre of rotation at a set radius and a corresponding velocity Pure Translational motion occurs when forces act thru the centre of mass Rotational Motion In rotational motion the CofM is at the centre of rotation. Radius and velocity aren’t useful Pure Rotational Motion occurs when forces act in equal and opposite “force couples” that act a distance apart

  10. Translational Motion Pure Translational motion occurs when forces act thru the centre of mass Try it: Rotational Motion Pure Rotational Motion occurs when forces act in equal and opposite “force couples” that act a distance apart Ruler push

  11. Translational Motion Pure Translational motion occurs when forces act thru the centre of mass Try it: Rotational Motion Pure Rotational Motion occurs when forces act in equal and opposite “force couples” that act a distance apart push Ruler Ruler push push

  12. Translational Motion Pure Translational motion occurs when forces act thru the centre of mass What happens if? Rotational Motion Pure Rotational Motion occurs when forces act in equal and opposite “force couples” that act a distance apart Ruler push Motions are often both translational and rotational at the same time
