V a babaitsev a v brailov v y popov

V.A. Babaitsev, A.V. Brailov, V.Y. Popov

On Niedermayers' algorithm of efficient frontier computing

V a babaitsev a v brailov v y popov

Two Internet papers with common title

“Applying Markowitz's Critical Line Algorithm”

have appeared in 2006-2007.

Two young Suiss economists

Andras and DanielNiedermayer

presented fast algorithm of getting efficient frontier

for Markowitz portfolio problem.


Springer Verlag will publish soon (November) a book

“Handbook of Portfolio Construction.

Contemporary Applications of Markowitz Techniques” with this paper .

Markowitz problem
Markowitz problem


  • n assets;

  • V– an (n×n)positive definite covariance matrix;

  • μ– n vector of assets expected returns;

  • X – n vector of assets weights;

  • 1– n unitvector:

  • μ– portfolio expected return;

  • D – variance, σ– standard deviation (risk).

Some assumptions
Some assumptions

1. Assets are ordered by increasing of expected returns, more over

Minimal frontier in coordinates consists of finite number of parabola divided by turning points.

2. Moving along minimal border from left to right over turning point only one asset added or removed to (from) portfolio.

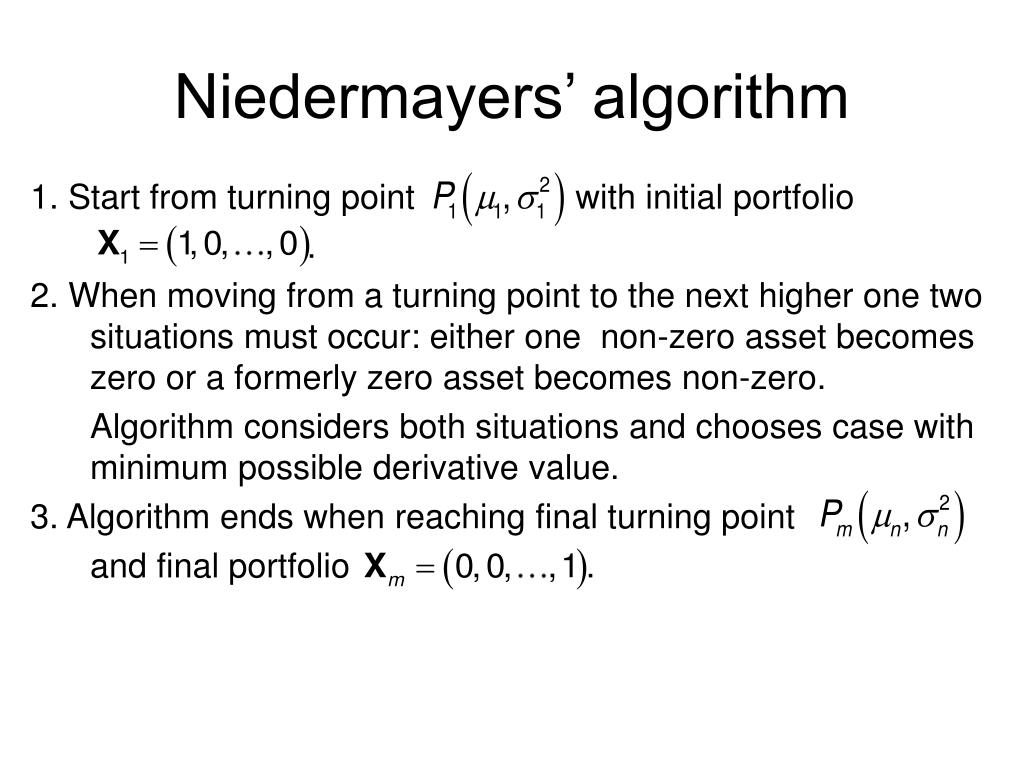

Niedermayers algorithm
Niedermayers’ algorithm

1. Start from turning point with initial portfolio


2. When moving from a turning point to the next higher one two situations must occur: either one non-zero asset becomes zero or a formerly zero asset becomes non-zero.

Algorithm considers both situations and chooses case with minimum possible derivative value.

3. Algorithm ends when reaching final turning point

and final portfolio .


We have checked algorithm performance. Prof. Victor Popov has developed the program in C++ for this algorithm.

Prof. Andrey Brailov has used his own developedprogram envelope MatCalc (miniMATLAB).

For 201 assets execution time was 1 sec. (Pentium 4, 2.66 GHz, 256 Mb)

Minimal frontier for 20 1 assets
Minimal frontier for 201 assets

■ Turning points


Condition 2 is not true generally. Example:

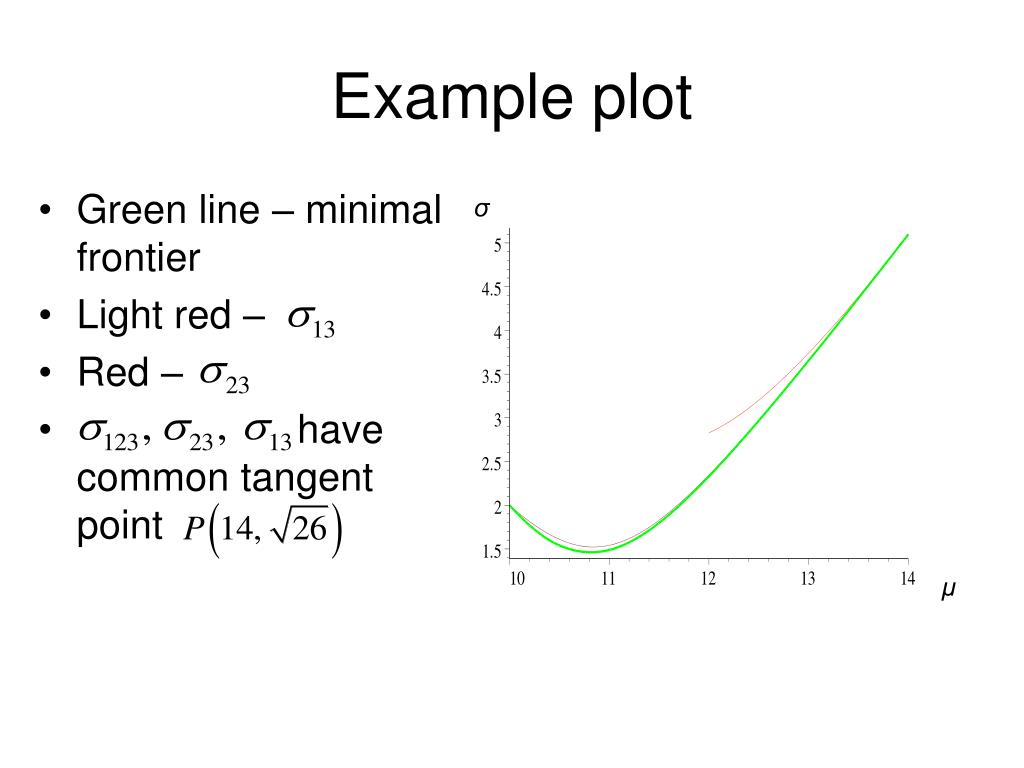

Example plot
Example plot

  • Green line – minimal frontier

  • Light red –

  • Red –

  • have common tangent point



Example for n 4
Example for n = 4

Left end:

is positively defined.

Adjacent turning points and


We can construct similar examples for larger value of n. Adjacent turning points will be P(0, 0, …, 0, 1) and

, where

It is sufficient to choose matrix V with conditions:

which provides common tangent point for minimal frontiers:

Good news: set of Markowitz problems with the satisfied condition 2 is dense in set of all such problems.

Some basic formulas
Some basic formulas

For two adjacent turning points equation of minimal frontier is


S– subset of {1, 2, …, n} non-zero assets.

Geometry of minimal frontier
Geometry of minimal frontier

Lemma. Two parabolas with equations

have common tangent point if and only if

First condition of lemma is true when expanding the frontier one asset, second condition is not satisfied generally.


Citation from A.D. Ukhov “Expanding the frontier one asset at a time”, Finance Research Letters, 3 (2006), 194-206: “It is well-known property of the portfolio problem that for each asset there is one minimum-variance portfolio in which it has a weight zero. Therefore, on the frontier constructed with (n + 1) assets there will be one point that has a weight of zero for the new asset.”


Example continued
Example (continued)

Vector has a constant second component.

– green line.

– red line.



Three parabolas lemma1
Three parabolas lemma

Two parabolas with equations:

intersect in point P. Third parabola has common tangent points with


Then coefficients of third parabola will be:

As consequence and if

Quality of minimal frontier
Quality of minimal frontier

Resampling technique was originally proposed by R.Michaud and R.Michaud in 1998. It requires:

  • collecting T historical returns on a set of Z assets;

  • computing sample means and covariance matrix ;

  • finding a set of K optimal portfolios for every value of

  • simulating N independent draws for asset returns from multivariate normal distribution with mean and variance matrix equal to sample ones;

  • for each simulation re-estimating a new set of optimization input and V and finding new set of K optimal portfolios.

V a babaitsev a v brailov v y popov

From “Implementing Models in Quantitative Finance” Fusai, Gianluca, Roncoroni, Andrea: Springer Finance2008, p. 277

Micex example
MICEX Example

MICEX is Russian stock market. We choose 9 top assets and use monthly returns for 5 years (2004-2008). Then input data for Markowitz problem were calculated. After analyzing of covariance matrix we have reduced number of assets to 6 because 3 assets were not included in any portfolio.


  • 10 turning points are on minimal frontier.

  • Coefficients of parabolas are decreasing with increasing of number of assets. Minimal coefficients are for maximum number of assets - 6. Statistical stability is predicted for minimal coefficients.

Markowitz vs index
Markowitz vs. Index



Blue – MICEX Index

Green – Markowitz portflio
