slide1

Application

Application

Presentation

Presentation

Session

Session

Transport

Transport

Network

Network

Network

Data Link

Data Link

Data Link

Physical

Physical

Physical

The Seven Layers

Intermediate

End system

End system

system

why only 3 layers inside the network
Why only 3 layers inside the network?
  • The end-to-end principle: what ever can be done in the edge – don’t do inside!
  • “The network should be fast and dumb!”
slide3

Application

Application

Presentation

Presentation

Session

Session

Transport

Transport

Network

Network

Network

Data Link

Data Link

Data Link

Physical

Physical

Physical

The Seven Layers

Intermediate

End system

End system

system

What is wrong with this picture?

what s wrong its not realistic
What’s wrong? – its not realistic
  • people are doing application layer tasks inside the network:
    • firewalls
    • proxies
    • L4-7 routing
why not adding network support for applications
Why not adding network support for applications
  • standards are very slooooow to develop
    • multicast!
  • we need a fast way to add features to our network core

Virtualization

solution
Solution
  • let’s agree on a standard interface for routers and let everyone run its own programs.
  • Questions:
    • who is everyone?
    • Do we have the cycles?
    • what about security?

Active Networks

programmable routers
Programmable Routers
  • What is programmable?

configuration

code per packet

policy based routing

off-line download

OS upgrade

  • Who can program?

end user

manufacturer

owner

authorized contractor

“big” users

slide8

OS upgrade

off-line download

code per packet

configuration

policy based routing

Capsules

end user

manufacturer

owner

authorized contractor

“big” users

current state

what is a mobile agent
What is a Mobile Agent ?

A mobile agent is an executing program that can migrate from

machine to machine in a heterogeneous network under its own

control.

Here an agent has migrated to interact with a search engine and will

migrate again to bring the results back to its owner.

mobile code
Mobile Code
  • The basic idea is to allow code dispatching to remote sites where it is executed.
  • Move the programmer away from the rigid client-server model to the more flexible peer-peer model
      • programs communicate as peers
      • act as either clients or servers depending on their current needs
  • Problems arising from mobility
    • heterogeneity of systems
    • security (as more parties are involved)
mobile agents
Mobile Agents
  • Mobile Agents are program instances that are able move within a network under their own control
  • mobile agents consist of:
    • code
    • data state (i.e. variables)
    • execution state (i.e. stack)
  • Some basic capabilities:
    • able to autonomously migrate between places
    • able to communicate to each other
    • some agents offer services or interfaces to legacy applications
application for mobile agents

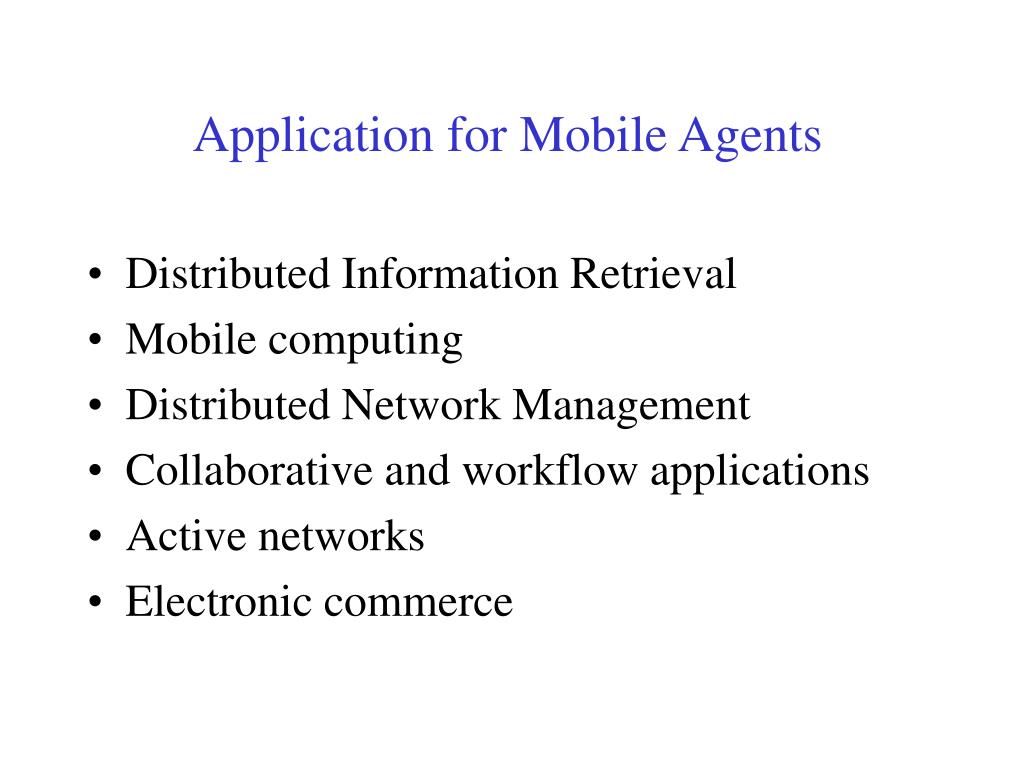

Application for Mobile Agents
  • Distributed Information Retrieval
  • Mobile computing
  • Distributed Network Management
  • Collaborative and workflow applications
  • Active networks
  • Electronic commerce
distributed network computing

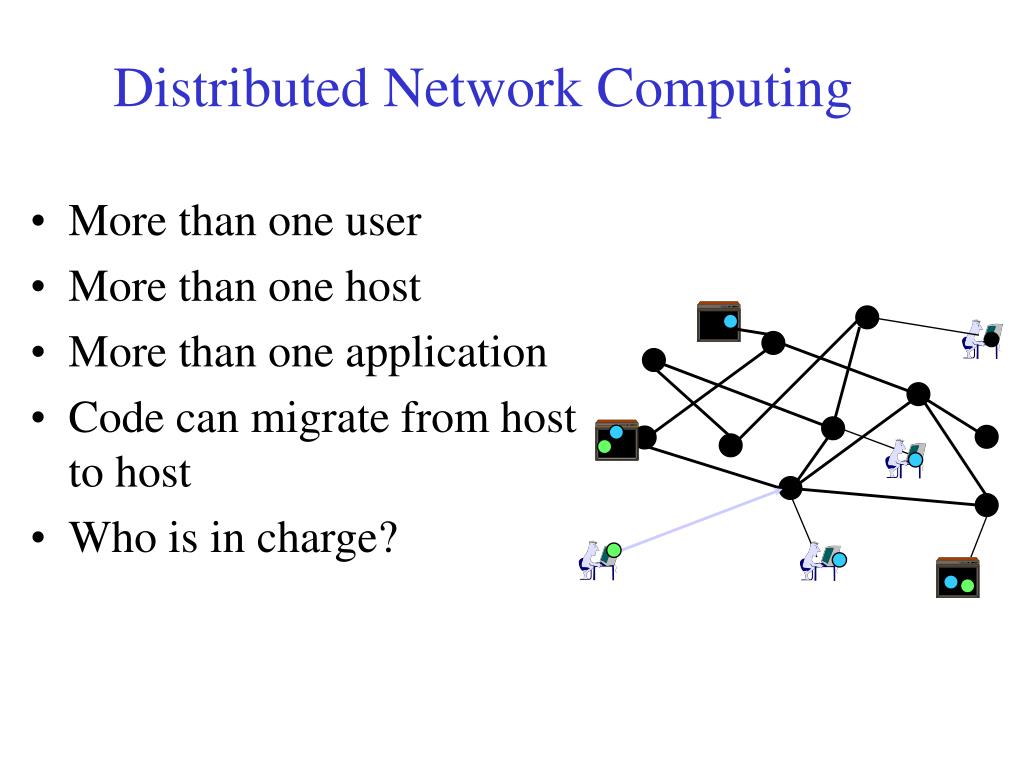

Distributed Network Computing
  • More than one user
  • More than one host
  • More than one application
  • Code can migrate from host to host
  • Who is in charge?
hosting mobile code
Hosting Mobile Code
  • We want the code to perform tasks related to the network
  • Who will host the mobile agent?
  • How will the agent locate its optimal location for the task?
  • What type of services are needed?
  • Is the applet sandbox model good enough?
open routers

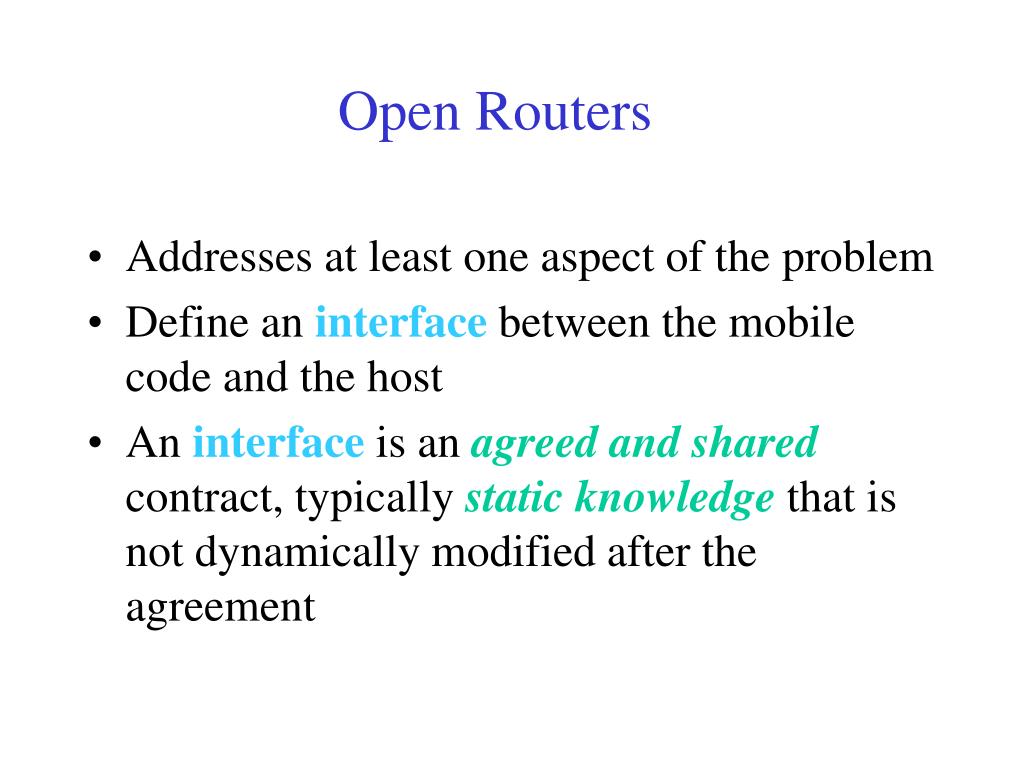

Open Routers
  • Addresses at least one aspect of the problem
  • Define an interfacebetween the mobile code and the host
  • An interface is an agreed and shared contract, typically static knowledge that is not dynamically modified after the agreement
terminology
Terminology
  • Active Networks
  • Mobile agents
  • Mobile code
  • Programmable networks

No clear definitions, depends who is using it

programming paradigms based on code mobility
Programming paradigms based on code mobility

Client

Server

Client

Server

local resources

Client/server

Remote evaluation

Server

Client

local resources

local resources

local resources

Code on Demand

Mobile Agents

active networks what
Active Networks: What?
  • Routers are programmable
  • An application generated code can be injected into the network, and executed in the routers
  • Aims at enriching functionality at the network layer (not at distributed computing)
  • From capsule to programmable switches
slide21

Active Networks: Why?

  • Producing a new networking platform, flexible and extensible at runtime to accommodate the rapid evolution and deployment of networking technologies
  • To provide the increasingly sophisticated services demanded by defense applications
  • The packet itself is the basis for describing, provisioning, or tailoring resources to achieve the delivery and management requirements
  • A killer application ?!
killer application
Killer Application
  • Was (and still is) an important issue
  • Do we really need one?
  • How about network management?
  • New services? What?
  • The ability to create new services in the network level
challenges
Challenges
  • Composite protocols: SmartPacket processing must be efficient, secure and survivable
  • Enhanced network services
    • quickly and safely deploy new services
    • achieve widespread use without need for a standardization process
    • upgrade crucial network services to keep pace with network complexity (size, speed, variety)
    • develop new strategies for routing and service provisioning in large networks that have overlapping topologies and mobility requirements
is it

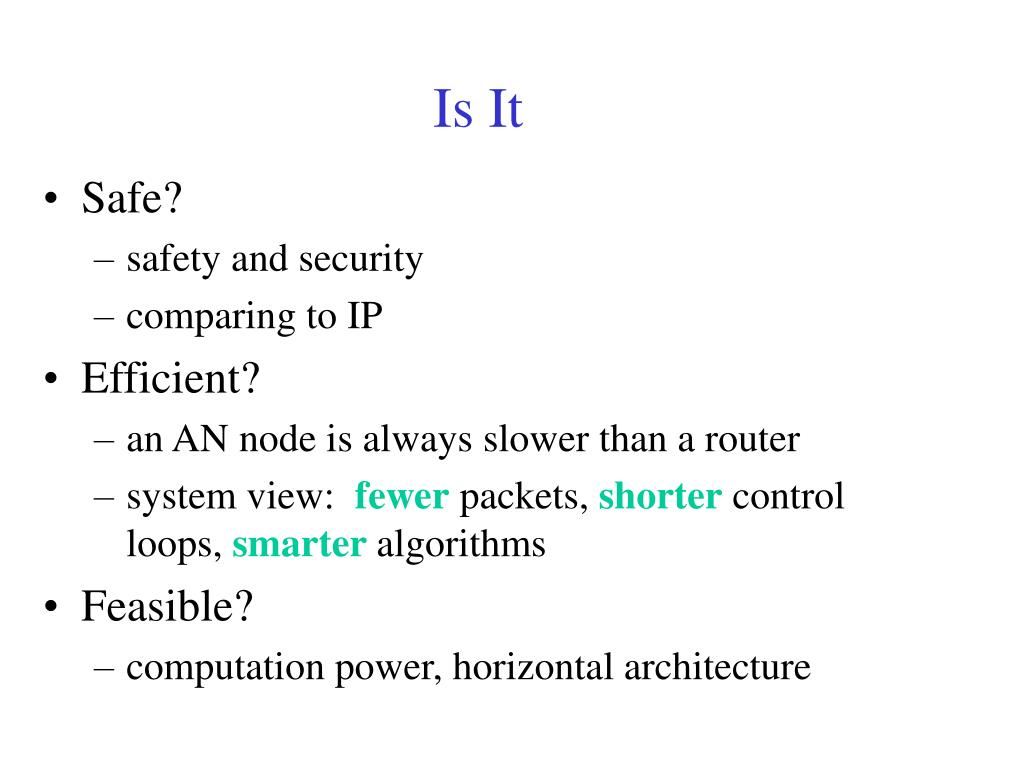

Is It
  • Safe?
    • safety and security
    • comparing to IP
  • Efficient?
    • an AN node is always slower than a router
    • system view: fewer packets, shorter control loops, smarteralgorithms
  • Feasible?
    • computation power, horizontal architecture
are active networks efficient
Are Active Networks Efficient?
  • An AN node is always slower than a router
  • Fast/slow track
  • System view:
    • fewer packets
    • shorter control loops
    • smarteralgorithms
architecture
Architecture

- The Active Applications

- Executing Environment

EE

EE

-The underlying

operating system Node OS

channels

storage

assumptions
Assumptions

Control plane Vs. Data plane

  • The unit of multiplexing of the network is the packet (and not, say, the circuit)
  • The primary function of the active network is communication and not computation. The network contains some nodes whose primary reason for existence is to switch packets and thus allow sharing of transmission resources
  • Active nodes are interconnected by a variety of packet-forwarding technologies, and this variety will evolve continuously. Therefore assumptions about underlying technologies must be minimized
  • Each active node is controlled by an administration, and no single administration controls all active nodes
  • Trust relationships between administrations will vary. Trust needs to be explicitly managed

Everything is over IP

objectives
Objectives
  • Minimize the amount of standardization required, and support dynamic modification of aspects of the network that do not require global agreement
  • Support fast-path processing optimizations in nodes.(The architecture should not preclude active nodes from performing standard IPv4/IPv6 forwarding at speeds comparable to non-active IP routers.)
  • Support deployment of a base platform that permits on-the-fly experimentation. Backward compatibility, or at least the ability to fit existing network nodes into the architectural framework, is desirable
objectives 2
Objectives (2)
  • Scale to very large global active networks. The main implication for the node architecture is a requirement that network-scale parameters (e.g. number of principals using the entire active network) not be exposed at the individual node level
  • Provide mechanisms to ensure the security and robustness of active nodes individually. As with scalability, global security and robustness is the responsibility of each individual network architecture. However, the stability of individual nodes is necessary for that of the entire network
  • Support network management at all levels
  • Provide mechanisms to support different levels/qualities/classes of service
nodeos and ee
NodeOS and EE

application

application

Active

Applications

application

application

application

application

EE

EE

Executing

Environment

Node OS

channels

storage

nodeos and ee packet flow
NodeOS and EE Packet Flow

application

application

application

EE

classifier

packets

IP cutthrough

application

application

application

EE

Link-level

Node OS

EE

Node OS

Link-level

storage

channels

nodeos

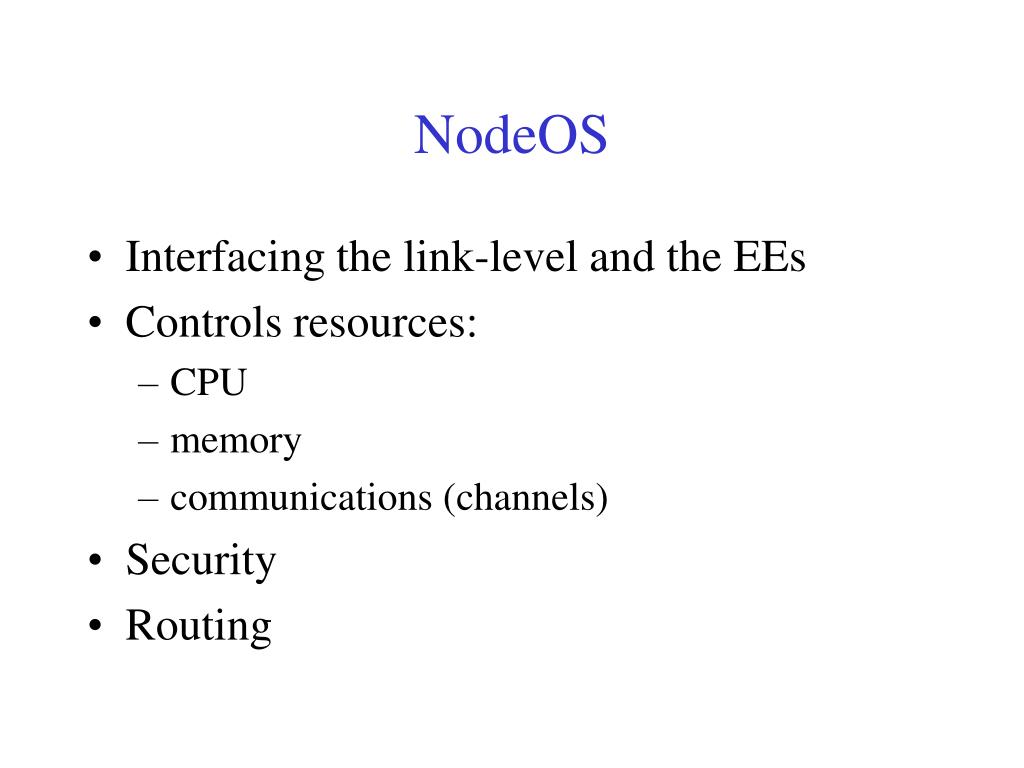

NodeOS
  • Interfacing the link-level and the EEs
  • Controls resources:
    • CPU
    • memory
    • communications (channels)
  • Security
  • Routing
nodeos abstracts
NodeOS Abstracts
  • Flows - the primary abstraction for accounting, admission control, and scheduling in the system
  • Thread pool - the primary abstraction for computation
  • Memory pool - the primary abstraction for memory
  • Channels - flows create channels to send, receive, and forward packets
execution environment
Execution Environment
  • Interface to the NodeOS
  • The place where the actual active code is being executed
  • Application to application communication
  • EE to EE communication
  • Examples
nodeos ee
NodeOS/EE
  • Do we really need it?
  • The cost of abstraction?
  • What about high-speed active networks?
  • Channels for local information and control
safety and security
Safety and Security
  • Crucial for deployment
  • Safety (i.e. robustness to bugs and failures) and security (i.e. against malicious attackers)
  • Basic tradeoff: flexibility Vs. security
    • adding more power to the applications can be used by the “bad guys”
  • Is this a (good) reason to give up progress?
possible threats
Possible Threats
  • Damage
    • an active packet damages the NodeOS/EE/network-level code in the router
    • an active packet changes code in other active packets
    • the active router may interfere with the original active packet’s code
  • Denial of service
    • an active packet “takes over” a certain resource (CPU, memory) and deny services from other active packets
possible threats 2
Possible Threats (2)
  • Theft
    • an active packet may access and change information at a node (billing), or information used by other active pockets (passwords)
  • Compound attack
    • AN can be used to generate a coordinated attack aimed at a remote router. AN may allow a single attacker to generate traffic to a single destination with volume that is unlimited by the bandwidth of its own connection
security enabling techniques
Security - Enabling Techniques
  • AAA:
      • authorization
      • authentication: someone else vouches for the packet
      • access control to resources such as the file system
  • Resource consumption monitoring (with policy based management)
  • PPC - Proof Carrying Code - the code can prove that it is safe
proof carrying code pcc peter lee and george necula
Proof-Carrying Code (PCC)Peter Lee and George Necula
  • PCC is a technique by which a code consumer (e.g., host) can verify that code provided by an untrusted code producer adheres to a predefined set of safety rules (safety policy). These rules are chosen by the code consumer in such a way that they are sufficient guarantees for safe behavior of programs.
  • The code producer is required to create a formal safety proof that attests to the fact that the code respects the defined safety policy. The code consumer is able to use a simple and fast proof validator to check, with certainty, that the proof is valid.
a secure active environment

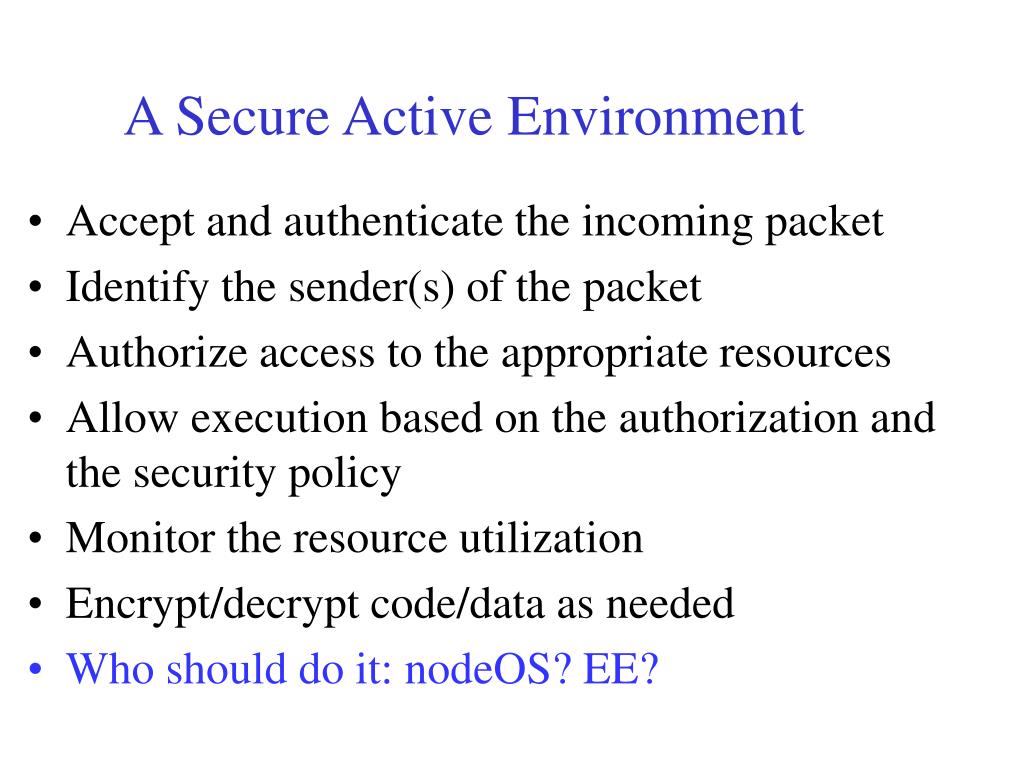

A Secure Active Environment
  • Accept and authenticate the incoming packet
  • Identify the sender(s) of the packet
  • Authorize access to the appropriate resources
  • Allow execution based on the authorization and the security policy
  • Monitor the resource utilization
  • Encrypt/decrypt code/data as needed
  • Who should do it: nodeOS? EE?
darpa projects

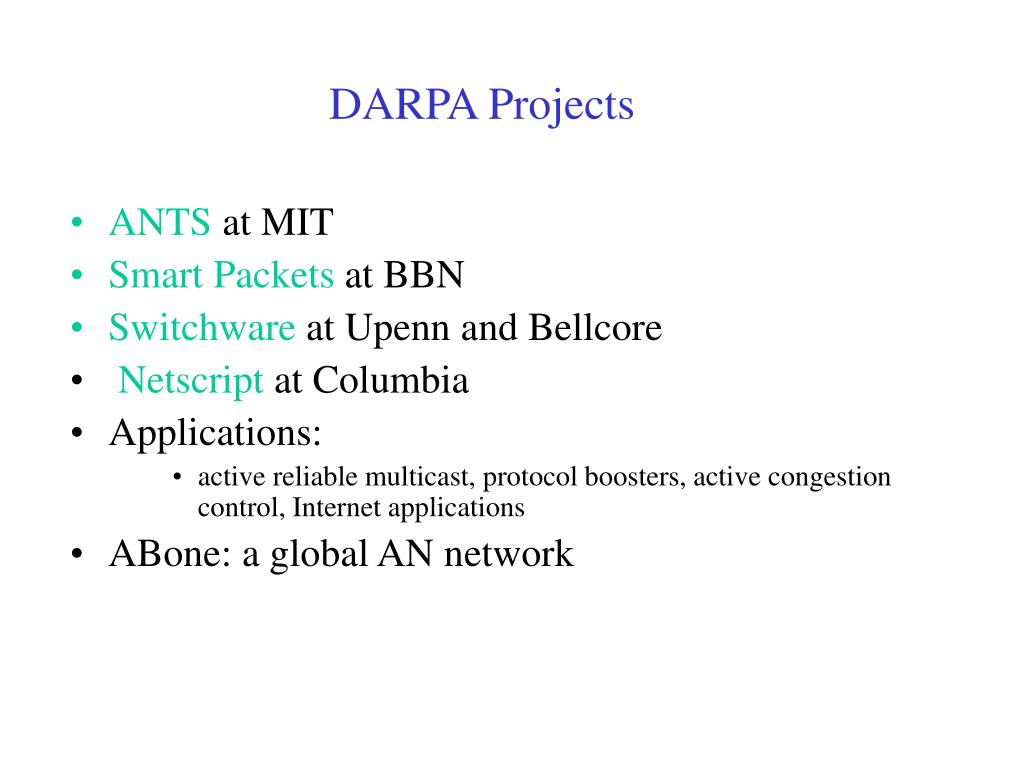

DARPA Projects
  • ANTS at MIT
  • Smart Packets at BBN
  • Switchware at Upenn and Bellcore
  • Netscript at Columbia
  • Applications:
      • active reliable multicast, protocol boosters, active congestion control, Internet applications
  • ABone: a global AN network
ants mit
ANTS (MIT)
  • ANTS - an Active Node Transfer System
    • a Java-based toolkit for experimenting with active networks. It provides a node runtime that can participate in an active network, and a protocol programming model that allows users to customize the forwarding of their packets
  • The first EE to be developed
  • Uses capsules that do not contain all the code
  • A code distribution system distributes the code to the different active nodes.
smartpackets bbn gte
Smartpackets (BBN GTE)
  • Goal: to add programmability to management and diagnostic packets
  • Making packets smart by:
    • an easily compiled source code language -Sprocket
    • access to information on the fly (MIB)
  • Emphasis on runtime, no soft states, the code lifetime at a node is only during execution.
switchware u penn and telecordia
SwitchWare U. Penn. and Telecordia
  • Goal: understand the design space
    • investigate architectures and programming paradigms for AN
    • use modern programming languages
    • find “sweet spots” in tradeoffs among flexibility, usability, performance and security
  • Main features:
    • PLAN - Packet Language for Active Networks
    • ALIEN - Active Loader
switchware architecture
SwitchWare Architecture

PLAN

Packet

Caml

Switchlet

PLAN

Packet

Caml

Switchlet

PLAN

ALIEN

Library

Dynamic

Integrity

Checks

Node-Node

Authentication

ALIEN/Caml/OS

AEGIS

Static

Integrity

Checks

Recovery

packet language for active networks
Packet Language for Active Networks
  • Domain-Specific Language for AN
  • Active Packets of ML-like code
  • Restricted for security & performance
  • Active extensions for restricted tasks
  • “Glue language” to build active applications
  • Resource-bounds for network protection
  • Access to link-layers w/extensions
the alien active loader
The ALIEN Active Loader
  • Focus on generality and security
  • Crypto. Credentials extend to remote case active packets and active extensions all written in Caml with restricted runtime
  • Applications to LAN bridging, IP forwarding

switchlets

libraries

Core Switchlet

Loader

Runtime (Caml)

OS (Linux)

issues

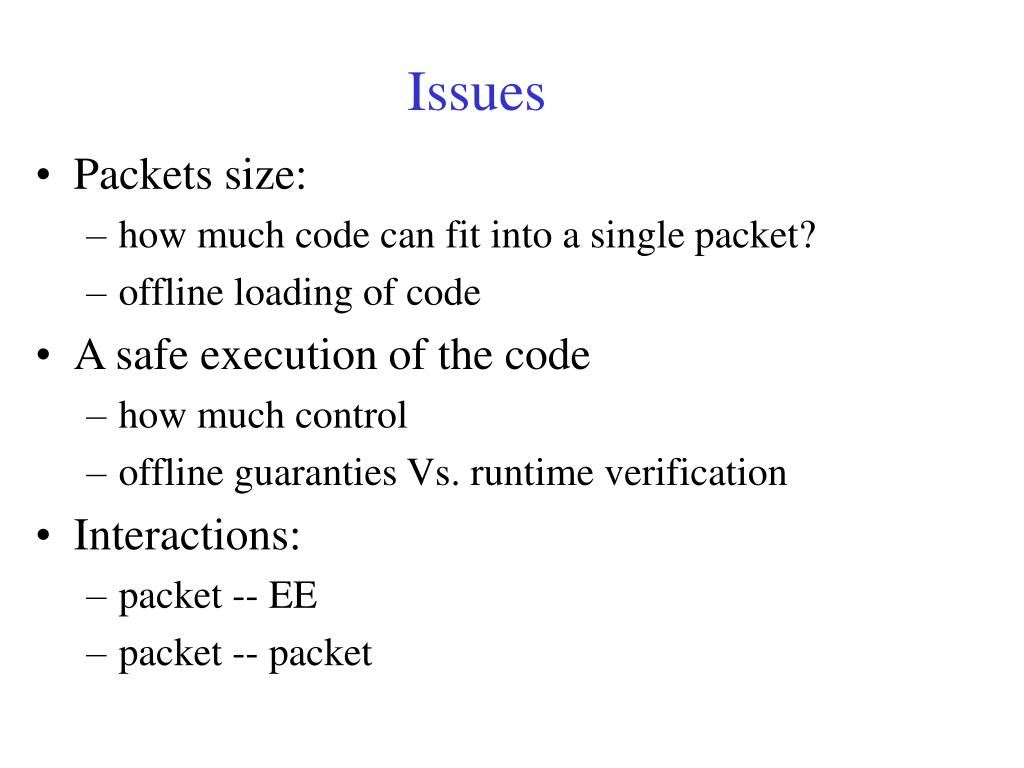

Issues
  • Packets size:
    • how much code can fit into a single packet?
    • offline loading of code
  • A safe execution of the code
    • how much control
    • offline guaranties Vs. runtime verification
  • Interactions:
    • packet -- EE
    • packet -- packet
netscript columbia

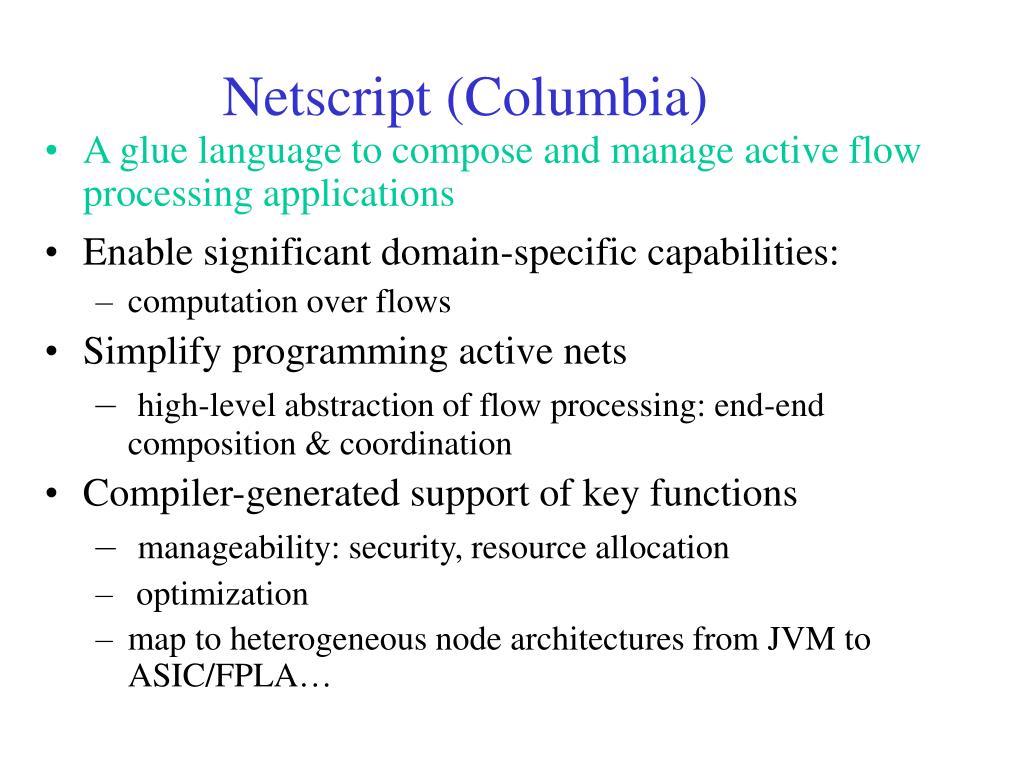

Netscript (Columbia)
  • A glue language to compose and manage active flow processing applications
  • Enable significant domain-specific capabilities:
    • computation over flows
  • Simplify programming active nets
    • high-level abstraction of flow processing: end-end composition & coordination
  • Compiler-generated support of key functions
    • manageability: security, resource allocation
    • optimization
    • map to heterogeneous node architectures from JVM to ASIC/FPLA…
applications
Applications
  • Multicast
    • ARM (at MIT), PANAMA (U.Mass and TASC)
  • Caching
    • Adaptive Web Caching (UCLA)
  • Active congestion control
    • (USC/ISI, GaTech)
  • Auctions
    • (MIT)
applications1
Applications
  • Applications that can use servers inside the network:
    • multicast retransmission
    • caches
  • Data corresponding to a certain application is manipulated by the routers
abone active network backbone
ABone Active Network Backbone
  • An experimental network consisting of nodes from all over the world used to prototype and test new ideas related to Active Networking
  • ~96 nodes (October 2001)
  • Assembled from existing links and node, mainly Linux machine with ANetd:
    • a basic EE for Linux
    • a way to manage different EEs
an outside darpa
AN Outside DARPA
  • IWAN since 1999 (International Working Conference on Active Networks
    • many of the papers deals with network management
  • EU research: large investment
    • FAIN - Future Active IP Networks
  • Network operators like BT,DT,AT&T, MCI see in the programmable switch/router paradigm a way to:
    • allow them to program their own networks to achieve better functionality/efficiently over competitors
    • offer big clients unique custom designed services in a very short time frame
    • shift some of the revenue opportunities from manufactures to service providers
what is missing
What is missing?
  • Access to the network:
    • local information: topology, interfaces, load
    • routing - access to routing tables and manipulation of routing/forwarding tables
  • Soft states: allowing a truly distributed application to run for a long period of time
  • Integration with current routers
able active bell labs engine
ABLE (Active Bell Labs Engine)

Introduce efficiency to network management using

active networks technology

  • Shorter control loops
  • Fusion of control messages in the network
  • Exposing the actual cost to the programmer
able architecture
ABLE Architecture

Active Engine

  • An adjunct active engine to any router
  • R/W interface with the router
  • Long lived sessions
  • Use of standard tools
  • The broker concept
  • Security

session 1

session 2

session n

Session

Broker

Info

Broker

Control

Broker

security

CLI

MIB

filter

router

an earlyarchitecture
An EarlyArchitecture
  • An adjunct active engine to any router:
    • modularity
    • easy deployment
    • safe
  • R/W interface with the router

Active Engine

manager

MIB

filter

router

an early architecture
An Early Architecture

Active Engine

  • An adjunct active engine to any router
  • R/W interface with the router
  • Long lived “sessions”
    • generalized “soft state”
    • rendezvous
  • Use of standard tools:
    • Java, ANEP over UDP/IP, SNMP, IP filtering

session 1

session 2

manager

MIB

filter

router

the router

Active Engine

manager

The Router
  • Forwarding + basic routing
  • Filtering: active packets (with active UDP ports) are sent to the active engine (AE)
  • Support for SNMP
  • Fast-track user-controlled routing and filtering

controller

MIB

filter

router

the active engine

MIB

filter

router

The Active Engine
  • Can be separate, or in the same box
  • R/W interface with the router:
    • SNMP
    • vendor’s specific control
  • Long lived sessions:
    • rendezvous
    • generalized soft state
  • Use of standard tools:
    • Java, ANEP over UDP/IP, SNMP, IP filtering

Active Engine

session 1

session 2

manager

security

addressing modes
Addressing Modes
  • Explicit - sent directly to a known AE
    • efficient
  • Oblivious - sent along a path, and intercepted by the first AE en-route
    • topology learning
    • robust
an early architecture1
An Early Architecture

Active Engine

  • An adjunct active engine to any router
  • R/W interface with the router
  • Long lived “sessions”
  • Use of standard tools
  • Security

session 1

session 2

manager

security

MIB

filter

router

slide65

Safety & Security

  • The active engine is separate from the router - regular IP traffic is safer
  • Inside the active engine:
    • AAA (authentication, authorization, access control)
    • blocking unauthorized TCP connections
    • monitoring resource consumption of sessions
    • Java SecurityManager: blocking native methods and foreign file access
an application example bottleneck detection
An Application Example:Bottleneck Detection
  • Currently can be done using the traceroute program:
    • inefficient and limited in scope (route + timing info)
  • An active solution:
    • efficient
    • versatile
    • can do much more
current traceroute program
Current Traceroute Program
  • Quadratic number of messages
  • Quadratic completion time
an active solution
An Active Solution
  • Each AE duplicates the program it receives and forwards it
  • Linear completion time
  • Quadratic number of messages
slide69

010011101001010101010101

010011101001010101010101

11101110101010100101011110101

01010101010101010101010101000

11101110101010100101011110101

01010101010101010101010101000

11101110101010100101011110101

01010101010101010101010101000

11101110101010100101011110101

01010101010101010101010101000

From: inbar To:tishrey

Active Engine

get_code(code);

get_data(hop#,dest,reportto);

hop# ++;

packet = prepare_new_packet

(code,hop#,dest,reportto);

send_new_pack(packet,dest);

info = get_local_info();

send_report(reportto, info, hop#);

finish();

session 2

session 1

manager

security

00000000

00100111011110111010101010101011

00100111011110100010100010101111

MIB

hop#: 0

dest: adar

reportto: inbar

filter

router

Bottleneck Detection

Kislev

Heshvan

Razcisco1

Tishrey

Adar

Amir

inbar

able architecture1
ABLE++ Architecture

Active Engine

  • An adjunct active engine to any router
  • R/W interface with the router
  • Long lived sessions
  • Use of standard tools
  • The broker concept
  • Security

session 1

session 2

session n

Session

Broker

Info

Broker

Control

Broker

security

CLI

MIB

filter

router

slide71
ANEP
  • A mechanism for encapsulating Active Network frames for transmission over different media
    • an active node receiving a packet must be able to uniquely and quickly determine the environment in which it is intended to be evaluated
    • to allow minimal, default processing of packets for which the intended evaluation environment is unavailable
    • so that information that does not fit conceptually or pragmatically in the encapsulated program (such as security headers), can be placed in the header
the anep header
The ANEP Header

0 1 2 3

0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1

+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

| Version | Flags | Type ID |

+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

| ANEP Header Length | ANEP Packet Length |

+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

~ Options ~

+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

| . |

~ Payload ~

| . |

+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

anep header fields
ANEP Header Fields
  • The Version field indicates the header format in use
  • Only the most significant bit of the flag field is used. It indicates what the node should do if it does not recognize the Type ID: 0 - try to forward, 1 - discard
  • The ANEP Header Length field specifies the length of the ANEP header in 32 bit words. If no options are included in the packet, then its value must be 2
  • The ANEP Packet Length field specifies the length of the entire packet, including the packet payload, in octets
anep header fields 2
ANEP Header Fields (2)
  • The Type ID field indicates the evaluation environment (EE) of the message
  • The proper authority for assigning Type ID values to interested parties is the Active Networks Assigned Numbers Authority (ANANA) (61-64)
  • The Type ID value 0 is reserved for possible future network layer information and error messages
  • If the value contained in this field is not recognized, the node should check the value of the most significant bit of the Flags field when deciding how to handle the packet
able implementation
ABLE Implementation
  • Active engine:
    • C code, in user space
    • active packet’s code in Java
    • Java methods for performance, security, and ease of use
  • Router:
    • FreeBSD on a PC with ipfw as the filter, or
    • Linux on a PC with ipTables as the filter, or
    • COTS (Commercially Of The Shelf) routers (CISCO, Lucent RABU), with filters
divertor
Divertor
  • Free BSD:
    • using the built in fire wall - ipfw
    • special divert socket
    • all UDP traffic to socket 3322 goes to this socket
  • Linux:
    • using the built in ipTables
    • User-level program
    • all UDP traffic to socket 3322 goes to this program, and diverted to the session manager
session broker
Session Broker

session 2

session 1

  • Operation:
    • listen on all sockets
    • if arrive from outside
      • Send data to session, or
      • Create new session
    • if from inside:
      • Send data/code to network (as an active packet)
    • if admin:
      • Do whatever
        • kill,referesh,update-new

Session

Broker

security

router

  • Interfaces:
    • ACTEXTPort 3322
    • ACTINPort 3691
    • ADMININPort 3692
session broker1
Session Broker

session 2

session 1

  • Creating a new session:
    • get packet – reassemble
    • create session
    • get session socket number
    • send data to socket

Session

Broker

security

router

session broker2
Session Broker

session 2

session 1

  • The session SB communication:
    • UDP sockets
    • “Our” headers
    • one admin and one data socket to the SB
    • one socket for each session
    • The session part is done via the Act class

Session

Broker

security

router

information broker
Information Broker
  • The session IB communication:
    • TCP streams sockets
    • “Our” functions
    • The session part is done via the BrokerInterface class
    • The broker part in JAVA

session 1

session 2

Info

Broker

security

CLI

MIB

router

information broker1
Information Broker

session 1

session 2

  • Caching information:
    • interfaces and routing information is cached, and retrieved locally
    • cache is updated every (C) seconds
    • saves accesses to the router, may result in getting staled information
  • OID access:
    • allow direct access to the MIB

Info

Broker

security

CLI

MIB

router

slide82

010011101001010101010101

010011101001010101010101

11101110101010100101011110101

01010101010101010101010101000

11101110101010100101011110101

01010101010101010101010101000

11101110101010100101011110101

01010101010101010101010101000

11101110101010100101011110101

01010101010101010101010101000

From: inbar To:tishrey

Active Engine

get_code(code);

get_data(hop#,dest,reportto);

hop# ++;

packet = prepare_new_packet

(code,hop#,dest,reportto);

send_new_pack(packet,dest);

info = get_local_info();

send_report(reportto, info, hop#);

finish();

session 2

session 1

manager

security

00000000

00100111011110111010101010101011

00100111011110100010100010101111

MIB

hop#: 0

dest: adar

reportto: inbar

filter

router

Bottleneck Detection

Kislev

Heshvan

Razcisco1

Tishrey

Adar

Amir

Inbar

ses java
Ses.Java

import java.io.*;import java.lang.*;import java.net.*;import Act.*;import AdventNetSnmp.*;// This is an example for an active session that computes traceroute public class Ses{ public static void main ( String args[] ) throws Exception, AdventNetSnmpException { AdventNetSnmp request = new AdventNetSnmp(); DatagramPacket udppacket; /* set to number of bytes of data. Should be divisible by 4 */ int datasize = 12; System.out.println(">>>>> before Act");

ses java1
Ses.Java

Act session = new Act(datasize * -1); System.out.println(">>>>> After Act"); byte[] p = session.getProg(); byte[] v = session.getInitVars(); int[] senderip = new int[4]; byte[] destip = new byte[4]; byte[] udpmsg ; // get original sender IP address for (int i=0;i<4;i++) senderip[i] = (int) ((v[i] < 0 ) ? v[i]+256 : v[i]); String sendername = Integer.toString(senderip[0]) + "." + Integer.toString(senderip[1]) + "." + Integer.toString(senderip[2]) + "." + Integer.toString(senderip[3]); // get target IP address System.out.println("Destination IP address"); for (int i=0;i<4;i++) {destip[i] = v[i+4]; System.out.println(destip[i] + ".");} // get hop number int hopnum = (int) v[8]; System.out.println("Hop number" + hopnum); int dummy = (int) v[9];

ses java2
Ses.Java

// prepare new message if (v[8]>127) System.out.println("too big........."); else v[8]++; // send new message byte[] newpck = new byte[p.length+datasize]; for (int i=0;i<p.length;i++) newpck[i] = p[i]; // append data onto end of classfile for (int i=0;i<datasize; i++) newpck[i+p.length] = v[i]; session.send(newpck,Act.IPaddr(destip)); // get some local information (SNMP) String oid1 = ".1.3.6.1.2.1.4.6.0"; // IPforward String oid2= ".1.3.6.1.2.1.1.1.0"; //host name String oid = ".1.3.6.1.2.1.1.5.0"; //host name String res1 = request.getOne(oid); //String res1 = "JESSICAS"; request.close();

ses java3
Ses.Java

// send udp to original sender reporting your status String udpmsgtext = "hop " + v[8] + ": " + res1; System.out.println(">>>>>>>>UDPMSG>>>>>>>>>>>>>>>>>>>> " + udpmsgtext); System.out.println(udpmsgtext); int udpmsglen = udpmsgtext.length(); udpmsg = new byte[udpmsglen]; udpmsg = udpmsgtext.getBytes(); udppacket = new DatagramPacket ( udpmsg, udpmsglen,session.IPaddr( sendername),9901); try{ session.socket.send(udppacket); } catch ( Exception exc) { System.out.println( "Error! - " + exc.toString()); } // be nice report: I'm done // session.send(v,session.internetAddress); }}

using the information broker
Using the information broker

BrokerInterface localBroker = new BrokerInterface();

int ifi= 0;

String res1 = " " ;

try{ ifi = localBroker.getNextHopIf(destname);

float load = localBroker.getLoad(ifi);

res1 = "The load is: " + Float.toString(load);

} catch ( Exception exc) {

res1 = "The load value is unavailable "; }
