  1. Presentation Outline • Product Overview • ProductFeatures • Application • Comparison 2 / 21

  2. Product Overview IVS-H125 Left-hand side Panel DI/DO/ RS-485 RJ-45 Video-in Right-hand side Panel 5V DC IN MIC-in Micro SD Slot Audio / Video Out Reset 3 / 21

  3. Product Overview - IVS-H125P Left-hand side Panel DI/DO/ RS-485 Video-in RJ-45 (POE) Right-hand side Panel MIC-in 12V DC Out Micro SD Slot Audio / Video Out Reset 4 / 21

  4. Product Features • Video and Audio • H.264 / MPEG-4 and M-JPEG video compression simultaneously • Simultaneous multi-stream support • Supports up toD1 resolution • 3DNR (3D Noise Reduction) to improve picture quality at low Lux • Two-way audio support with enhanced audio quality • Easy Installation & Management • ONIVF compliant for interoperability • Built-in Samba client for NAS • 3GPP for 3G mobile remote applications • RS-485 interface for P/T scanner control • Digital Input/Outputs for integration with sensors and alarms • Cam Viewer 3 Central management software supported 5 / 21

  5. Product Features • Network and Configuration • Auto MDI/MDI-X supported • Support for IPv6 in addition to the standard IP protocol version 4 • RTSP / UPnP / 3GPP / HTTPS protocols selectable • Compliant with IEEE 802.3af PoE interface for flexible deployment (IVS-H125P) • Provide DC 12V / 400mA to analog camera through power jack (IVS-H125P) • Standalone or work with PLANET MC-700/1500 series media converter chassis (IVS-H125) 6 / 21

  6. Multi-profile video compress simultaneously IVS-H125 series support multiple resolutions and video compressions simultaneously can generate different video stream per user’s command. H.264@D1 MPEG-4@CIF M-JPEG@CIF MPEG-4@QCIF Product Feature Generate H.264 / MPEG-4 / M-JPEG streaming and resolution to different users in the meantime 7 / 21

  7. Product Features • Exceptional Image quality • 3DNR (3-Dimension Noise Reduction) to improve picture quality at low Lux 8 / 21

  8. Product Features • Built-in SD/SDHC Slot for record storage • Supports one Micro SD memory card slot for localized event and schedule recording of video stream of the IP camera, the feature current expandable up to 32GB. 9 / 21

  9. Power over Ethernet – IVS-H125P IEEEE802.3af support makes the camera can be installed anywhere without the need for additional power socket for the IP camera. PoE Switch Product Feature Compliant with IEEE 802.3af standard PoE interface. It can assist in locating cameras in places where there are no power outlets. 10 / 21

  10. Product Features • Advanced Event Management • The IVS-H125P supports a number of advanced features that increase monitoring flexibility and capabilities, including AV out to perform the Two-Way audio function, micro SD/SDHC card slot for local storage, RS-485 for connection to an optional pan/tilt enclosure, and input/output port for connecting external sensor devices such as door sensors and light relays to enable real time alarm notification and event management. 11 / 21

  11. Product Features • Access anytime & anywhere Sign-in PLANET DDNS to register a simpledomain name to access home device anytime and anywhere Already a planetddns user ? Log in now 12 / 21

  12. Surveillance On-The-Go With the iCV3aapp for iPhone/iPad or aCV3m for Android, you can quickly and easily see your camera feed from anywhere with Wi-Fi or 3G connection Product Features 13 / 21

  13. Management - Web ActiveX Control • View Video & Administration Multi Video Profile Streaming Protocol Multi Language System Setting Menu Client Setting Manu PTZ Control Menu View Screen Video Information 2-Way Audio Full Screen Viewer Status 14 / 21

  14. Applications-1 • Power supply from PoE switch and provides DC out to analog camera 15 / 21

  15. Applications-2 • Compatibility with Cam Viewer 3 Lite/Pro for Advanced Management 16 / 21

  16. Applications-3 • Simple-to-Install, Ease-of-Integration and Premium Scalability 17 / 21

  17. Product Comparison 18 / 21

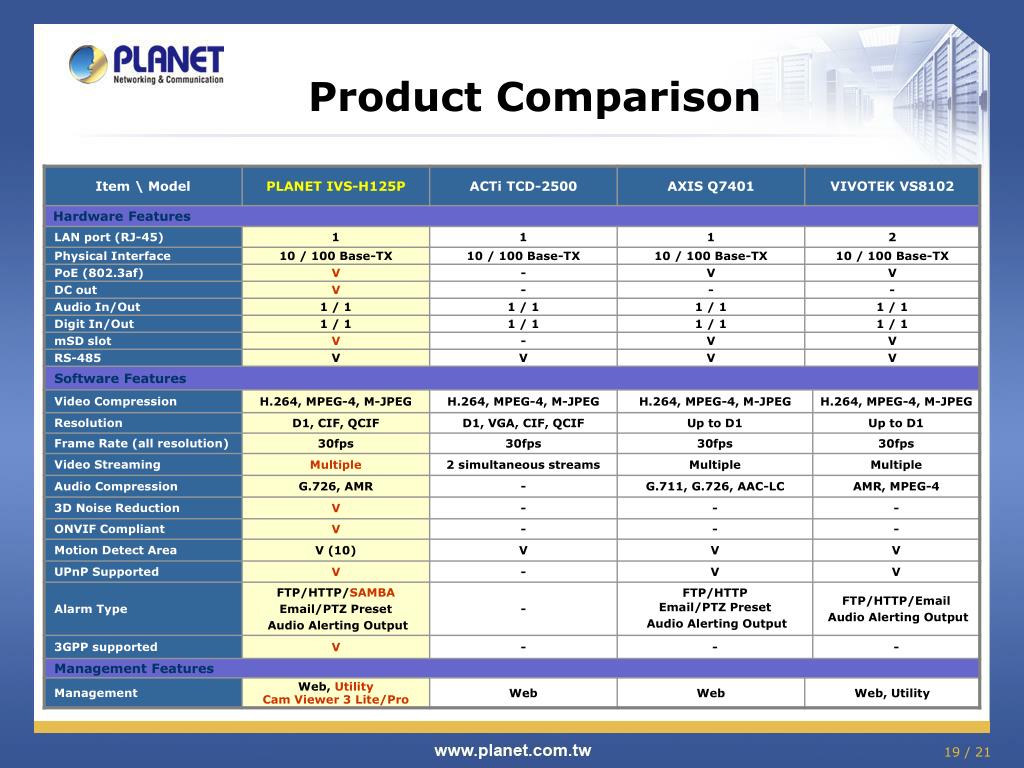

  18. Product Comparison 19 / 21

  19. Appendix Sales Target • Target Markets • Enterprise / SMB Office • IP / Analog Surveillance System Integrator • Cost-effectively upgrade analog camera to IP camera • Reseller • Target Customers • Who buy our Video Server • IVS-H120 • Who buy our NVR • NVR-401 / NVR-420 / NVR-810 / NVR-1610 / NVR-3210 / NVR-3250 • Who buy Analog Camera • CAM-DM33 / CAM-IR138 / CAM-IR338 / CAM-IR560 / CAM-IVP55 / CAM-IVP55V • Who buy Media Converter Chassis • MC-700 / 1500 / 1500R 20 / 21
