  1. Automotive Drivetrains

  2. Automotive Drivetrains Purpose: • Connect/disconnect engines power to the drive wheel(s) • allow for different speed ratios • provide for reverse • power control for safe turning • torque multiplication

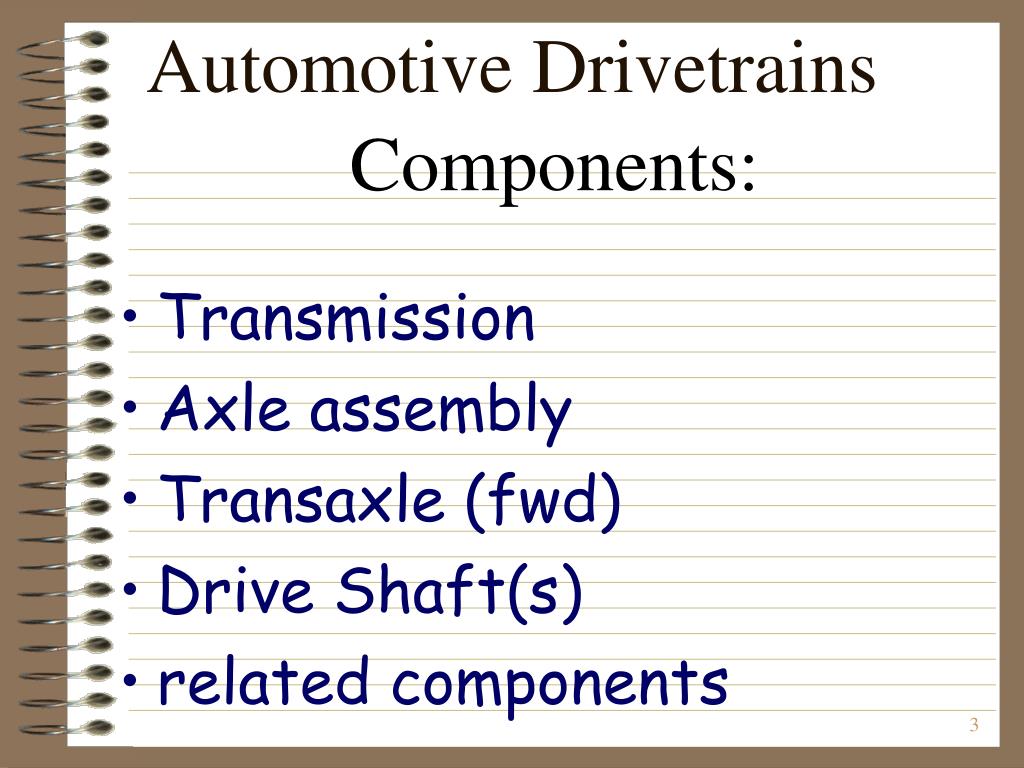

  3. Automotive Drivetrains Components: • Transmission • Axle assembly • Transaxle (fwd) • Drive Shaft(s) • related components

  4. Automotive Drivetrains Engine torque: • The turning effort of the crankshaft • measured in foot-pounds • maximum torque is produced within a narrow RPM range (torque curve)

  5. Engine Torque

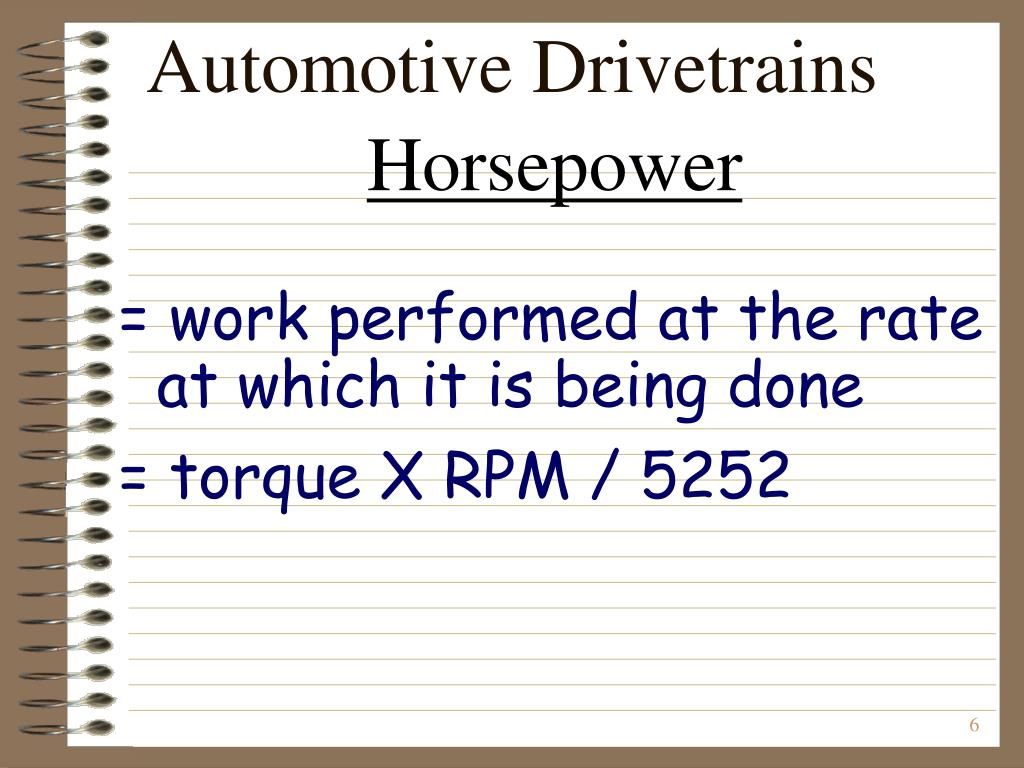

  6. Automotive Drivetrains Horsepower = work performed at the rate at which it is being done = torque X RPM / 5252

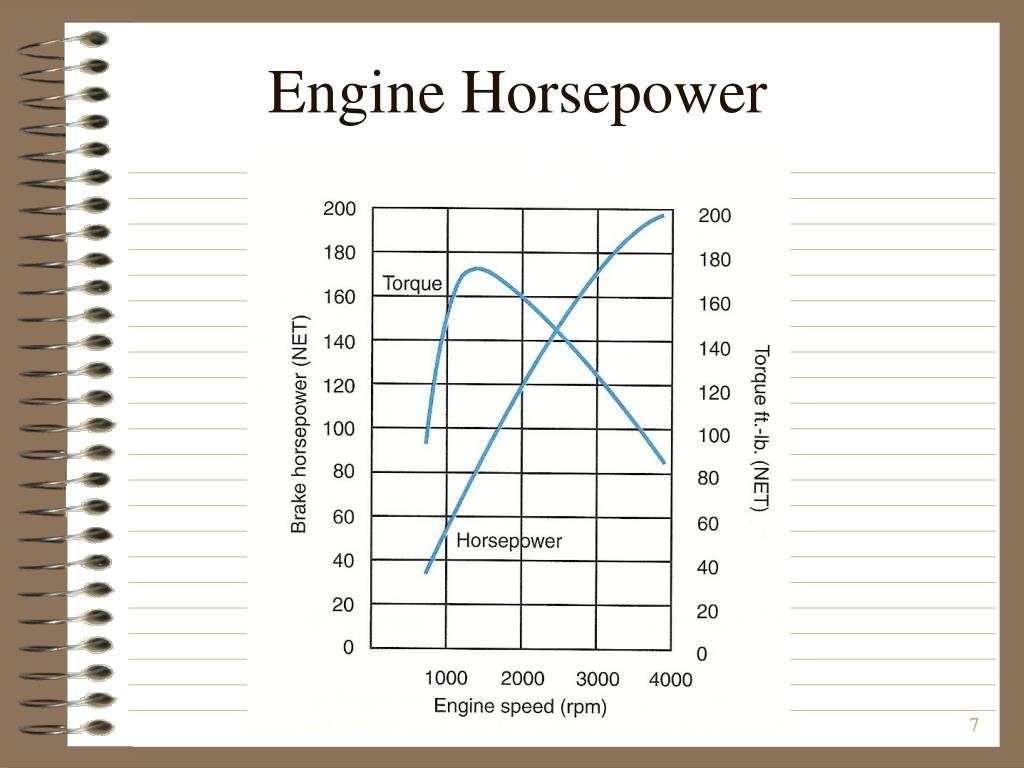

  7. Engine Horsepower

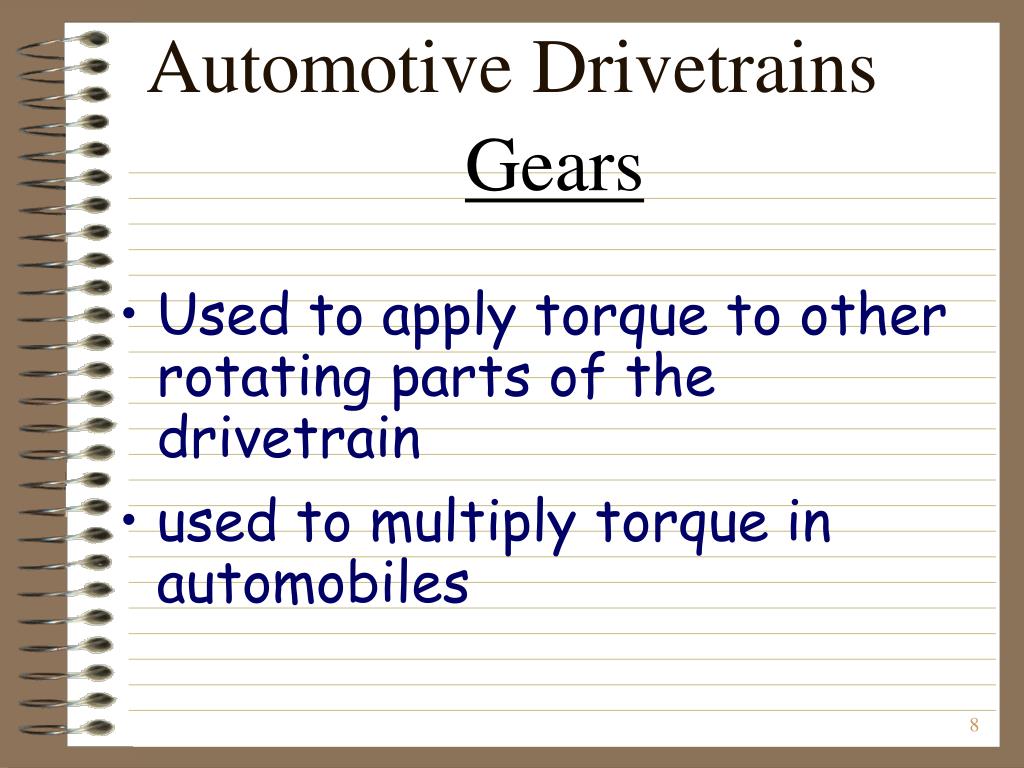

  8. Automotive Drivetrains Gears • Used to apply torque to other rotating parts of the drivetrain • used to multiply torque in automobiles

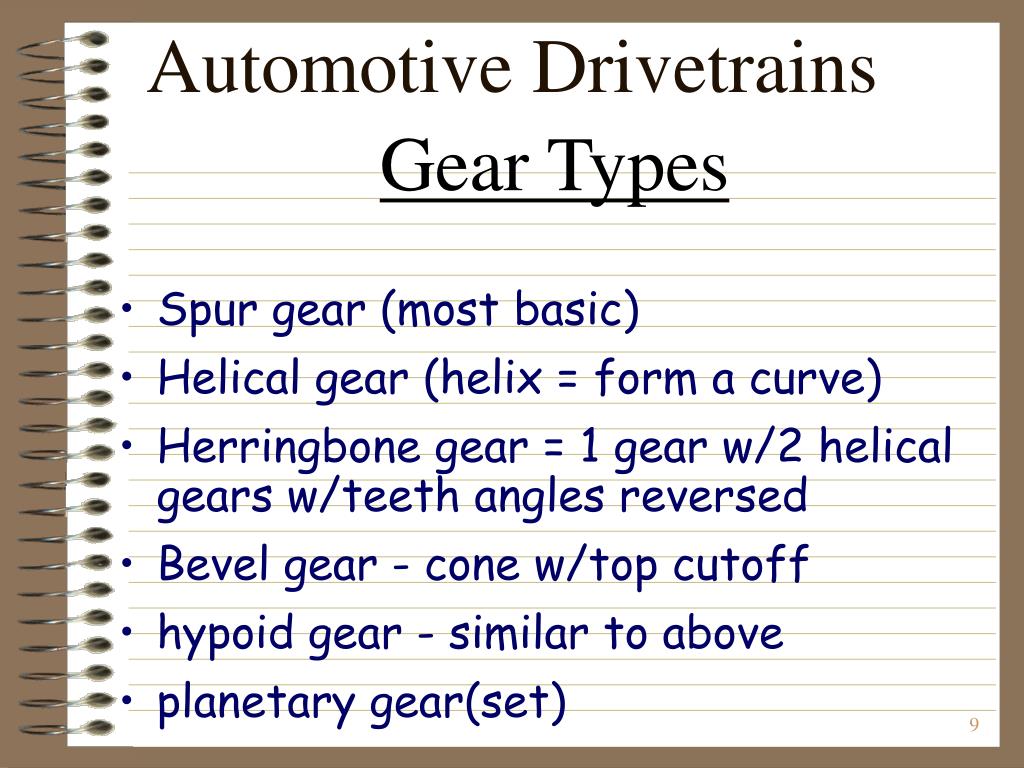

  9. Automotive Drivetrains Gear Types • Spur gear (most basic) • Helical gear (helix = form a curve) • Herringbone gear = 1 gear w/2 helical gears w/teeth angles reversed • Bevel gear - cone w/top cutoff • hypoid gear - similar to above • planetary gear(set)

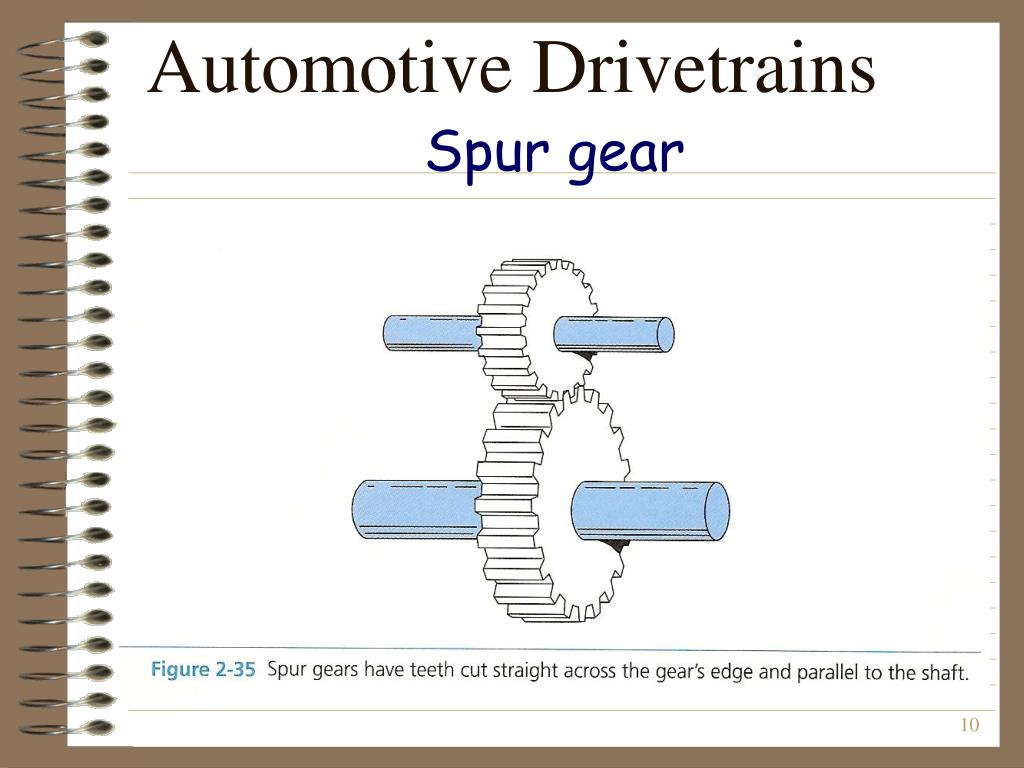

  10. Automotive Drivetrains Spur gear

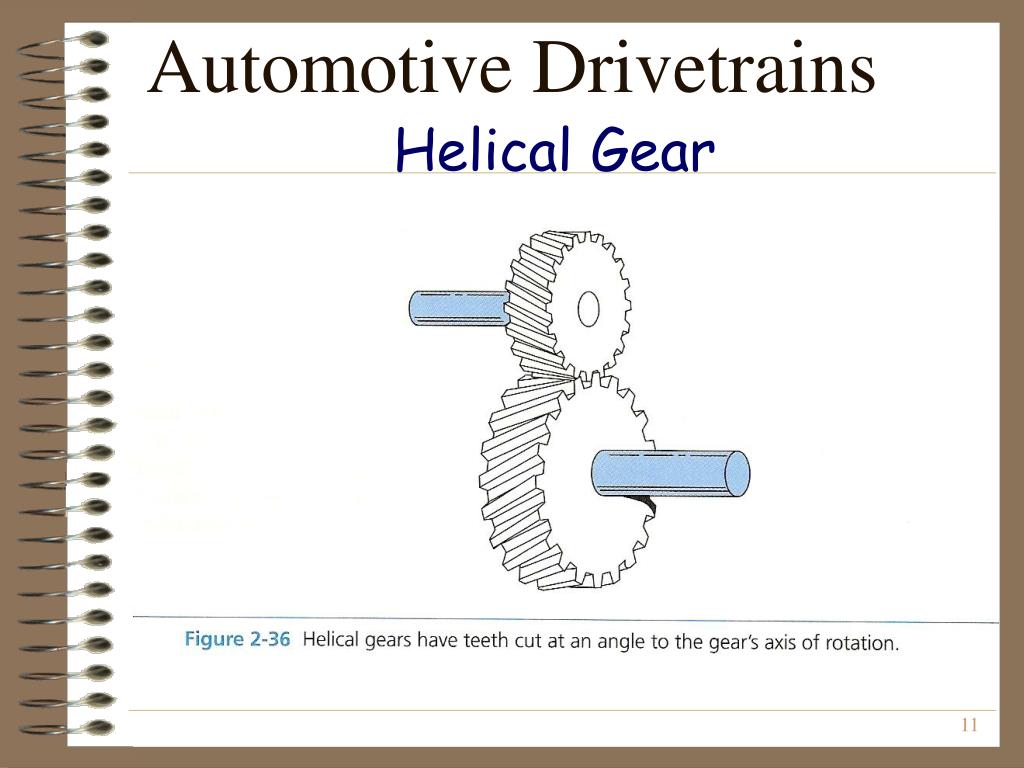

  11. Automotive Drivetrains Helical Gear

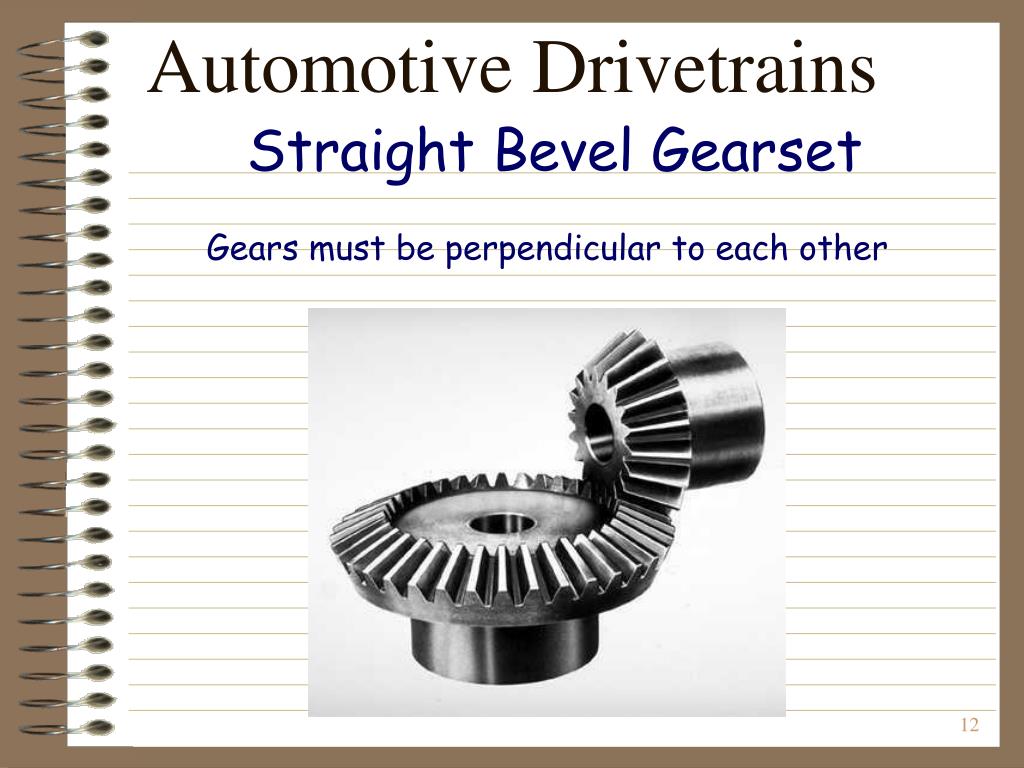

  12. Automotive Drivetrains Straight Bevel Gearset Gears must be perpendicular to each other

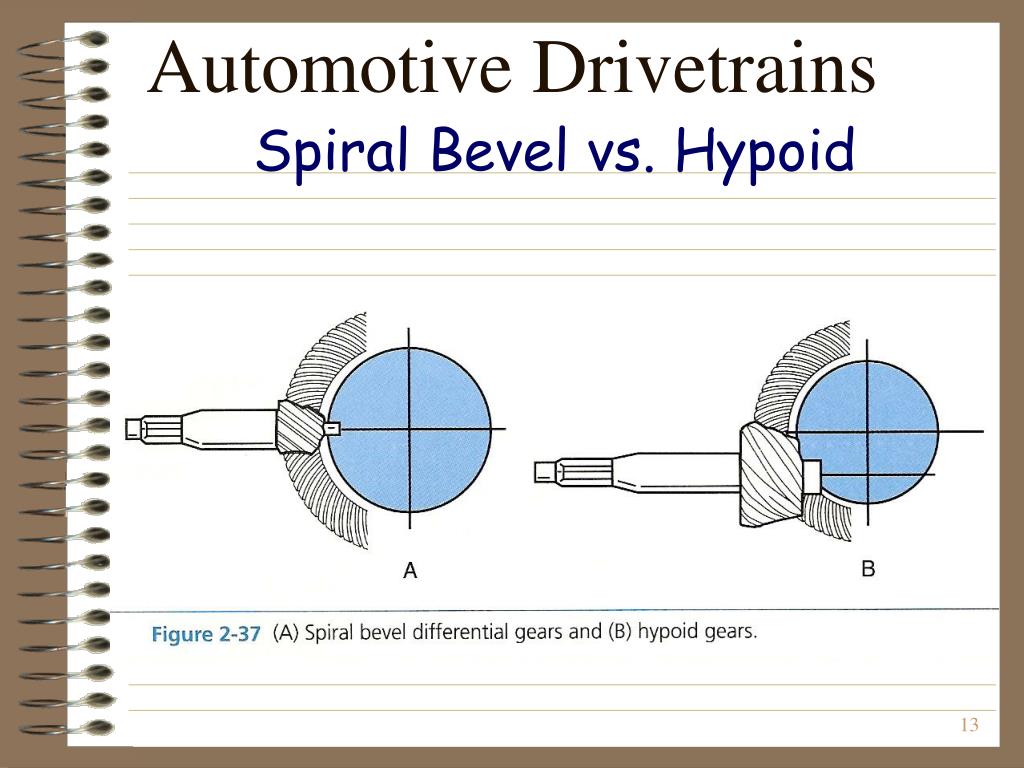

  13. Automotive Drivetrains Spiral Bevel vs. Hypoid

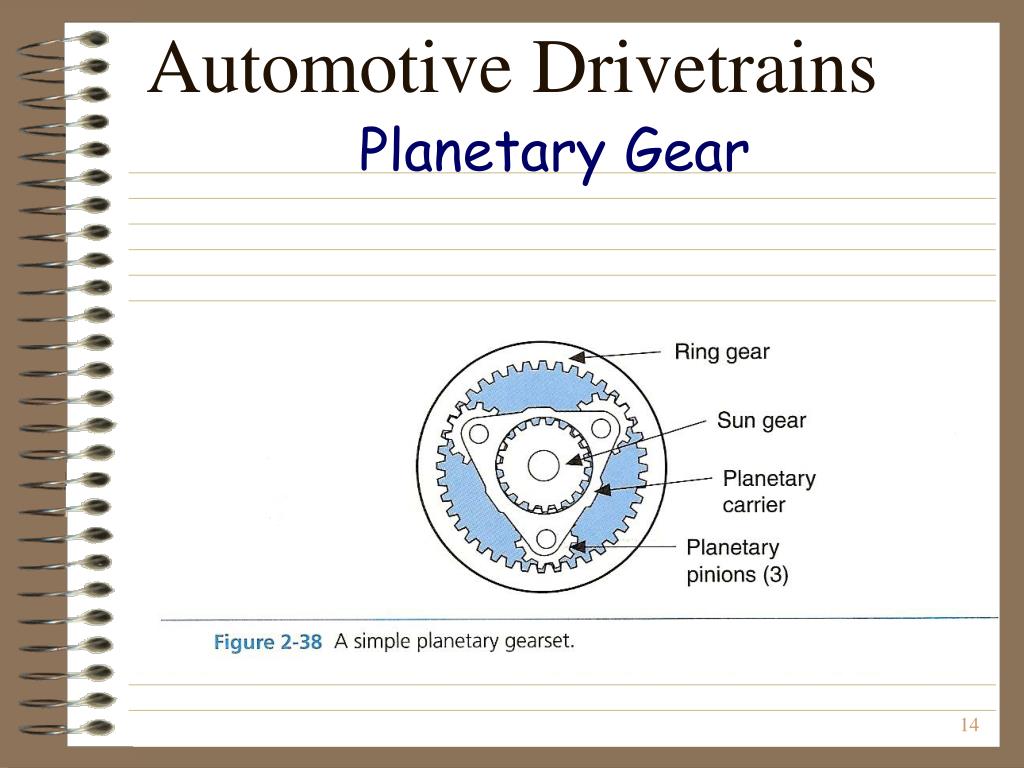

  14. Automotive Drivetrains Planetary Gear

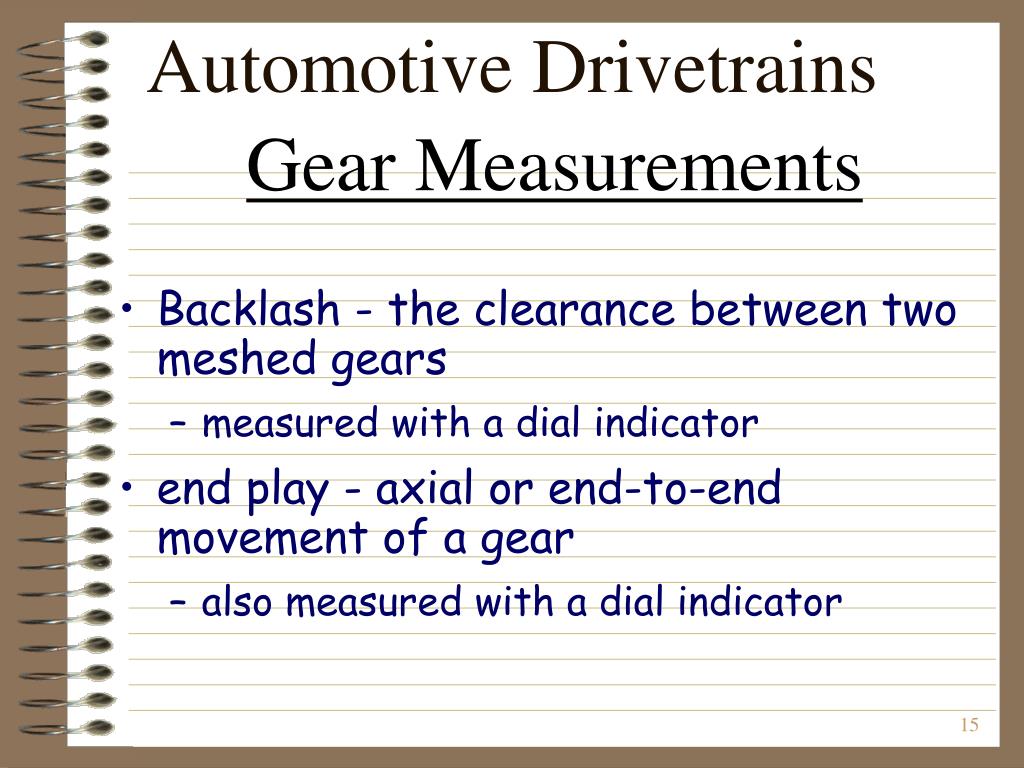

  15. Automotive Drivetrains Gear Measurements • Backlash - the clearance between two meshed gears • measured with a dial indicator • end play - axial or end-to-end movement of a gear • also measured with a dial indicator

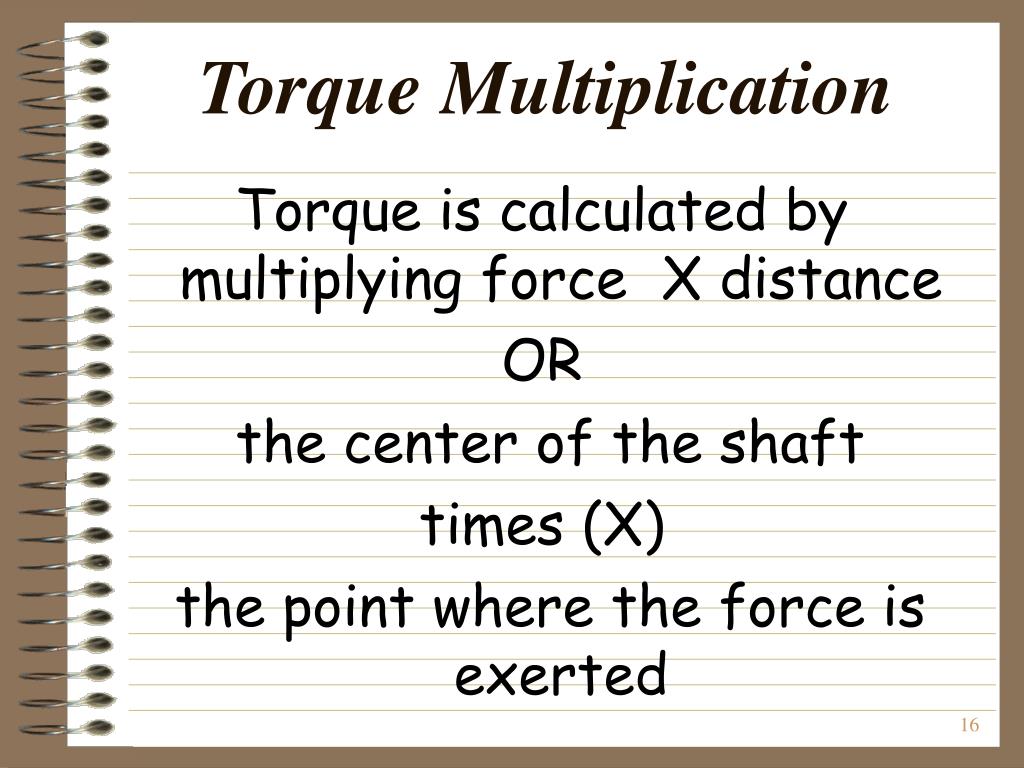

  16. Torque Multiplication Torque is calculated by multiplying force X distance OR the center of the shaft times (X) the point where the force is exerted

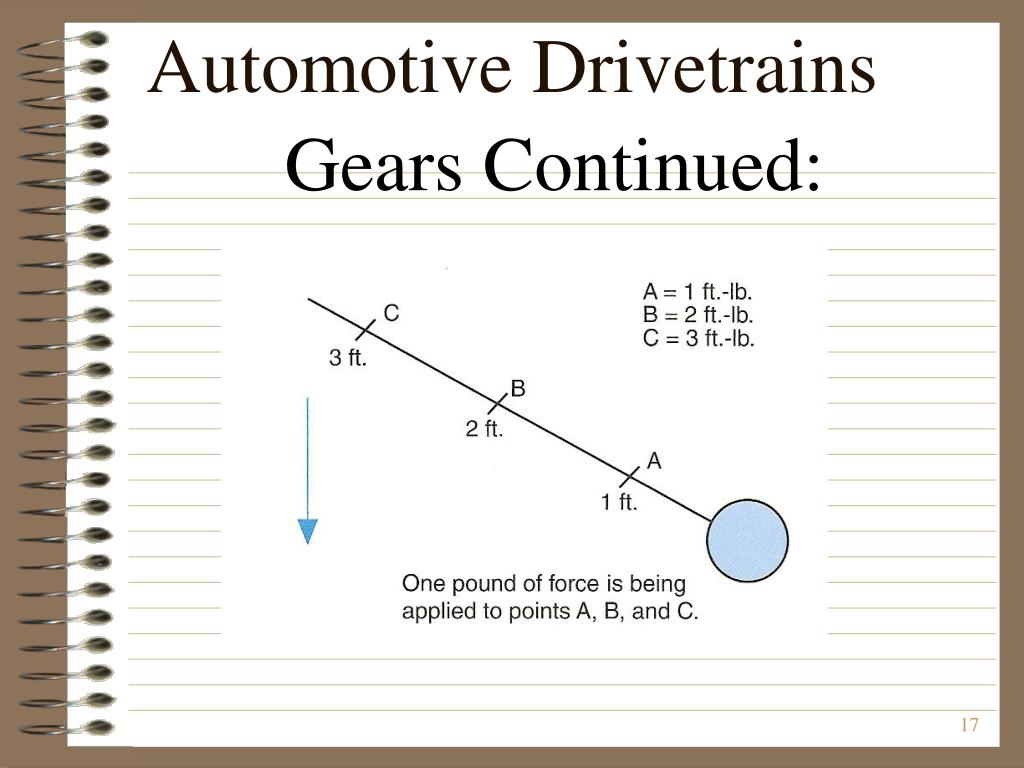

  17. Automotive Drivetrains Gears Continued:

  18. Automotive Drivetrains Gears continued:

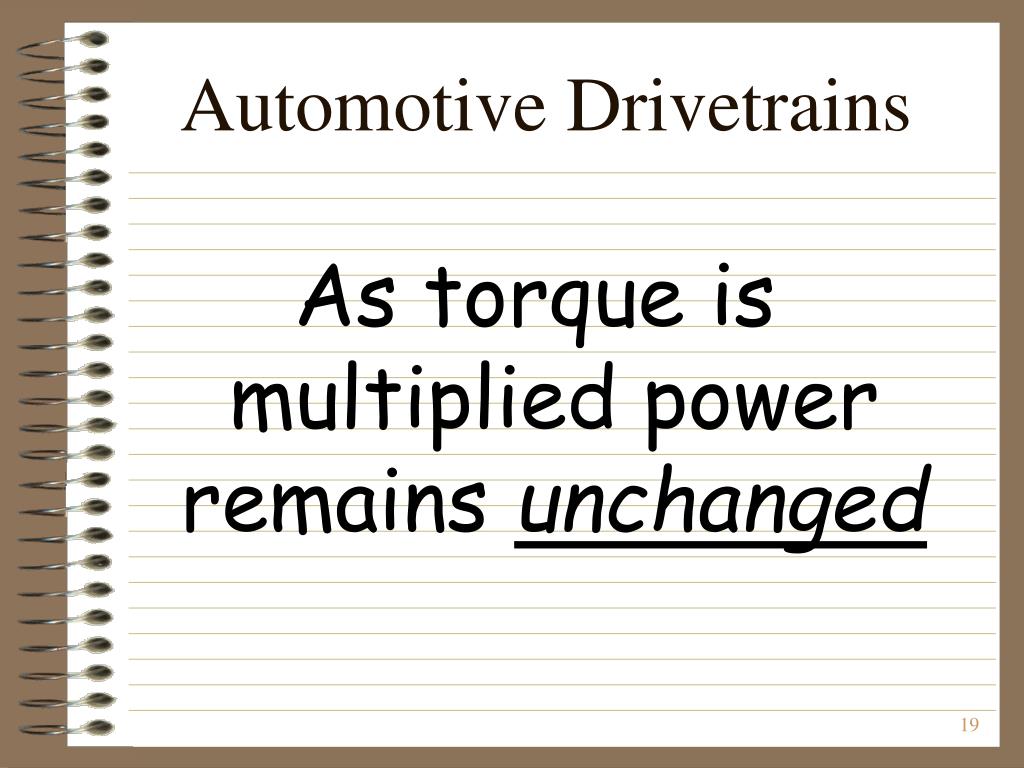

  19. Automotive Drivetrains As torque is multiplied power remains unchanged

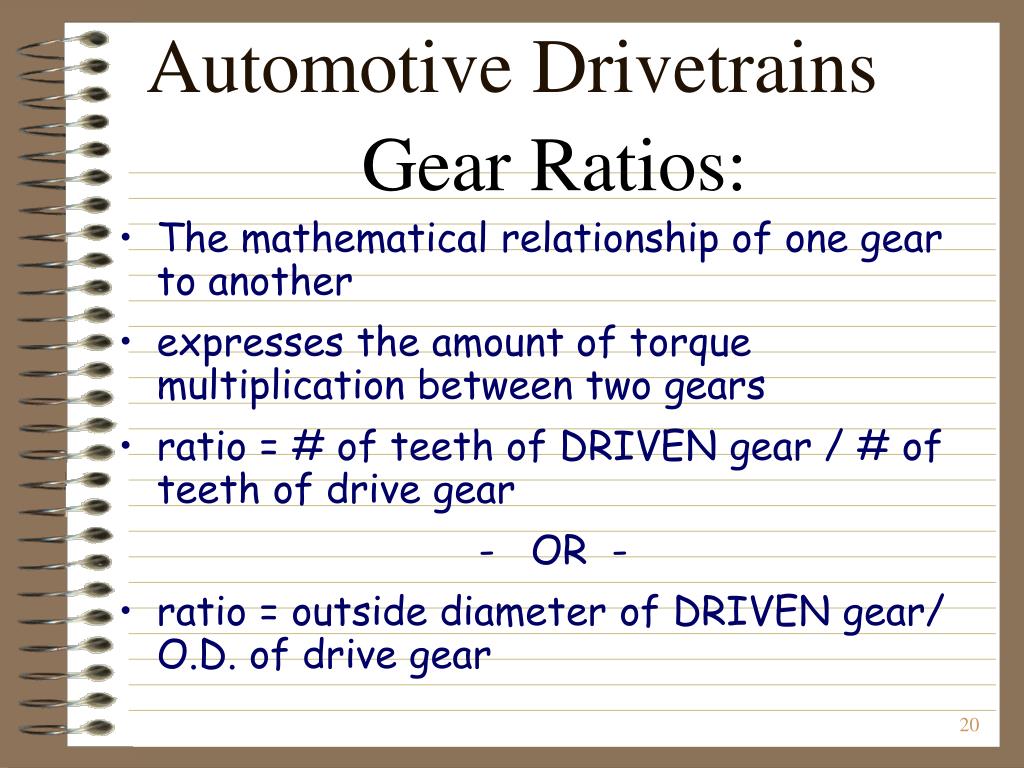

  20. Automotive Drivetrains Gear Ratios: • The mathematical relationship of one gear to another • expresses the amount of torque multiplication between two gears • ratio = # of teeth of DRIVEN gear / # of teeth of drive gear - OR - • ratio = outside diameter of DRIVEN gear/ O.D. of drive gear

  21. Automotive Drivetrains Gear Reduction = a reduction in the driven gears speed = an increase in the driven gears torque

  22. Automotive Drivetrains

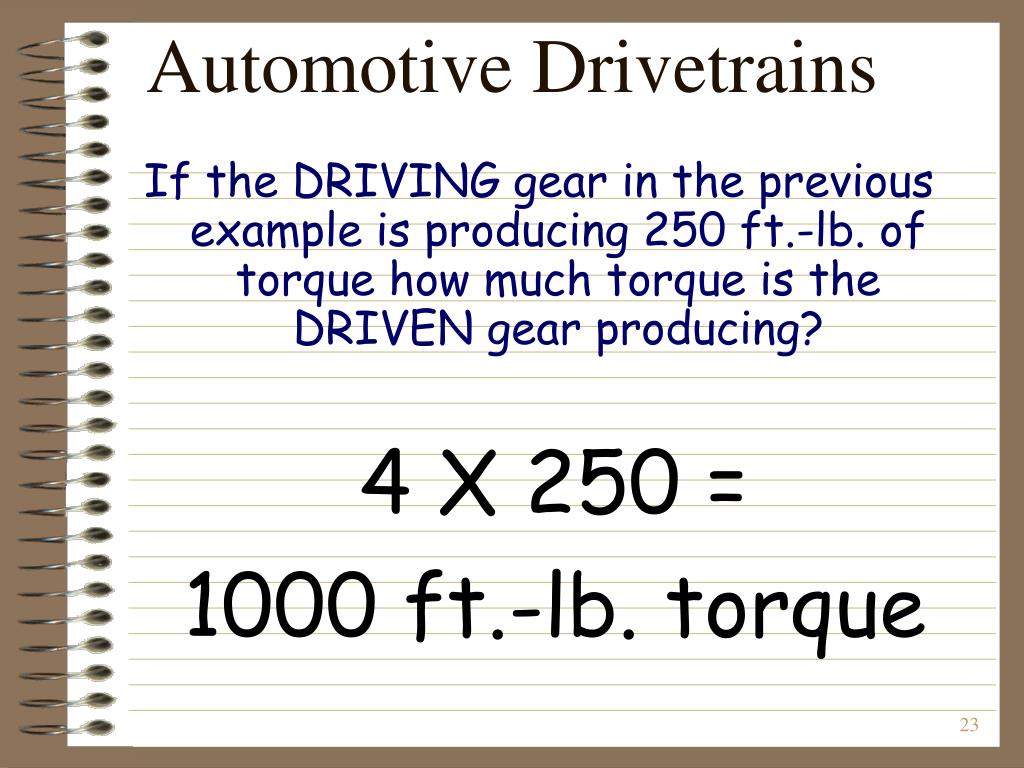

  23. Automotive Drivetrains If the DRIVING gear in the previous example is producing 250 ft.-lb. of torque how much torque is the DRIVEN gear producing? 4 X 250 = 1000 ft.-lb. torque

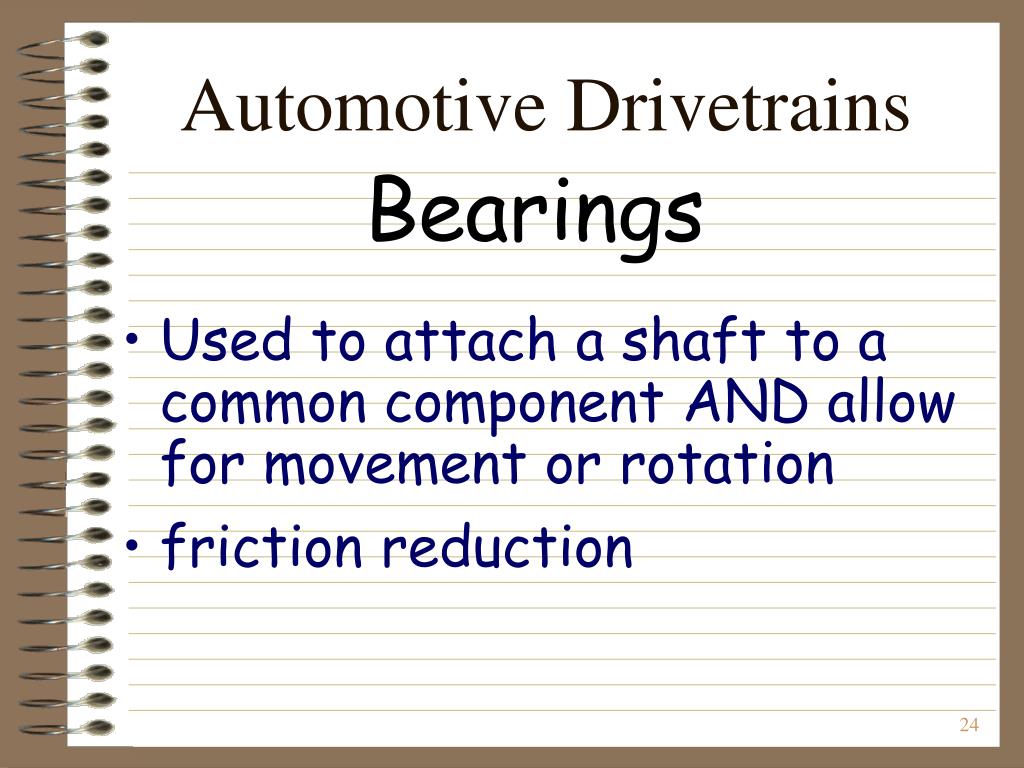

  24. Automotive Drivetrains Bearings • Used to attach a shaft to a common component AND allow for movement or rotation • friction reduction

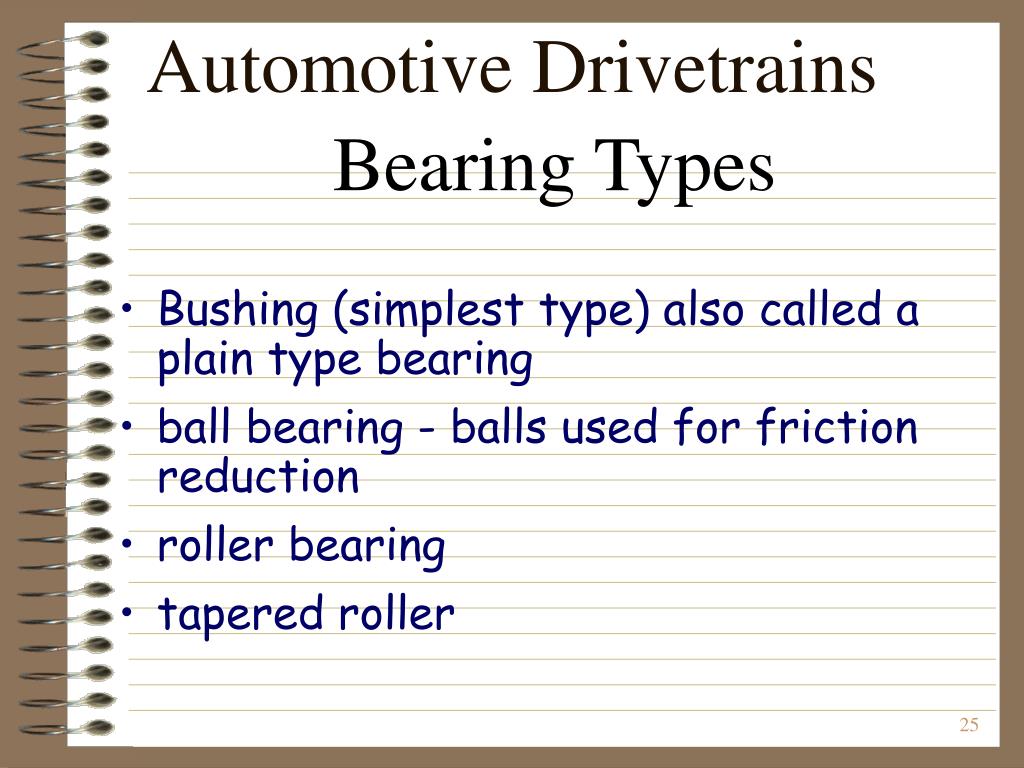

  25. Automotive Drivetrains Bearing Types • Bushing (simplest type) also called a plain type bearing • ball bearing - balls used for friction reduction • roller bearing • tapered roller

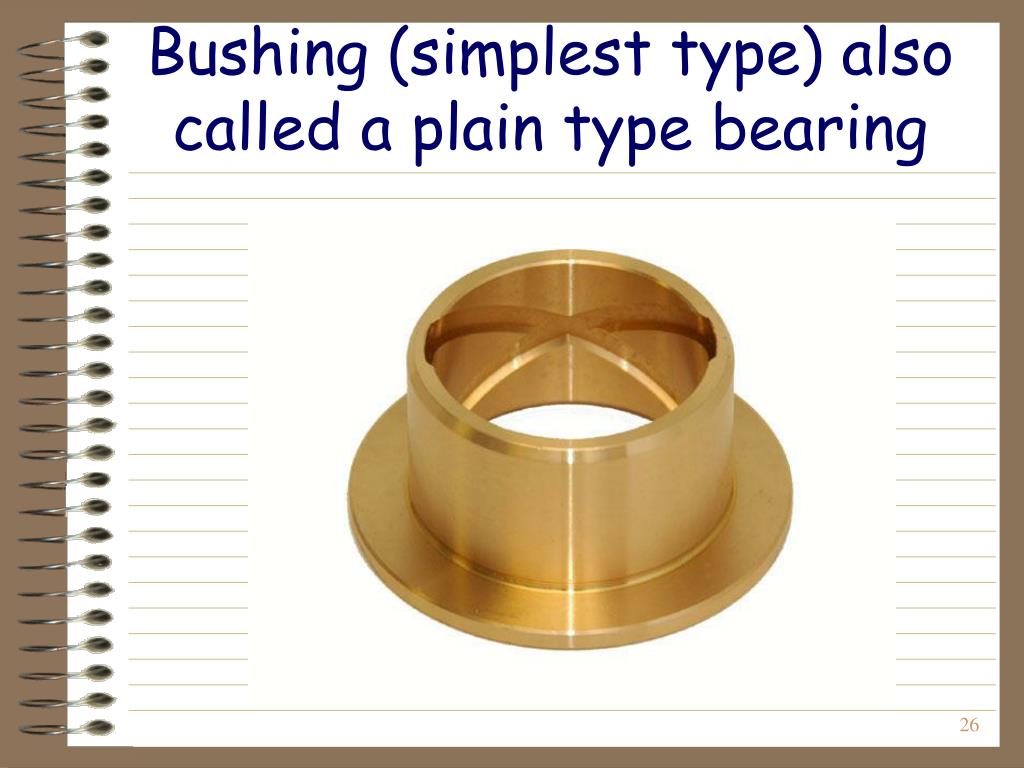

  26. Bushing (simplest type) also called a plain type bearing

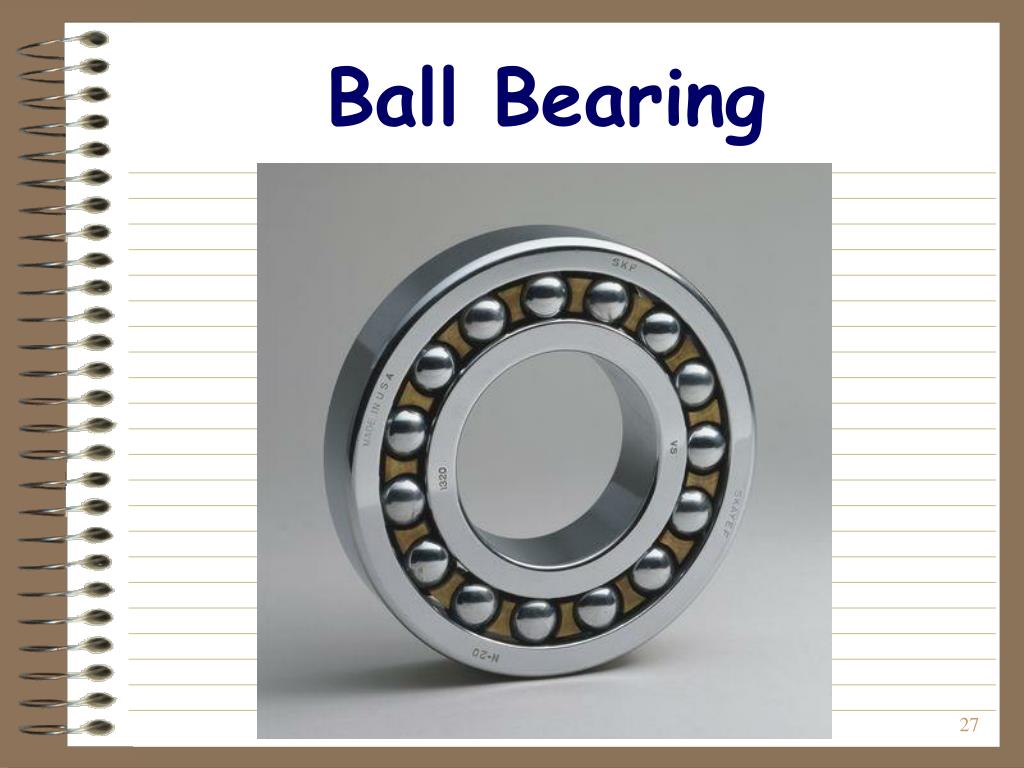

  27. Ball Bearing

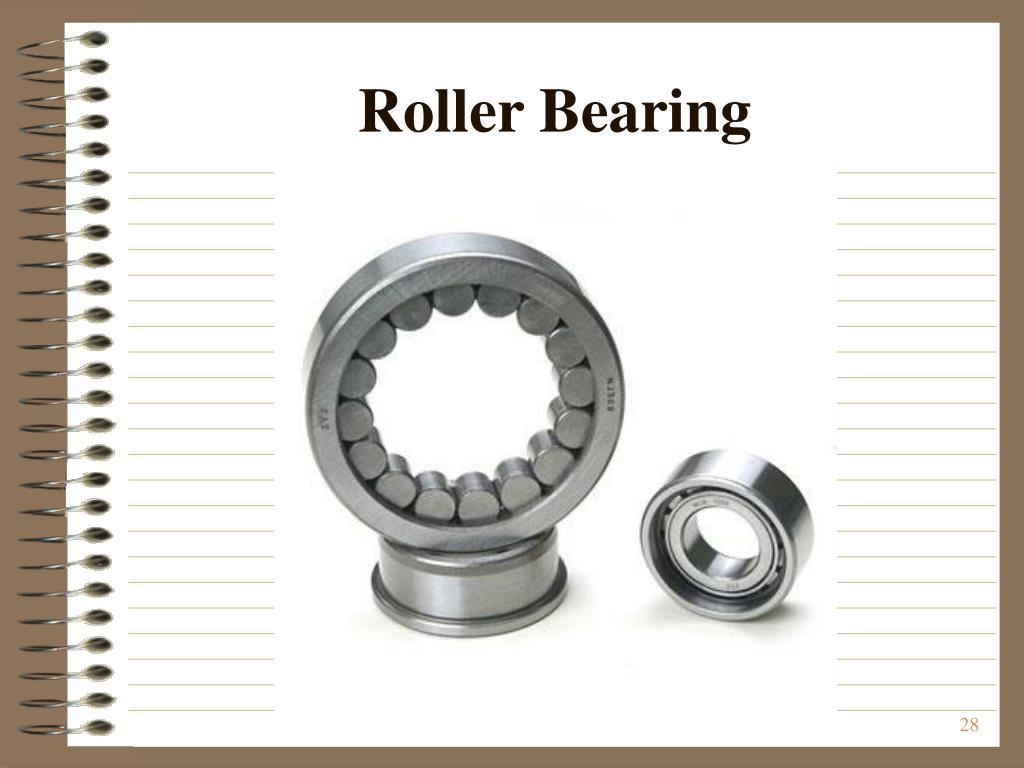

  28. Roller Bearing

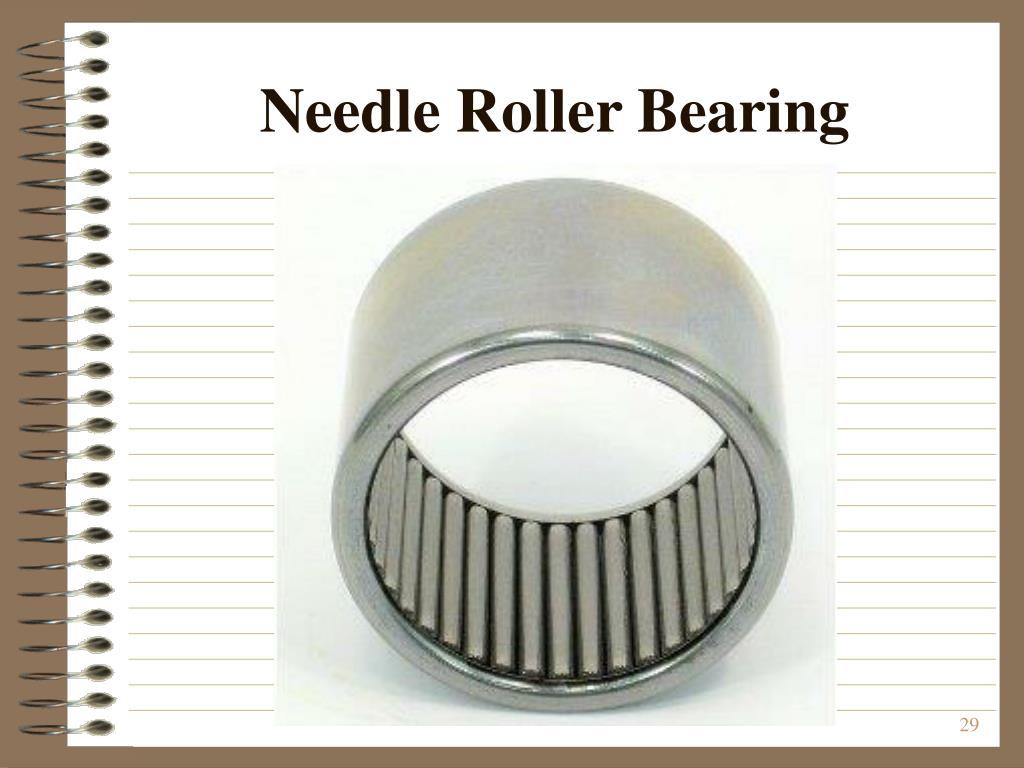

  29. Needle Roller Bearing

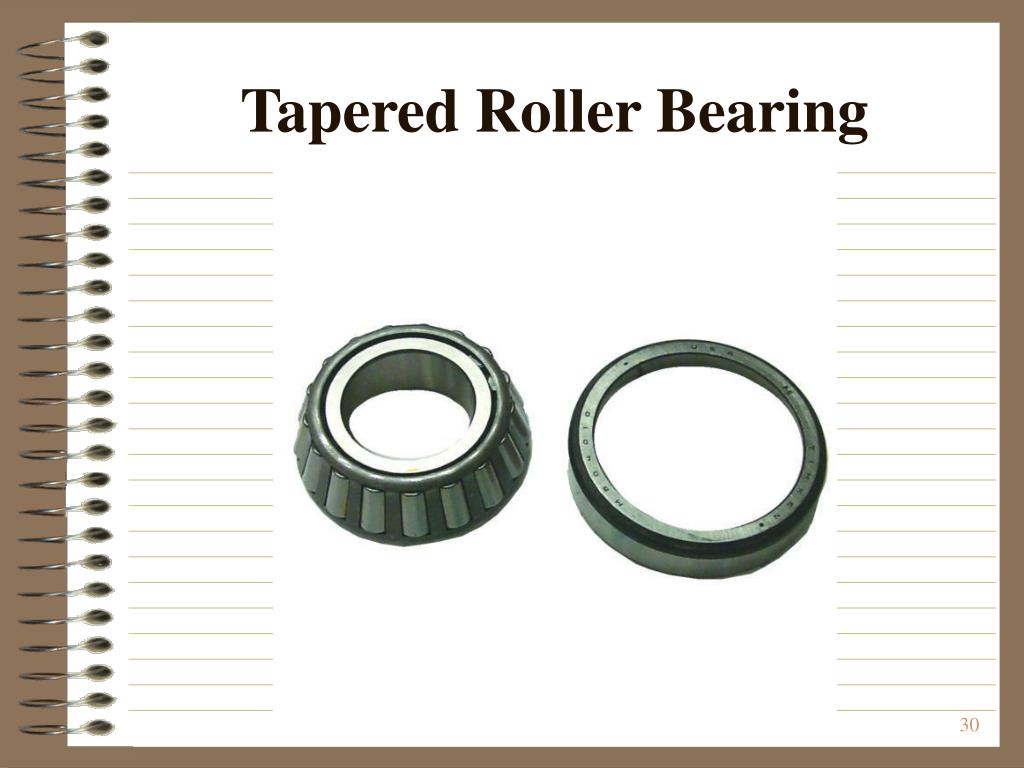

  30. Tapered Roller Bearing

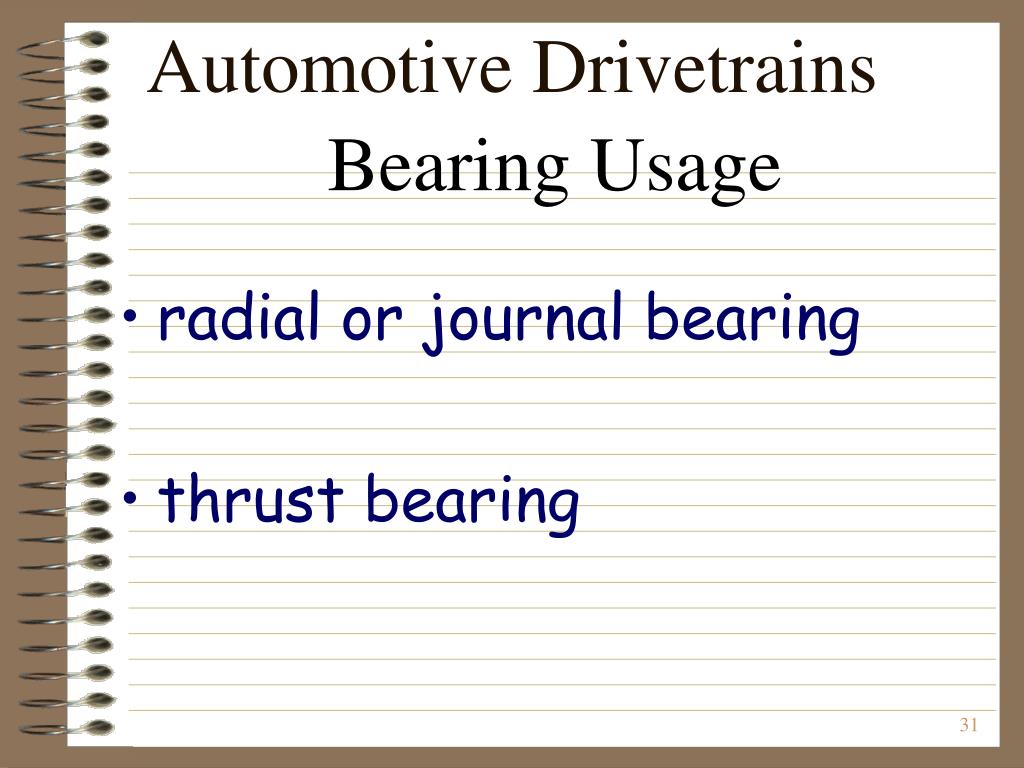

  31. Automotive Drivetrains Bearing Usage • radial or journal bearing • thrust bearing

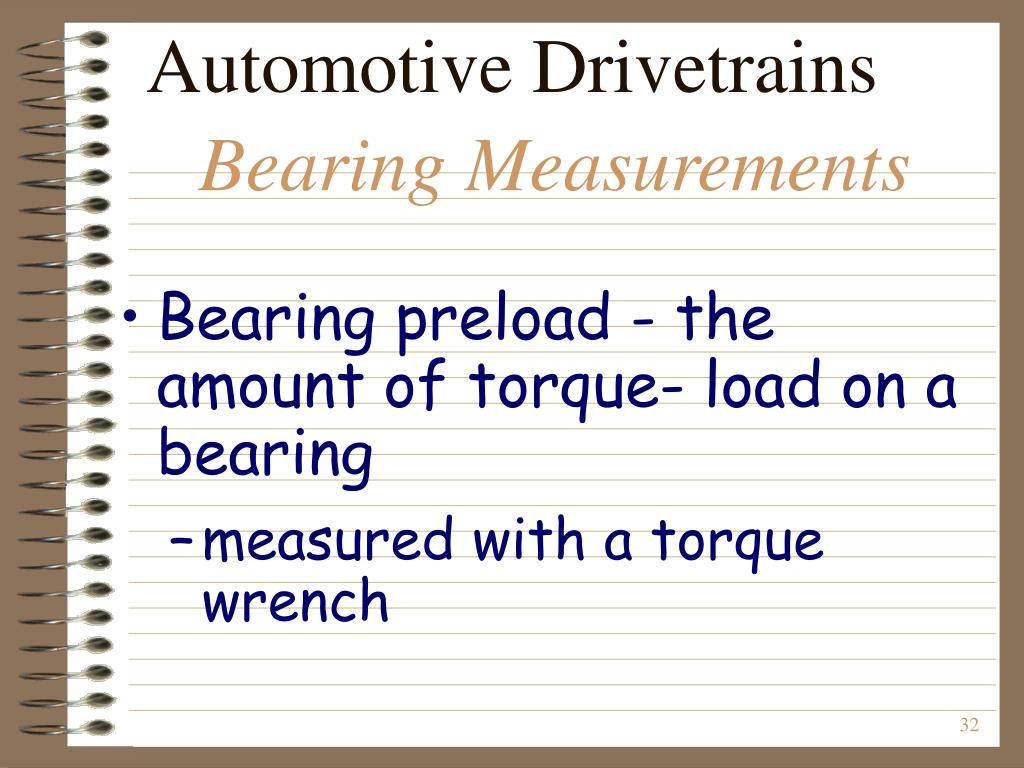

  32. Automotive Drivetrains Bearing Measurements • Bearing preload - the amount of torque- load on a bearing • measured with a torque wrench

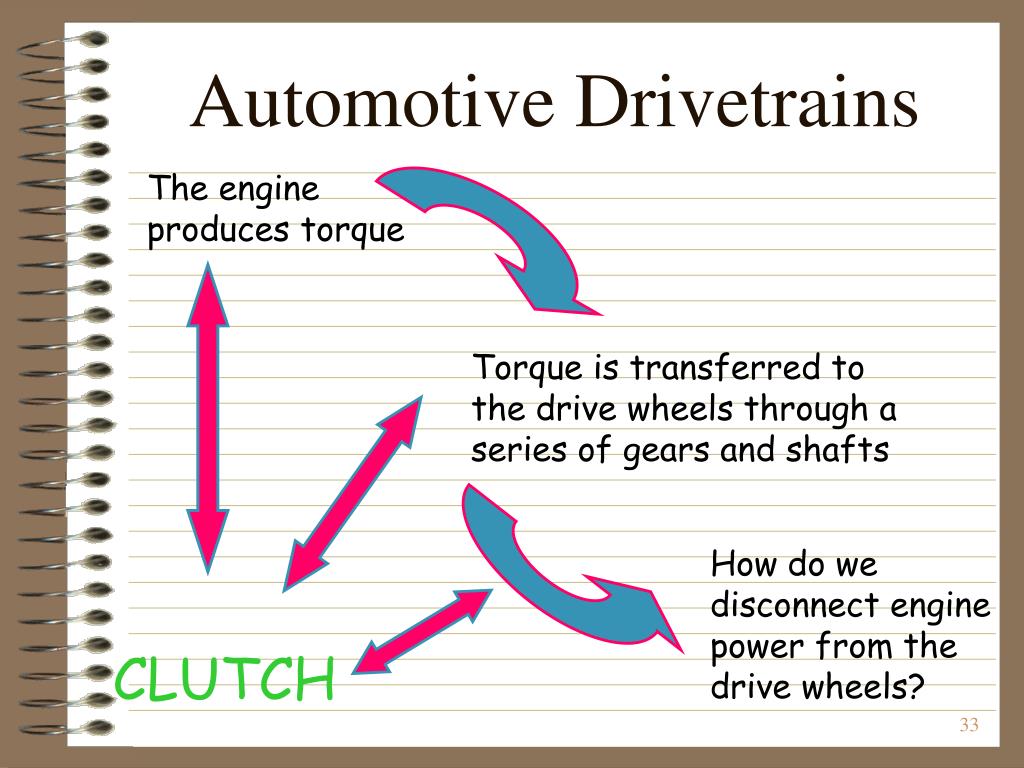

  33. CLUTCH Automotive Drivetrains The engine produces torque Torque is transferred to the drive wheels through a series of gears and shafts How do we disconnect engine power from the drive wheels?
