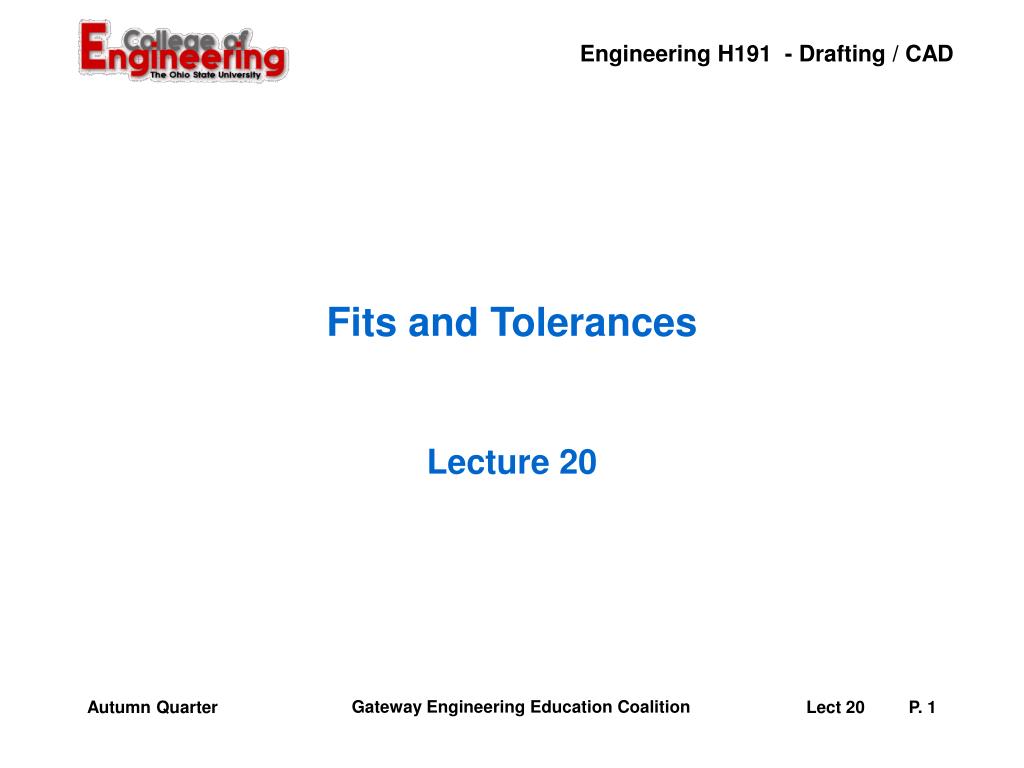

### Fits and Tolerances

Lecture 20

Autumn Quarter

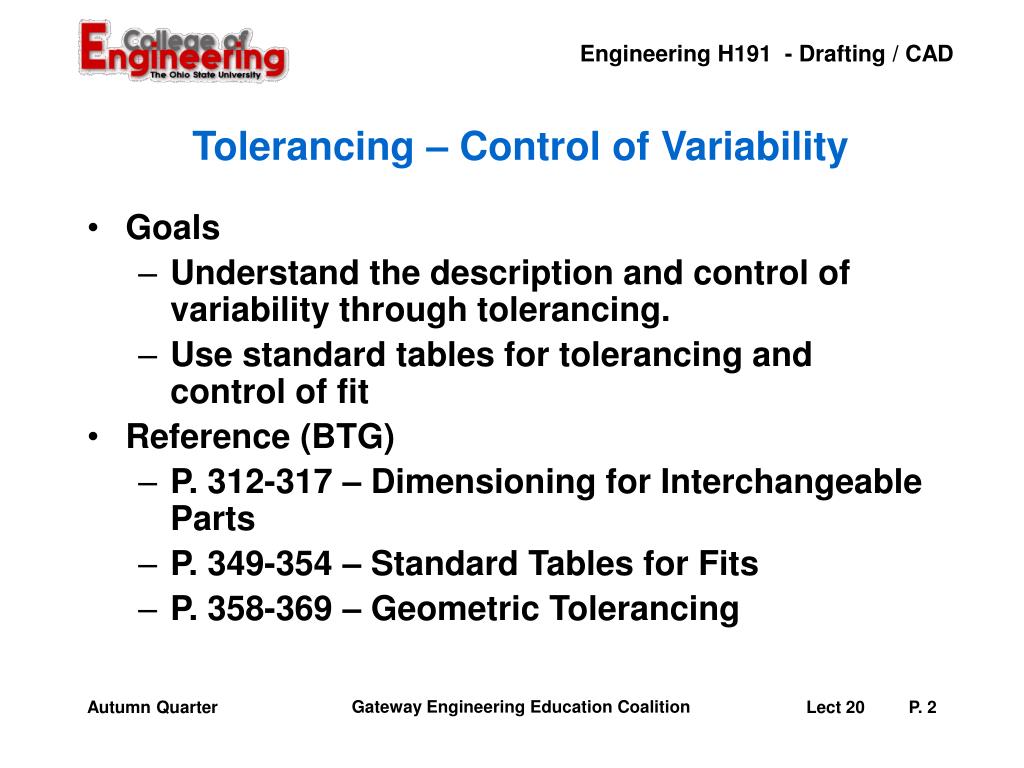

Tolerancing – Control of Variability
• Goals
• Understand the description and control of variability through tolerancing.
• Use standard tables for tolerancing and control of fit
• Reference (BTG)
• P. 312-317 – Dimensioning for Interchangeable Parts
• P. 349-354 – Standard Tables for Fits
• P. 358-369 – Geometric Tolerancing

Autumn Quarter

Definition of Tolerance
• Tolerance is the total amount a dimension may vary. It is the difference between the maximum and minimum limits.
• There is no such thing as an "exact size".
• Tolerance is key to interchangeable parts.

Autumn Quarter

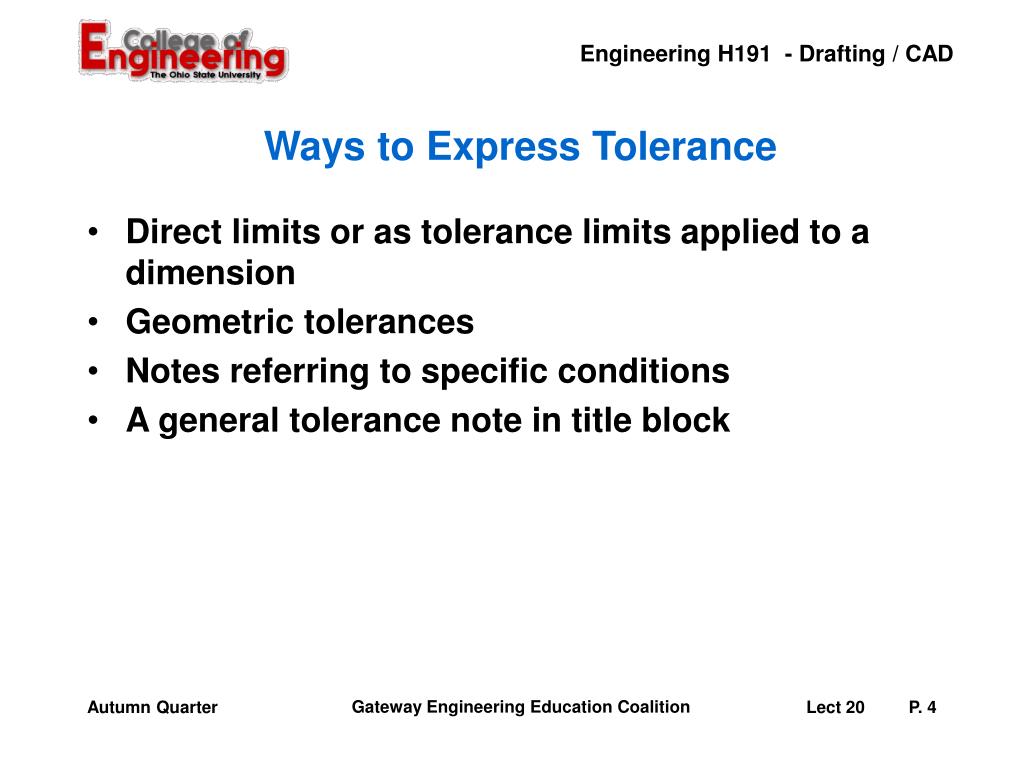

Ways to Express Tolerance
• Direct limits or as tolerance limits applied to a dimension
• Geometric tolerances
• Notes referring to specific conditions
• A general tolerance note in title block

Autumn Quarter

+.04

0

+.03

-.01

Direct Limits and Tolerance Values

Can be:

Limits: Upper limit – 3.53

Lower limit – 3.49

Unilateral – vary in only one direction

3.49

0 -.0X

+.0X - 0

Bilateral – vary larger or smaller (may or may not be same amount)

3.50

+.05 -.01, +.10 -.20 +/- 0.05

Autumn Quarter

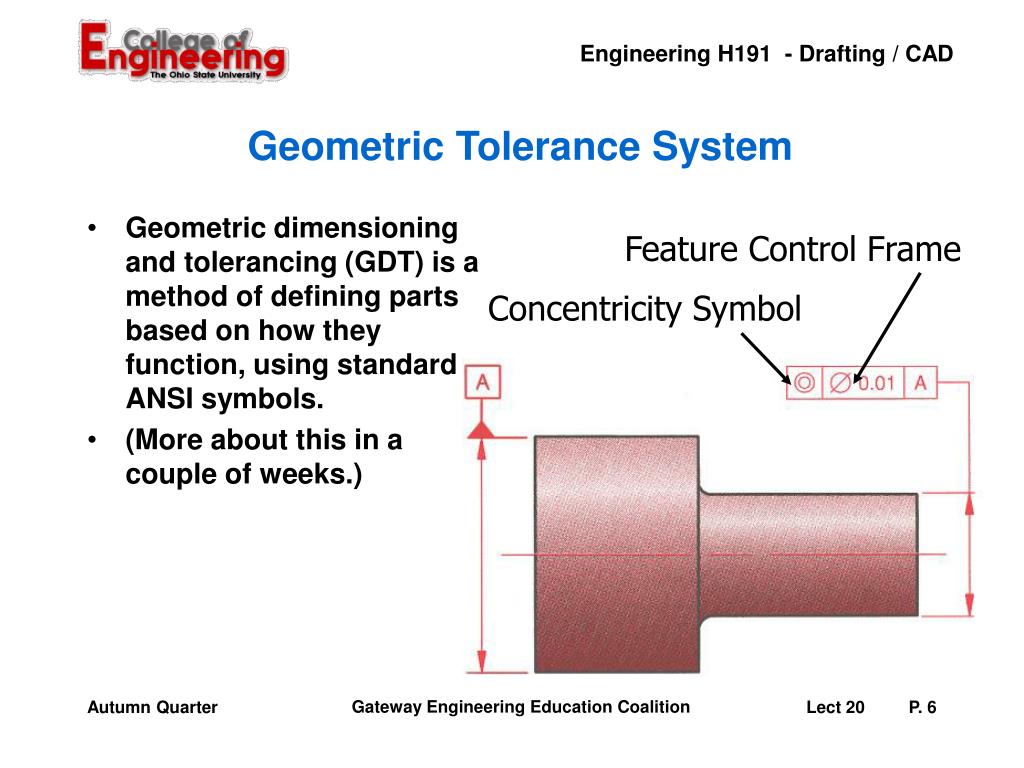

Geometric dimensioning and tolerancing (GDT) is a method of defining parts based on how they function, using standard ANSI symbols.

Geometric Tolerance System

Feature Control Frame

Concentricity Symbol

Autumn Quarter

Notes and Title Block

ALL DECIMAL DIMENSIONS THAT ARE THREE PLACE ACCUARCY (.XXX) TO BE HELD TO +/-.005"

Autumn Quarter

Important Terms – Single Part
• Nominal Size – a general size, usually expressed as a common fraction (1/2”)
• Basic Size – theoretical size used as starting point (.500”)
• Actual Size – measured size (.501”)
• Limits – maximum and minimum sizes shown by tolerances
• Tolerance – total allowable variance in dimensions (upper limit – lower limit)

Autumn Quarter

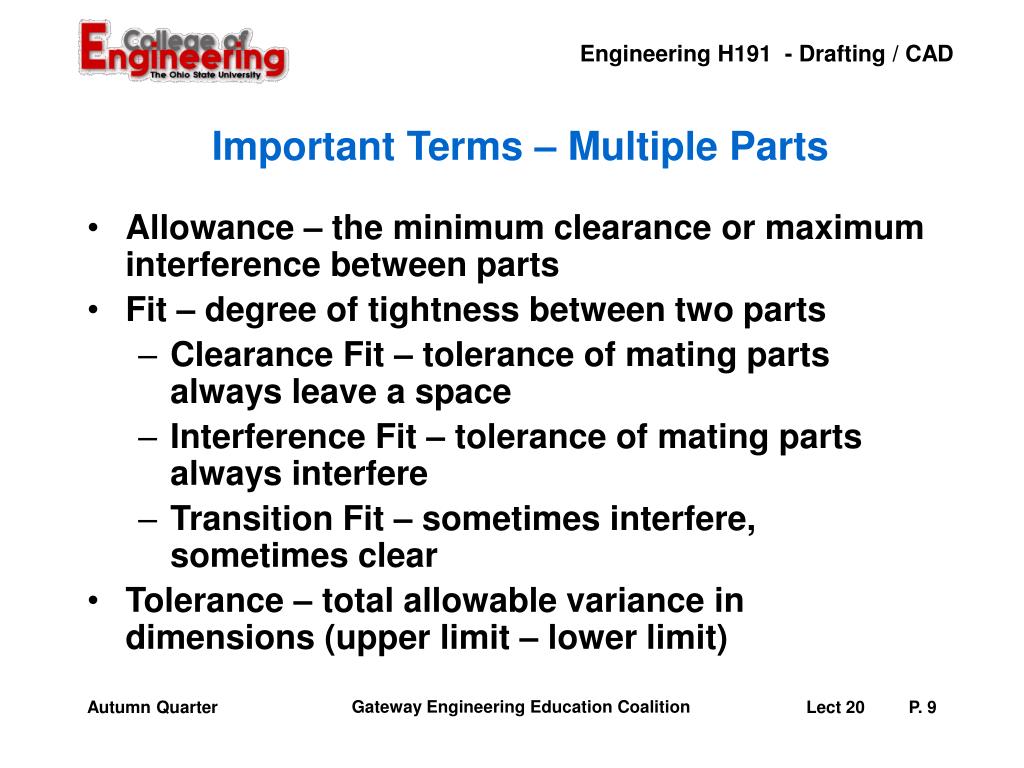

Important Terms – Multiple Parts
• Allowance – the minimum clearance or maximum interference between parts
• Fit – degree of tightness between two parts
• Clearance Fit – tolerance of mating parts always leave a space
• Interference Fit – tolerance of mating parts always interfere

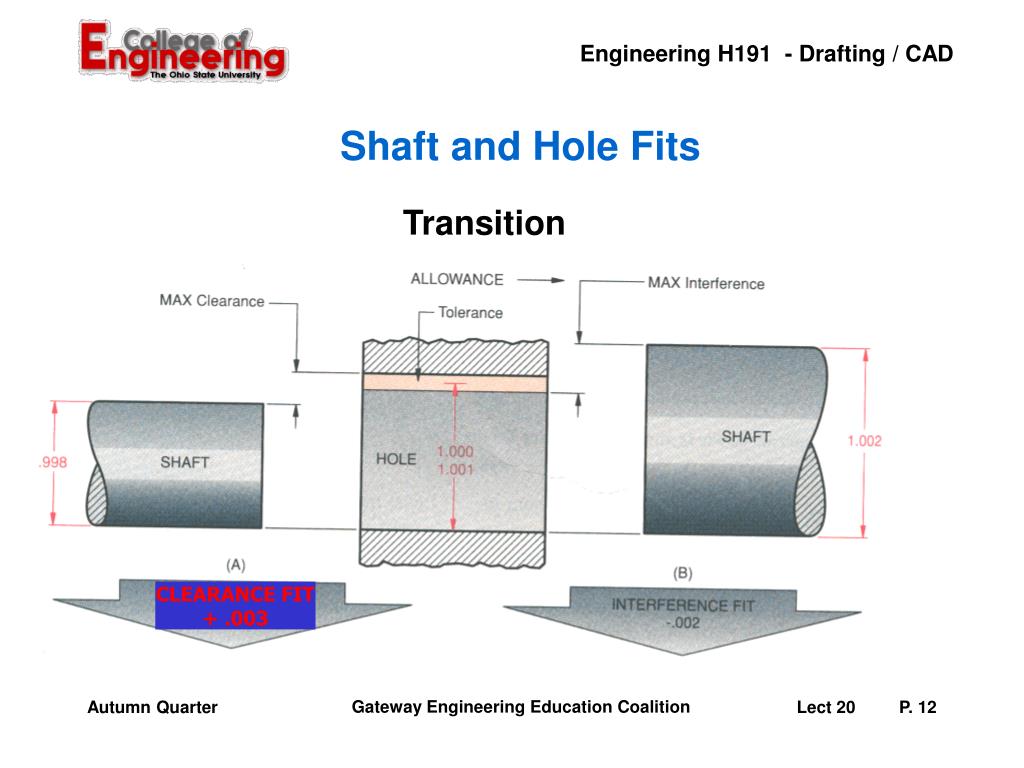

• Transition Fit – sometimes interfere, sometimes clear
• Tolerance – total allowable variance in dimensions (upper limit – lower limit)

Autumn Quarter

Tolerance of B

Tolerance: Clearance or Interference

Part B

Tolerance of A

Part A

Fitting Two Parts

Autumn Quarter

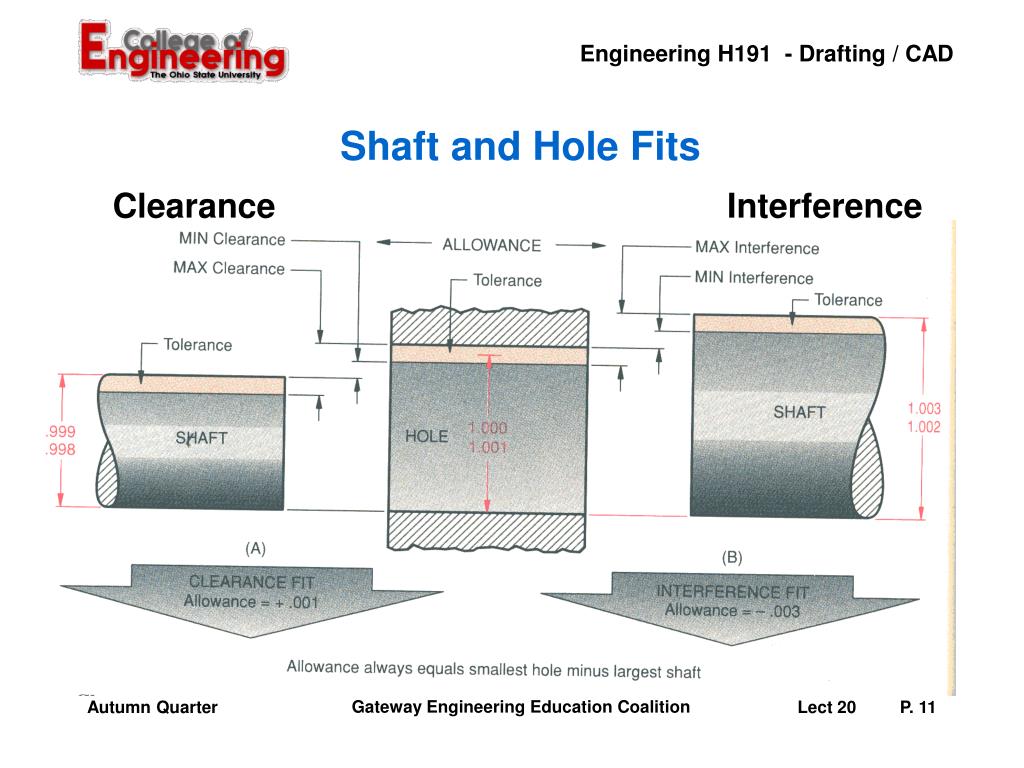

Shaft and Hole Fits

ClearanceInterference

Autumn Quarter

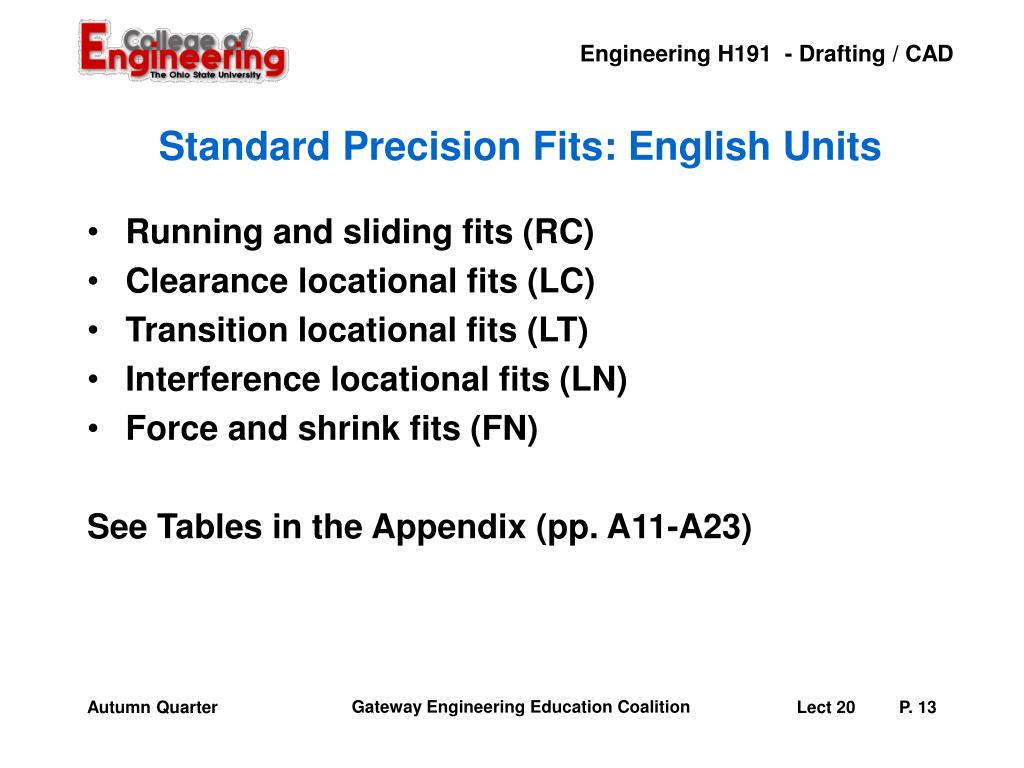

Standard Precision Fits: English Units
• Running and sliding fits (RC)
• Clearance locational fits (LC)
• Transition locational fits (LT)
• Interference locational fits (LN)
• Force and shrink fits (FN)

See Tables in the Appendix (pp. A11-A23)

Autumn Quarter

Basic Hole System or Hole Basis
• Definition of the "Basic Hole System":
• The "minimum size" of the hole is equal to the "basic size" of the fit
• Example: If the nominal size of a fit is 1/2", then the minimum size of the hole in the system will be 0.500"

Autumn Quarter

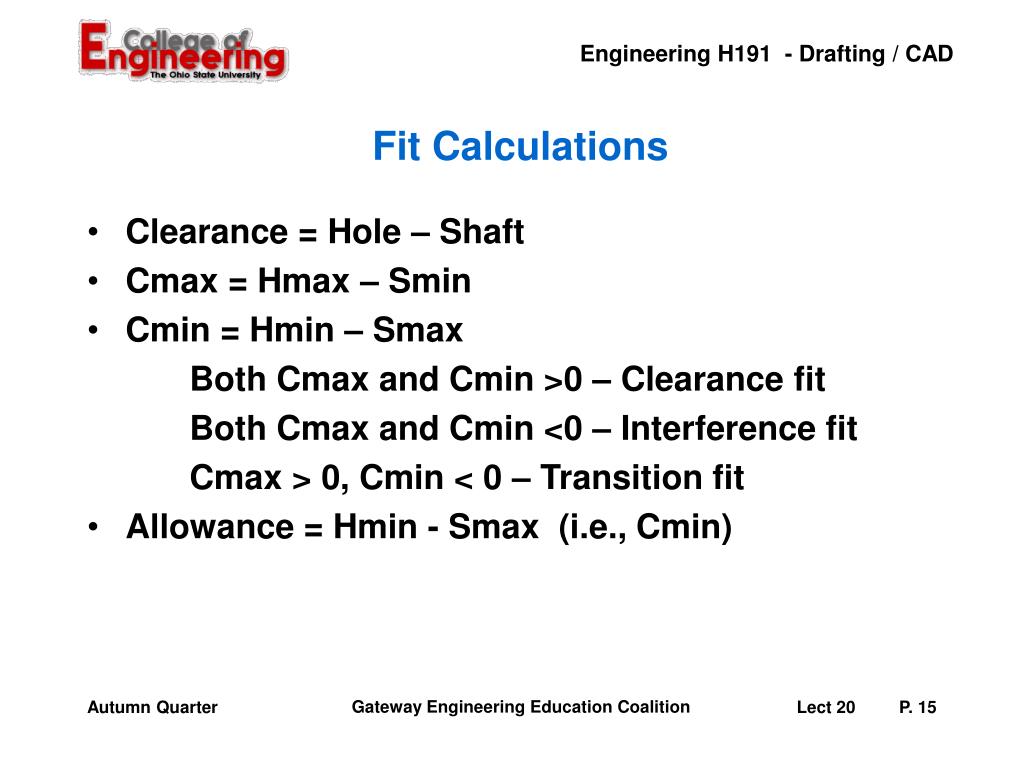

Fit Calculations
• Clearance = Hole – Shaft
• Cmax = Hmax – Smin
• Cmin = Hmin – Smax

Both Cmax and Cmin >0 – Clearance fit

Both Cmax and Cmin <0 – Interference fit

Cmax > 0, Cmin < 0 – Transition fit

• Allowance = Hmin - Smax (i.e., Cmin)

Autumn Quarter

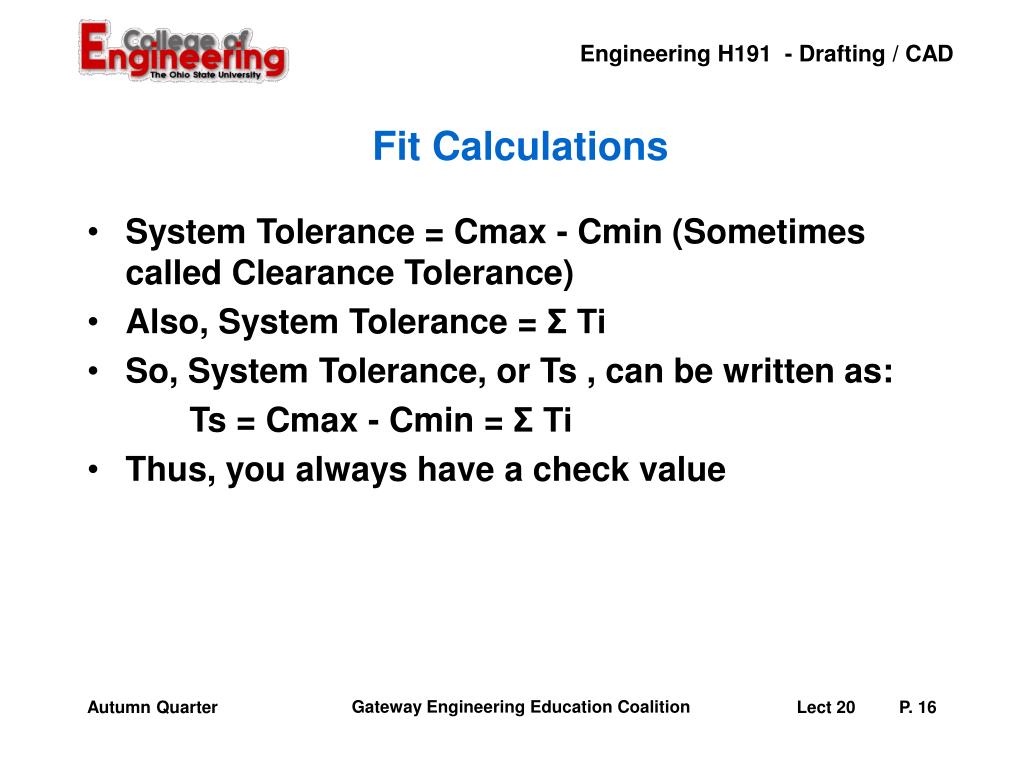

Fit Calculations
• System Tolerance = Cmax - Cmin (Sometimes called Clearance Tolerance)
• Also, System Tolerance = Σ Ti
• So, System Tolerance, or Ts , can be written as:

Ts = Cmax - Cmin = Σ Ti

• Thus, you always have a check value

Autumn Quarter

Example

Autumn Quarter

Metric Limits and Fits
• Based on Standard Basic Sizes – ISO Standard, see the Appendix material (Appendices 8 - 12)
• Note that in the Metric system:

Nominal Size = Basic Size

• Example: If the nominal size is 8, then the basic size is 8

Autumn Quarter

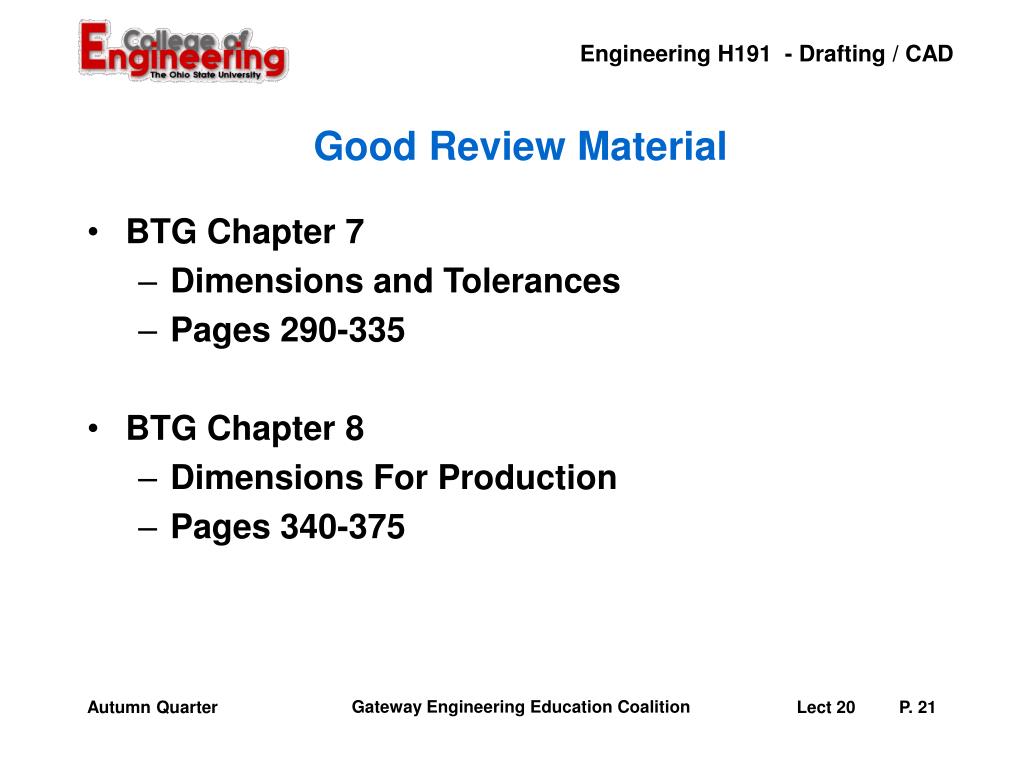

Good Review Material
• BTG Chapter 7
• Dimensions and Tolerances
• Pages 290-335
• BTG Chapter 8
• Dimensions For Production
• Pages 340-375

Autumn Quarter

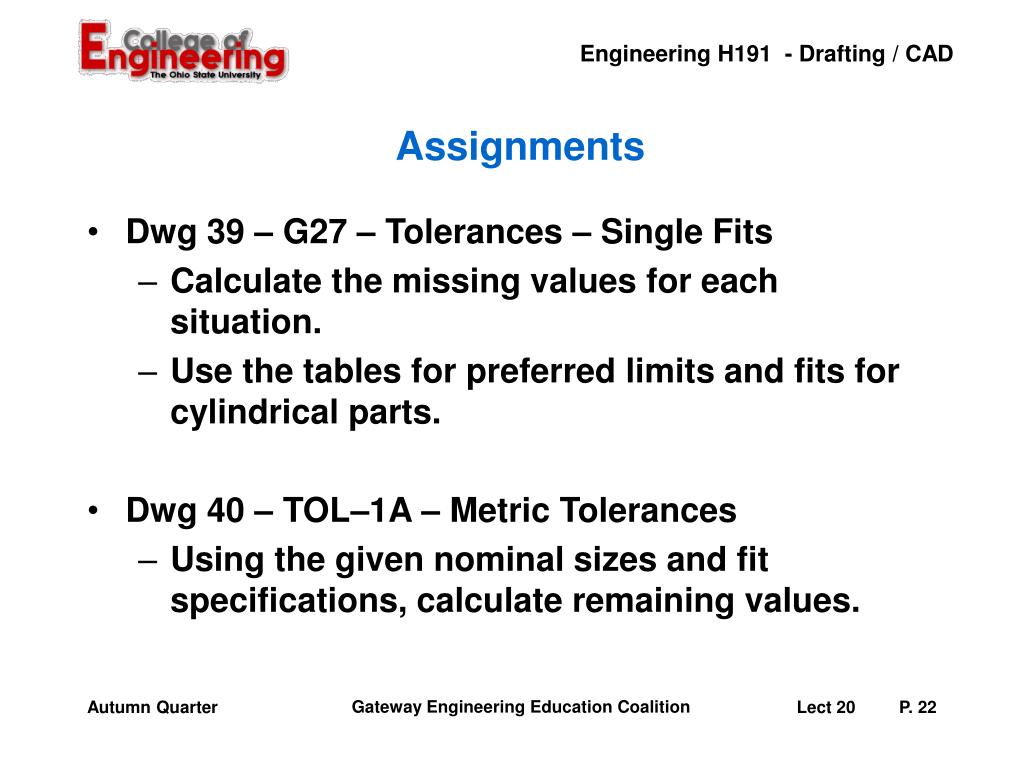

Assignments
• Dwg 39 – G27 – Tolerances – Single Fits
• Calculate the missing values for each situation.
• Use the tables for preferred limits and fits for cylindrical parts.
• Dwg 40 – TOL–1A – Metric Tolerances
• Using the given nominal sizes and fit specifications, calculate remaining values.

Autumn Quarter
