image synthesis

Image Synthesis

Image Compression

motivation
Motivation

1920 x 1440 x 32 bit = 10,54 MB

High Quality JPEG  0,9 MB

classification

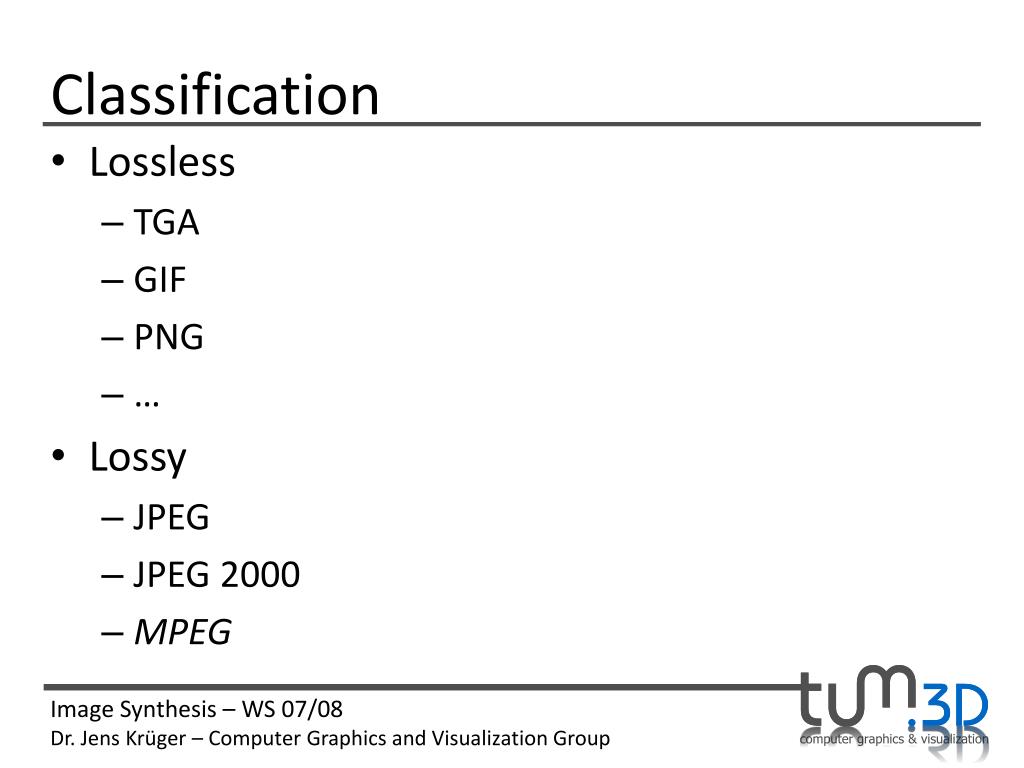

Classification
  • Lossless
    • TGA
    • GIF
    • PNG
  • Lossy
    • JPEG
    • JPEG 2000
    • MPEG
lossless compression schemes
Lossless Compression schemes
  • RLE
  • LZ
    • LZ77
    • LZ78 / LZW
  • Huffmann
  • Deflate / “ZIP”
  • GIF
  • PNG
run length encoding

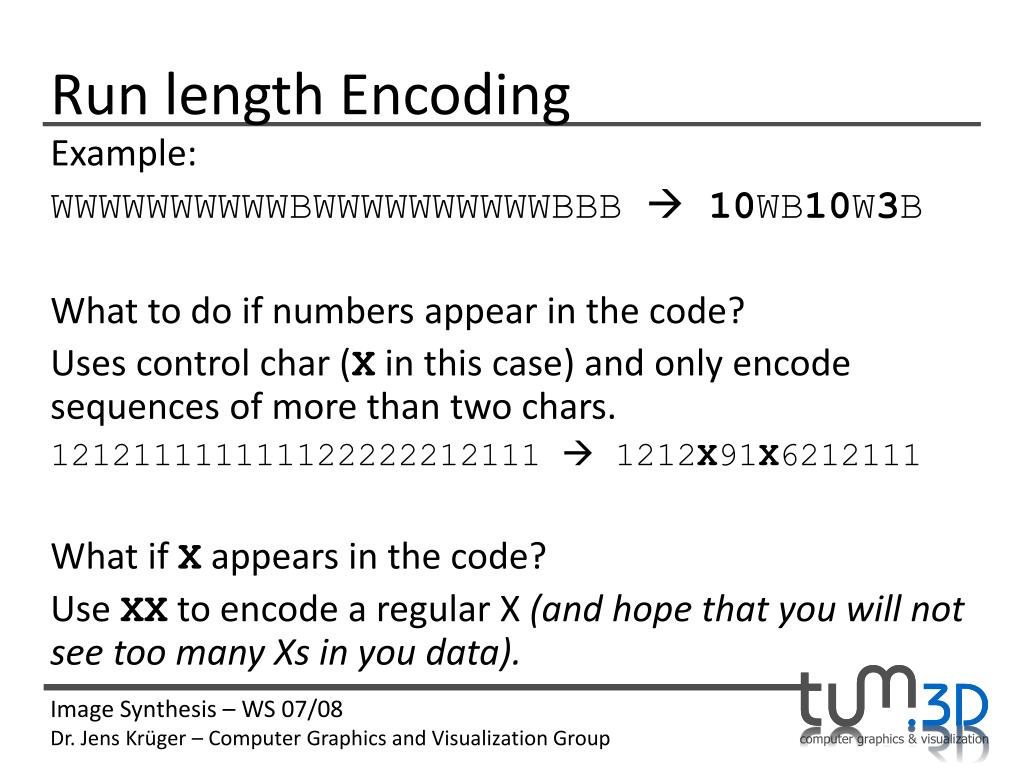

Run length Encoding

Example:

WWWWWWWWWWBWWWWWWWWWWBBB  10WB10W3B

What to do if numbers appear in the code?

Uses control char (X in this case) and only encode sequences of more than two chars.

121211111111122222212111  1212X91X6212111

What if X appears in the code?

Use XX to encode a regular X (and hope that you will not see too many Xs in you data).

lz lempel ziv
LZ - Lempel-Ziv

LZ77 (1977)

Idea: Conversion of the data in (hopefully only few) 3-tupel

Implementation: sliding window + look ahead approach

Example: ANANAS

decoding

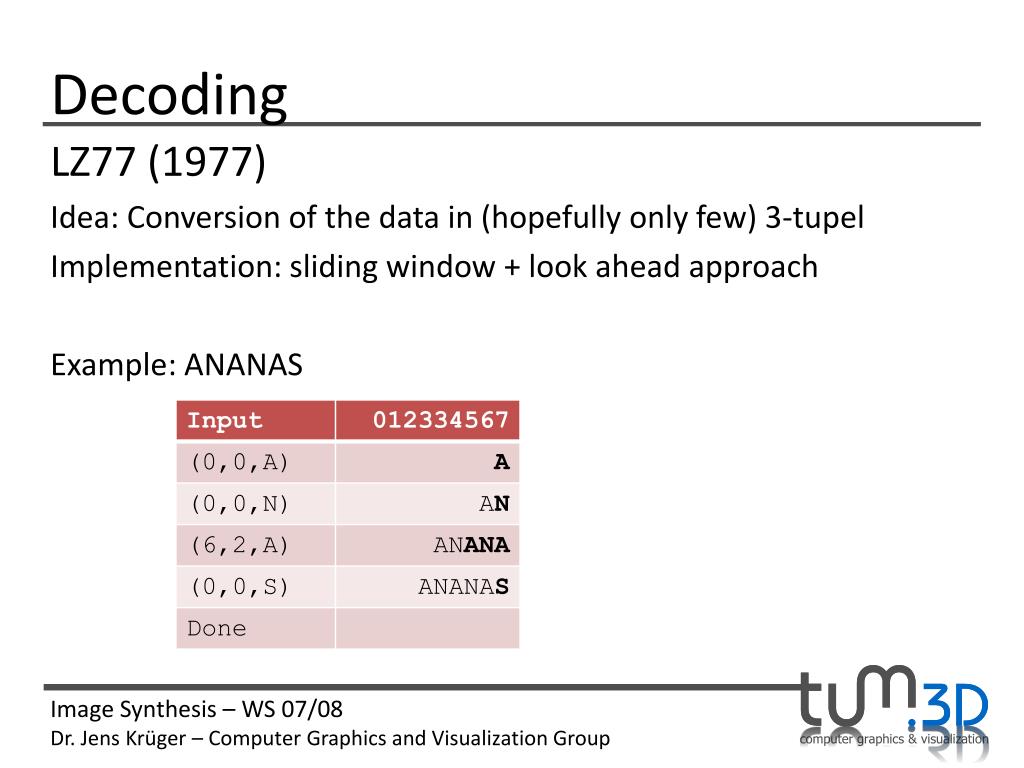

Decoding

LZ77 (1977)

Idea: Conversion of the data in (hopefully only few) 3-tupel

Implementation: sliding window + look ahead approach

Example: ANANAS

implementation details
Implementation Details

Encoding of periodic entries

Example: 0101010101010101010101… (length n)

implementation challenges

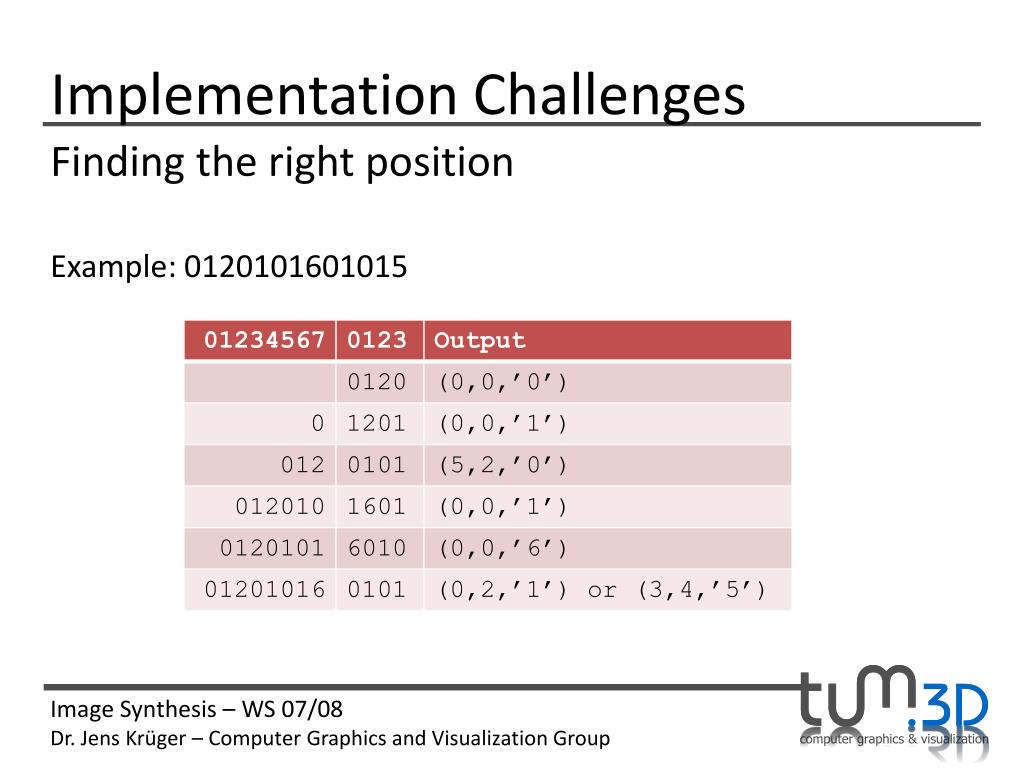

Implementation Challenges

Finding the right position

Example: 0120101601015

problems
Problems

Encoding of non-periodic

Example: 0123456789ABCDE…

“Compression” actually increases data size by a factor of three

 Combination with Huffman encoding  Deflate (later)

lzw lempel ziv welch
LZW - Lempel-Ziv-Welch

Dictionary based compression with adaptive dictionary

Usually 12 bit codebook, first 8 bits reserved for ASCII

LZWLZ7…

L Z W <256> 7…

decoding1

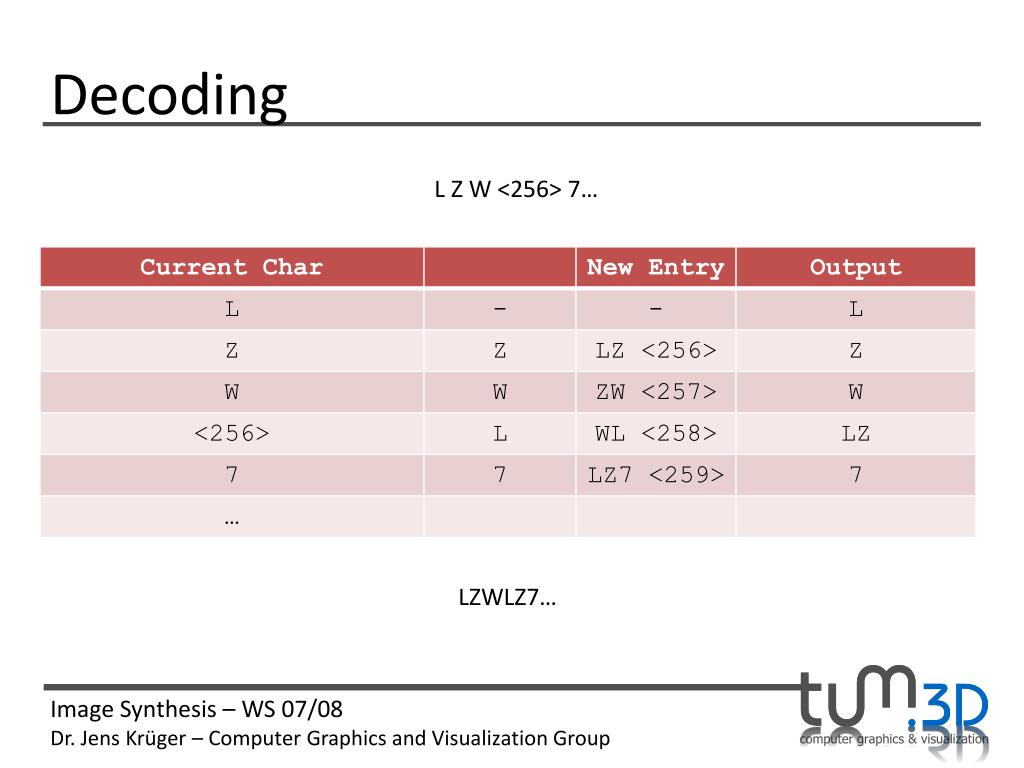

Decoding

L Z W <256> 7…

LZWLZ7…

features and issues

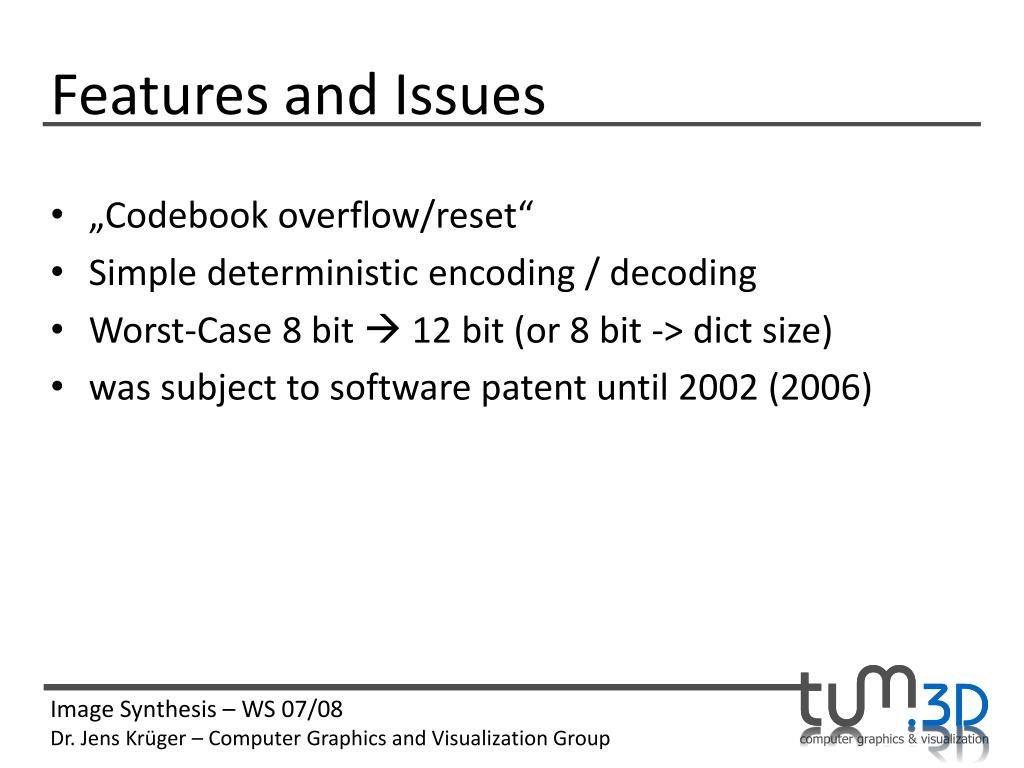

Features and Issues
  • „Codebook overflow/reset“
  • Simple deterministic encoding / decoding
  • Worst-Case 8 bit  12 bit (or 8 bit -> dict size)
  • was subject to software patent until 2002 (2006)
huffman encoding 1951

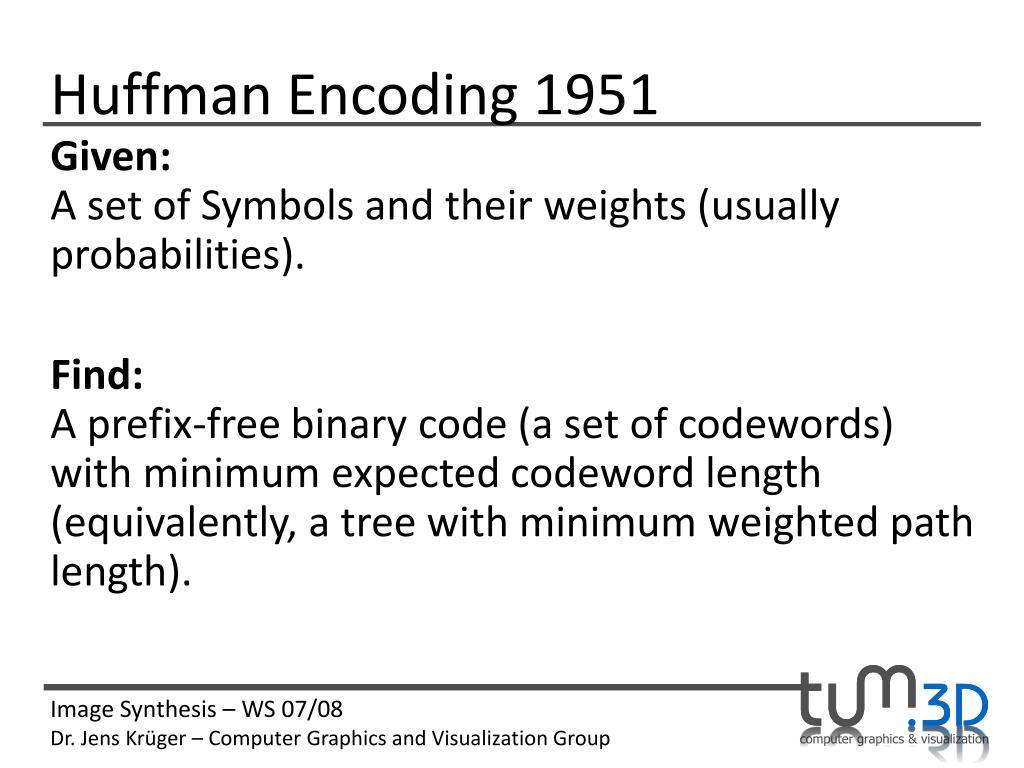

Huffman Encoding 1951

Given:A set of Symbols and their weights (usually probabilities).

Find:A prefix-free binary code (a set of codewords) with minimum expected codeword length (equivalently, a tree with minimum weighted path length).

variable length problem
Variable Length Problem

Example:

What is the meaning of 10010?

ACA (10 0 10) or ABC (10 01 0)?

 Prefix – free codes

huffman encoding

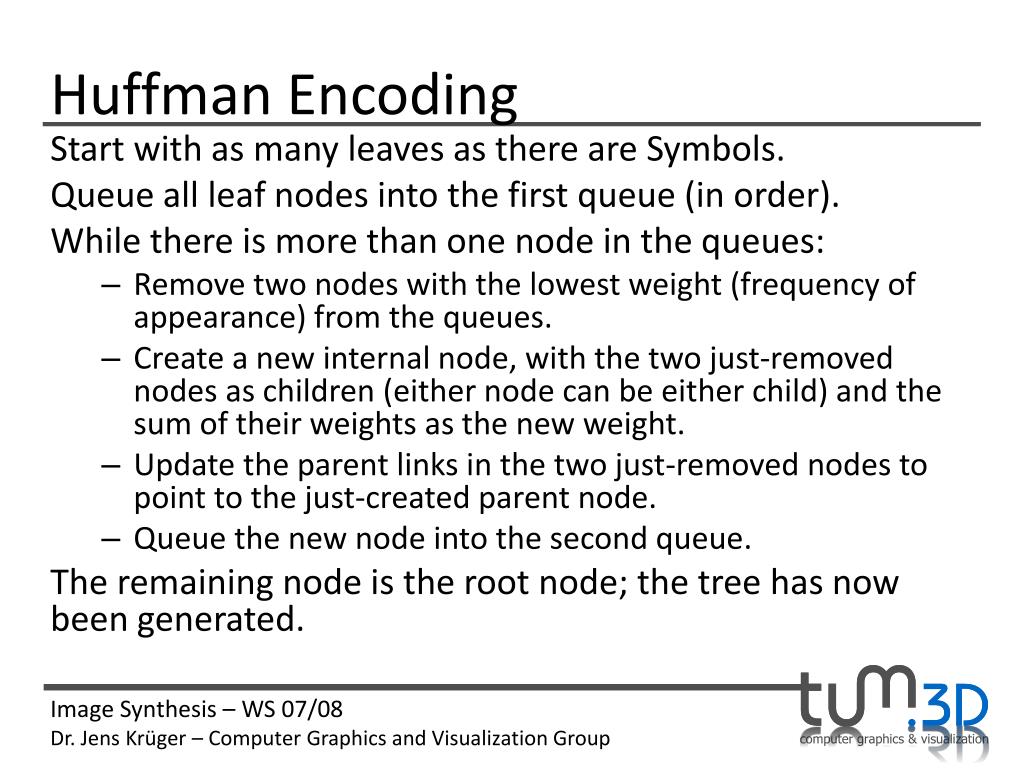

Huffman Encoding

Start with as many leaves as there are Symbols.

Queue all leaf nodes into the first queue (in order).

While there is more than one node in the queues:

  • Remove two nodes with the lowest weight (frequency of appearance) from the queues.
  • Create a new internal node, with the two just-removed nodes as children (either node can be either child) and the sum of their weights as the new weight.
  • Update the parent links in the two just-removed nodes to point to the just-created parent node.
  • Queue the new node into the second queue.

The remaining node is the root node; the tree has now been generated.

example

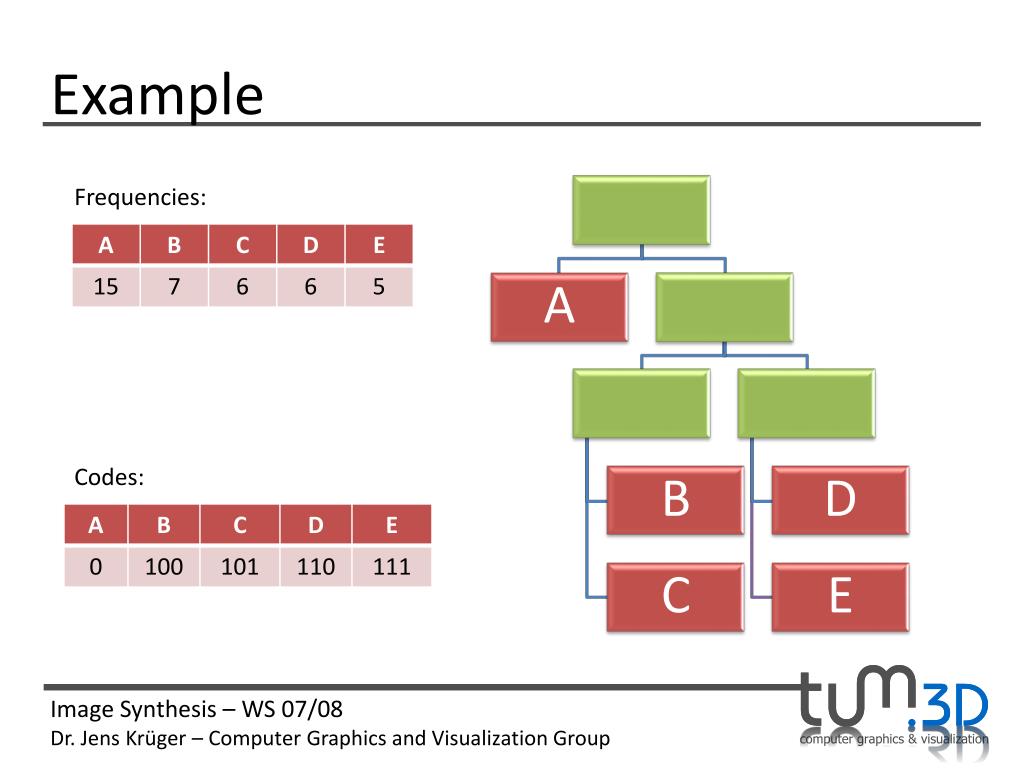

Example

Frequencies:

Codes:

properties
Properties
  • Huffman coding is optimali.e. it generates an optimal tree for a given input
  • Requires knowledge of frequencies
    • can be extended to do adaptive tree updates
  • Can be combined with LZ77 a post processing step, thus compressing the lengthy tuples Deflate, used primarily in ZIP, gzip, etc.
now back to images
Now back to images

BMP, TGA

store images as an RLE array of n-bit (n usually 24/32) values

GIF

Uses 256 colors (8bit) and uses LZW compressiona few GIF versions exist, usually GIF89a is used today, allowing for a single transparent color and stacking multiple images together to generate an animation

png portable network graphic
PNG – Portable Network Graphic

Initially developed to circumvent GIFs, patent pending LZW compression.

  • uses prefilter + LZ77 + Huffman for compression
  • supports not only 8bit palettes but also 1,2,4,8 or 16bit per channel color information
  • Supports 8 or 16 bit alpha channel
  • Now finally supported by all major browsers
  • No support for animation
png prefilter
PNG Prefilter

Used per line

paeth predictor

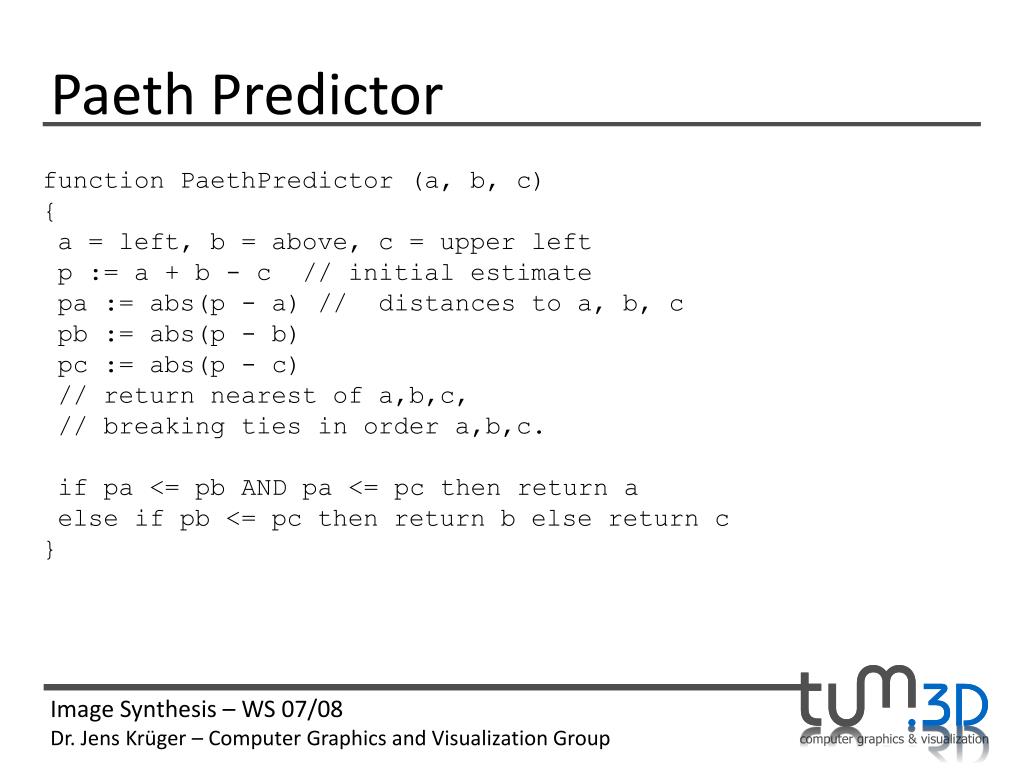

Paeth Predictor

function PaethPredictor (a, b, c)

{

a = left, b = above, c = upper left

p := a + b - c // initial estimate

pa := abs(p - a) // distances to a, b, c

pb := abs(p - b)

pc := abs(p - c)

// return nearest of a,b,c,

// breaking ties in order a,b,c.

if pa <= pb AND pa <= pc then return a

else if pb <= pc then return b else return c

}

paeth predictor idea

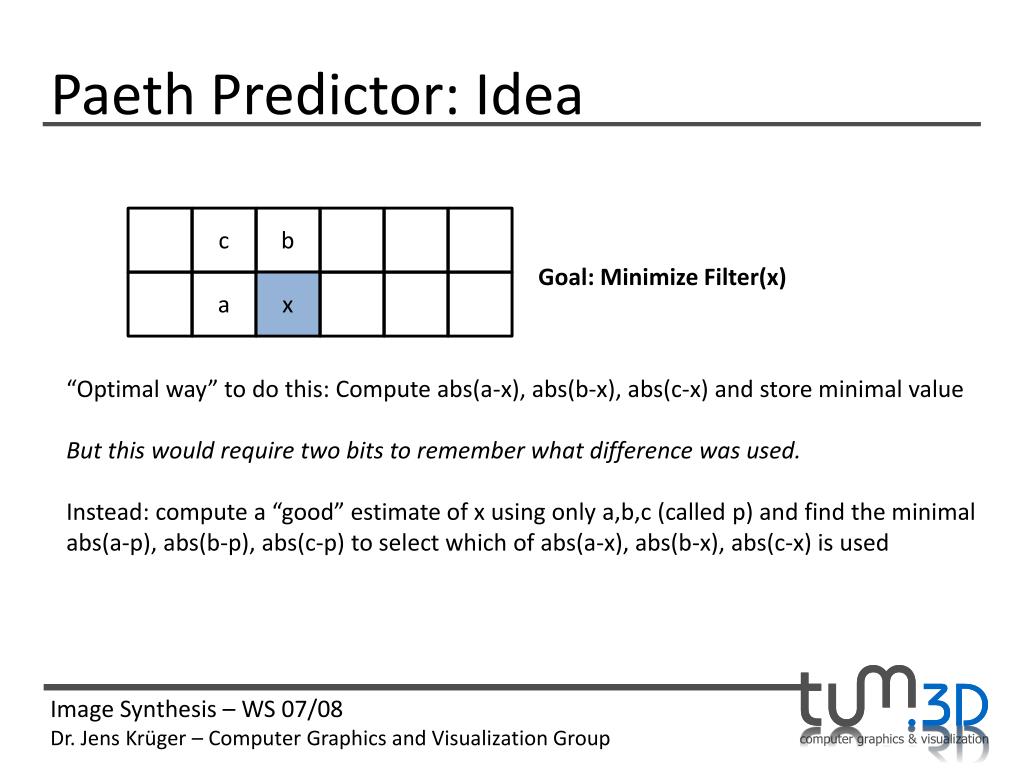

Paeth Predictor: Idea

c

b

Goal: Minimize Filter(x)

a

x

“Optimal way” to do this: Compute abs(a-x), abs(b-x), abs(c-x) and store minimal value

But this would require two bits to remember what difference was used.

Instead: compute a “good” estimate of x using only a,b,c (called p) and find the minimalabs(a-p), abs(b-p), abs(c-p) to select which of abs(a-x), abs(b-x), abs(c-x) is used

lossy compression
Lossy Compression

JPEG (Joint Photographic Experts Group)

  • Lossless compression not working well for photos
  • Useseslossy compression withadjustable compression ration
  • Can do lossless
  • Fast deconding
  • Works for all types of static images,no restrictions on color depth

Compression ratio

compression overview

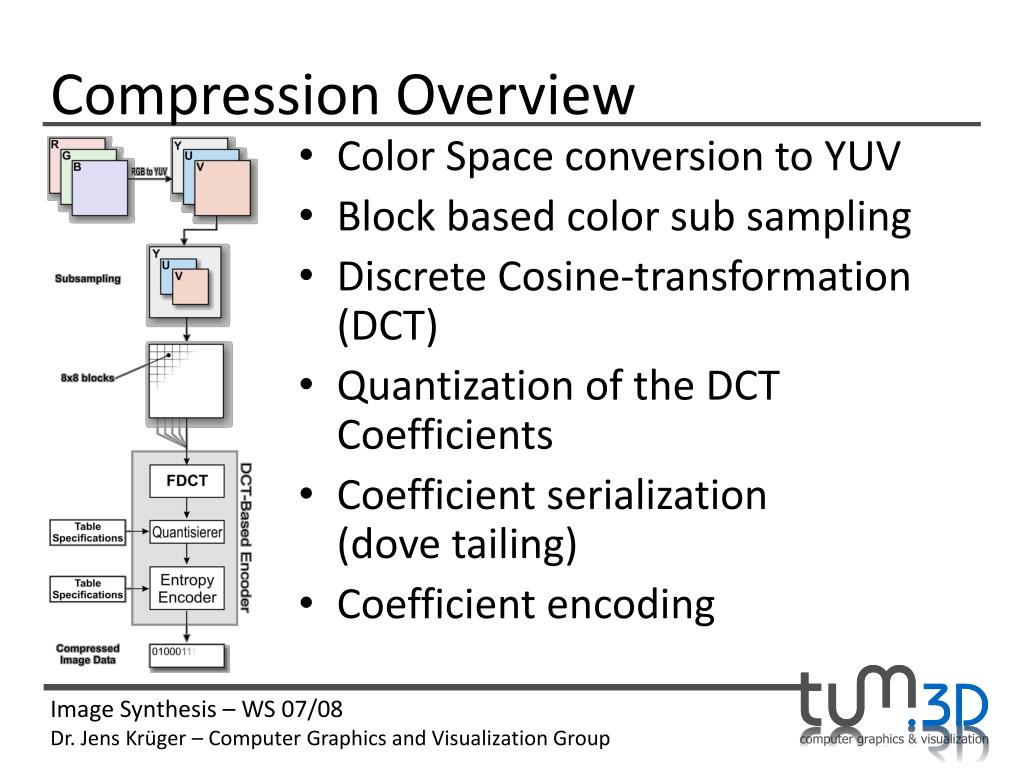

Compression Overview
  • Color Space conversion to YUV
  • Block based color sub sampling
  • Discrete Cosine-transformation (DCT)
  • Quantization of the DCT Coefficients
  • Coefficient serialization(dove tailing)
  • Coefficient encoding
slide26

YUV ConversionY = 0.30 R + 0.59 G + 0.11 BU = -0.17 R - 0.33 G + 0.50 BV = 0.50 R - 0.42 G - 0.08 B

RGB ConversionR= Y + 1.40 VG= Y - 0.34 U - 0.71 VB = Y + 1.78 U

Example:

Red : Y= 77 U= -43 V= 127

Green: Y= 151 U= -84 V= –107

Blue: Y= 28 U= 127 V= -20

YUV
  • YUV
    • Y is Luminance
    • U Chrominance: Color change towards blue
    • V Chrominance: Color change towards red
slide28
YUV

Sub sampling

Split YUV-Channels

Eye is more sensitive to brightness than to color changes:

Color sub sampling

  • First digit: Luma horizontal sampling reference
  • Second and Third: U and V (chroma) horizontal factor (relative to first digit) Except when third is zero. Zero indicates that V horizontalfactor is equal to second digit, and, in addition, both U and V are subsampled 2:1 vertically

Default: Mode 4:2:2

Full Quality : Mode 4:4:4

sub sampling

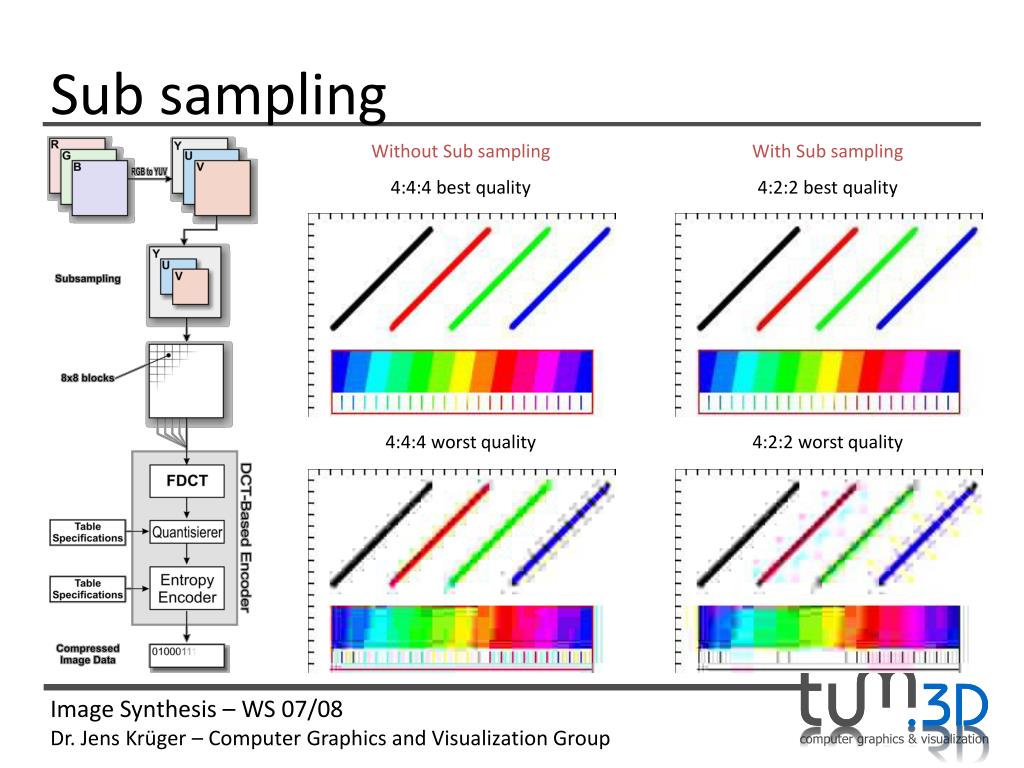

Sub sampling

Without Sub sampling

With Sub sampling

4:4:4 bestquality

4:2:2 bestquality

4:4:4 worstquality

4:2:2 worstquality

preparation for dct
Preparation for DCT
  • From now on consider YUV planes separately
  • Index shift
    • Transform [0 - 255] to [-128 - 127]
  • Blocking
    • Always consider a 8x8 data block for the DCT
slide31
DCT
  • DCT (1D)
    • Related to FT in that it transforms a spacial signal to the frequency domain, however the DCT avoids the imaginary sine part by representing the signal as a sum of cosine waves

DCT(u): Cosine amplitude for frequency u

N: number of pixels 8x8=64 for JPEG

f(x): Pixel value at position x

C: correction factor

slide32
DCT
  • DCT (2D)

Large, regular areas are stored in the upper right while higher frequencies are stored towards the lower left

slide33
DCT

Pixel

(IDCT)

DCT

slide34
DCT

Pixel

(IDCT)

DCT

slide35
DCT

DCT

IDCT

Result

slide36
DCT

DCT

IDCT

Result

slide37
DCT

DCT

IDCT

Result

slide38
DCT

DCT

IDCT

Result

slide39
DCT

DCT

IDCT

Result

slide40
DCT

DCT

IDCT

Result

dct properties
DCT Properties
  • A real life photo has the following properties after DCT
    • the coefficient DC is by far the largest
    • the ACs become smaller with increasing frequency
    • most of the ACs are close to zero
  • Properties of the DCT?
    • The DCT in general is a reversible transform thus applying the DCT and back transforming is lossless (in theory)
quantization

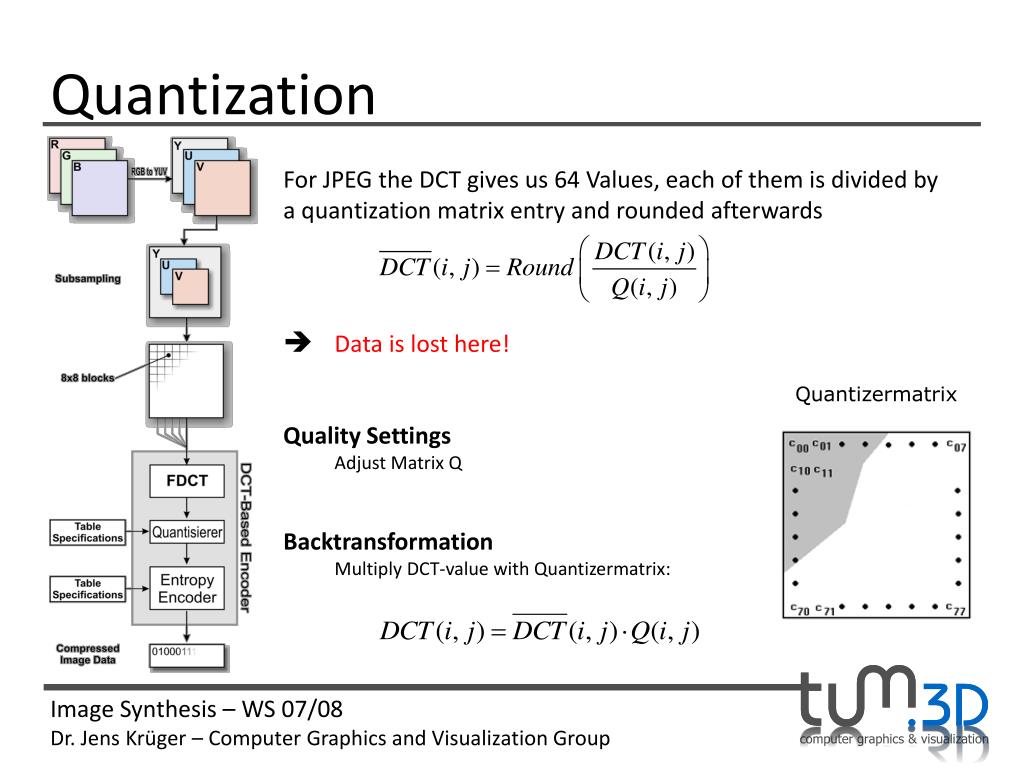

Quantization

For JPEG the DCT gives us 64 Values, each of them is divided by

a quantization matrix entry and rounded afterwards

  • Data is lost here!

Quantizermatrix

Quality SettingsAdjust Matrix Q

BacktransformationMultiply DCT-value with Quantizermatrix:

quantization1

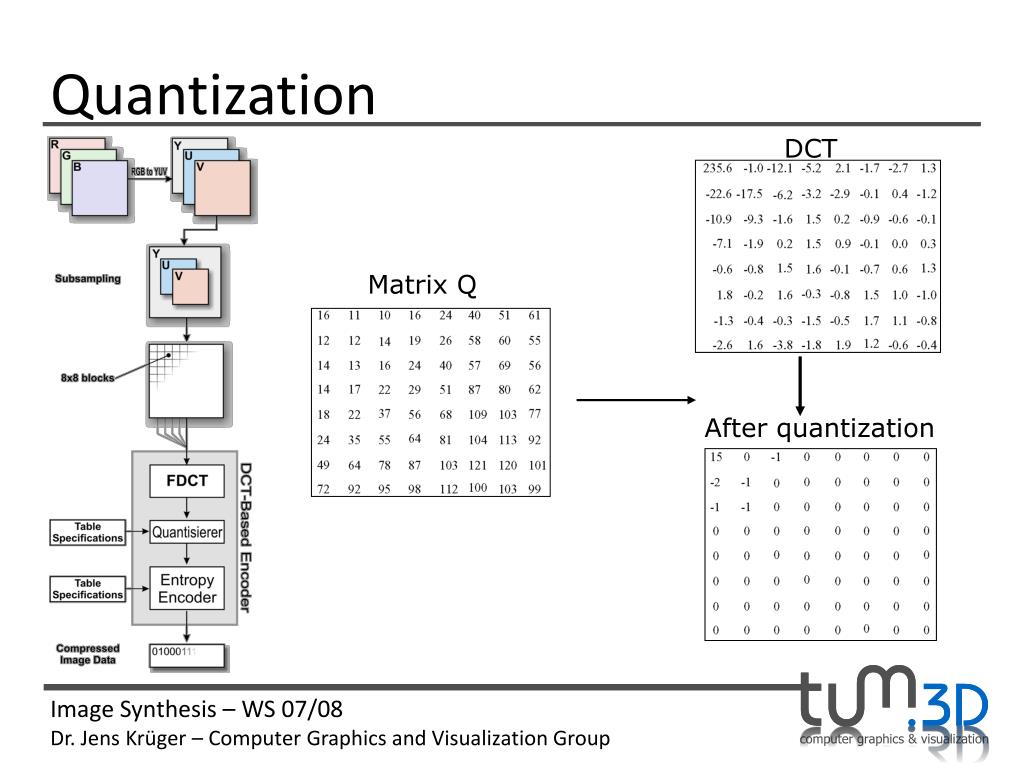

Quantization

DCT

Matrix Q

After quantization

dc encoding

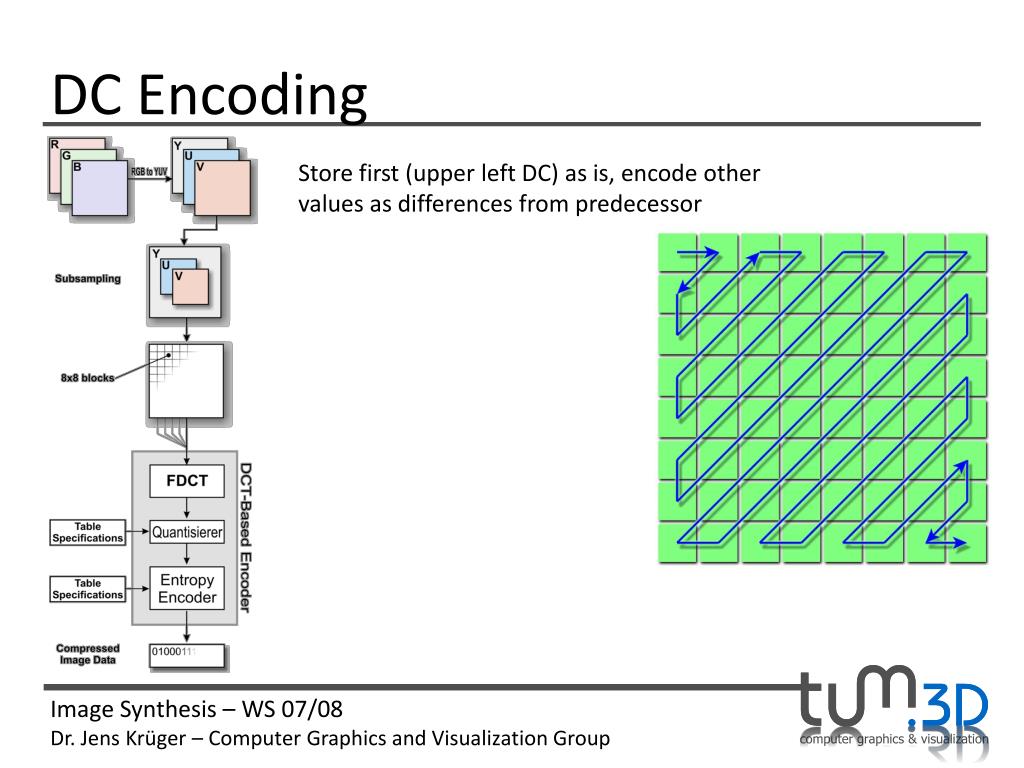

DC Encoding

Store first (upper left DC) as is, encode other values as differences from predecessor

dc encoding1

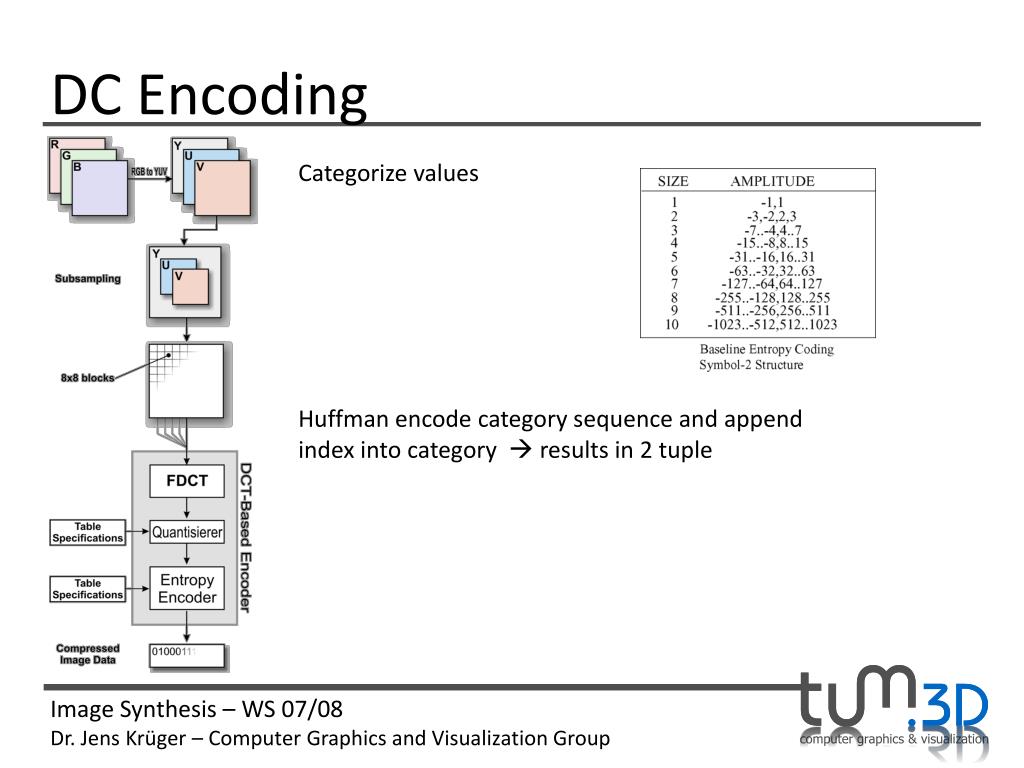

DC Encoding

Categorize values

Huffman encode category sequence and append index into category  results in 2 tuple

ac encoding

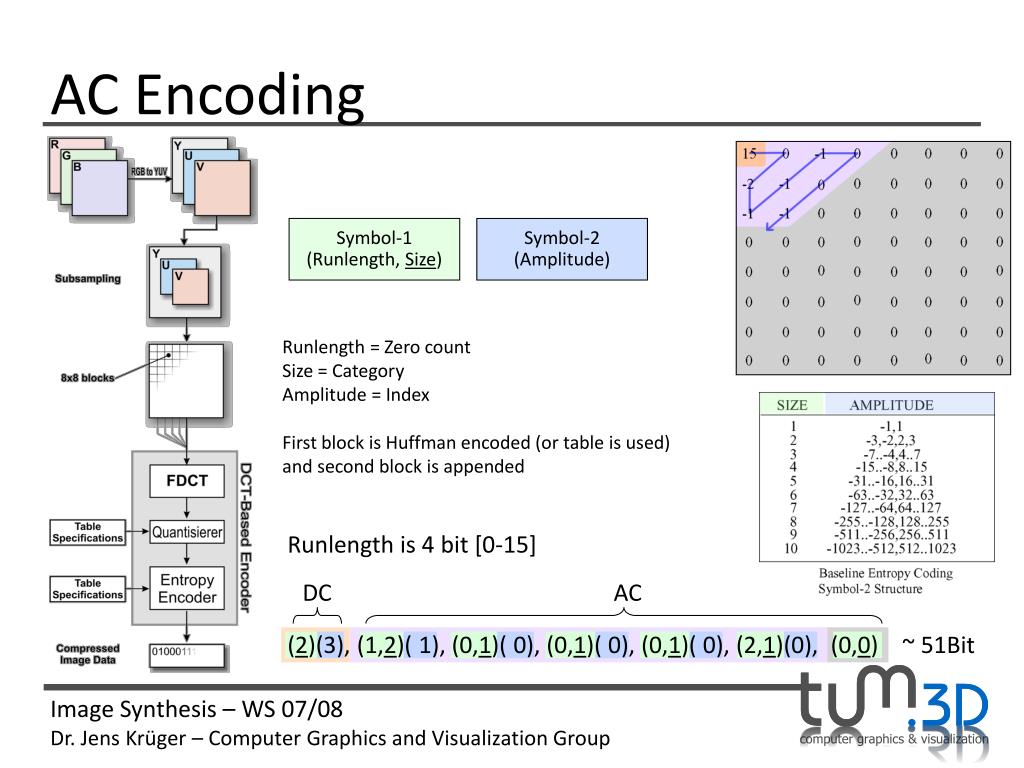

AC Encoding

Symbol-1

(Runlength, Size)

Symbol-2

(Amplitude)

Runlength = Zero count

Size = Category

Amplitude = Index

First block is Huffman encoded (or table is used) and second block is appended

Runlengthis 4 bit [0-15]

DC

AC

(2)(3), (1,2)( 1), (0,1)( 0), (0,1)( 0), (0,1)( 0), (2,1)(0), (0,0) ~ 51Bit

jpeg 2000
JPEG 2000
  • does not necessarily split the image into blocks
  • uses wavelets instead of DCT
  • uses zero-tree encoder (EBCOT) instead of Huffman
  • embedded code  allows for better preview
  • better compression
  • better quality

JPG

JPEG 2000

h 261
H.261
  • Divide image into 8x8 blocks
  • Motion compensation  via cross correlation
  • Subtract from previous frame
  • Compress JPEG like 4:2:0
  • Uses one of 31 fixed quantizer matrices + one uniform matrix for DC
