Presentation Transcript
Him 3200 midterm review l.jpg

HIM 3200Midterm Review

Dr. Burton

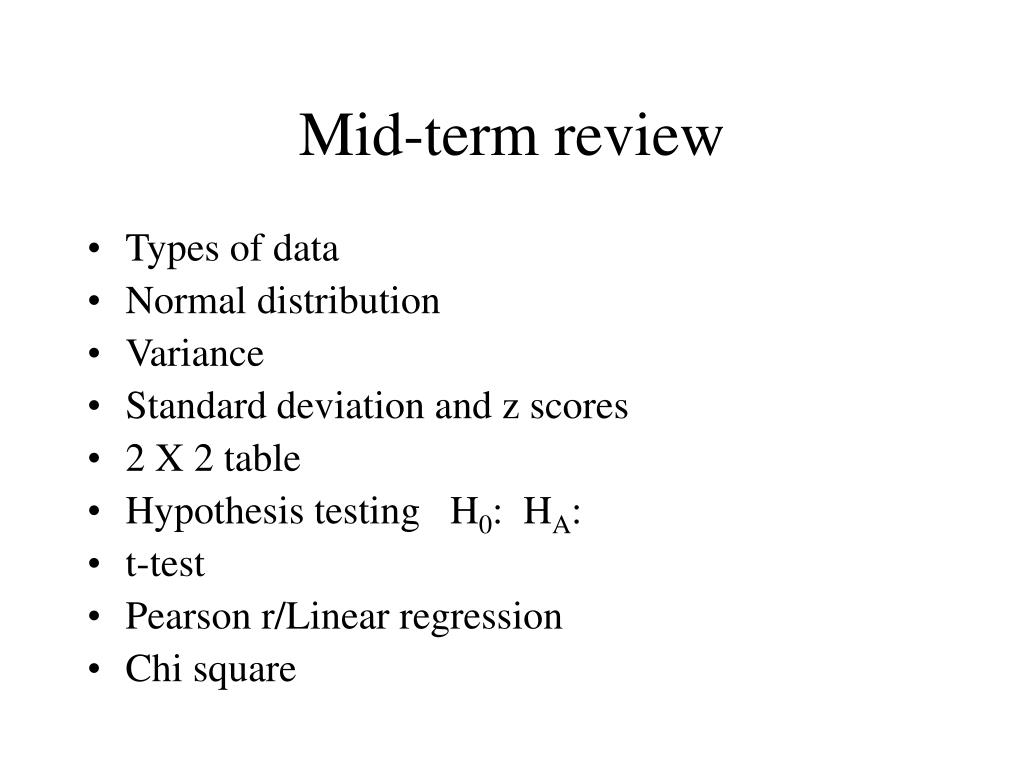

Mid term review l.jpg
Mid-term review

  • Types of data

  • Normal distribution

  • Variance

  • Standard deviation and z scores

  • 2 X 2 table

  • Hypothesis testing H0: HA:

  • t-test

  • Pearson r/Linear regression

  • Chi square

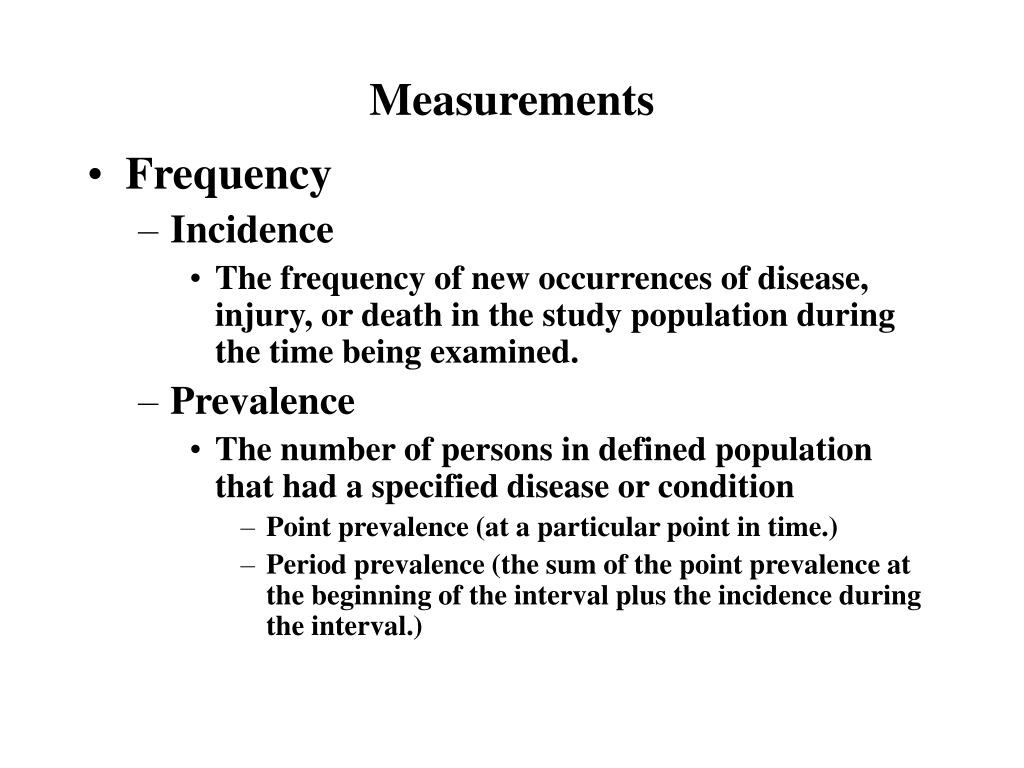

Measurements l.jpg
Measurements

  • Frequency

    • Incidence

      • The frequency of new occurrences of disease, injury, or death in the study population during the time being examined.

    • Prevalence

      • The number of persons in defined population that had a specified disease or condition

        • Point prevalence (at a particular point in time.)

        • Period prevalence (the sum of the point prevalence at the beginning of the interval plus the incidence during the interval.)


Measurements4 l.jpg
Measurements

  • Frequency

    • Incidence

    • Prevalence

  • Risk

    • “The proportion of persons who are unaffected at the beginning of a study period but who undergo the risk event during the study period.”

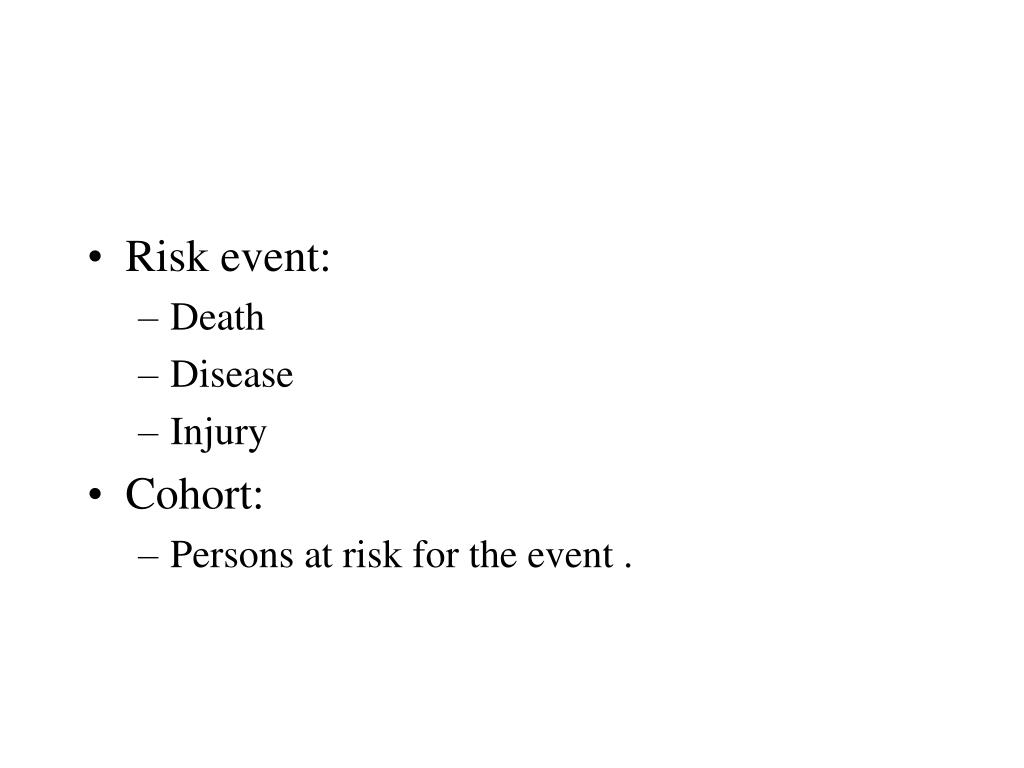

Slide5 l.jpg

  • Risk event:

    • Death

    • Disease

    • Injury

  • Cohort:

    • Persons at risk for the event .


Measurements6 l.jpg
Measurements

  • Frequency

    • Incidence

    • Prevalence

  • Risk

    • “The proportion of persons who are uneffected at the beginning of a study period but who undergo the risk event during the study period.”

  • Rates

    • “The frequency of events that occur in a defined time period, divided by the average population at risk.”

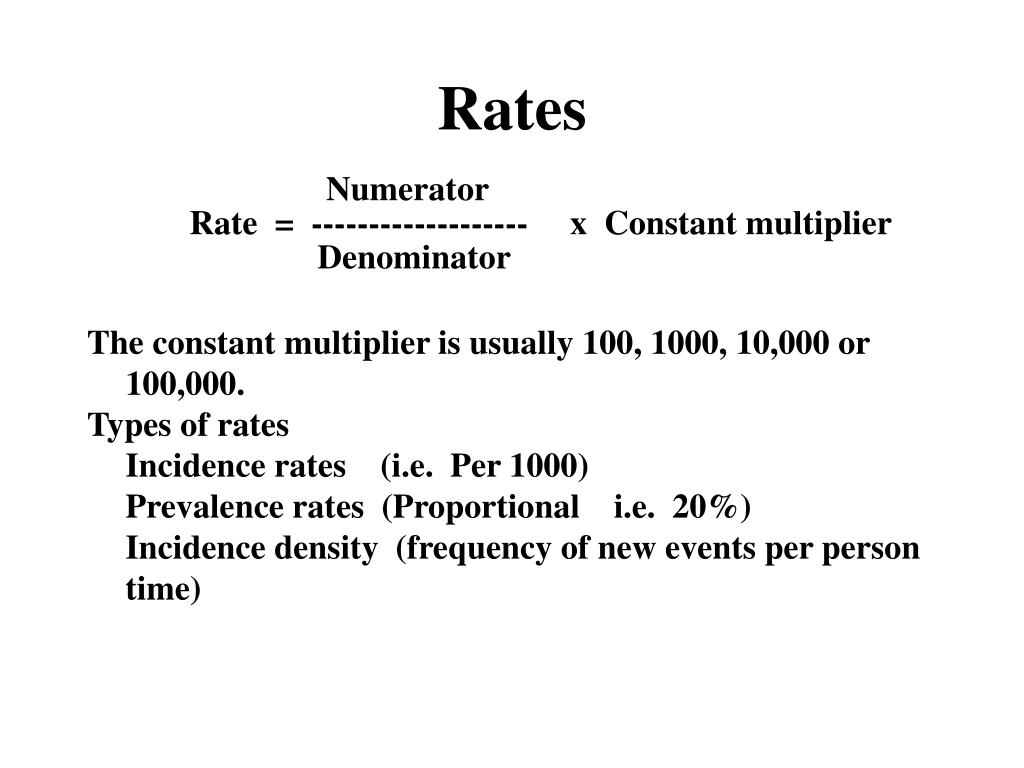

Rates l.jpg
Rates

Numerator

Rate = ------------------- x Constant multiplier

The constant multiplier is usually 100, 1000, 10,000 or 100,000.

Types of rates

Incidence rates (i.e. Per 1000)

Prevalence rates (Proportional i.e. 20%)

Incidence density (frequency of new events per person time)

Denominator


Slide8 l.jpg


Differential and nondifferential error l.jpg
Differential and nondifferential error

  • Bias is a differential error

    • A nonrandom, systematic, or consistent error in which the values tend to be inaccurate in a particular direction.

  • Nondifferential are random errors


Slide10 l.jpg
Bias

  • Three most problematic forms of bias in medicine:

    • 1. Selection (Sampling) Bias: The following are biases that distort results because of the selection process

      • Admission rate (Berkson’s) bias

        • Distortions in risk ratios occur as a result of different hospital admission rate among cases with the risk factor, cases without the risk factor, and controls with the risk factor –causing greatly different risk-factor probabilities to interfere with the outcome of interest.

      • Nonresponse bias

        • i.e. noncompliance of people who have scheduled interviews in their home.

      • Lead time bias

        • A time differential between diagnosis and treatment among sample subjects may result in erroneous attribution of higher survival rates to superior treatment rather than early detection.

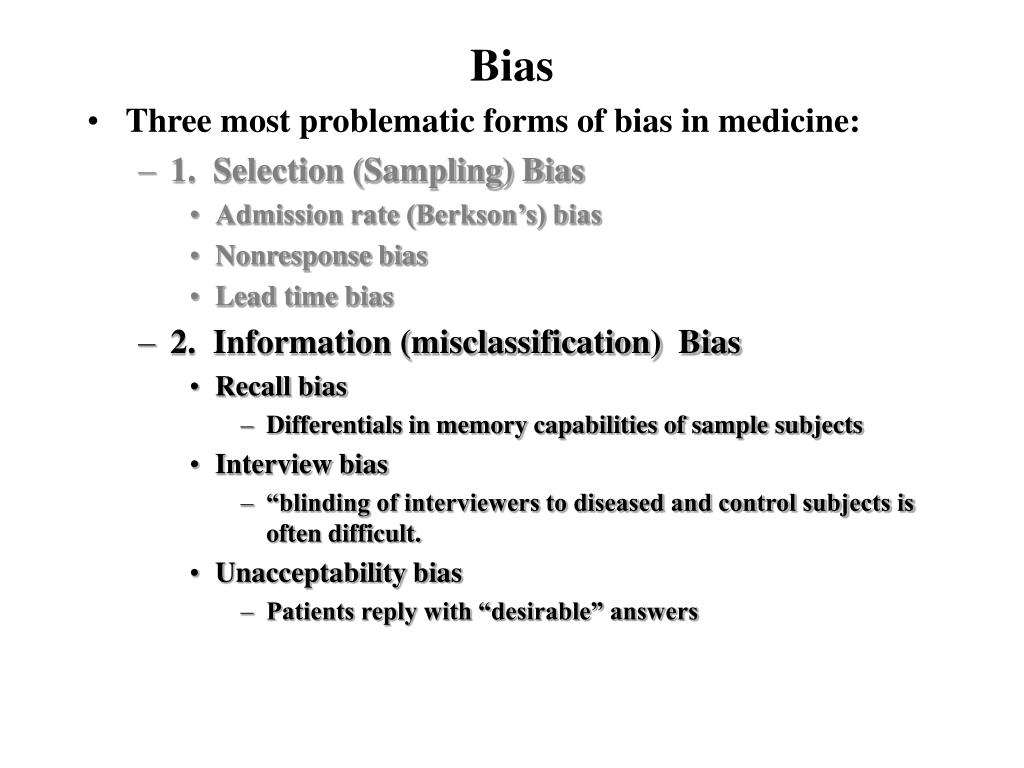

Slide11 l.jpg
Bias

  • Three most problematic forms of bias in medicine:

    • 1. Selection (Sampling) Bias

      • Admission rate (Berkson’s) bias

      • Nonresponse bias

      • Lead time bias

    • 2. Information (misclassification) Bias

      • Recall bias

        • Differentials in memory capabilities of sample subjects

      • Interview bias

        • “blinding of interviewers to diseased and control subjects is often difficult.

      • Unacceptability bias

        • Patients reply with “desirable” answers


Slide12 l.jpg
Bias

  • Three most problematic forms of bias in medicine:

    • 1. Selection (Sampling) Bias

      • Admission rate (Berkson’s) bias

      • Nonresponse bias

      • Lead time bias

    • 2. Information (misclassification) Bias

      • Recall bias

      • Interview bias

      • Unacceptability bias

    • 3. Confounding

      • A confounding variable has a relationship with both the dependent and independent variables that masks or potentiates the effect of the variable on the study.

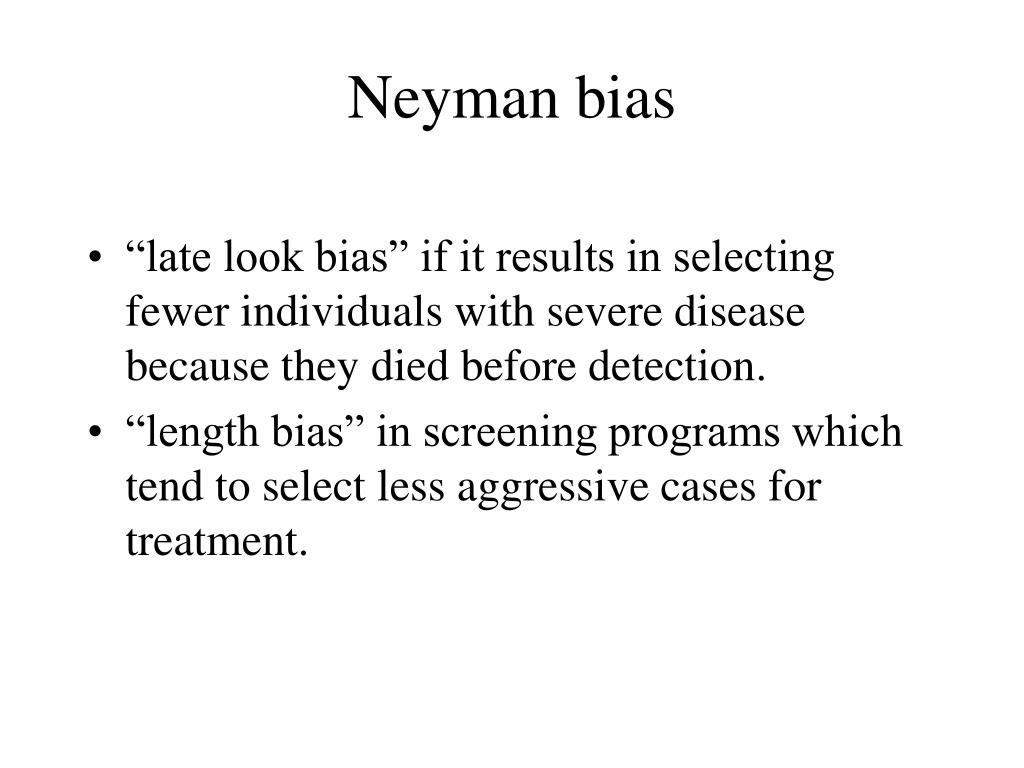

Neyman bias l.jpg
Neyman bias

  • “late look bias” if it results in selecting fewer individuals with severe disease because they died before detection.

  • “length bias” in screening programs which tend to select less aggressive cases for treatment.

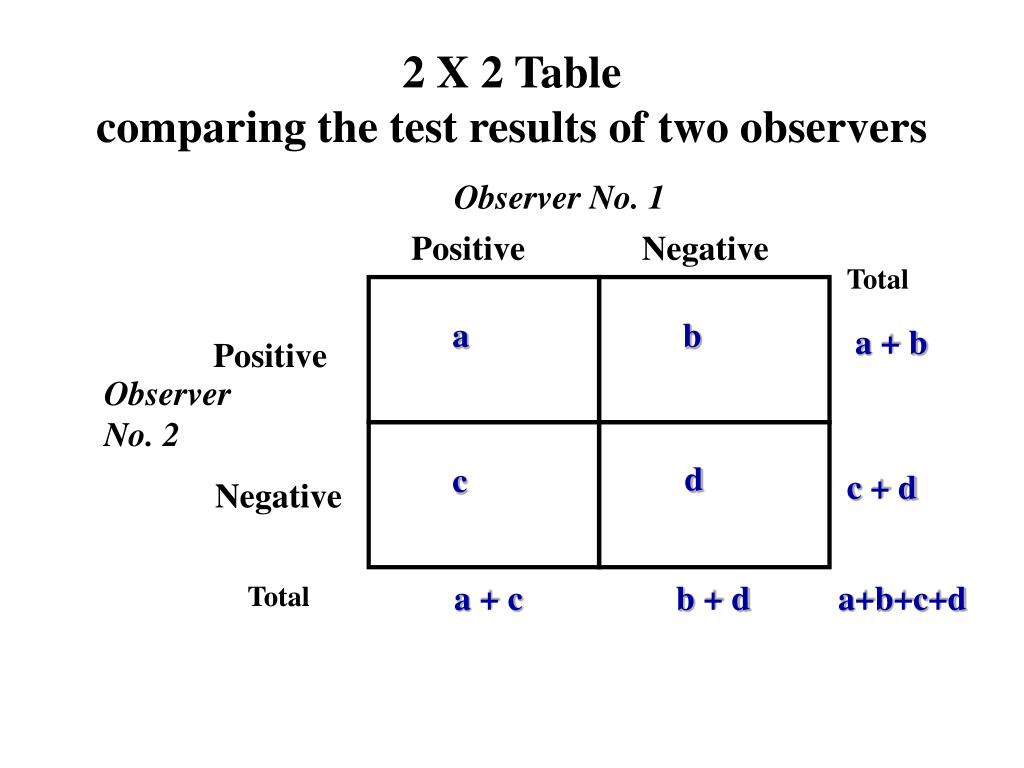

2 x 2 table comparing the test results of two observers l.jpg
2 X 2 Tablecomparing the test results of two observers

Observer No. 1

Positive

Negative

Total

a

b

a + b

Positive

Observer

No. 2

d

c

c + d

Negative

a + c

b + d

a+b+c+d

Total


Slide15 l.jpg

+ _ + A B A + B - C D C + D A + C B + D

Sensitivity = A/(A + C)

Specificity = D/(B + D)

False- positive rate = B/(B + D)

False-negative rate = C/(A + C)

Positive predictive value = A/(A + B)

Negative predictive value = D/ (D + C)

Accuracy = (A + D) / (A + B + C + D)

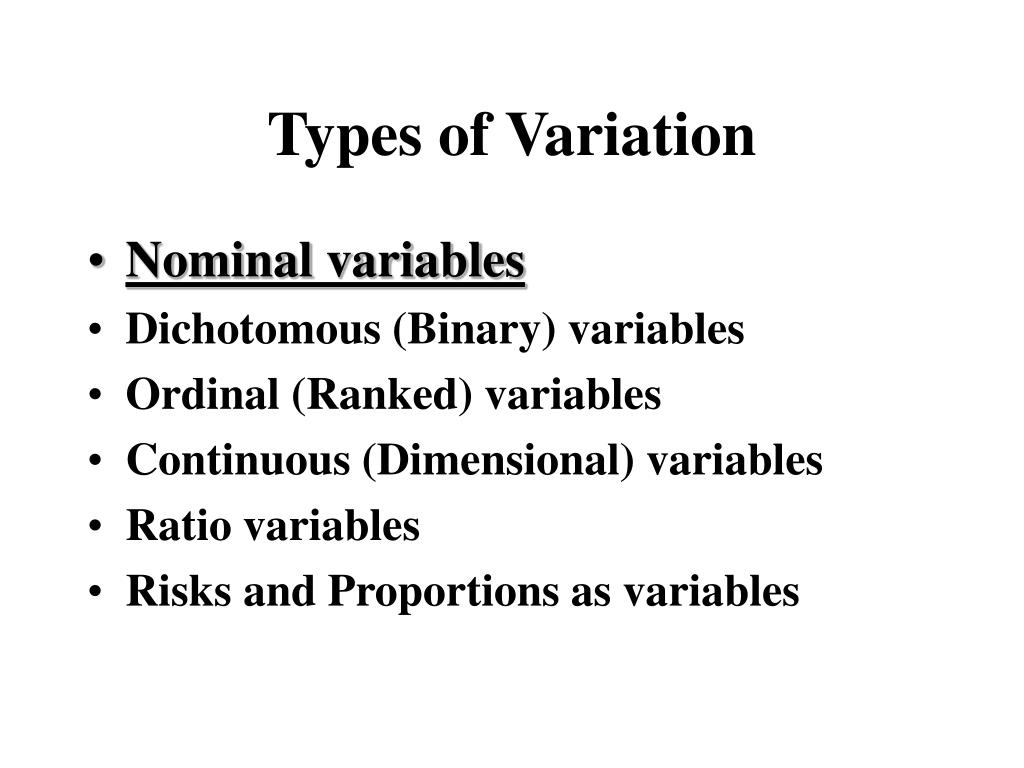

Types of variation l.jpg
Types of Variation

  • Nominal variables

  • Dichotomous (Binary) variables

  • Ordinal (Ranked) variables

  • Continuous (Dimensional) variables

  • Ratio variables

  • Risks and Proportions as variables

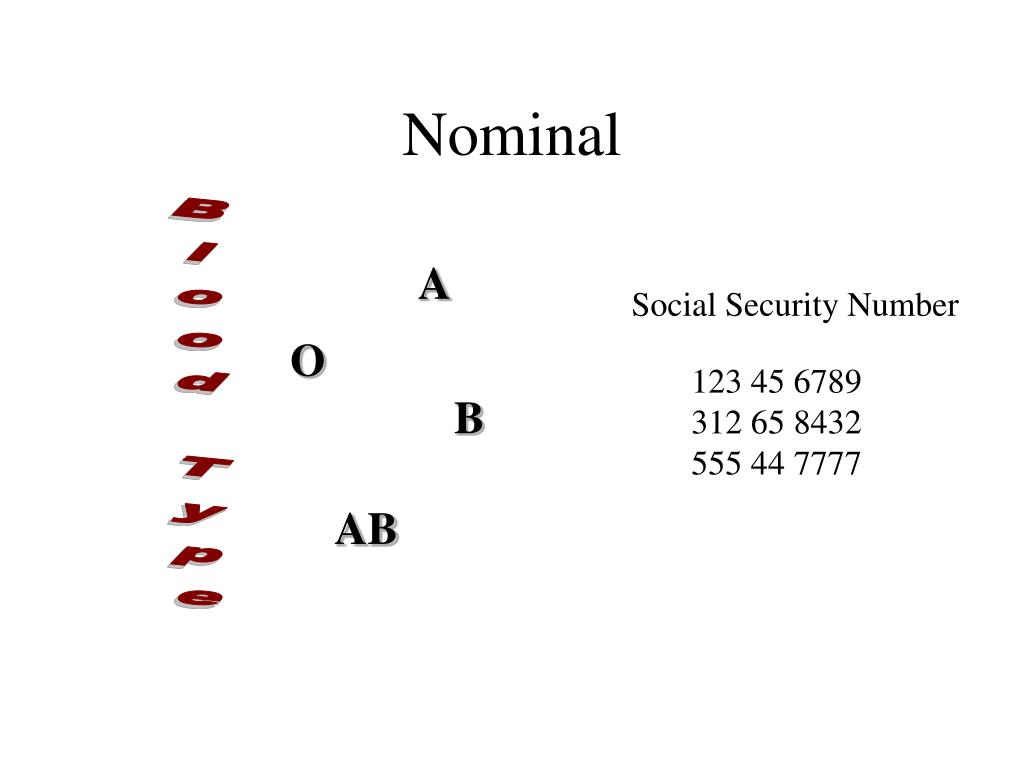

Nominal l.jpg
Nominal

A

Social Security Number

O

123 45 6789

312 65 8432

555 44 7777

Blood Type

B

AB


Types of variation18 l.jpg
Types of Variation

  • Nominal variables

  • Dichotomous (Binary) variables

  • Ordinal (Ranked) variables

  • Continuous (Dimensional) variables

  • Ratio variables

  • Risks and Proportions as variables


Dichotomous binary variables l.jpg
Dichotomous (Binary) variables

WNL

Not WNL

Normal

Abnormal

Accept

Reject


Types of variation20 l.jpg
Types of Variation

  • Nominal variables

  • Dichotomous (Binary) variables

  • Ordinal (Ranked) variables

  • Continuous (Dimensional) variables

  • Ratio variables

  • Risks and Proportions as variables


Ordinal ranked variables l.jpg
Ordinal (Ranked) variables

Strongly agree, agree, neutral, disagree, strongly disagree

a b c d e

1 2 3 4 5


Types of variation22 l.jpg
Types of Variation

  • Nominal variables

  • Dichotomous (Binary) variables

  • Discrete variables

  • Ordinal (Ranked) variables

  • Continuous (Dimensional) variables

  • Ratio variables

  • Risks and Proportions as variables


Continuous dimensional variables l.jpg
Continuous (Dimensional) variables

Temperature

32° F

Height Blood Pressure

Weight


Types of variation24 l.jpg
Types of Variation

  • Nominal variables

  • Dichotomous (Binary) variables

  • Discrete variables

  • Ordinal (Ranked) variables

  • Continuous (Dimensional) variables

  • Ratio variables

  • Risks and Proportions as variables

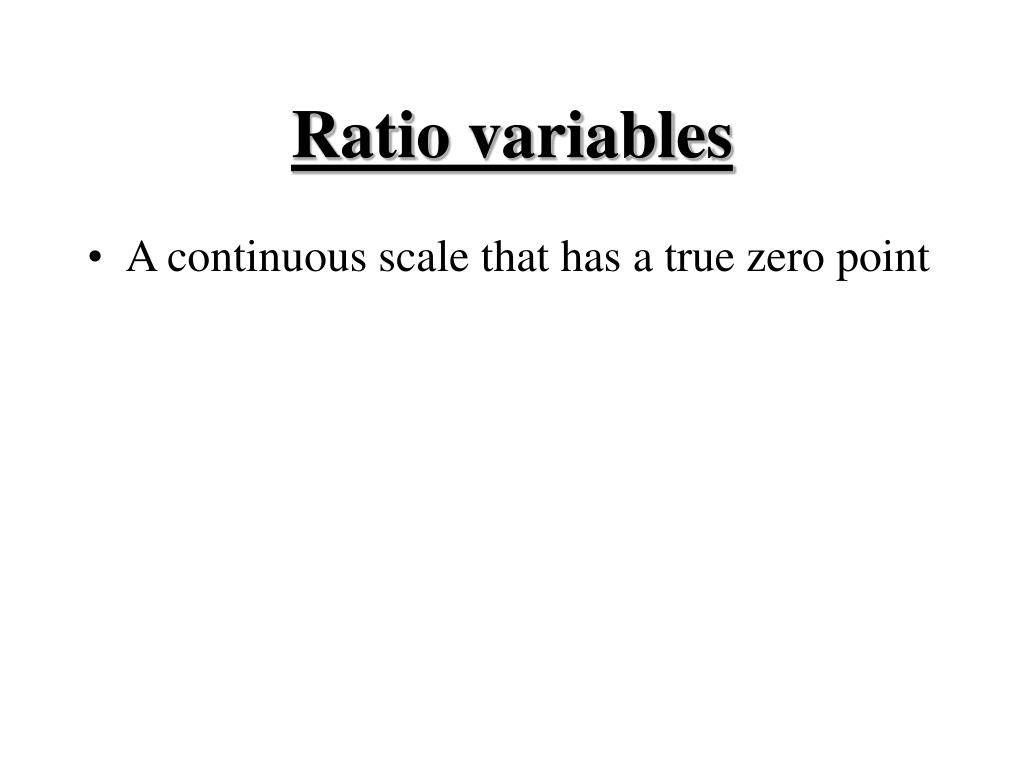

Ratio variables l.jpg
Ratio variables

  • A continuous scale that has a true zero point


Measures of central tendency l.jpg
Measures of Central Tendency

  • Mode: the value with the highest number of observations in a data set.

  • Median: the middle observation when data have been arranged from highest to lowest.

  • Mean: (arithmetic) the average value of all observed values.

 (xi)

Mean = x

Ni

Sum = 

Observed values = xi

Total number of observations = Ni


Raw data and results of cholesterol levels in 26 subjects p 115 l.jpg
Raw data and results of Cholesterol levels in 26 subjects p.115

Number of observations or N 26

Initial HDL values 31, 41, 44, 46, 47, 47, 48, 49, 52, 53, 54, 57, 58, 58, 60, 60, 62, 63, 64, 67, 69, 70,

77, 78, 81, 90 mg/dl

Highest values 90 mg/dl

Lowest value 31 mg/dl

Mode 47, 48, 58, 60 mg/dl

Median (57 + 58)/2 = 57.5 mg/dl

Sum of the values  (xi) 1496 mg/dl

Means, x 1496/26 = 57.5 mg/dl


Percentiles quantiles l.jpg
Percentiles (quantiles)

  • The median is the 50%

  • The 75th percentile is the point where 75% of observations lie below and 25% are above. (3rd quartile, Q3)

  • The 25th percentile is the point where 25% of observations lie below and 75% are above. (1st quartile, Q1)

  • Interquartile range (Q3 – Q1)


Raw data and results of cholesterol levels in 26 subjects p 11529 l.jpg
Raw data and results of Cholesterol levels in 26 subjects p.115

Number of observations or N 26

Initial HDL values 31, 41, 44, 46, 47, 47, 48, 48, 49, 52, 53, 54, 57, 58, 58, 60, 60, 62, 63, 64, 67, 69, 70,

77, 78, 81, 90 mg/dl

Highest values 90 mg/dl

Lowest value 31 mg/dl

Mode 47, 48, 58, 60 mg/dl

Median (57 + 58)/2 = 57.5 mg/dl

Sum of the values  (xi) 1496 mg/dl

Means, x 1496/26 = 57.5 mg/dl

Interquartile range 64 – 48 = 16 mg/dl


Measures of dispersion based on the mean l.jpg

 (|xi - x|)

N

2

 (xi - x )

2

s

=

Degrees of Freedom

N -1

2

 (xi - x )

N -1

Measures of dispersion based on the Mean.

  • Mean deviation =

  • Variance =

  • Standard deviation = s =

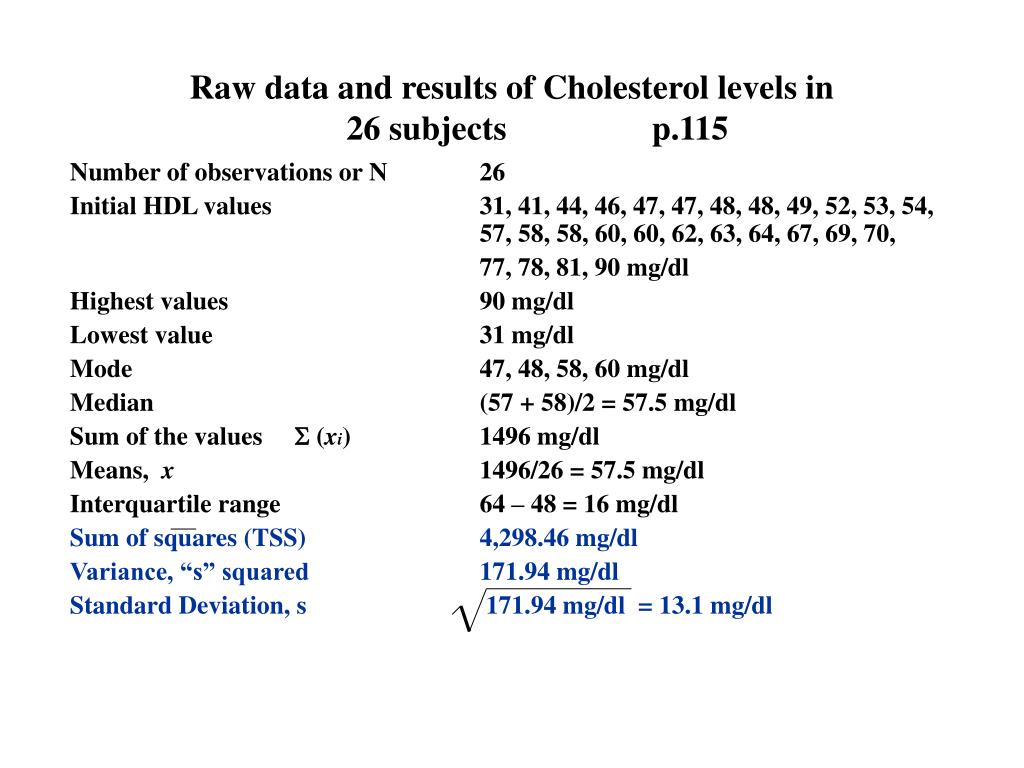

Raw data and results of cholesterol levels in 26 subjects p 11531 l.jpg
Raw data and results of Cholesterol levels in 26 subjects p.115

Number of observations or N 26

Initial HDL values 31, 41, 44, 46, 47, 47, 48, 48, 49, 52, 53, 54, 57, 58, 58, 60, 60, 62, 63, 64, 67, 69, 70,

77, 78, 81, 90 mg/dl

Highest values 90 mg/dl

Lowest value 31 mg/dl

Mode 47, 48, 58, 60 mg/dl

Median (57 + 58)/2 = 57.5 mg/dl

Sum of the values  (xi) 1496 mg/dl

Means, x 1496/26 = 57.5 mg/dl

Interquartile range 64 – 48 = 16 mg/dl

Sum of squares (TSS) 4,298.46 mg/dl

Variance, “s” squared 171.94 mg/dl

Standard Deviation, s 171.94 mg/dl = 13.1 mg/dl

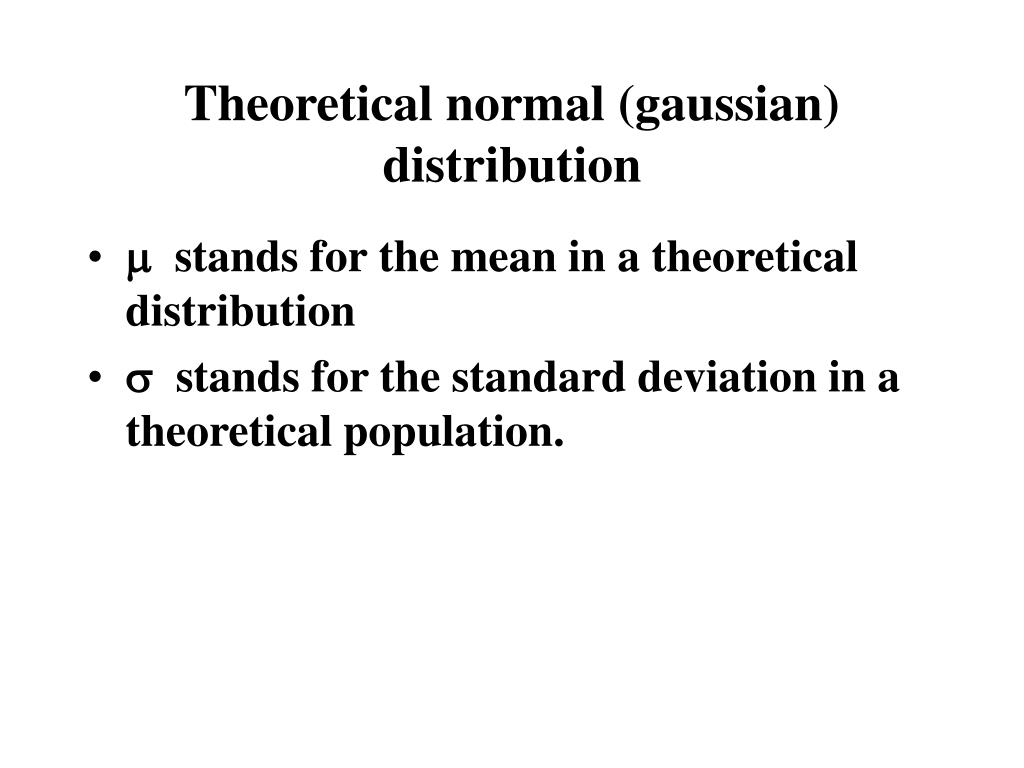

Theoretical normal gaussian distribution l.jpg
Theoretical normal (gaussian) distribution

  •  stands for the mean in a theoretical distribution

  •  stands for the standard deviation in a theoretical population.


Theoretical normal distribution with standard deviations l.jpg
Theoretical normal distribution with standard deviations

-3

-2

-

+2

+3

+

-3

-2

-1

1

2

3

0

Z scores

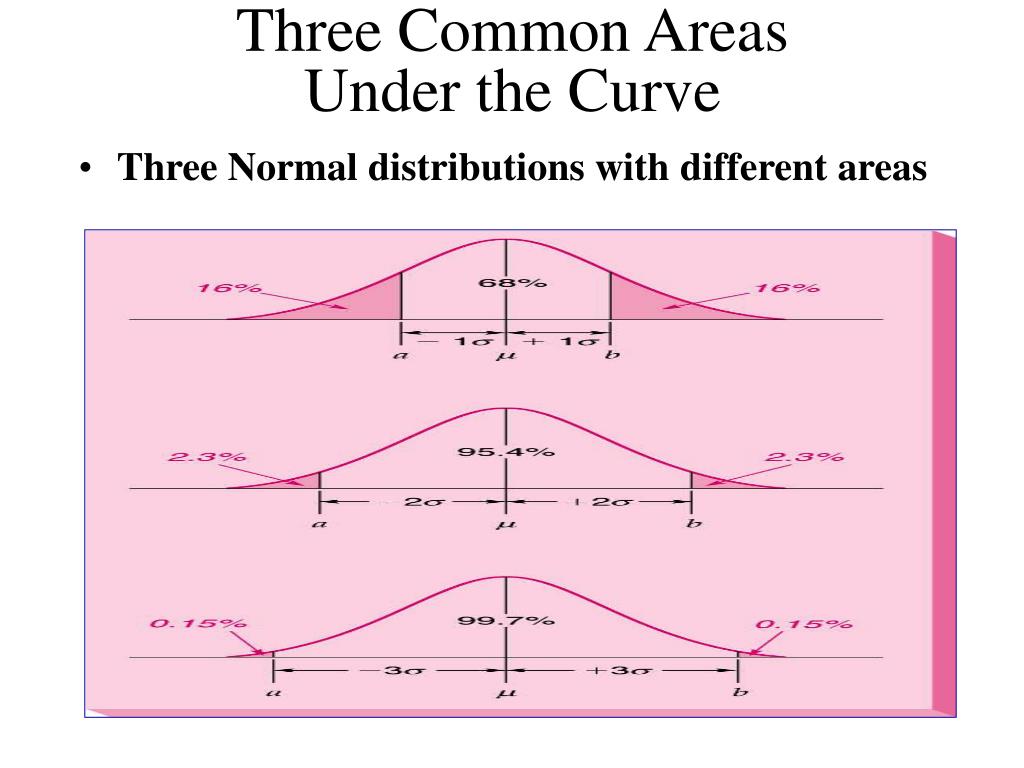

Three common areas under the curve l.jpg
Three Common Areas Under the Curve

  • Three Normal distributions with different areas


Process of testing hypotheses l.jpg
Process of Testing Hypotheses

  • Test are designed to determine the probability that a finding represents the true deviation from what is expected.

  • This chapter focuses on the justification for and interpretation of the p value designed to minimized type I error.

  • Science is based of the following principles:

    • Previous experience serves as the basis for developing hypotheses;

    • Hypotheses serve as the basis for developing predictions;

    • Predictions must be subjected to experimental or observational testing.


Hypothesis testing l.jpg

Truth

Hypothesis testing

H0 True

H0 False

a

b

Correct

Type II

Error

Accept H0

Decision

d

c

Correct

Type I

Error

Reject H0

Alpha error: rejecting the null H0 when it is true

Beta error: accepting the null H0 when it is false


The power of a test l.jpg
The power of a test:

(probability that a test detects differences that actually exist) can be determined by using the formula 1 – beta (1 - )

80% is usually acceptable


Hypothesis testing38 l.jpg
Hypothesis Testing

1. State question in terms of:

H0: no difference or relationship (null)

Ha: is difference or relationship (alternative)

2. Decide on appropriate research design and statistic

  • Select significance (alpha) level and “N”

  • Collect data

  • Analyze and perform calculation to get P-value

  • Draw and state conclusions by comparing alpha with P-value


Theoretical normal distribution with standard deviations39 l.jpg
Theoretical normal distribution with standard deviations

-3

-2

-

+2

+3

+

Z scores

-3

-2

-1

1

2

3

0

Probability

Upper tail .1587 .02288 .0013

Two-tailed .3173 .0455.0027


When is a specific test used l.jpg
When is a specific test used?

Student’s t –test: to compare the means of two small (n < 30) independent samples.

Paired t-test: to compare the means of two paired samples (e.g. before and after)

F – test: to compare means of three or more samples or groups.

Chi-Square test: comparing two or more independent proportions.

Correlation coefficient: measures the strength of the association between two variables.

Regression analysis: Provides an equation that estimates the change in a dependent variable (y) per unit change in an independent variable (x).
