Disrupting and monitoring cancer cell viability using visualization and drug therapy Elinor Velasquez CS 261 Oct 21 2013
Our motivation: Solvecancer • Proposed way tosolvecancer: Administer cancer-killing drugs (Phase I drugs) and immune system strengthening drugs (Phase II drugs) to a patient • Issues: - Which drugs to use? - How do we know they are effective?

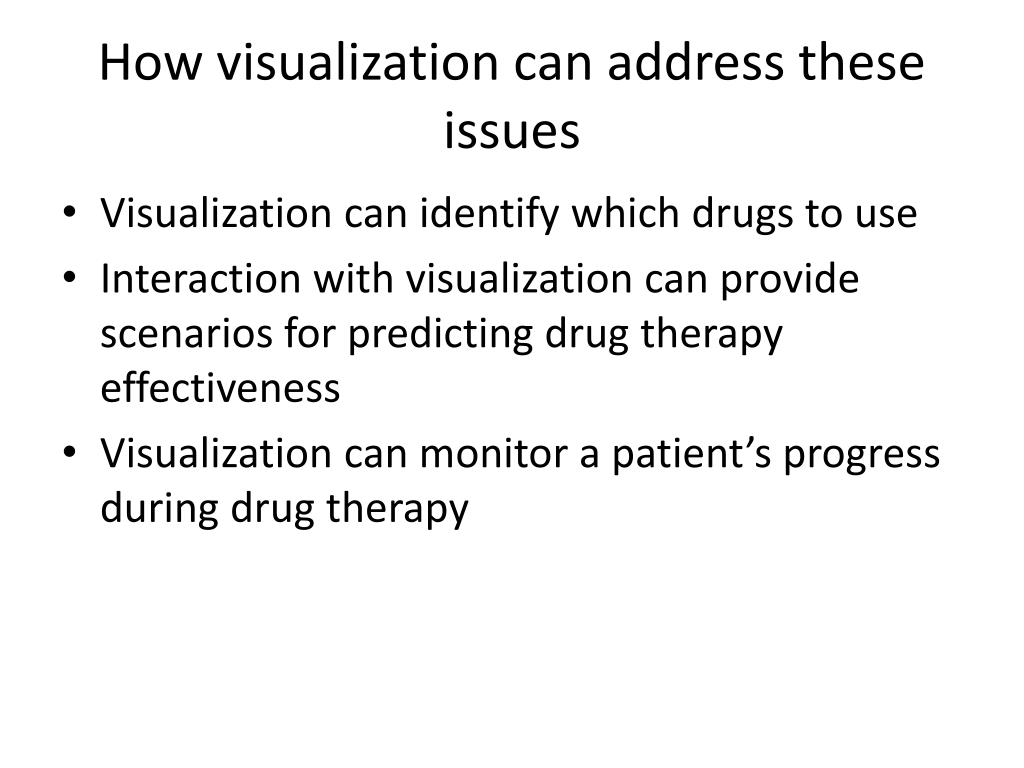

How visualization can address these issues • Visualization can identify which drugs to use • Interaction with visualization can provide scenarios for predicting drug therapy effectiveness • Visualization can monitor a patient’s progress during drug therapy

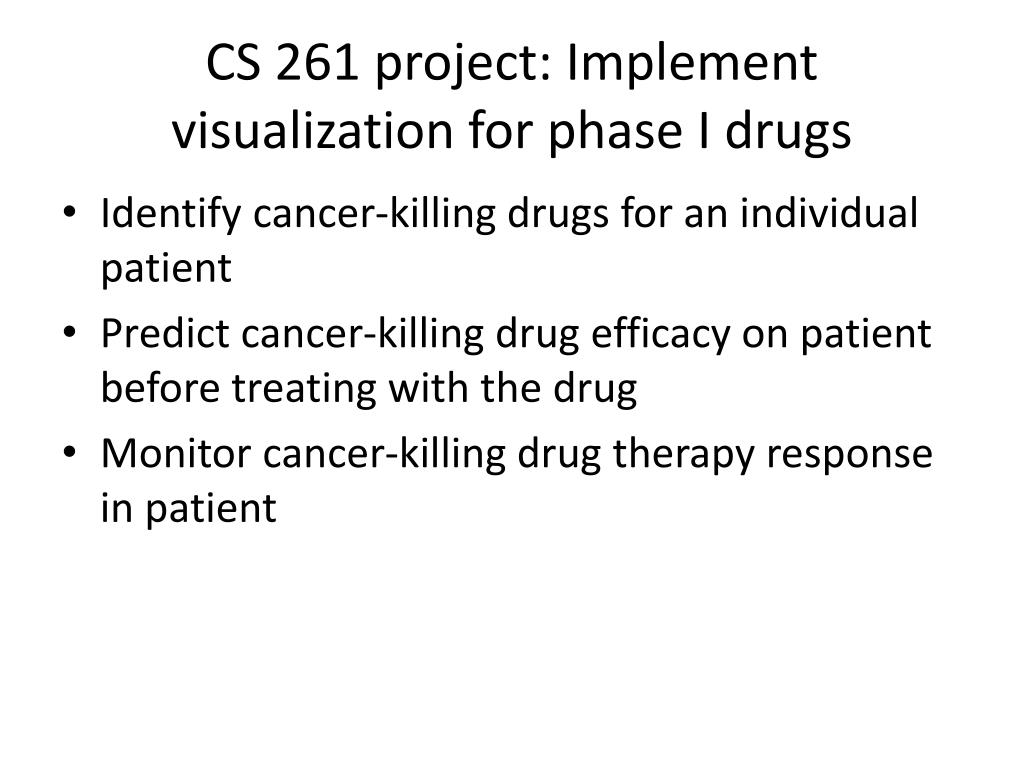

CS 261 project: Implement visualization for phase I drugs • Identify cancer-killing drugs for an individual patient • Predict cancer-killing drug efficacy on patient before treating with the drug • Monitor cancer-killing drug therapy response in patient

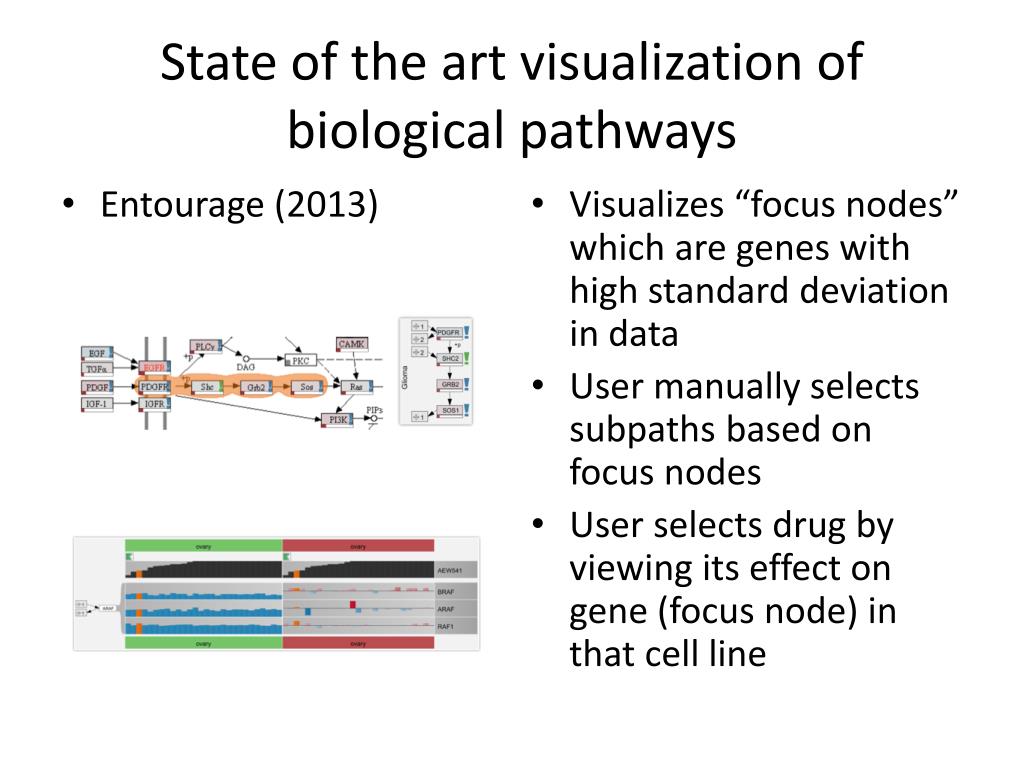

State of the art visualization of biological pathways • Entourage (2013) • Visualizes “focus nodes” which are genes with high standard deviation in data • User manually selects subpaths based on focus nodes • User selects drug by viewing its effect on gene (focus node) in that cell line
Our proposed project differs from Entourage • We implement an algorithm that ranks (by activity) all subpaths in the pathway, based on a patient’s data, literature data, biochemical flux, path topology • User interaction: Manual knocking out of alternative paths and getting cancer cell survival metric for that one patient pre-drug therapy • Animation of patient’s samples taken over time of drug therapy that monitors progress of that patient • User manually selects subpath of interest in cell line via focus gene • No metric predicting cancer cell survival in a given patient • No time-dependent or semantic attribute-dependent animation: static system Our visualization Entourage

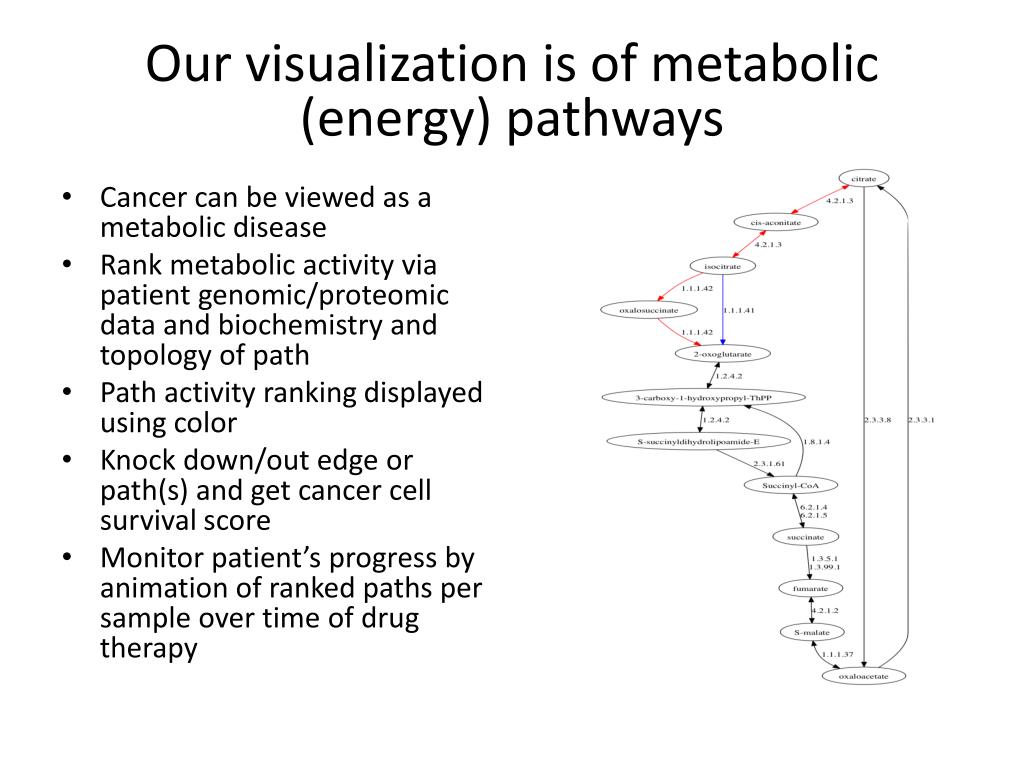

Our visualization is of metabolic (energy) pathways • Cancer can be viewed as a metabolic disease • Rank metabolic activity via patient genomic/proteomic data and biochemistry and topology of path • Path activity ranking displayedusing color • Knock down/out edge or path(s) and get cancer cell survival score • Monitor patient’s progress by animation of ranked paths per sample over time of drug therapy

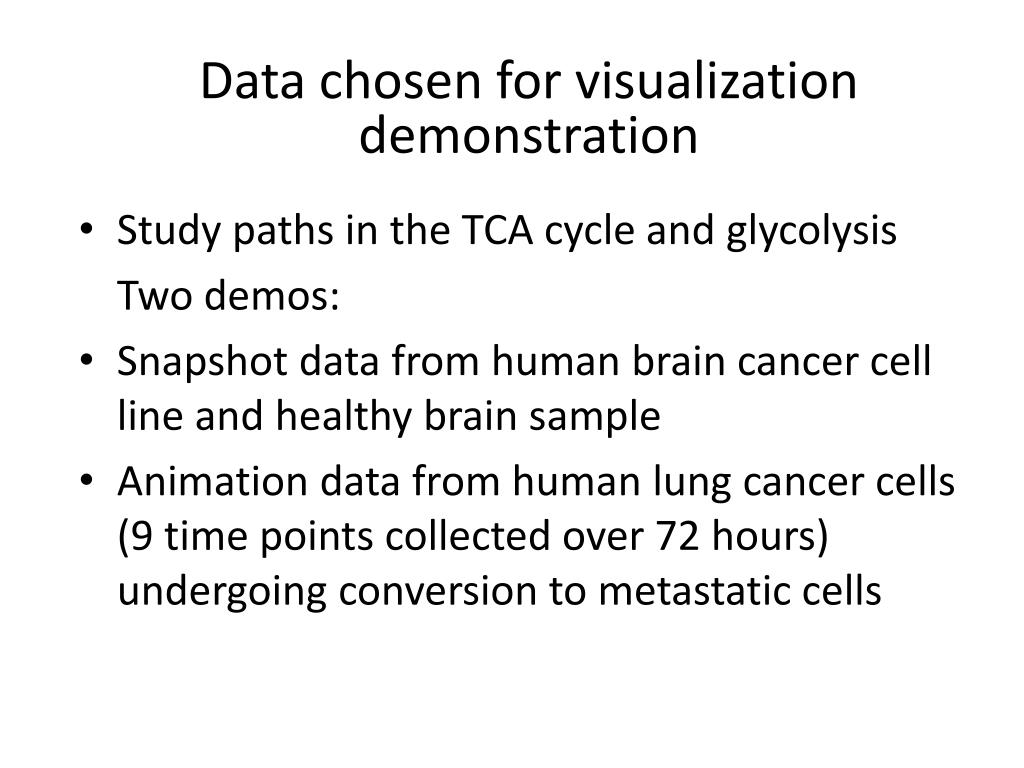

Data chosen for visualization demonstration • Study paths in the TCA cycle and glycolysis Two demos: • Snapshot data from human brain cancer cell line and healthy brain sample • Animation data from human lung cancer cells (9 time points collected over 72 hours) undergoing conversion to metastatic cells
Epilogue: How to cure a patient’s cancer using visualization and drug therapy • Use animation on cancer data collections (and metabolic version of Entourage) to identify all drug classes for all cancers • Given a patient’s genomic/proteomic data, use visualization to selectdrug for the patient. Ideally drug belongs to known drug class.
