Momentum scale in the 2012 data in v94: improved MS alignment. Niels van Eldik, Peter Kluit, Alan Poppleton MCP/MATF meeting 1November 10 October / 20 May 2012. Introduction. Use Z skimmed data periods 2012 v94: Currently used at Tier 0 Standard selection of two CB muons pT > 25 GeV

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Momentum scale in the 2012 data in v94: improved MS alignment' - ayame


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
momentum scale in the 2012 data in v94 improved ms alignment

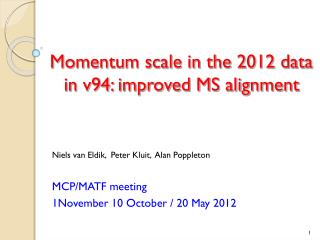

Momentum scale in the 2012 datain v94: improved MS alignment

Niels van Eldik, Peter Kluit, Alan Poppleton

MCP/MATF meeting

1November 10 October / 20 May 2012

introduction
Introduction

Use Z skimmed data periods 2012 v94: Currently used at Tier 0

Standard selection of two CB muons pT > 25 GeV

Basic idea: use the Z mass as probe

Mass = (Combined parameters, SA parameters) and vice versa

Plot dM/Mz = (Mass(eta SA, phi sector MS)-Mz)/Mz

dM/Mz -> observe B field effects

q*dM/Mz -> sensitive to MS calibration and alignment

Extrapolate the q dM/M number to 1 TeV from pT = 40 GeV.

So express systematic curvature offset as alpha (typically 0.10):

dpT/pT = alpha pT TeV-1 @ 1 TeV

Use therefore a factor 2*1000/40 = 50 to go from dM/M to alpha.

Reason for factor 2: 2*dM/M = dp/p (M2 = p1*p2 etc)

v94 q dm mz id parameters
v94: q*dM/MzID parameters

small

ID mis alignments

id parameters v94
ID parameters v94

Yellow band dpT/pT = +- 0.20 (pT/TeV)

v94 q dm mz cb parameters
v94: q*dM/MzCB parameters

Phi modulation due to ID-MS mis alignment

Better than Tier0 processing

cb parameters v94
CB parameters v94

Yellow band dpT/pT = +- 0.20 (pT/TeV)

v94 q dm mz sa parameters
v94: q*dM/MzSA parameters

Compare to next slide

v94 q dm mz sa best parameters
v94: q*dM/MzSA best parameters
  • Best selection:
  • No BEE/EEL/EES
  • - 3 stations
  • 2 phi layers
  • no Barrel-Endcap
conclusions
Conclusions

Relevant for the Higgs are the CB and ID momentum resolutions

Observe some misalignments in ID in endcaps both all smaller than dpT/pT < 20% @ 1 TeV

Some structure in the CB in the endcap (eta >0). Similar to structure observed in Tier0 processing. Maximally dpT/pT ~20% @ 1 TeV.

Note that the structure in the mass (slides 11-12) is much smaller (due to cancellation of + and – charges).

Likely cause of structure in (positive eta) endcap is ID-MS misalignment.

Means that v94 is better for MS alignment. However, an additional ID-MS alignment is needed to reduce the momentum bias of less than ~20% @ 1 TeV.

momentum scale in the 2012 data in v93 improved ms alignment

Momentum scale in the 2012 datain v93: improved MS alignment

Niels van Eldik, Peter Kluit, Alan Poppleton

MCP/MATF meeting

1November 10 October / 20 May 2012

introduction1
Introduction

Use Z skimmed data periods 2012 v93

Standard selection of two CB muons pT > 25 GeV

Basic idea: use the Z mass as probe

Mass = (Combined parameters, SA parameters) and vice versa

Plot dM/Mz = (Mass(eta SA, phi sector MS)-Mz)/Mz

dM/Mz -> observe B field effects

q*dM/Mz -> sensitive to MS calibration and alignment

Extrapolate the q dM/M number to 1 TeV from pT = 40 GeV.

So express systematic curvature offset as alpha (typically 0.10):

dpT/pT = alpha pT TeV-1 @ 1 TeV

Use therefore a factor 2*1000/40 = 50 to go from dM/M to alpha.

Reason for factor 2: 2*dM/M = dp/p (M2 = p1*p2 etc)

v93 q dm mz id parameters
v93: q*dM/MzID parameters

small

ID mis alignments

id parameters v93
ID parameters v93

Yellow band dpT/pT = +- 0.20 (pT/TeV)

v93 q dm mz cb parameters
v93: q*dM/MzCB parameters

Phi modulation due to ID-MS mis alignment

Similar to Tier0 processing

cb parameters v93
CB parameters v93

Yellow band dpT/pT = +- 0.20 (pT/TeV)

v93 q dm mz sa parameters
v93: q*dM/MzSA parameters

Compare to next slide

v93 q dm mz sa best parameters
v93: q*dM/MzSA best parameters
  • Best selection:
  • No BEE/EEL/EES
  • - 3 stations
  • 2 phi layers
  • no Barrel-Endcap
conclusions1
Conclusions

Relevant for the Higgs are the CB and ID momentum resolutions

Observe some misalignments in ID in endcaps both all smaller than dpT/pT < 20% @ 1 TeV

Some structure in the CB in the endcap (eta >0). Similar to structure observed in Tier0 processing. Maximally dpT/pT ~20% @ 1 TeV.

Note that the structure in the mass (slides 11-12) is much smaller (due to cancellation of + and – charges).

Likely cause of structure in (positive eta) endcap is ID-MS misalignment.

Means that v93 is better for MS alignment. However, an additional ID-MS alignment is needed to reduce the momentum bias of less than ~20% @ 1 TeV.
