Presentation Transcript
Object oriented programming l.jpg

Object Oriented Programming

Inheritance and Polymorphism

Dr. Mike Spann

[email protected]

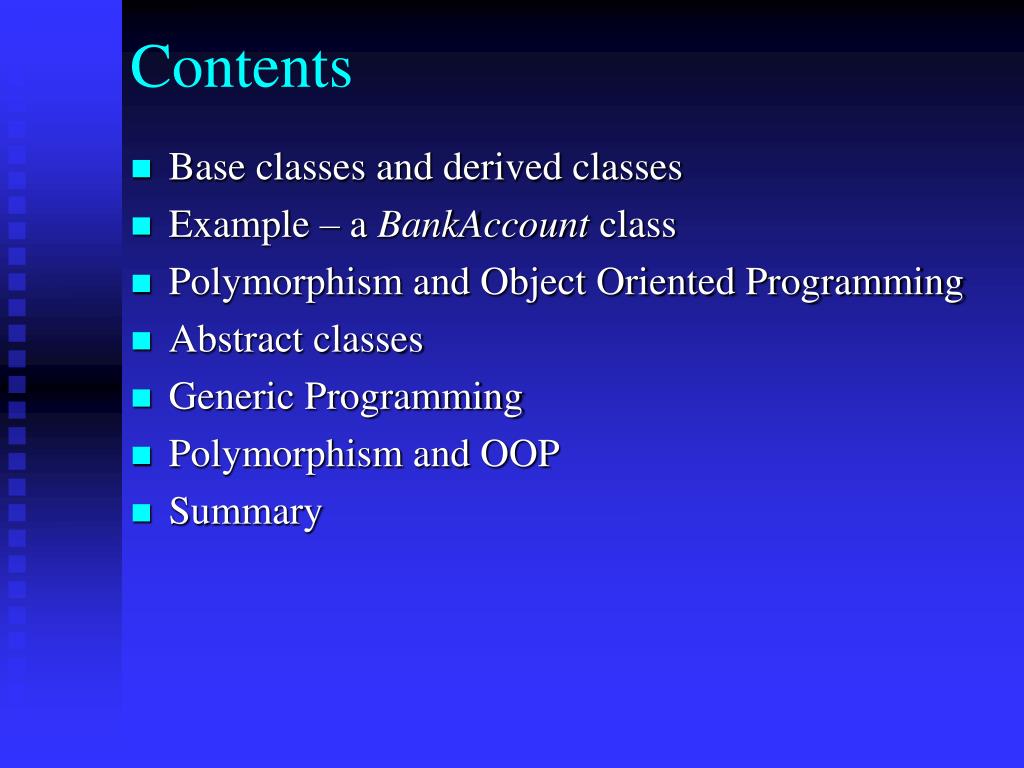

Contents l.jpg
Contents

  • Base classes and derived classes

  • Example – a BankAccount class

  • Polymorphism and Object Oriented Programming

  • Abstract classes

  • Generic Programming

  • Polymorphism and OOP

  • Summary


Base classes and derived classes l.jpg
Base classes and derived classes

  • Inheritance is a fundamental requirement of oriented programming

  • It allows us to create new classes by refining existing classes

  • Essentially a derived class can inherit data members of a base class

    • The behaviour of the derived class can be refined by redefining base class member functions or adding new member function

    • A key aspect of this is polymorphism where a classes behaviour can be adapted at run-time

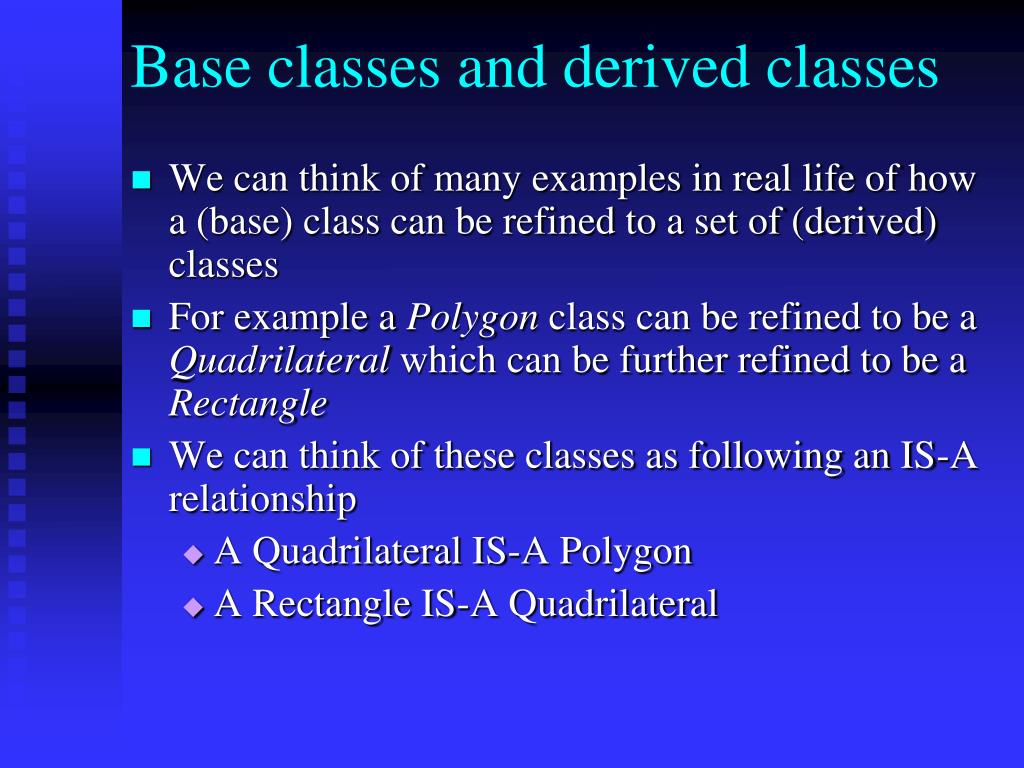

Base classes and derived classes4 l.jpg
Base classes and derived classes

  • We can think of many examples in real life of how a (base) class can be refined to a set of (derived) classes

  • For example a Polygon class can be refined to be a Quadrilateral which can be further refined to be a Rectangle

  • We can think of these classes as following an IS-A relationship

    • A Quadrilateral IS-A Polygon

    • A Rectangle IS-A Quadrilateral



Example a bankaccount class l.jpg
Example – a BankAccount class

  • An BankAccount base class models basic information about a bank account

    • Account holder

    • Account number

    • Current balance

  • Basic functionality

    • Withdraw money

    • Deposit money


Slide7 l.jpg

public class BankAccount

{

private intaccountNumber;

private string accountHolder;

private int balance;

public BankAccount(intn,string name ,int b)

{

accountNumber = n;

accountHolder = name;

balance = b;

}

public intAccountNumber { // accountNumber property}

public string AccountHolder { // accounHolder property}

public int Balance { // balance property}

public void withdraw(int amount)

{

if (balance>amount)

balance-=amount;

}

public void deposit(int amount) { balance+=amount;}

}


Example a bankaccount class8 l.jpg
Example – a BankAccount class

  • We can consider refinements to our Account class

    • CurrentAccount

      • Can have an overdraft facility

      • No interest paid

    • DepositAccount

      • Pays interest on any balance

      • No overdraft facility


Example a bankaccount class9 l.jpg
Example – a BankAccount class

  • We will create our refined classes using inheritance from the BankAccountbaseclass

  • Classes CurrentAccount and DepositAccount inherit the basic attributes (private members) of account

    • accountNumber

    • accountHolder

    • balance

  • Also, new attributes are added

    • overdraftFacility

    • interestRate


Example a bankaccount class10 l.jpg
Example – a BankAccount class

  • In order to implement the derived classes, we need to consider private/public access between base and derived classes

    • public member functions of the base class become public member functions of the derived class

    • private members of the base class cannot be accessed from the derived class

      • Obvious otherwise encapsulation could be easily broken by inheriting from the base class

      • Begs the question, how do we initialise derived class objects?


Example a bankaccount class11 l.jpg
Example – a BankAccount class

  • Base class methods and properties are accessed through the base keyword

    • base(.....) refers to the base class constructor

    • base.aMethod(.....) refers to a method of the base class

    • base.aPropertyrefers to a property of the base class


Slide12 l.jpg

class CurrentAccount : BankAccount

{

private intoverdraftFacility;

public CurrentAccount(int n, string name, int b, intov) : base(n, name, b)

{

overdraftFacility = ov;

}

public override void withdraw(int amount)

{

if (base.Balance - amount > -overdraftFacility)

base.Balance -= amount;

}

}

class DepositAccount : BankAccount

{

private float interestRate;

public DepositAccount(int n, string name, int b, float rate) : base( n, name,b)

{ interestRate = rate; }

float calcInterest()

{

float interest = base.Balance * interestRate;

base.Balance += (int)(interest);

return interest;

}

}


Example a bankaccount class13 l.jpg
Example – a BankAccount class

CurrentAccount

DepositAccount

accountNumber

accountHolder

balance

accountNumber

accountHolder

balance

deposit()

withdraw()

deposit()

withdraw()

overdraftFacility

interestRate

withdraw()

calcInterest()


Example a bankaccount class14 l.jpg
Example – a BankAccount class

  • We can see that in both derived classes we need to access the balance instance field

  • We can do this directly (without using a public method or property) by making balance a protected member of the base class

  • A protected class member is one that can be accessed by public member functions of the class as well as public member functions of any derived class

    • Its half way between private and public

    • Encapsulation is then broken for classes in the inheritance hierarchy and thus must be used where performance issues are critical


Example a bankaccount class15 l.jpg
Example – a BankAccount class

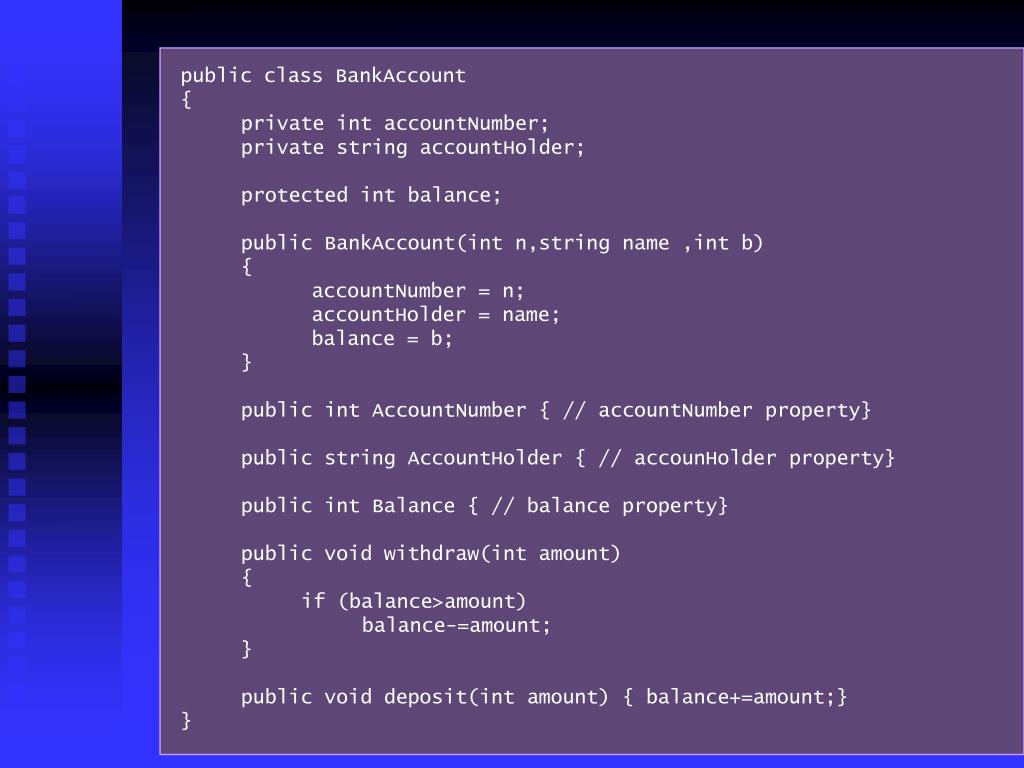

Slide16 l.jpg

public class BankAccount

{

private intaccountNumber;

private string accountHolder;

protected int balance;

public BankAccount(intn,string name ,int b)

{

accountNumber = n;

accountHolder = name;

balance = b;

}

public intAccountNumber { // accountNumber property}

public string AccountHolder { // accounHolder property}

public int Balance { // balance property}

public void withdraw(int amount)

{

if (balance>amount)

balance-=amount;

}

public void deposit(int amount) { balance+=amount;}

}

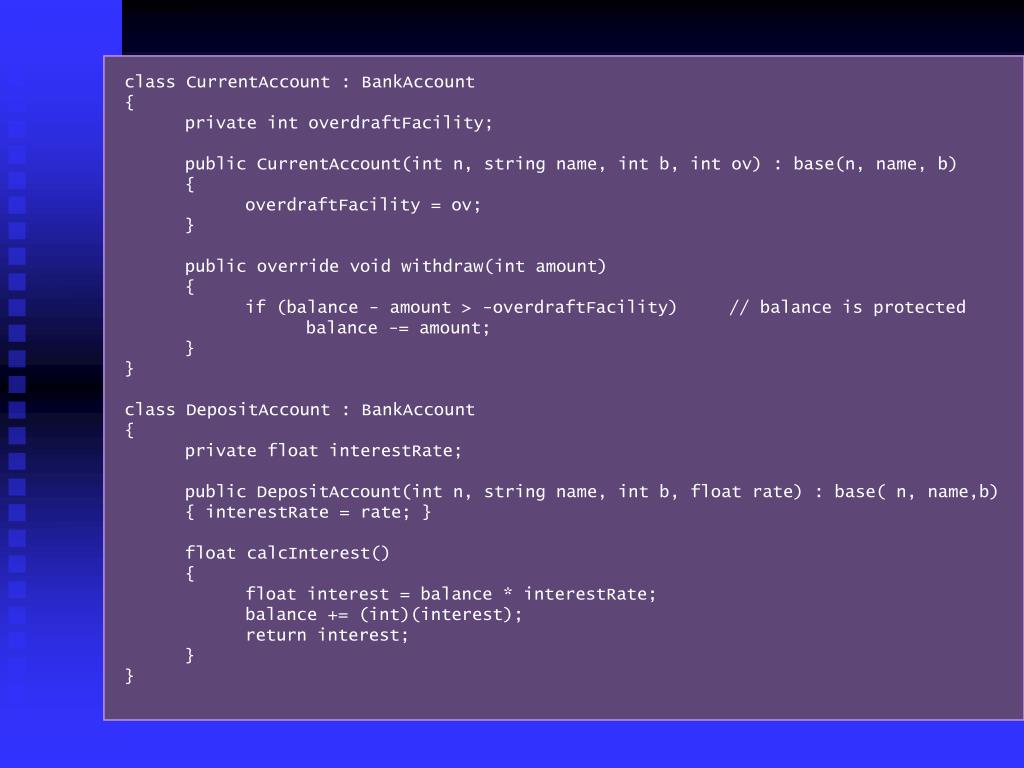

Slide17 l.jpg

class CurrentAccount : BankAccount

{

private intoverdraftFacility;

public CurrentAccount(int n, string name, int b, intov) : base(n, name, b)

{

overdraftFacility = ov;

}

public override void withdraw(int amount)

{

if (balance - amount > -overdraftFacility) // balance is protected

balance -= amount;

}

}

class DepositAccount : BankAccount

{

private float interestRate;

public DepositAccount(int n, string name, int b, float rate) : base( n, name,b)

{ interestRate = rate; }

float calcInterest()

{

float interest = balance * interestRate;

balance += (int)(interest);

return interest;

}

}


Polymorphism and object oriented programming l.jpg
Polymorphism and Object Oriented Programming

  • Polymorphism is the key concept in object oriented programming

  • Polymorphism literally means many forms

  • Essentially we are able to get many different types of object behaviour from a single reference type

    • This enables us to write easily extensible applications


Polymorphism and object oriented programming19 l.jpg
Polymorphism and Object Oriented Programming

  • For example in a computer game that simulates the movement of animals we can send ‘move’ commands to different types of animal

  • We send the commands via an animal reference which is the base class for the different animal types

    • But each type behaves differently once it receives the command

    • Such an approach leads to a readily extendable application

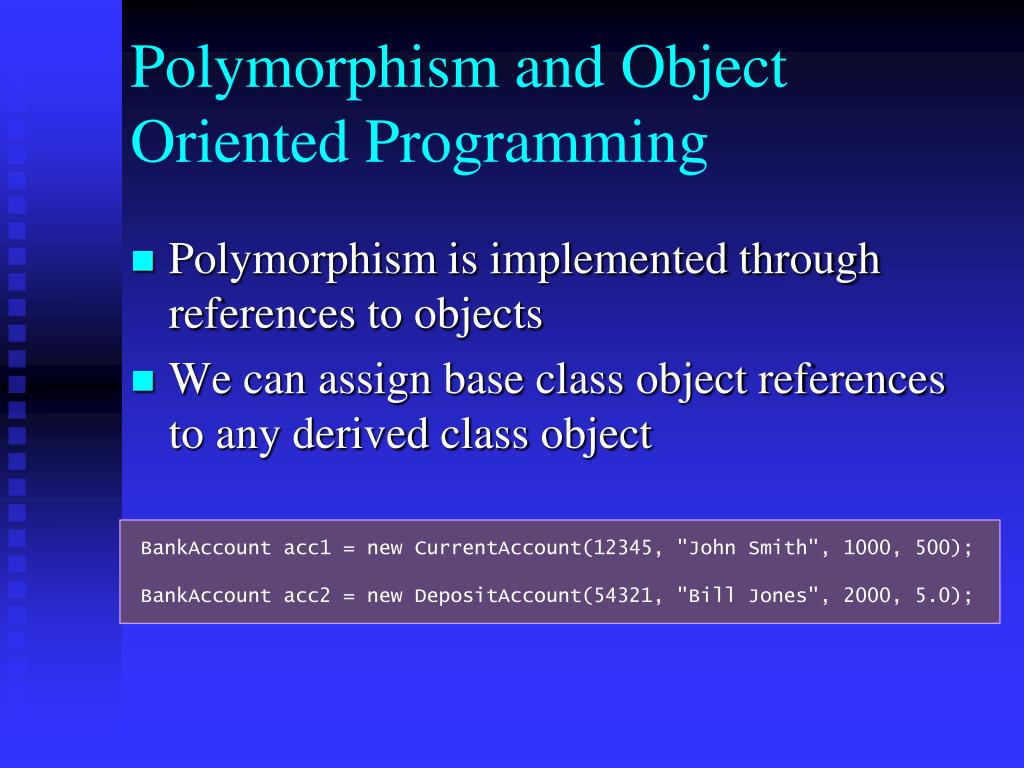

Polymorphism and object oriented programming21 l.jpg
Polymorphism and Object Oriented Programming

BankAccount acc1 = new CurrentAccount(12345, "John Smith", 1000, 500);

BankAccount acc2 = new DepositAccount(54321, "Bill Jones", 2000, 5.0);

Polymorphism is implemented through references to objects

We can assign base class object references to any derived class object

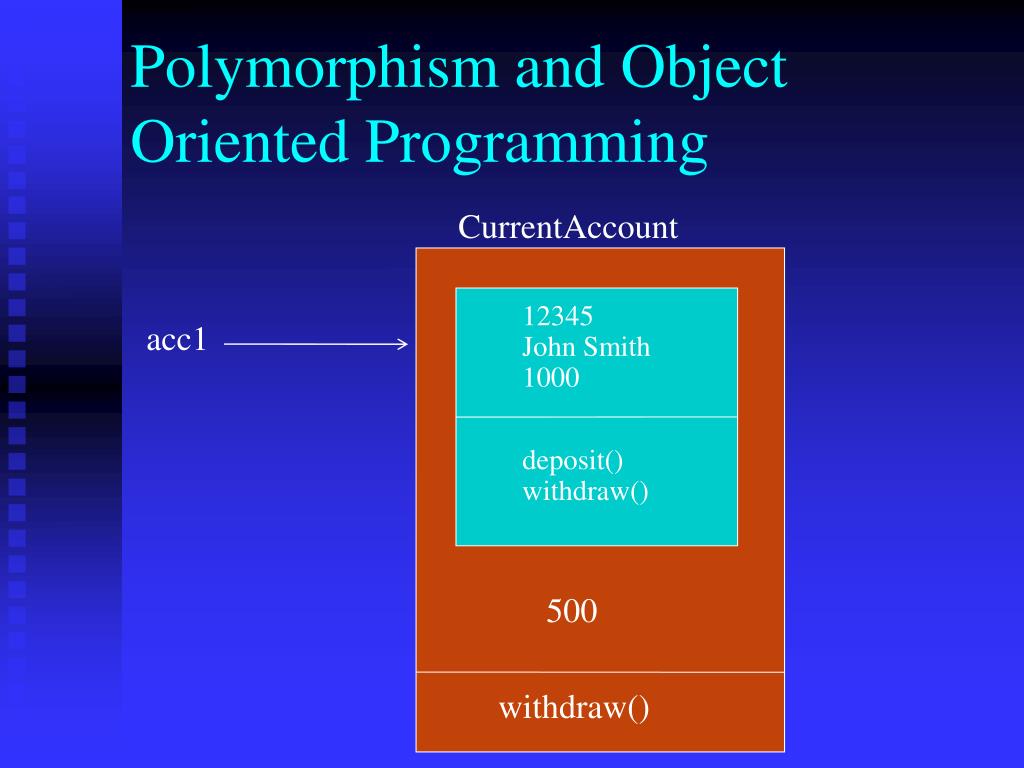

Polymorphism and object oriented programming22 l.jpg
Polymorphism and Object Oriented Programming

CurrentAccount

12345

John Smith

1000

acc1

deposit()

withdraw()

500

withdraw()


Polymorphism and object oriented programming23 l.jpg
Polymorphism and Object Oriented Programming

DepositAccount

54321

Bill Jones

2000

acc2

deposit()

withdraw()

5.0

calcInterest()

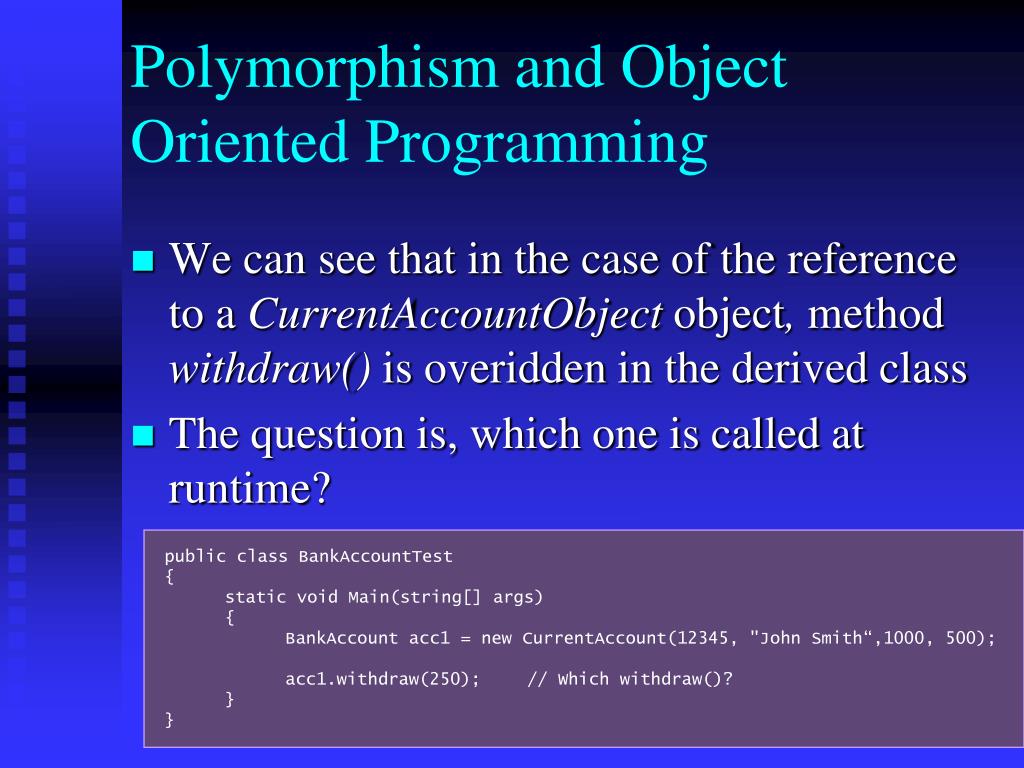

Polymorphism and object oriented programming24 l.jpg
Polymorphism and Object Oriented Programming

public class BankAccountTest

{

static void Main(string[] args)

{

BankAccount acc1 = new CurrentAccount(12345, "John Smith“,1000, 500);

acc1.withdraw(250); // Which withdraw()?

}

}

We can see that in the case of the reference to a CurrentAccountObjectobject, method withdraw() is overidden in the derived class

The question is, which one is called at runtime?


Polymorphism and object oriented programming25 l.jpg
Polymorphism and Object Oriented Programming

CurrentAccount

acc1

accountNumber

accountHolder

balance

deposit()

withdraw()

Which one is called?

overdraftFacility

withdraw()


Polymorphism and object oriented programming26 l.jpg
Polymorphism and Object Oriented Programming

  • Clearly the behaviour of the object to the ‘withdraw’ message is important

    • The derived class behaviour takes into account the overdraft facility

  • We must look at the definitions of the withdraw() method in the base and derived classes

    • The base class withdraw() method is overridden by the derived class method if the base class method is declared as virtual and the derived class method is declared as override


Polymorphism and object oriented programming27 l.jpg
Polymorphism and Object Oriented Programming

public class BankAccount

{

//……

public virtual void withdraw(int amount)

{

if (balance - amount > -overdraftFacility)

balance -= amount;

}

}

public class CurrentAccount : BankAccount

{

private intoverdraftFacility;

public CurrentAccount(n, name, b) {…}

public override void withdraw(int amount)

{

if (balance - amount > -overdraftFacility)

balance -= amount;

}

}


Polymorphism and object oriented programming28 l.jpg
Polymorphism and Object Oriented Programming

public class BankAccountTest

{

static void Main(string[] args)

{

BankAccount acc1 = new CurrentAccount(12345, "John Smith“,1000, 500);

acc1.withdraw(250); // Calls the CurrentAccount withdraw() method

}

}

Because withdraw() in the derived class is declared as an override function of the virtual function in the base class, the correct behaviour is obtained


Polymorphism and object oriented programming29 l.jpg
Polymorphism and Object Oriented Programming

  • In Java, polymorphism (overriding the base class implementation) is the default behaviour

  • In C++, the virtual keyword is used but no override keyword

  • C# also has a keyword sealed for a base class method which can’t be overriden

    • Methods can also be declared override and sealed indicating that they override a base class method but can’t themselves be overriden


Abstract classes l.jpg
Abstract classes

  • In our example classes, the withdraw() method of our BankAccountwas declared as a virtual function

    • We were able to provide a sensible implementation of this function

    • This implementation could be regarded as default behaviour if the function was not overridden in derived classes


Abstract classes31 l.jpg
Abstract classes

  • If the method called can’t be resolved in the derived class, it is delegated back to the default base class method

public class BankAccountTest

{

static void Main(string[] args)

{

BankAccount acc1 = new CurrentAccount(12345, "John Smith“,1000, 500);

acc1.withdraw(250); // Calls the CurrentAccount withdraw() method

BankAccount acc2 = new DepositAccount(54321, “Bill Jones“,2000, 5.0);

acc2.withdraw(100); // Calls the BankAccount withdraw() method

}

}


Abstract classes32 l.jpg
Abstract classes

  • Abstract classes arise when there is no sensible implementation of the virtual functions in the base class

    • Base class virtual functions are always overridden by derived class implementations

  • In this case, we simply declare the virtual function as abstract but provide no implementation

    • A class containing at least one abstract function must be declared an abstract class


Abstract classes33 l.jpg
Abstract classes

  • As an example, suppose we wanted to design a hierarchy of shape classes for a computer graphics application

  • Shape is an abstract concept

    • There is no sensible way we can implement functions to draw a shape or compute the area of a shape

    • It is natural to make such functions abstract

    • We can derive concrete classes from shape and provide implementations in the override functions


Abstract classes34 l.jpg
Abstract classes

public abstract class Shape

{

private intxpos;

private intypos;

public abstract void draw();

public abstract double area();

public virtual void move(int x, int y)

{

xpos+=x;

ypos+=y;

}

}


Abstract classes35 l.jpg
Abstract classes

public class Square : Shape

{

private int side;

public Square(int s) {side=s;}

public override void draw() { }

public override double area() { return side*side; }

}

public class Circle : Shape

{

private int radius;

public Circle(int r) { radius = r; }

public override void draw() { }

public override double area() { return System.Math.PI*radius*radius;}

}

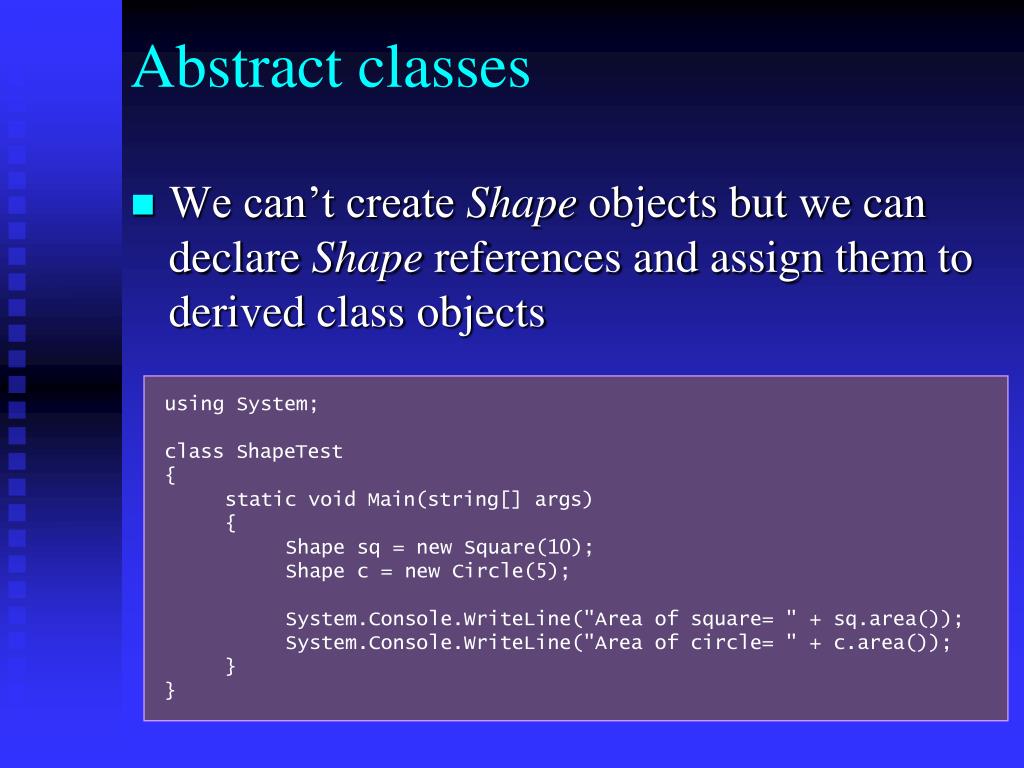

Abstract classes36 l.jpg
Abstract classes

using System;

class ShapeTest

{

static void Main(string[] args)

{

Shape sq = new Square(10);

Shape c = new Circle(5);

System.Console.WriteLine("Area of square= " + sq.area());

System.Console.WriteLine("Area of circle= " + c.area());

}

}

We can’t create Shape objects but we can declare Shape references and assign them to derived class objects


Generic programming l.jpg
Generic programming

  • Generic programming refers to performing operations on different types using a single piece of code

    • Examples include the application of searching and sorting algorithms to different data types

  • In Java, this is done using polymorphism and the fact that all types are ultimately derived from a superclass object

  • In C++ it is normally done using templates

  • C# provides both mechanisms for generic programming

    • We will look at an example of generic searching using polymorphism


Generic programming38 l.jpg
Generic programming

  • Suppose we want a generic search algorithm to search for any kind of object in an array

  • Class object provides an Equals() method to test whether one object is equal to another

    • Simply checks if the 2 object references point to the same area of memory

    • Not very useful in practice

  • We need to provide an Equals() method in the class of the object we are searching for

    • Polymorphism does the rest!


Generic programming39 l.jpg
Generic Programming

In the following example we are searching for a BankAccount object in an array

The search is based on the account number

Class SearchAlg provides a linearSearch method which carries out the search

We have provided an implementation of Equals() in class BankAccount which overrides the Equals() method in object

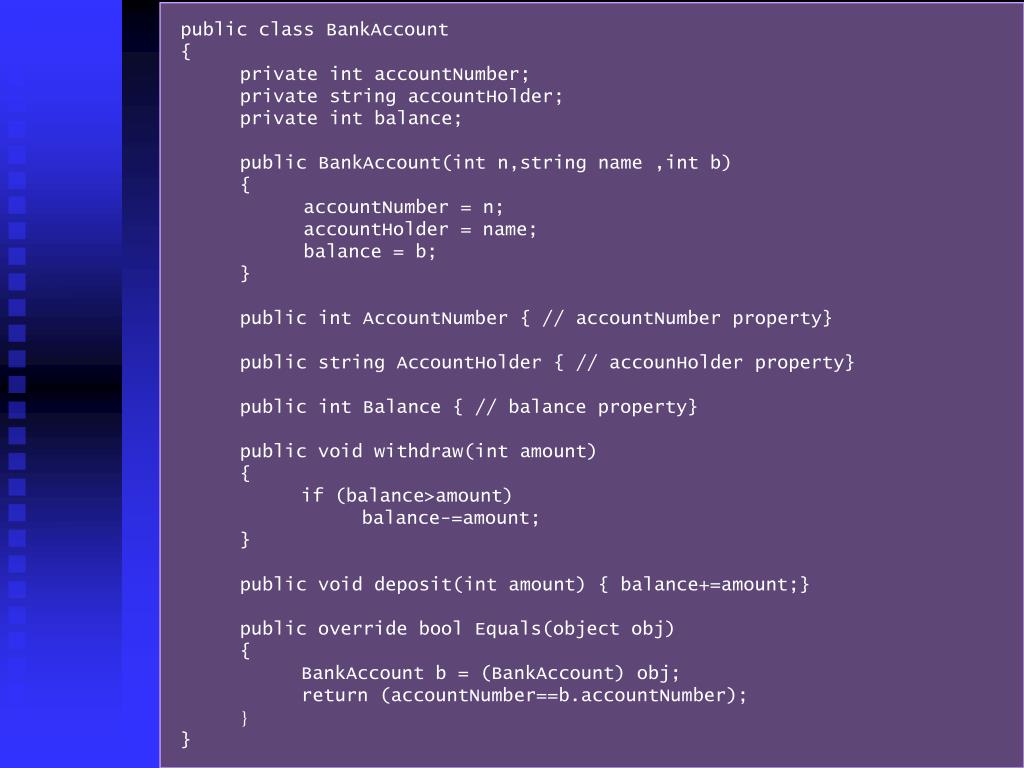

Slide40 l.jpg

public class BankAccount

{

private intaccountNumber;

private string accountHolder;

private int balance;

public BankAccount(intn,string name ,int b)

{

accountNumber = n;

accountHolder = name;

balance = b;

}

public intAccountNumber { // accountNumber property}

public string AccountHolder { // accounHolder property}

public int Balance { // balance property}

public void withdraw(int amount)

{

if (balance>amount)

balance-=amount;

}

public void deposit(int amount) { balance+=amount;}

public override bool Equals(object obj)

{

BankAccount b = (BankAccount) obj;

return (accountNumber==b.accountNumber);

}

}


Generic programming41 l.jpg
Generic Programming

using System;

public class SearchAlg

{

public static int linearSearch(object[] a, object b)

{

int n=a.Length;

for (int i=0; i<n; i++)

{

if (a[i].Equals(b))

return i;

}

return -1;

}

}

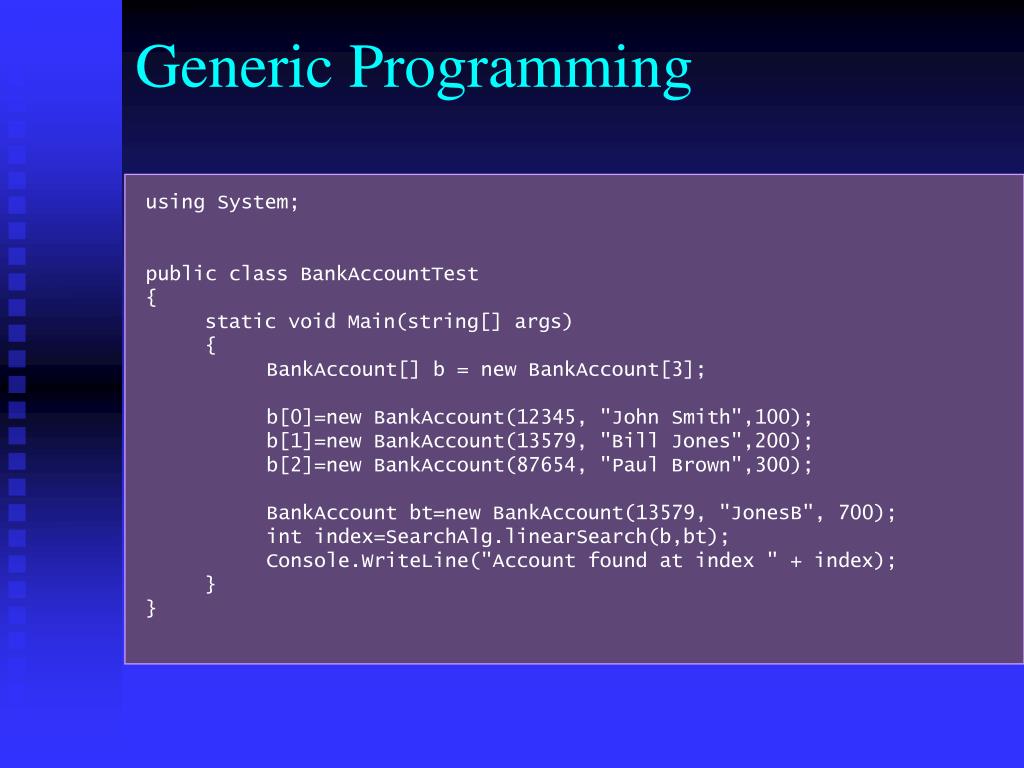

Generic programming42 l.jpg
Generic Programming

using System;

public class BankAccountTest

{

static void Main(string[] args)

{

BankAccount[] b = new BankAccount[3];

b[0]=new BankAccount(12345, "John Smith",100);

b[1]=new BankAccount(13579, "Bill Jones",200);

b[2]=new BankAccount(87654, "Paul Brown",300);

BankAccount bt=new BankAccount(13579, "JonesB", 700);

int index=SearchAlg.linearSearch(b,bt);

Console.WriteLine("Account found at index " + index);

}

}

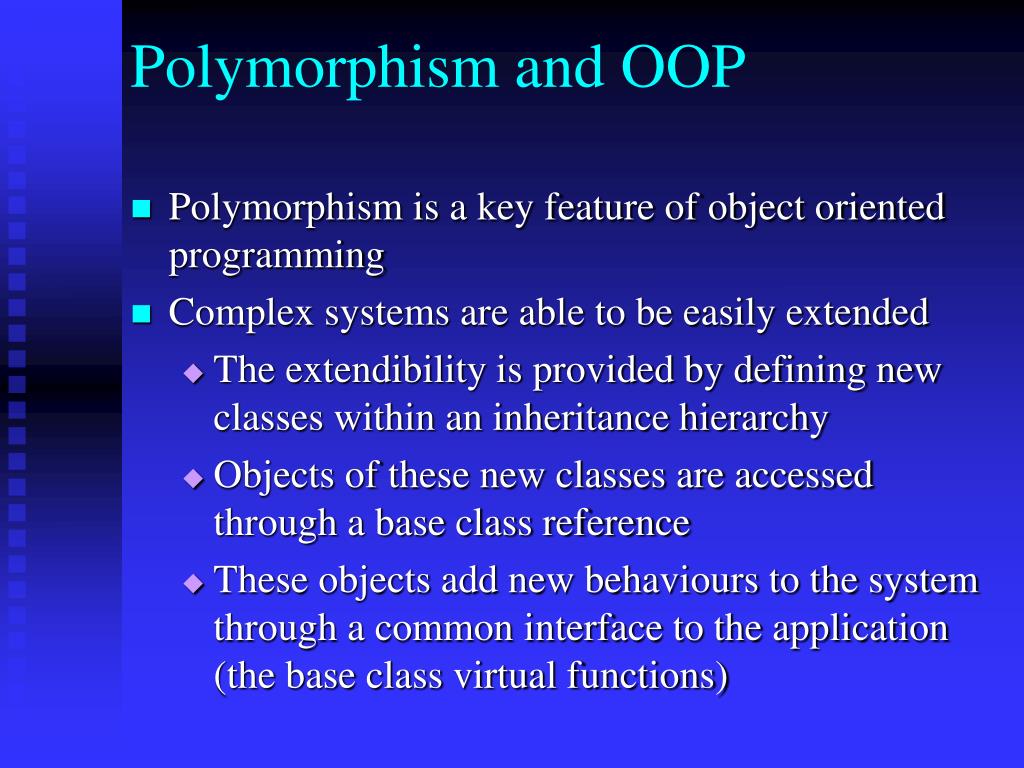

Polymorphism and oop l.jpg
Polymorphism and OOP

  • Polymorphism is a key feature of object oriented programming

  • Complex systems are able to be easily extended

    • The extendibility is provided by defining new classes within an inheritance hierarchy

    • Objects of these new classes are accessed through a base class reference

    • These objects add new behaviours to the system through a common interface to the application (the base class virtual functions)


Polymorphism and oop44 l.jpg
Polymorphism and OOP

  • For example we could extend the list of animals to which we can send ‘move’ messages in our video game application

    • Each animal is responsible for its own movement code which can easily ‘plug-in’ to the main application

    • Thus the application is easily extended with minimal changes to the main application code


Polymorphism and oop45 l.jpg
Polymorphism and OOP

Move

animal

.

.


Summary l.jpg
Summary

  • We have looked at how we can extend existing classes through the idea of inheritance

  • We have seen how, by accessing derived classes through a base class pointer, object behaviour is determined at run time through polymorphism

  • We have looked at abstract classes where there is no obvious implementation of base class virtual methods

    • These methods are always overriden by derived class methods

  • We have looked at the significance of polymorphism in object orientation

    • Object oriented applications are easily extended with additional code mainly confined to new derived classes


ad
