  1. Blind Known Interference Cancellation Zhang Shengli (Shenzhen University) 2012. 1.12

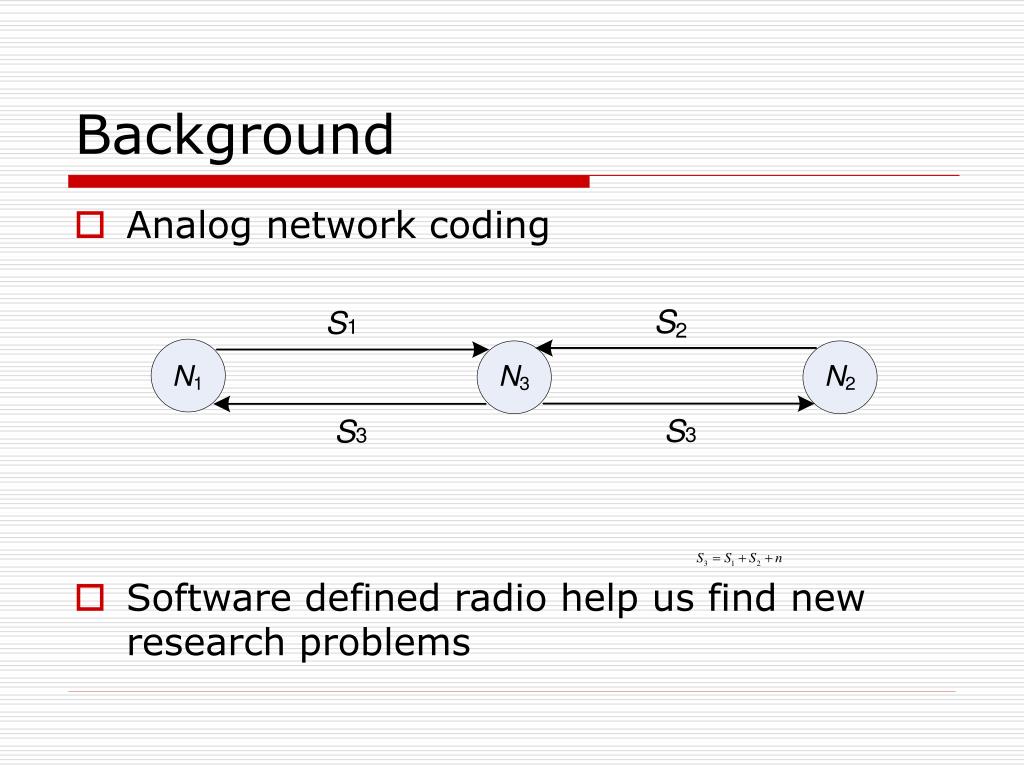

  2. Background • Analog network coding • Software defined radio help us find new research problems

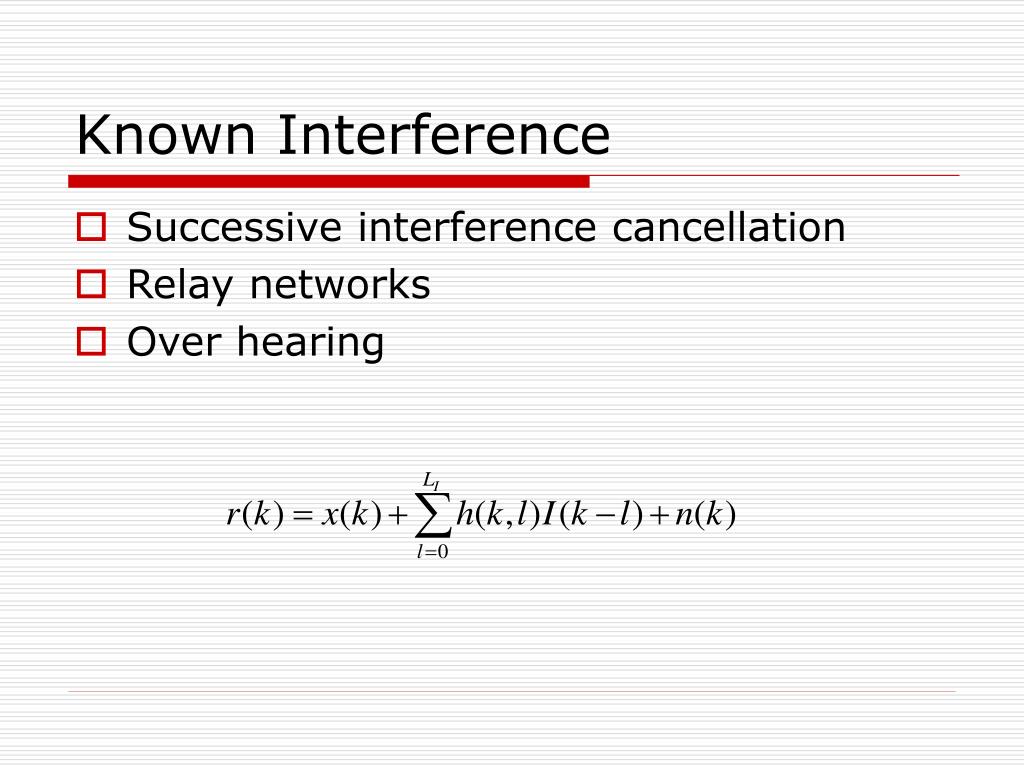

  3. Known Interference • Successive interference cancellation • Relay networks • Over hearing

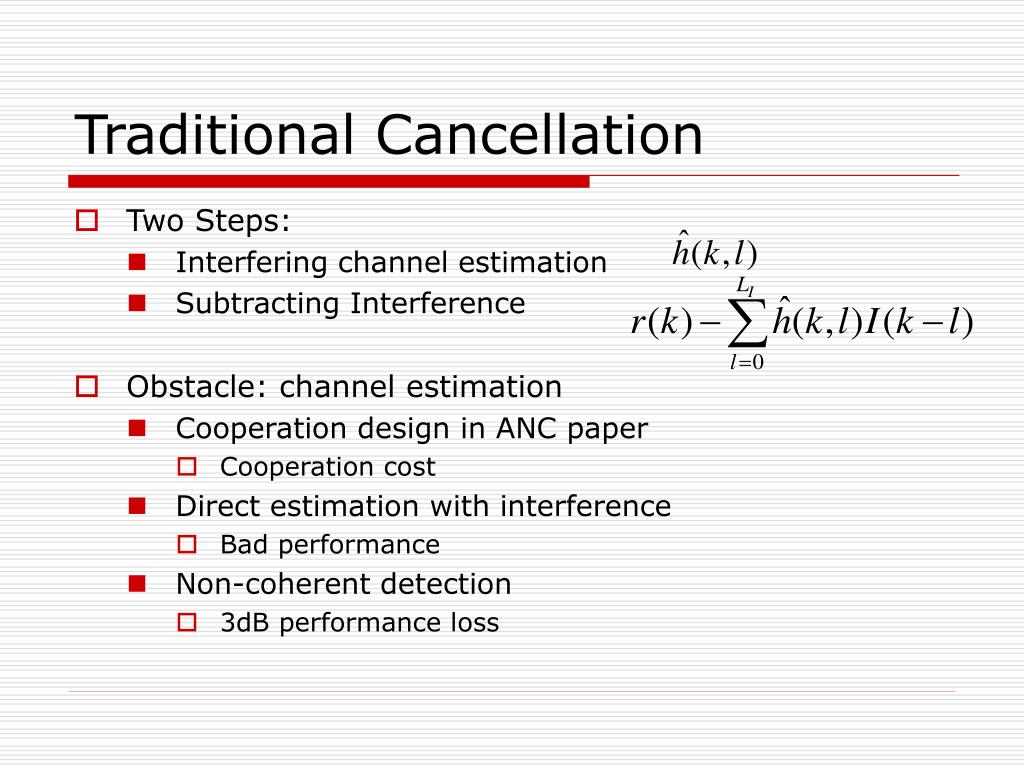

  4. Traditional Cancellation • Two Steps: • Interfering channel estimation • Subtracting Interference • Obstacle: channel estimation • Cooperation design in ANC paper • Cooperation cost • Direct estimation with interference • Bad performance • Non-coherent detection • 3dB performance loss

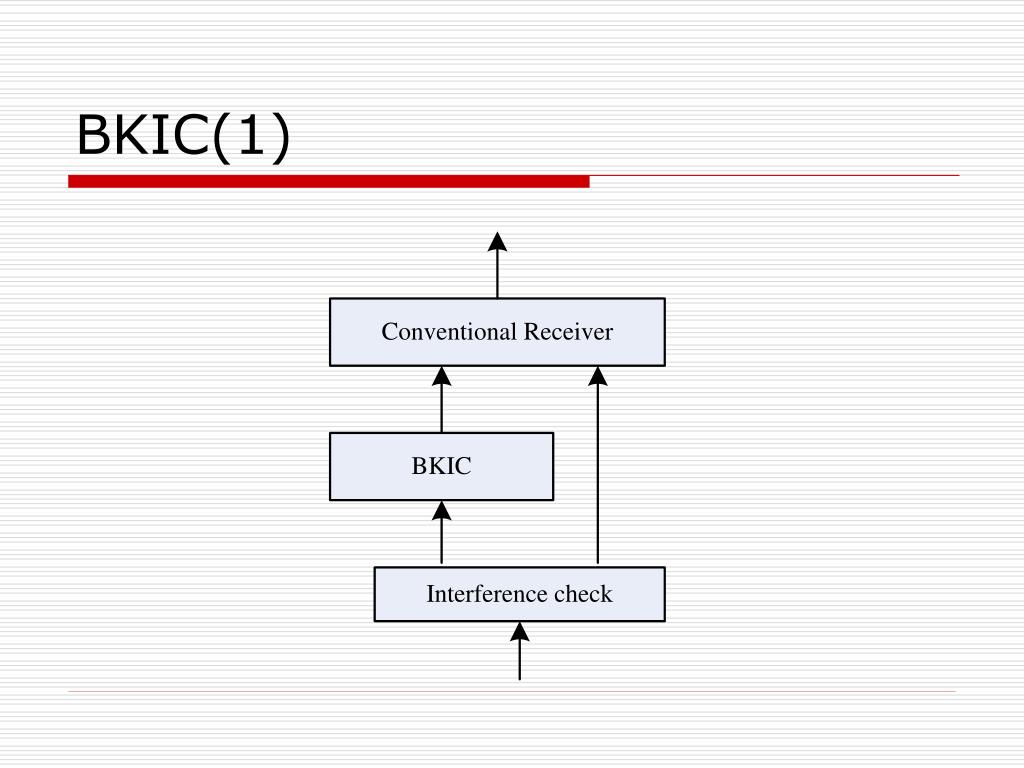

  5. BKIC(1)

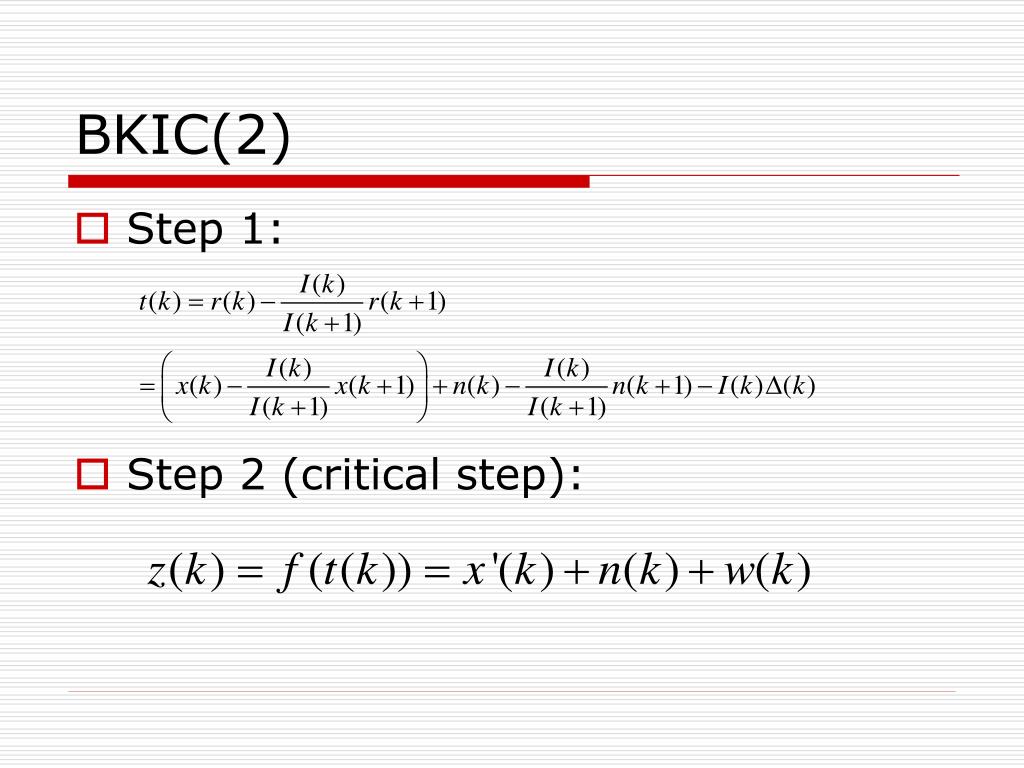

  6. BKIC(2) • Step 1: • Step 2 (critical step):

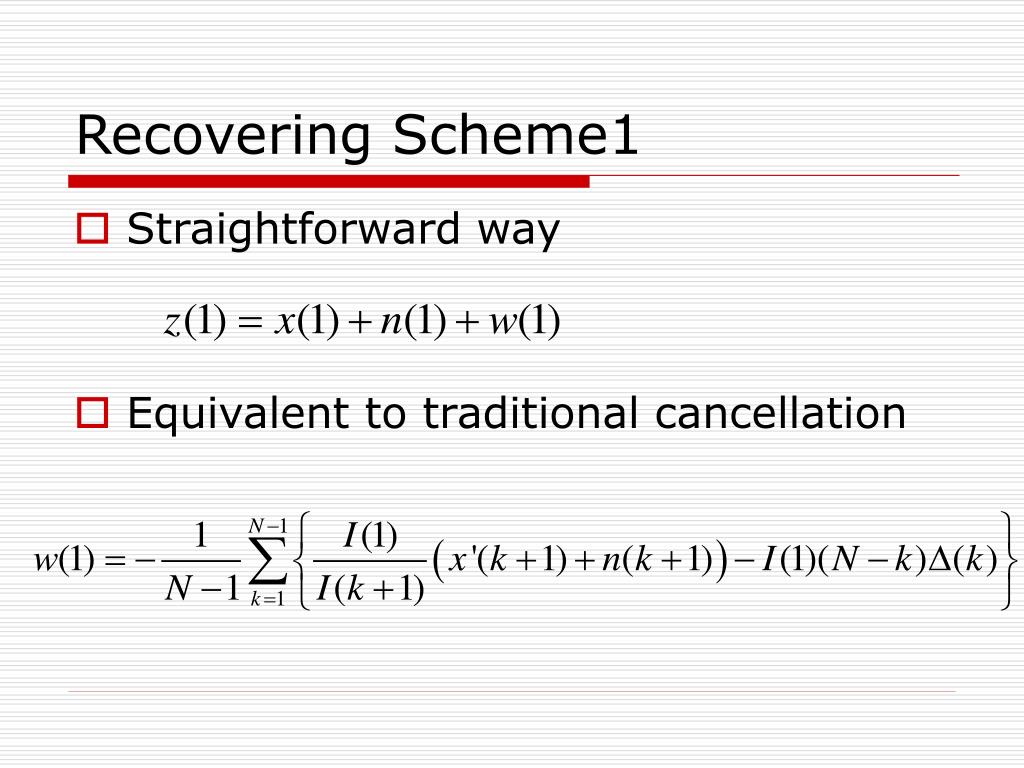

  7. Recovering Scheme1 • Straightforward way • Equivalent to traditional cancellation

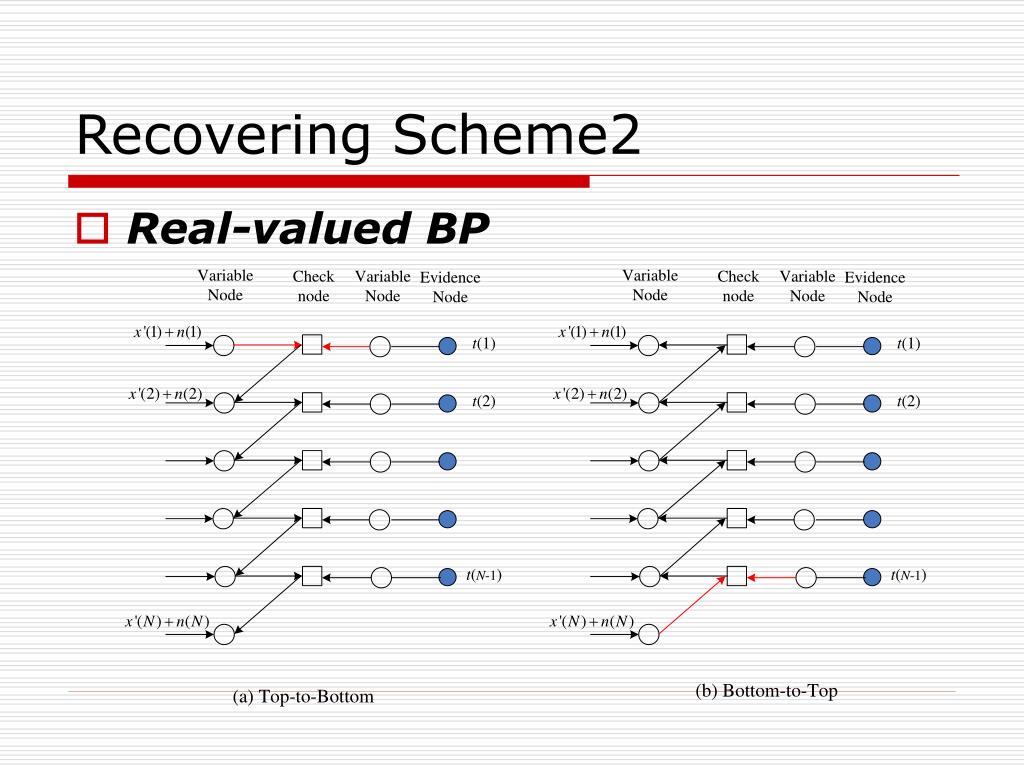

  8. Recovering Scheme2 • Real-valued BP

  9. Multipath Case • Scheme 1: cancel all the paths of the interference with complex RBP in one cycle • To be done • Scheme2: cancel each path one by one

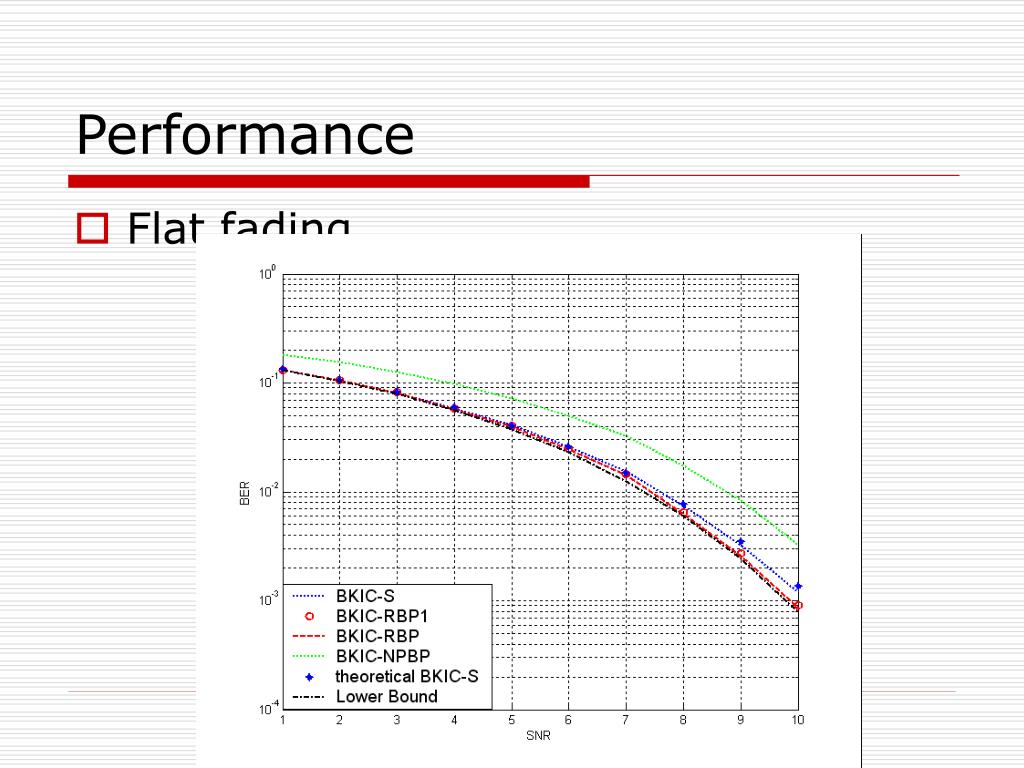

  10. Performance • Flat fading

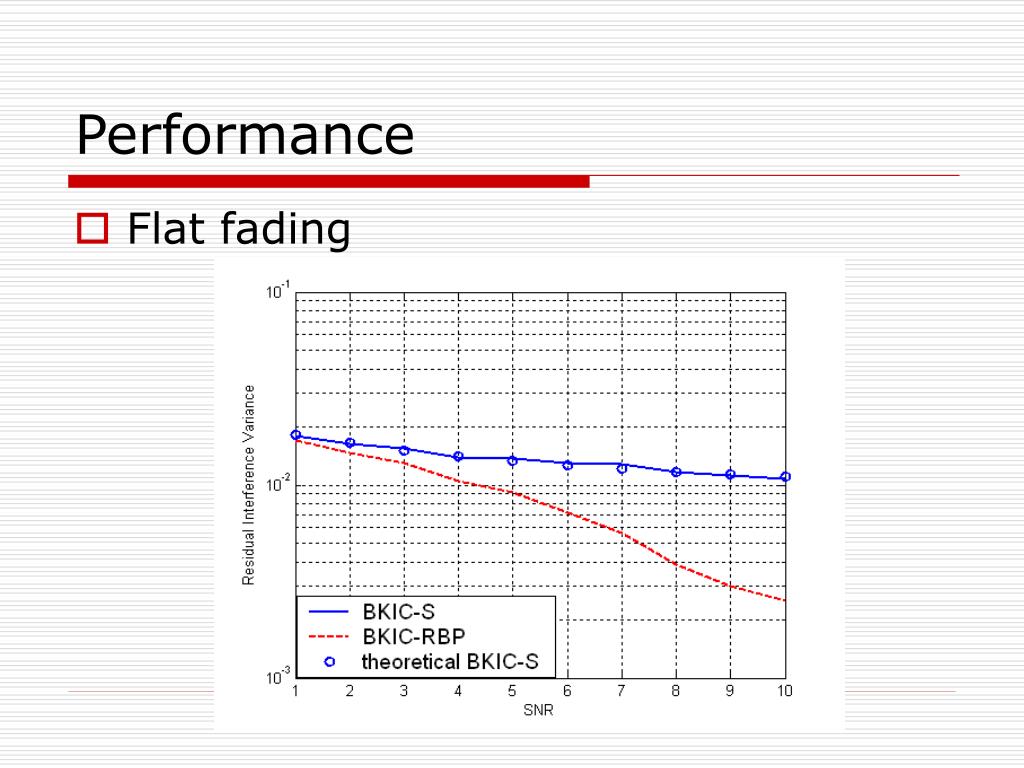

  11. Performance • Flat fading

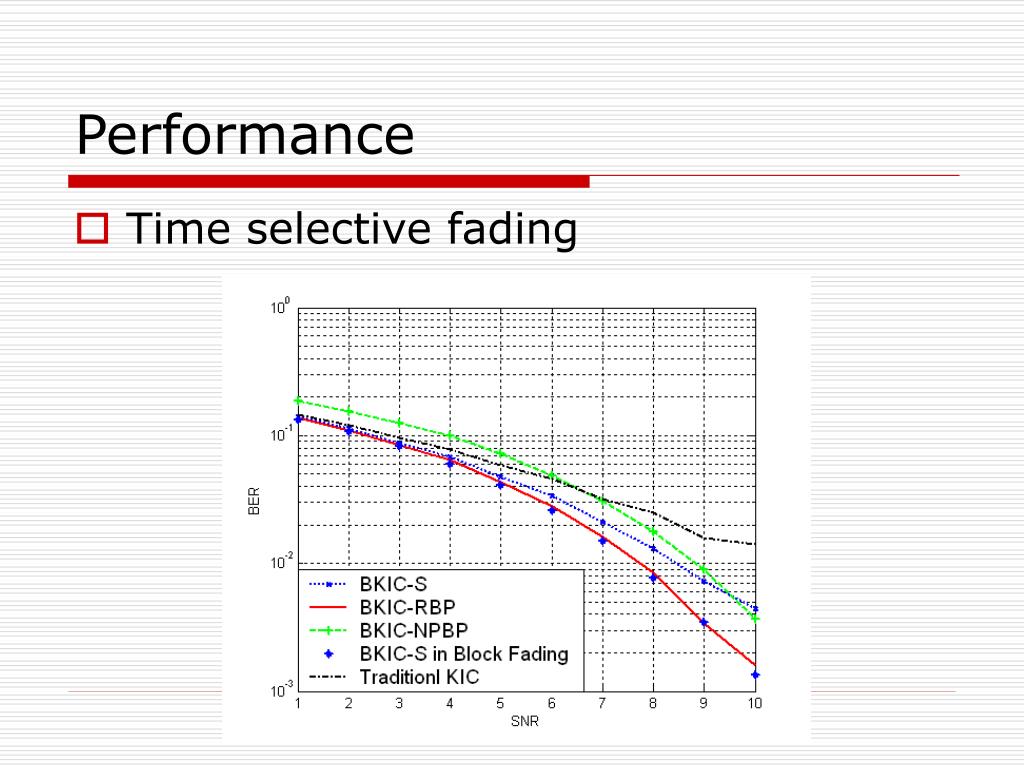

  12. Performance • Time selective fading

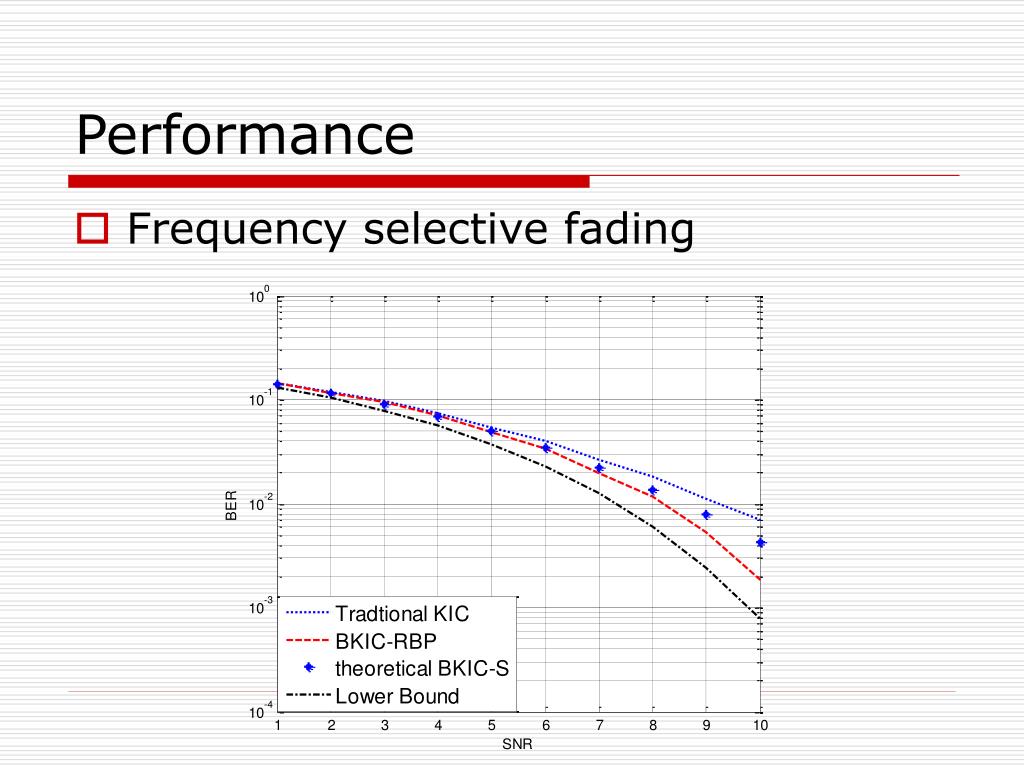

  13. Performance • Frequency selective fading

  14. Performance • Frequency selective fading

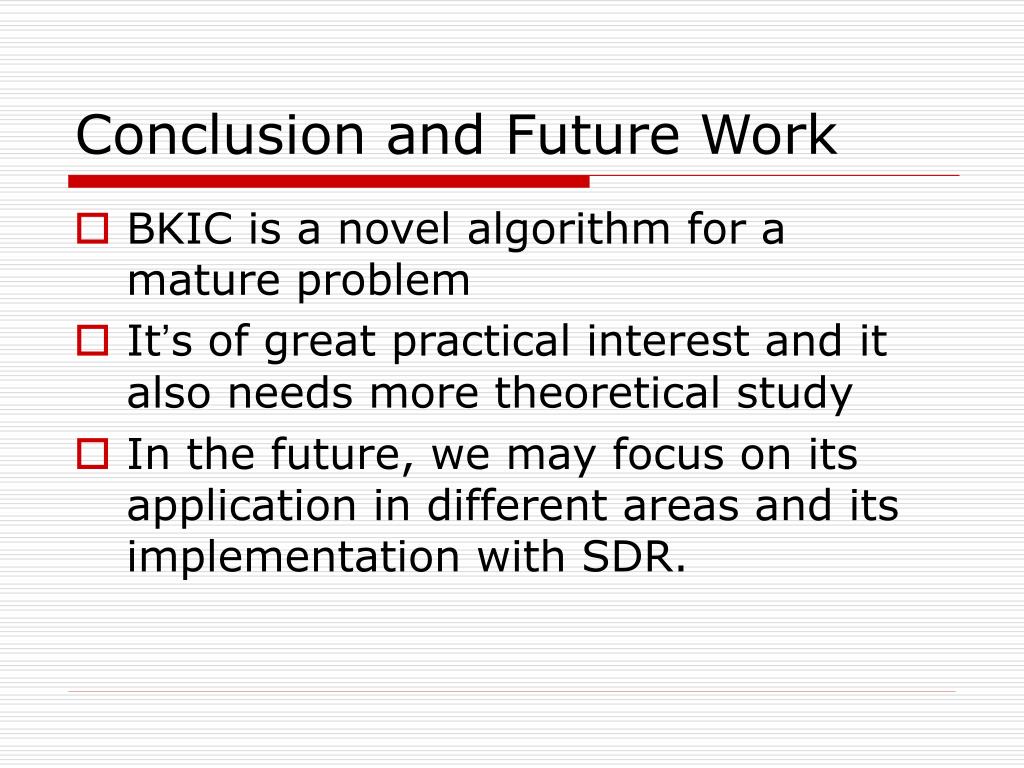

  15. Conclusion and Future Work • BKIC is a novel algorithm for a mature problem • It’s of great practical interest and it also needs more theoretical study • In the future, we may focus on its application in different areas and its implementation with SDR.
