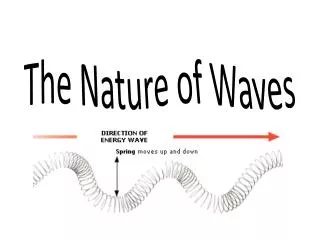

The Nature of Waves

Loading in 2 Seconds...

play fullscreen
1 / 22

The Nature of Waves - PowerPoint PPT Presentation


  • 80 Views
  • Uploaded on

The Nature of Waves. List the different types of waves present in the events described below:.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'The Nature of Waves' - avery


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
list the different types of waves present in the events described below

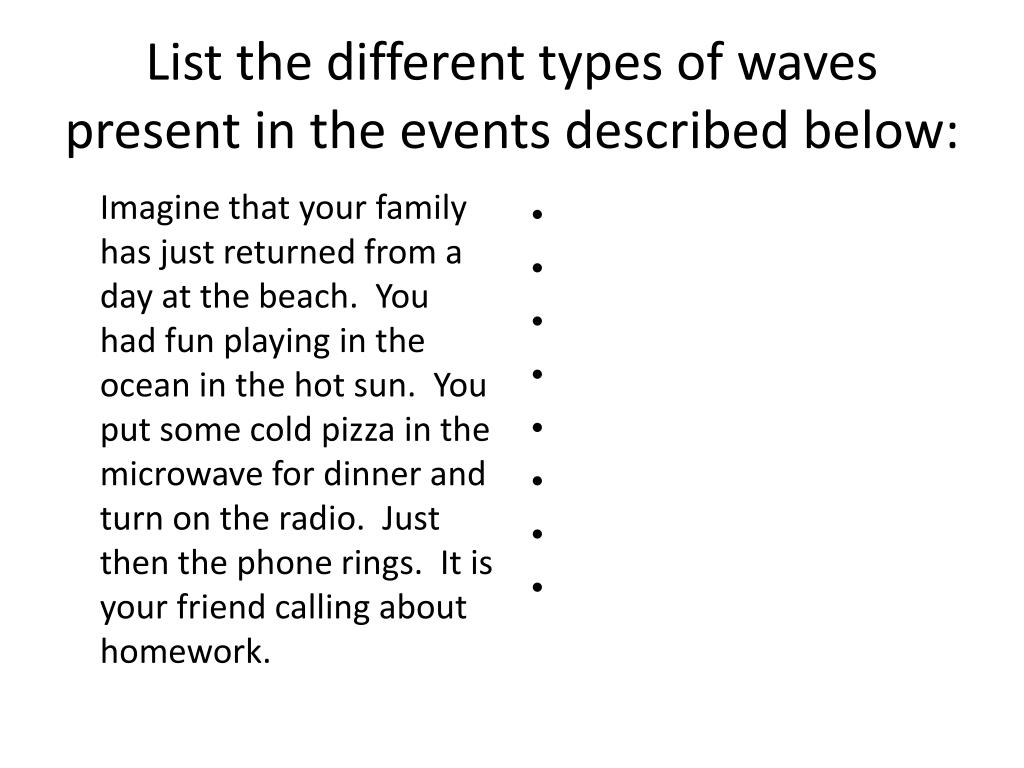

List the different types of waves present in the events described below:

Imagine that your family has just returned from a day at the beach. You had fun playing in the ocean in the hot sun. You put some cold pizza in the microwave for dinner and turn on the radio. Just then the phone rings. It is your friend calling about homework.

slide3

A Wave is any disturbance that transmits energy through matter-or-empty space.

    • Energy is carried away from its source by a wave.
    • Example: Dropping a pebble in a pond. Waves from the pebble’s splash carry energy away from the splash.
waves are everywhere in nature
Waves are everywhere in nature
  • sound waves
  • visible light waves
  • radio waves
  • microwaves
  • water waves
  • sine waves
  • telephone cord waves
  • stadium waves
  • earthquake waves
  • waves on a string
  • slinky waves
when a wave moves the material through which it travels does not move

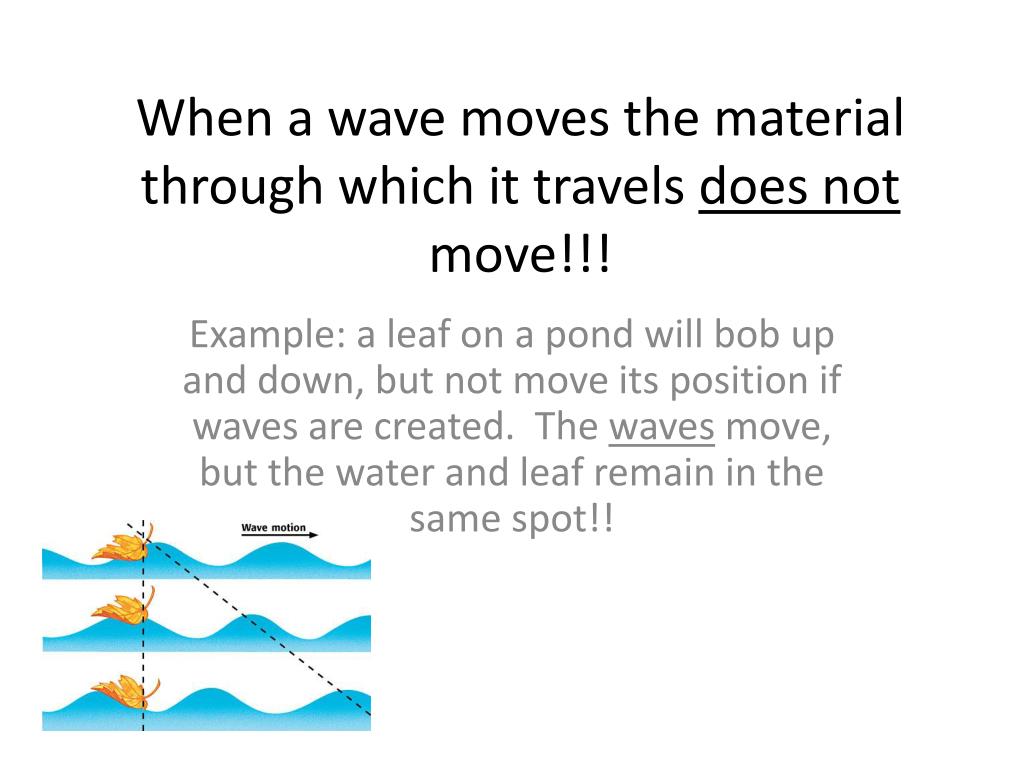

When a wave moves the material through which it travels does not move!!!

Example: a leaf on a pond will bob up and down, but not move its position if waves are created. The waves move, but the water and leaf remain in the same spot!!

how waves travel
How Waves Travel
  • Some waves need a substance to travel through.
  • The substance through which a wave can travel through is called a medium. This can be a solid, liquid, or gas.
  • These waves are called mechanical waves.
slide8
Explain what happens if an alarm clock is put in a jar and all of the air is vacuumed out of the jar.

________________________________________________________________________________________________________________________________________________________

slide9

Some waves do not need a medium to travel through. These waves are called electromagnetic waves.

  • Examples: Light, microwaves, x-rays
labeling a wave
Labeling a Wave:
  • The highest points of a wave are called crests.
  • The lowest points are called troughs.
amplitude is wave height measured from rest position to crest or trough
Amplitude is wave height, measured from rest position to crest or trough.
  • The higher the amplitude, the more energy the wave has!!
wavelength is the distance between two crests or two troughs
Wavelength is the distance between two crests or two troughs.
  • The shorter the wavelength the more energy the wave has!!
frequency is the number of waves produced in a given time
Frequency is the number of waves produced in a given time.
  • The higher the frequency the more energy!!!!
slide14

http://www.classzone.com/books/ml_science_share/vis_sim/wslm05_pg18_graph/wslm05_pg18_graph.htmlhttp://www.classzone.com/books/ml_science_share/vis_sim/wslm05_pg18_graph/wslm05_pg18_graph.html

  • http://www.solpass.org/5s/AP/wavelength.swf
wave interactions
Wave Interactions
  • Reflection =When a wave bounces back after hitting a barrier.

-Light rays from the sun reflecting off the moon allow you to see the moon.

-Light is reflected off of snow.

-A reflected sound wave is called an echo.

wave interactions1
Wave Interactions

2.Refraction = the bending of a wave when it passes through one medium to another at an angle.

Example: A pencil in a glass of water. The pencil seems bent because the light waves are moving from air to water.

slide20

3. Diffraction= the bending of waves around a barrier or an opening.

  • Example: when walking on a city street you can hear music coming from around the corner.
slide21

4. Interference= when two or more waves overlap.

  • Can be constructive (when two crests or two troughs overlap). The resulting wave has a larger amplitude, therefore it also has more energy.
interference continued
Interference (continued)

- Can be destructive (when the crest of one wave and the trough of another overlaps). If they have the same amplitude or height they cancel each other out.
