Distributed Systems

1. Distributed Systems

2. InterprocessCommunication (IPC) • Processes are either independent or cooperating • Threads provide a gray area • Cooperating processes can affect other processes execution • Reasons for cooperation • Information sharing • Parallelization • Modularity • Convenience • Cooperating processes must communicate (IPC) • Two models: • Shared memory • Message passing

3. Communication Models Process A Process A Shared Memory Process B Process B Kernel Kernel

4. Shared Memory • Processes • Each process has private address space • Must explicitly setup shared memory segments inside each process address space • Threads • Default behavior, always on • Advantages • Fast and easy to share data • Disadvantages • Must synchronize data accesses; error prone

5. Signals • Signal • Software based notification of event • Available signals for applications • SIGUSR1, SIGUSR2, etc… • Signal Reception • Catch: Process specifies a handler to call • Default is to ignore signal • Signals can also be masked • Disadvantages • Does not exchange data • Complex thread semantics

6. Message Passing • Processes exchange messages • Messages are arbitrary pieces of information • Explicit send and receive operations • Advantages • Explicit sharing (easier to reason about) • Improves modularity (well defined interfaces) • Improved isolation • Disadvantage • Performance overhead for handling messages

7. Message Passing • Where do you send a message? • How do you NAME recipients? • Depends on environment: IP + port, PID, UNIX pipe file • How do you parse a message? • Requires a protocol • Message format • Message order • Process states • Directionality • One way: one process always sends data, other receives • Two way: Receiver sends a reply for each message • Example: Remote Procedure Calls

8. Remote Procedure Calls • Invocation of a function in a separate process • Identifies which function to invoke • Provides function arguments • Sends return value back to caller • Function invocation info must be encapsulated into message • Marshaling • Transform arguments and return values into message data • Requires knowledge about data types • Either by hand or automated

9. Distributed File systems • Goal: View a distributed system as a file system • Storage is distributed • Issues not common to local file systems • Naming transparency • Load balancing • Scalability • Location and network transparency • Fault tolerance

10. Transfer Model • Upload/Download model • Client downloads file and modifies local copy • Uploads final result back to server • Simple with good performance • Remote Access model • File only exists on server, all I/O operations forwarded by client

11. Naming Transparency • Naming is a mapping from logical to physical objects • Ideally client interface should be transparent • No difference between local and remote files • No partitioning of namespace • 2 types of transparency • Location transparency: • path provides no info about location • Location independence: • Move files without changing names • Name space separate from storage device hierarchy

12. Caching • Keep repeatedly accessed blocks in cache • Improves performance of further accesses • Very similar to buffer cache • But cached copy can reside on local disk • Synchronization occurs much less frequently • Cache consistency becomes a much larger issue • Multiple levels of caching • Memory: Faster accesses, less state to track (NFS) • Disk: Reliable, allows disconnected operation (AFS)

13. Network File System (NFS) • Developed by Sun in 1984 • Joined FSes on multiple systems into one logical whole • Most common modern Distributed File System • Used by Facebook until 2009 • Assumptions • Allows arbitrary collection of users to share a file system • Clients and servers can be on different networks • Systems can act as both clients and servers simultaneously • Architecture • Server exports one or more directories to remote clients • Clients access exported directories by mounting them into local file system

14. Example

15. NFS Protocol • NFS operates over RPC operations for remote file access • All UNIX system calls OTHER than open and close • Searching a directory • Read directory entries • Manipulate links and directories • Read/Write files • Every operation is transmitted over network and performed on NFS server

16. No Open or Close? • Open and Close are intentionally left out • To read a file, a client sends a “lookup” message to server • Server finds file and returns a handle • Lookup does add entry to open file table • No file descriptor • Read RPCs include handle, offset, number of bytes, and data • Each message is independent and self contained • Pros: • Server is stateless, • Does not need to track open files • Cons: • Locking is difficult • No concurrency control

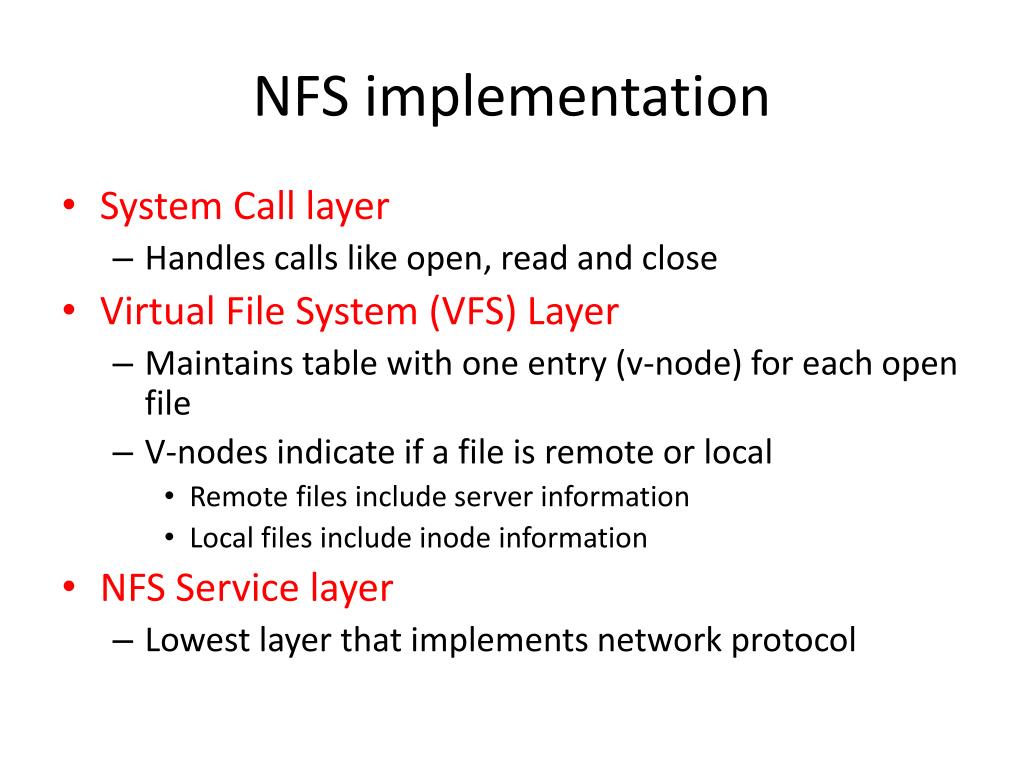

17. NFS implementation • System Call layer • Handles calls like open, read and close • Virtual File System (VFS) Layer • Maintains table with one entry (v-node) for each open file • V-nodes indicate if a file is remote or local • Remote files include server information • Local files include inode information • NFS Service layer • Lowest layer that implements network protocol

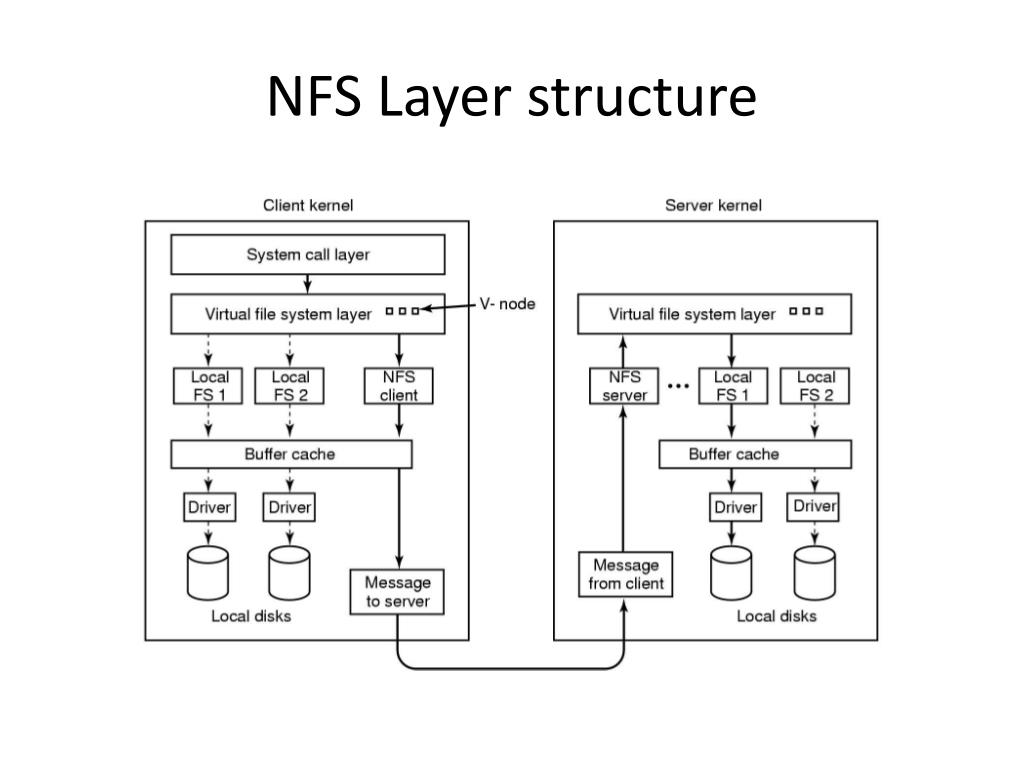

18. NFS Layer structure

19. Cache Coherency • Clients cache file attributes and data • If two clients cache the same data, cache coherency is lost • Solutions • Each block has a timer (data: 3 sec, dirs: 30 sec) • Entries discarded when time expires • When opening cached files, check modification time on server • If cache is old, discard data • Flush cache to server every 30 seconds

20. Andrew File System (AFS) • Developed at CMU for student computing • Consists of workstation clients and dedicated file servers • Workstations have local disks to cache used files • Originally entire files, now just 64KB chunks • Single namespace for every system in the world • /afs/cs.pitt.edu • Very good for widely distributed operation • Local disk caching allows very fast performance on slow connections • Startup is slow, but afterwards most accesses are local

21. AFS Overview • Based on upload/download model • Clients download and cache files • Server keeps track of clients with cached copies • Clients upload files at end of session • Whole file caching is central idea behind AFS • Later changed to block operations • Simple and effective • AFS servers are stateful • Keep track of clients that have cached files • Recall files that have been modified

22. AFS Details • Based on dedicated server machines • Clients see partitioned namespace • Local name space and shared name space • Cluster of dedicated AFS servers present shared name space • AFS file names work anywhere in the world • /afs/cs.pitt.edu/usr0/jacklange

23. AFS: Operations and Consistency • AFS caches entire files from servers • Client interacts with servers only for open/close • OS on client intercepts calls, and passes it to local AFS process • Local process caches files from servers • Contacts AFS servers for each open/close • Only if file is not in cache • File reads/writes operate on local cached copy

24. AFS Caching and Consistency • Need for scaling led to reduction of client-server message traffic • Once a file is cached, all operations are performed locally • Cache is on disk, so normal FS operations are used • On close, if file is modified, it is replaced on the server • What happens if multiple clients share a file? • Client assumes its cache is up to date… • Unless it receives a callback message from server • On file open, if client has received callback for that file, it must fetch a new copy

25. Summary • NFS • Simple distributed file system protocol • Stateless (No open/close) • Has problems with cache consistency and locking • AFS • More complex protocol • Stateful server • Session semantics • Consistency on close
