  1. Build Your Own Robot Arm Douglas Gorham April 2011

  2. Build Your Own Robot Arm We will build a robot arm from simple materials What will we do today?

  3. Robot Arm Why is this experiment useful to teachers and students? It teaches technological design It requires mathematical calculations for design It relates to the studies of motion and force It requires communication through writing (design) and orally (explaining the design principles)

  4. Robot Arm Geometry: Use visualization, spatial reasoning, and geometric modeling to solve problems Analyze characteristics and properties of two- and three-dimensional geometric shapes and develop mathematical arguments about geometric relationships Problem Solving: Recognize and apply geometric ideas in areas outside of the mathematics classroom Apply and adapt a variety of appropriate strategies Communication: Communicate mathematical thinking coherently and clearly to peers, teachers, and others Principles & Standards for School Mathematics

  5. Robot Arm The Canadarm • Canadarm 1, also known as Shuttle Remote Manipulator System • Used on the space shuttle to maneuver loads of up to 29 tons • Developed by SPAR Aerospace Ltd., out of Edmonton

  6. Robot Arm The Canadarm 2 • Canada’s primary contribution to the International Space Station • Mobile Servicing Station • Space Station Remote Manipulator • Mobile Remote Servicer Base System • Special Purpose Dexterous Manipulator • 17 meters fully extended Dextre

  7. Robot Arm We will build a robot arm from simple materials The arm must pick up a plastic cup from a distance of 45cm Lift the cup to a height of at least 15cm Bring the cup back to rest and release it Pick up cup upside down Building the Canadarm 3

  8. Robot Arm You cannot get too close… Robot Arm Student Cup 45cm You cannot get any closer than 45cm to the cup at any time

  9. Robot Arm Hanger Cardboard Clothespins Popsicles sticks Rubber bands Binder clips Paper clips Golf pencils Tape Paper fasteners Plastic bag Available Materials

  10. Robot Arm Divide into teams of two (2) Review the requirements Discuss a solution and create a sketch of your design Build a model of your design with given materials Test your model Outline and Procedures

  11. Robot Arm Discuss and agree upon a redesign If needed after testing, or to enhance the previous design Rebuild your robot arm Retest your model Answer reflection questions as a team Redesign after testing

  12. Robot Arm The arm must pick up a plastic cup from a distance of 45cm Lift the cup to a height of at least 15cm Bring the cup back to rest and release it Lift and release the cup when it is upside down Design requirements

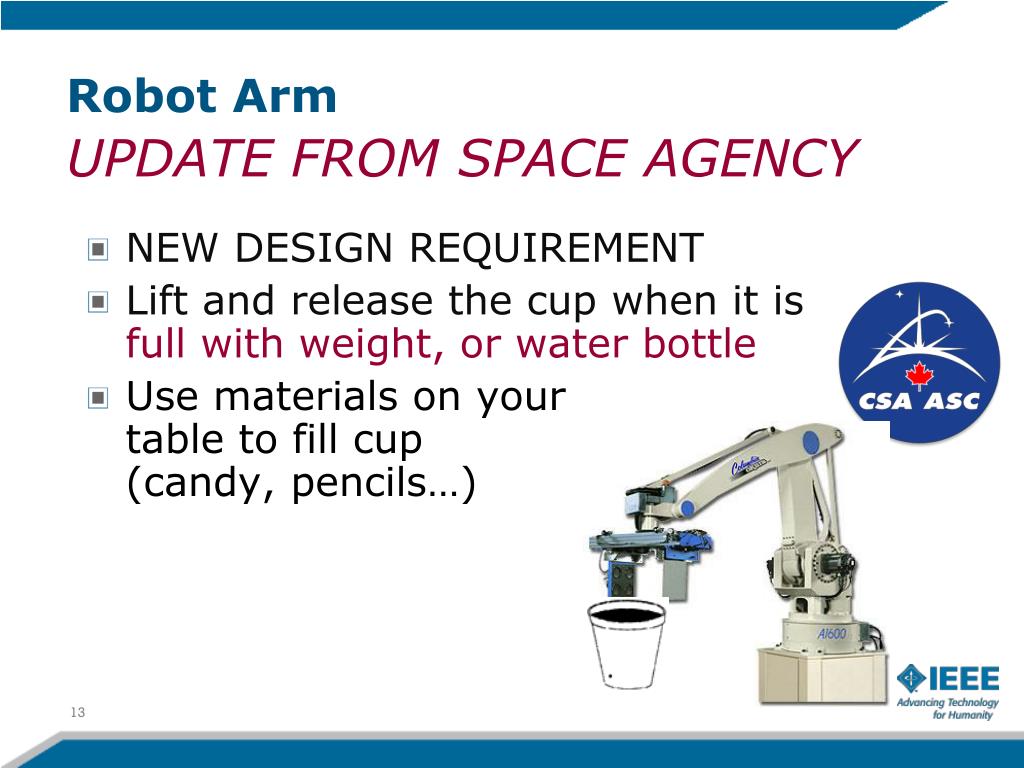

  13. Robot Arm NEW DESIGN REQUIREMENT Lift and release the cup when it is full with weight, or water bottle Use materials on yourtable to fill cup(candy, pencils…) UPDATE FROM SPACE AGENCY

  14. Robot Arm The arm must pick up a plastic cup from a distance of 45cm Lift the cup to a height of at least 15cm Bring the cup back to rest and release it Lift and release the cup when it is upside down Lift and release water bottle Design requirements

  15. Robot Arm NEW DESIGN REQUIREMENT Need a single device that can manipulate a cup as well as a pen. Device can use two different endmanipulators UPDATE FROM SPACE AGENCY

  16. Robot Arm The arm must pick up a plastic cup from a distance of 45cm Lift the cup to a height of at least 15cm Bring the cup back to rest and release it Lift and release the cup when it is upside down Lift and release water bottle Use the same design (possibly with a modified end manipulator) to lift a pen Design requirements

  17. Robot Arm What was one thing you liked about your design? What is its main weakness? What is one thing you would change about your design based on your experience Are there algebraic and physical principles that can be applied to this activity? How would you modify the instructions to create a better experience for the participants? Reflection Questions
