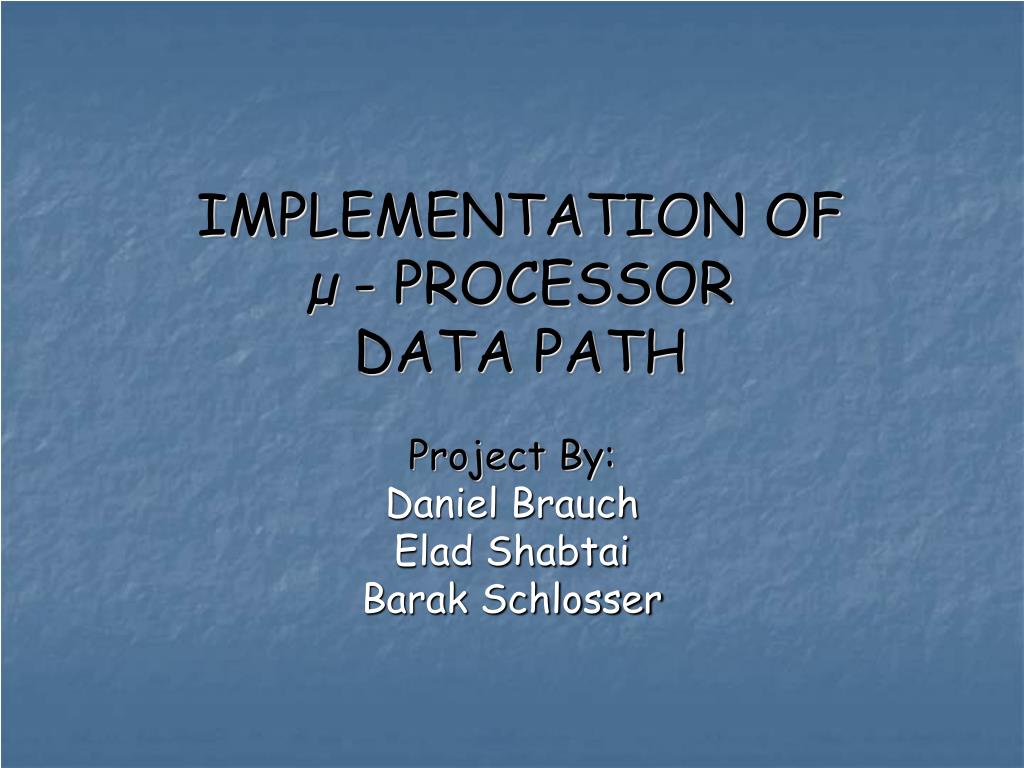

  1. IMPLEMENTATION OF µ - PROCESSORDATA PATH Project By: Daniel Brauch Elad Shabtai Barak Schlosser

  2. Project Goals • Designing and implementing the schematic and layout design of an 8 bit µProcessor data path , which will include an ALU Manchester carry look ahead and a barrel shifter. • Testing the design for accuracy and performance.

  3. Data Path overall design

  4. Applications: • The data path is the core element of every micro processor and thus included in every application that performs arithmetic calculations ,logic evaluation and data movement.

  5. Implementation Notes : • The ALU will be built from a Manchester carry look ahead adder and eight 1 bit ALU. • The output of the ALU will be inserted into the shift register for shifting operations. • The barrel shifter can perform up to 3 bit shifts in a single combinational function. • The inputs for the ALU are valid on the rise of the clock.

  6. Design Specifications: • ALU: • Inputs: two 8-bit words (A,B) 3-bit ALU controls. 3-bit shift controls. 1-bit clock. * Cin bit will be generated from the ALU control bits • Output: 8-bit word (F), 1 carry out. • Functions: A or B, A and B, A xor B, A + B, A – B , B – A , Pass A, Pass B

  7. Design Specifications: • Barrel Shifter: • Can multiply by 1, 2 , 4 or 8 by shifting left 0, 1 ,2 or 3 bits. • General: • Power supply: Vdd is set to 5 volts referenced to ground. • Size specifications: Final physical size must be optimized. • Time specifications: All data andcontrol bits are set on the rise of the clock. The maximum propagation delay for all functions must be less than 100ns.

  8. Manchester Carry

  9. Manchester Carry Chain

  10. Manchester Carry explanation • For each bit 2 values are calculated: • Pi = Ai XOR Bi • Gi = Ai AND Bi • On the rise of the clock the upper PMOS gates are closed and the bottom NMOS are open enabling the pull down of the carry out bar. • The Pi controls enables the propagation of the Cout signals. • The max propagation delay is caused by the pulling down of all the carry out bar signals.

  11. Manchester Carry cont. • The main advantage of the Manchester chain is its small physical size. • In terms of propagation delay the Manchester chain is situated in the middle of the scale.

  12. Comparison between different Full Adders

  13. 1 bit ALU implementation S2 S1 Cin B A’ B A MUX 4:1 FULL ADDER Out LOGIC S1 S0 A’ 0 0 B’ MUX 4:1 XOR AND OR

  14. ALU control bits 001 : OR 010 : AND 100 : XOR CHAIN XOR - 111 000 : B - A 111 : A - B Equivalence F.A 011 : A + B 110 : PASS A 101 : PASS B

  15. MUX 4:1 implementation A B C D

  16. 1 bit FULL ADDER implementation SUM = A xor B xor C C B A ** no need to compute carry out – calculated by Manchester carry look ahead

  17. Tanner S-Edit modules implementation

  18. Manchester – module :

  19. Simulation results : Carry all: Carry last – worst case propagation ~10ns:

  20. Barrel shifter – module :

  21. Simulation results - shifting01001011:

  22. 1 bit ALU :

  23. Data Path – modules : Calculate Cin : Define Cin : Shifter : Alu1bit * 8 - 8 bit output : Choose output from Alu / Manchester :

  24. 8 bit ALU - module : • Including : • Cin logic • Manchester chain • Alu • Cout logic

  25. 8 bit ALU - design :

  26. 8 bit ALU simulation - pass A (00000001) :

  27. 8 bit ALU simulation - AND A (10001001) B (10000001) :

  28. DataPath –module :

  29. DataPath simulation : (A + B) * 4 A=00001010 B=00000011

  30. DataPath simulation : (A + B) * 4 A=00001010 B=00000011

  31. VHDL Simulation

  32. VHDL – simulation resaults: Start – opCode 000 : End – opCode 111 :

  33. Advantages of design : • Parallel implementation of calculations. • Minimal number of transistors in current implementation ~ 600 transistors - Trivial implementation using mux 8*1 with scmos implementation ~ 1300 transistors - Less transistors thus low on power consumption and faster in propagation ~ 40 ns

  34. Milestones • Studying design options for the ALU, Manchester carry look ahead and shifter - Due 01/06/04 • Implementing all 3 units in gate level and testing them for correctness and performance - Due 08/06/04 • Combining units and testing overall design - Due 15/06/04 • Creating VHDL test bench and comparing designs - Due 22/06/04 • Grade : ?
