  1. Types of Circuit Breakers

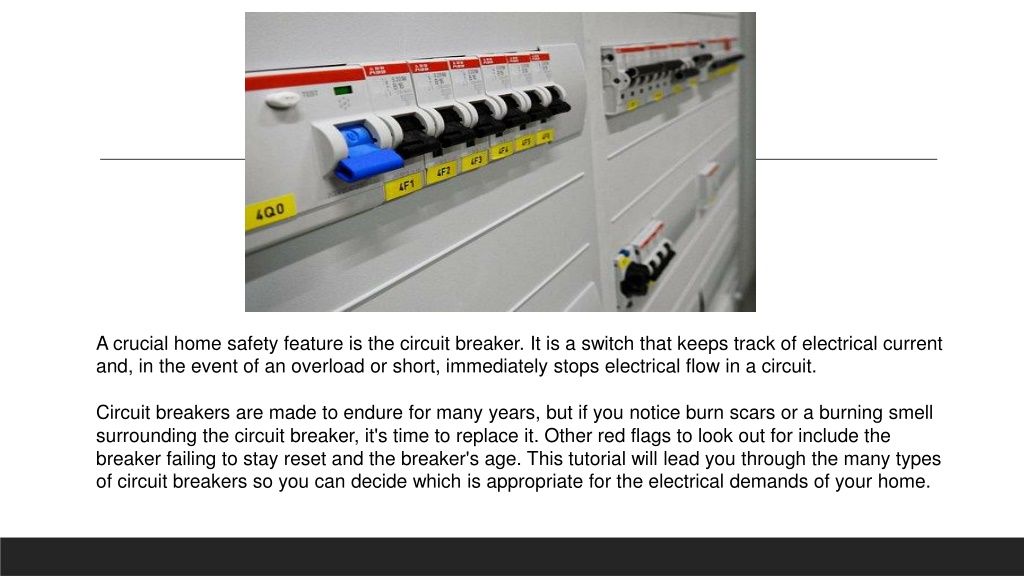

  2. A crucial home safety feature is the circuit breaker. It is a switch that keeps track of electrical current and, in the event of an overload or short, immediately stops electrical flow in a circuit. Circuit breakers are made to endure for many years, but if you notice burn scars or a burning smell surrounding the circuit breaker, it's time to replace it. Other red flags to look out for include the breaker failing to stay reset and the breaker's age. This tutorial will lead you through the many types of circuit breakers so you can decide which is appropriate for the electrical demands of your home.

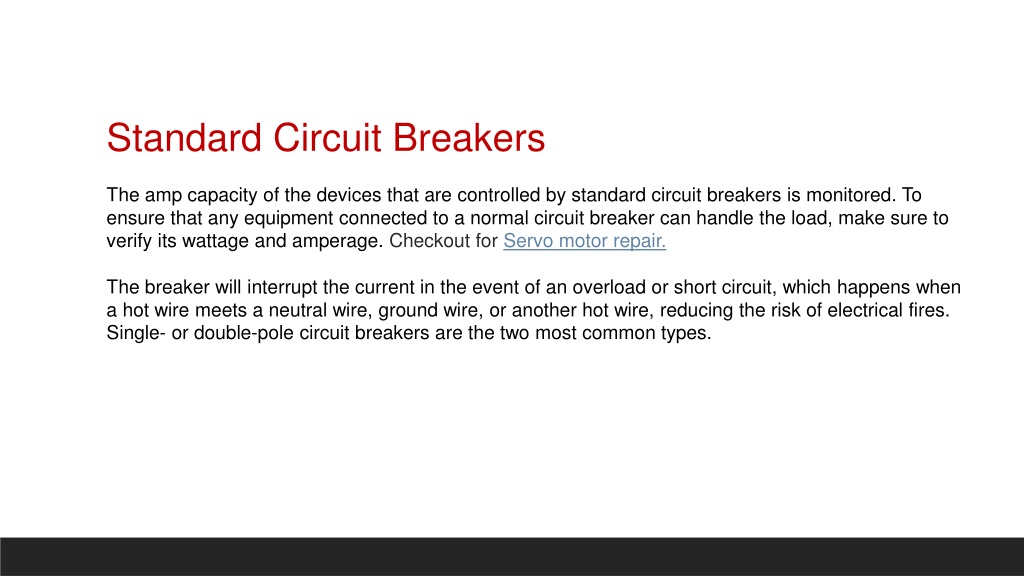

  3. Standard Circuit Breakers The amp capacity of the devices that are controlled by standard circuit breakers is monitored. To ensure that any equipment connected to a normal circuit breaker can handle the load, make sure to verify its wattage and amperage. Checkout for Servo motor repair. The breaker will interrupt the current in the event of an overload or short circuit, which happens when a hot wire meets a neutral wire, ground wire, or another hot wire, reducing the risk of electrical fires. Single- or double-pole circuit breakers are the two most common types.

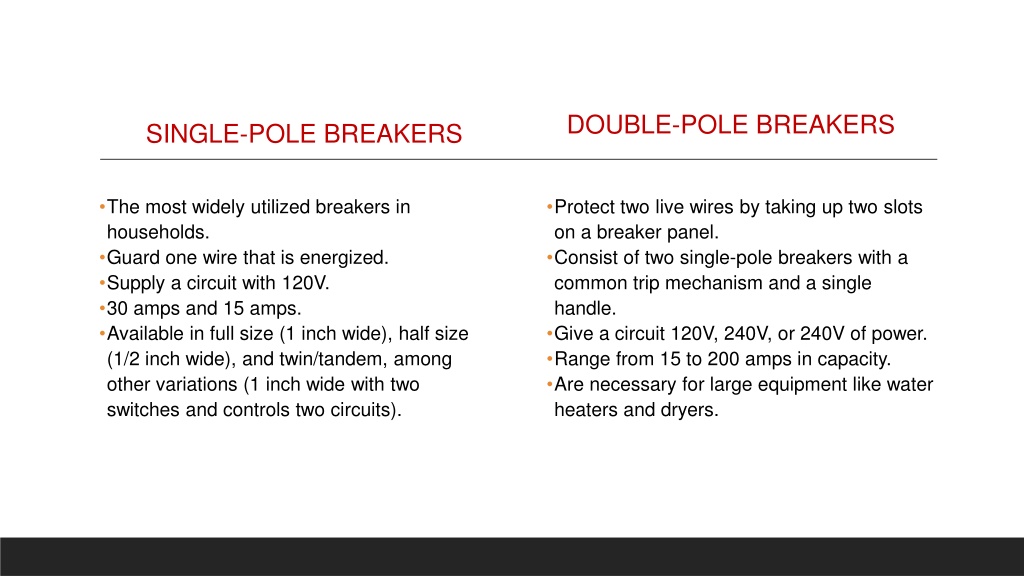

  4. Single-pole breakers Double-pole breakers Protect two live wires by taking up two slots on a breaker panel. Consist of two single-pole breakers with a common trip mechanism and a single handle. Give a circuit 120V, 240V, or 240V of power. Range from 15 to 200 amps in capacity. Are necessary for large equipment like water heaters and dryers. • The most widely utilized breakers in households. • Guard one wire that is energized. • Supply a circuit with 120V. • 30 amps and 15 amps. • Available in full size (1 inch wide), half size (1/2 inch wide), and twin/tandem, among other variations (1 inch wide with two switches and controls two circuits).

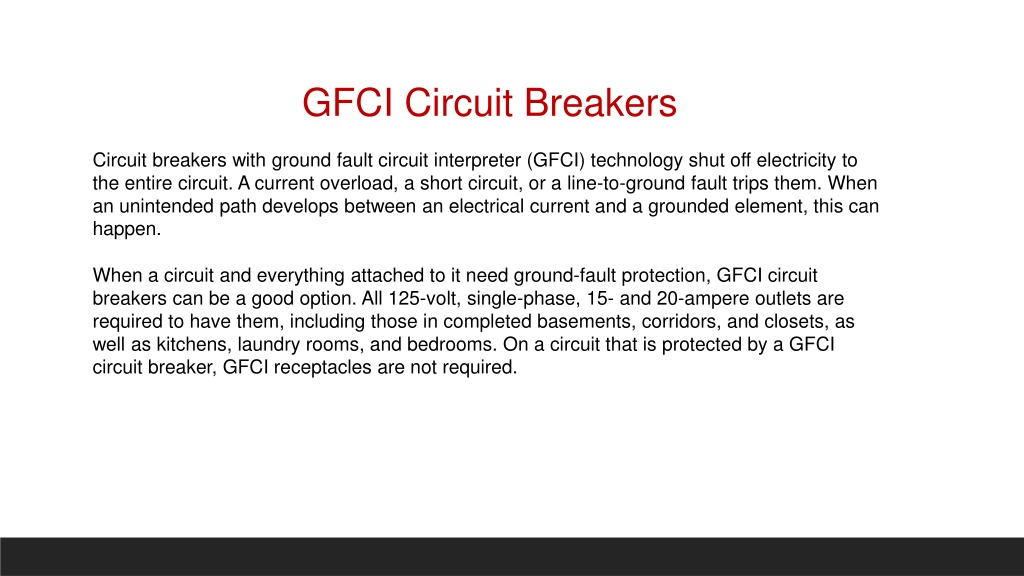

  5. GFCI Circuit Breakers Circuit breakers with ground fault circuit interpreter (GFCI) technology shut off electricity to the entire circuit. A current overload, a short circuit, or a line-to-ground fault trips them. When an unintended path develops between an electrical current and a grounded element, this can happen. When a circuit and everything attached to it need ground-fault protection, GFCI circuit breakers can be a good option. All 125-volt, single-phase, 15- and 20-ampere outlets are required to have them, including those in completed basements, corridors, and closets, as well as kitchens, laundry rooms, and bedrooms. On a circuit that is protected by a GFCI circuit breaker, GFCI receptacles are not required.

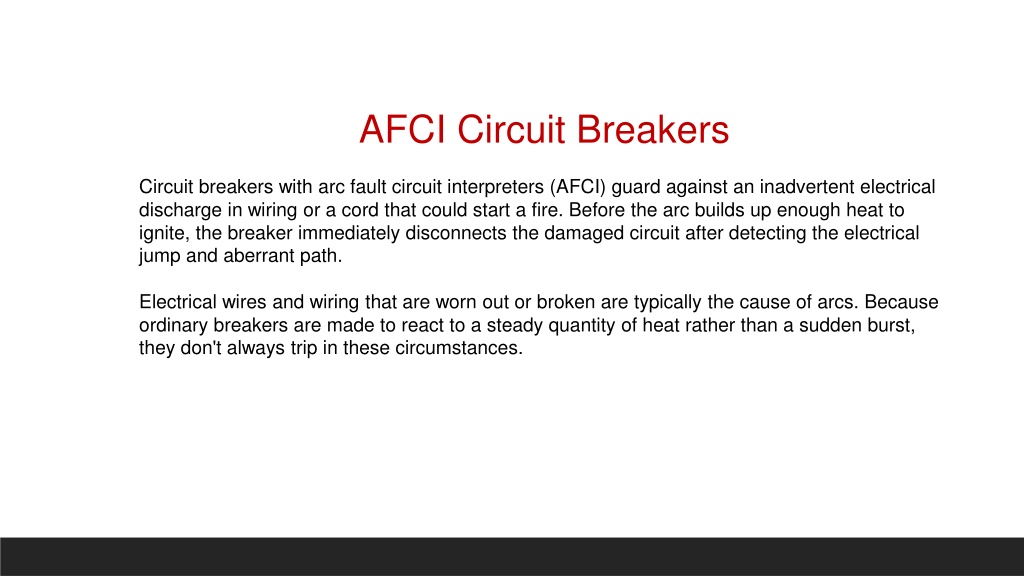

  6. AFCI Circuit Breakers Circuit breakers with arc fault circuit interpreters (AFCI) guard against an inadvertent electrical discharge in wiring or a cord that could start a fire. Before the arc builds up enough heat to ignite, the breaker immediately disconnects the damaged circuit after detecting the electrical jump and aberrant path. Electrical wires and wiring that are worn out or broken are typically the cause of arcs. Because ordinary breakers are made to react to a steady quantity of heat rather than a sudden burst, they don't always trip in these circumstances.
